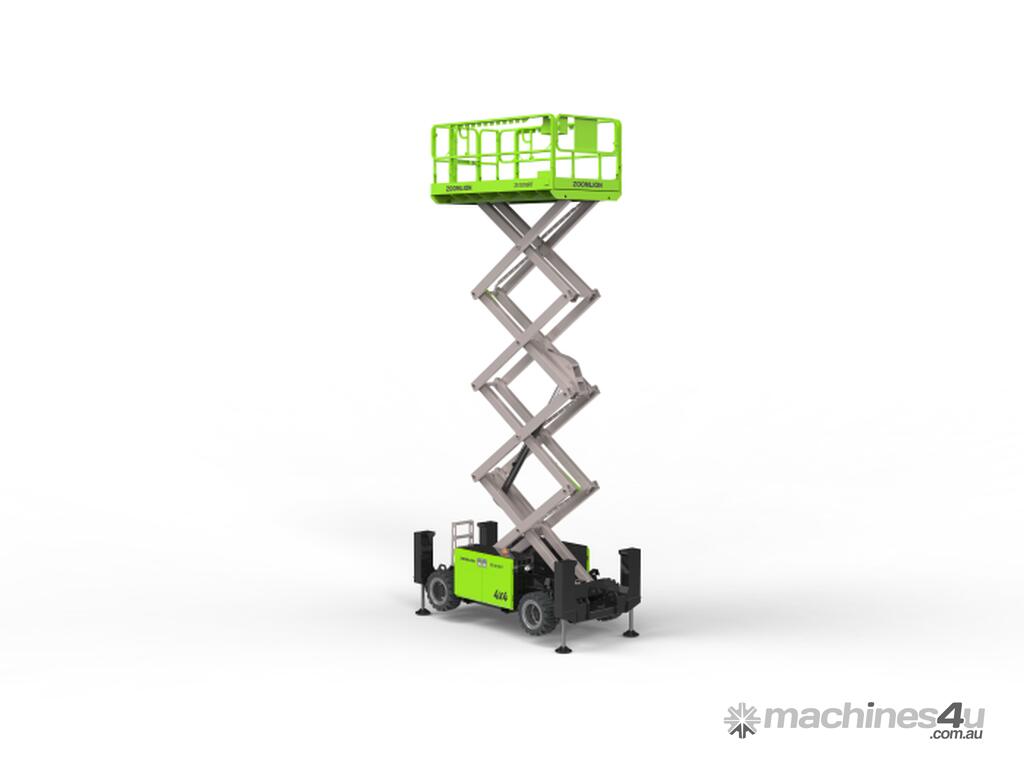

Zoomlion ZS1018RT Rough Terrain

Strong capacity of 680kg (1500lb) with high working efficiency; 4WD and axle oscillation provide great off-road capability.

One-Click leveling function; Bilateral power system effective to lower noise.

Swing-out tray easy to service.

Size
Weight
METRIC / IMPERIAL
Work Height 12m
A Platform Height-Elevated 10m
B Platform Height-Stowed 1.50m
C Platform Dimension (Length) 2.90m
D Platform Dimension (Width) 1.52m
Platform Extension 1.5m
Overall Height (Rails Up) 2.60m
Overall Height (Rails Down) 1.90m
F Overall Length (With/Without Outriggers) 3.71m / 3.14m
G Overall Width 1.77m
H Wheelbase 2.29m
I Ground Clearance

Performance
Weight
METRIC / IMPERIAL
Platform Capacity 500kg
Capacity on Deck Extension 113kg
Drive Height Full height
Max. Number of Workers (Inside/Outside) 4/2
Drive Speed (Stowed) 5km/h
Drive Speed (Raised) 0.4km/h
Turning Radius (Inside) 2.0m
Turning Radius (Outside) 4.2m

Up/Down Time 45/45s
Gradeability 40% (22°)
Max. Working Slope (Lateral/Vertical) 2°/3°
Drive

Power
Weight
METRIC / IMPERIAL
Engine D1105
