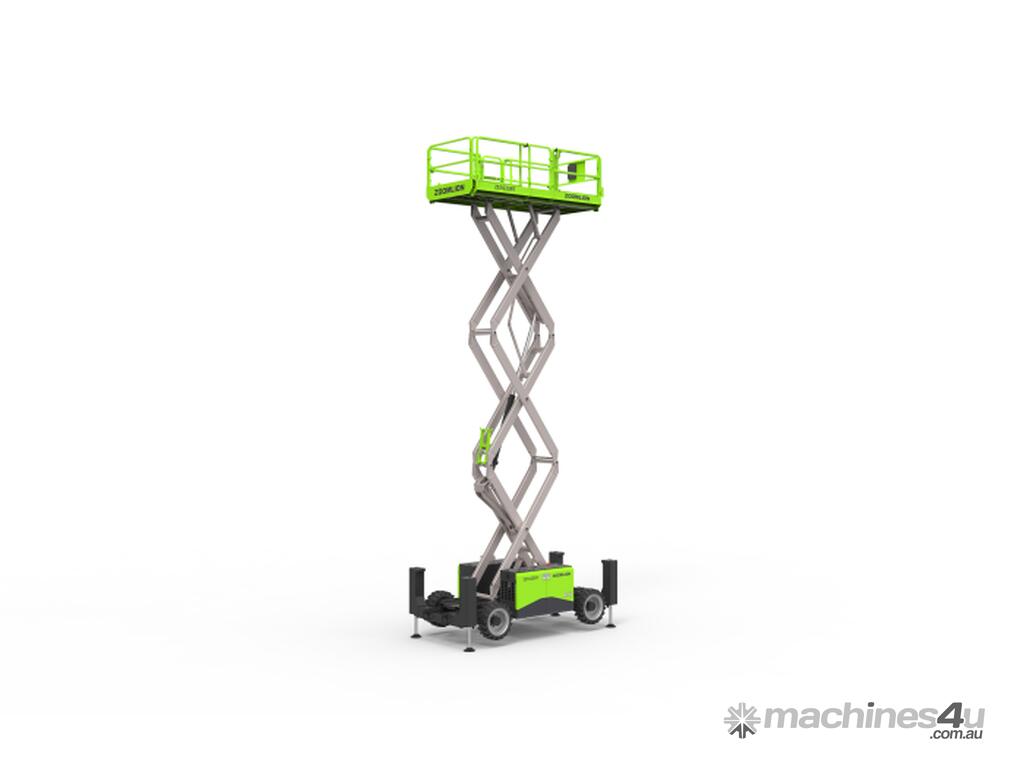

Zoomlion ZS1023RT Rough Terrain

Strong capacity of 680kg (1500lb) with high working efficiency; 4WD and axle oscillation provide great off-road capability.

One-Click leveling function; Bilateral power system effective to lower noise.

Swing-out tray easy to service.

Size
METRIC / IMPERIAL
Work Height 12m
A Platform Height-Elevated 10m
B Platform Height-Stowed 1.63m
C Platform Dimension (Length) 3.98m
D Platform Dimension (Width) 1.83m
Platform Extension 1.3m
Overall Height (Rails Up) 2.74m
Overall Height (Rails Down) 2.05m
Overall Length (With Legs) 4.88m
Overall Length (Without Legs) 3.98m
Overall Width 2.3m
Wheelbase 2.9m
Ground Clearance

Performance
Weight
METRIC / IMPERIAL
Platform Capacity 1150kg
Capacity on Deck Extension 230kg
Drive Height 10m
Max. Number of Workers 7
Drive Speed (Stowed) 6.5km/h
Drive Speed (Raised) 0.5km/h
Turning Radius (Inside) 2.75m
Turning Radius (Outside) 5.8m
Up/Down Time 45/40s
Gradeability 50% (28°)
Max. Working Slope (Lateral/Vertical) 2°/3°
Drive 4WD
Tire 33×12

Power
Weight
METRIC / IMPERIAL
Engine V2403-CR-E5B-ZML-2
Engine Power 36.8kw/2700rpm
Fuel Tank Capacity 105L
Diesel Tank 100L
