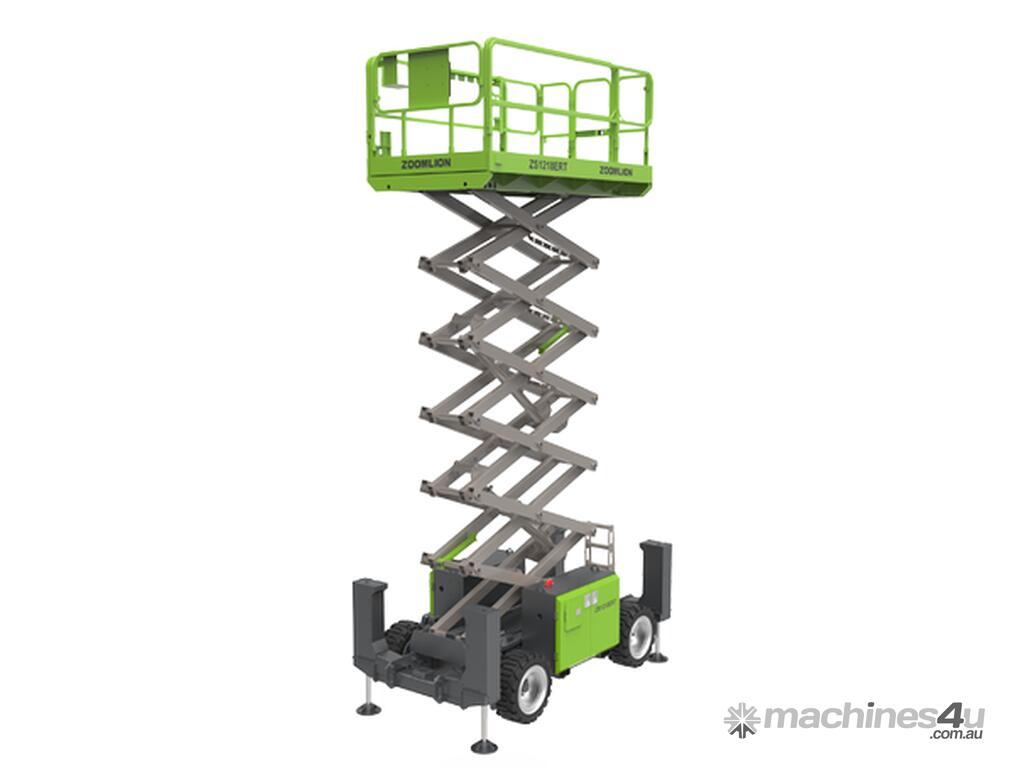

Zoomlion ZS1218ERT Rough Terrain

Divable at full height, high working efficiency

AC motor drive and oscillating axle, great off-road performance

Click-to-level function

40% gradeability, good adaptability

Large ground clearance, easy to travelacross

Light weight and compact for flexible application

Size
Weight
METRIC / IMPERIAL
Work Height 13.8m

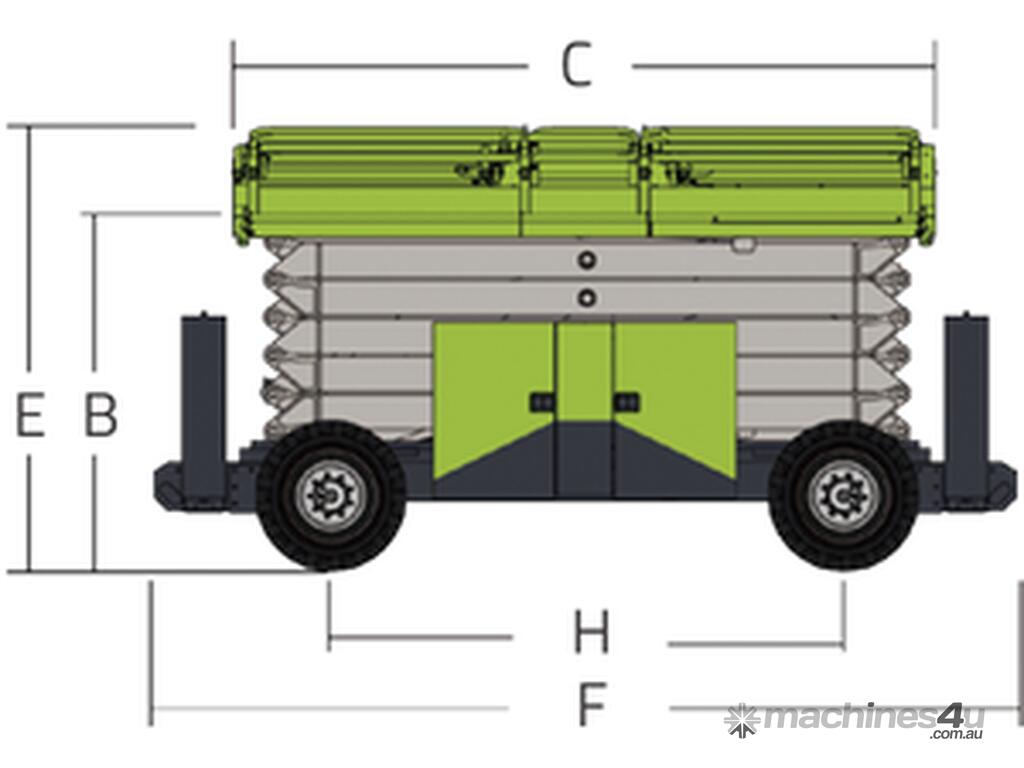

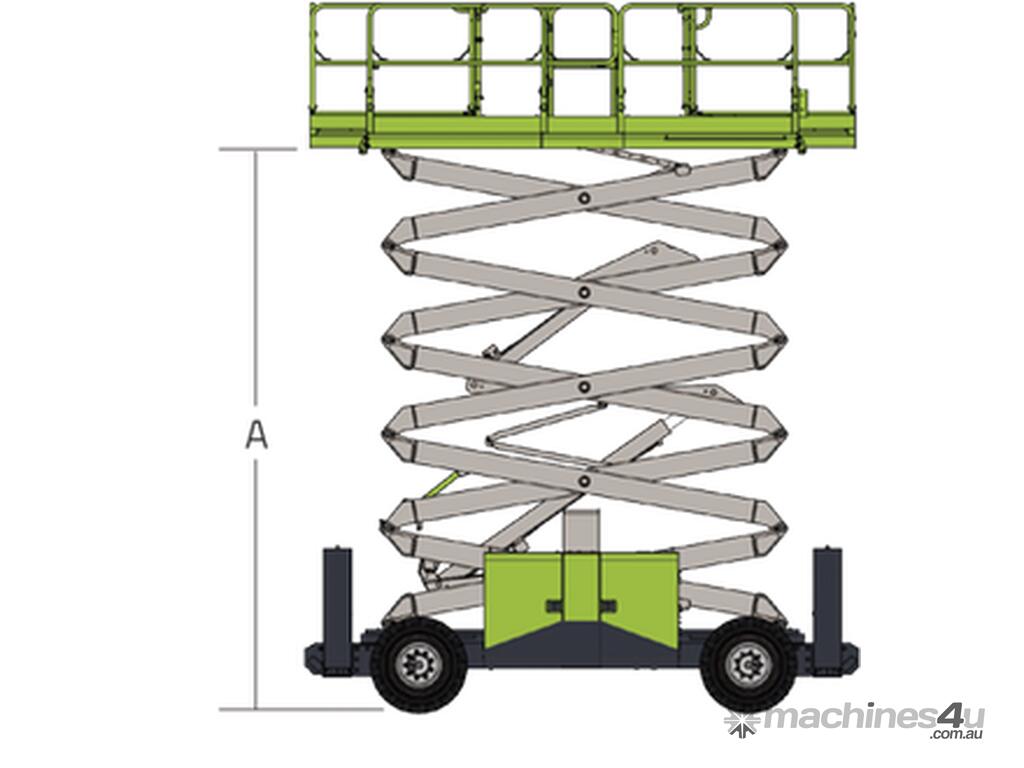

A - Platform Height-Elevated 11.8m
B - Platform Height-Stowed 1.65m
C - Platform Length (With/Without Outriggers) 2.75m

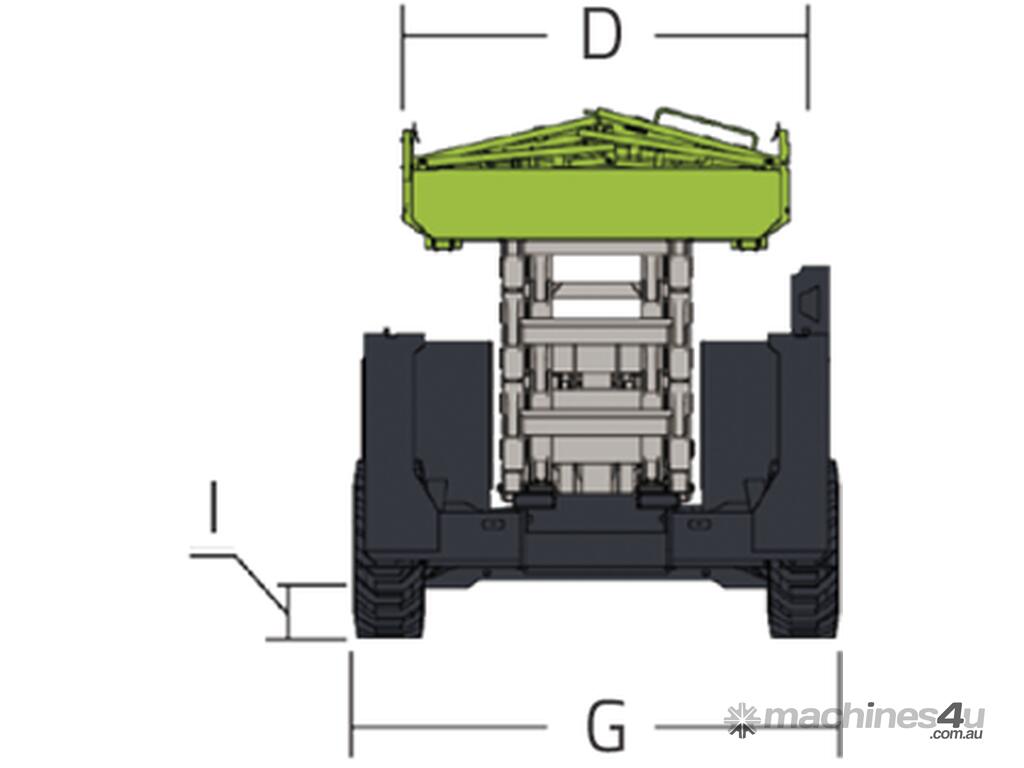

D - Platform Width 1.52m
Platform Extension 1.2m
E - Overall Height (Rails Up) 2.74m
Overall Height (Rails Down) 2.05m
F - Overall Length (With/Without Outriggers) 3.6m / 3.5m
G - Overall Width 1.75m
H - Wheelbase 1.95m
I - Ground Clearance

Performance
Weight
METRIC / IMPERIAL
Platform Capacity 350kg
Capacity on Deck Extension 113kg
Drive Height full height
Max. Number of Workers (Indoor/Outdoor) 3/2
Drive Speed (Stowed) 6km/h
Drive Speed (Raised) 0.5km/h
Turning Radius (Inside) 2.0m
Turning Radius (Outside) 4.2m
Lifting Motor 48V/5.0KW
Drive Motor 2×32VAC/3.3KW
Up/Down Time 55/50s
Gradeability 40%
Max. Working Slope (Lateral/Vertical) 2°/3°
Control Proportional Control
Drive Rear Wheels
Brake Rear Wheels
Tire Ø

Power
Weight
METRIC / IMPERIAL
Battery 8×6V/220Ah (DISCOVER), 8×6V/230Ah (QUIMO)
Charger 48V/35A
