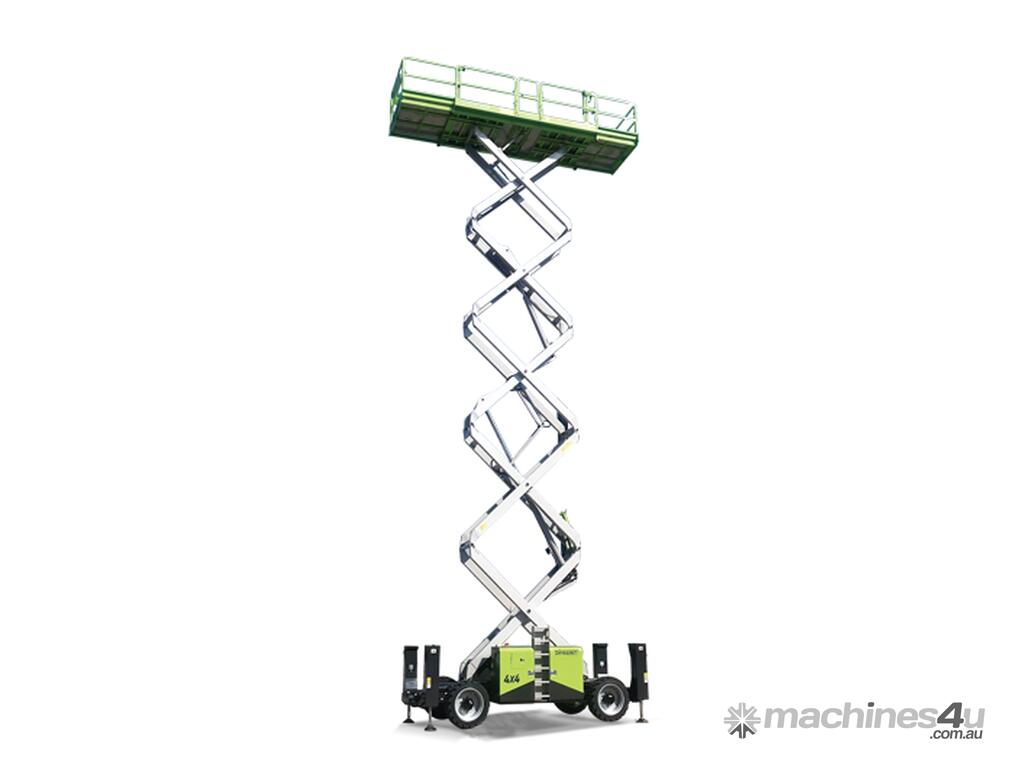

Zoomlion ZS1623RT Rough Terrain

Strong capacity of 680kg with high working efficiency.

4WD and axle oscillation provide great off-road capability.

One-Click leveling function.

Bilateral power system effective to lower noise.

Swing-out tray easy to service.

Size
Weight
METRIC / IMPERIAL
Work Height 18m

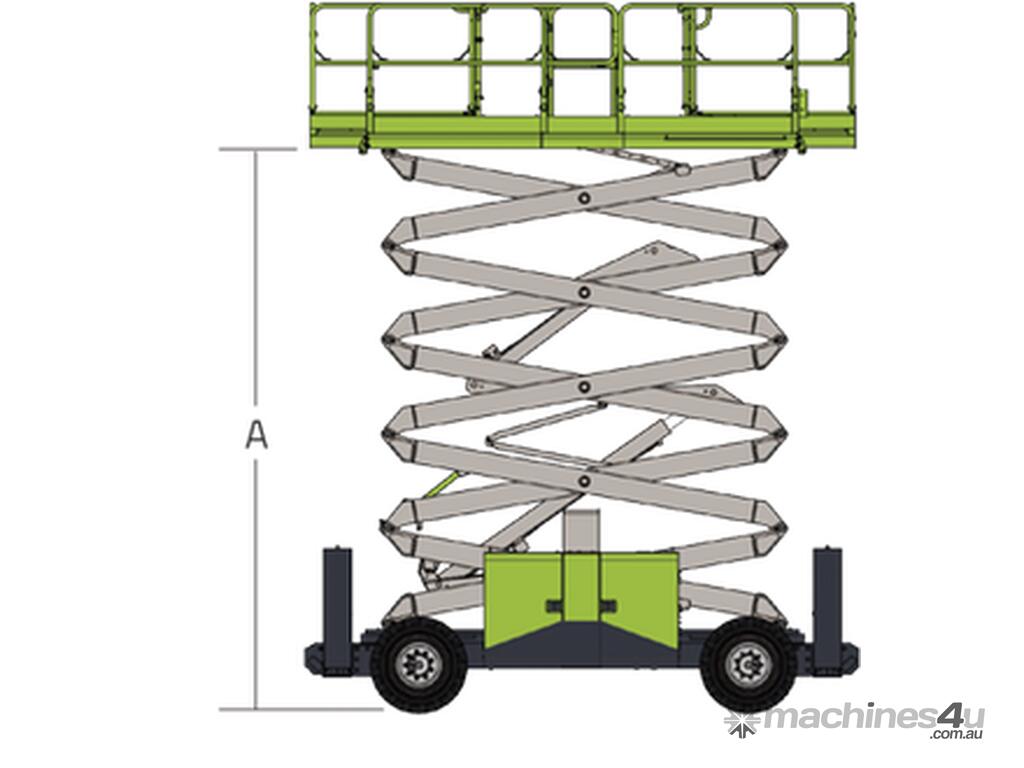

A Platform Height-Elevated 16m

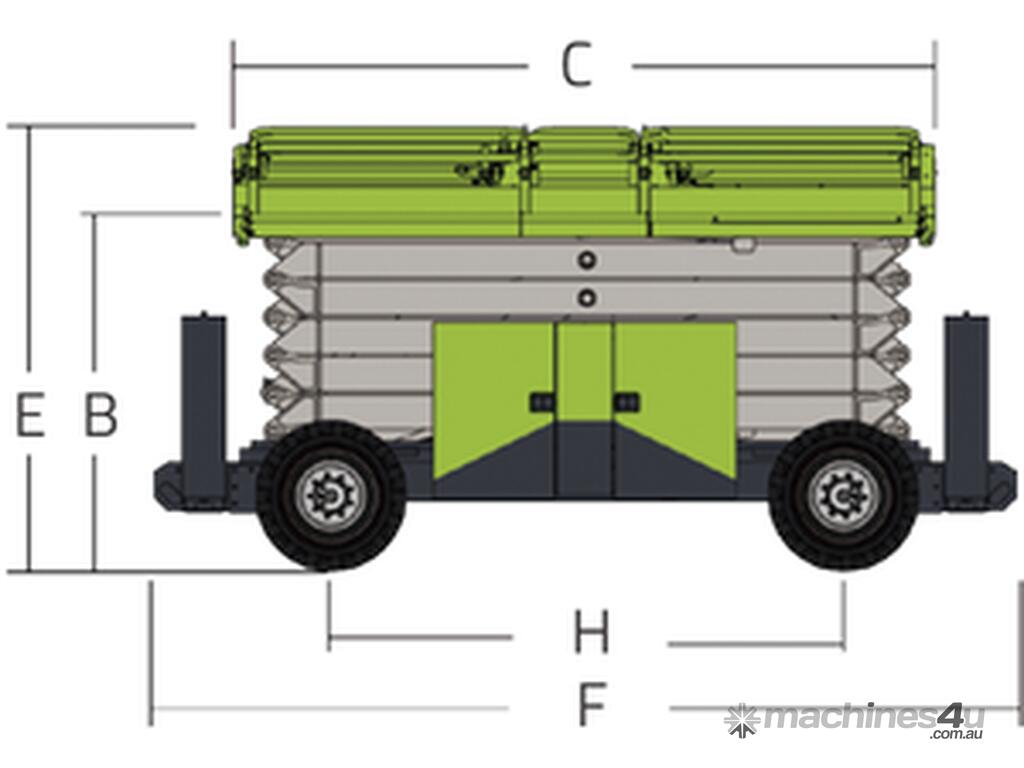

B Platform Height-Stowed 2.03m
C Platform Dimension (Length) 3.98m

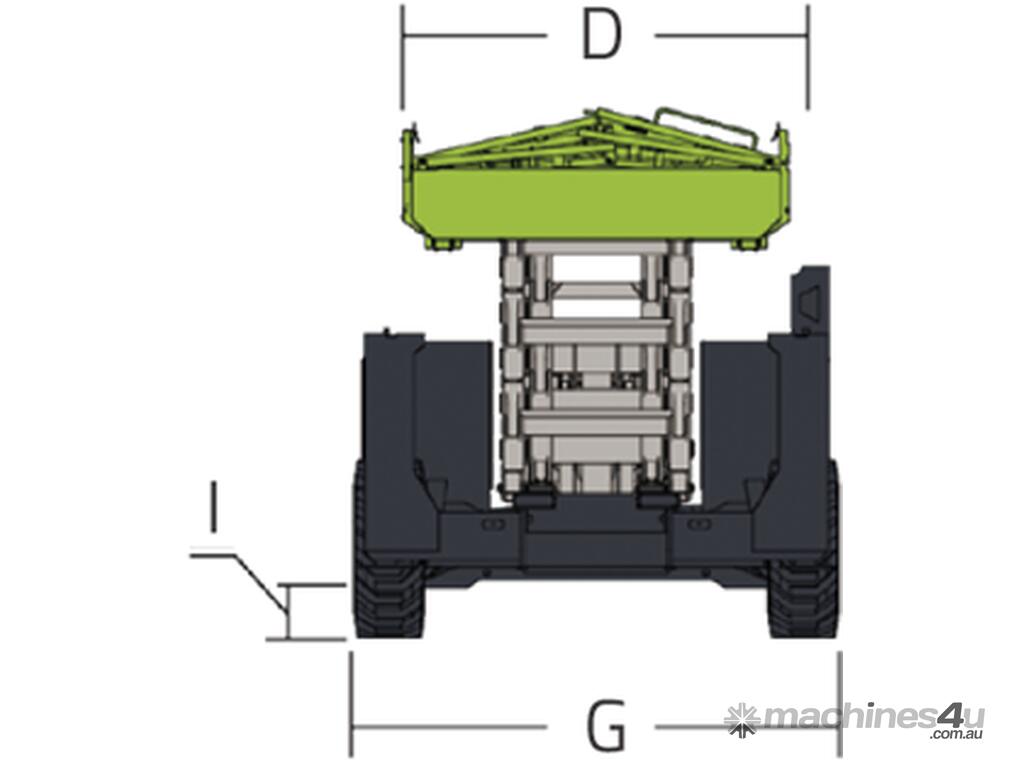

D Platform Dimension (Width) 1.83m
Platform Extension 1.3m
Overall Height (Rails Up) 3.16m
Overall Height (Rails Down) 2.47m
Overall Length 4.88m
Overall Width 2.3m
Wheelbase 2.9m
Ground Clearance

Performance
Weight
METRIC / IMPERIAL
Platform Capacity 680kg
Capacity on Deck Extension 230kg
Drive Height 9m
Max. Number of Workers 4
Drive Speed (Stowed) 6.5km/h
Drive Speed (Raised) 0.5km/h
Turning Radius (Inside) 2.75m
Turning Radius (Outside) 5.8m
Up/Down Time 60/65s
Gradeability 40% (22°)
Max. Working Slope (Lateral/Vertical) 2°/3°
Drive 4WD
Tire 315/55

Power
Weight
METRIC / IMPERIAL
Engine Kubota V2403 36kw/2600rpm (EU III) Kubota V2403 36.8kw/2700rpm (EU V)
Fuel Tank Capacity 105L
Hydraulic Tank Capacity 100L
