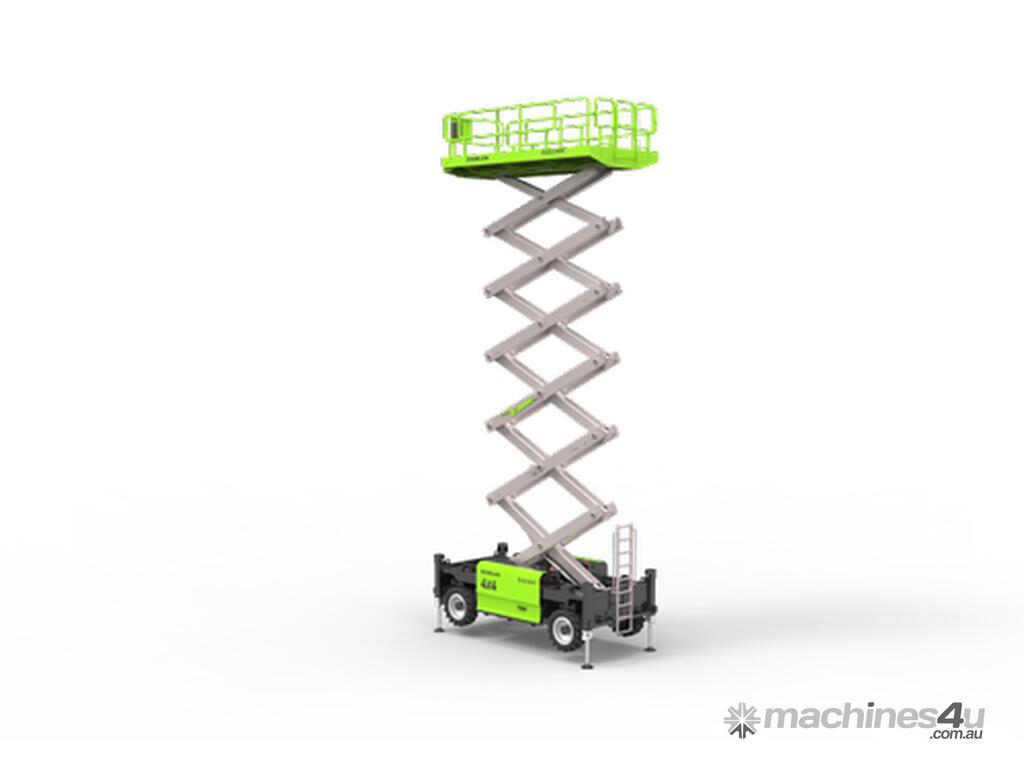

Zoomlion ZS2023ERT Rough Terrain

Full height drive, high working efficiency

Heavy capacity, extra-large platform, large work range 4WD and 4WS, strong off-road ability

Click-to-level, easy to operate AC motor drive for higher efficiency

Size
Weight
METRIC / IMPERIAL
Work Height 22m

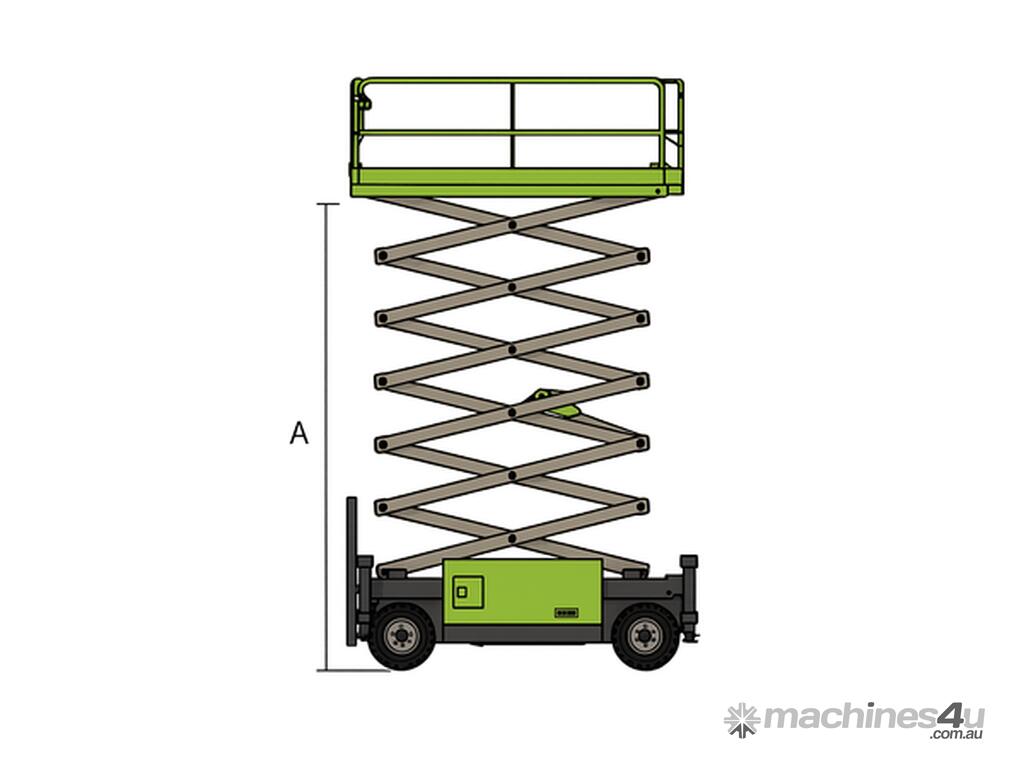

A - Platform Height-Elevated 20m
B - Platform Height-Stowed 2.8m

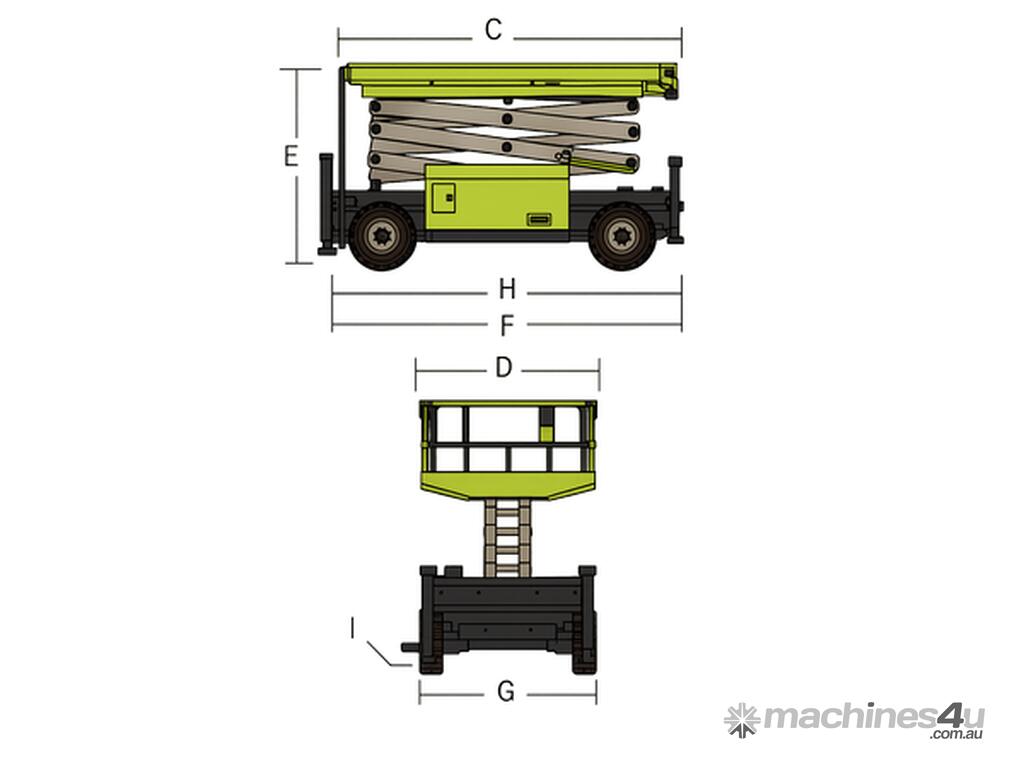

C - Platform Length 4.56m
D - Platform Width 2.2m
Platform Extension 2.7m
E - Overall Height (Rails Up) 3.91m
Overall Height (Rails Down) 3.0m
F - Overall Length 4.95m
G - Overall Width 2.25m
H - Wheelbase 3.3m
I - Ground Clearance

Performance
Weight
METRIC / IMPERIAL
Platform Capacity 750kg
Capacity on Deck Extension 750kg
Drive Height full height
Max. Number of Workers 4
Drive Speed (Stowed) 5km/h
Drive Speed (Raised) 0.4km/h
Turning Radius (Inside) 1.3m
Turning Radius (Outside) 3.4m
Lifting Motor 21kw
Drive Motor 4×3.3KW
Up/Down Time 90/75s
Gradeability 30%
Max. Working Slope (Lateral/Vertical) 3°/3°
Control Proportional Control
Drive 4 Wheels
Brake 4 Wheels
Tire ?914m

Power
Weight
METRIC / IMPERIAL
Battery 80V/460Ah
Charger 80V/80A
