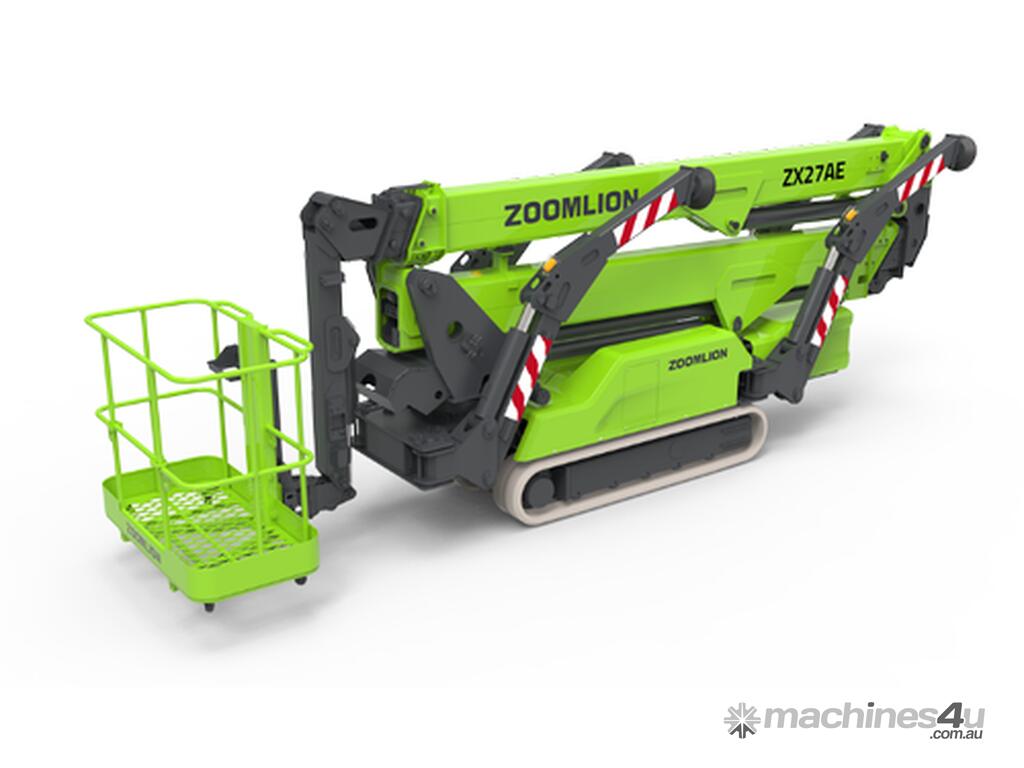

Zoomlion ZX27AE Spider Lift

0.89m ultra-narrow width, quick-change work platform, easy access to compact spaces

Pure lithium-ion battery power features environmental protection and quiet operation

Accuate and efficient permanent magnet synchronous motor provides strong power and stable control

Non-marking rubber track suitable for all terrains

Size
Features
METRIC / IMPERIAL
Work Height 27m
Platform Height 25m
Horizontal Outreach 14.2m
Up and Over Height 12.7m
Below Ground Reach 5.8m

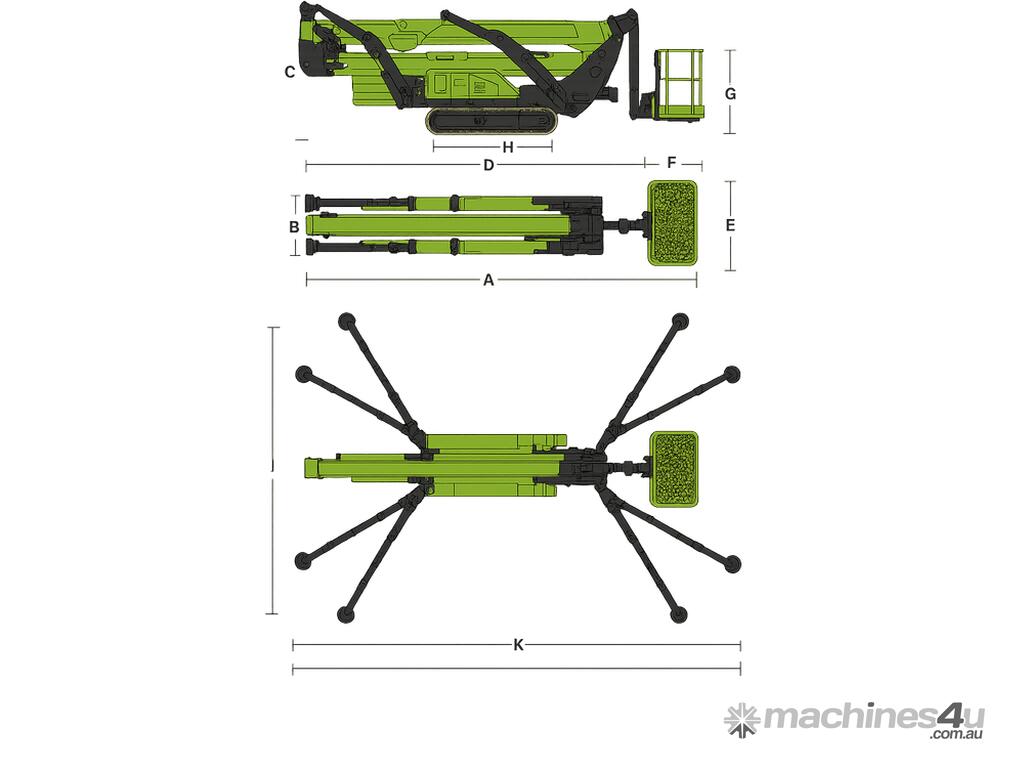

A - Stowed Length (w/ platform? 6.15m
D - Stowed Length (w/o platform) 5.7m
B - Stowed Width 0.89m
C - Stowed Height 2.05m
E - Platform Length 1.4m
F - Platform Width 0.7m
G - Platform Height 1.25m
H - Crawler Size (Length×Width) 1.52m×0.25m
I - Max Length w/ Outrigger Extending (Standard) 4.95m
J - Max Width w/ Outrigger Extending (Standard) 4.48m
K - Max Length w/ Outrigger Extending (Narrow) 6.45m
L - Max Width w/ Outrigger Extending (Narrow) 2.88m
Outrigger Pad Size (Diameter) 0.26m
Approach Angle 15°
Depature Angle 24°

Performance
Features
METRIC / IMPERIAL
Platform Capacity 230kg?restricted?/120kg?unrestricted?
Drive Speed 2km/h&&
Gradeability 16.7°/30%
Allowable Tilting Angle When Driving 10°/17%
Turntable Swing 400° non-continuous
Platform Rotation ±90°
H-Tail Swing 0m
Max Leveling Angle 16°
Max Wind Speed 12.5m/s

Power
Features
METRIC / IMPERIAL
Battery 315Ah 48V
Charger 48V/60A
Drive Motor Permanent magnet synchronous motor 48V
Lift Motor Permanent magnet synchronous motor 48V
Auxiliary Power Electric pump
Hydraulic Tank Capacity 50L

Tire
Features
METRIC / IMPERIAL
Crawler type K250×47×88 non-marking rubber crawler belt

Weight
Features
METRIC / IMPERIAL
Gross weight 4650kg
Ground Pressure When Driving 33.68kN/m²
Ground Pressure When Working (Standard) 2.05kN/m²
Ground Pressure When Working (Narrow) 2.45kN/m²
Pressure on Single Outrigger When Working 31.89KN
