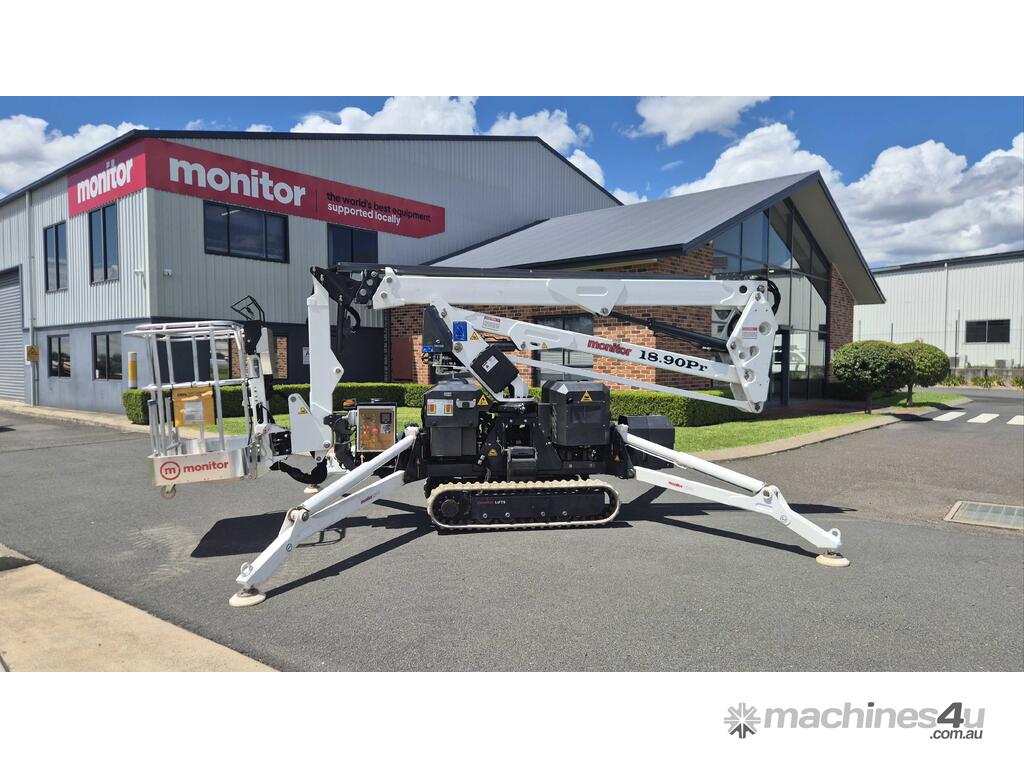

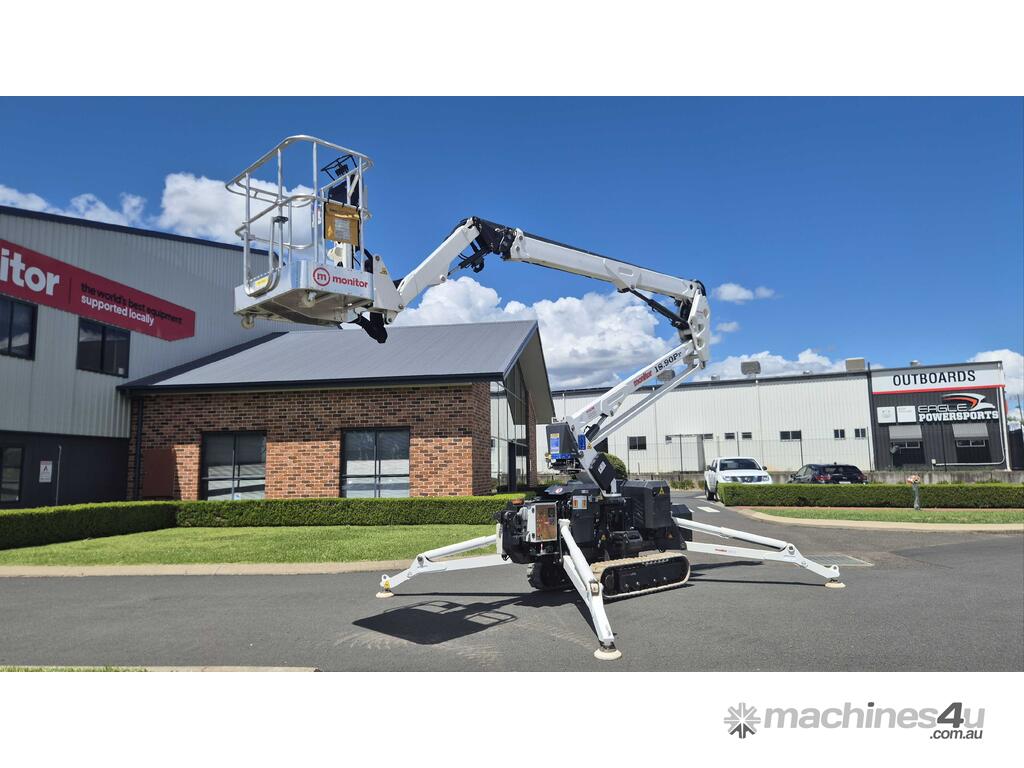

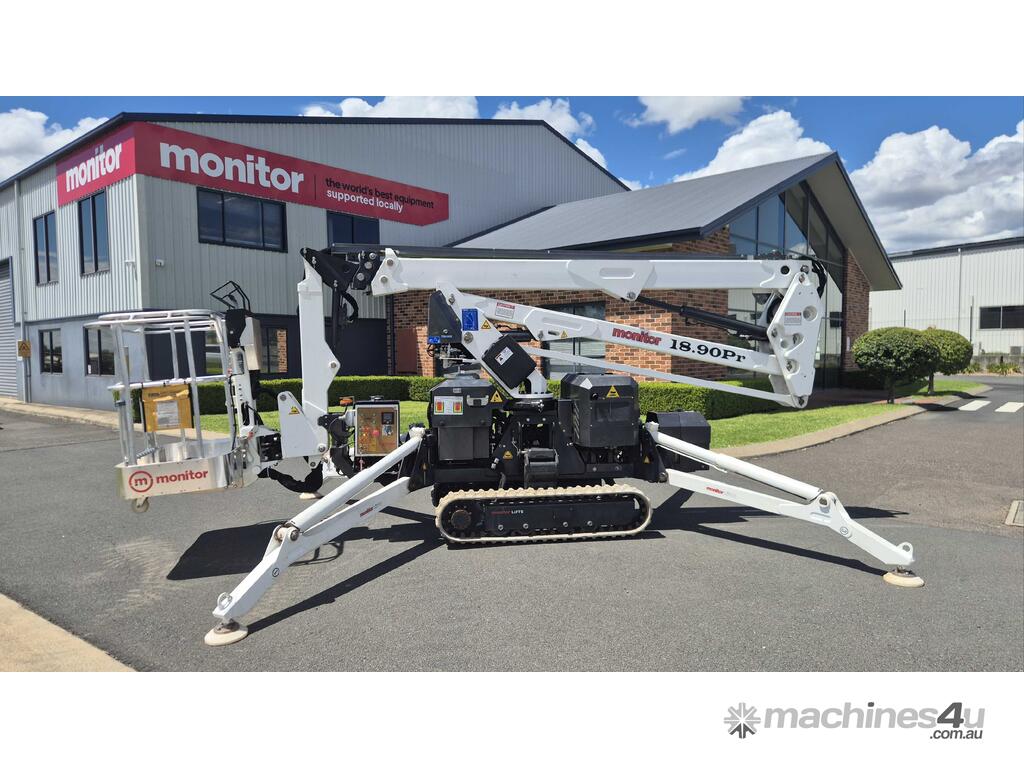

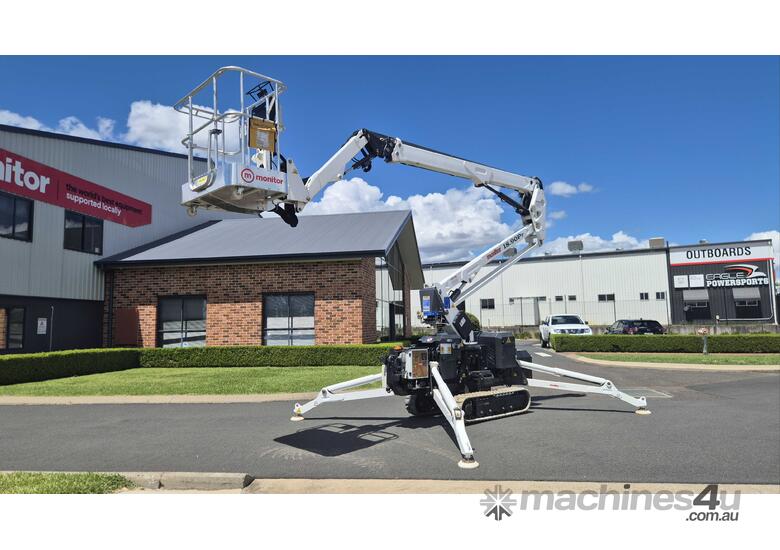

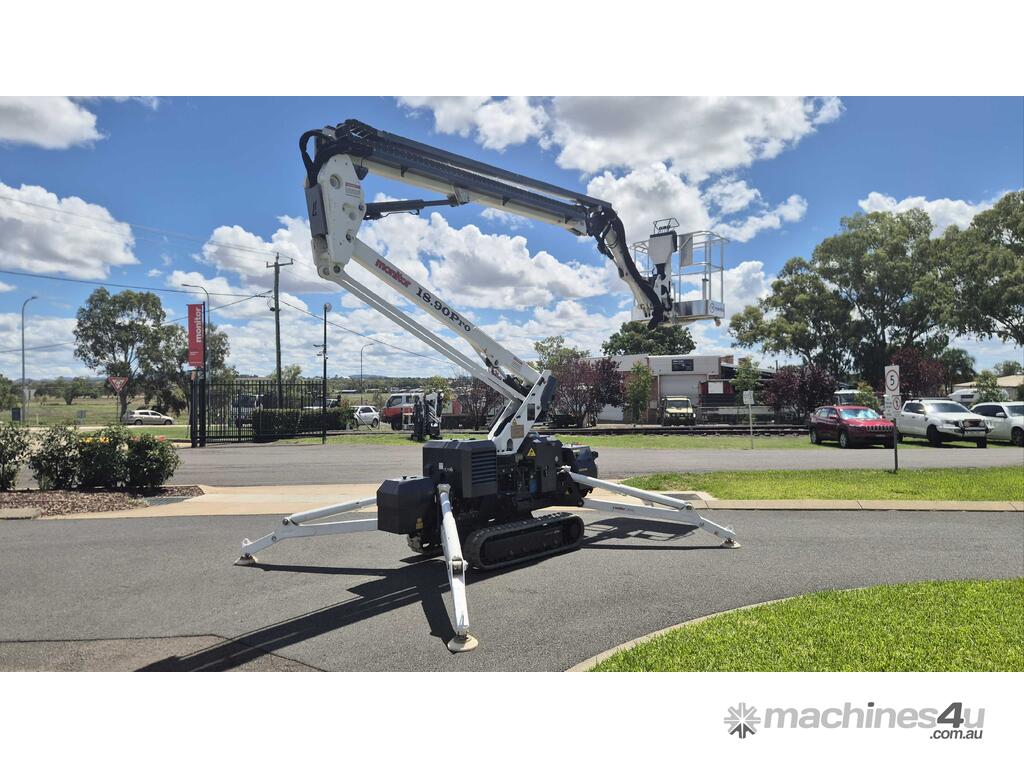

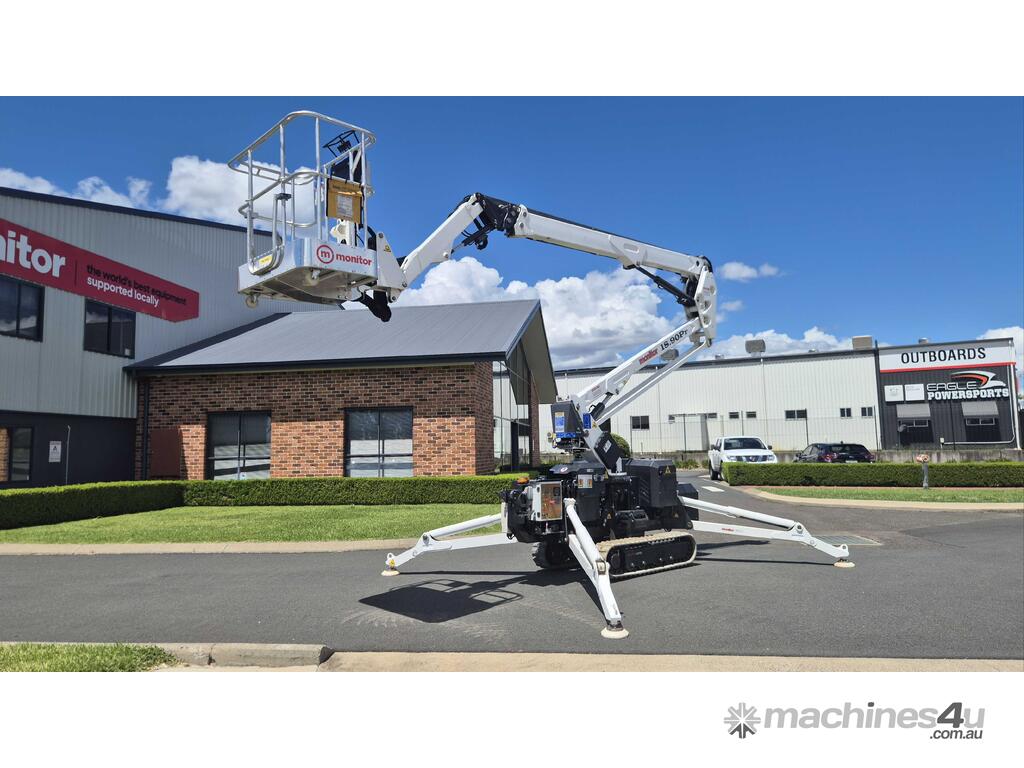

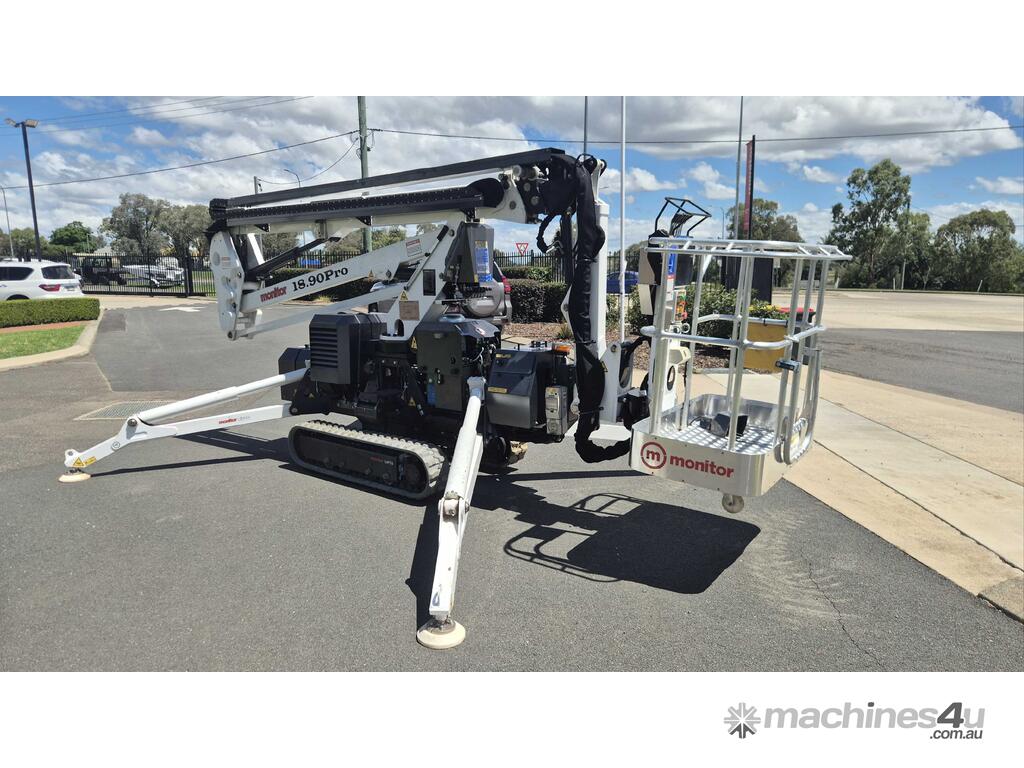

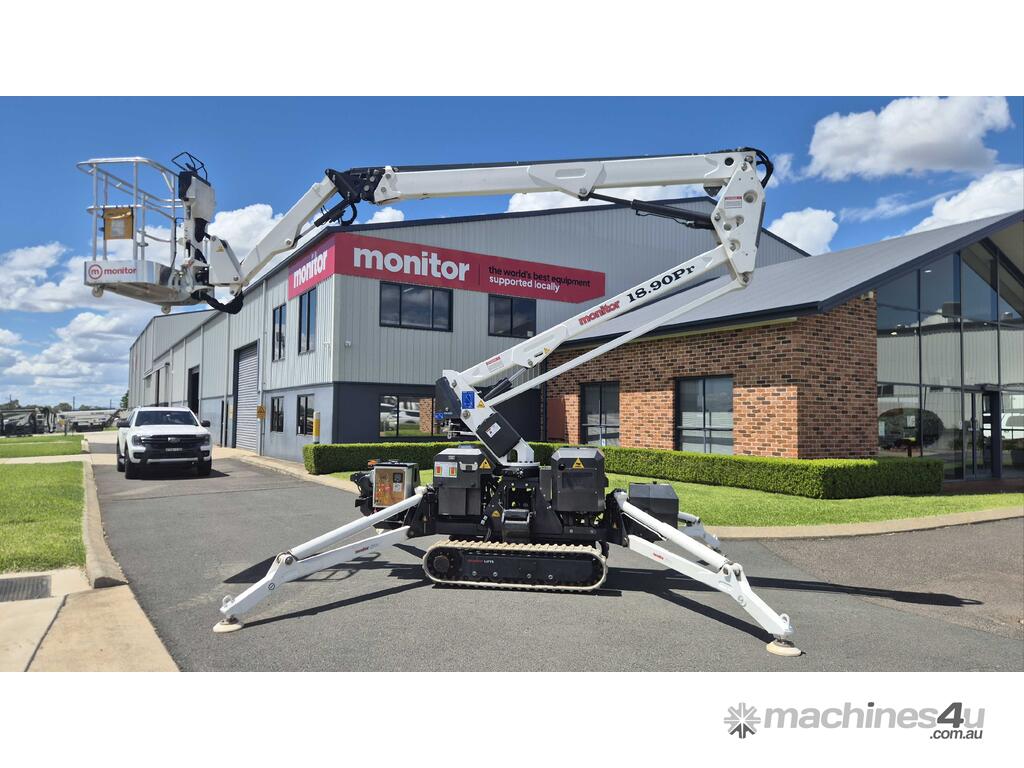

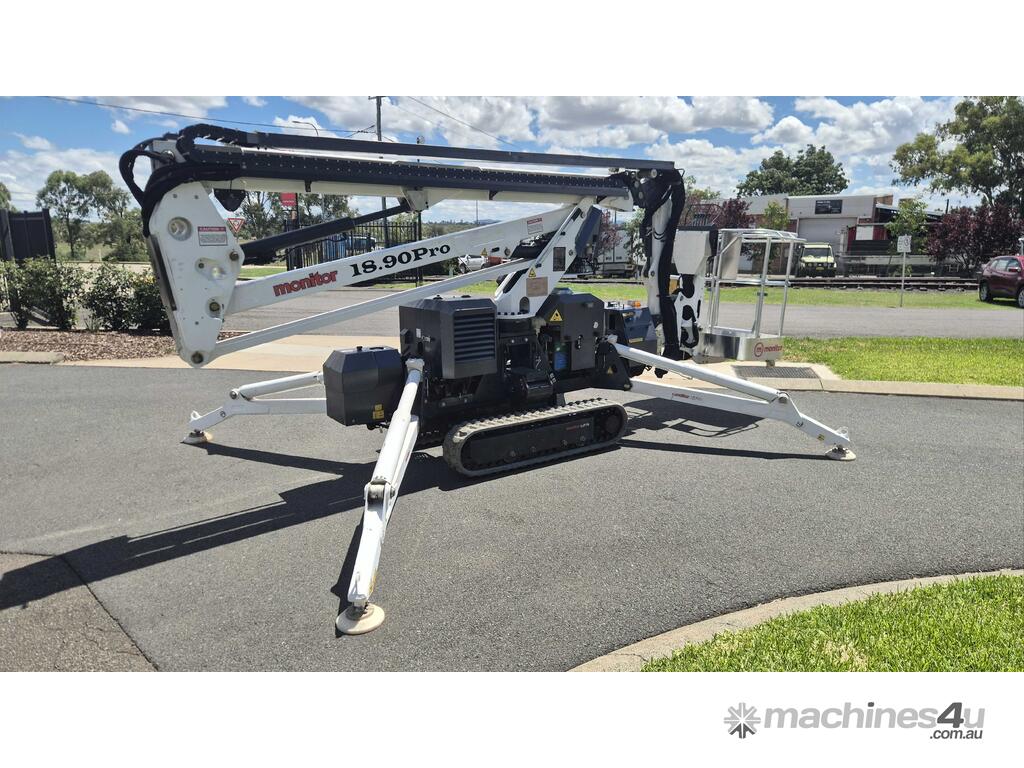

2019 model 1890 ED Pro Spider Lift
Date Commissioned: September 2019
The Monitor 1890 PRO Spider Lift is economical, very compact, simple to use, reliable, with excellent outreach.
With its light weight design, it is very easy to transport on Monitor’s strong galvanized steel trailer. The tracks expand out and down to give excellent off-road ability, and yet with the tracks retracted. It has an incredible stowed dimensions of only 792 x 1951 mm which allows it to drive through a domestic doorway.
The extra-long travel stabilizer legs, and auto level function on the 1890 PRO makes it the first choice for working on sloping sites.
With its dual power function and super-compact dimensions, the 1890 PRO is brilliant where a lot of outreach is required in confined indoor locations. It is also equipped with a 14 hp water-cooled twin cylinder Kubota diesel or petrol engine, auto-levelling, 2 speed drive, platform rotation, and remote radio control and stabilization.
Features
•2 Speed Drive
•2-Man Platform
•240 Volt Electric System
•240 Volt Outlet in Platform
•Air & Water Outlet in Platform
•Auto-Level Stabilizer Legs
•Basket Load Control
•Electric & Air Outlets in Basket (Air Optional)
•Electric Emergency Lowering System (Optional)

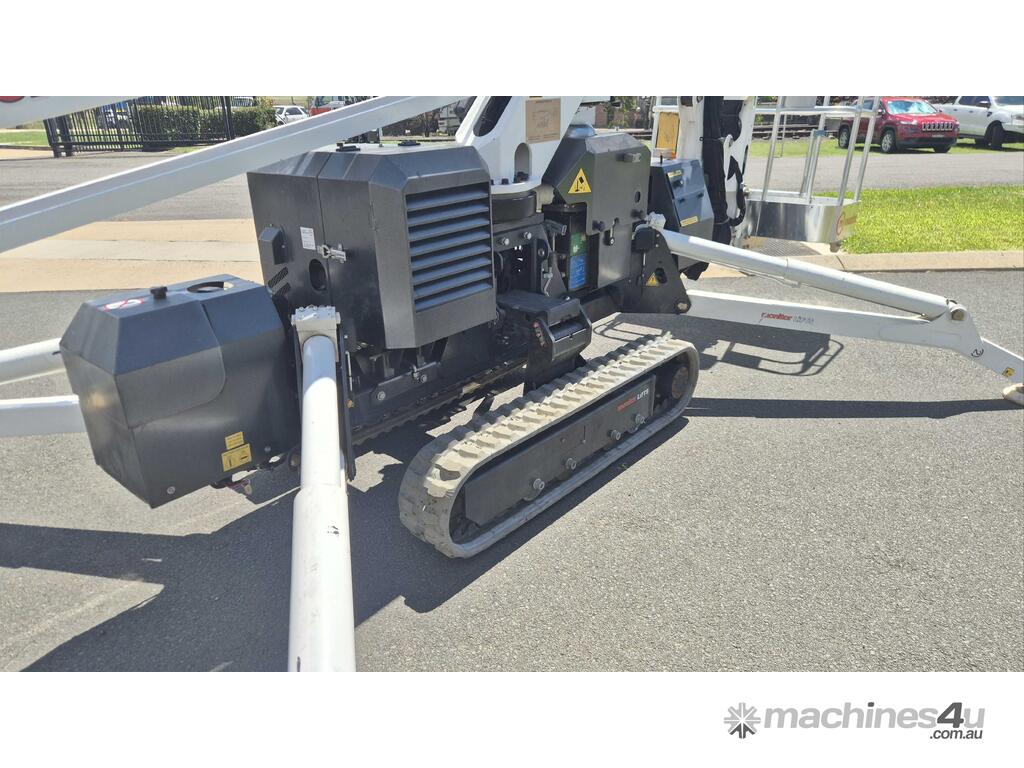

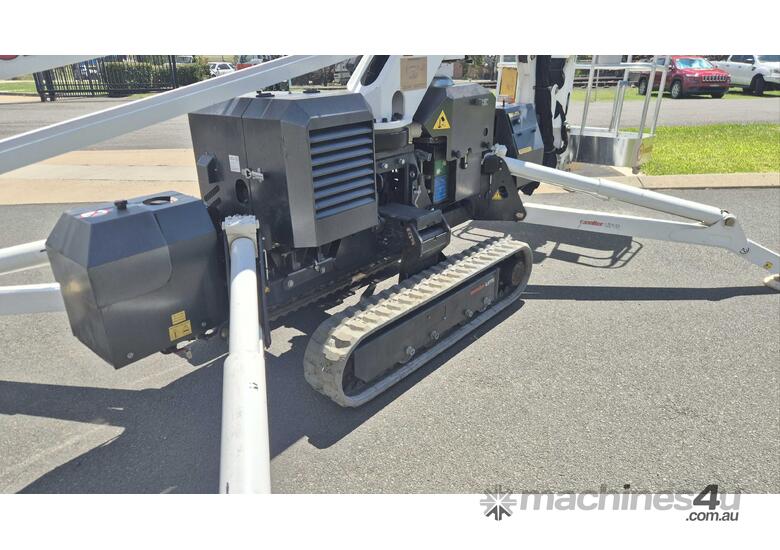

•Expandable Crawler Tracks
•Fly Jib

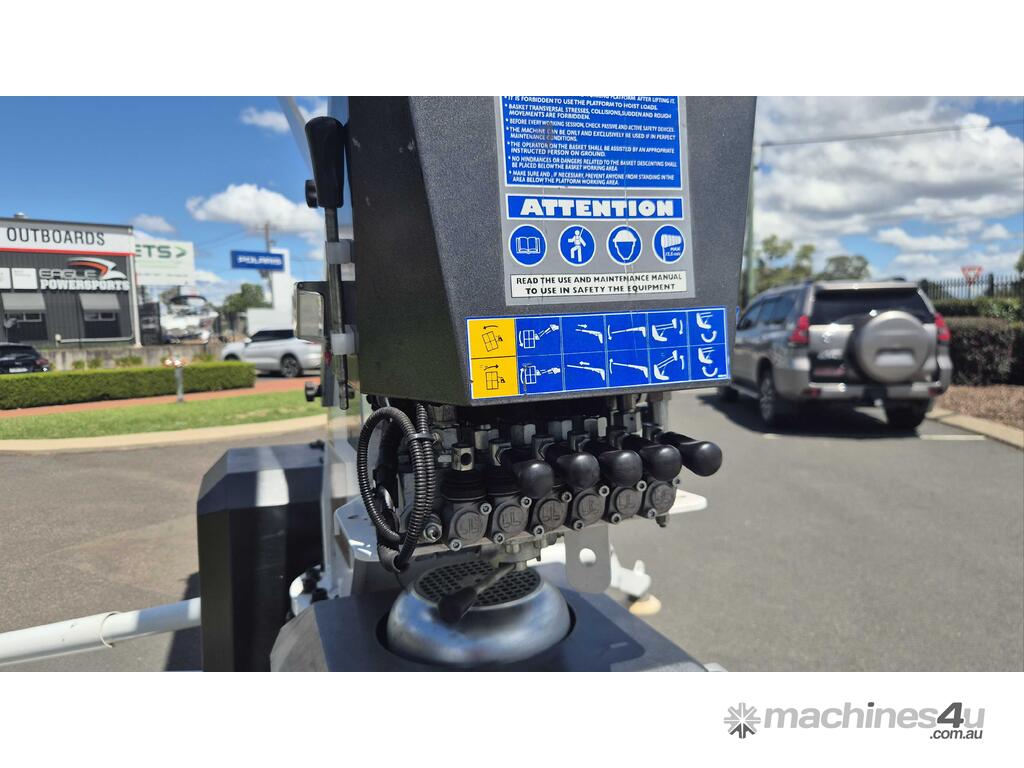

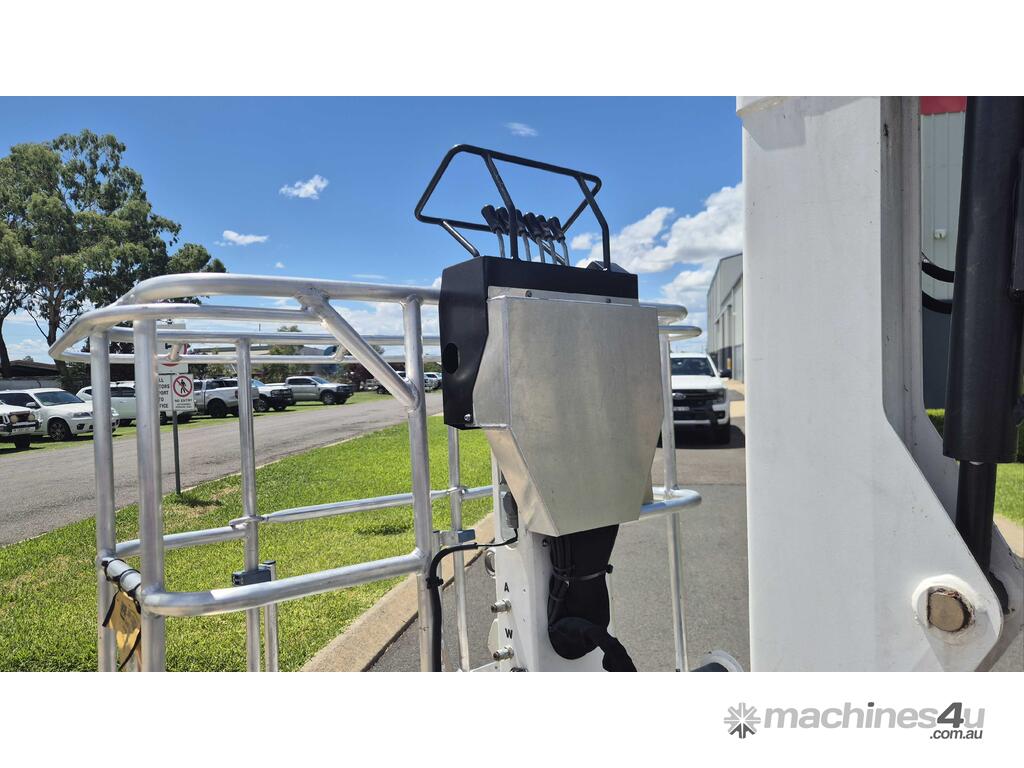

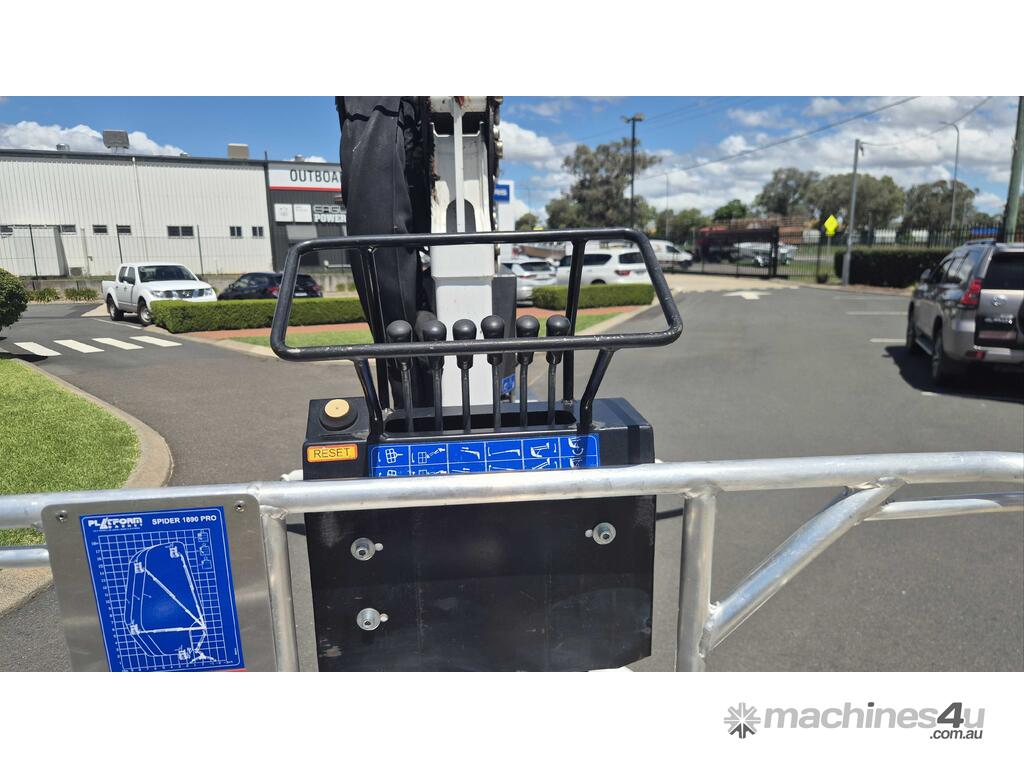

•Hydraulic Controls

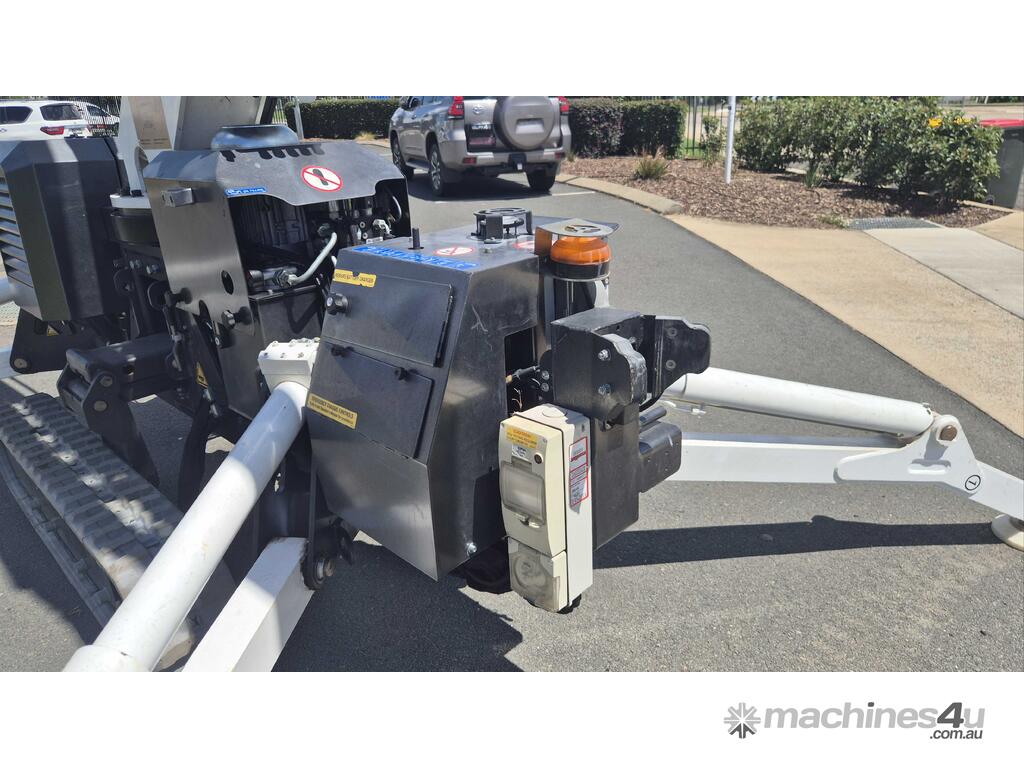

•Kubota Diesel Engine
•Non-Marking Rubber Tracks
•Platform Rotation (Optional)

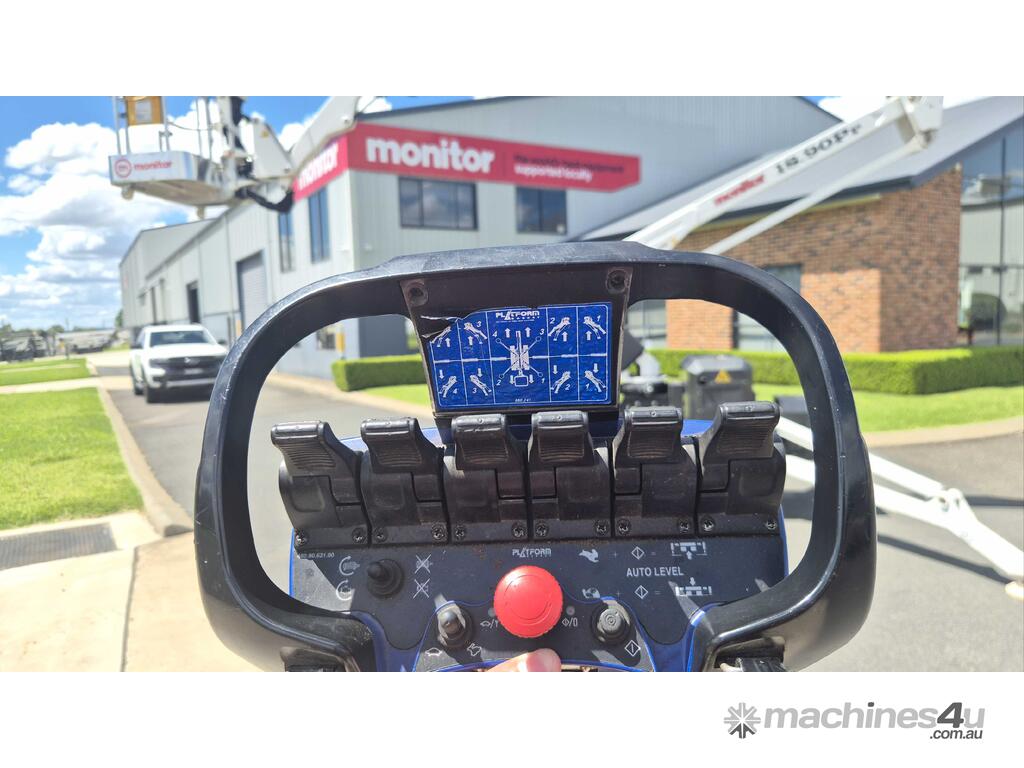

•Radio Control Drive (Optional)
Max. Working Height:
17.60 m
Max. Working Reach:
8.70 m
Capacity:
200 kg
Chassis Type:
Crawler Tracks
Hydraulic Fly Boom:
Yes
Platform Rotation:
Yes
Weight/Outreach Limited:
Yes
Turret Rotation:
360°
Outrigger Stabilisers:
Yes
Power:
Kubota 14 Hp Diesel, 240v Electric or Batteries
Min. Transport Length:
4.56 m
Min. Transport Width:
0.79 m
Min. Transport Height:
1.95 m
Weight:
2,540 kg
