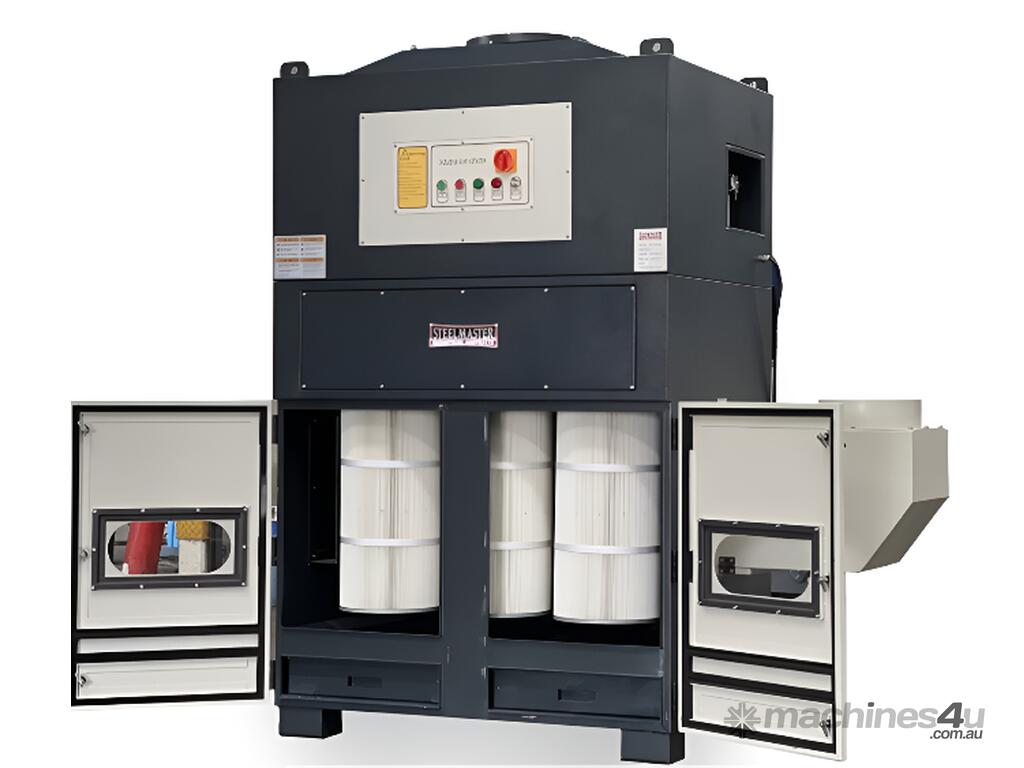

If you're running a CNC plasma or laser cutting operation, the SM-DR-6000 Fume Extraction System is a smart investment in workplace health, compliance, and efficiency.
Key Specifications:
Extraction Type: Spark, Smoke, Fume, Dust
Air Volume: 6000m³/hr
Filter Type: PTFE Coated Folded Cartridges (Vertical Install)
Filter Area: 22m² | Efficiency: 99.9%
Compressed Air: 0.5–0.6 Mpa | Solenoid Valves: 2
Inlet Position: Left or Right Side | Inlet Diameter: 150mm
Power: 3kW | 415V
Dimensions & Weight:
Unit Dimensions: 1620mm x 880mm x 2020mm
Footprint: 900mm x 1300mm
Weight: 895kg
Freight Dimensions: 1720mm x 980mm x 2120mm | Freight Weight: 910kg
Don't compromise on safety or air quality. Enquire for inspections!
