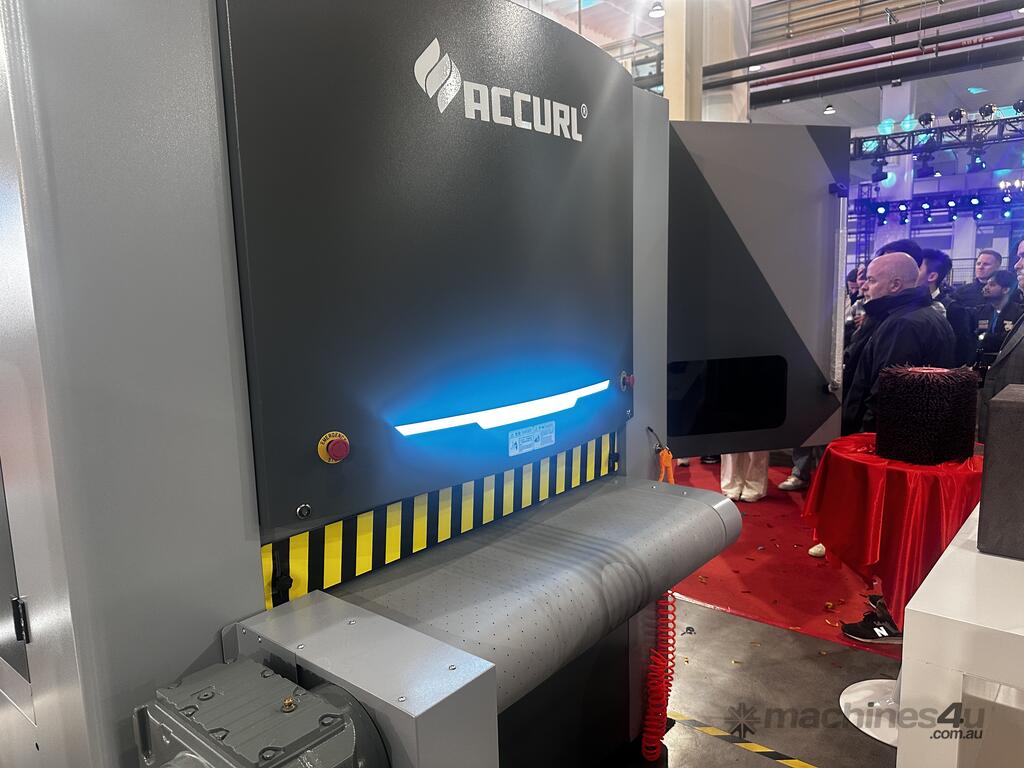

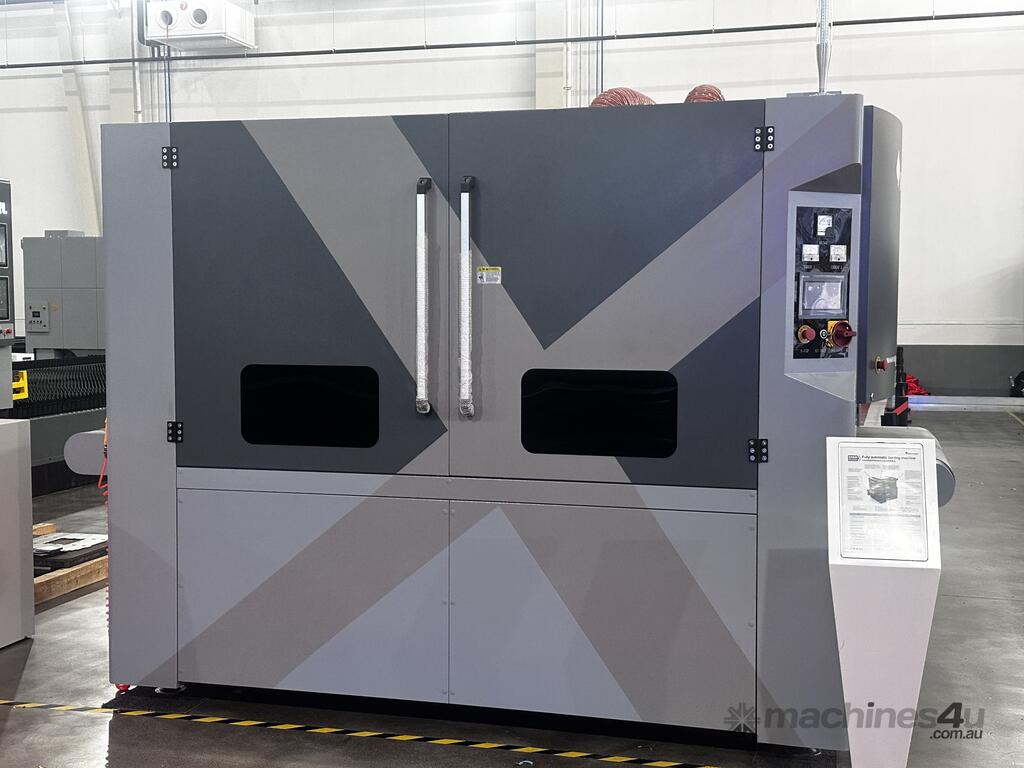

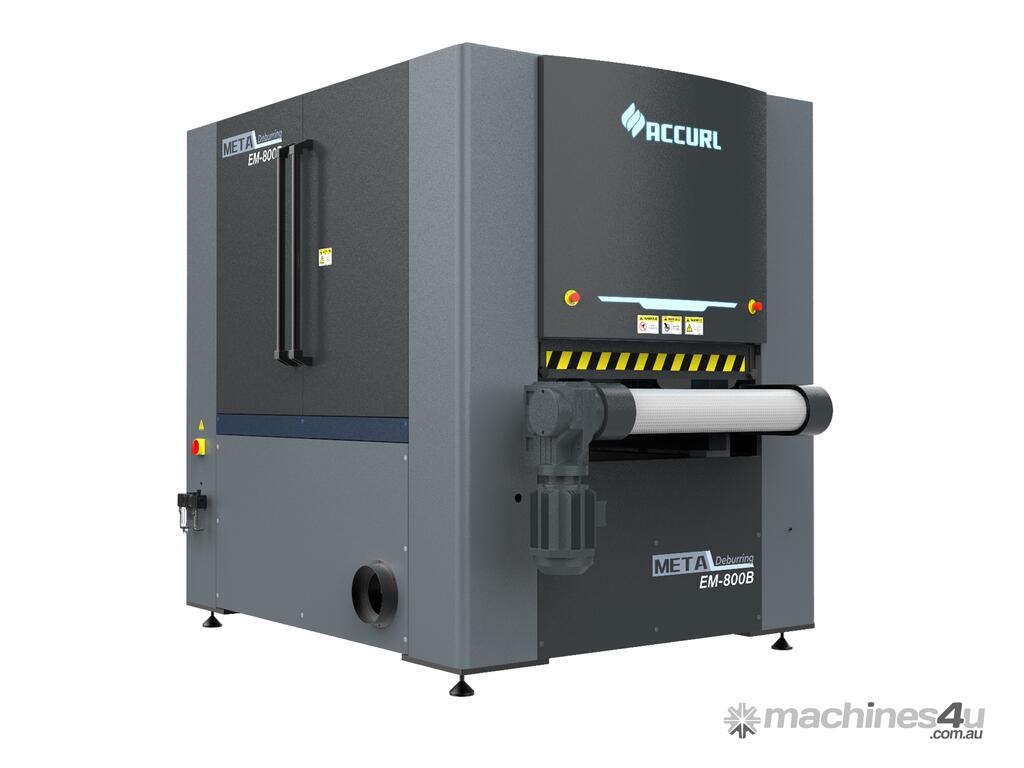

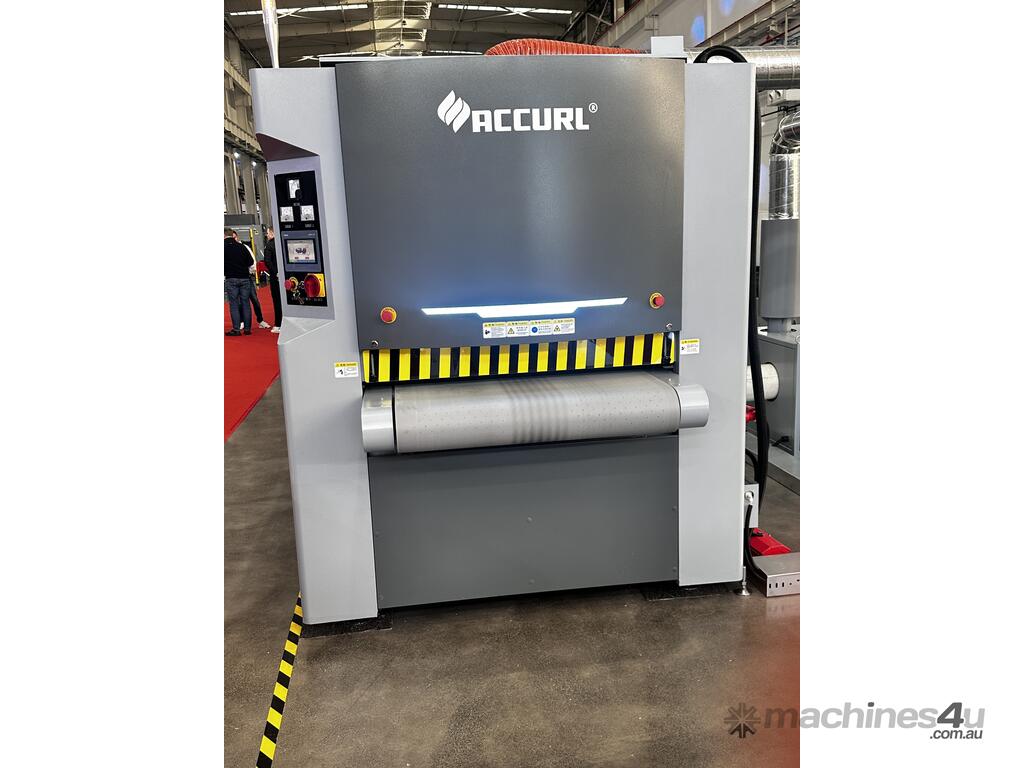

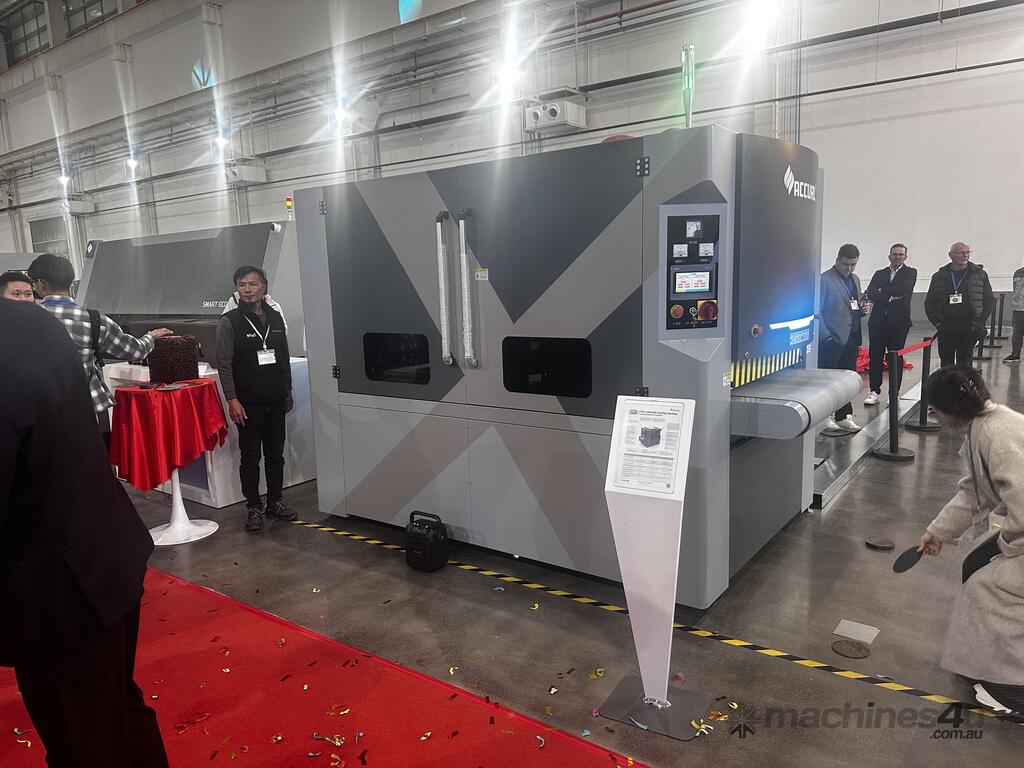

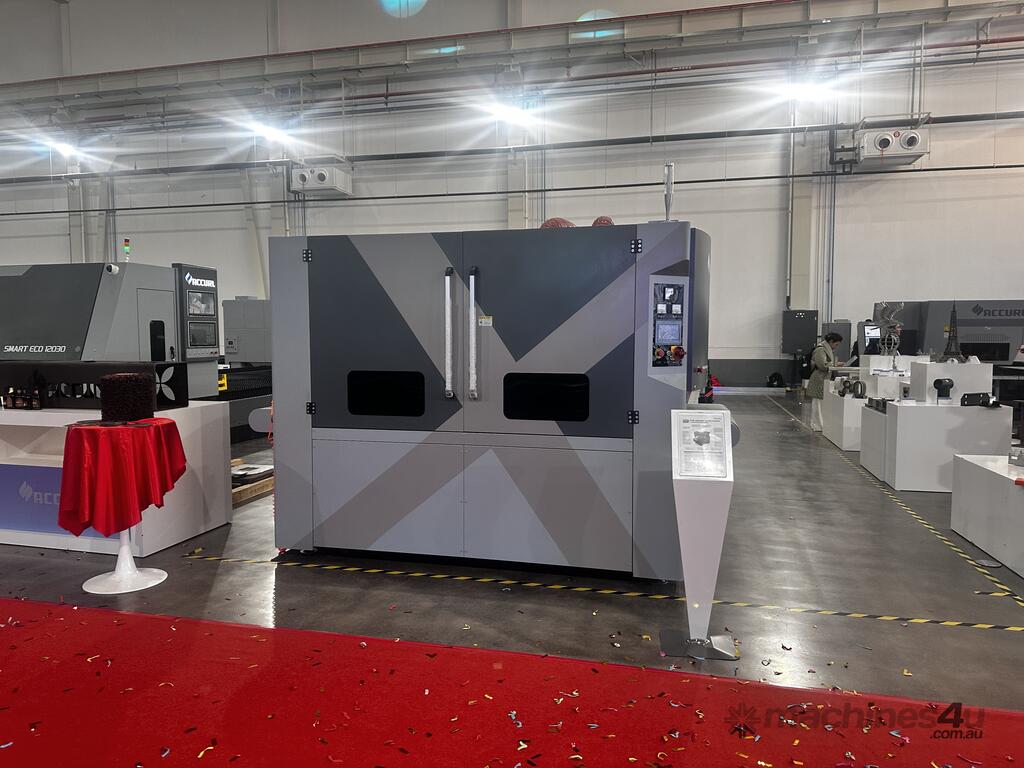

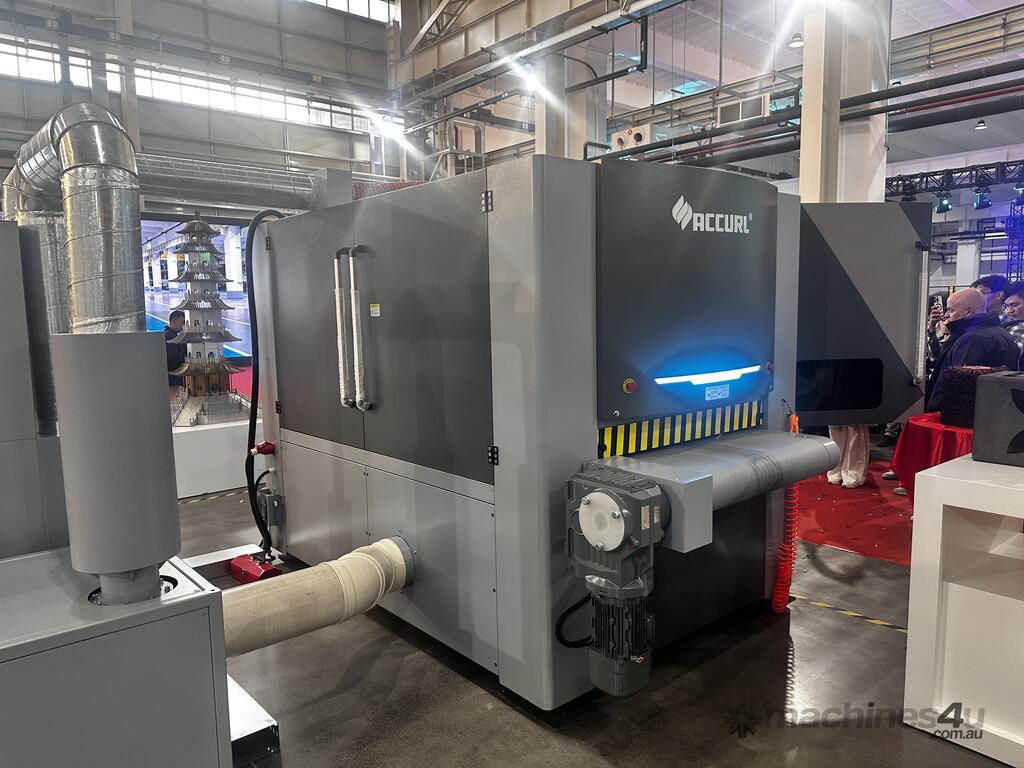

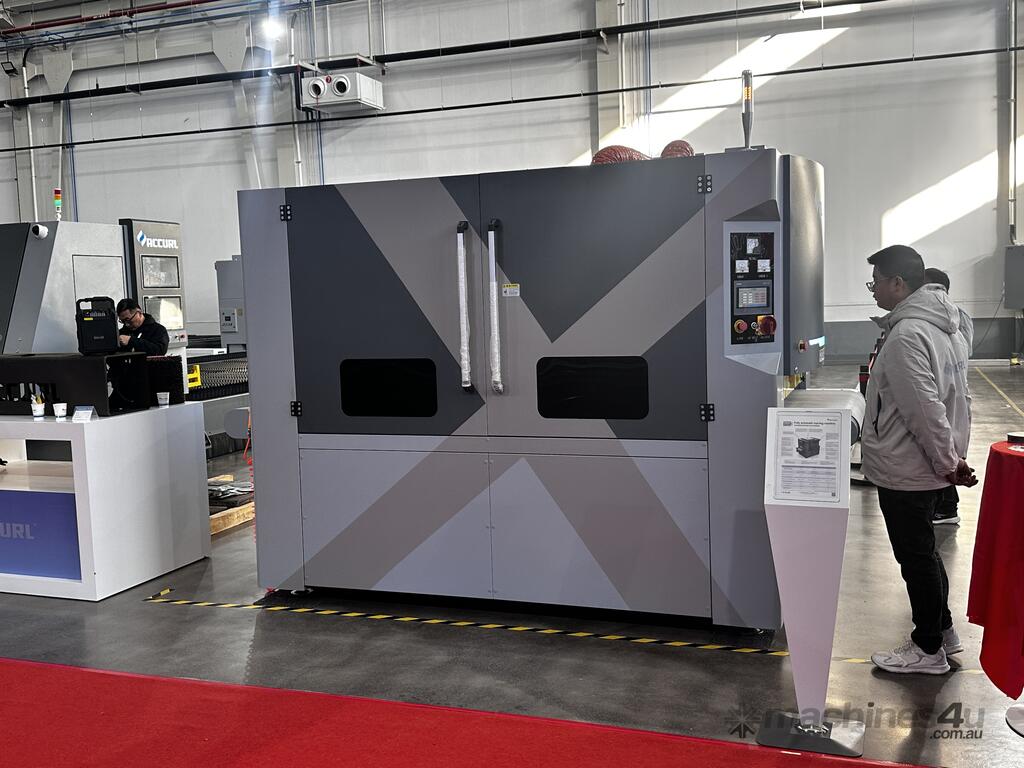

The latest product release from the powerhouse Accurl is set for Australian shores, the new range of automatic CNC deburring machines comes in a range of 800 / 1000 & 1300mm processing widths and can deburr 0.5 - 80 in thickness. Accurl has fast become the go to brand offering high quality cost effective steel processing machinery incorporating lasers, press brakes, guillotines, deburring machines, turret punches, panel benders and a vast array of automation.
The Accurl deburring range can process a large amount of materials, mild steel, stainless steel, aluminium, copper and all types of non ferrous metals. Different configurations can be chosen depending on the work piece.
These machines are ideal for laser cut, plasma cut, flame cut, turret punched and press punched parts that have a burr, slag or sharp edge that needs to be taken off and done automatically in a single process.

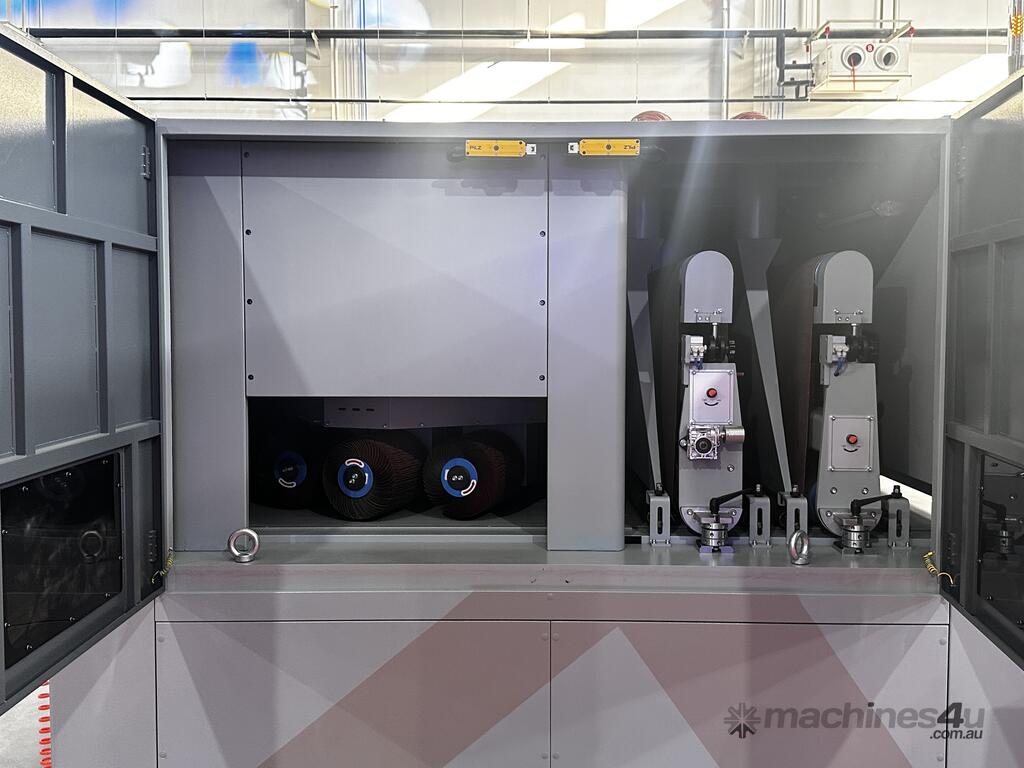

Hammer disk

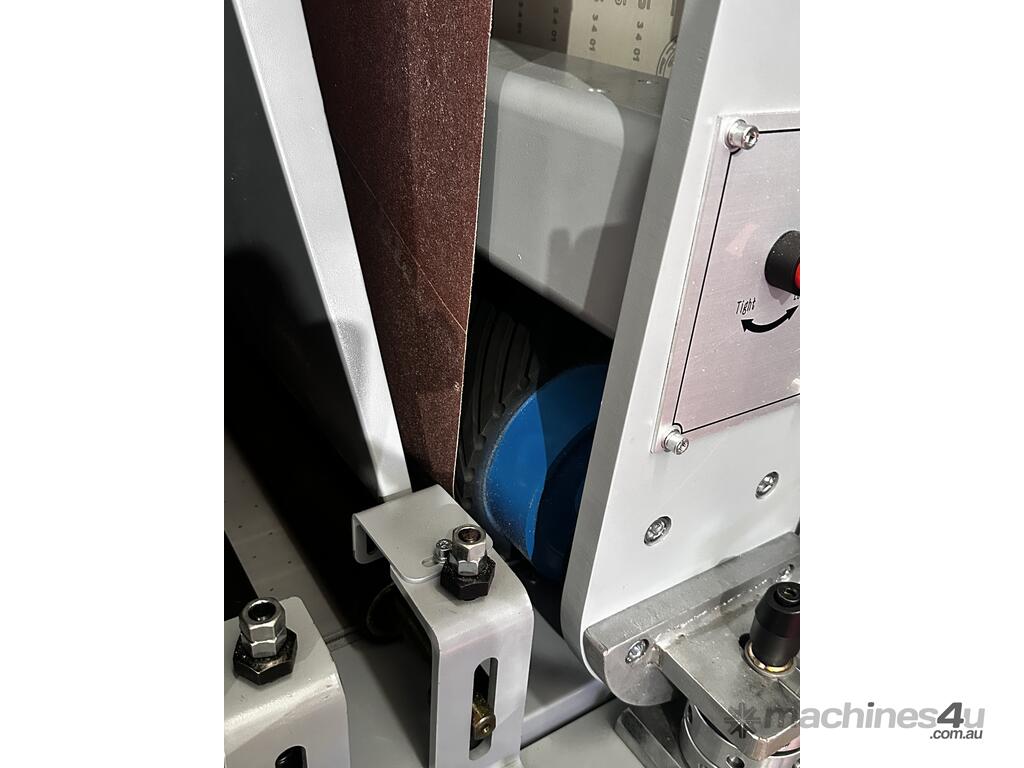

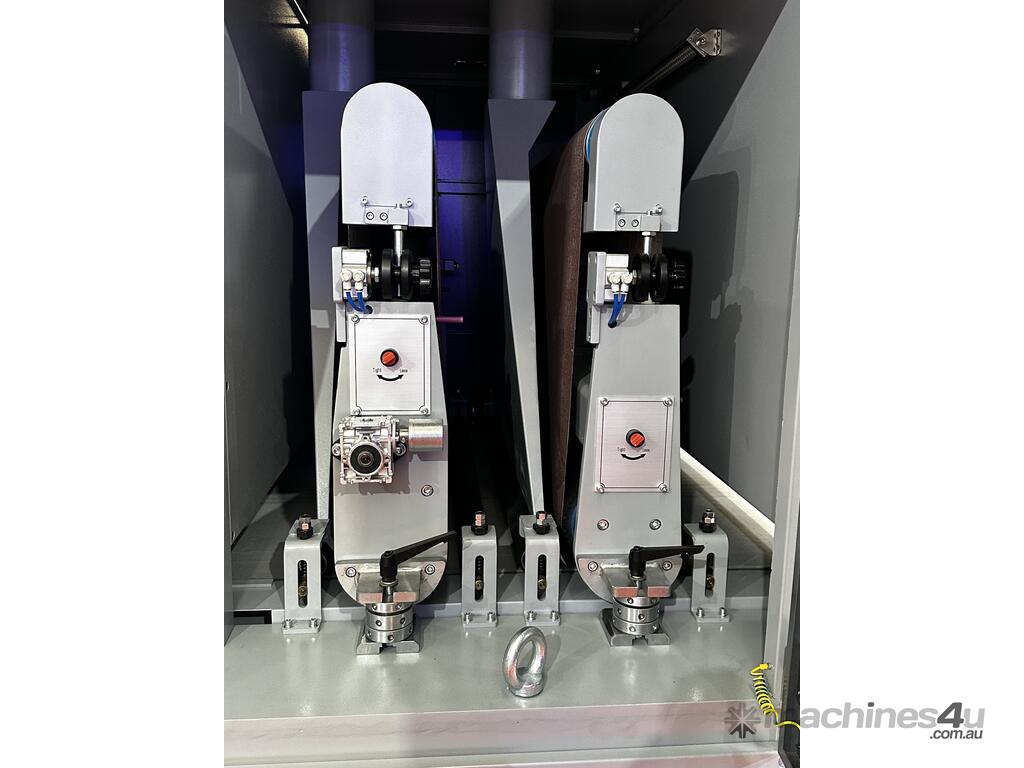

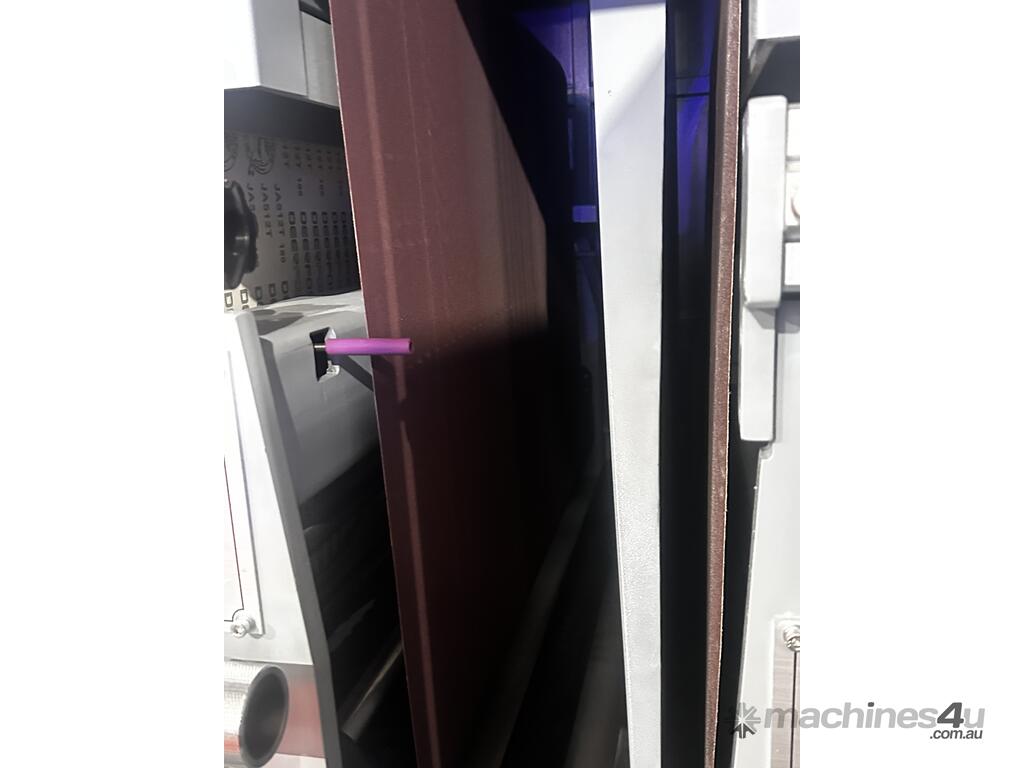

Abrasive belt sanding

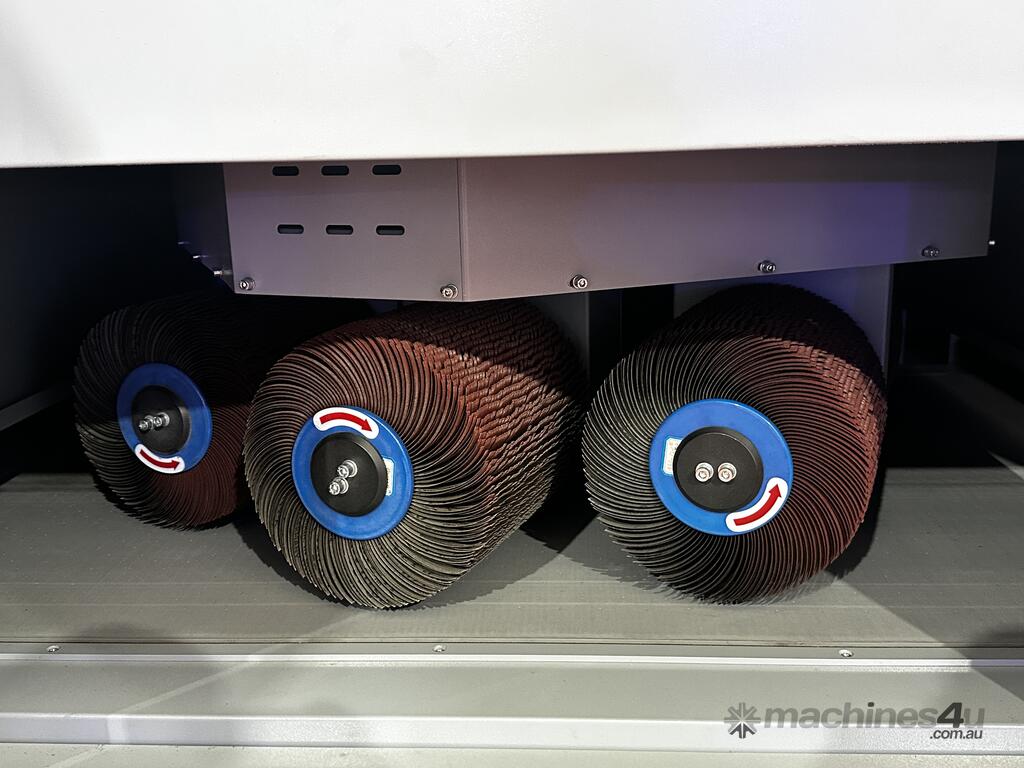

Polishing roller brushes

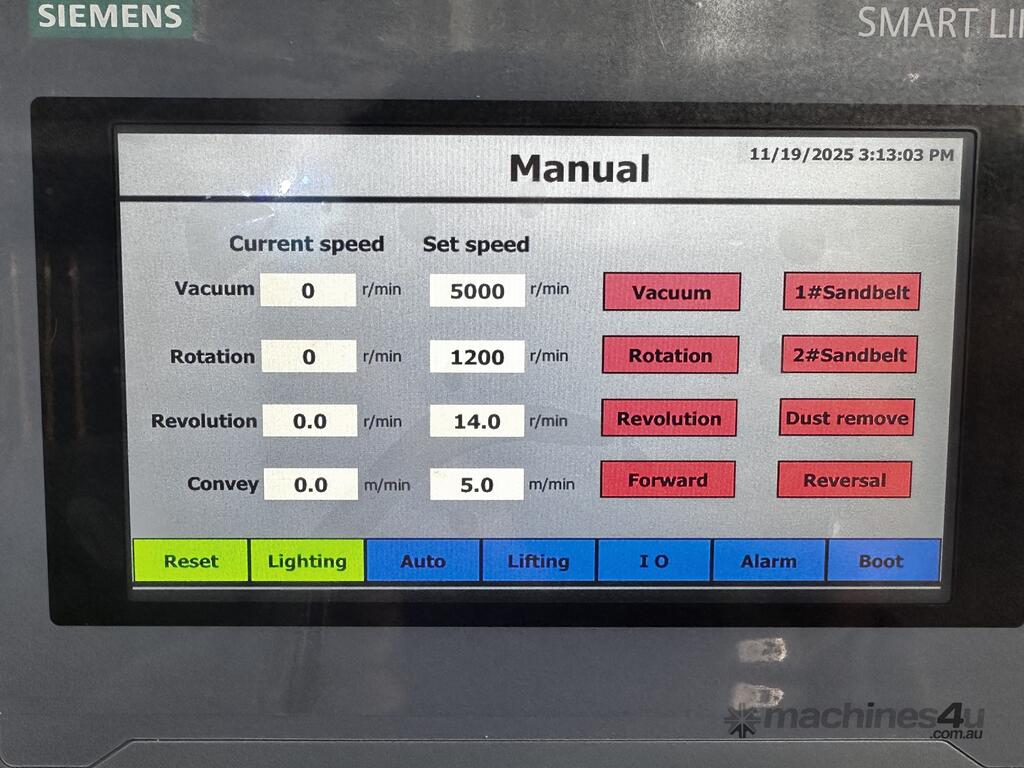

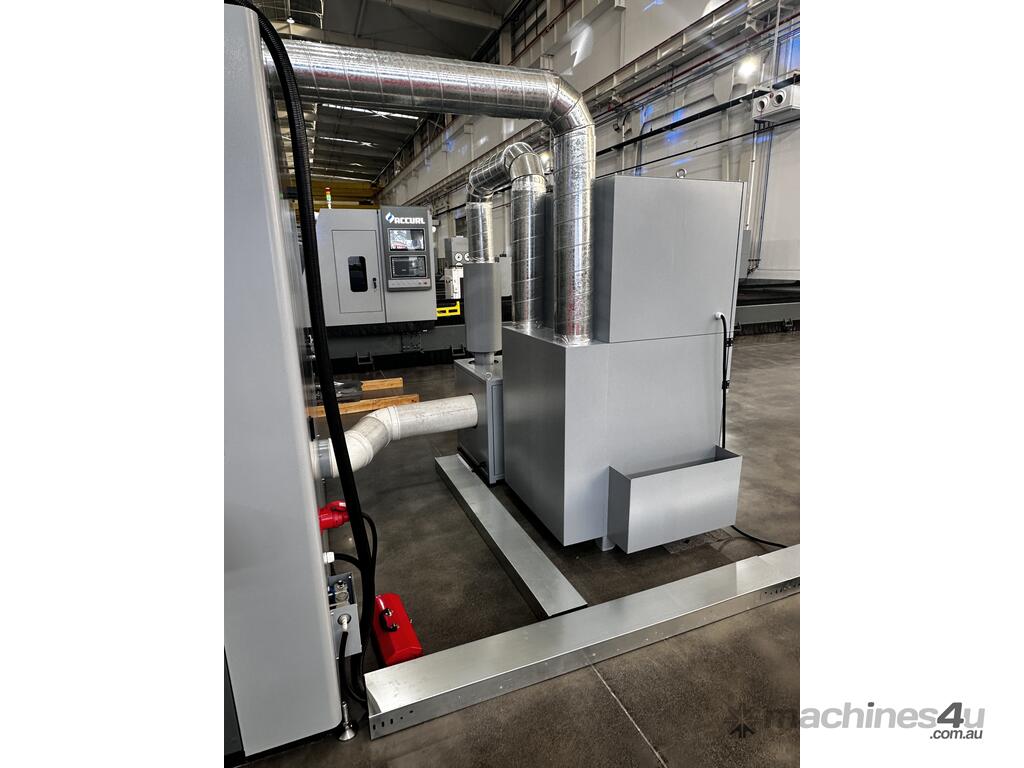

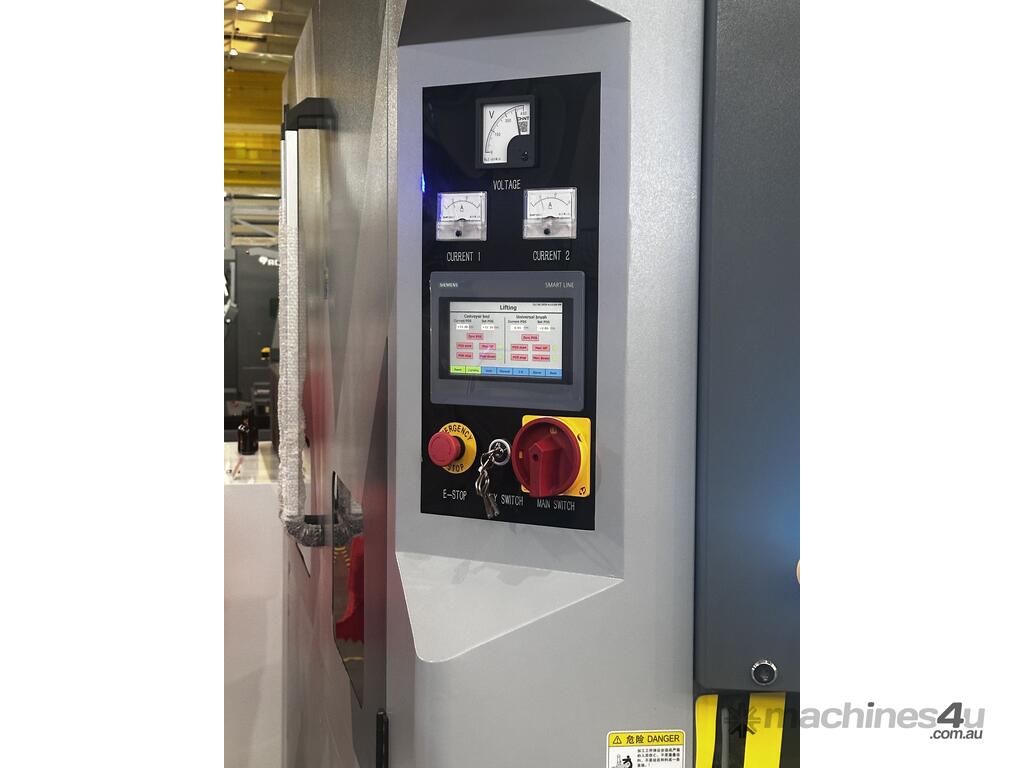

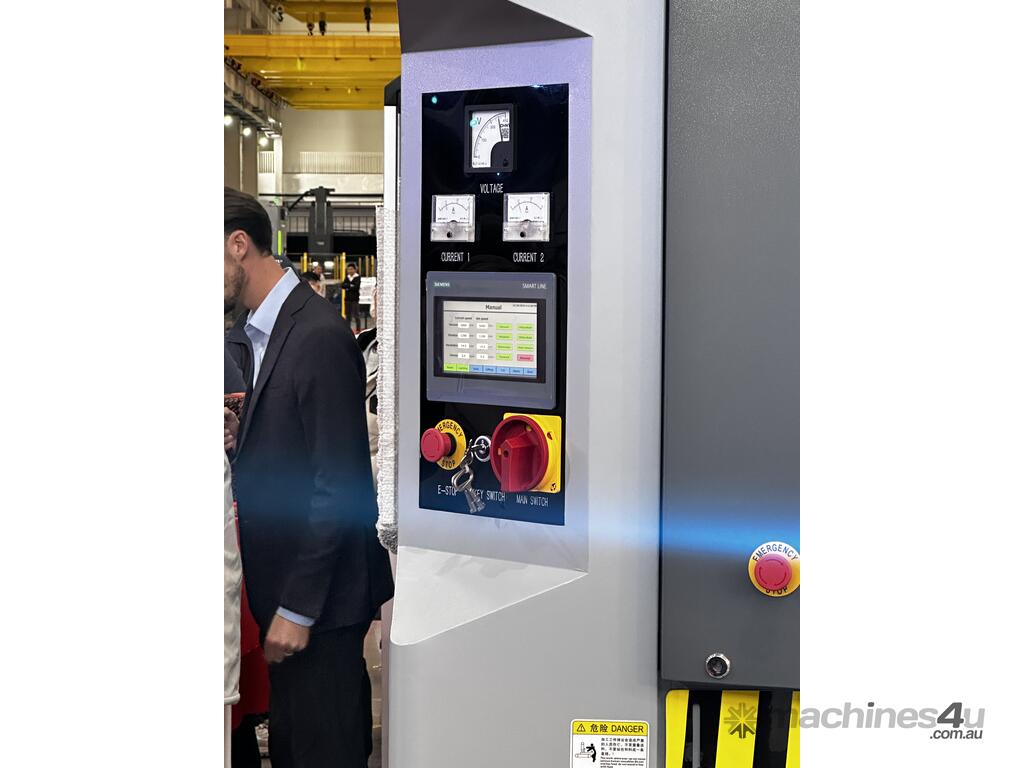

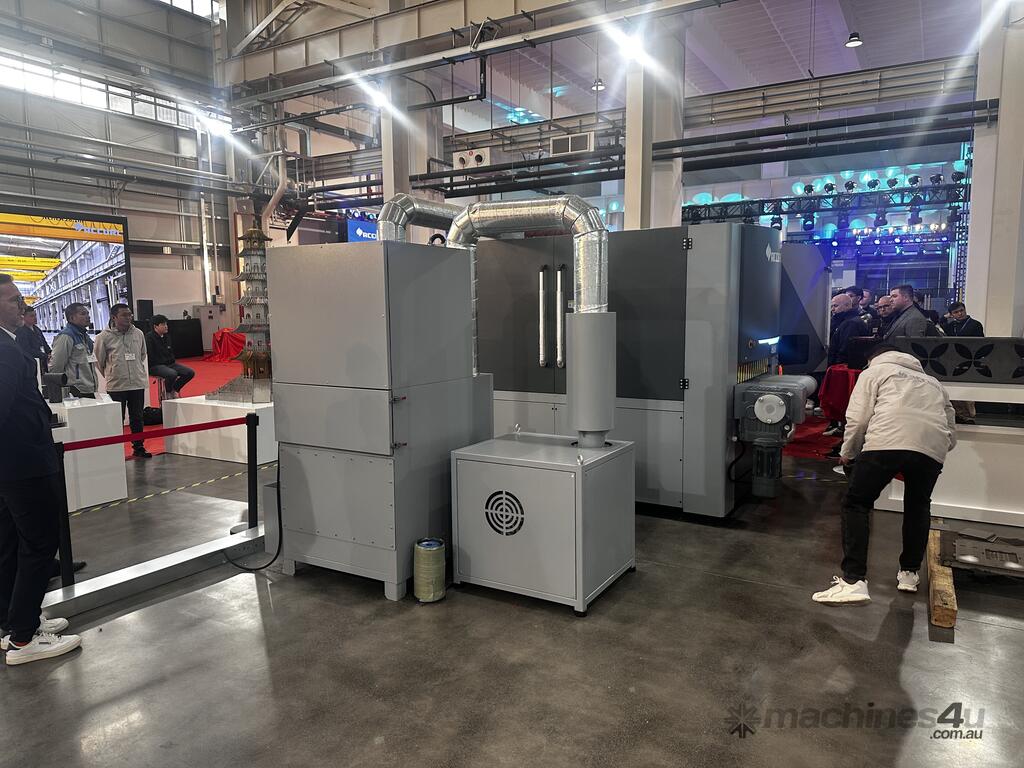

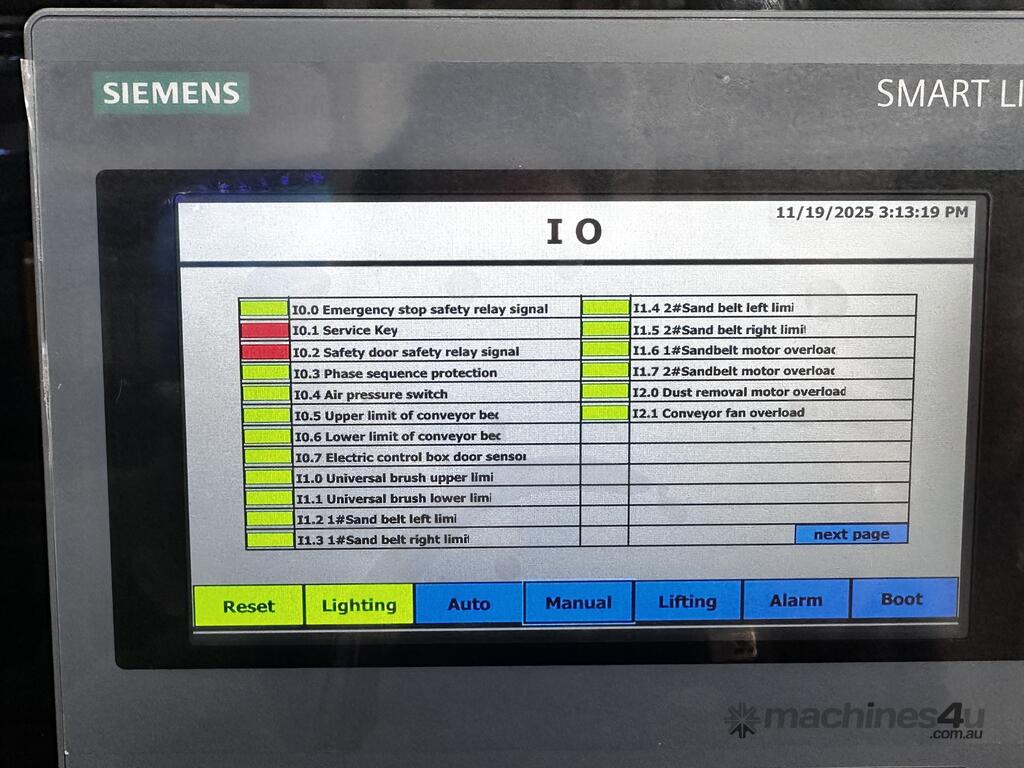

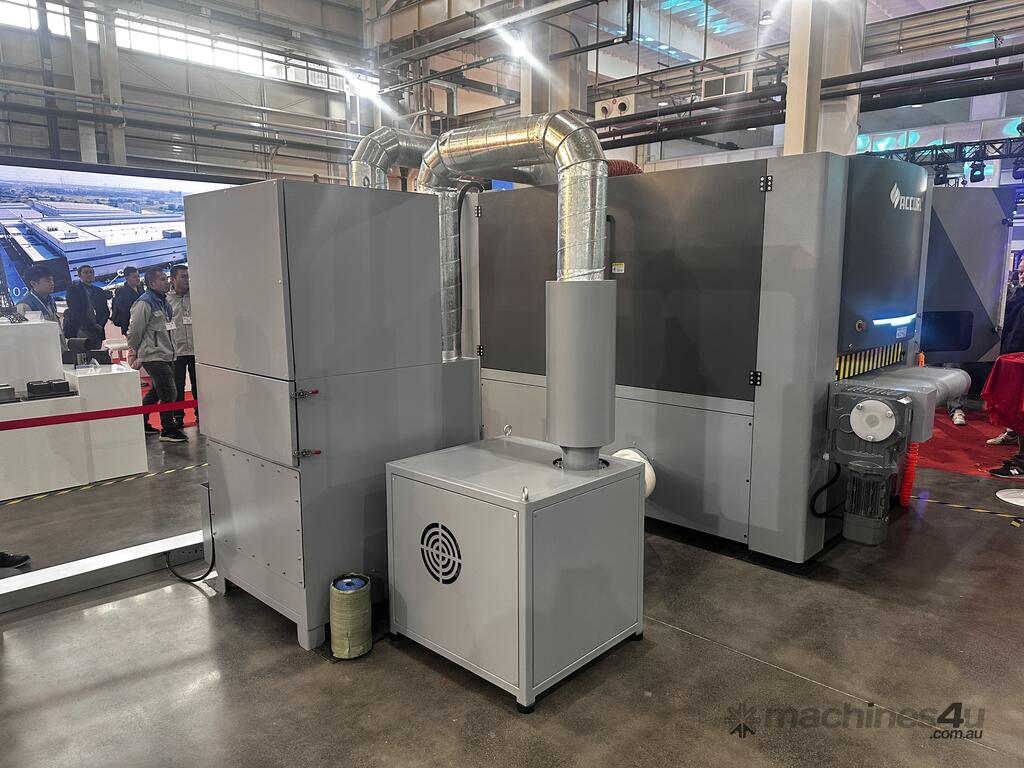

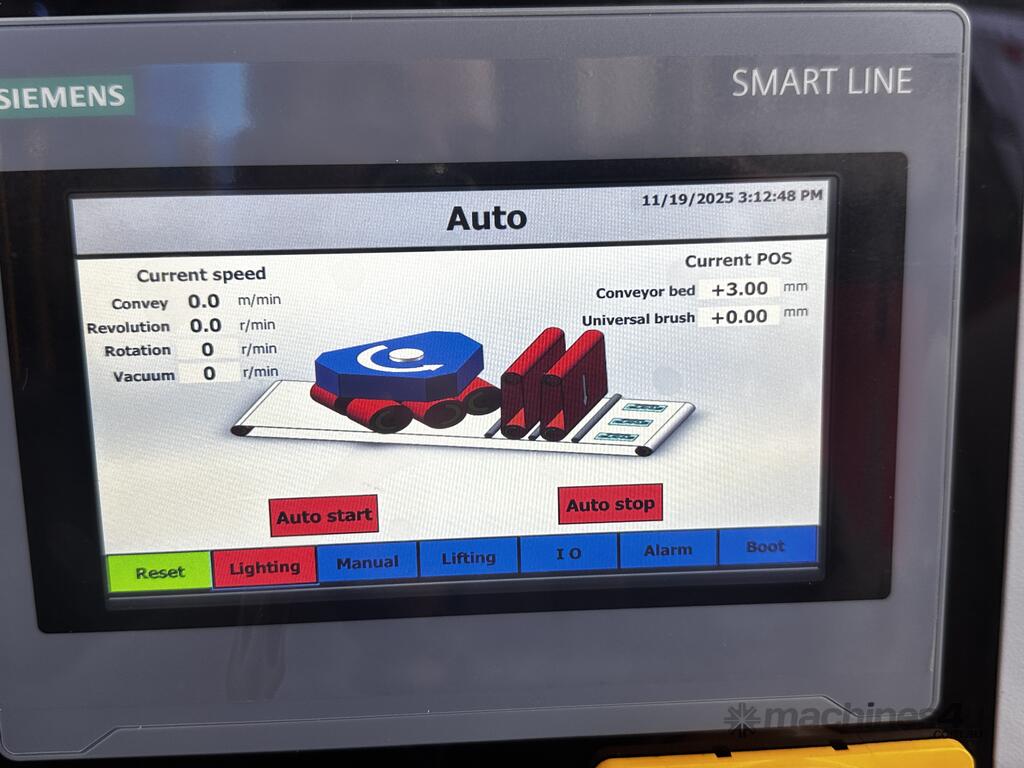

The Accurl deburring machines are equipped with a suction and magnetic table as standard and are supplied with a wet type dust extraction system. A Siemens colour touch screen comes with the machine allowing the user to control a number of machine functions from the easy and intuitive interface.
Model EM-1300X
Processing width 1300mm
Processing thickness 0.5~80mm
Minimum processing size 50mm×50mm
The power of the machine 35KW
Hammer disk 162mm
Sand belt size 1910mm ×1300mm
Sand rolling brush size 300mm ×300mm
Delivery speed 0.5~6m / min
Sand belt line speed 12m /s
Number of roller-brush planetary revolution shaft heads 1 (Optional 2)
Number of rolling-brush planetary rotation shaft heads 8
Machined thickness servo adjustment precision 0.01mm
Rolling brush compensation servo adjustment precision 0.01mm
Grinding consumables
Dust air volume 6000m³/h
contour size of the unit 4050x 2550x2550mm
The weight of the whole machine 8.2T
