Accurl sheet metal machinery offer high level technology machinery within its market segment and is a progressive forward thinking company constantly improving their products and product range. Its because of this Complete Machine Tools has taken on the agency for Accurl machines in Australia. Why limit yourself to a company that only can supply a laser cutting machine, go with a company who can grow with your business and offer a complete solution for all your sheet metal and fabrication machinery needs under the 1 roof.

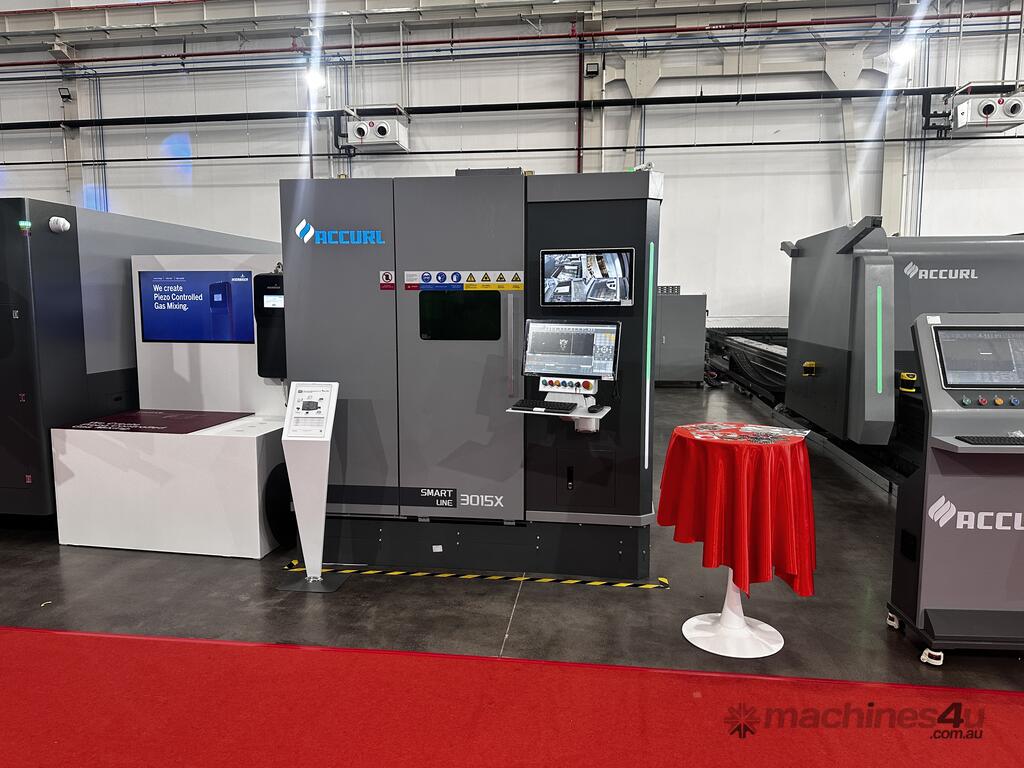

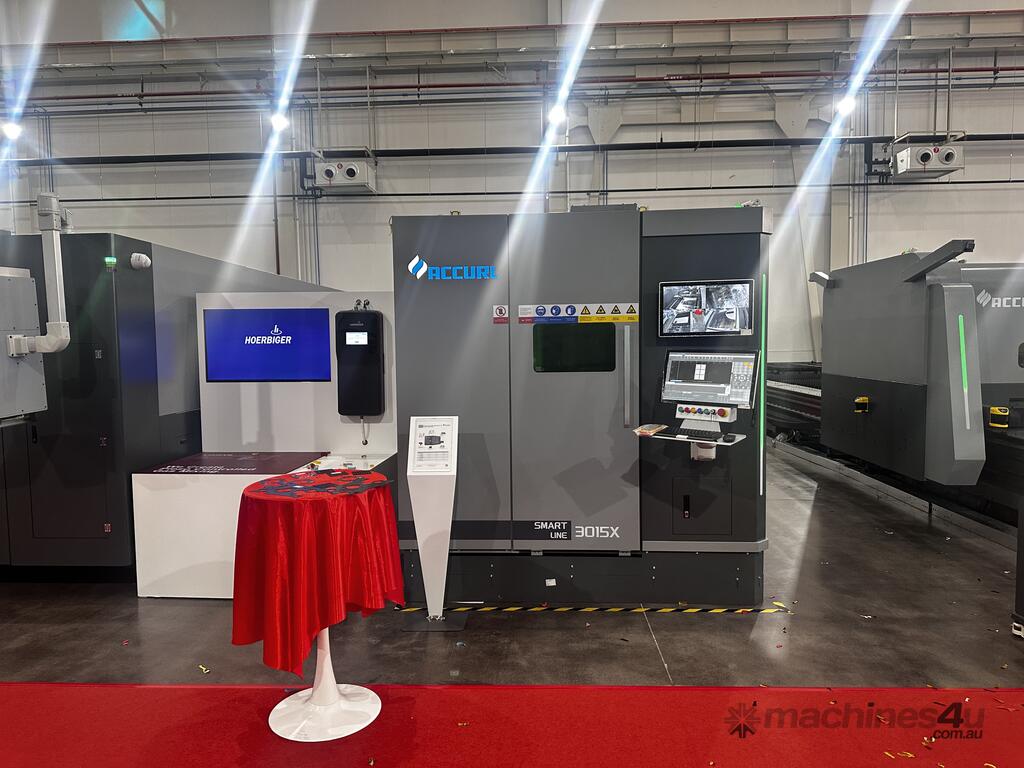

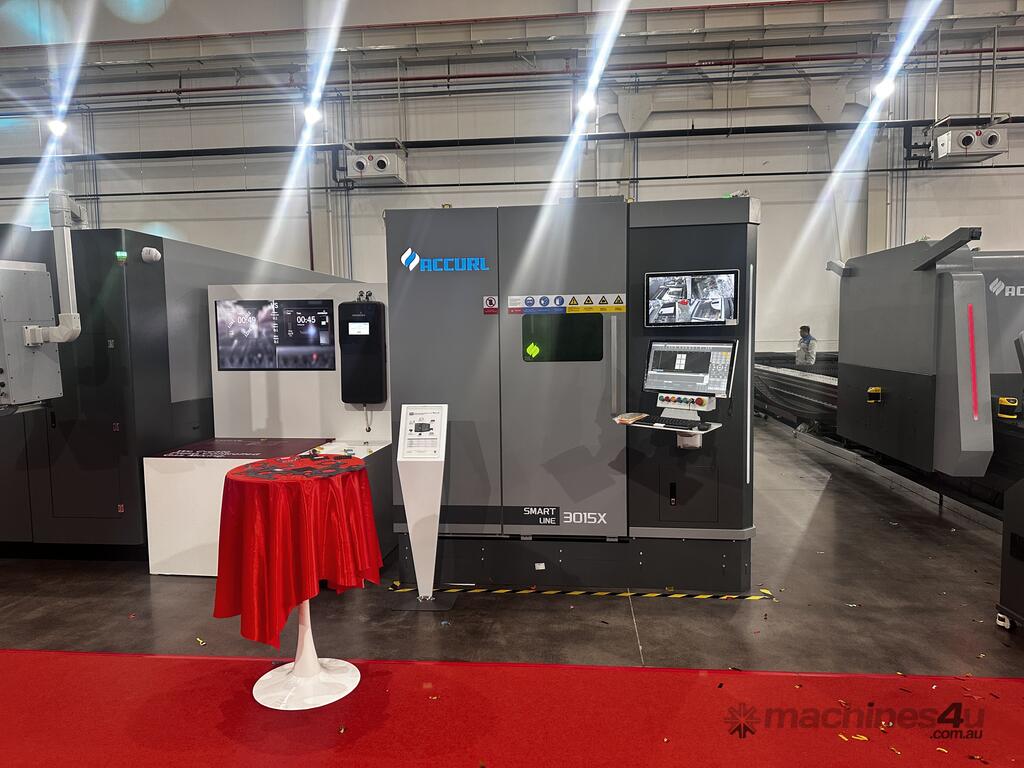

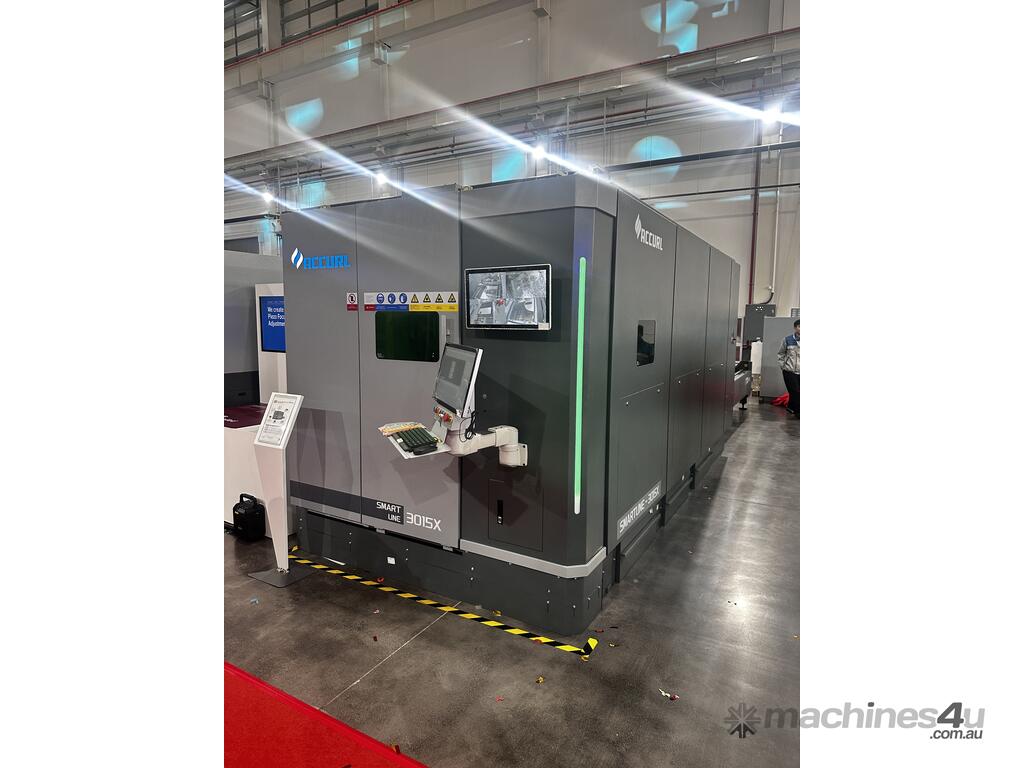

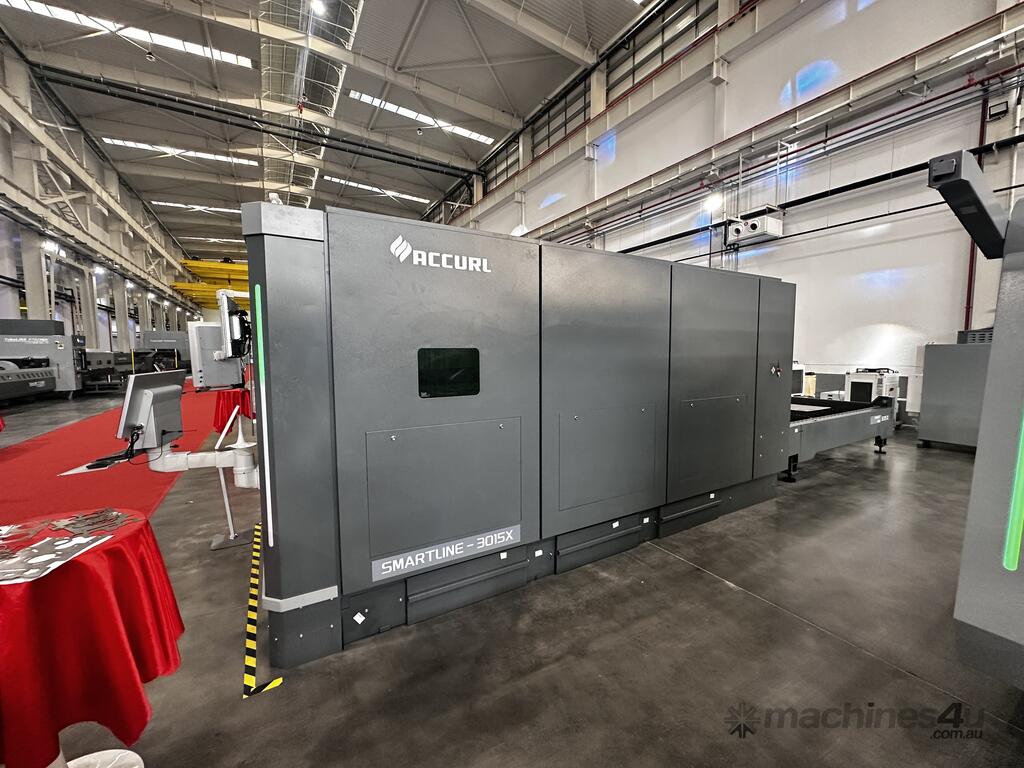

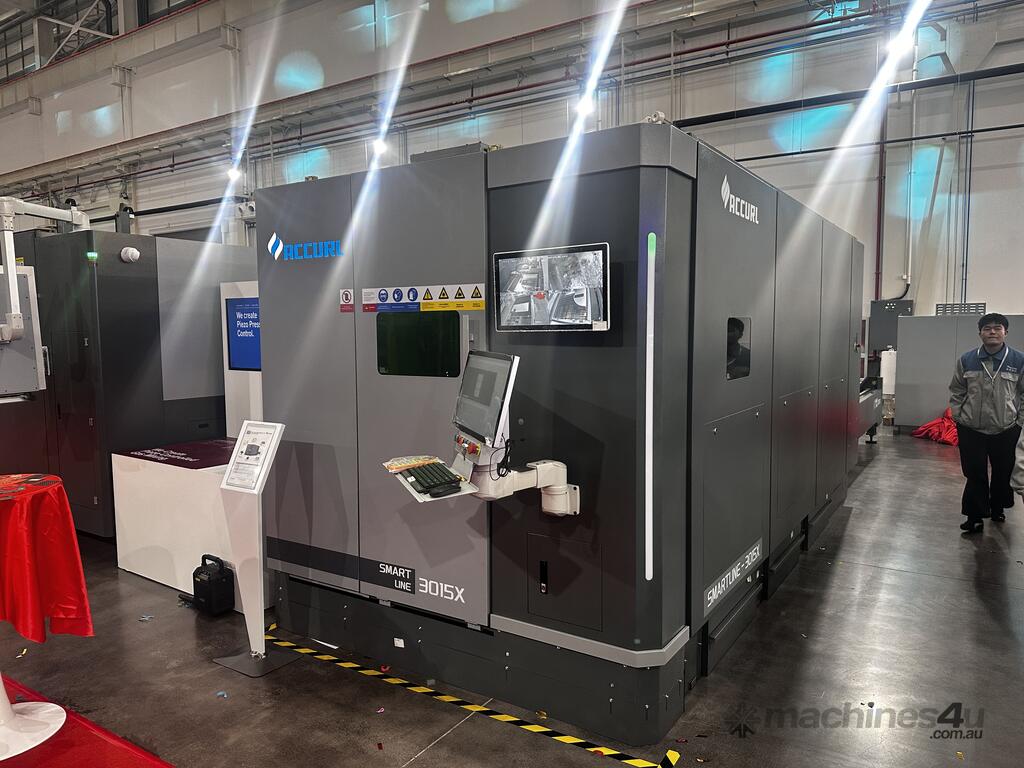

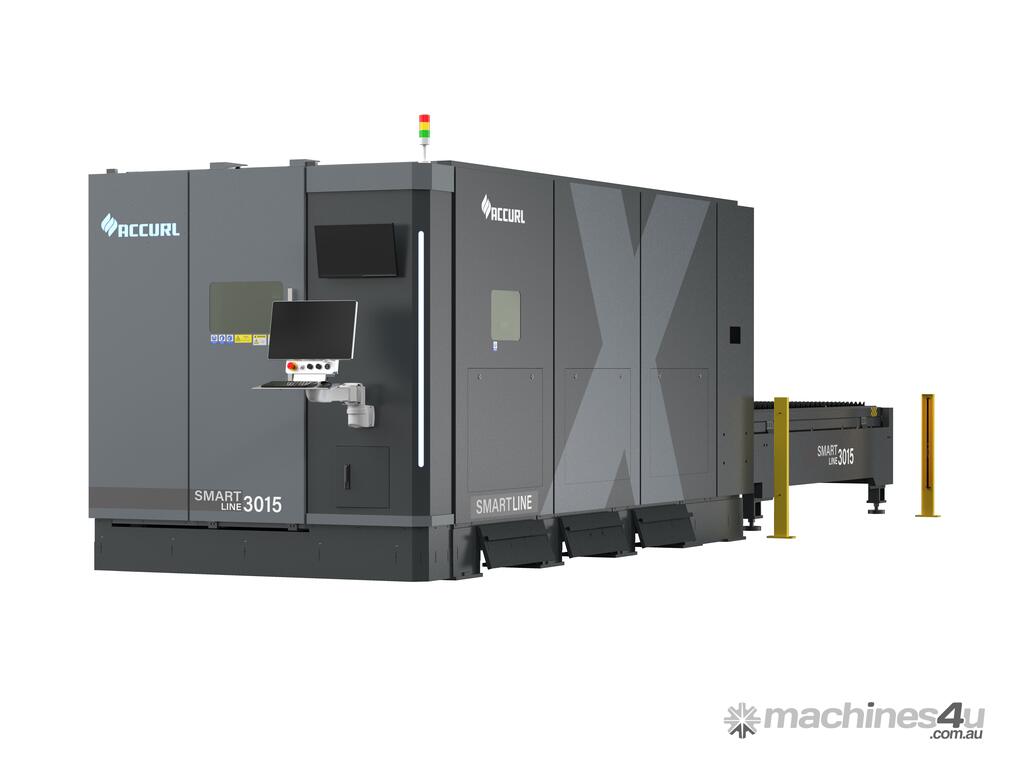

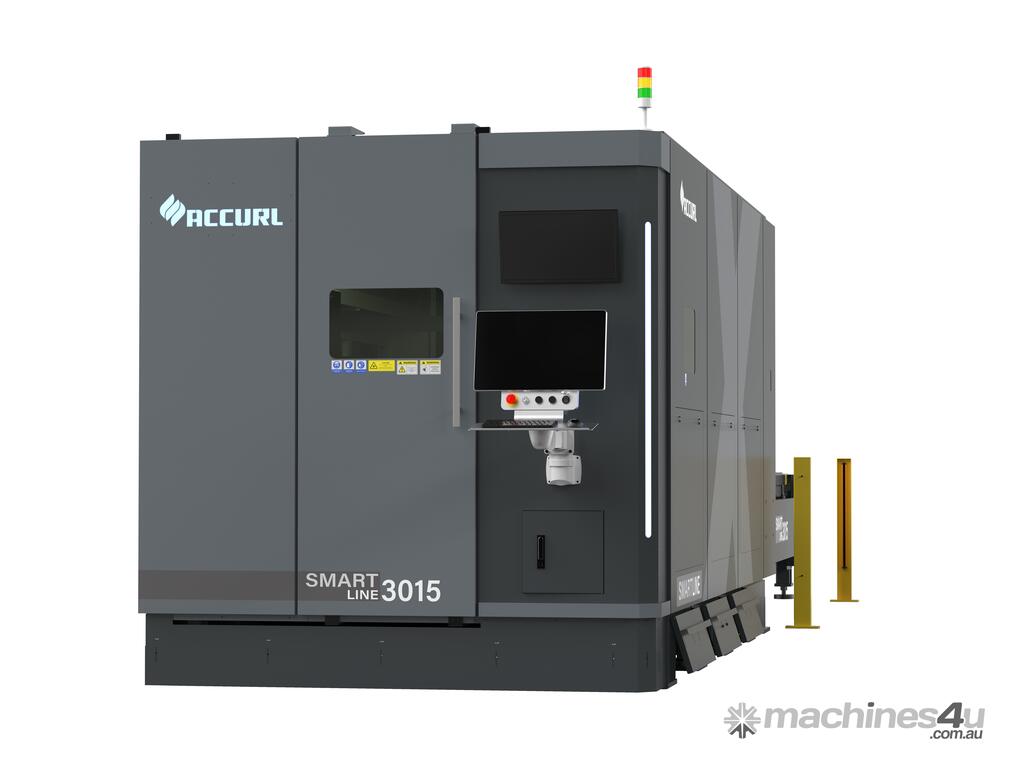

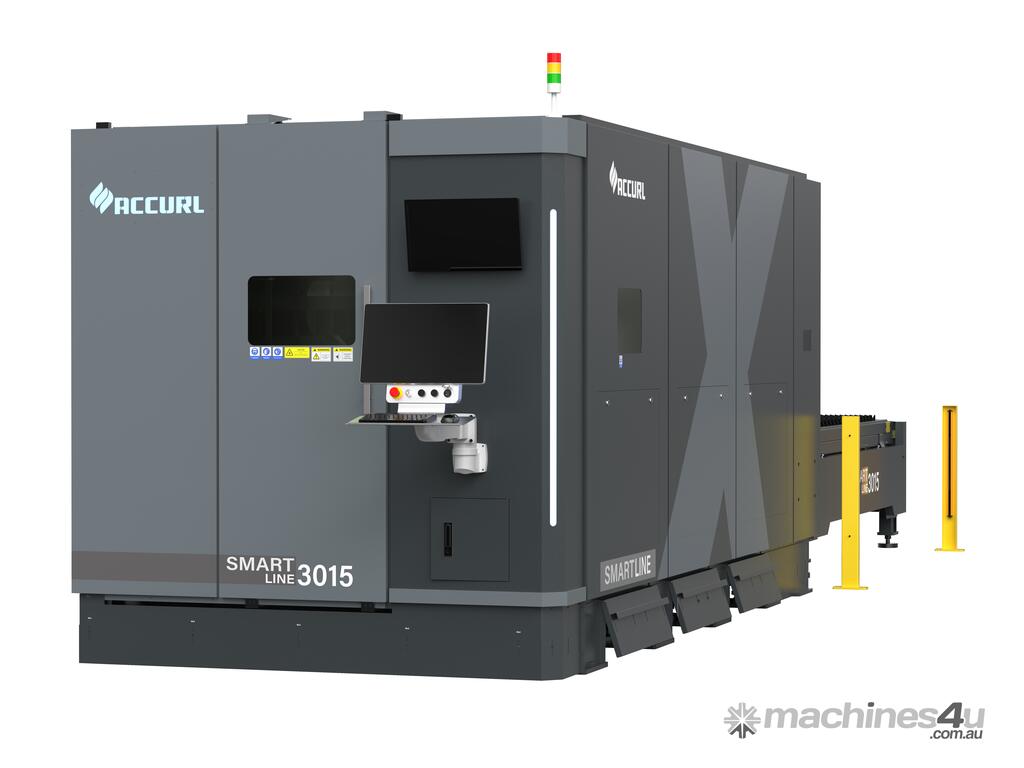

The SL-X Series is a very well optioned up machine with a change table. This machine is ideal for a company wanting a work horse at a very competitive price. The SL-X Series is fitted as standard with a Boci auto focus cutting head, Hypcut twincat dual screen controller, nozzle cleaner and pneumatic safety door at the rear of the machine.

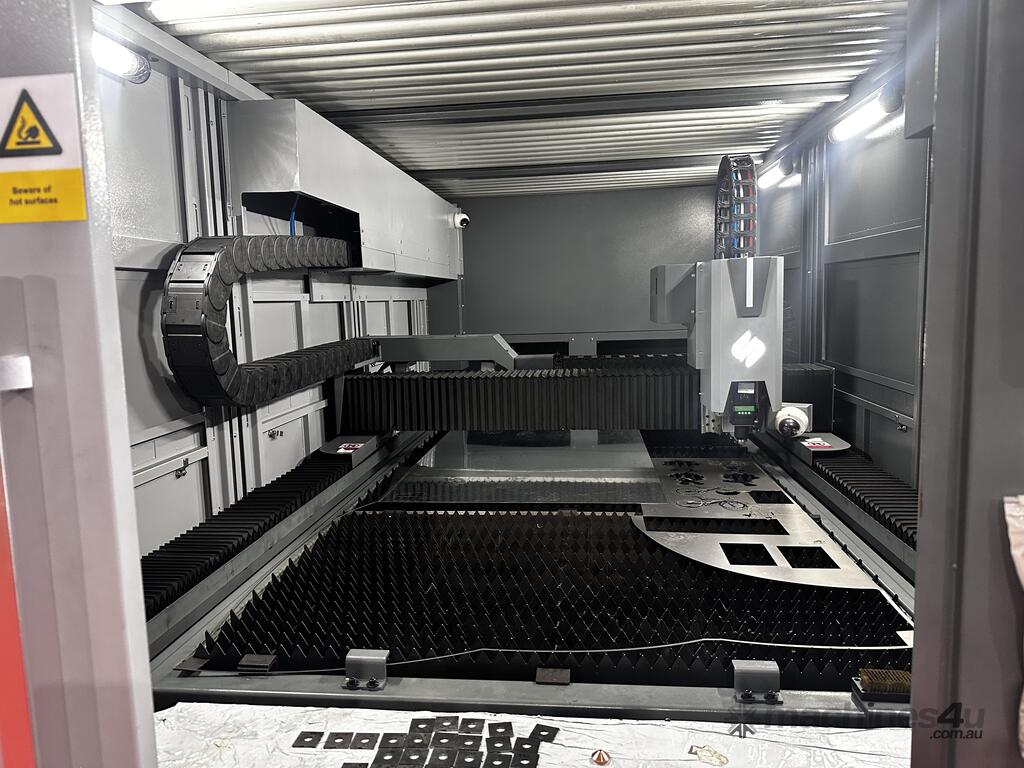

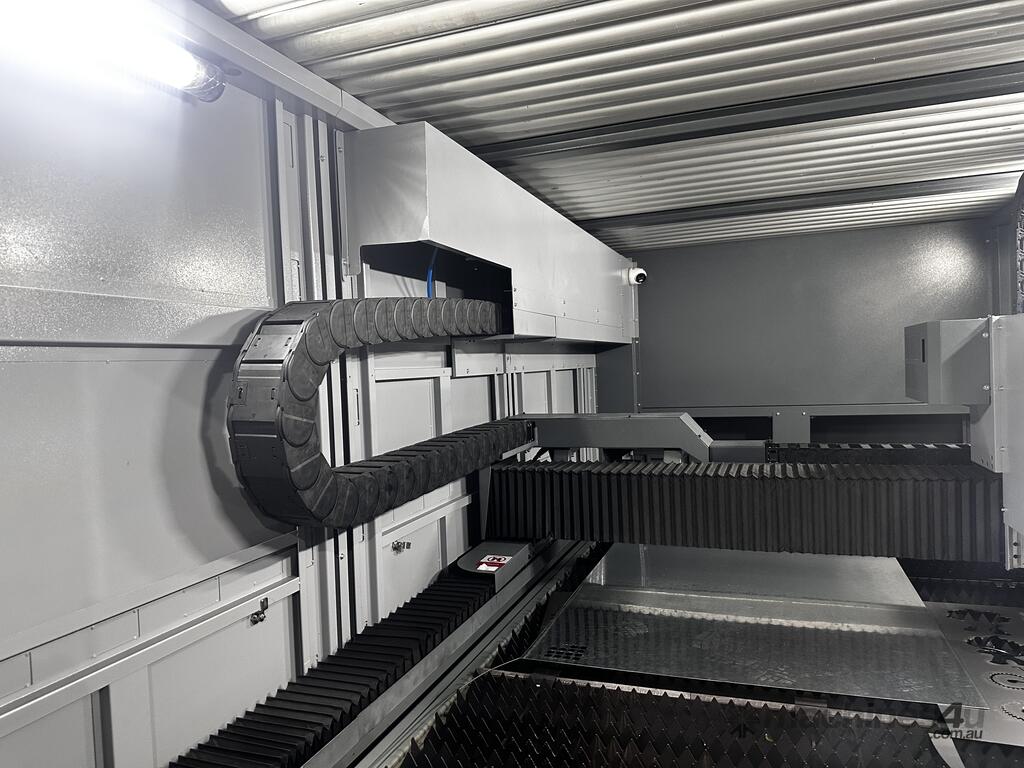

The SL-X Series comes as standard with an aluminium gantry for the cutting head which drastically reduces the weight compared to a steel gantry. Utilising the aluminium gantry allows the rapid movement to be faster and the control while cutting more stable.

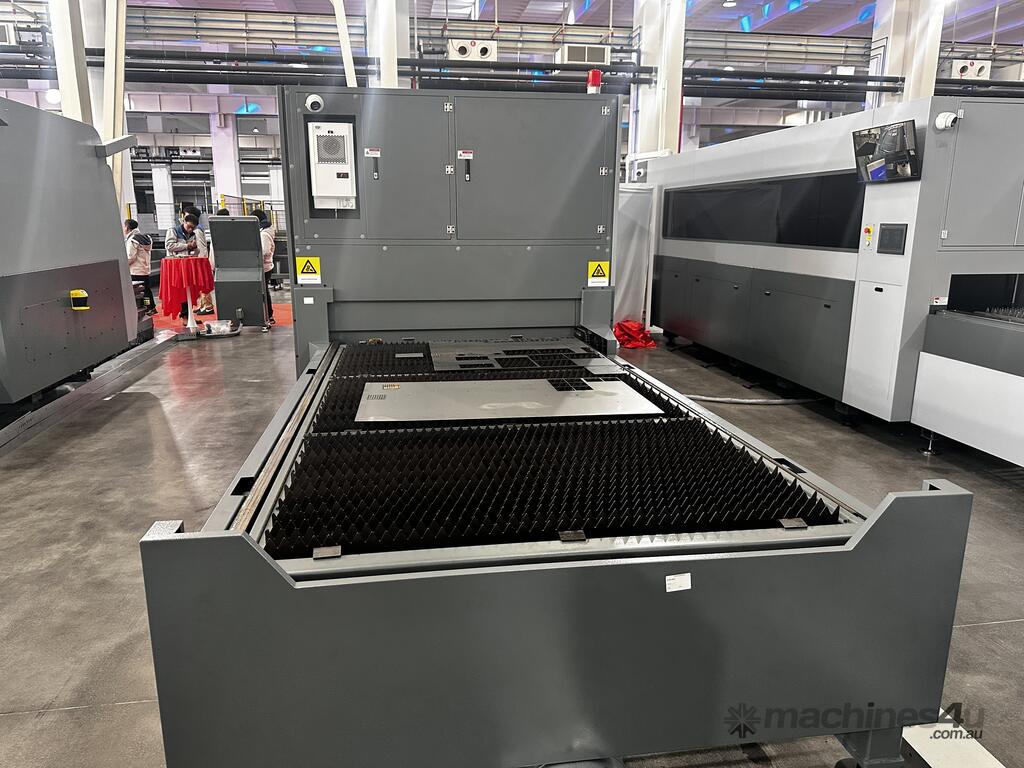

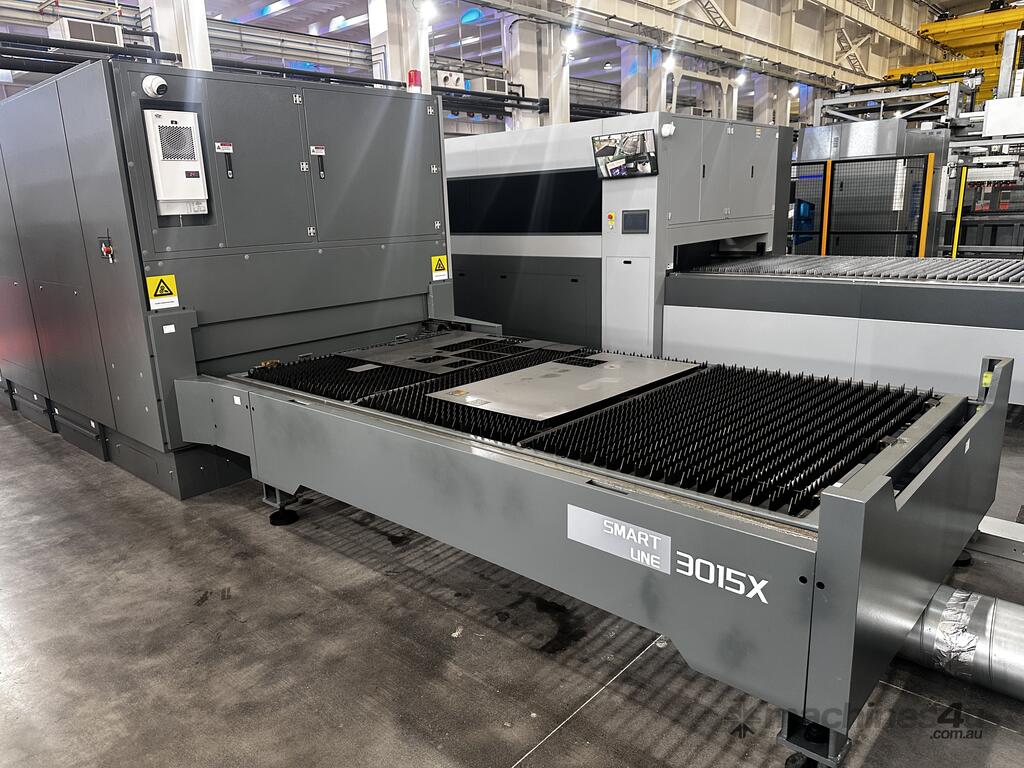

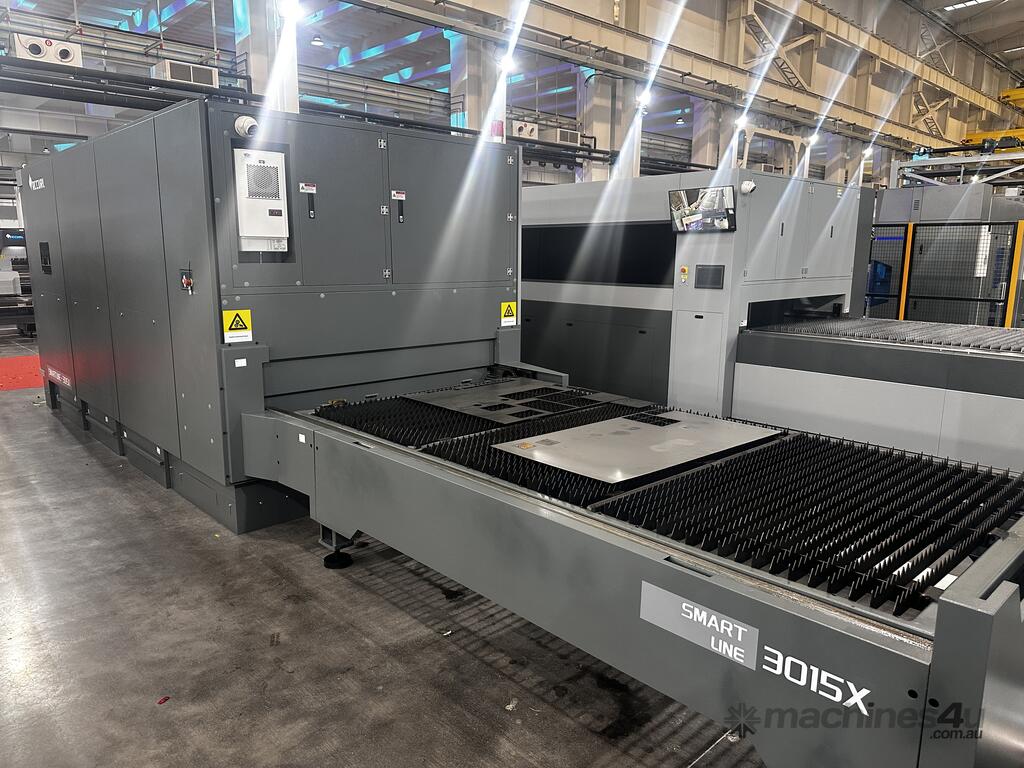

The laser frame is an integrated plate welded hollow bed structure which prevents heat transfer during cutting and effectively mitigates the impact of laser induced heat helping greatly to prevent thermal deformation. The SL-X Series utilises the pull type work table for blistering fast changing taking only 15 seconds for a complete change.
STANDARD FEATURES & COMPONENTS-
-TWINCUT®21" S80 CNC Multi-Touch TwinCAT Control System
-INNOVANCE® Highly dynamic EtherCAT servo drive
-BOCI® BLT 6 Series Laser Cutting head (Auto Focus)
-ACCURL® Dynamic System 4.0: Blistering fast acceleration
-ACCURL® Fast piercing 2.0: Ultrafast perforation
-Graphite Frame Anti-burn Technology
- Cypcut offline software
-Automatic nozzle cleaning 1.0
-Raycus CE fiber laser generator

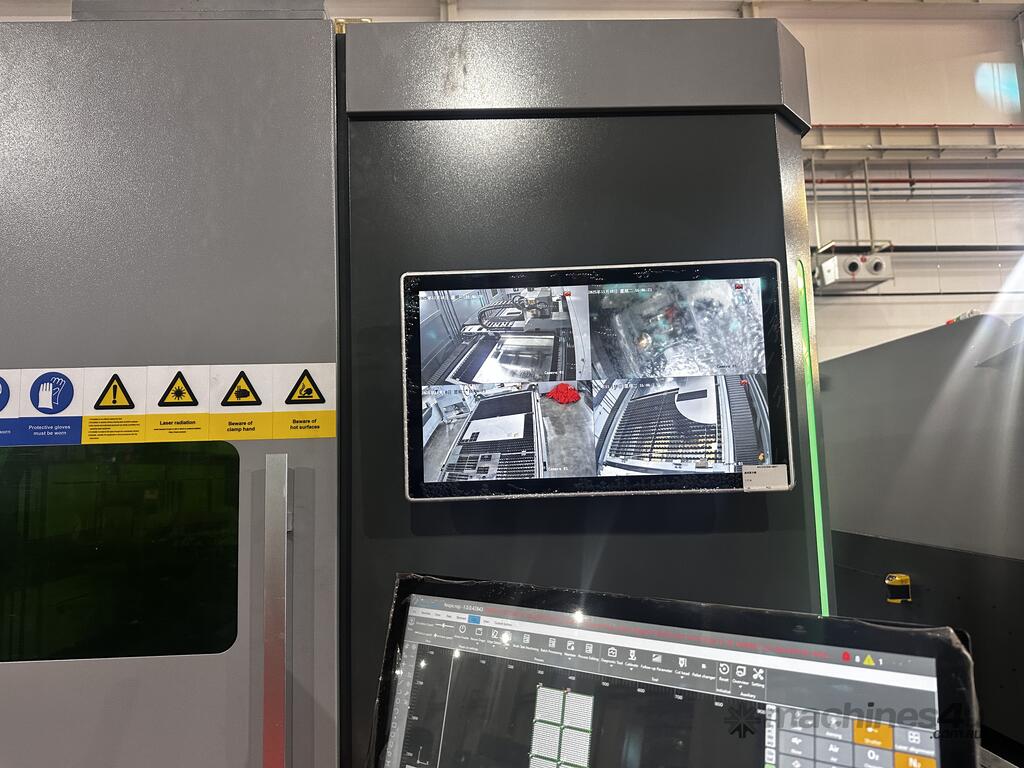

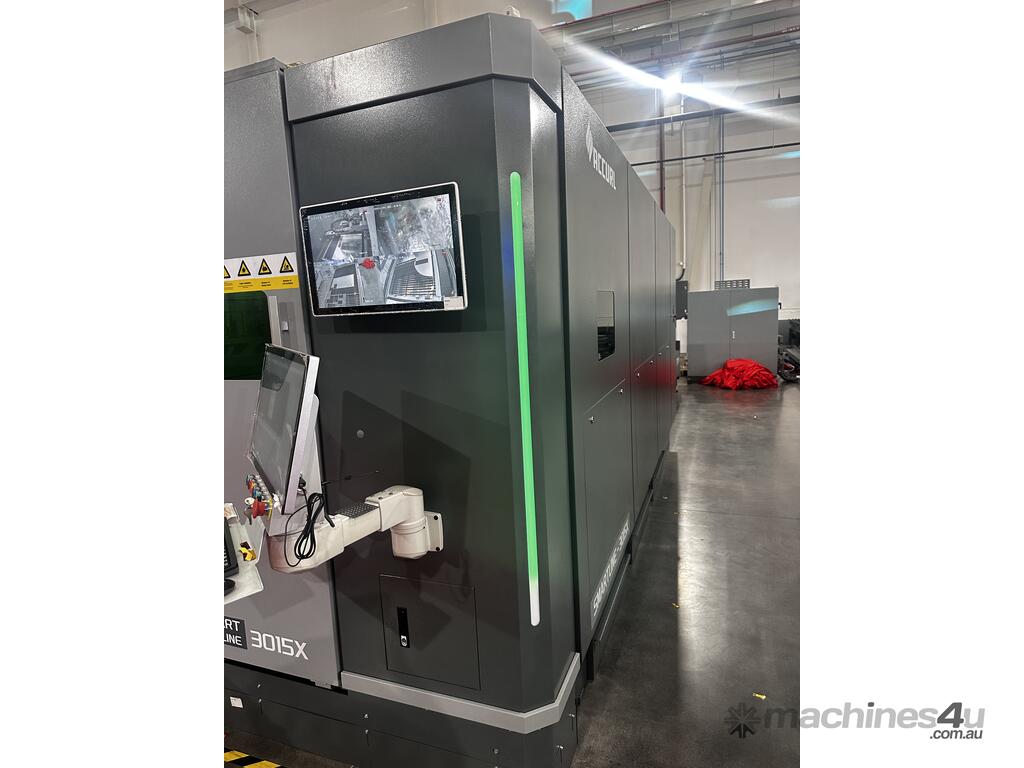

-CE Norms: Protective Measures with Real-time monitoring camera
-Class IV safety system and CE marking
-Full automatic voltage regulator System
-HYPCUT®Embedded PCs: Industrial PCs with integrated I/O level
-Aluminium cutting head gantry
-Red laser dot sheet alignment system
-Fly cut | frog jump | pre-pierce functions
-Sheet corner auto detection function
-Pneumatic safety door at rear of the machine
-Auto focus cutting head
-Light barrier protection at rear of the machine
-Fully enclosed design
-Laser grade safety glass
-Internal LED lighting
-External 3 colour status lamp
-Solid heavy duty frame for greater vibration absorption
-Pneumatic locking table pics to eliminate any table movement while cutting, this is also fitted with a sensor that if the pins are not in position the cutting will not start.
-Auto gas selection via a servo valve
-Pneumatic suction table zone selection, when cutting in a certain zone on the cutting table a flap controller pneumatically will open allowing all air suction to be concentrated on that zone for better fume extraction to the filtration system.
-Heavy duty box section exchange tables
-Clever door design allowing easy access into the machine for maintenance
CAPACITIES -
- Power source 20KW
Options available -
- Eckelmann *German) controller
- Dust extraction system
- BLT 6 & 8 cutting heads
- Automatic nozzle changer
- Mixed gas system
- Industry 4.0 module
- Material remnant scanner
- Compressor
NB - Some pictures display optional extras, for a clear indication on what is included and for accurate pricing please contact us for an official quote. If price is listed as "PRICED FROM" this is purely a broad indication of price. On the 2 x 4m & 2.5 x 6m tables price does not include international shipping as these machines will not fit in a standard container and is priced per enquiry
