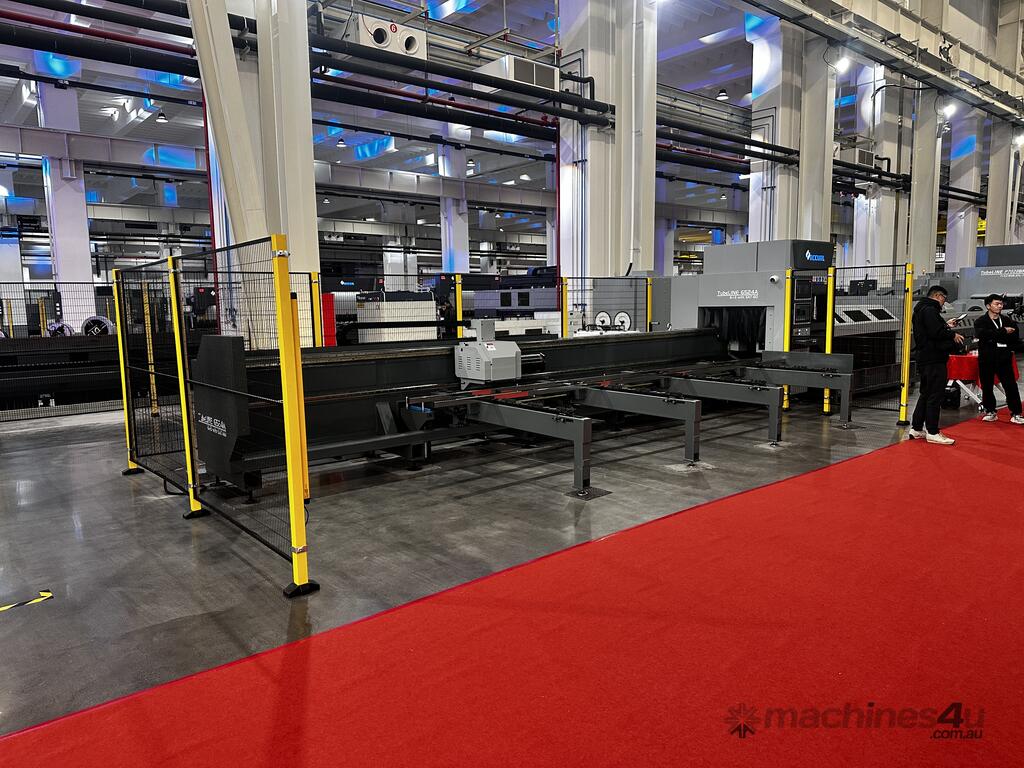

ACCURL TubeLINE A SERIES 3KW | 6.5M LENGTH | 240MM OD TUBE LASER | BOCI HEAD | CYPCUT CONTROLLER

*** NEW 2026 DESIGN ON ORDER FOR STOCK***

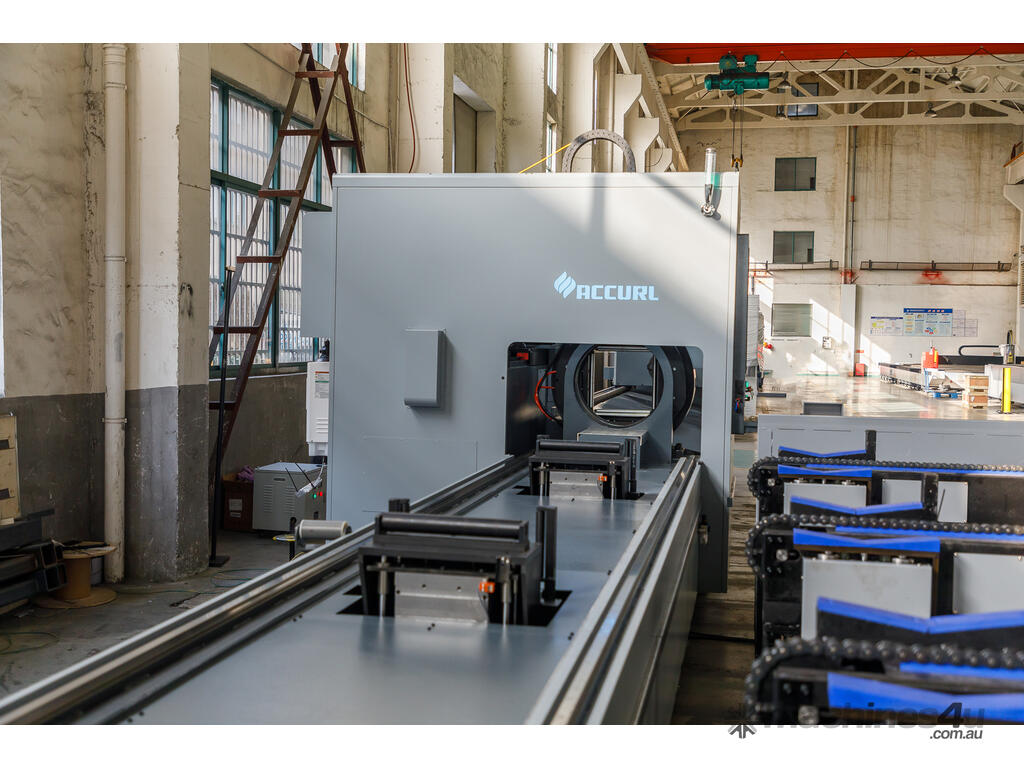

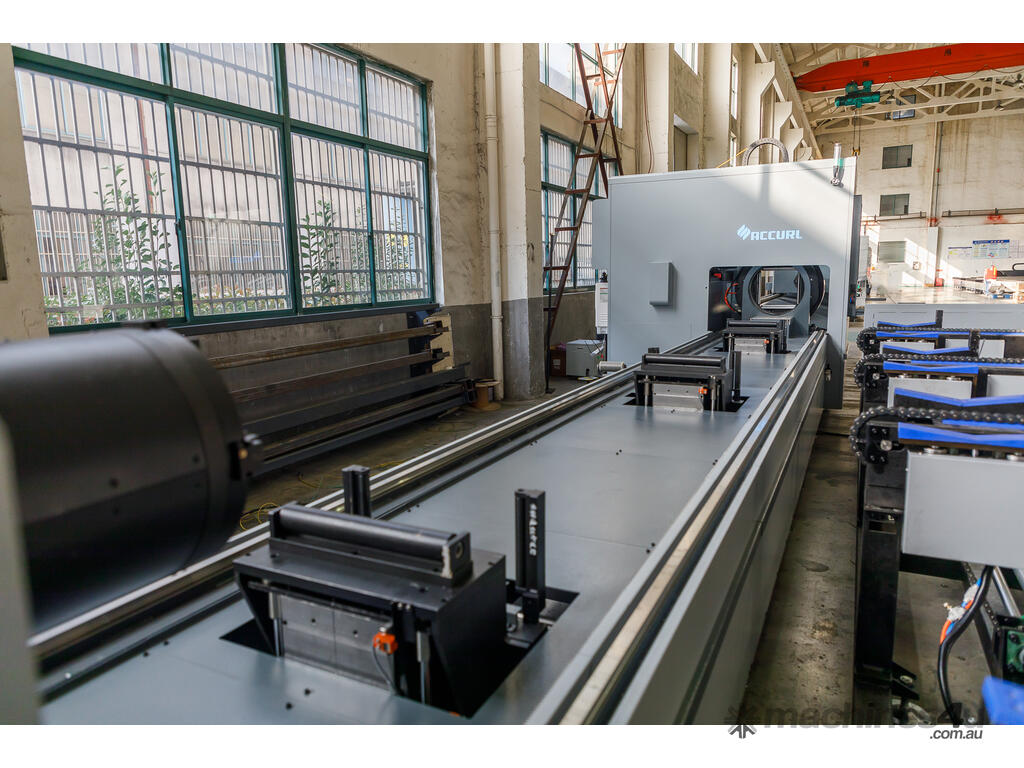

The new design features a vertically mounted feeding chuck which makes loading the tube very easy and ergonomic.

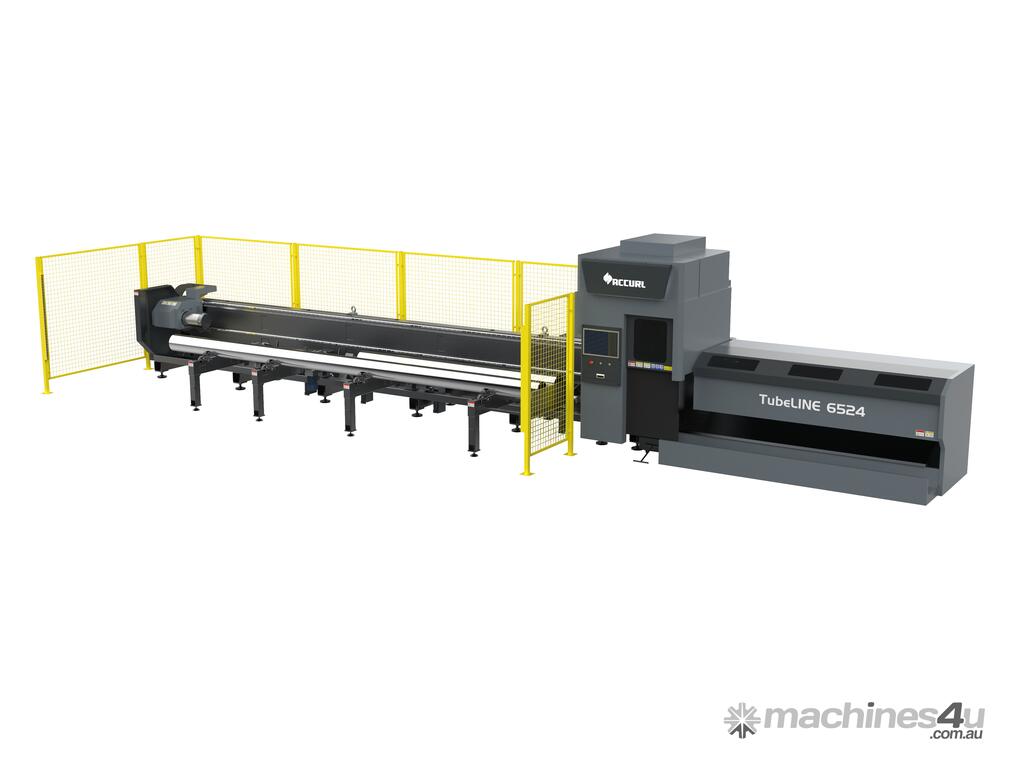

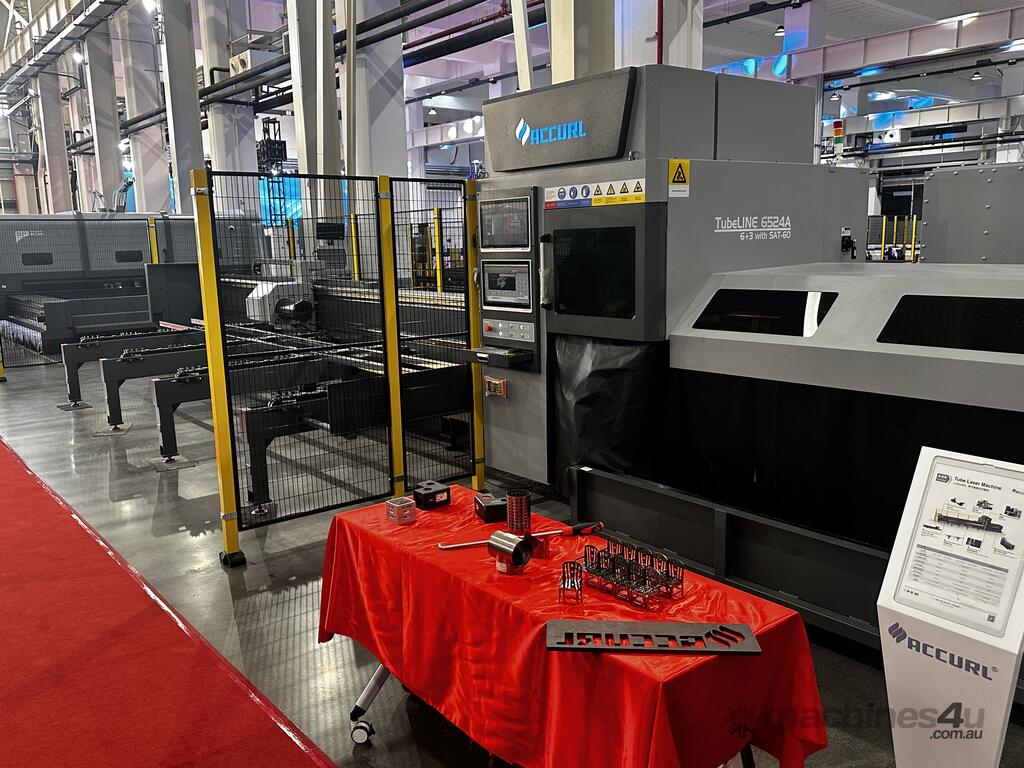

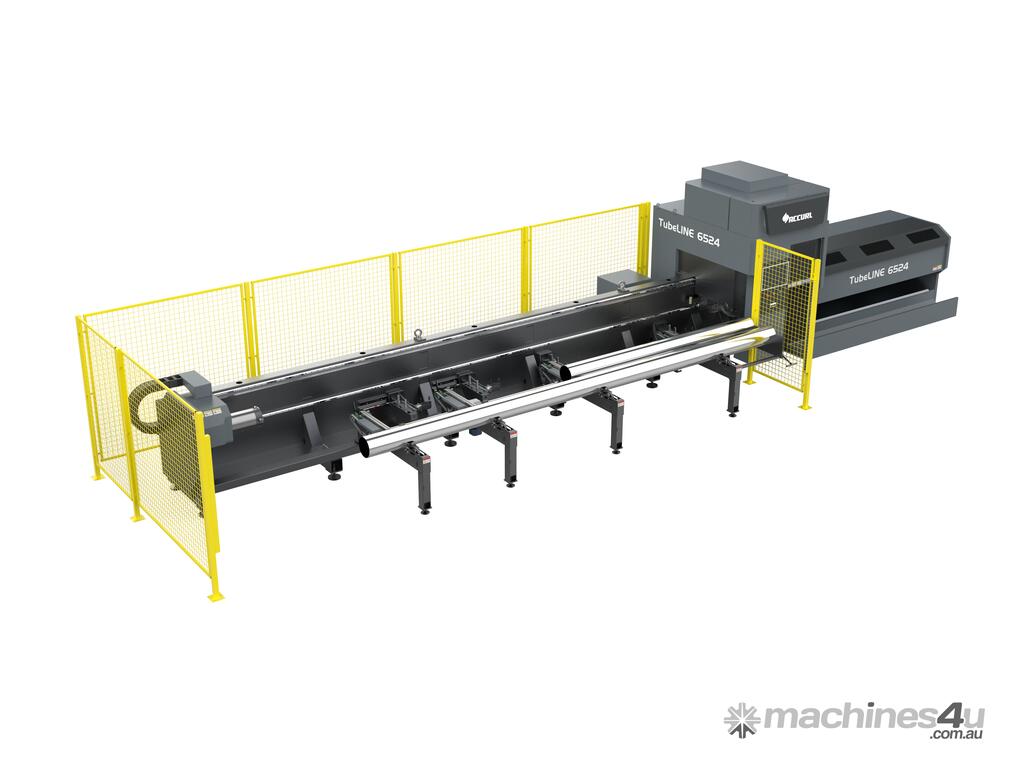

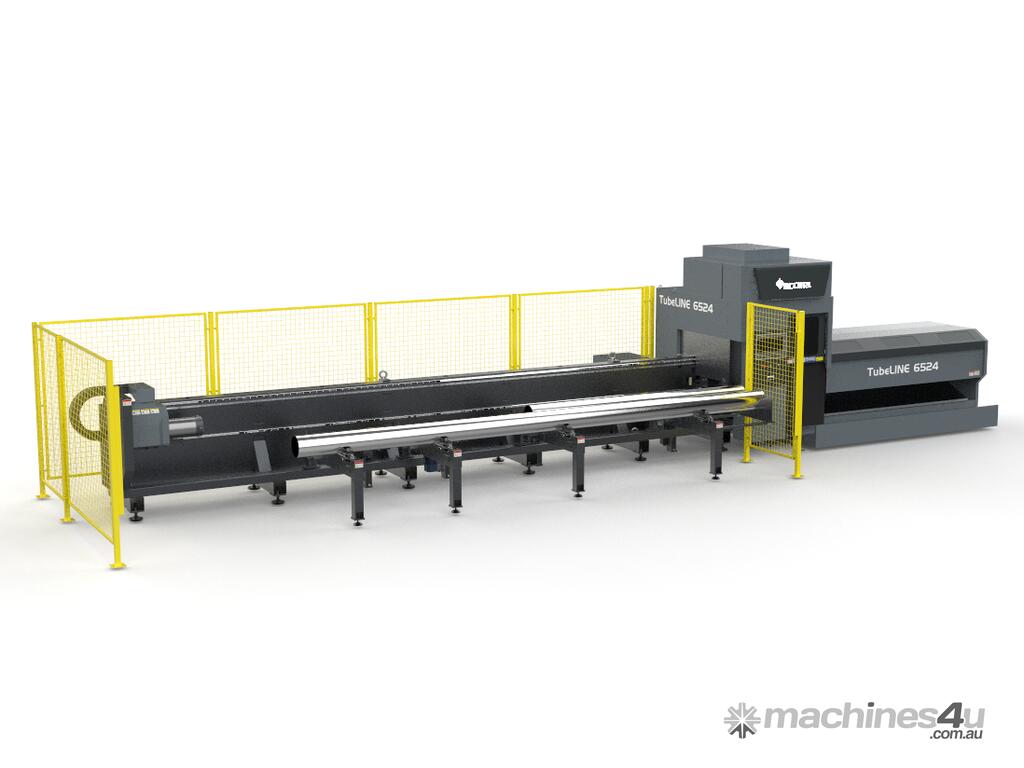

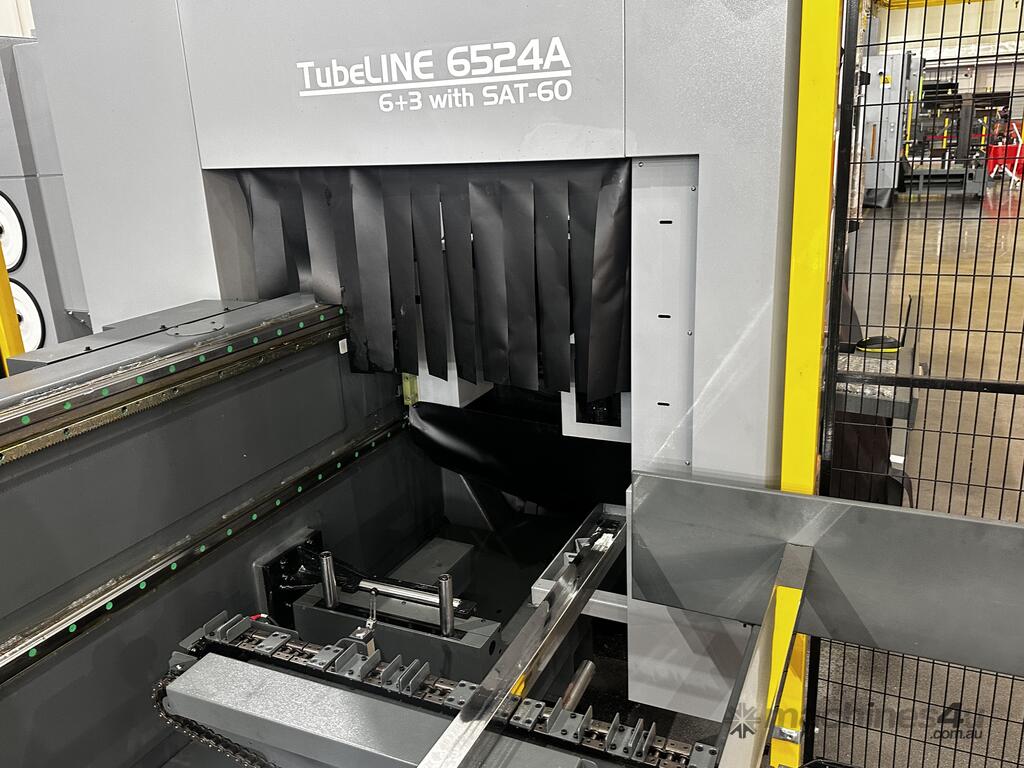

The stock machine coming in is the 6524A which has a dual chuck and a semi automatic tube feeding table for those who need automation which is extremely competitively priced. Industry 4.0 is included on this machine allowing for viewing of machine statistics and cutting status any where in the world with internet connection.

The stock machines has been ordered with the following features -

Explosion proof dust extraction system

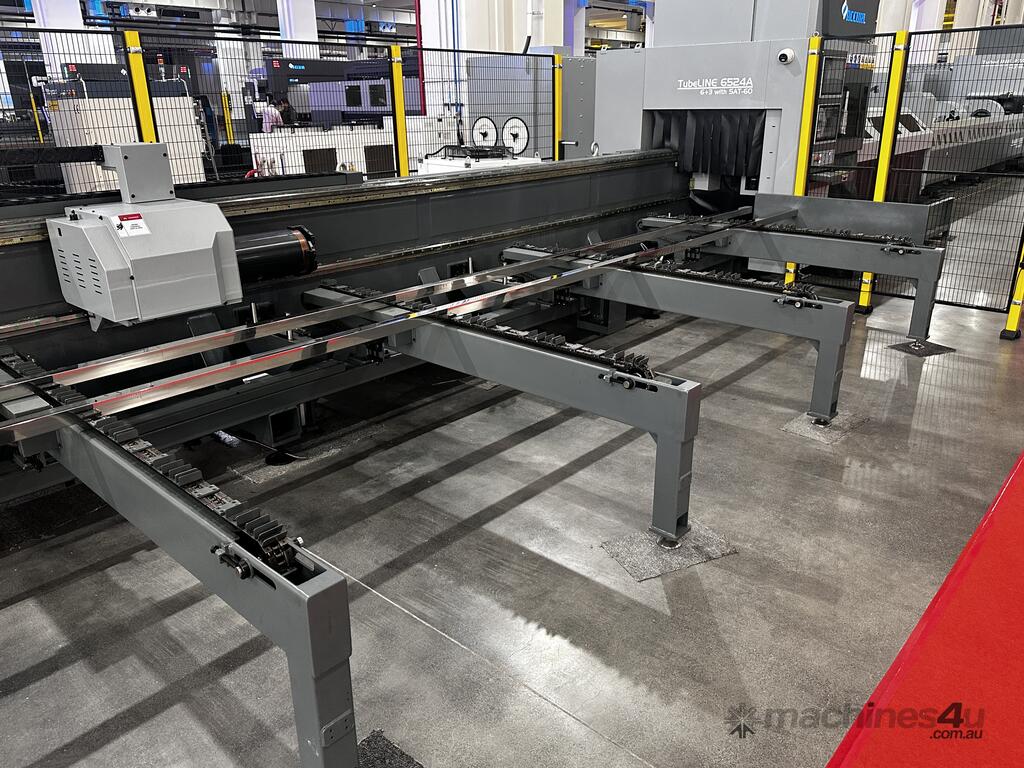

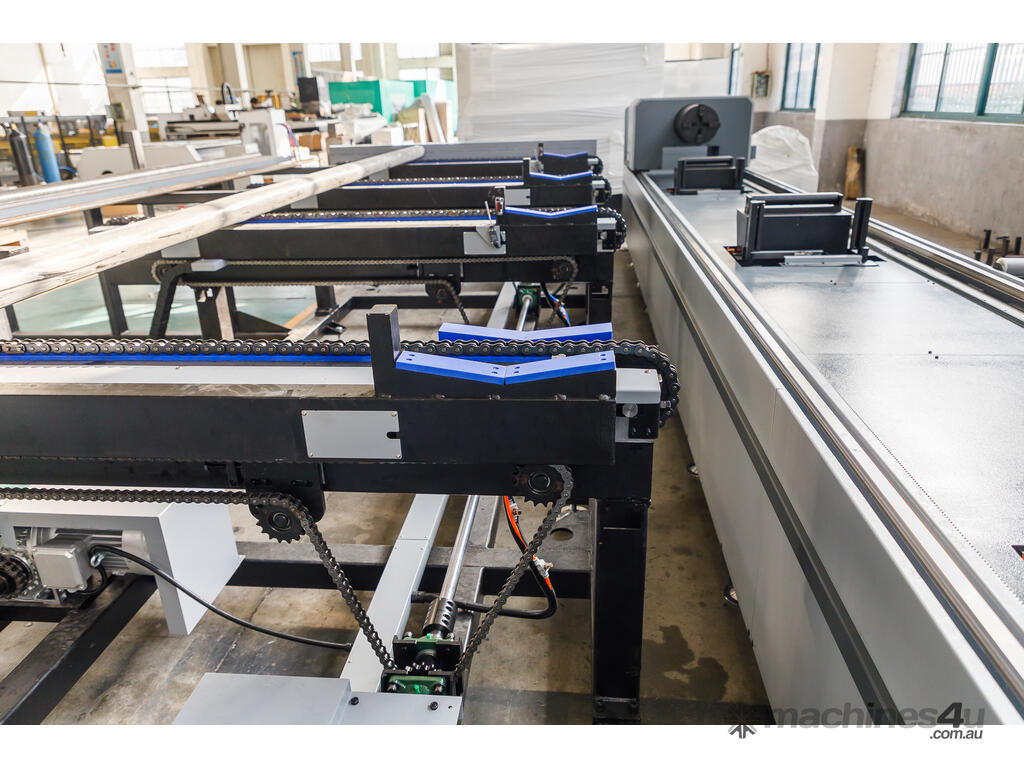

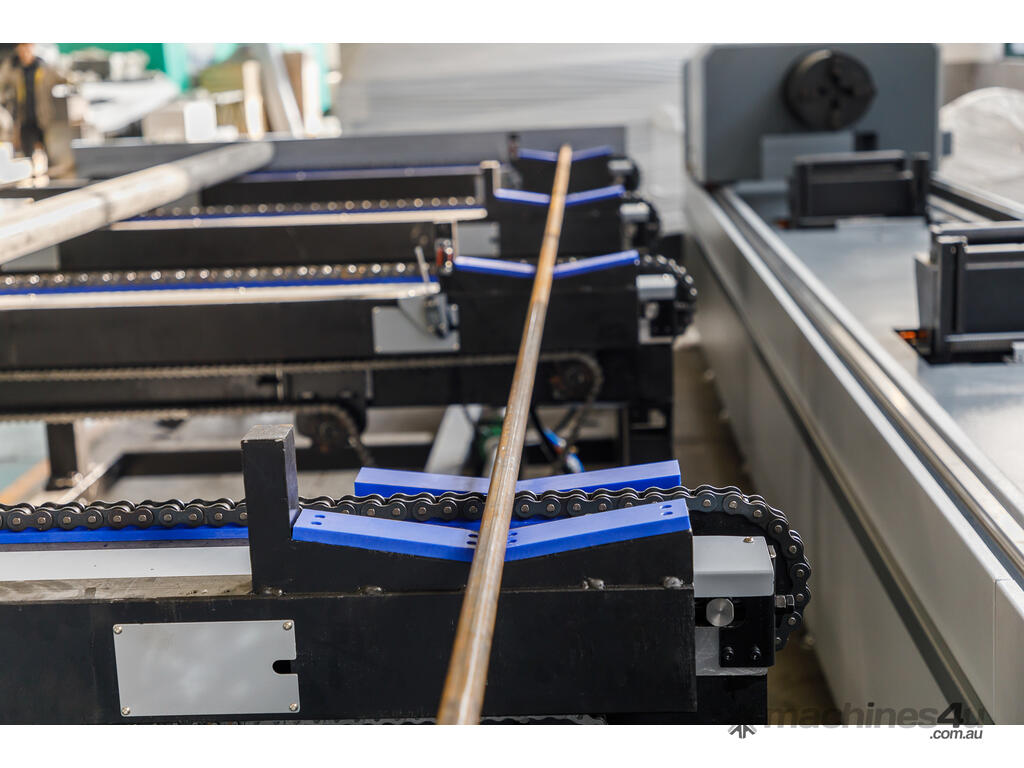

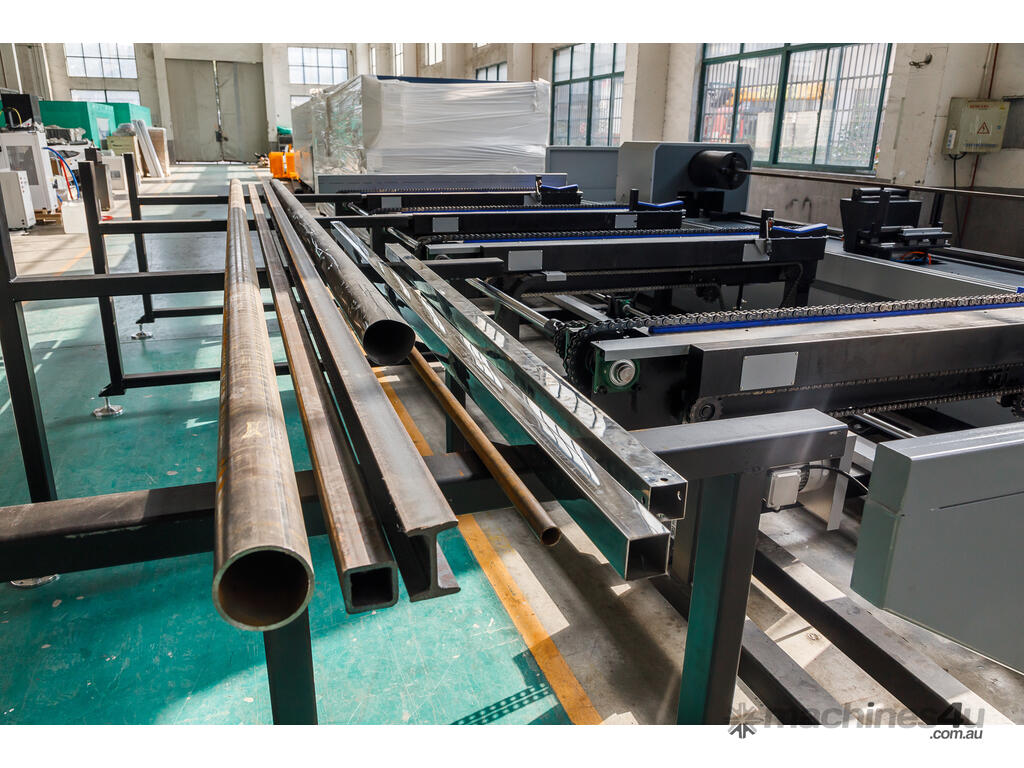

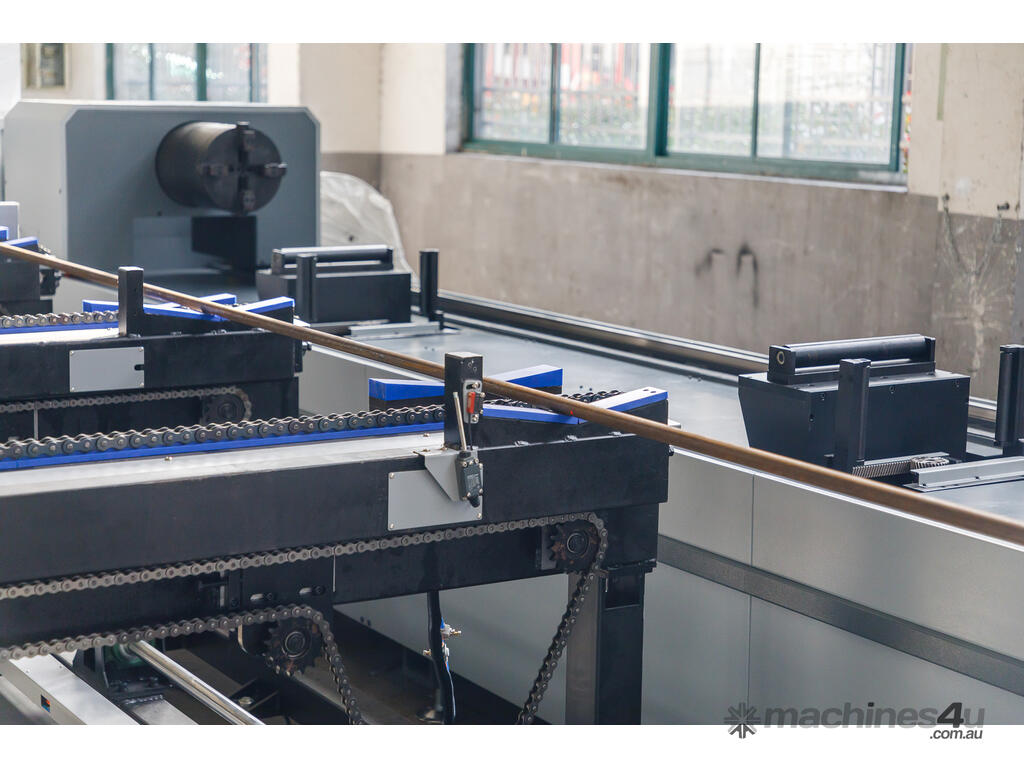

Semi auto infeed system SAT-60
CNC servo unloading 3m
Industry 4.0 module

2 chucks
Power - 3kw

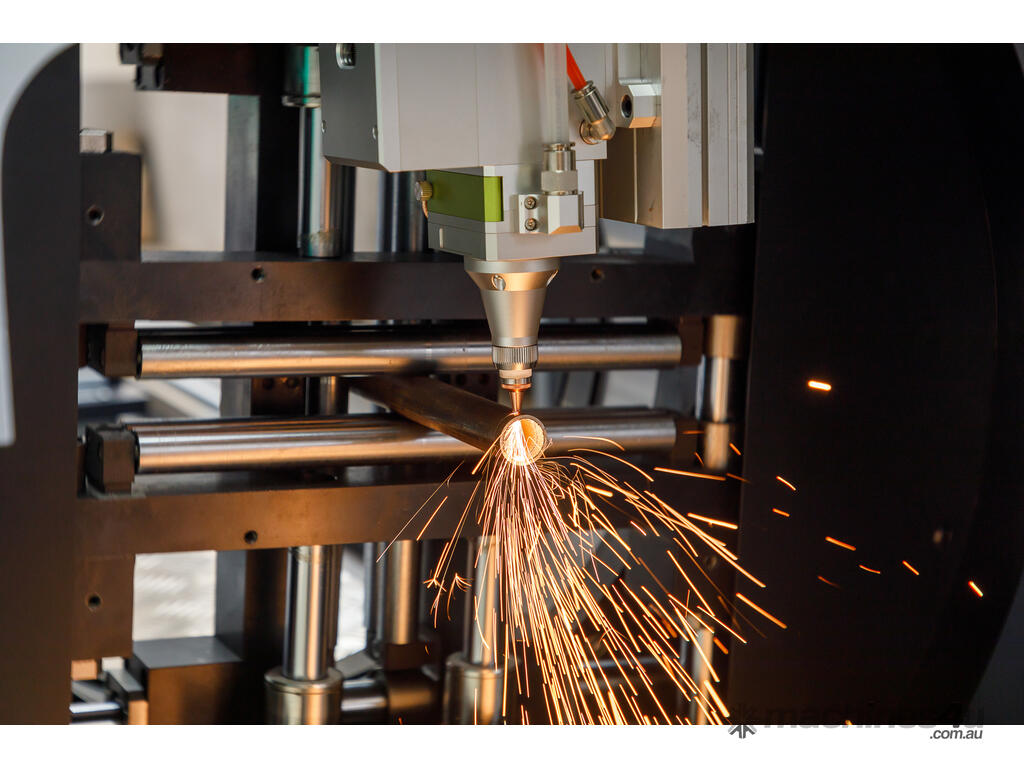

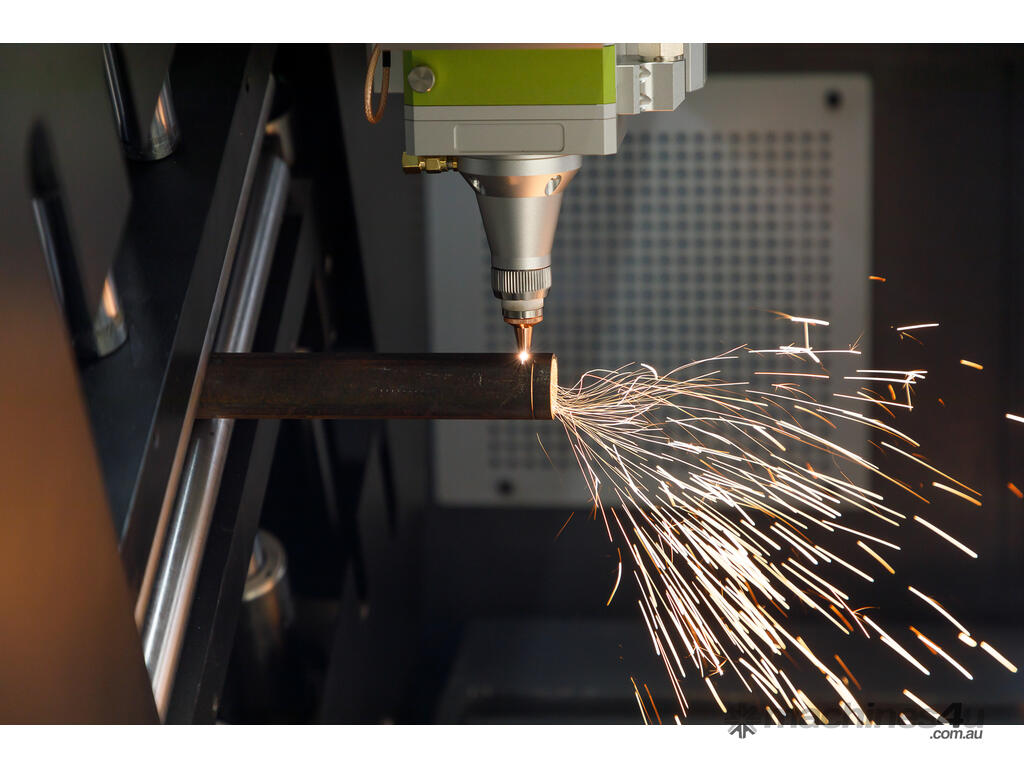

Boci BLT cutting head
Raycus power source
Pipe - 10 - 240mm capacity
6 m infeed
3m outfeed

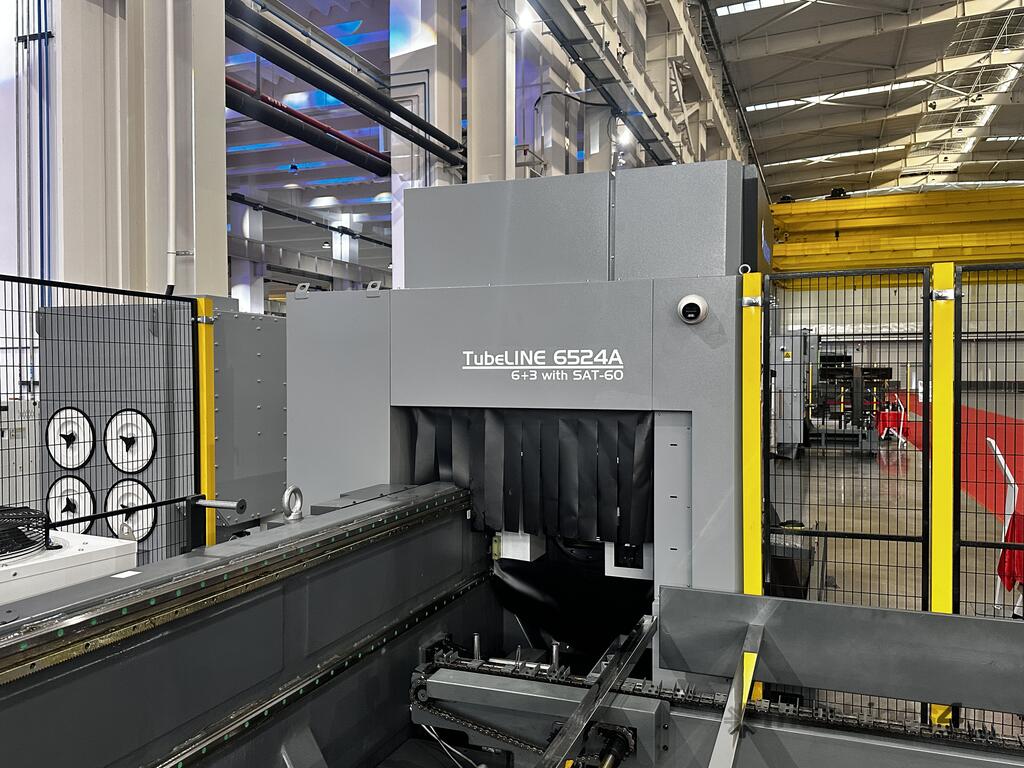

Gates around machine with light curtains

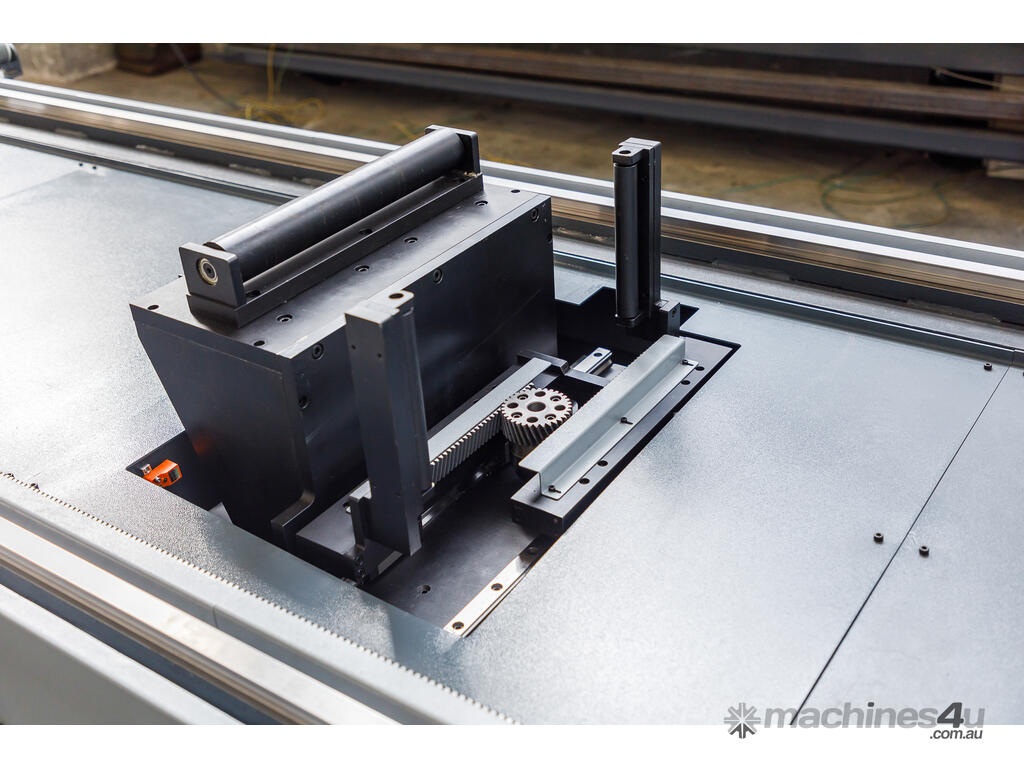

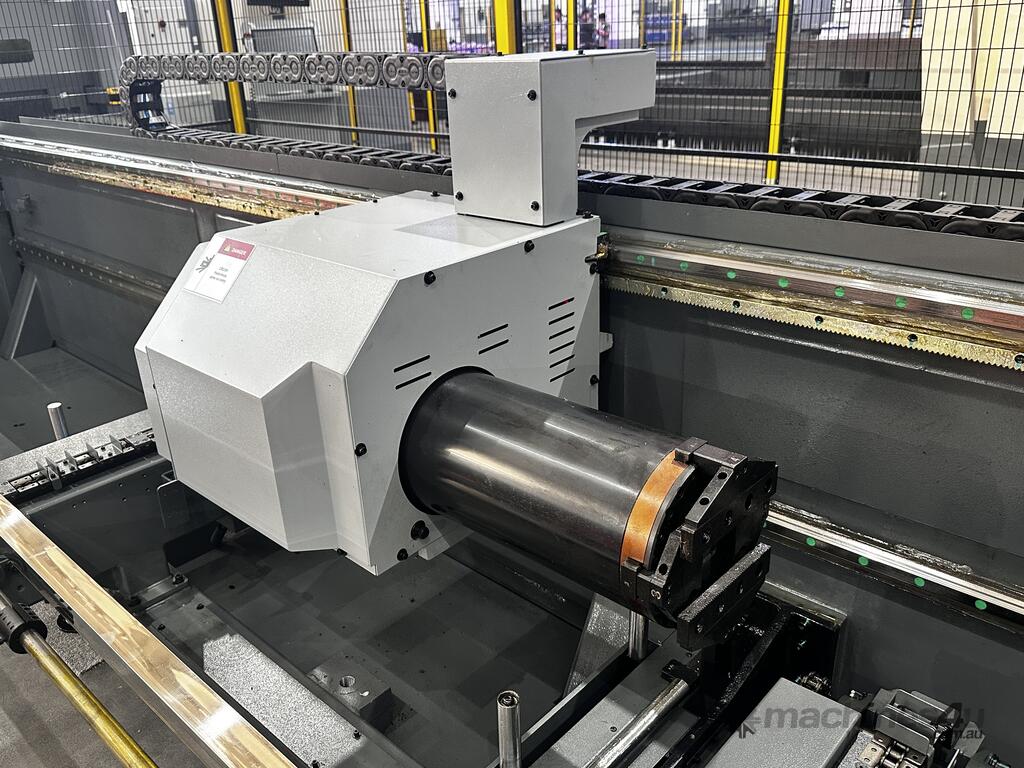

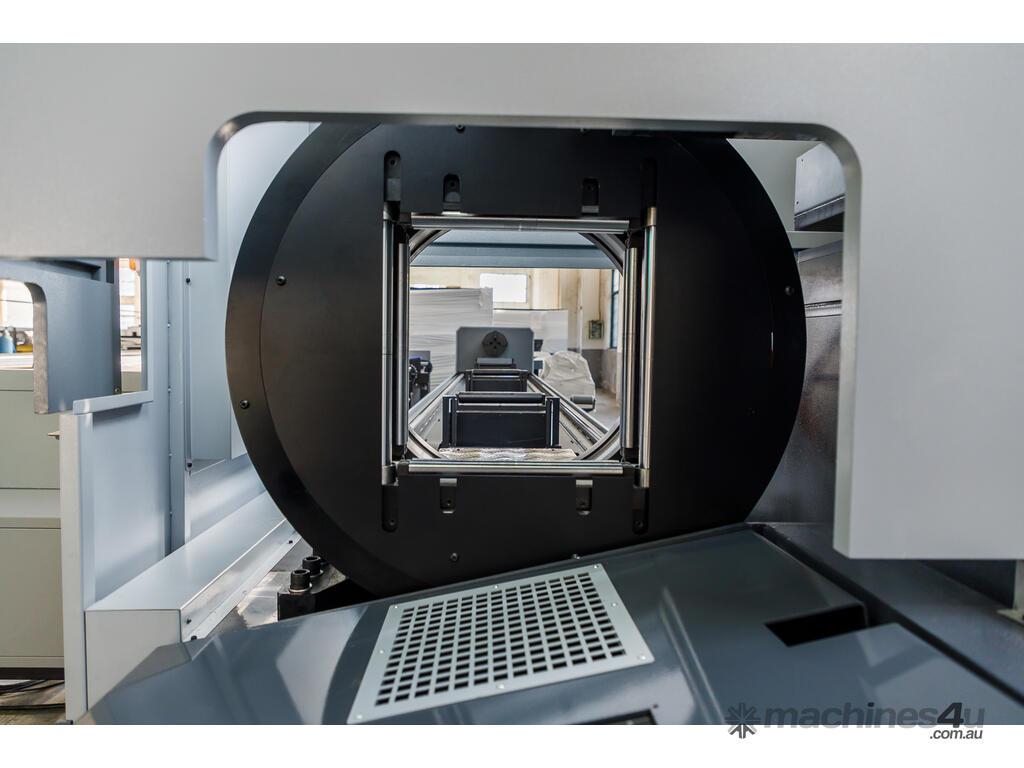

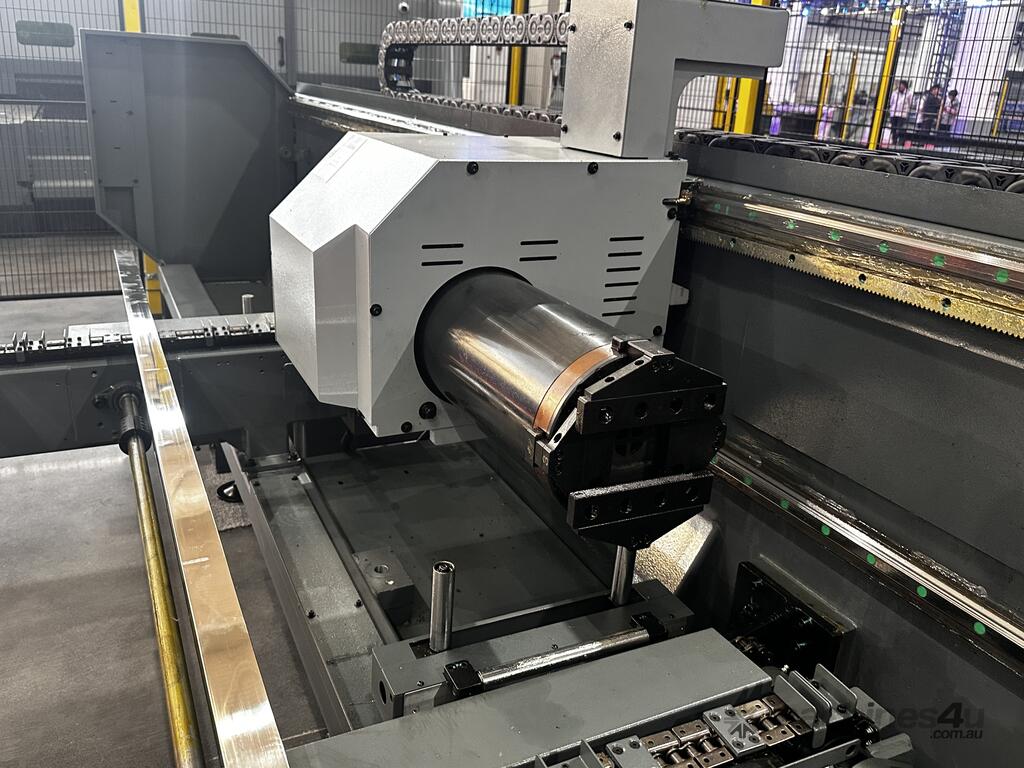

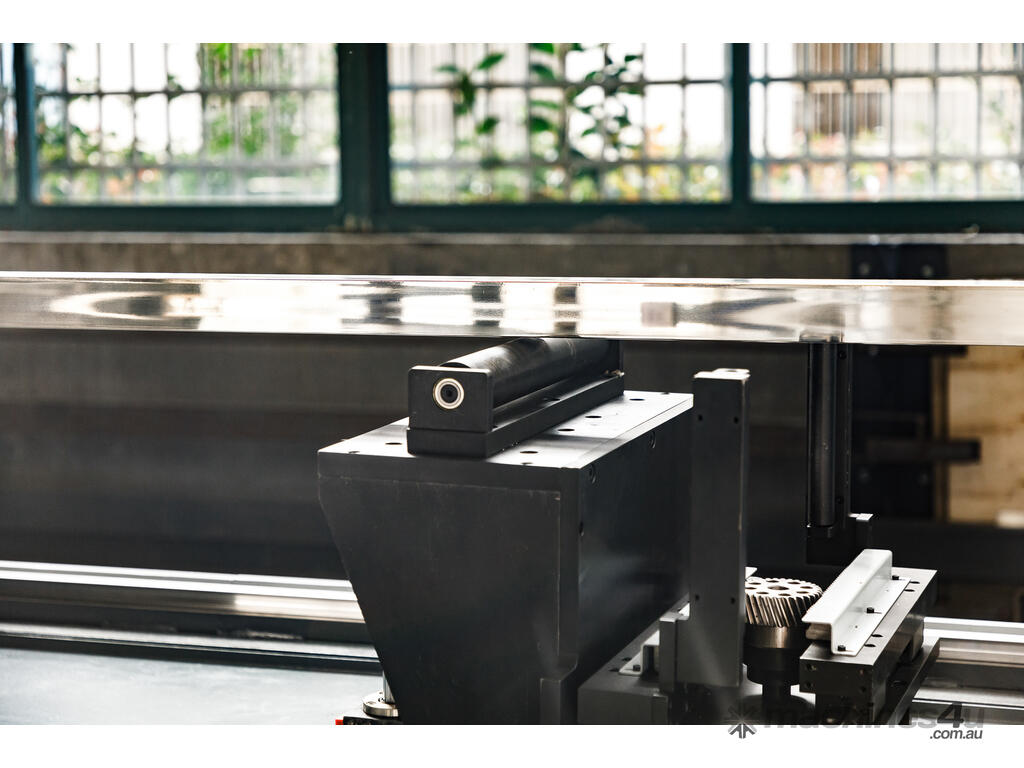

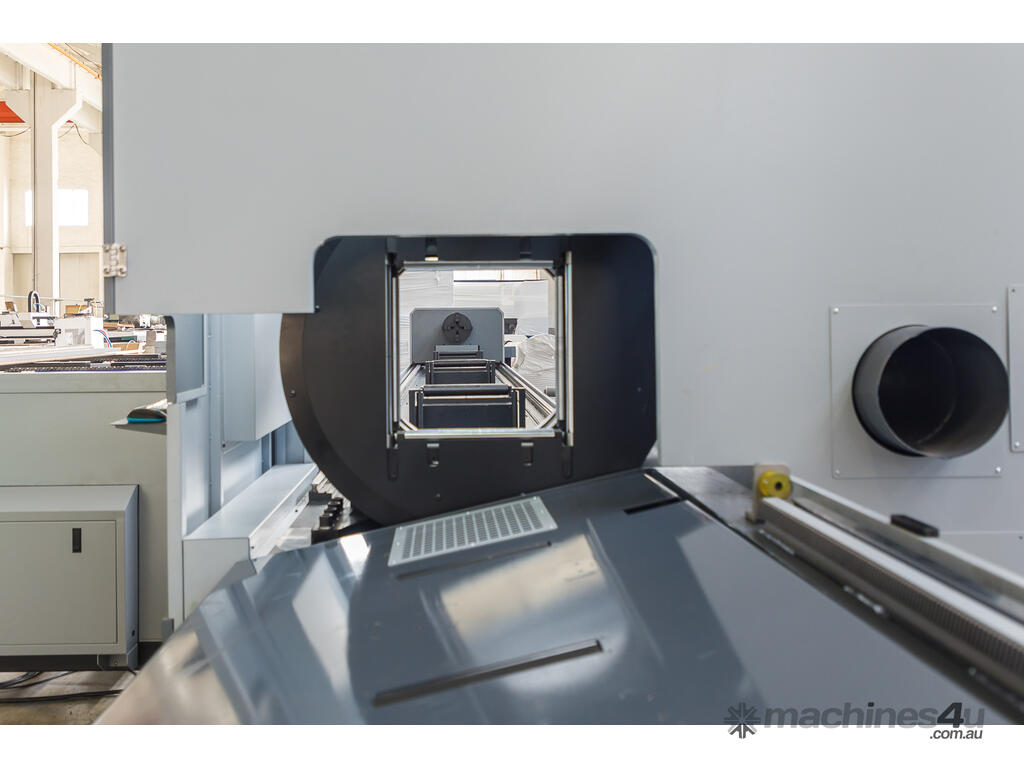

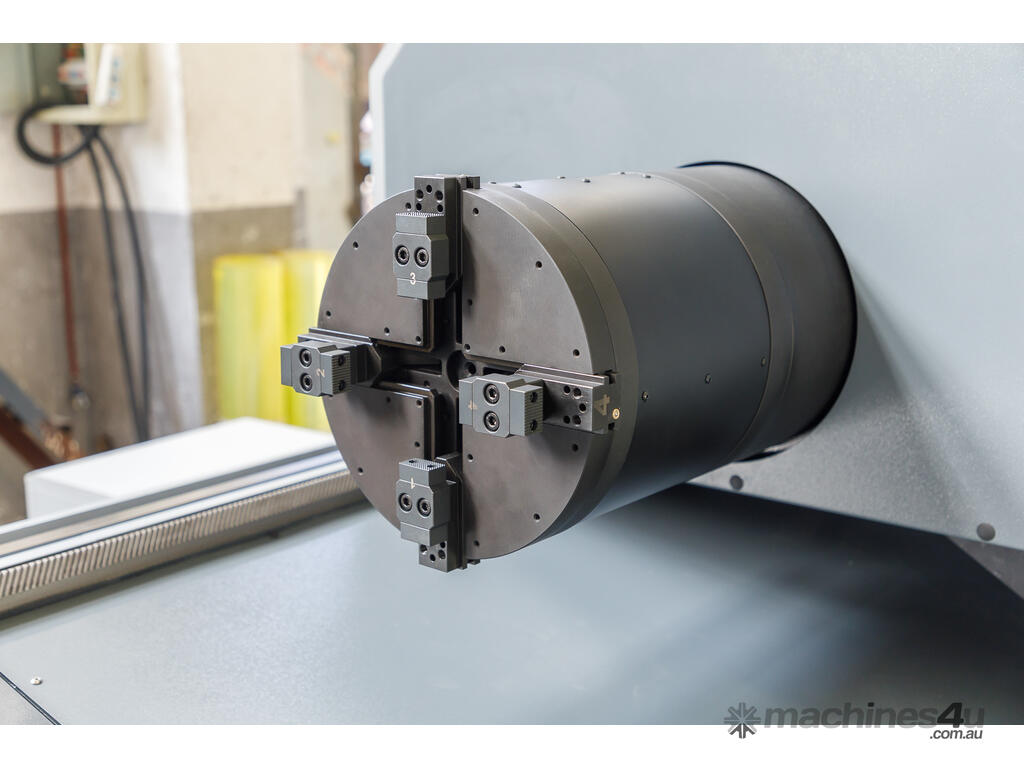

Chuck mounted vertically on frame for infeed
Internal camera in cutting area
Camera for loading system
Storage tray for outfeed area
Fully covered outfeed area

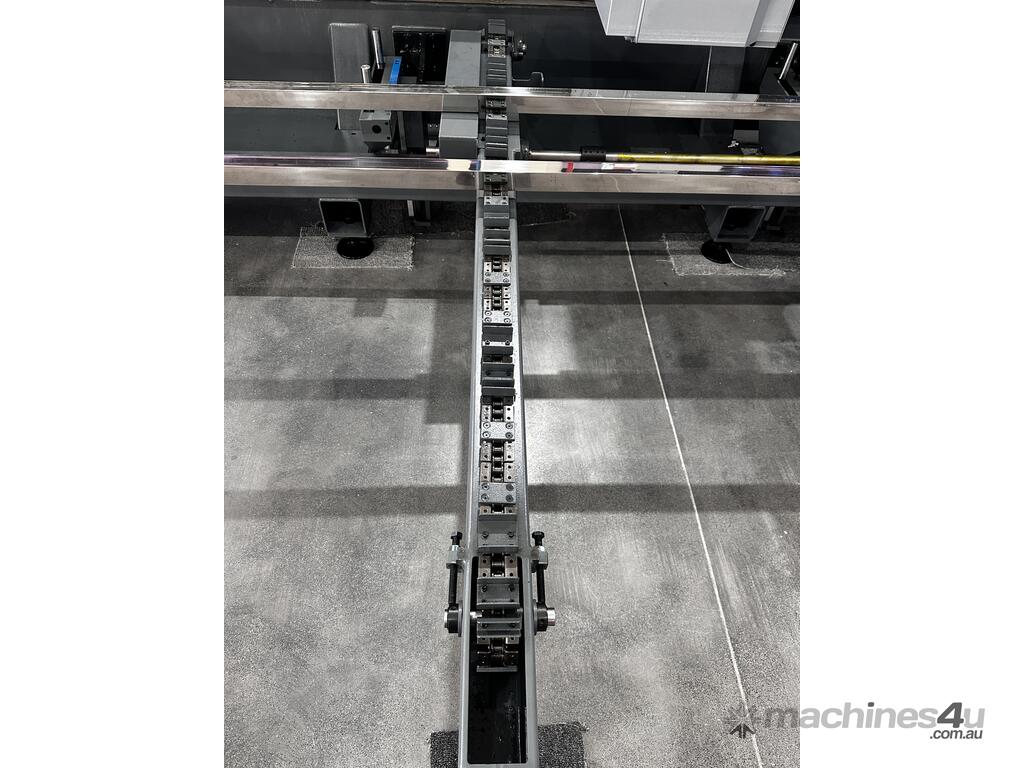

Outfeed area with automatic support table

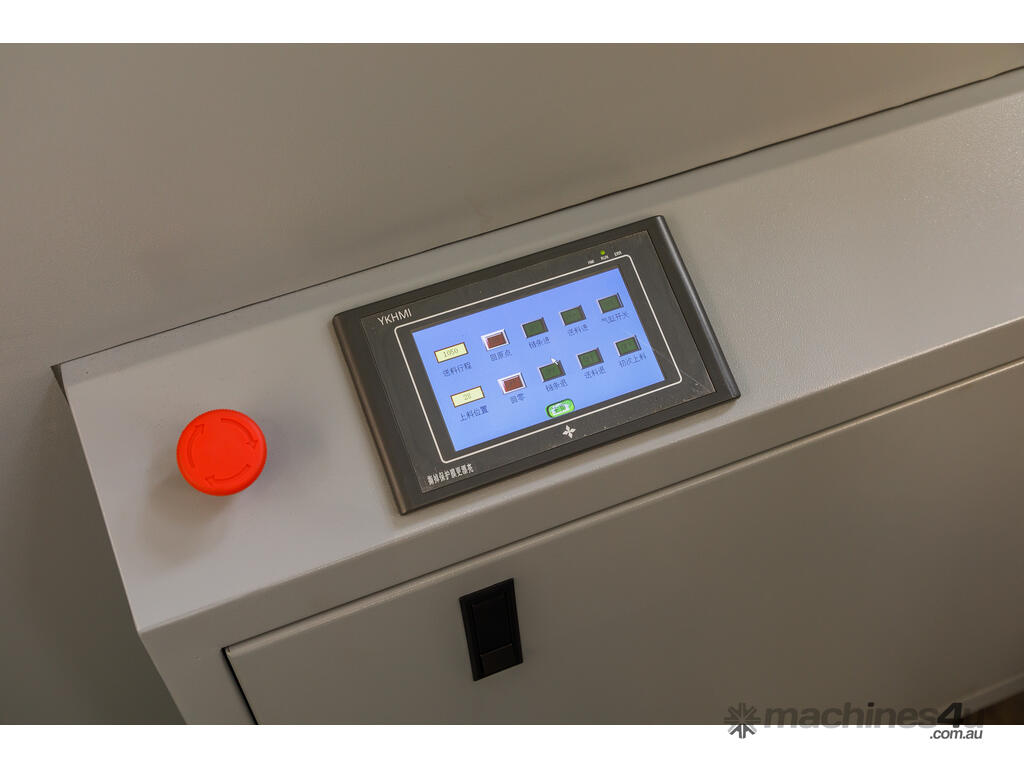

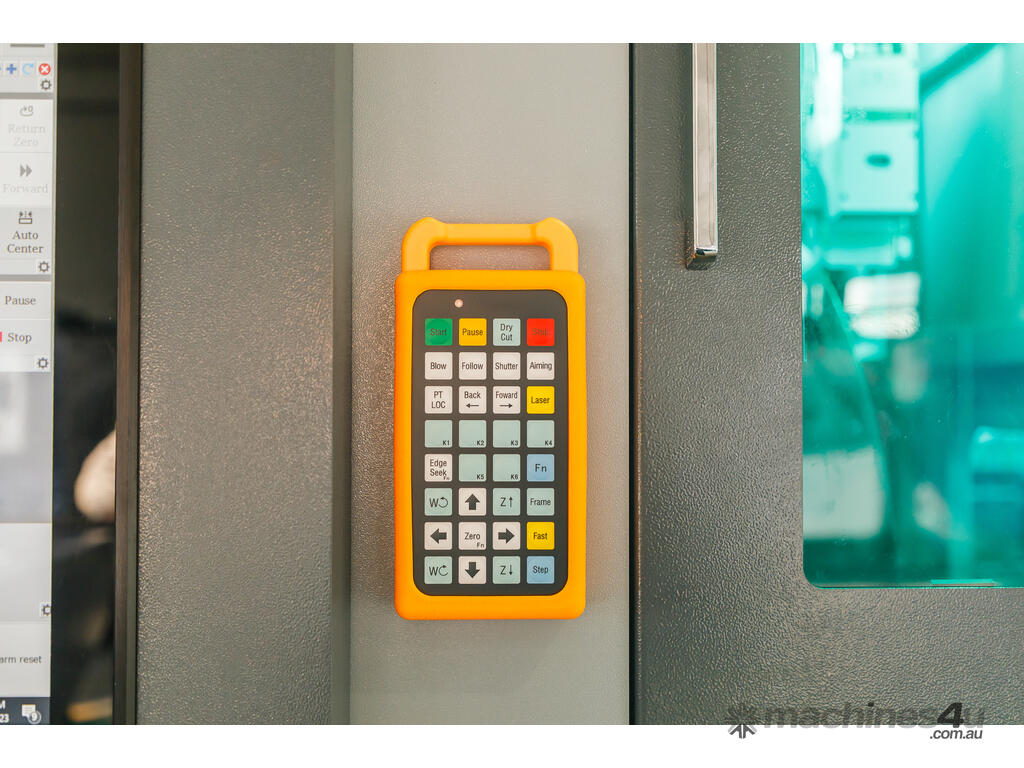

Portable hand control unit
Floating material infeed supports
Floating material outfeed supports

The machine is due to arrive in Jan / Feb 2026 and will be placed in our showroom area and be fully functional to be demoed.
Below is the general scope of what other sizes and functions that are available from the Accurl TubeLINE A series.

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
The Accurl tube lasers are a step ahead of their competitors being a machine that's been produced and constantly improved upon by Accurl for a number of year, Accurl sheet metal machinery offer high level technology machinery within its market segment and is a progressive forward thinking company constantly improving their products and product range. Its because of this Complete Machine Tools has taken on the agency for Accurl machines in Australia. Why limit yourself to a company that only can supply a laser cutting machine, go with a company who can grow with your business and offer a complete solution for all your sheet metal and fabrication machinery needs under the 1 roof.

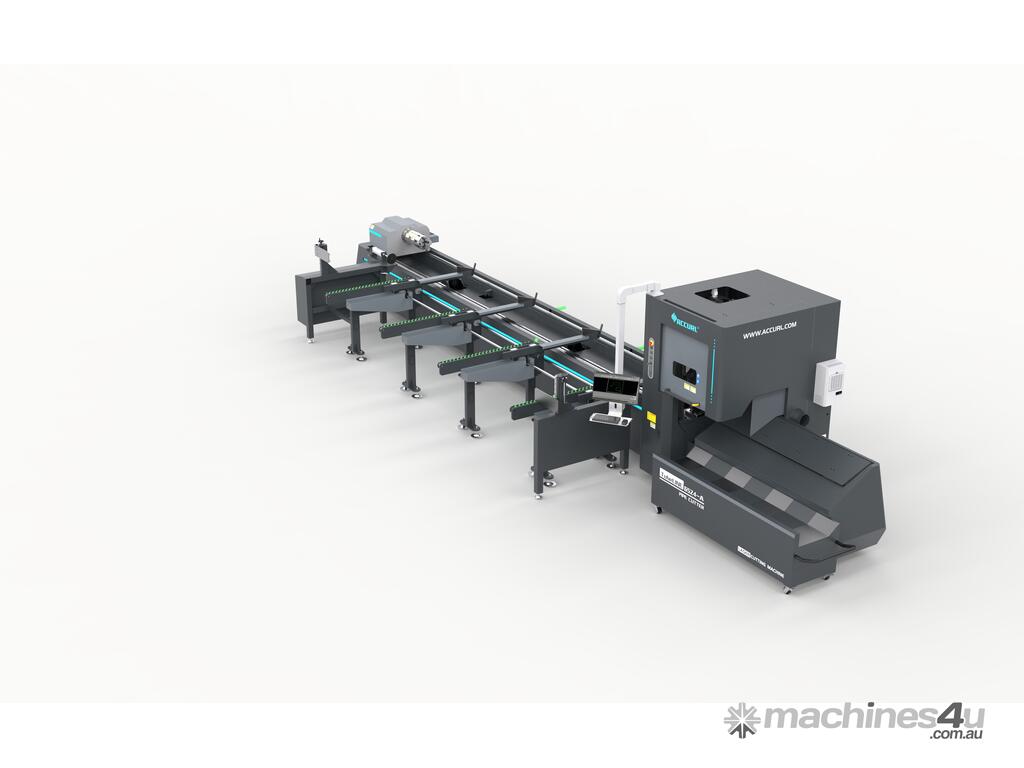

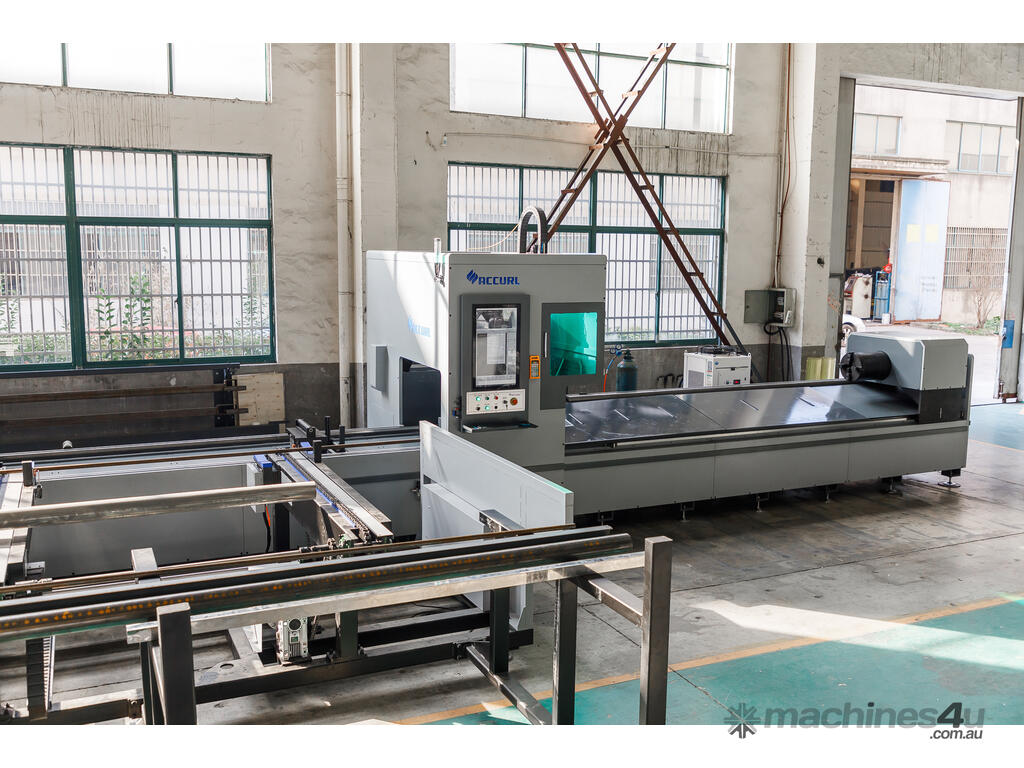

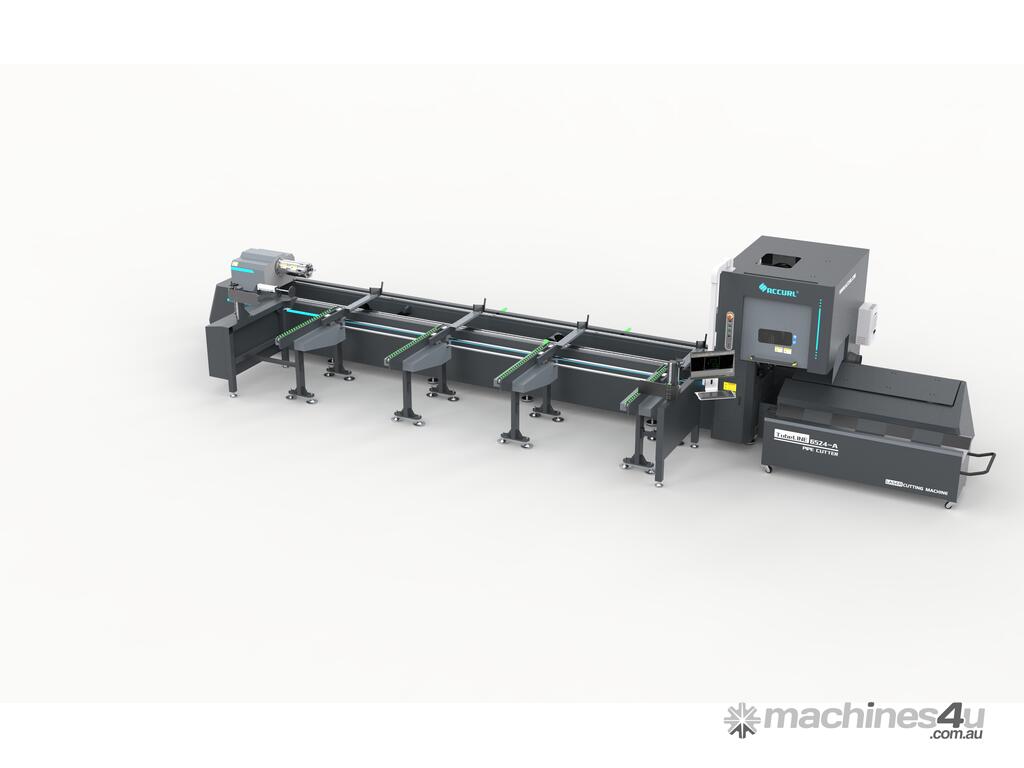

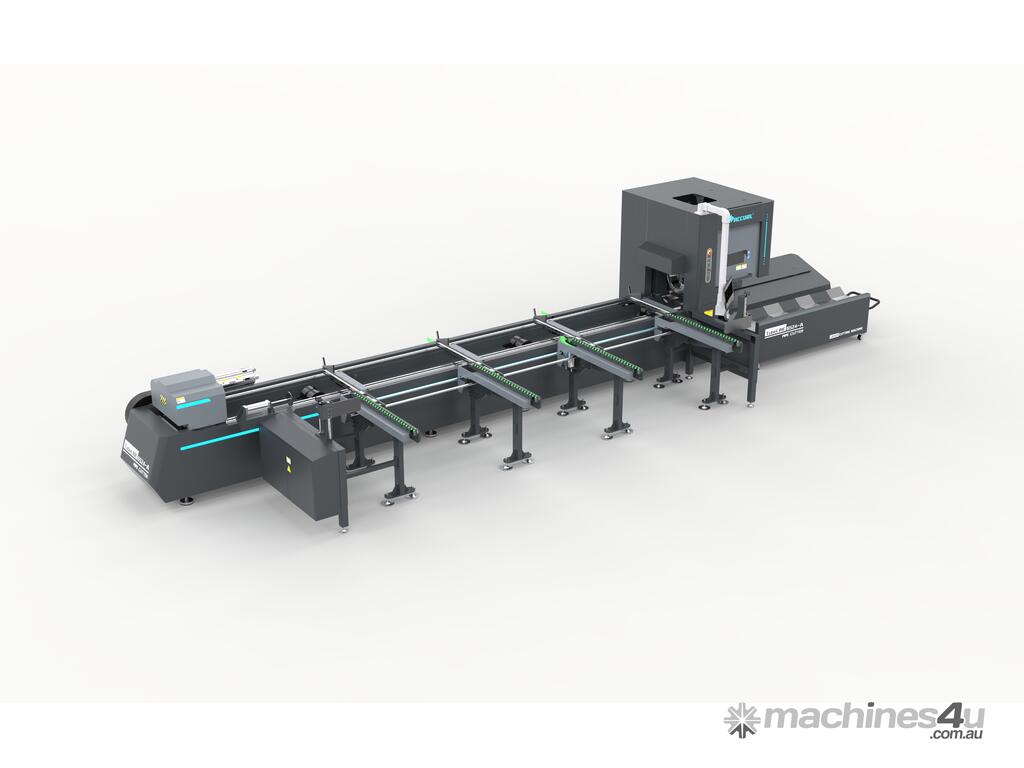

TUBELINE SERIES

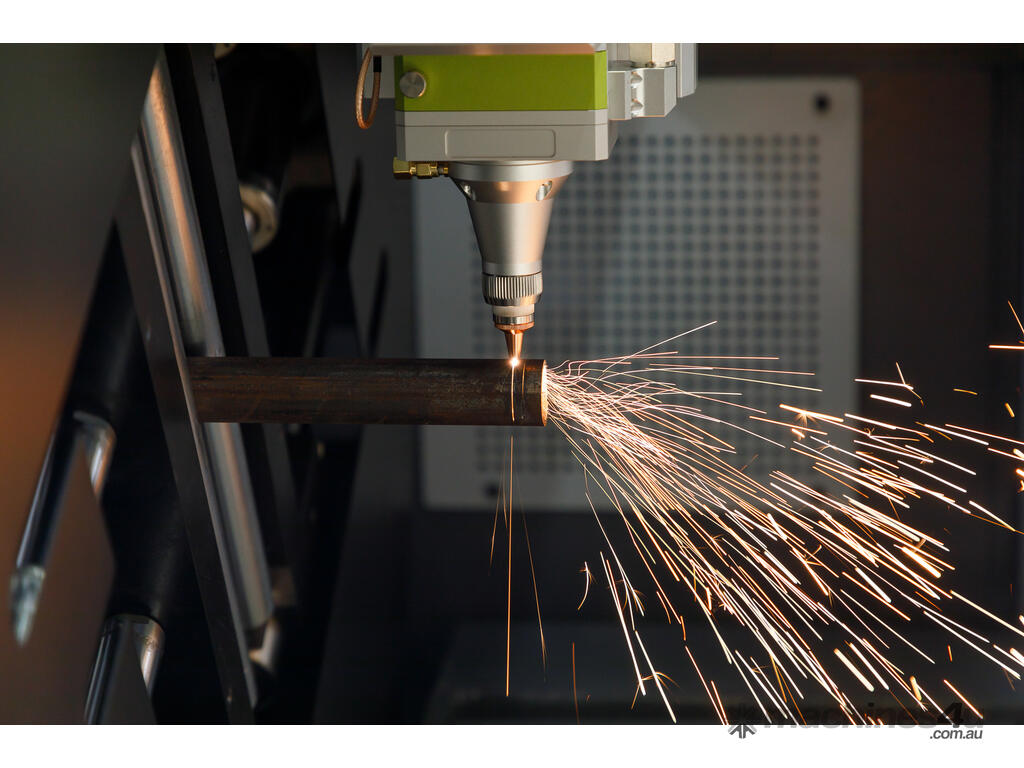

TUBE LASER CUTTING MACHINE

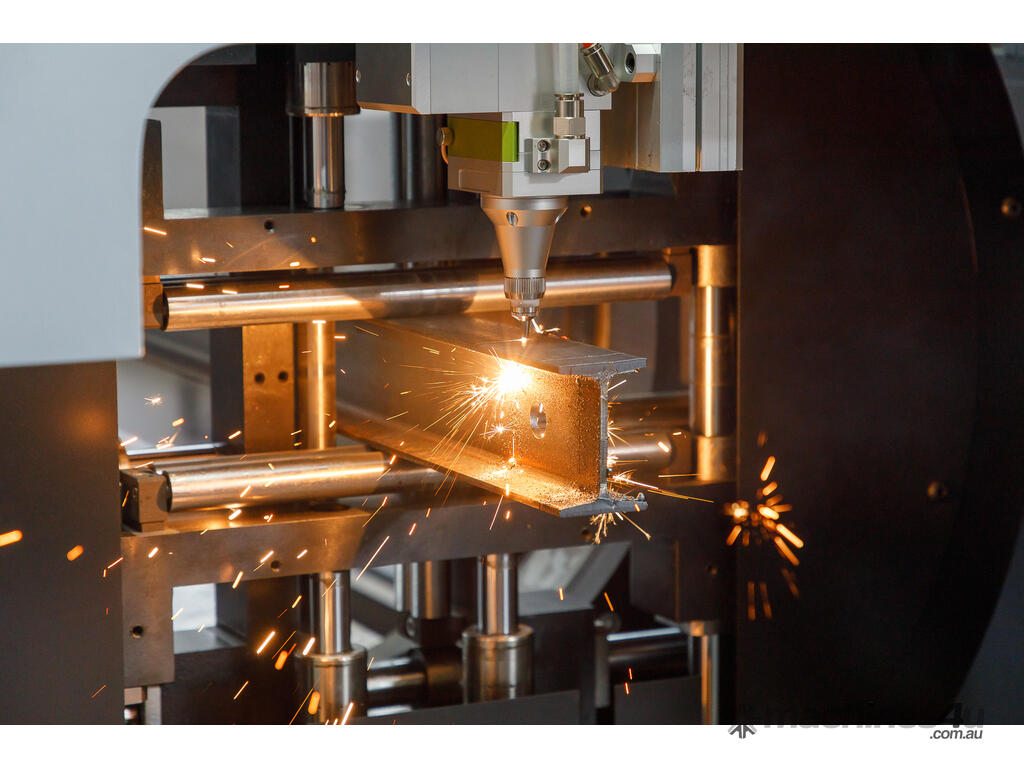

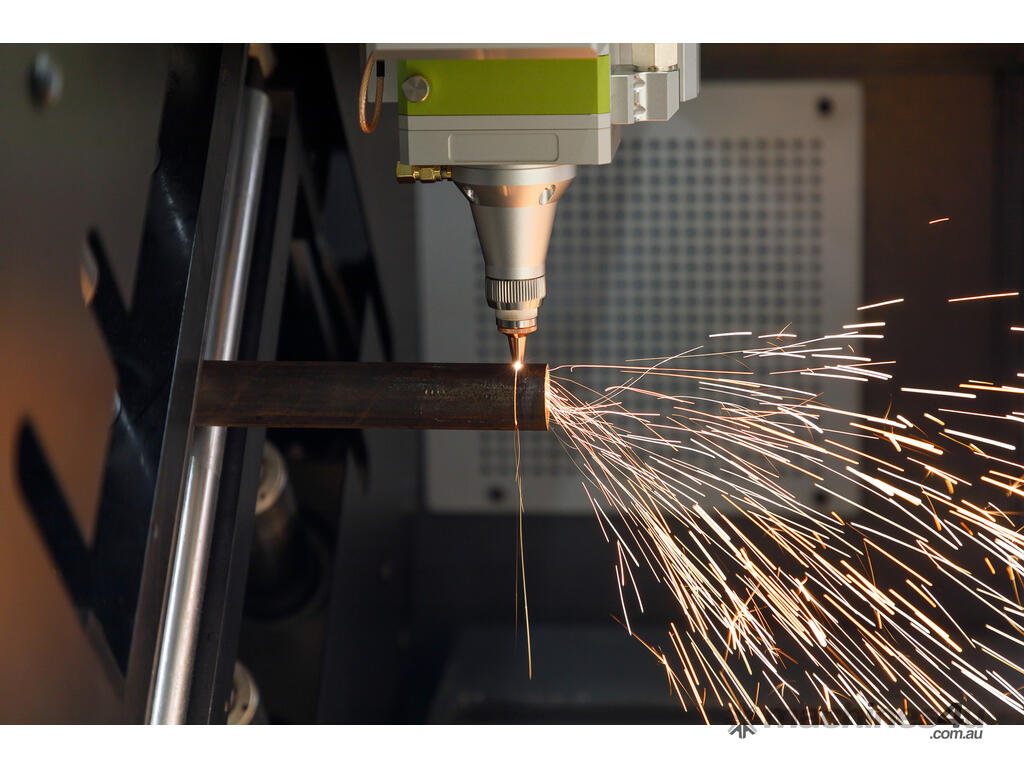

ACCURL makes tube manufacturing more efficient
and cost-effective with laser cutting technology. Using a
single, flexible tool, a variety of tube shapes can be
processed – with high cut quality and accuracy that
simplifies or eliminates secondary processes.

With class leading features in its segment Accurl offers a great quality machine at a competitive price.
The TubeLINE A Series is the simplest way to enter the tube laser cutting world


STANDARD & OPTIONAL FEATURES AND SPECS -

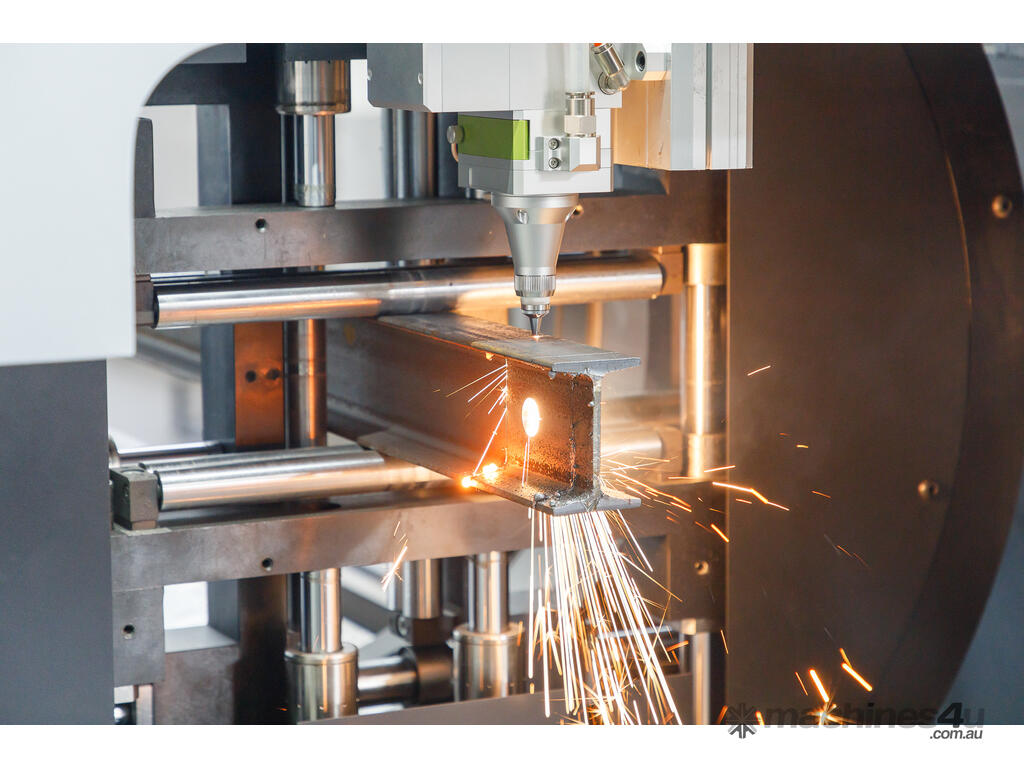

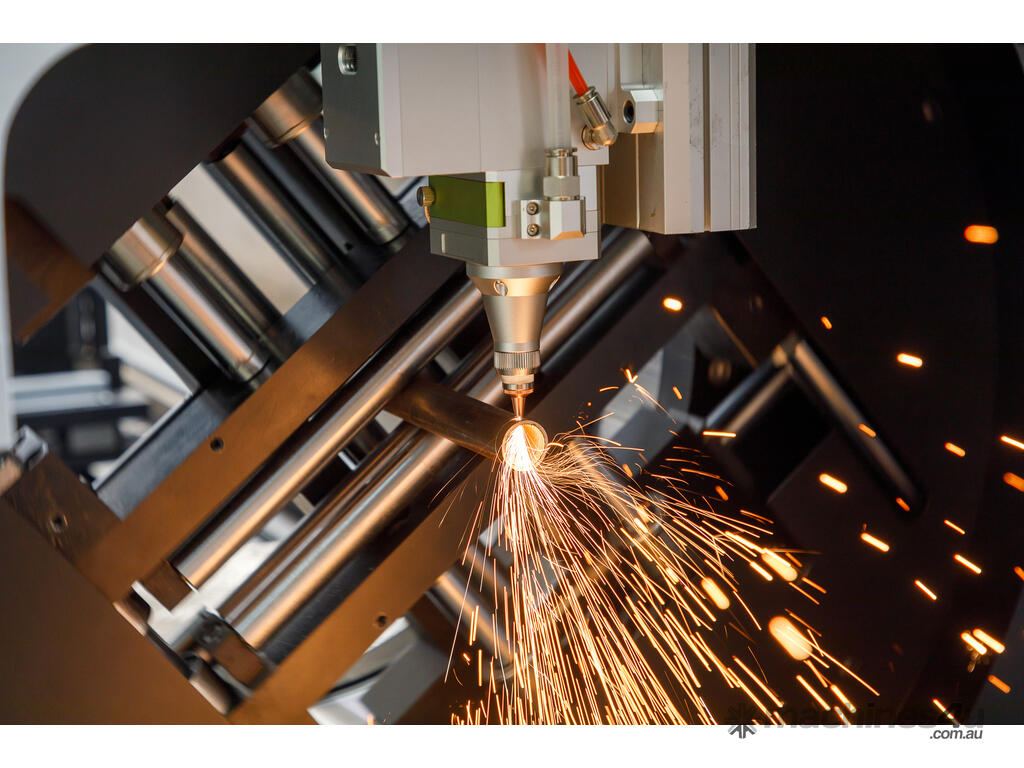

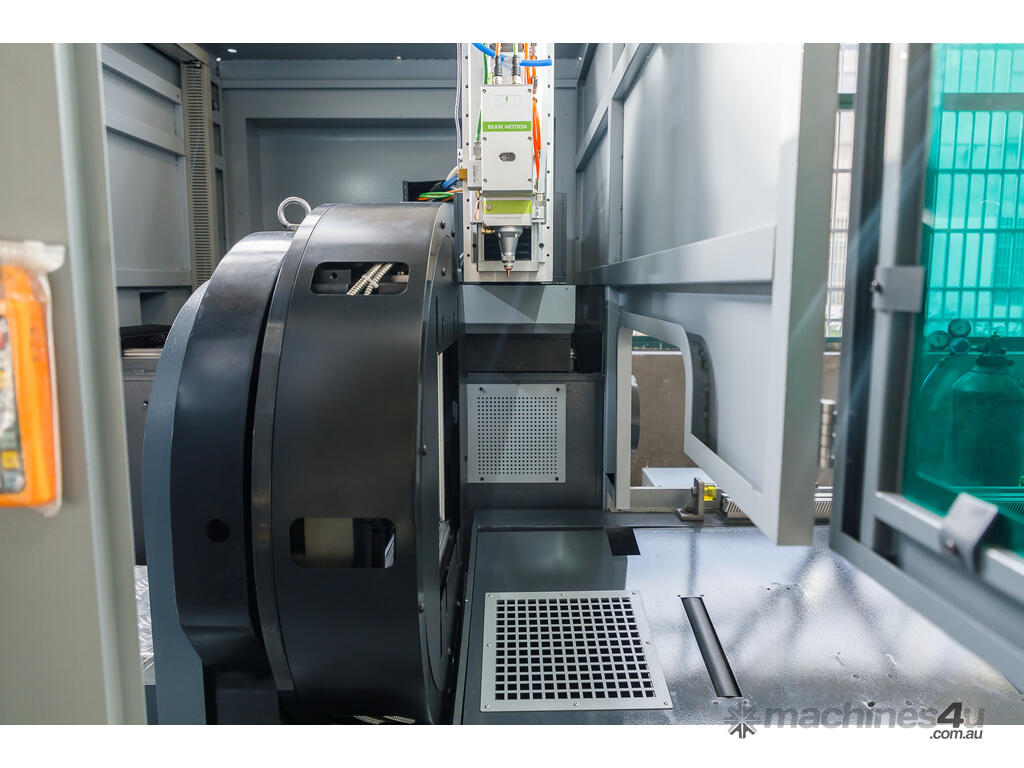

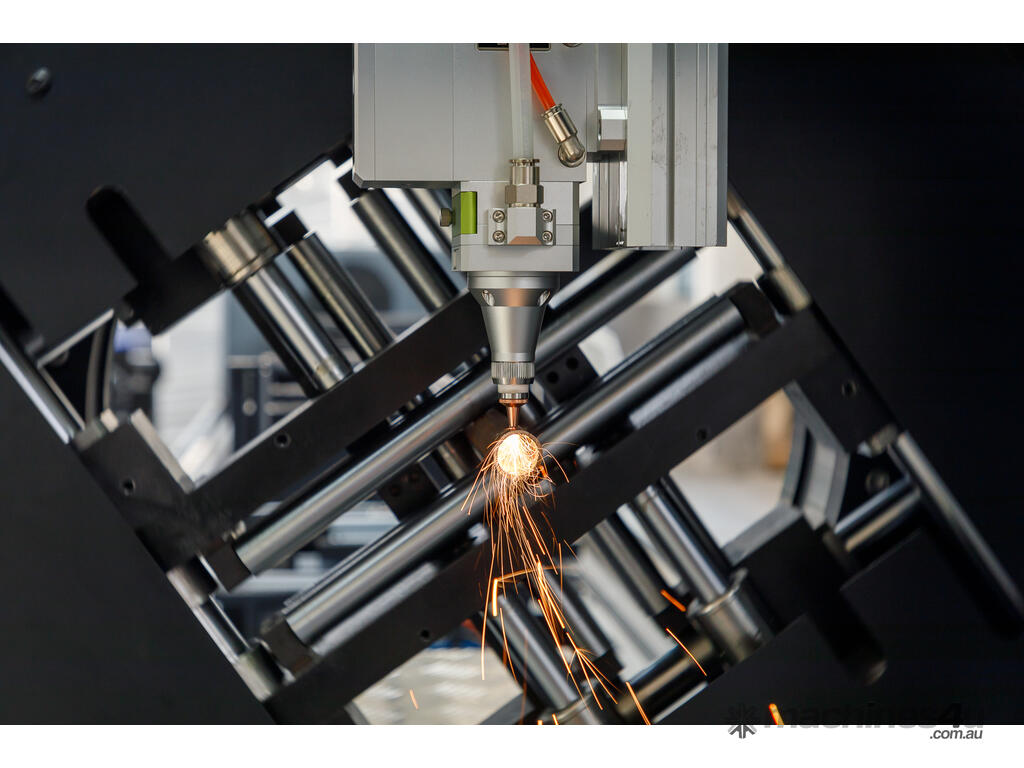

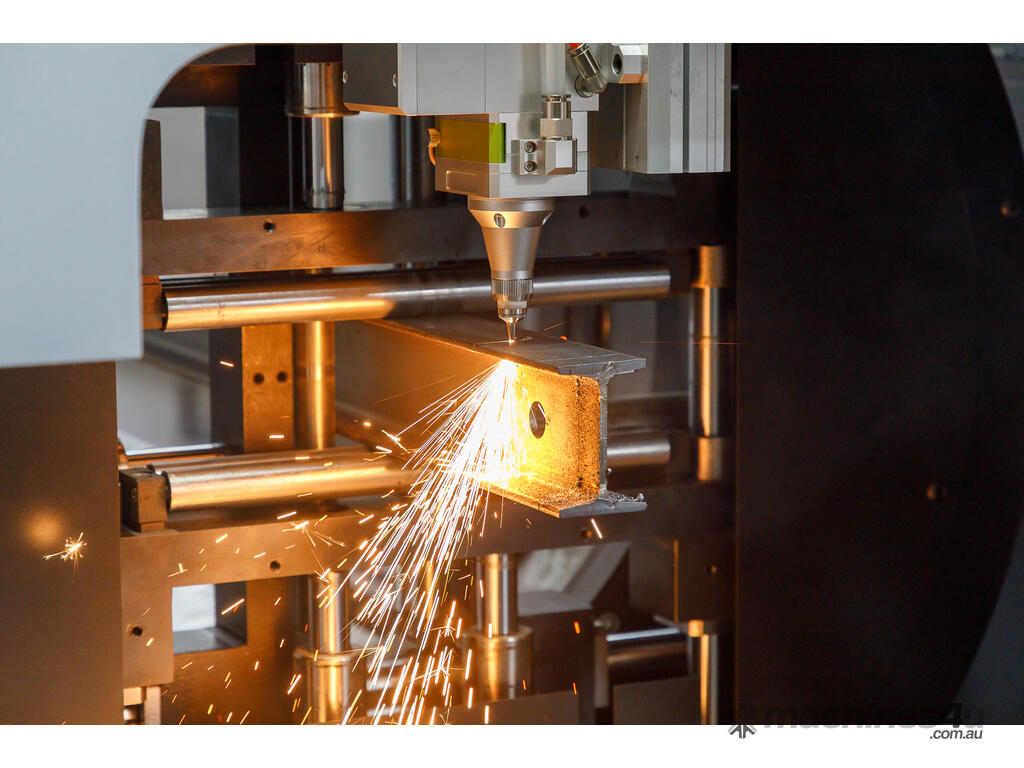

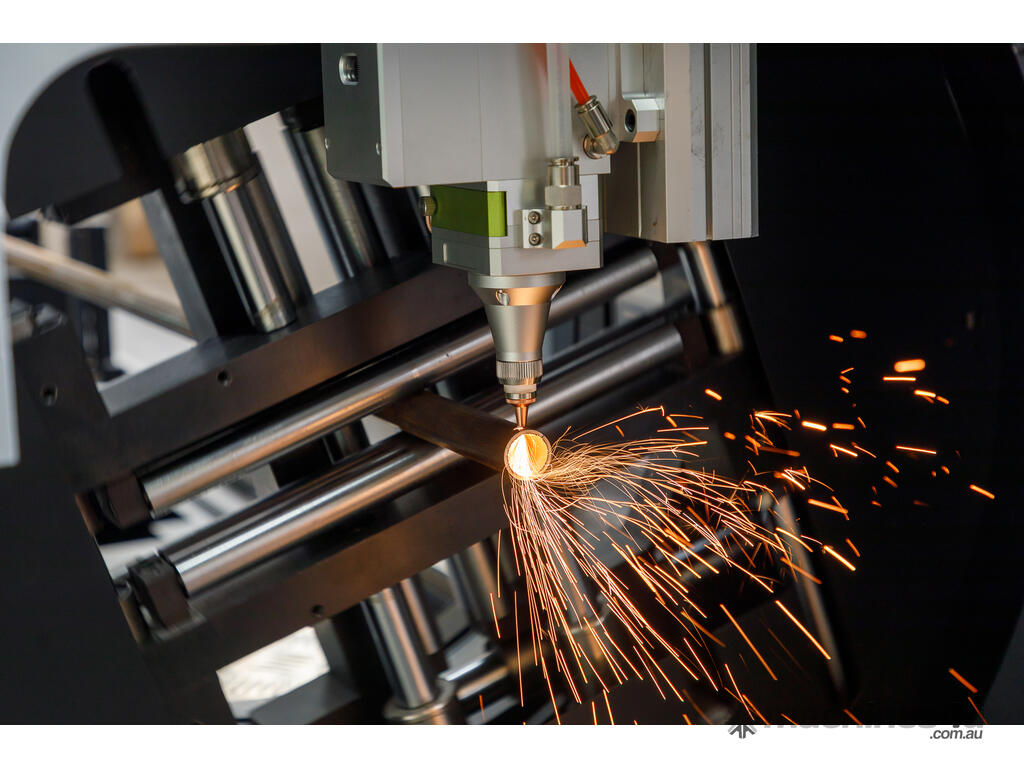

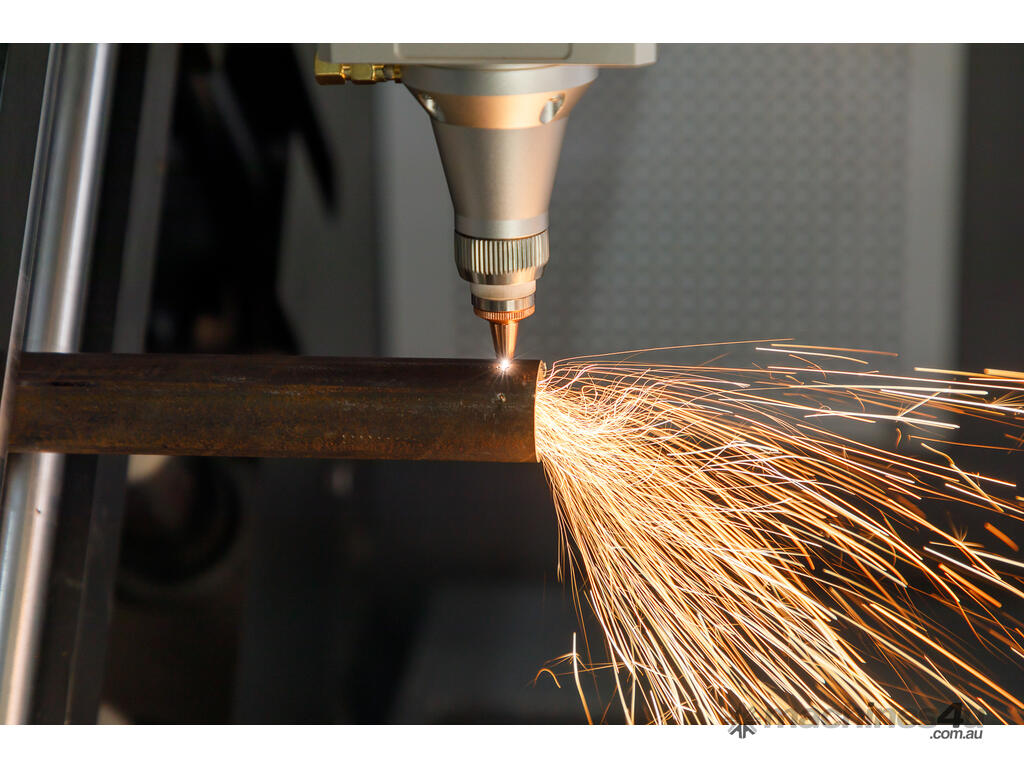

Laser Cutting Head: ACCURL BLT Series (Auto Focus)
Laser Sources: Raycus
For LoadMaster Tube: 6M / 7m / 9m / 12m (Optional)
Maximum Tube Length & Weight: 12000mm, 1200kg
(Sizes - 6 | 7 | 9 & 12m tables lengths available)
Motion System: Yaskawa Servos & Drivers - X,Y,Z Axis
X.Y.Z axis position accuracy: ±0.02mm

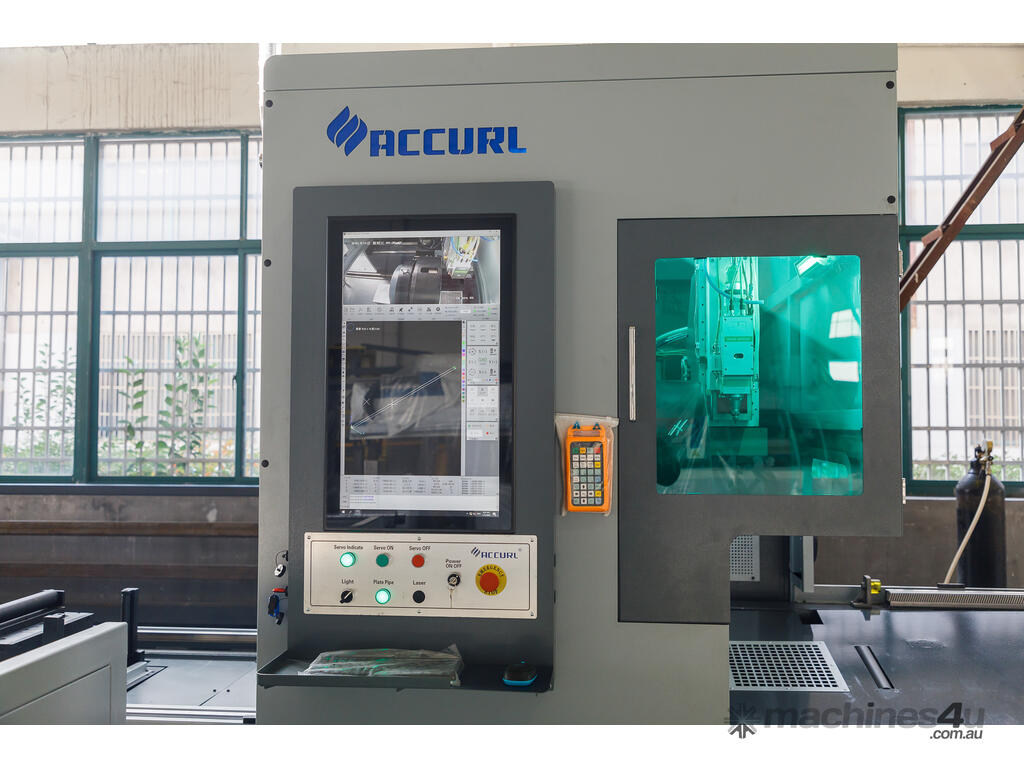

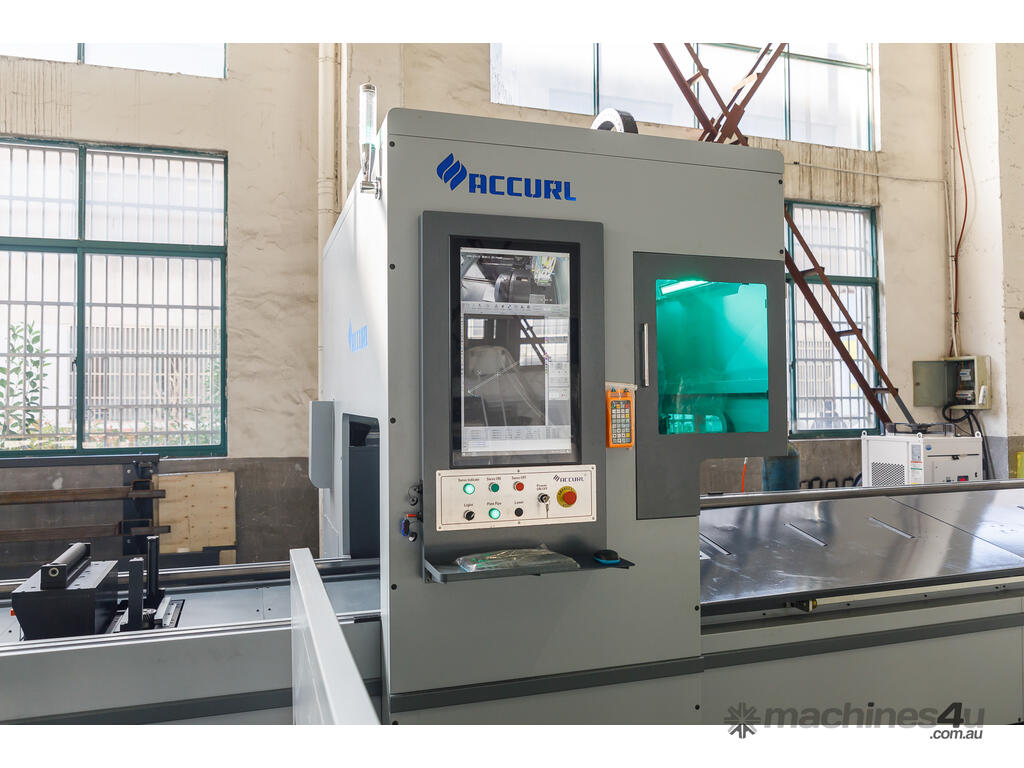

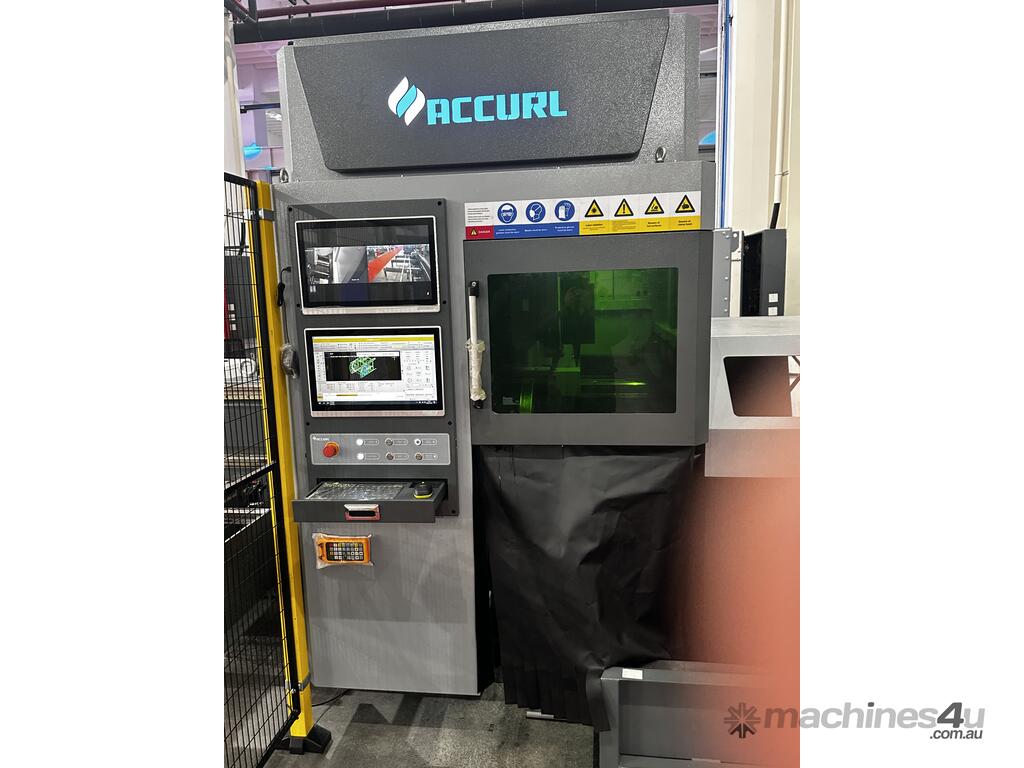

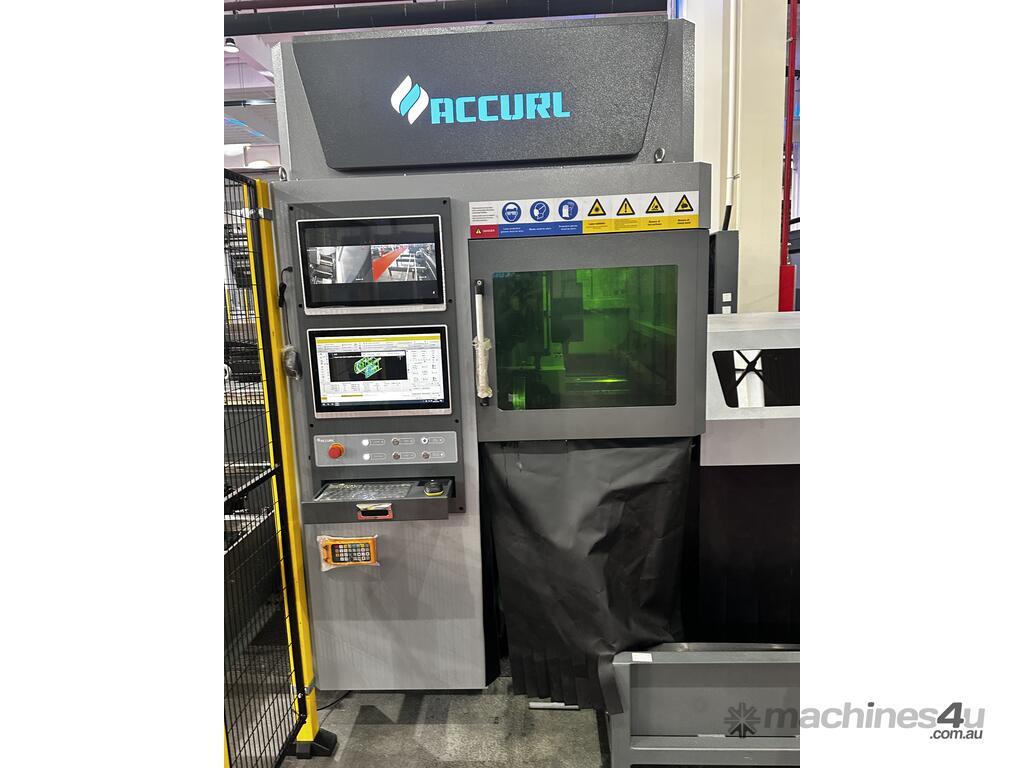

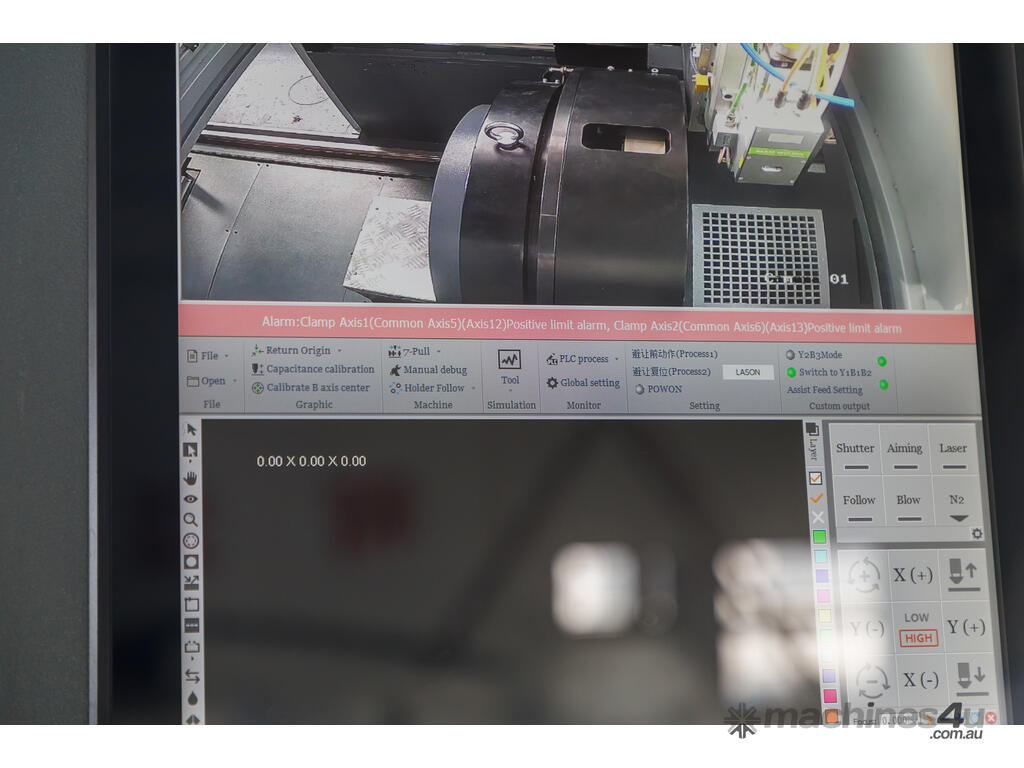

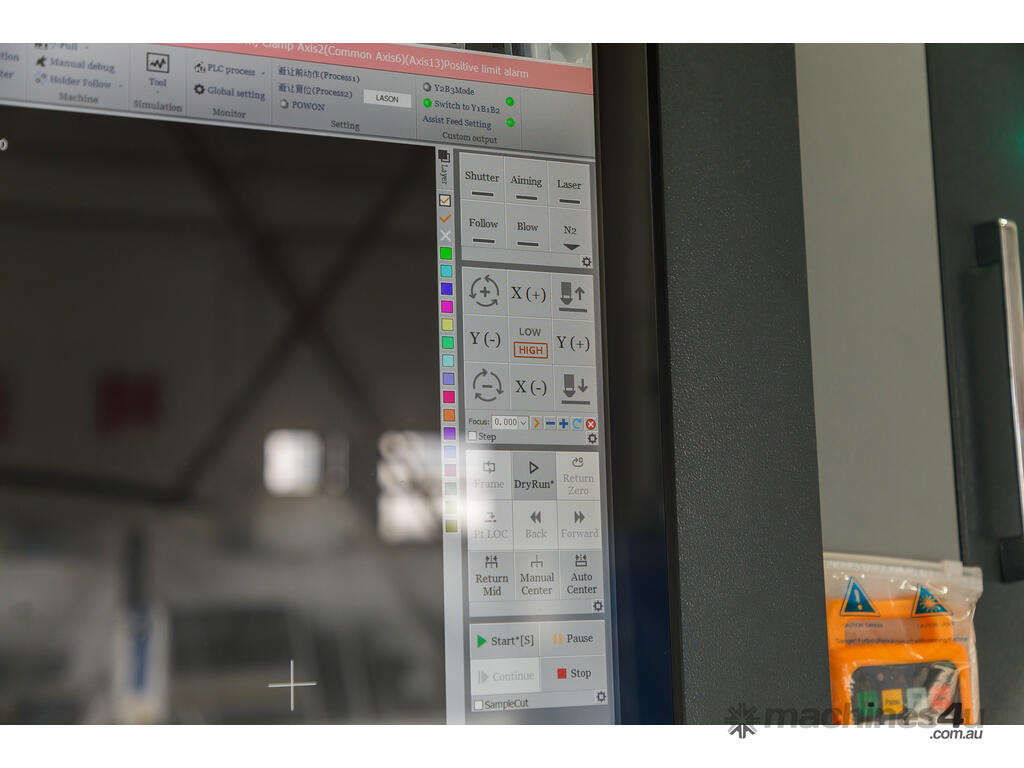

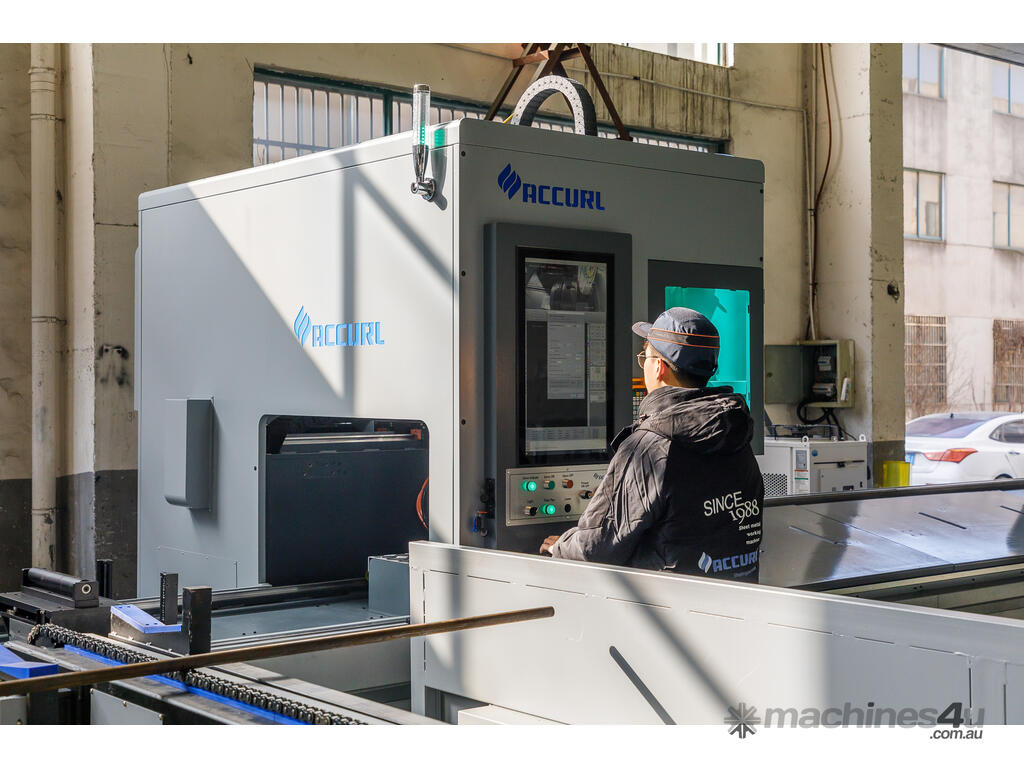

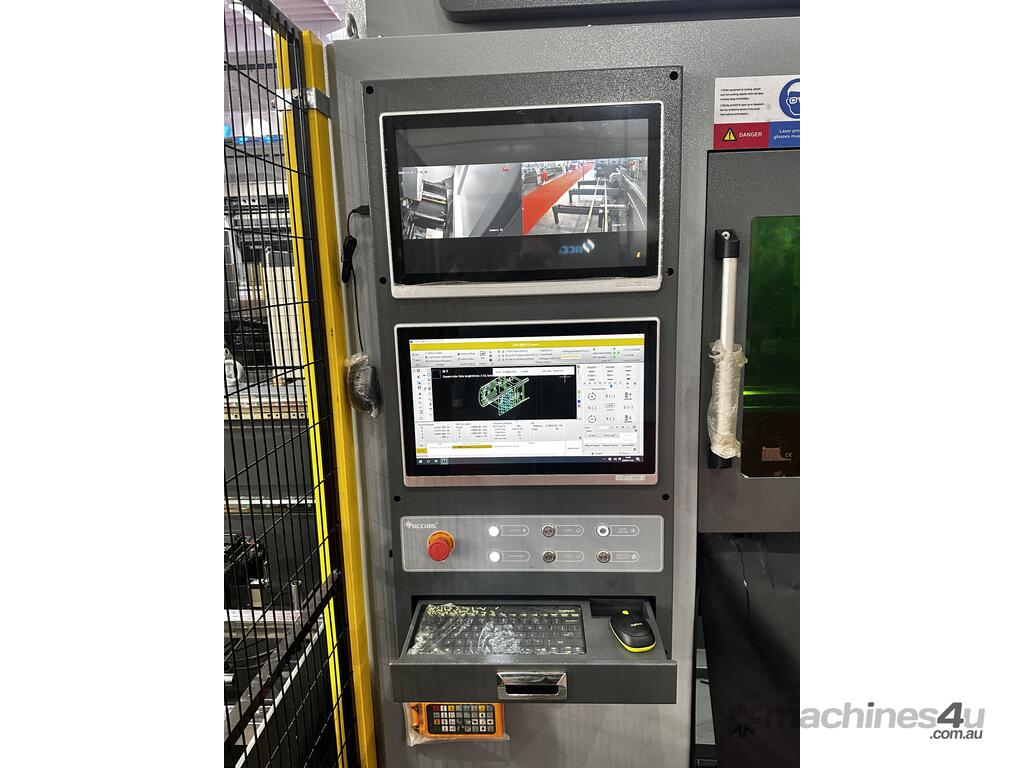

User Interface (HMl) ACCURL 21.5”Touch Screen with Camera Display
Fume Extraction - Dust Collector (Optional)
Class IV safety system and CE marking

- 1kw to 12kw power sources available
- Available with an auto loading system

- 220 | 280 | 310 | 360 mm capacities available
- Available in left hand or right hand configurations
- Extended check claws for minimal remnant pieces
-- Outfeed support table
- Automatic detection of the material centre and edge

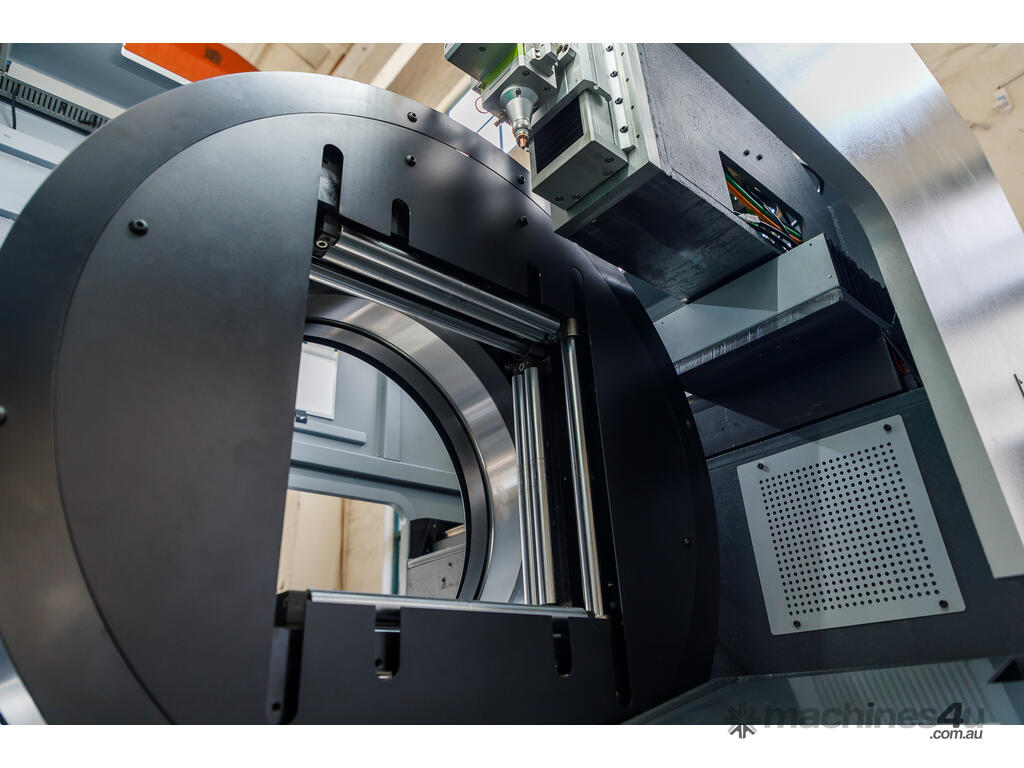

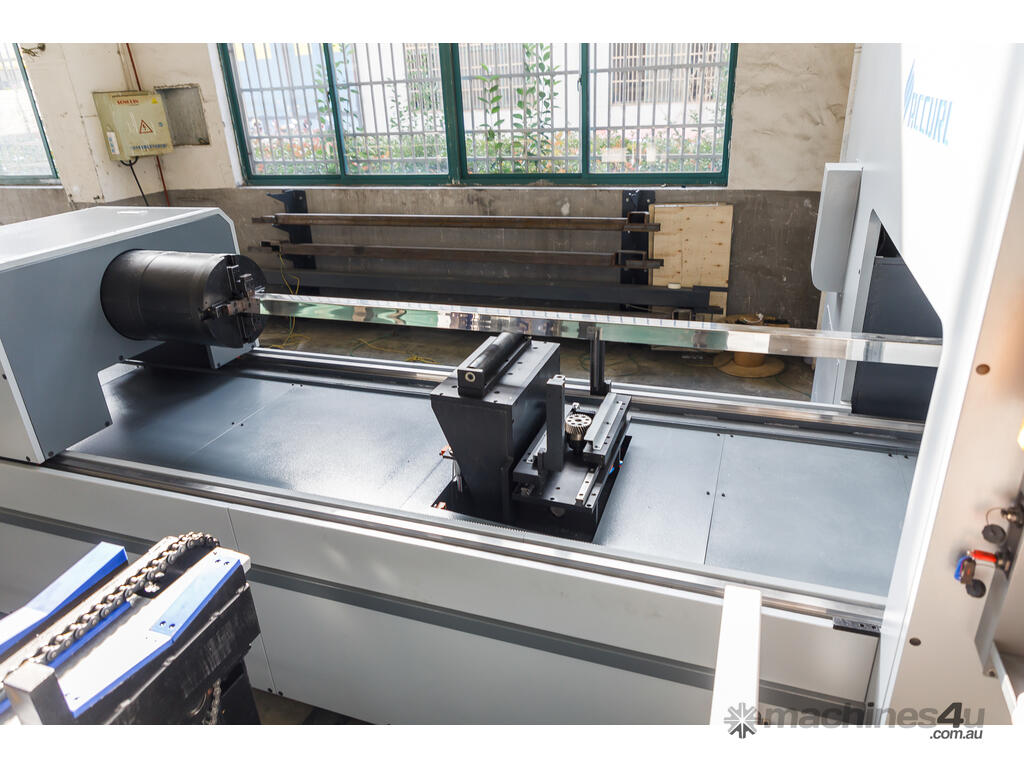

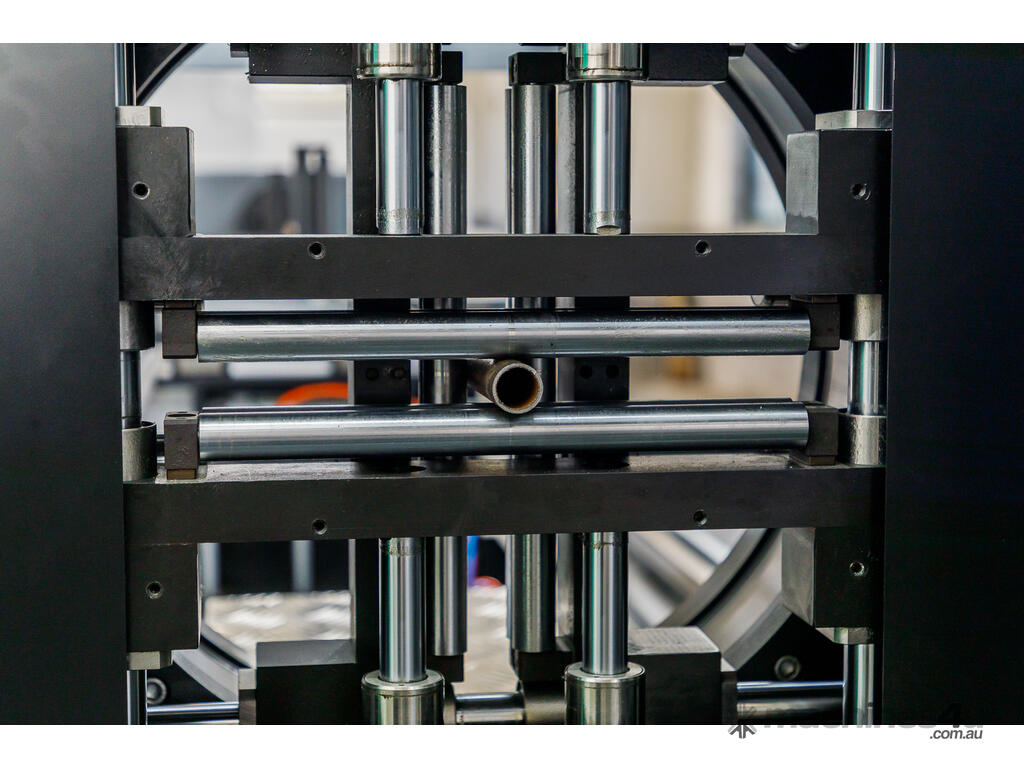

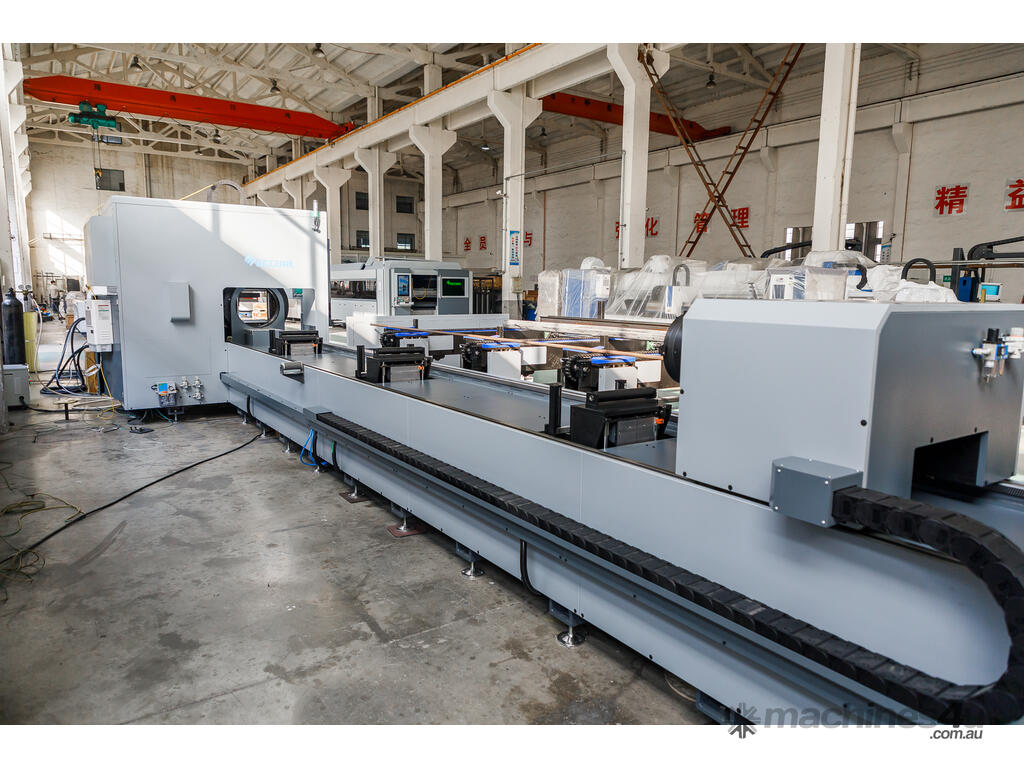

- Integrated chuck in the machine body for extra rigidity and long term accuracy
- Optional seam weld detection

Max no load running speed - 100m/min
Max no load turning speed - 100r/min

**BEVEL HEAD AVAILABLE**

Custom machines are available so if there is a specific requirement please contact us to discuss
NB - Some pics shown are shown with optional items fitted
