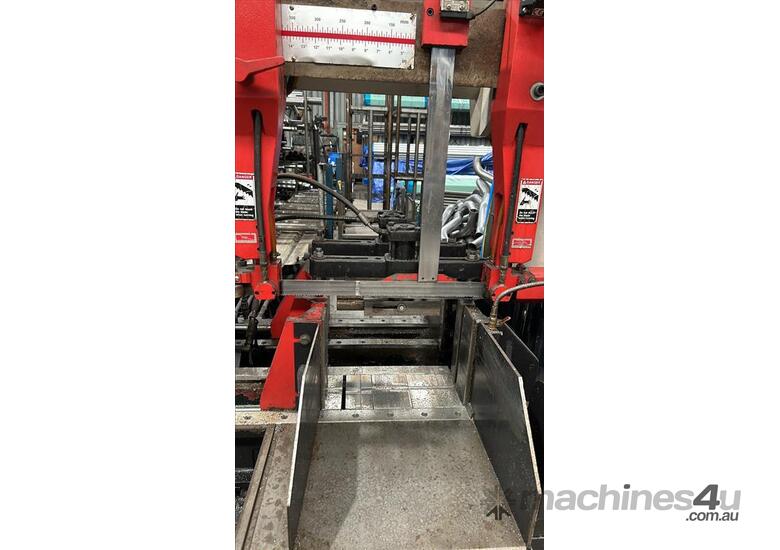

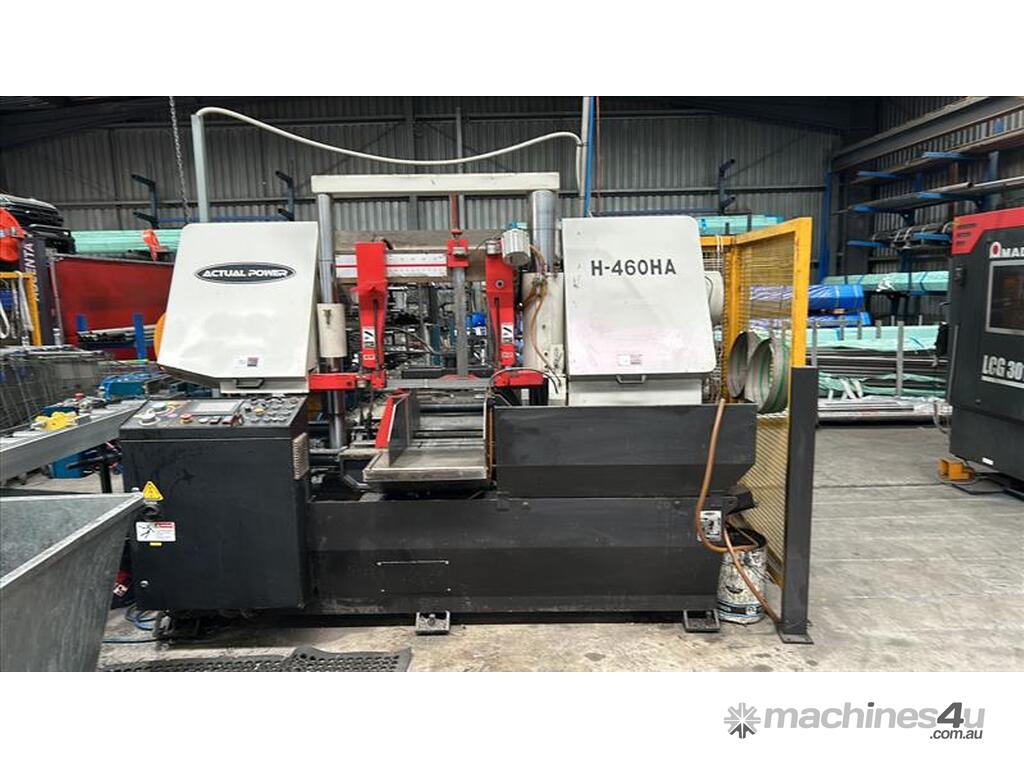

Actual Power H-460HA Automatic Column Type Bandsaw
Equipment Details Dual vice with full stroke clamping, Shuttle type automatic feed, 3 pcs carbide blade guide system, Automatic work height control and fast approach, Infinitely variable speed control by inverter, Power driven wire brush, Hydraulic blade tension, Floating shuttle vice, Split front vice, P.L.C. Control for all electric and hydraulic function, Nesting fixture for bundle cutting, Work light, Automatic chip conveyer, User friendly NC control touch screen, 9 station easy to set the cutting work, Blade speed show in touch screen, Anti-vibration rolling and roller bearing with blade guide system, Flushing hose for machine cleaning, 5 metre roller table.
415V 3 Phase 50/60 HZ
Motors : Blade 5.5kW
Hydraulic 1.5kW
Coolant 0.2kW
Blade Length : 5450mm, Width 41mm, thickness 1.3mm
Mass of Machine : 3200kgs
Serial # 060054
