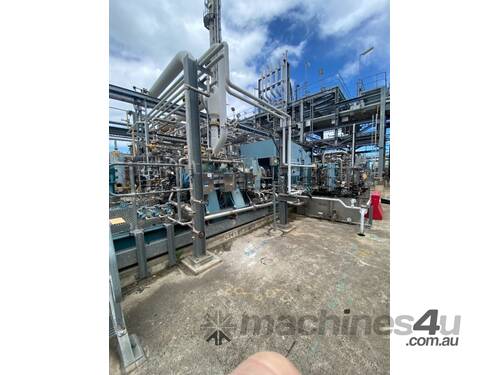

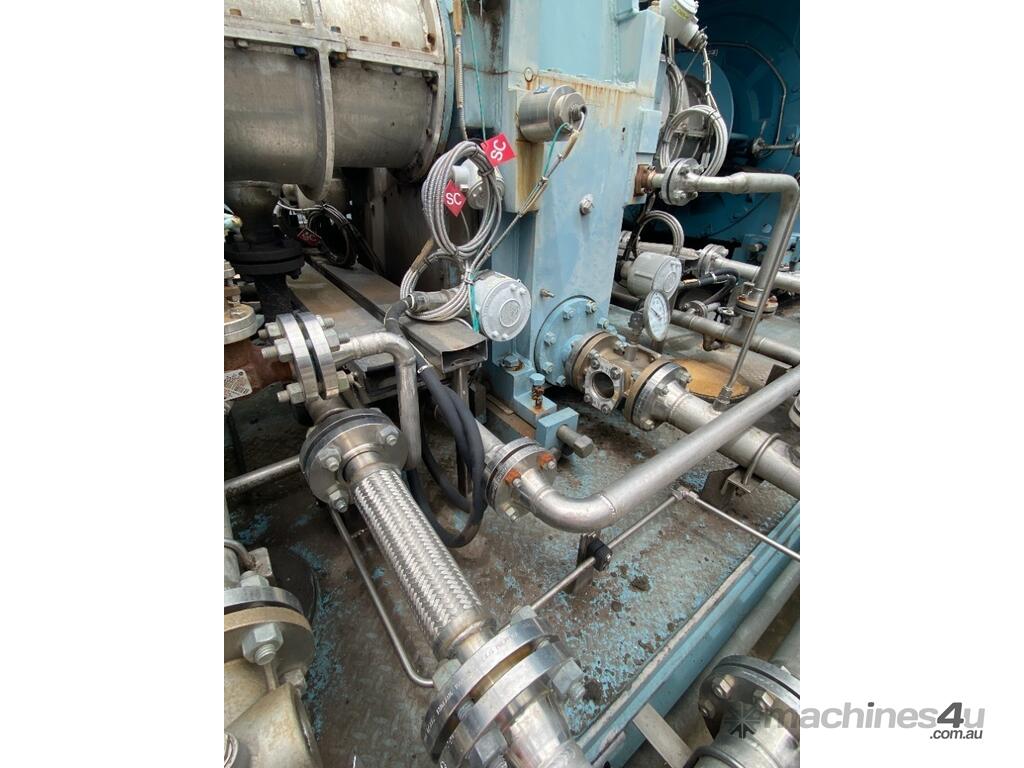

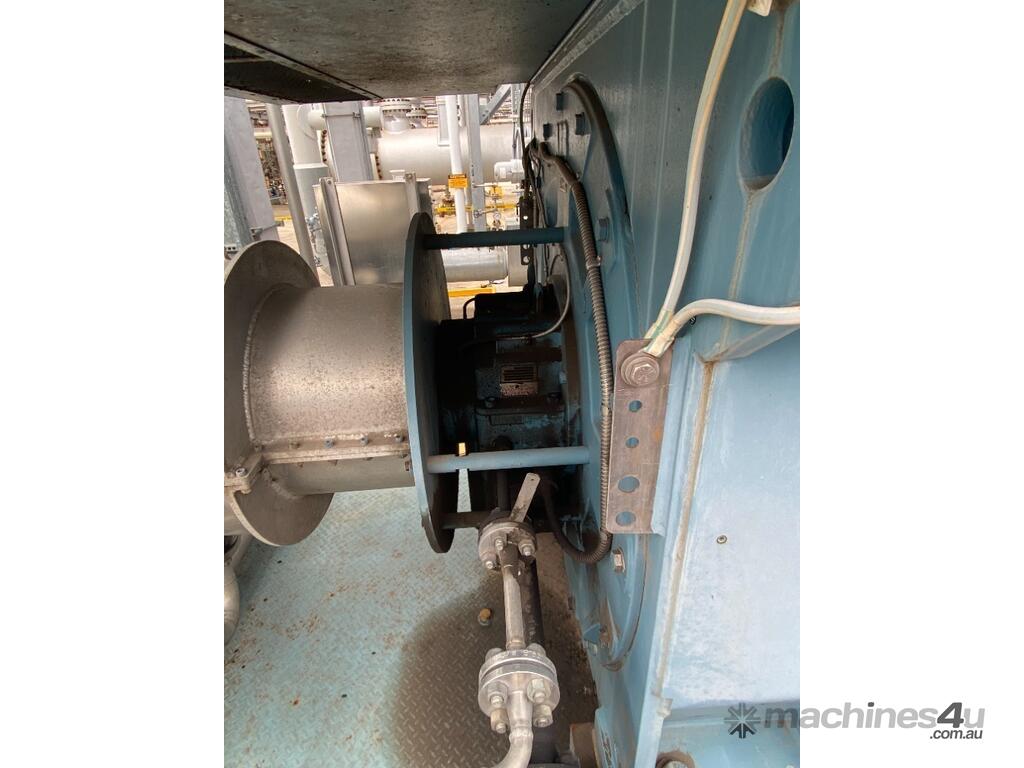

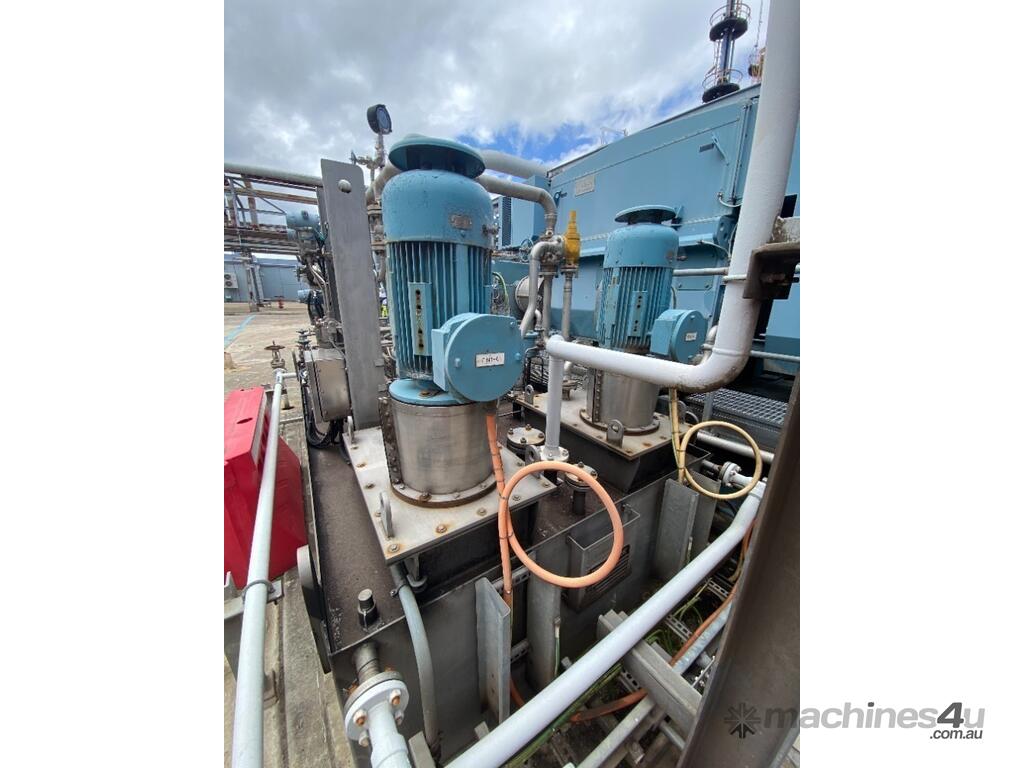

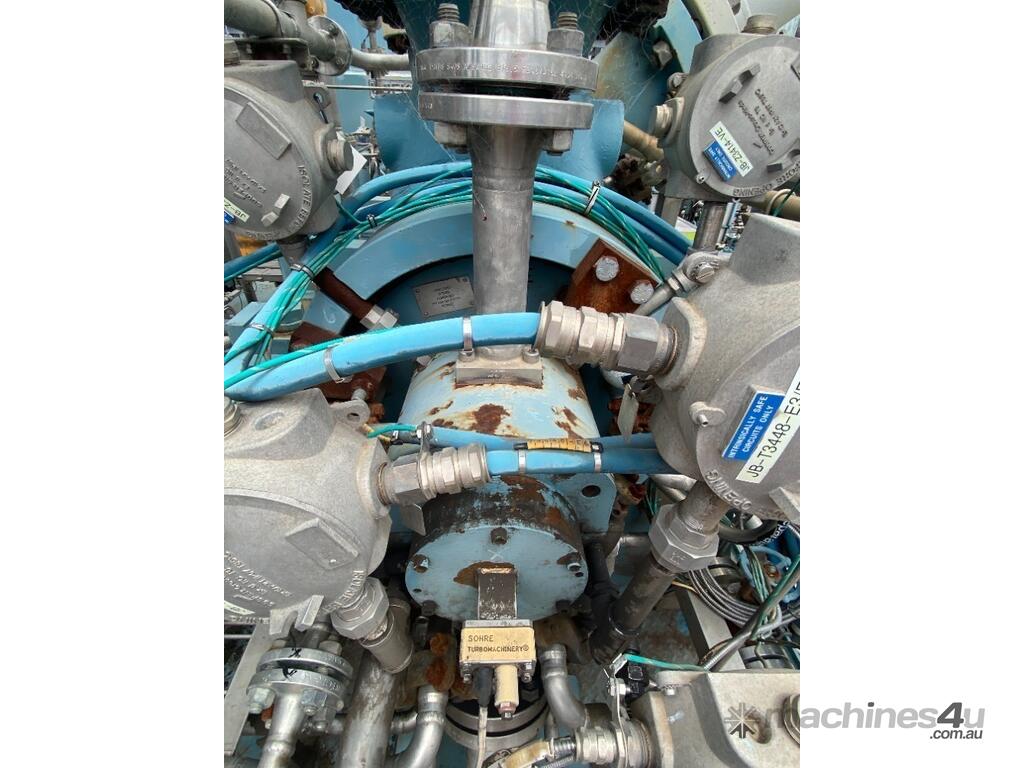

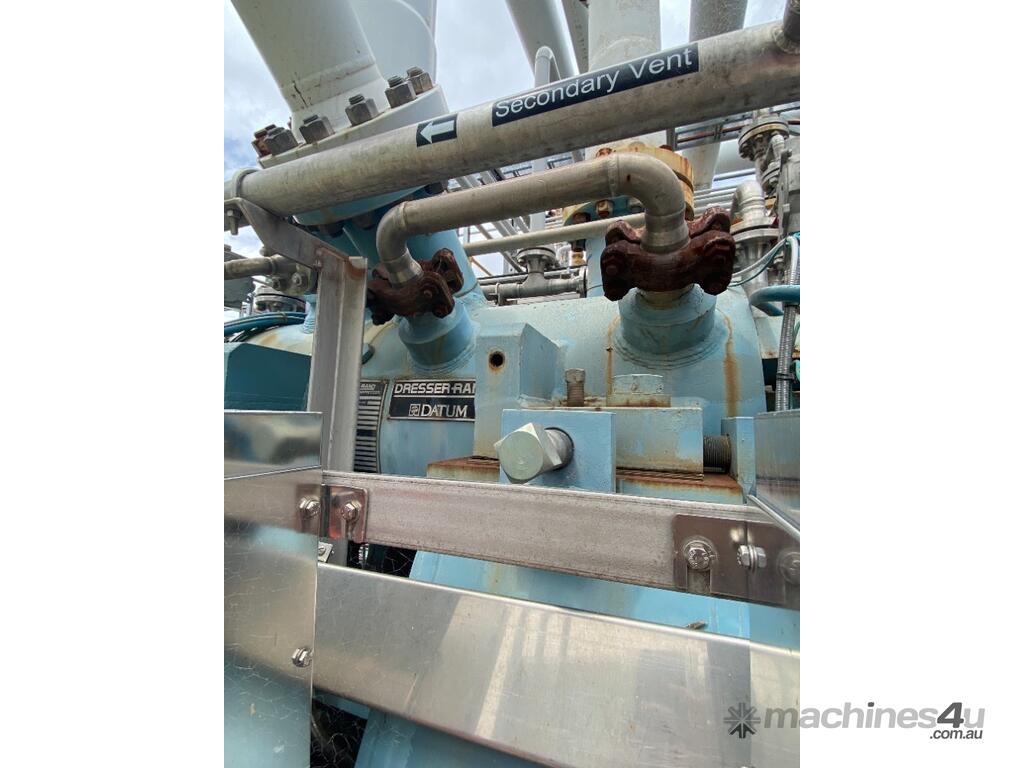

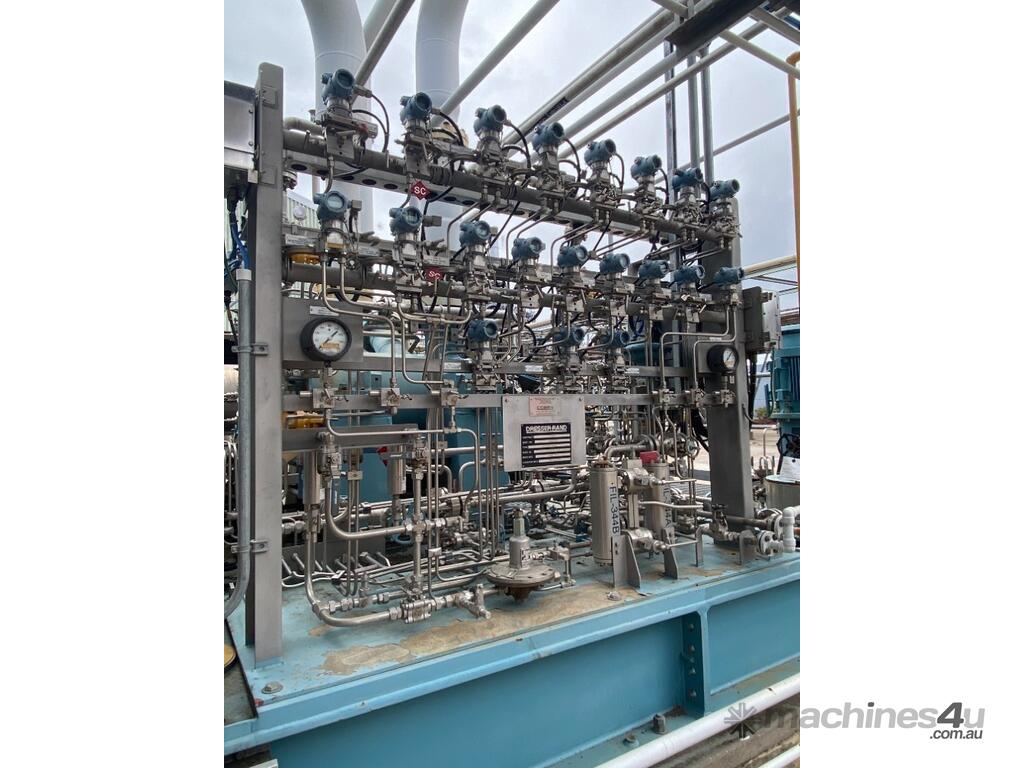

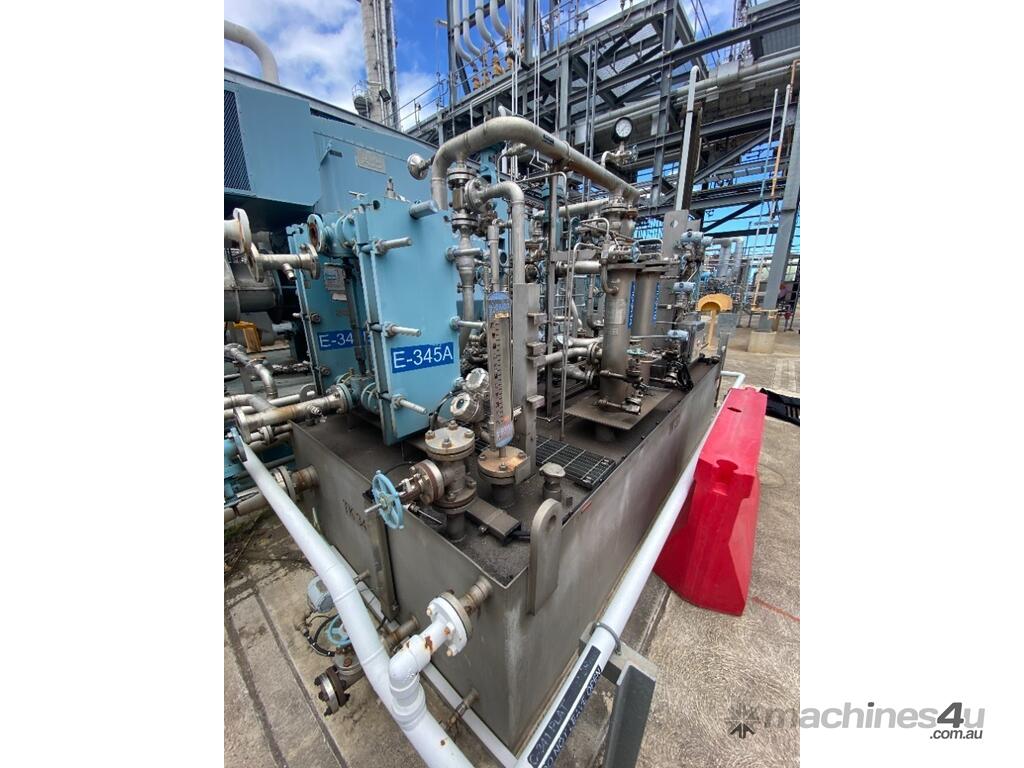

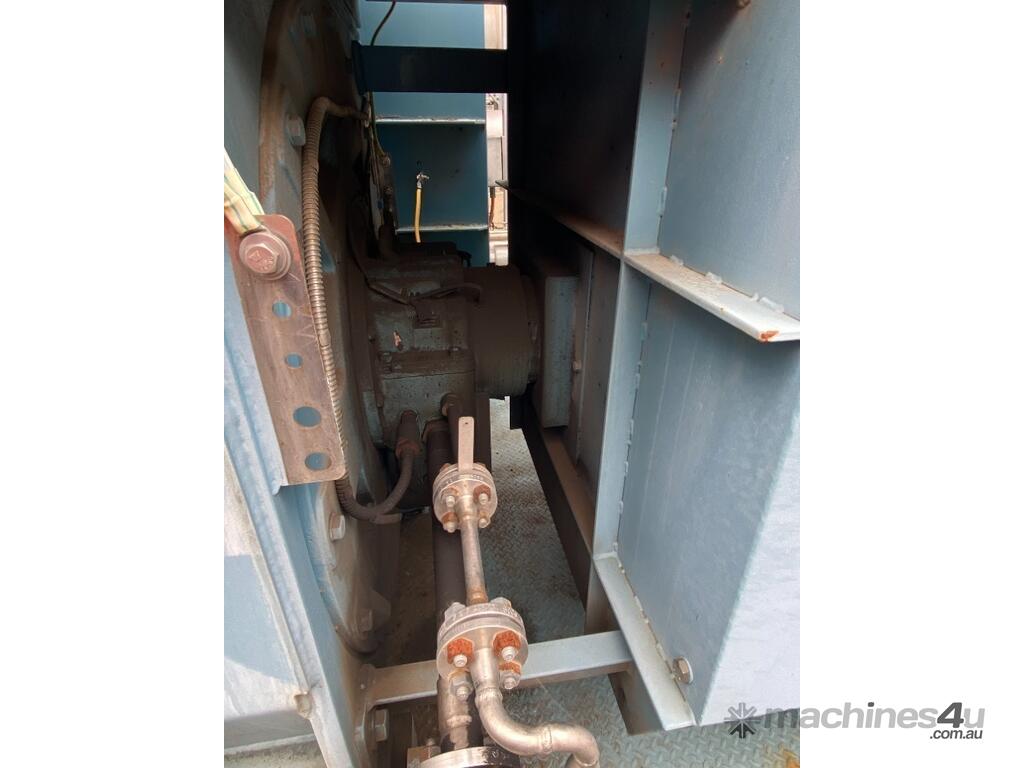

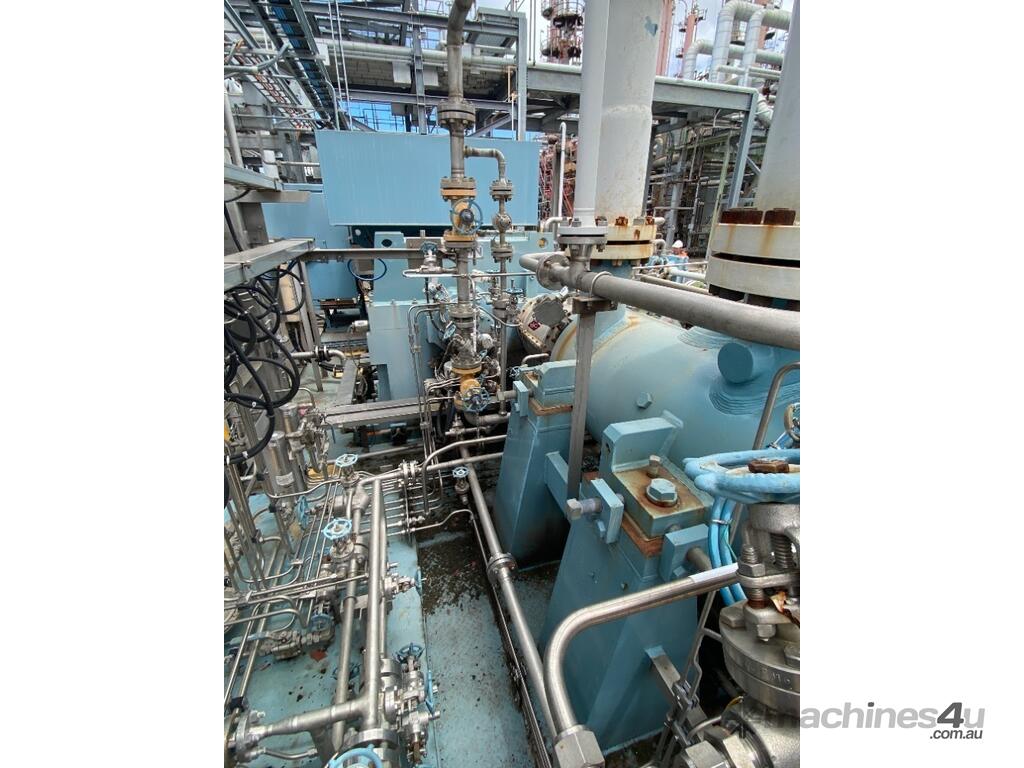

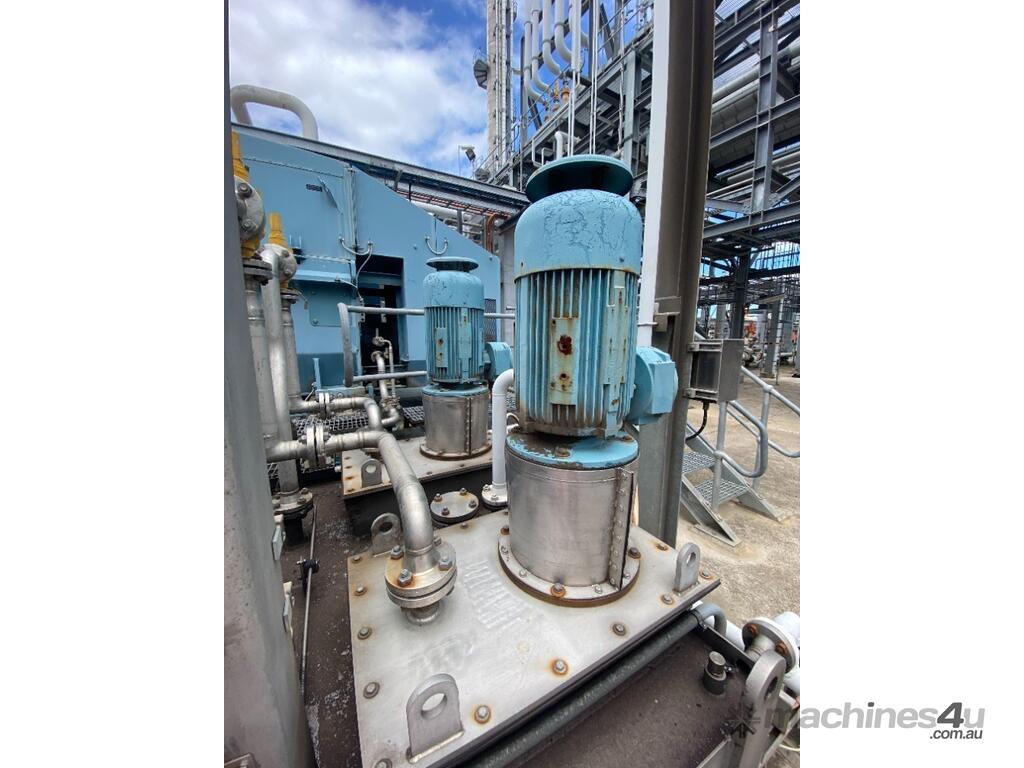

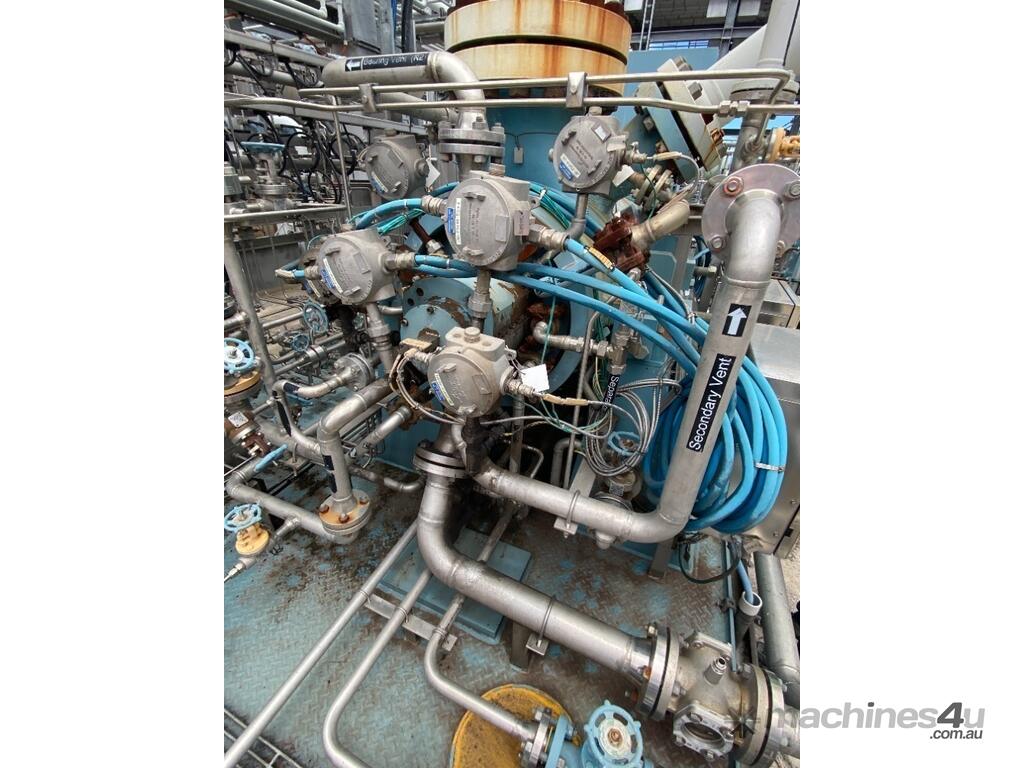

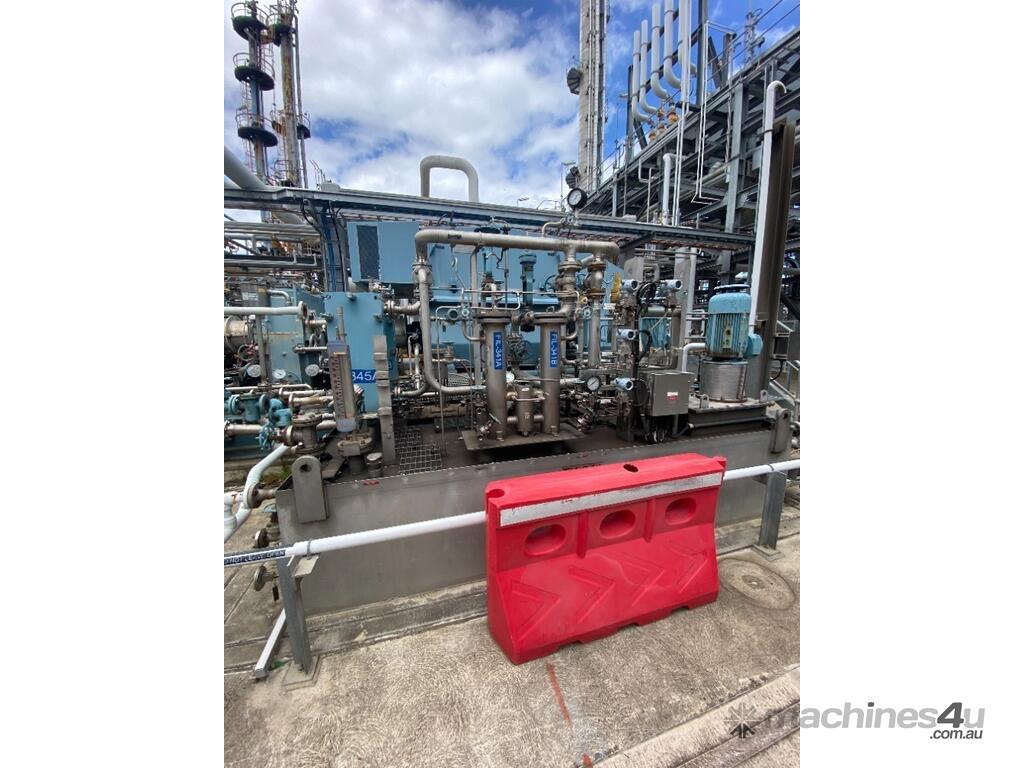

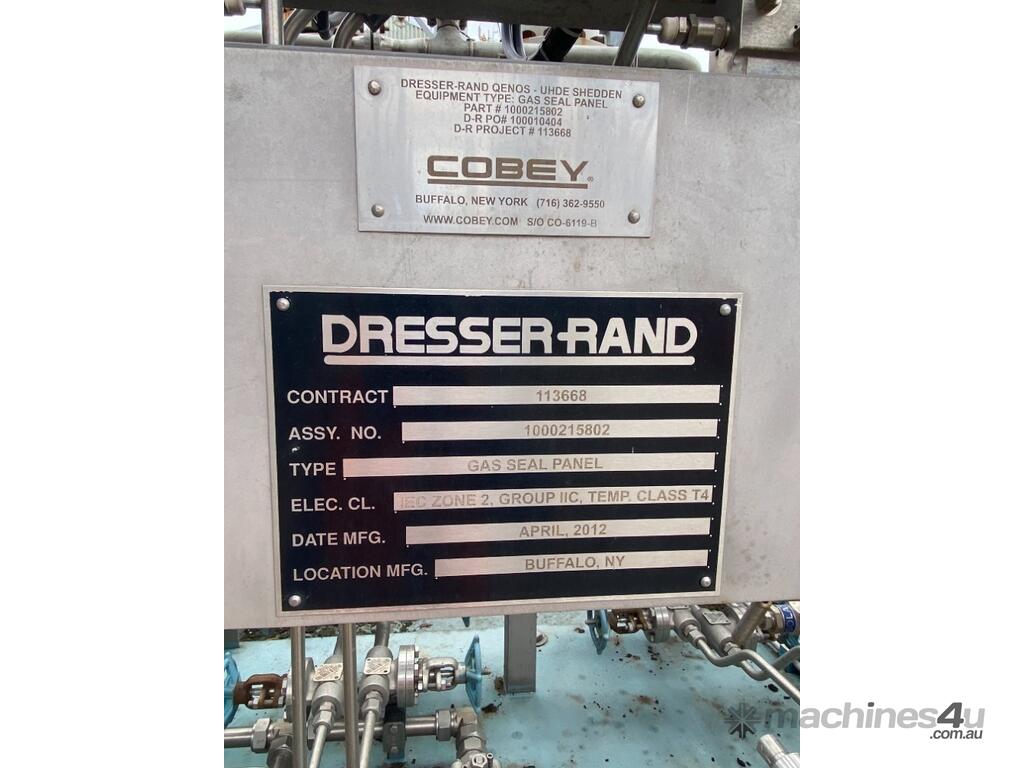

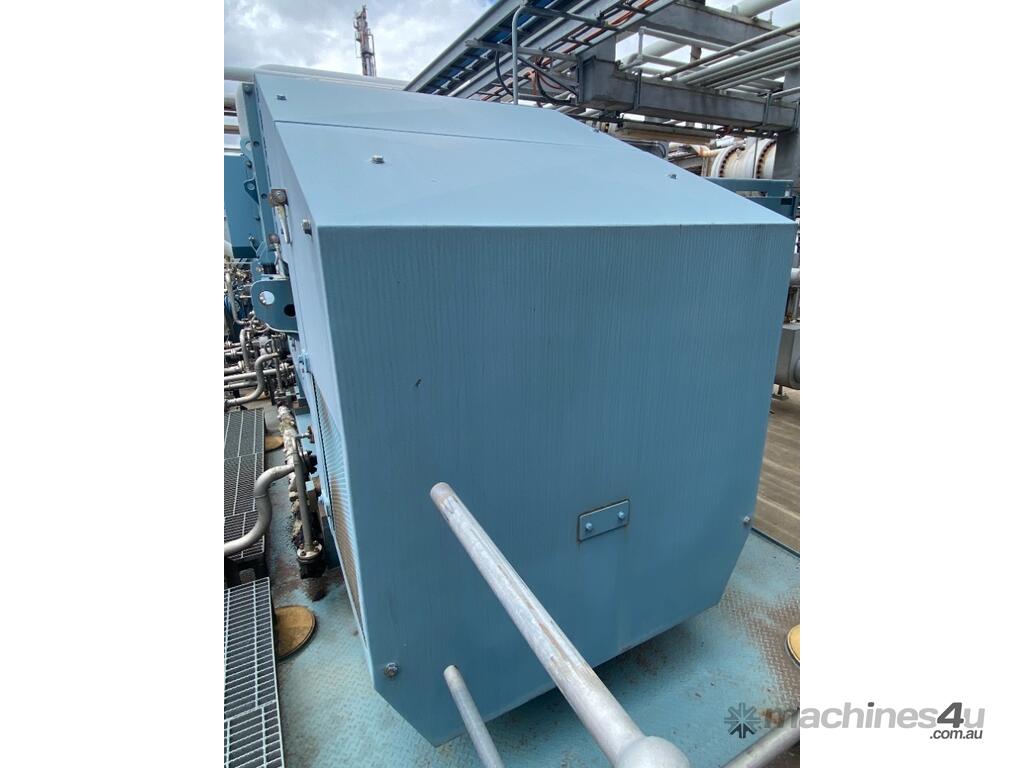

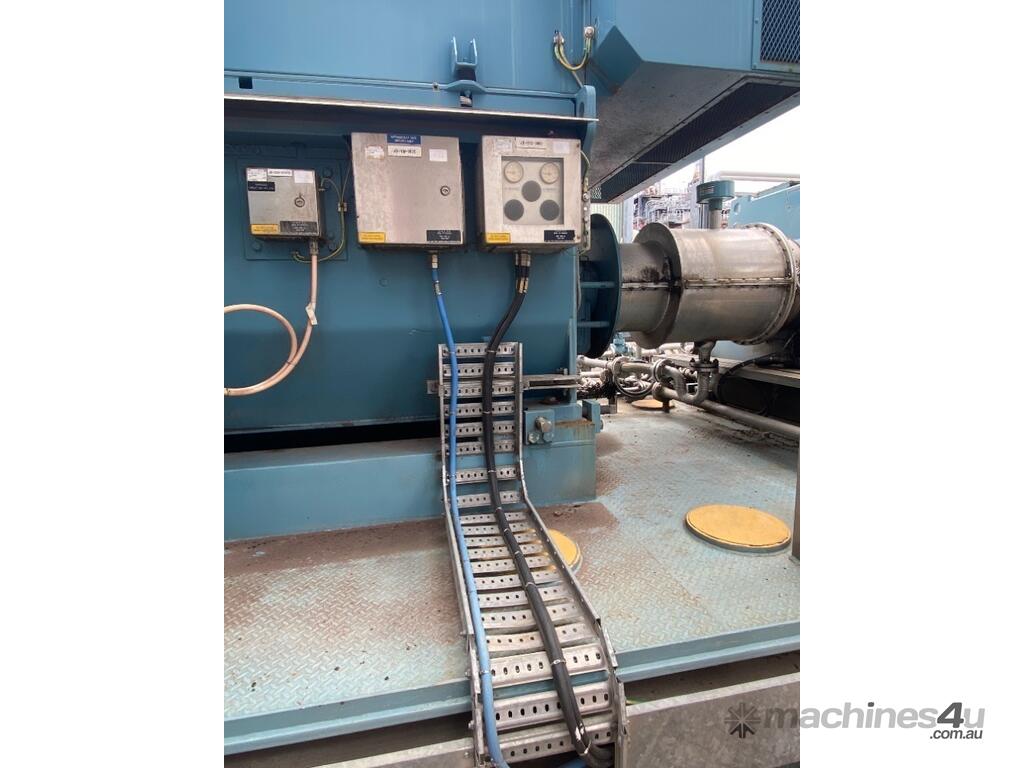

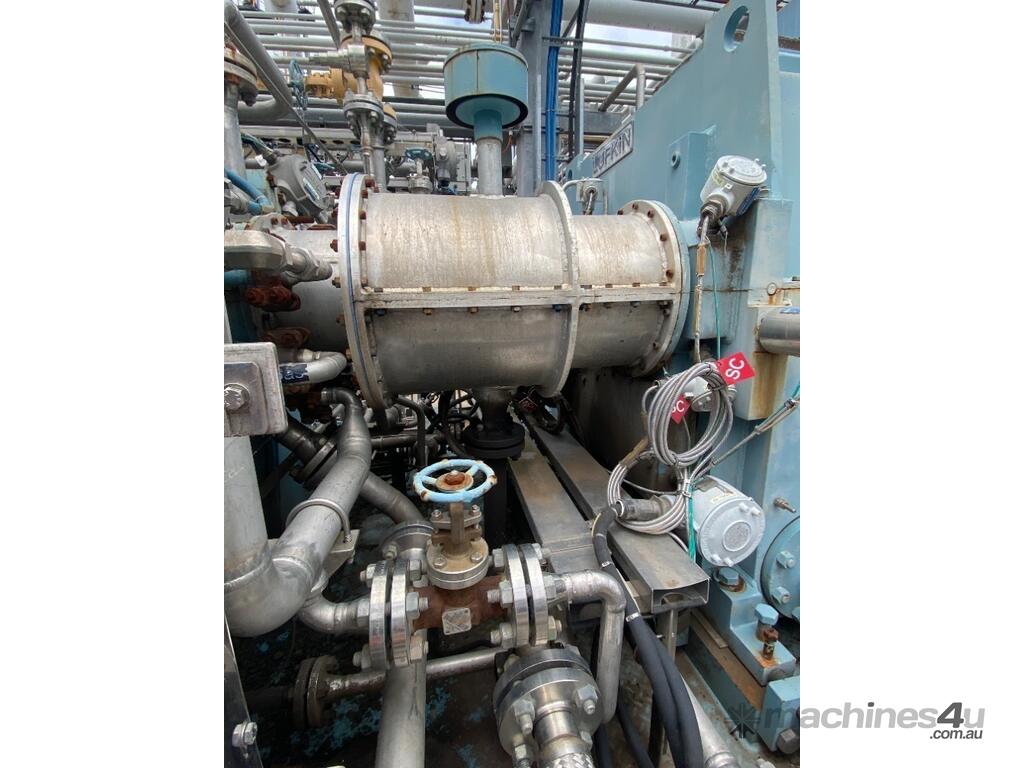

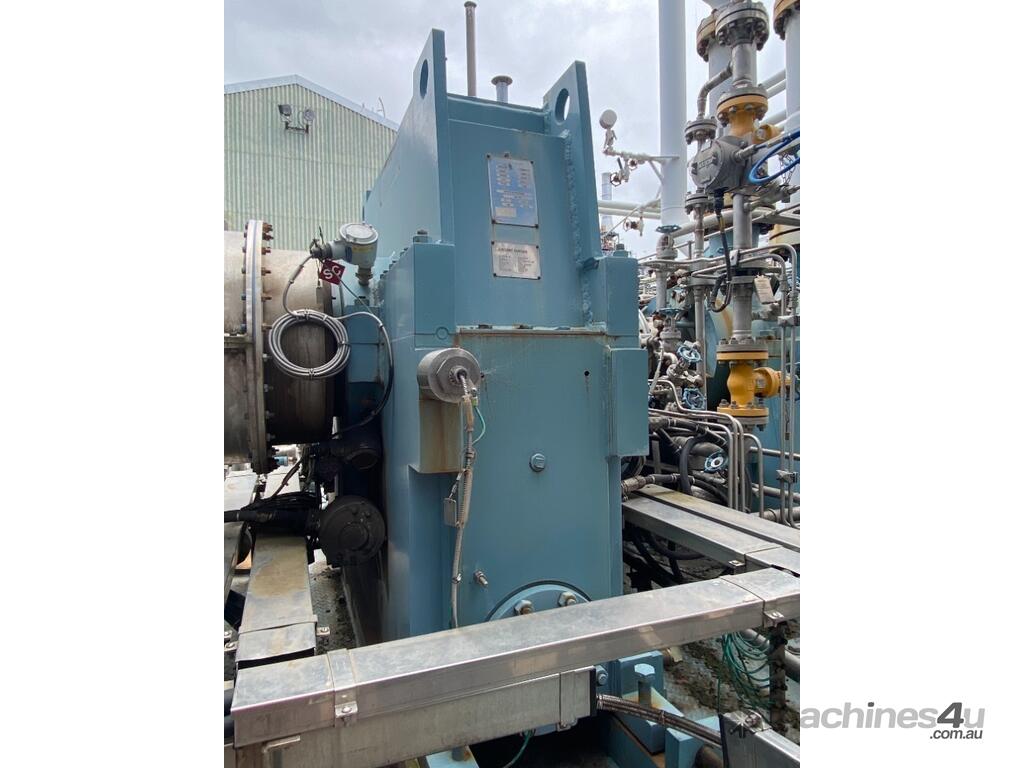

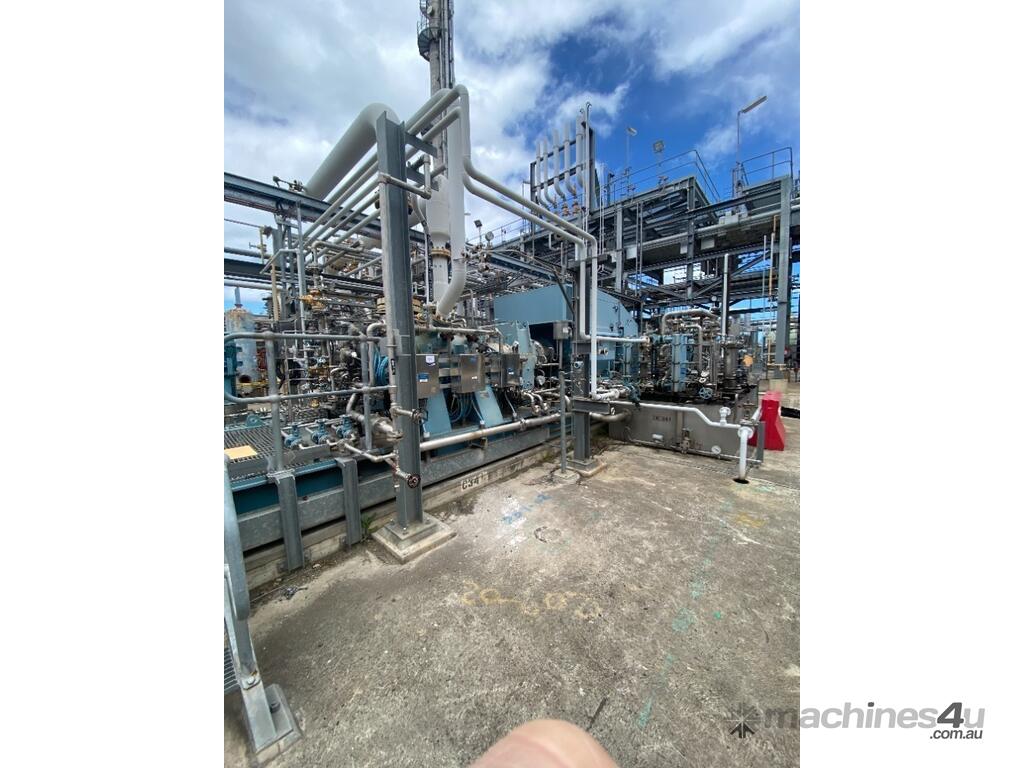

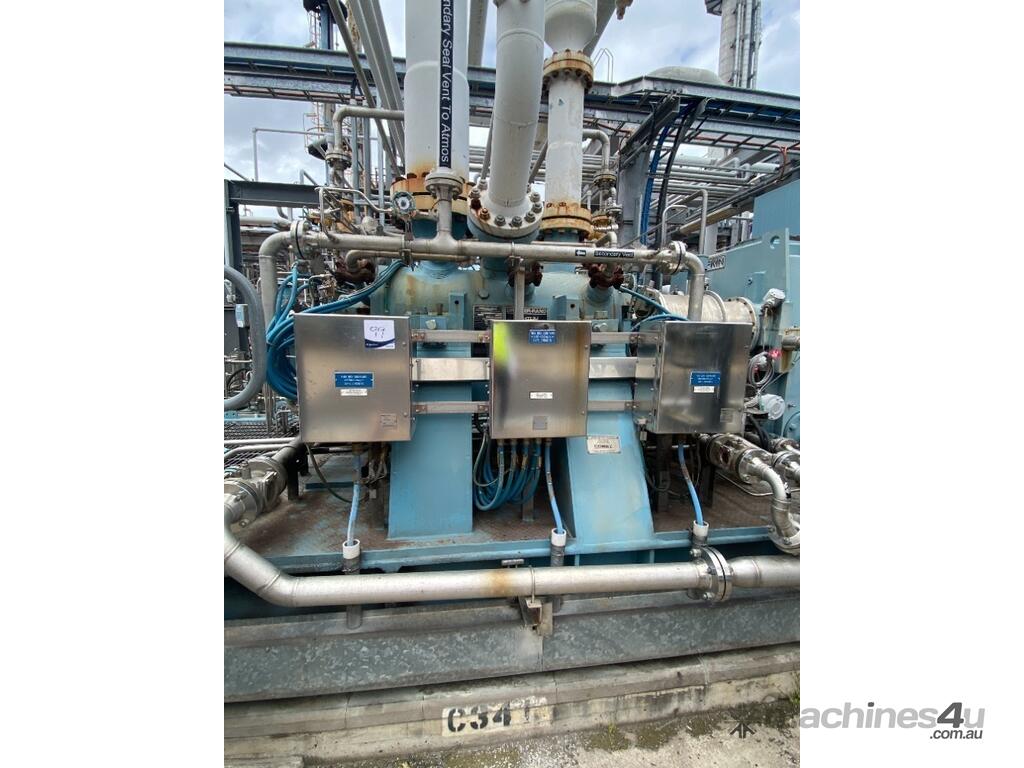

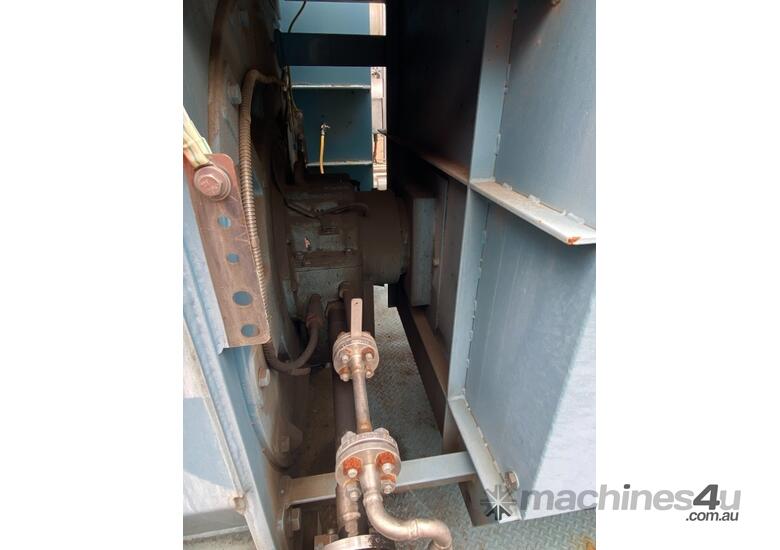

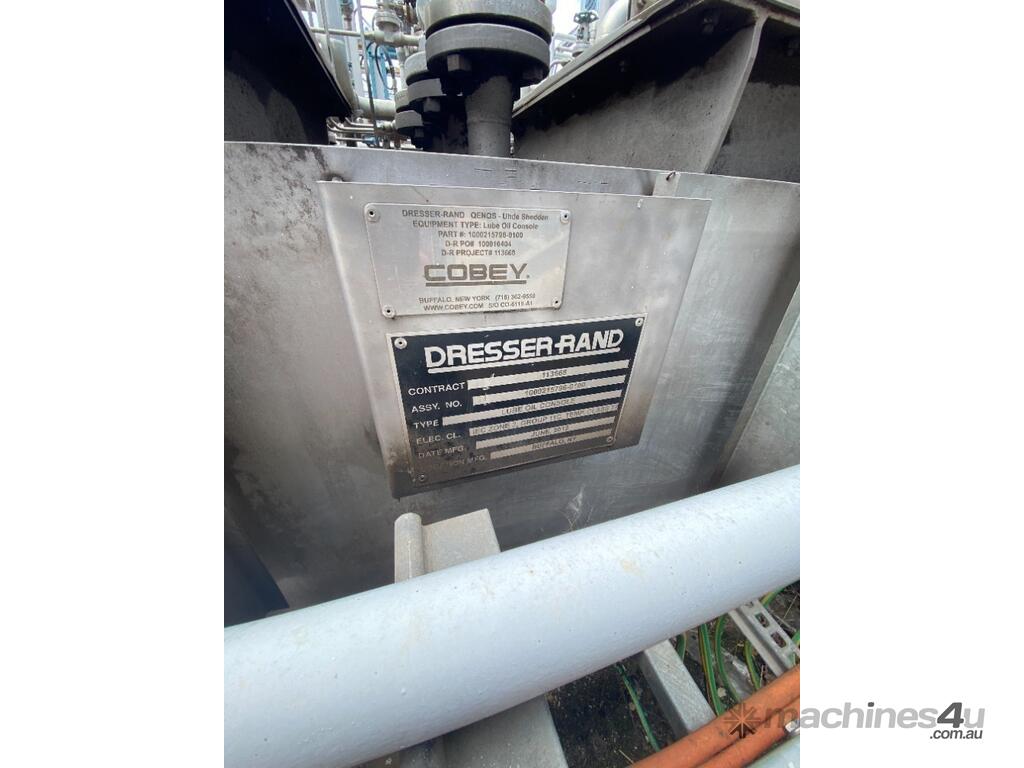

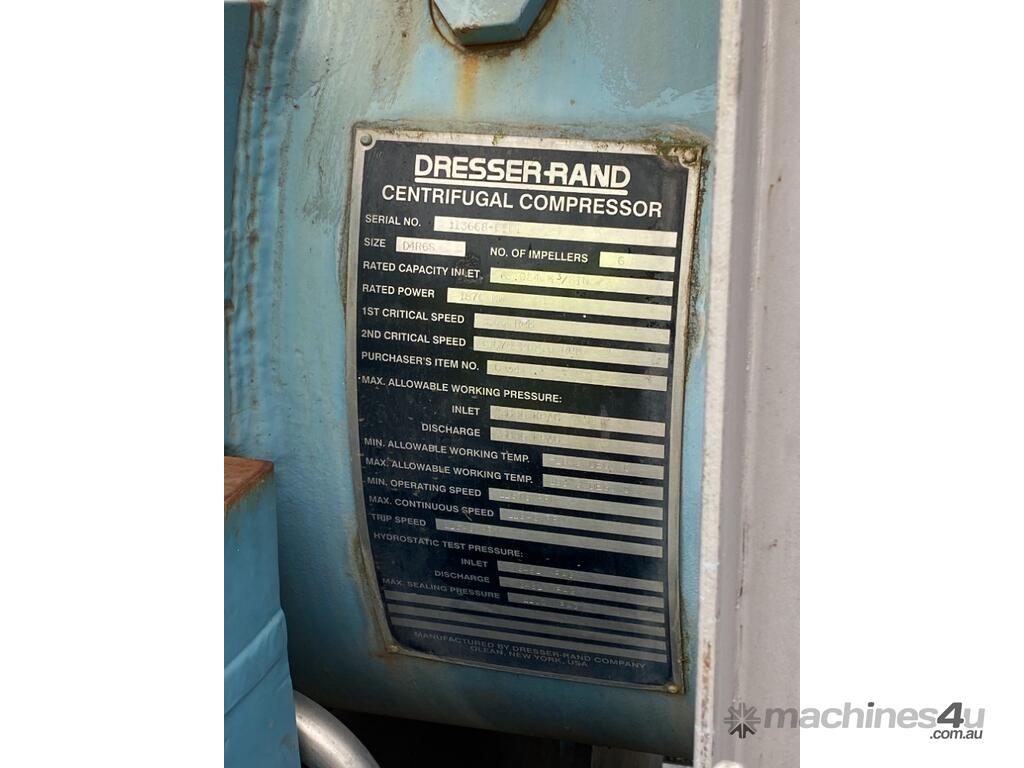

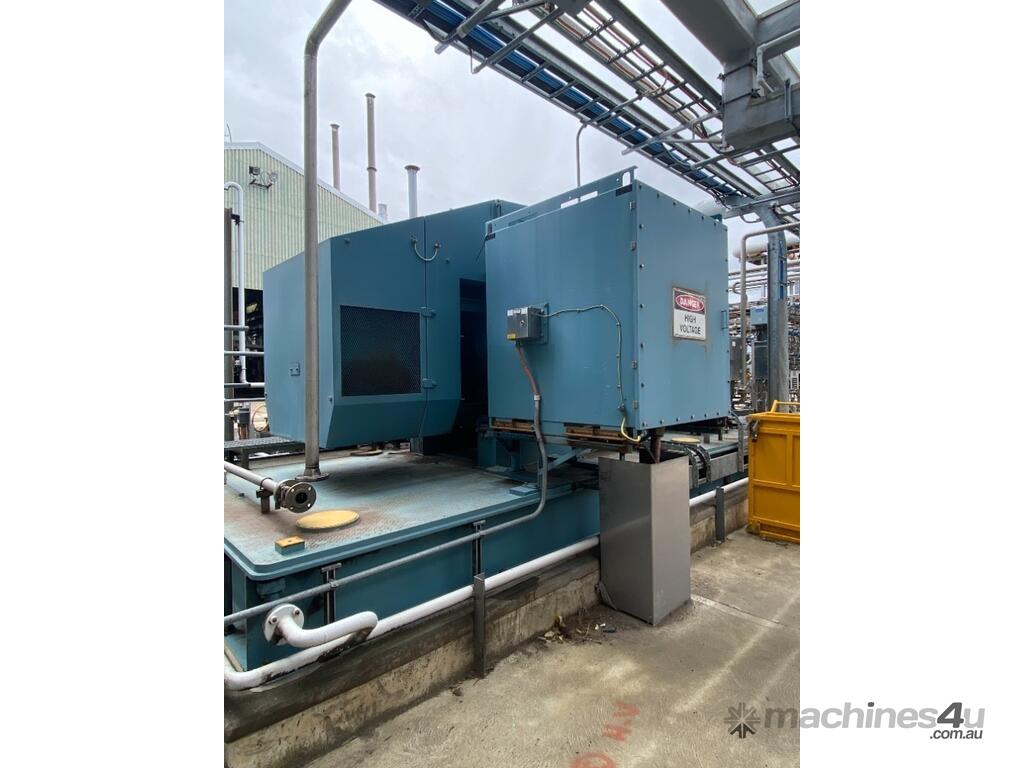

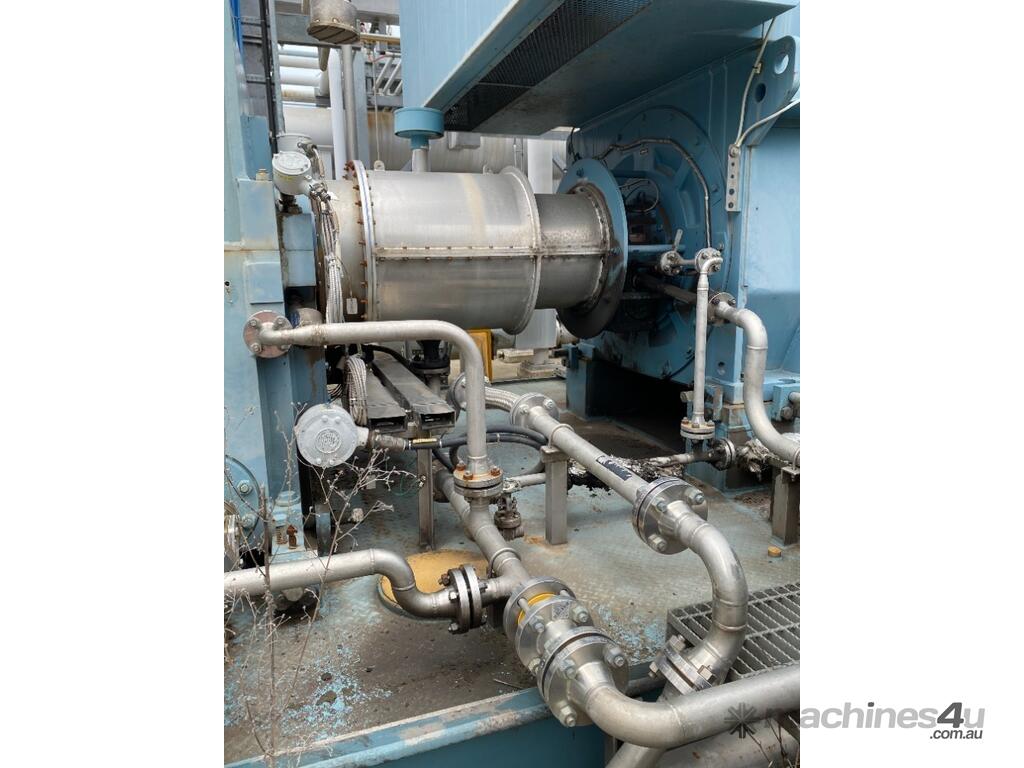

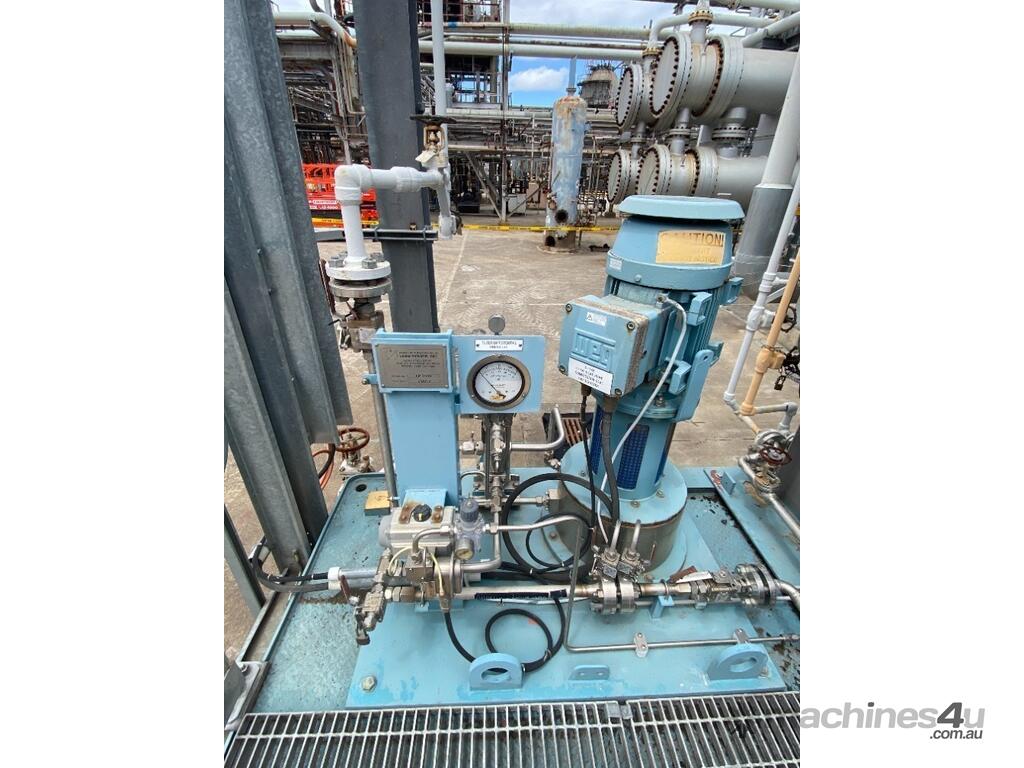

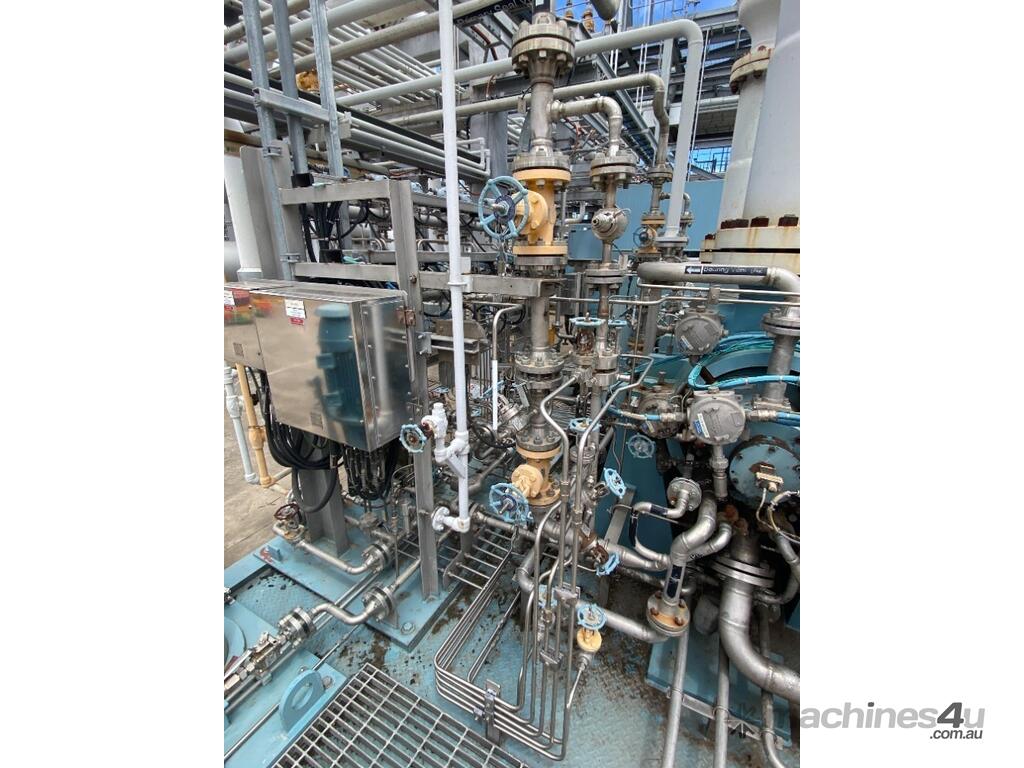

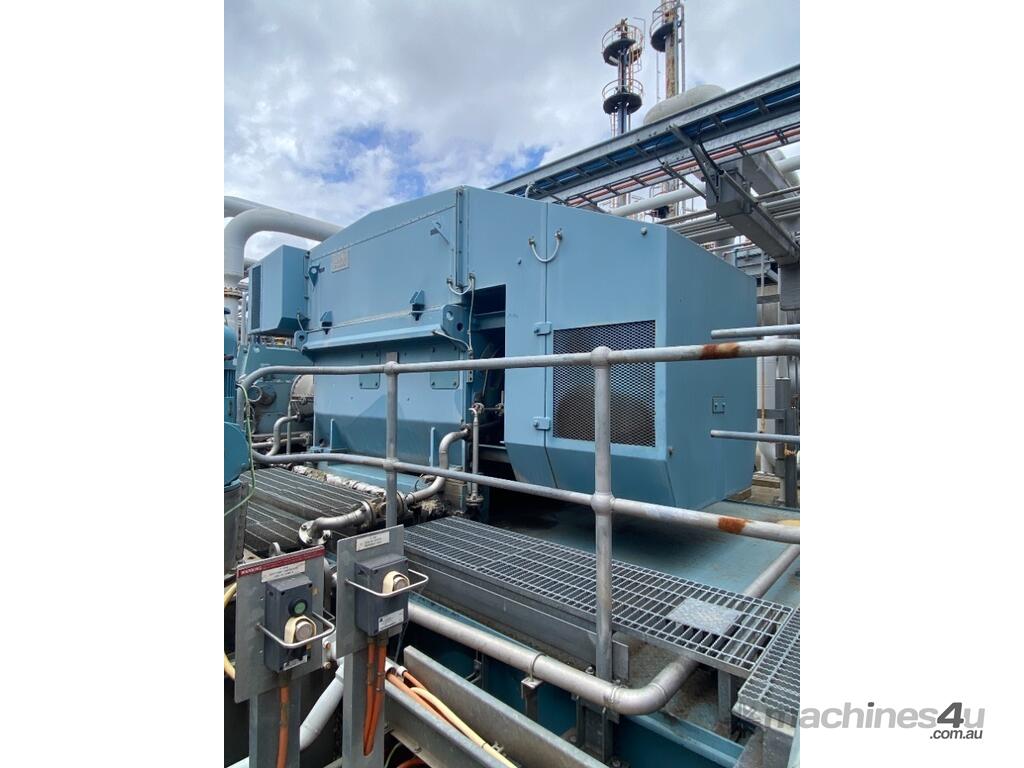

Dresser Rand Datum Centrifugal Compressor Size: D4R6S Impellers 6 Serial No: 113668-0101 Rated Capacity Inlet: 65m³/min Rated Power: 1870Kw 1st Critical Speed: 5500 rpm 2nd Critical Speed: 19670-20,210 rpm Max Allowable Working Pressure Inlet: 3896 KPAG Discharge: 3896 KPAG Min Allowable Working Temp: -28.9 degrees Max Allowable Working Temp: 193 degrees with 2014 ABB Electric Motor, 2350Kw Voltage: 11,000 Speed: 1490 rpm (weight: 9680Kg) witih 2012 Dresser Rand Lube Oil Console and 2012 Dresser Rand Gas Seal Panel
