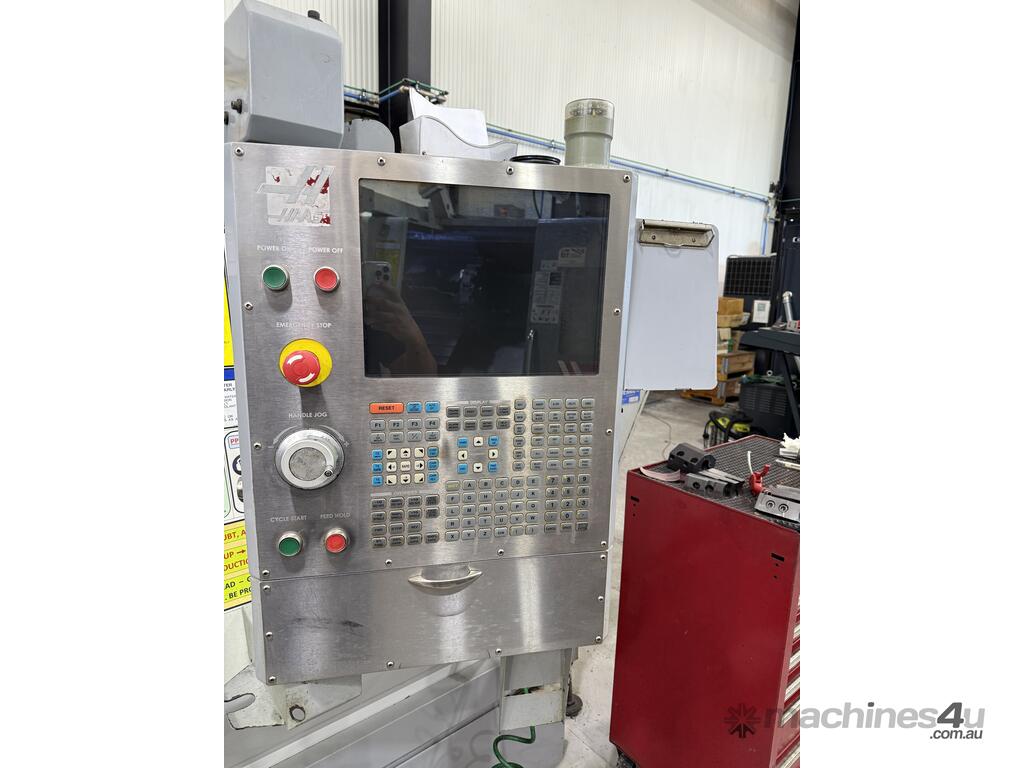

HAAS SL20 LATHE & BAR FEEDER

The HAAS SL-20 VOP-C is a high-precision, vertical turning centre designed for a wide range of machining
applications. Equipped with advanced features, it offers versatility and efficiency in various industries.

Key Specifications
? Swing Over Front Apron: 584 mm
? Swing Over Cross Slide: 241 mm
? Max Cutting Diameter: 262 mm
? Max Cutting Length: 508 mm
? Bar Capacity: 51 mm
? Chuck Size: 210 mm
? Between Centers: 610 mm
? X-Axis Travel: 214.6 mm
? Z-Axis Travel: 508.0 mm
? Rapid Traverse Rates: 30.5 m/min (X and Z axes)
? Spindle Speed: Up to 5,000 RPM
? Spindle Motor Power: 14.9 kW
? Number of Tools: 10-position turret
? Tool Index Time: 1 second
? Machine Dimensions: 3149.6 mm (L) × 1574.8 mm (W) × 1828.8 mm (H)
? Machine Weight: 4083.5 kg

Typical Applications :

The HAAS SL-20 VOP-C is ideal for precision machining in various industries, including:
? Automotive: Manufacturing components such as shafts, bushings, and housings.
? Aerospace: Producing parts like brackets, fittings, and structural components.
? General Engineering: Machining custom parts and prototypes with tight tolerances.
