Key Features:
Engine: Diesel Engine
Power: 36.8kw
Load Capacity: 3,500kg
Operating Weight: 4600kg
Upgraded Options: Included

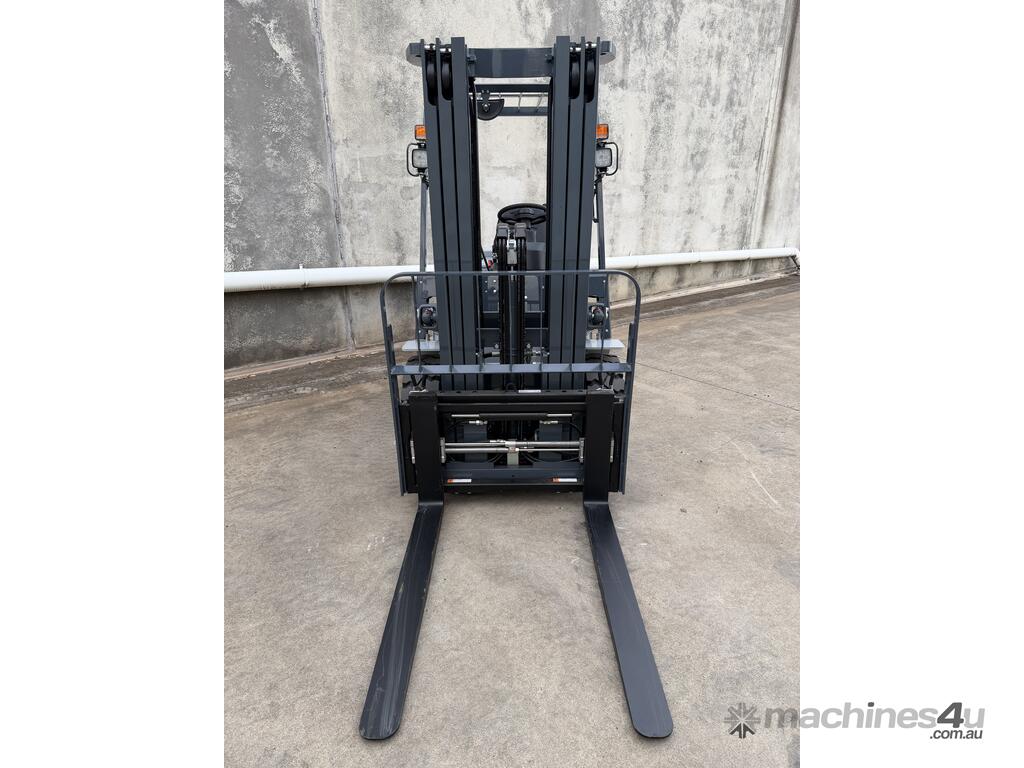

4.5m 3 Stage Mast
Side Shift
Adjustable Forks

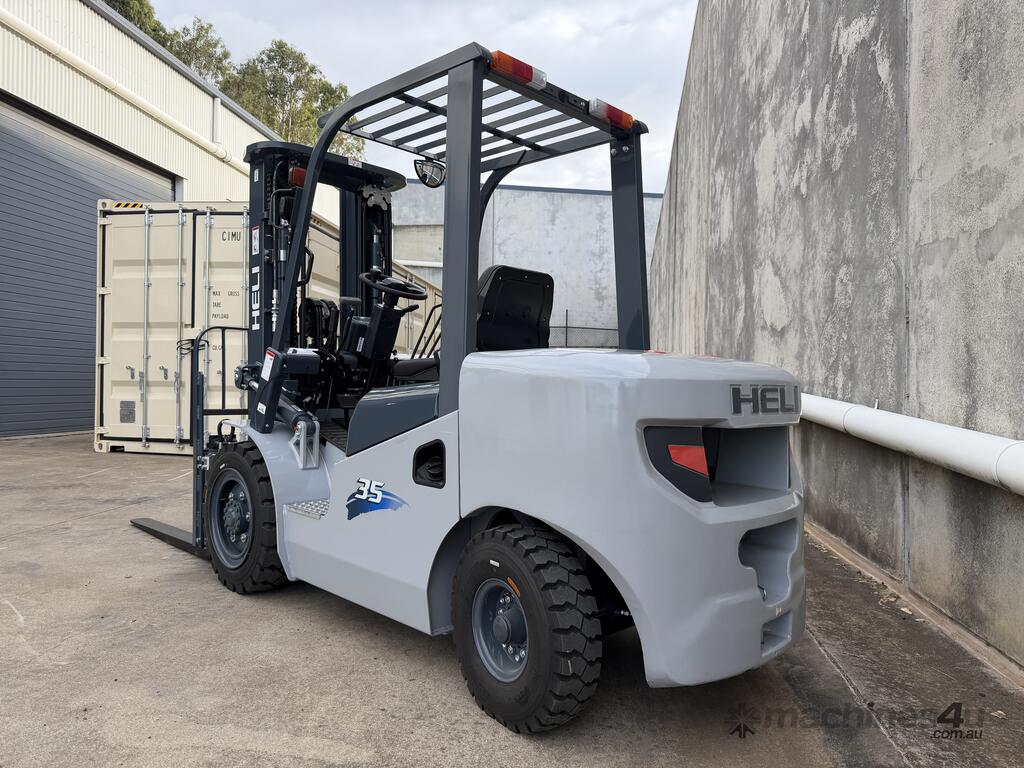

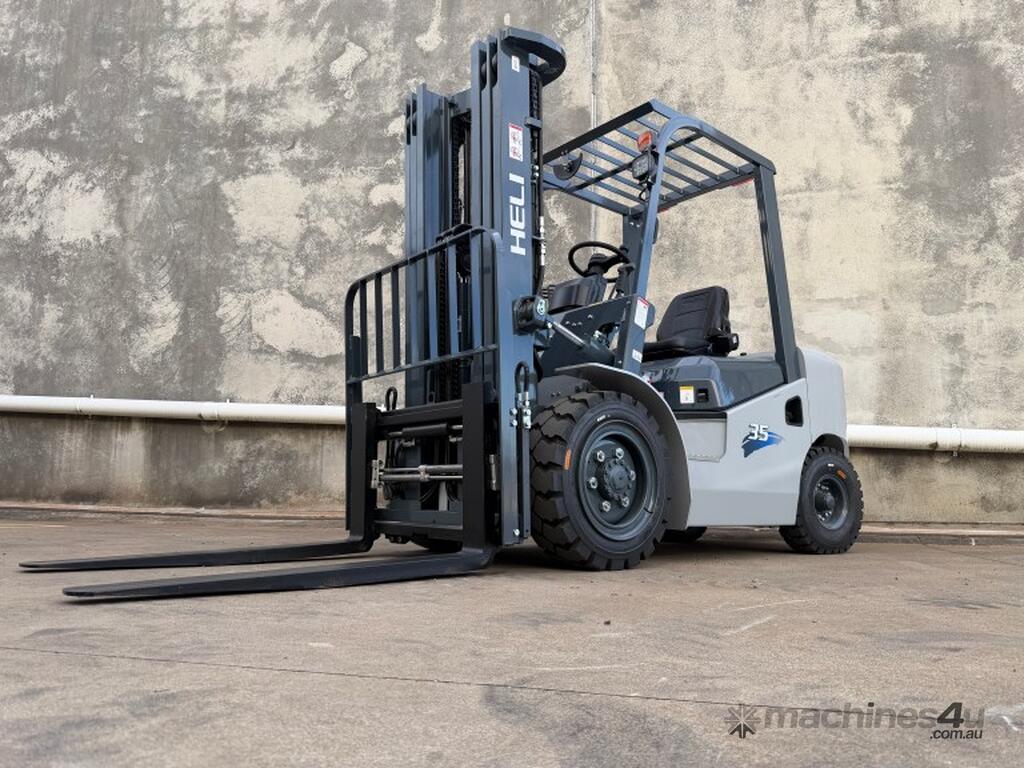

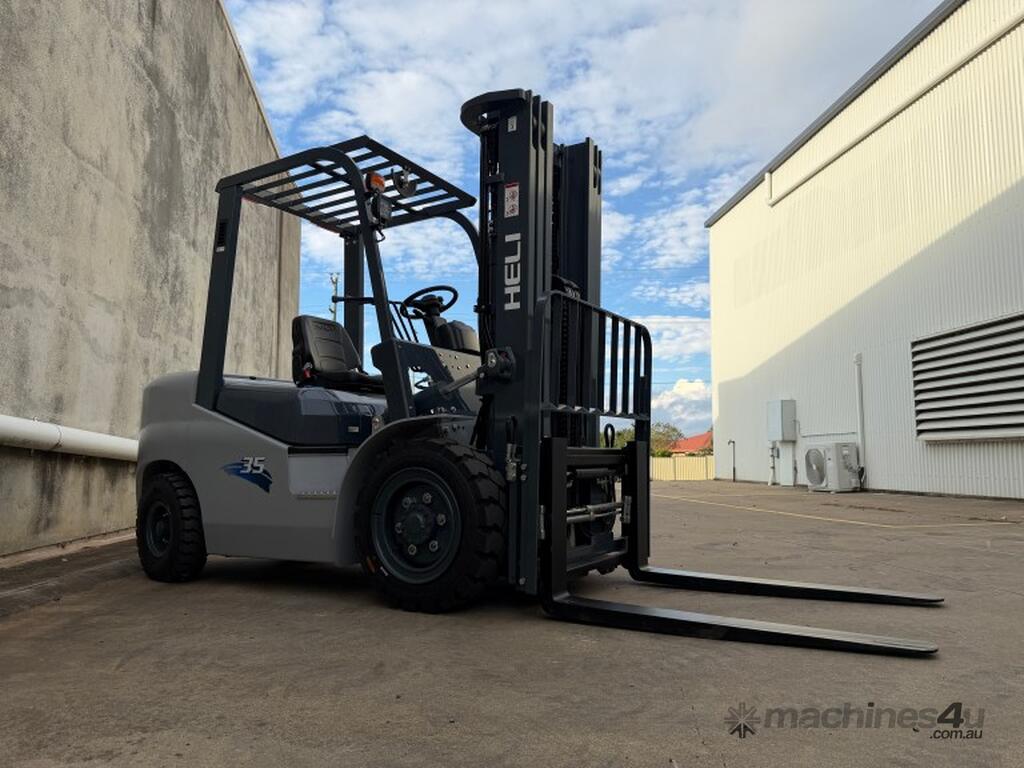

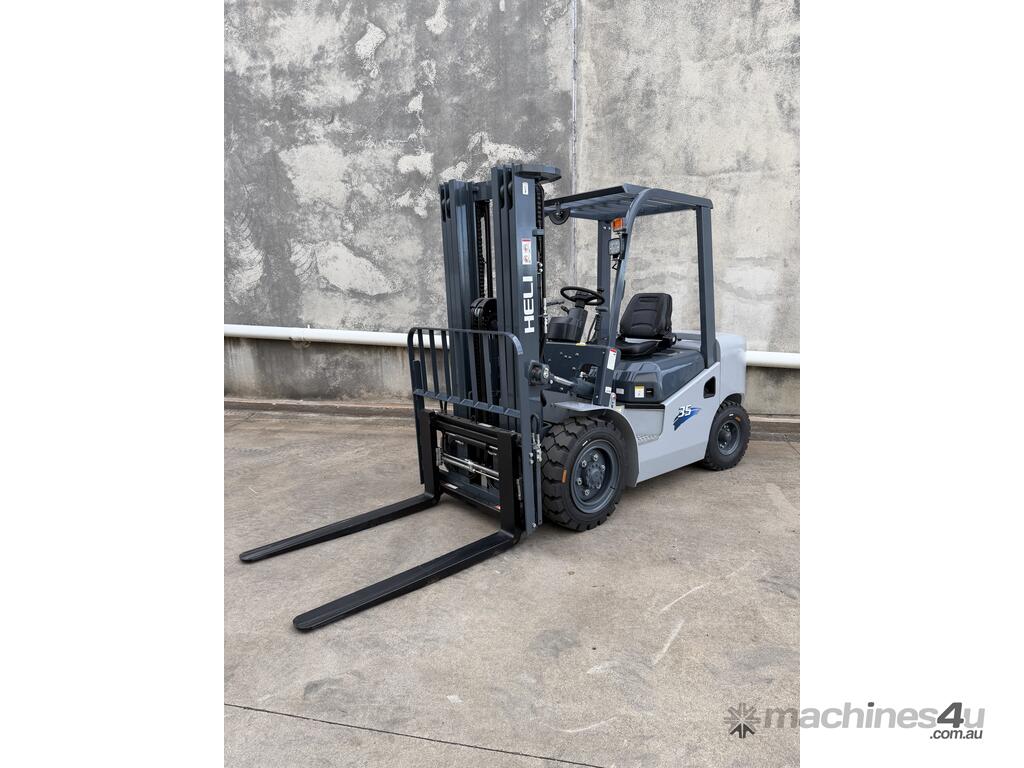

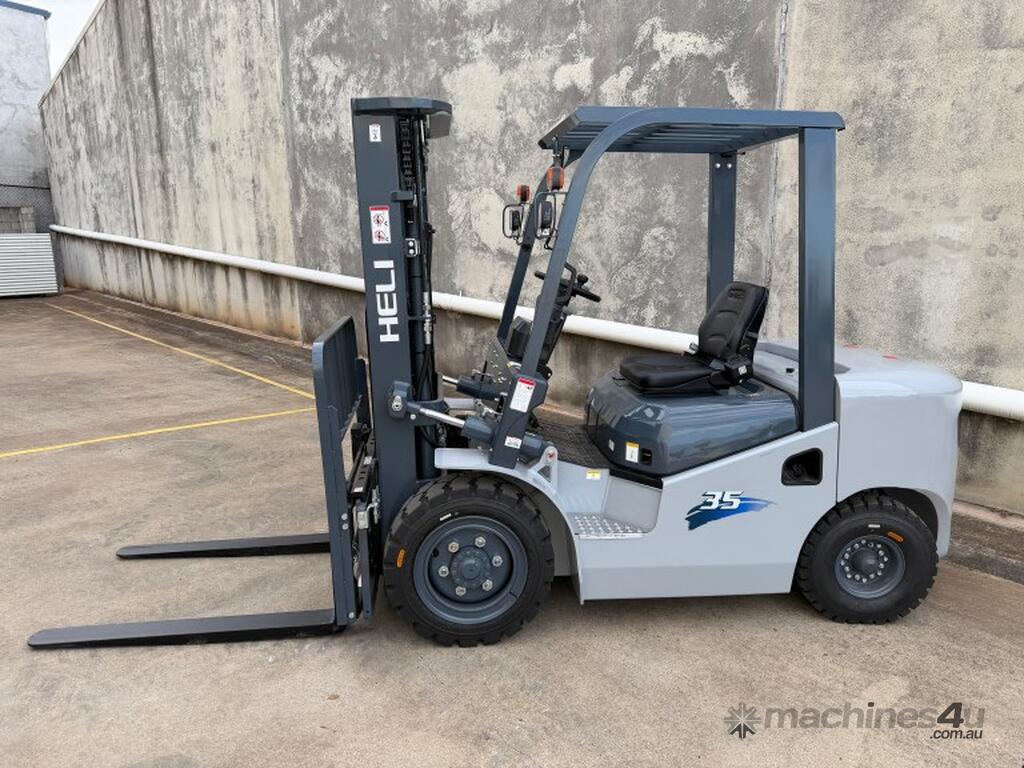

3.5T Forklift

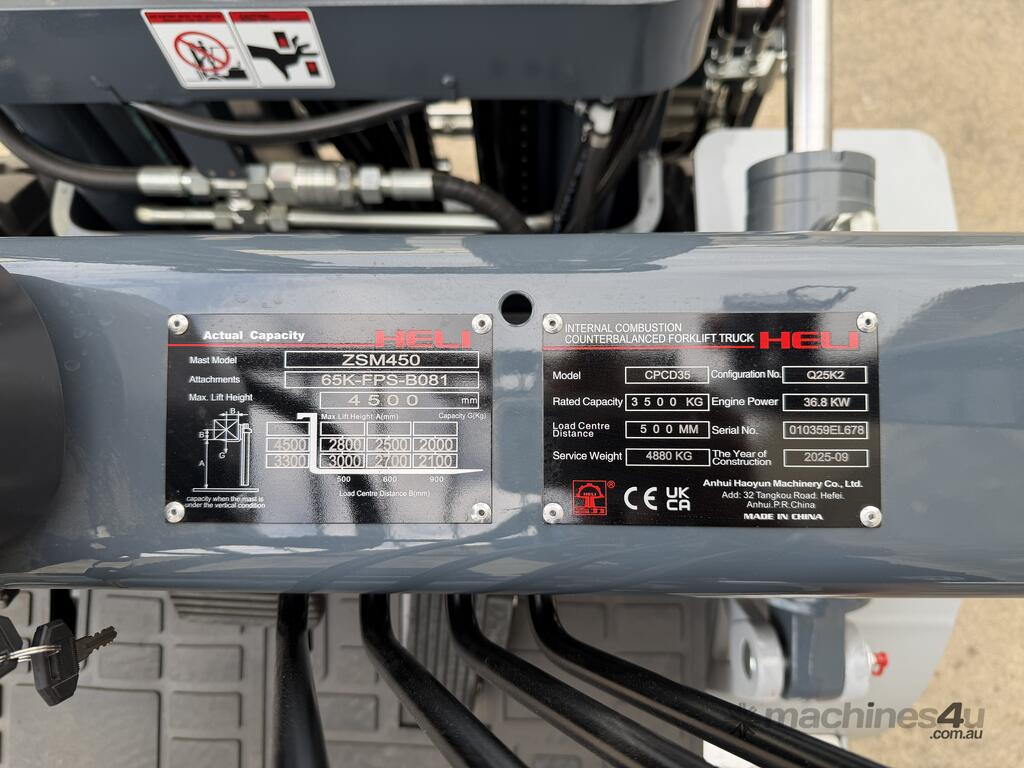

Rated Load Capacity: 3500 kg
Load Centre Distance: 500 mm
Lift Height (Standard): 3000 mm
Mast Overall Height: 2120 mm
Max. Fork Lifting Height (with Backrest): 4217 mm
Free Lift Height: 160 mm
Overall Height (Overhead Guard): 2140 mm
Min. Ground Clearance (at Mast): 135 mm
Overall Length (with Fork / without Fork): 3868 mm / 2798 mm
Wheelbase: 1750 mm
Front Overhang: 484 mm
Rear Overhang: 564 mm
Overall Width: 1225 mm
Fork Adjustment Range: 250–1060 mm
Minimum Turning Radius (Exterior): 2400 mm
Minimum Turning Radius (Interior): 80 mm
Mast Tilting Angle (Forward/Rear): 6° / 12°
Fork Size (L×W×T): 1220 × 125 × 50 mm
Total Weight: 4600 kg
Pneumatic Tires (Front/Rear): 28×PR / 6.PR
Max. Travelling Speed (Loaded/Unloaded): 18 / 19 km/h

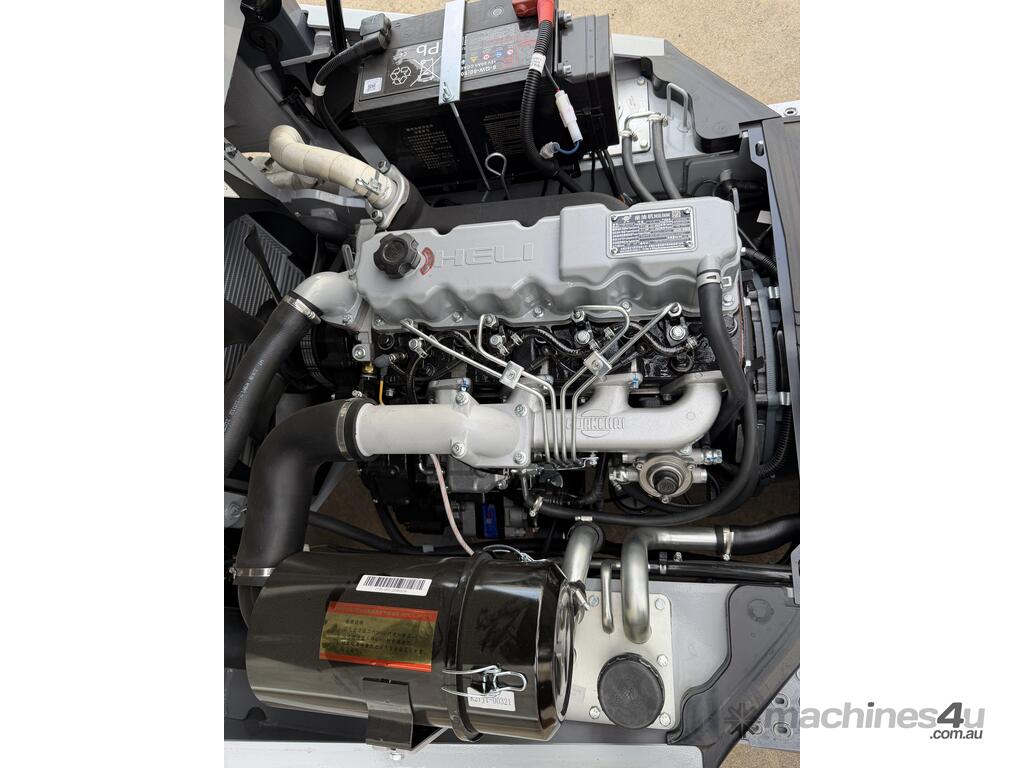

Engine:
Type: Diesel
Brand: Quanchai
Model: V29-50V42
Power Output: 36.8 kW 2500 rpm
Fuel Tank Capacity: 70 L
