Kohler - KK17M Diesel Generator (1ph) – 17 kVA Silent Performer

KK17M-1 Diesel Generator – 15 kVA Silent Performer
Compact, Reliable, and Built for Australian Conditions

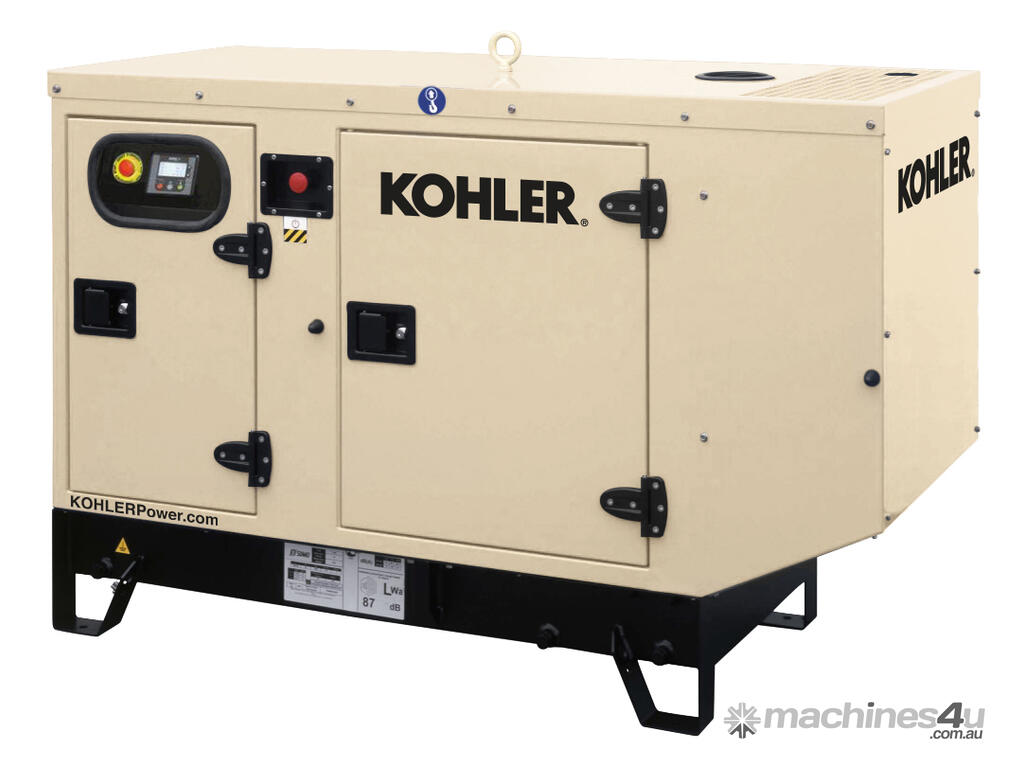

The KK17M-1 Diesel Generator (Model KK17M-1) is a robust 15 kVA power solution designed for emergency standby applications. Featuring a durable canopy module (M126) and finished in RAL1014 Beige, it combines Italian engineering with high-quality European steel for enhanced corrosion resistance and long-term reliability.

Key Specifications
Max Power Output: 15.0 kVA
Voltage: 240V (Single Phase)
Frequency: 50 Hz

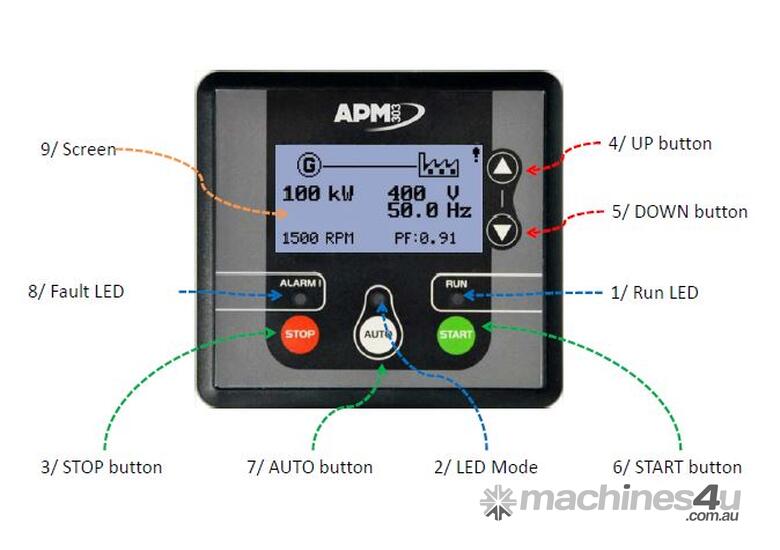

Control Panel: APM303 with auto-start prewiring
Fuel Tank Capacity: 50L
Max Current: 62.0 A

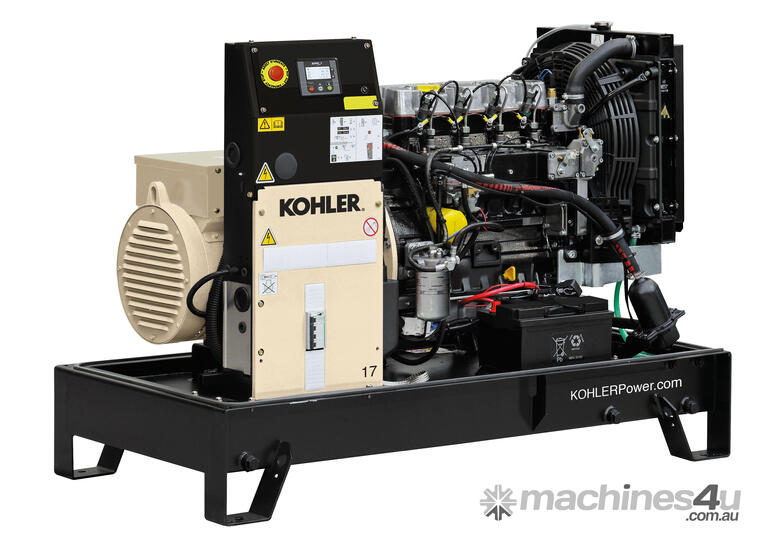

Engine Type: KDI1903M, water-cooled diesel
Alternator: KH00404T, single bearing, IP23
Governor Type: Mechanical
Aux Voltage: 12V DC

Built Tough for Australia
RAL1014 Beige Canopy – Silent Version IV_F for noise compliance with 2000/14/CE standards
Heavy-Duty Steel Frame – Welded base with 85% vibration attenuation and forklift-friendly design
QUALICOAT Epoxy Paint – Enhanced corrosion resistance, tested by the French Corrosion Institute
IP64 Stainless Locks – Secure and weather-resistant enclosure
Center Point Lift Option – M126 lifting bar available

Sustainability & Emissions
Compatible with Hydrotreated Vegetable Oil (HVO) – a renewable fuel that reduces net CO? emissions by up to 90%
Designed to meet Stage IIIA emissions standards for reduced NOx and particulate matter
Built with ROHS-compliant components to limit hazardous substances

Standard Features
Emergency stop button
Fuel level gauge with display
Flexible fuel lines & oil drain cock
Delivered with oil & antifreeze
User manuals (paper & USB)
Bunded base for fluid containment
Schneider or ABB circuit breaker
Charged DC starting battery
Oil pressure & coolant temperature gauges

Optional Upgrades
Remote Management – RTU Modbus over RS485
AUTO Pack – Battery charger + engine resistor
REPORT Pack – Status alarms, sound alerts, and fuel level monitoring
Advanced Monitoring – Integrated current transformers for power and current display

Rehlko Engineering Advantages
Optimized sound levels certified by CETIM
Power maintained even in high-temperature environments
Compact footprint with high performance
Total system integration for seamless operation

Looking for a generator that delivers performance, sustainability, and peace of mind?
The KK17M-1 is ideal for mission-critical applications, commercial operations, and remote installations where reliability and environmental responsibility matter.
