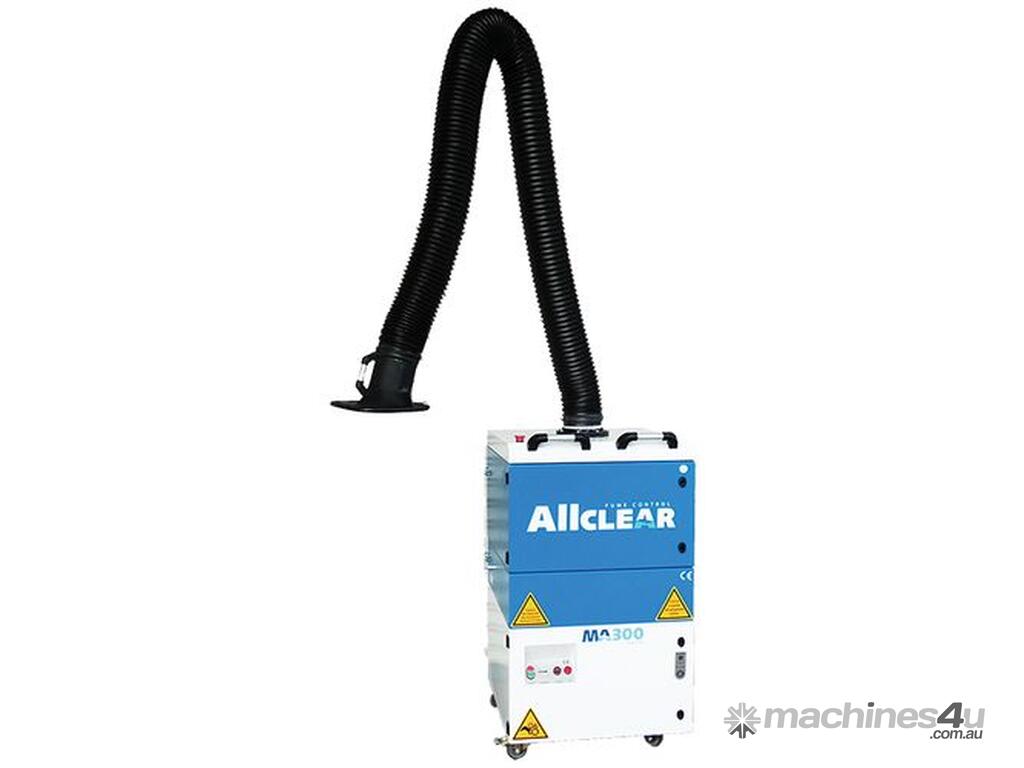

Mobile Welding Fume Extractor ALLCLEAR MA300 AUTO

The ALLCLEAR® MA300 AUTO is a 230V mobile fume extraction and filtration unit for welding and grinding, with automatic compressed-air filter cleaning system for high efficiency and ease of use. With cleanable cartridge filter for extended filter life, the MA300 AUTO offers significantly lower operating costs vs units with traditional 'box filters'. A special deflector plate above the filter further extends filter life and virtually eliminates the risk of fire. Equipped with single 3-metre arm, working hour counter, filter fullness indicator, malfunction warning, and unique dust collection bin. Mounted on casters for mobility, and operates off single-phase ~230V 10A power supply.

AT A GLANCE

7 Year Warranty Offer*
For welding & grinding fumes
Operates on ~230V 10A single phase power
Single 3m arm
Cleanable filter for longer filter life & reduced operating costs
Automatic filter cleaning (requires unit to be connected to compressed air supply)
Special spark deflector virtually eliminates fire risk

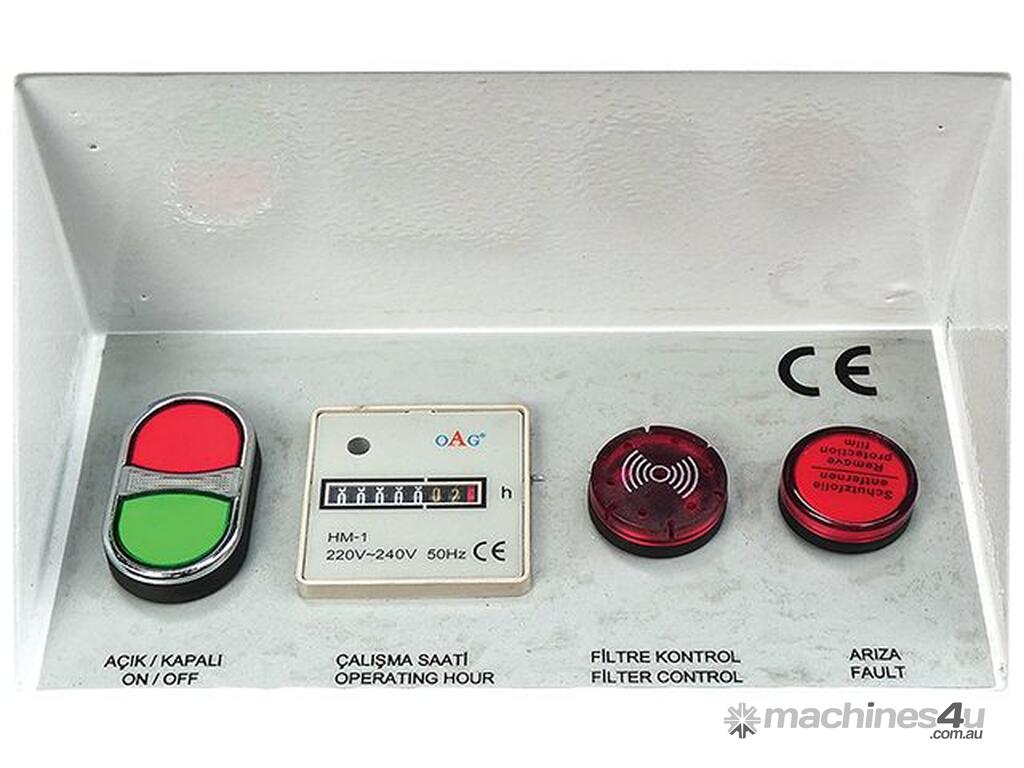

With: working hour counter, filter fullness indicator, malfunction warning, special dust collection bin
Compact and mobile

APPLICATIONS

MIG welding
Flux-Core (FCAW) welding
TIG welding
Plasma Cutting
Grinding
Arc Gouging
Suitable for high-fume applications (eg some flux-core wires), due to auto cleaning function
NOT suitable for extraction of fumes that contain; aluminium dust, oil mist, gases, or water vapour***

FEATURES

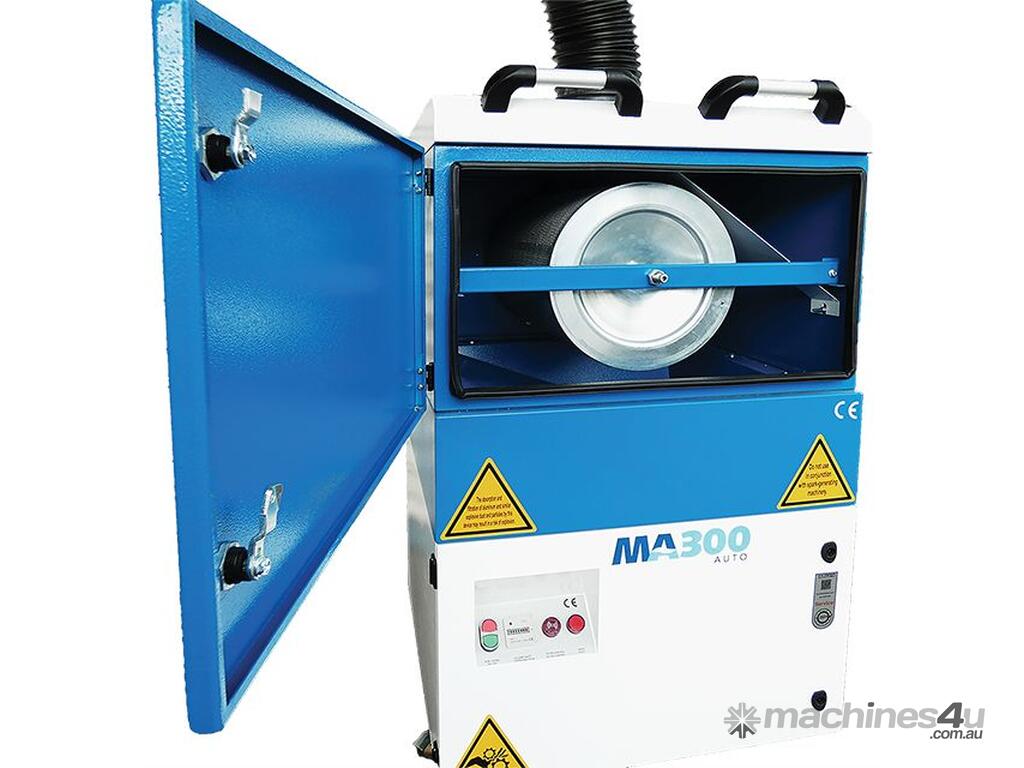

Cleanable cartridge filter for extended filter life & significantly lower operating costs vs traditional box filters
Automatic filter cleaning saves operator down-time (cleaning cycle activates when unit is switched off and/or if airflow drop is detected)
Special spark deflection / impact plate shields the filter from sparks & coarse particles (redirecting them to the dust collection bin), significantly reducing the risk of burnout / fire**, and further increasing filter life
Cleanable filter provides consistent air flow rate (minimal drop in suction power) over the life of the filter

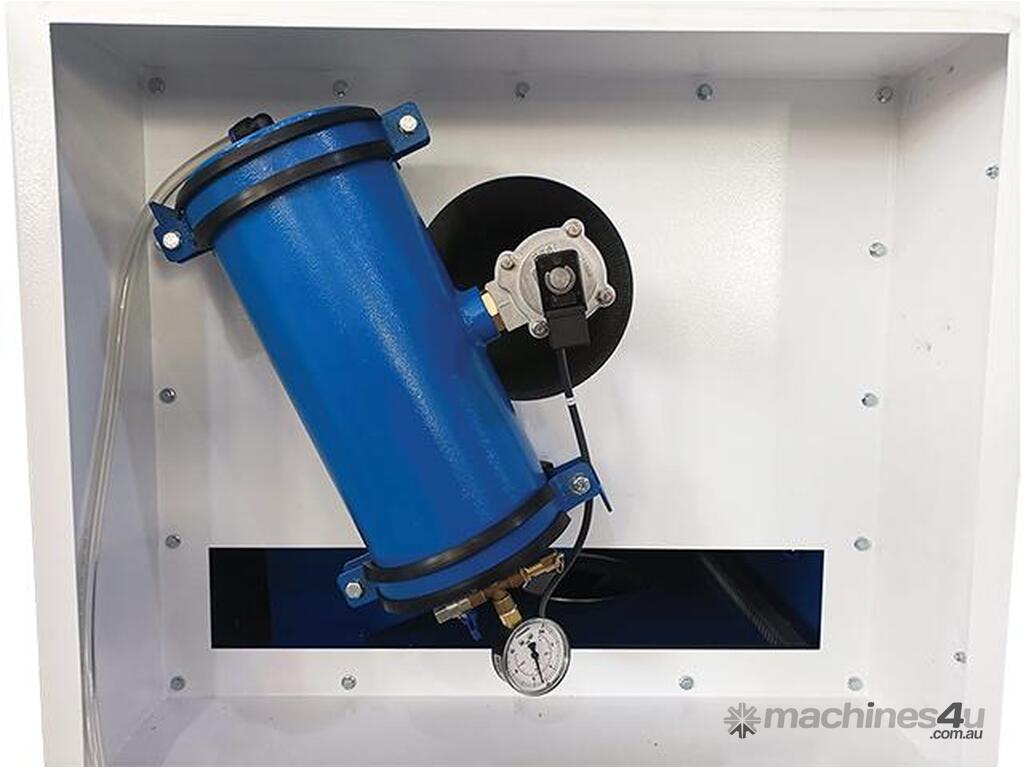

‘Pulse’ cleaning system (accumulates then releases a burst of compressed air) maintains better filter condition and extends filter life
Large 14m² filter surface area & nanofiber structure provide high filtration efficiency and long life

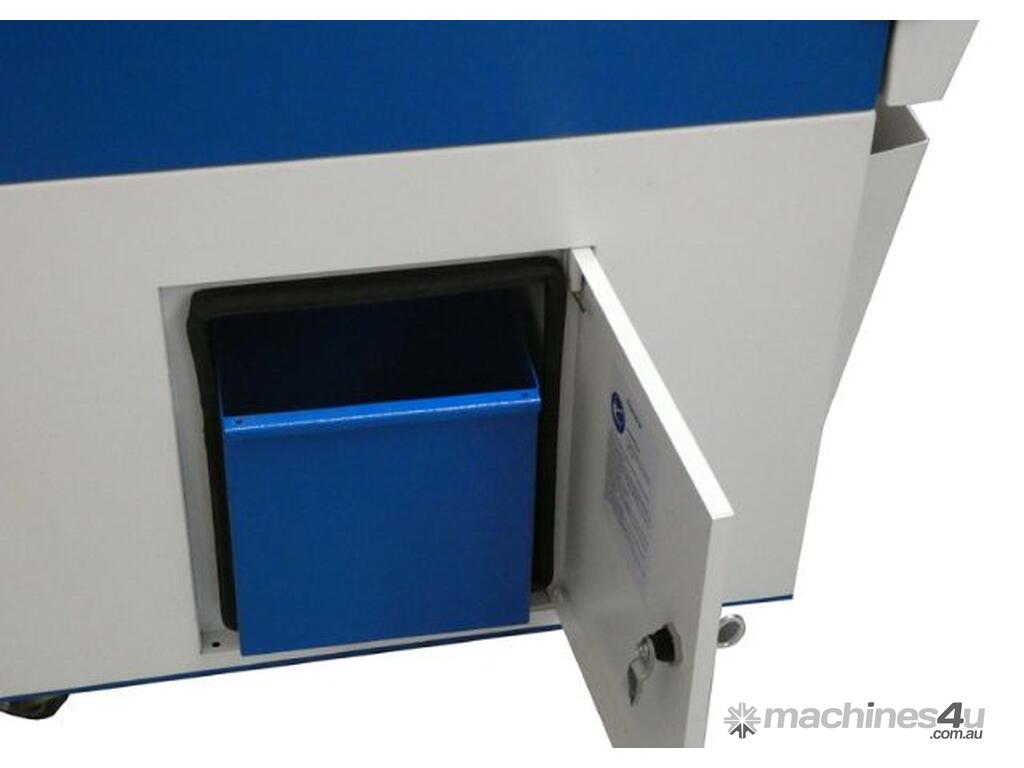

Unique drawer/bin allows safe removal of dust (ejected from filter cleaning) with minimal disturbance, & can be accessed/used when machine is running to prevent down-time
Exhaust airflow is directed upwards & away from the floor/ground, for minimal disturbance of dust in surrounding environment
High extraction performance (max air flow: 3,000m³ / hour)
Compact and mobile
Ergonomic design with easy access to all functions & replacement filters
Arcrobat arm joints use special materials & design to provide long-term use and prevent wear/fatigue
Durable hose material resist wear and high temperatures
Lightweight and durable suction hood catches particles with a large inlet

SPECIFICATIONS

Power supply: Single phase ~230V 10A
Dimensions (mm): L700 x W780 x H1200
Weight: ~190kg
Motor size: 1.1kw
Max air flow: 3,000m³ / hour
Air flow at suction point: 1,800m³ / hour
Filter surface area: 14m²
Filter cleaning: Automatic - requires unit to be connected to compressed air supply.
Noise level: 74 dBA
Sound insulation: Acoustic sponge
Body material: Galvanised steel
Fan: Aluminium
Air supply pressure required: 3-4 bar / 300-400 kPa / 40-60 psi
Air supply flow required: Because air is gradually accumulated in a reservoir inside the AllClear unit, air compressor flow (LPM/CFM) capacity is not critical

OPTIONAL ACCESSORES & COMMON SPARE PARTS

Main cartridge filter standard F9 (91990116)
Optional HEPA (high efficiency) H13 main cartridge filter (91990118)
Optional Carbon filter for odour reduction (91990122)

*Standard warranty 1 year, with extended 7 year warranty available if registered online after purchase, click here for details.
**Regular maintenance must be carried out, and all warnings and instructions provided in user manual and on the unit must be followed, for ongoing safe use and prevention of fire hazards. Poor maintenance and disregarding of instructions and warnings may result in fire and other hazards that can cause damage, injury, and death.
***Aluminium dust, including grinding dust, can be explosive when airborne, and for this reason, fume extractors and downdraft tables should not be used for extraction of aluminium grinding dust (this does not apply to aluminium welding fumes, which can be safely extracted). Oil mist and gases can also cause explosion. Water vapour will damage the filter.
