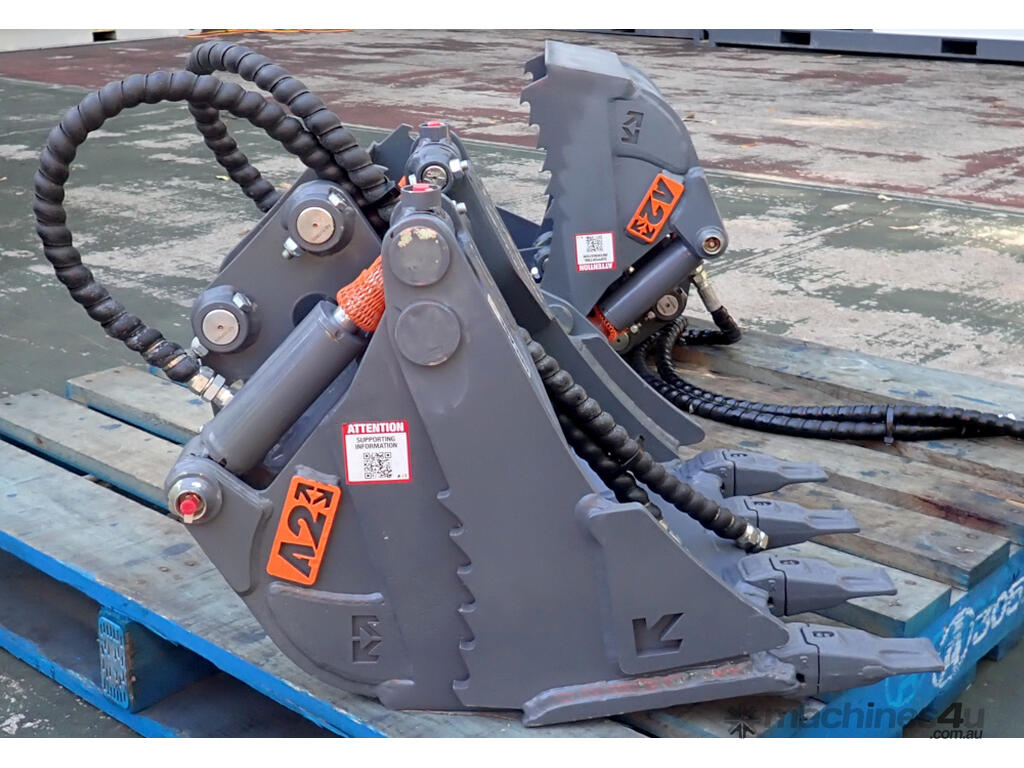

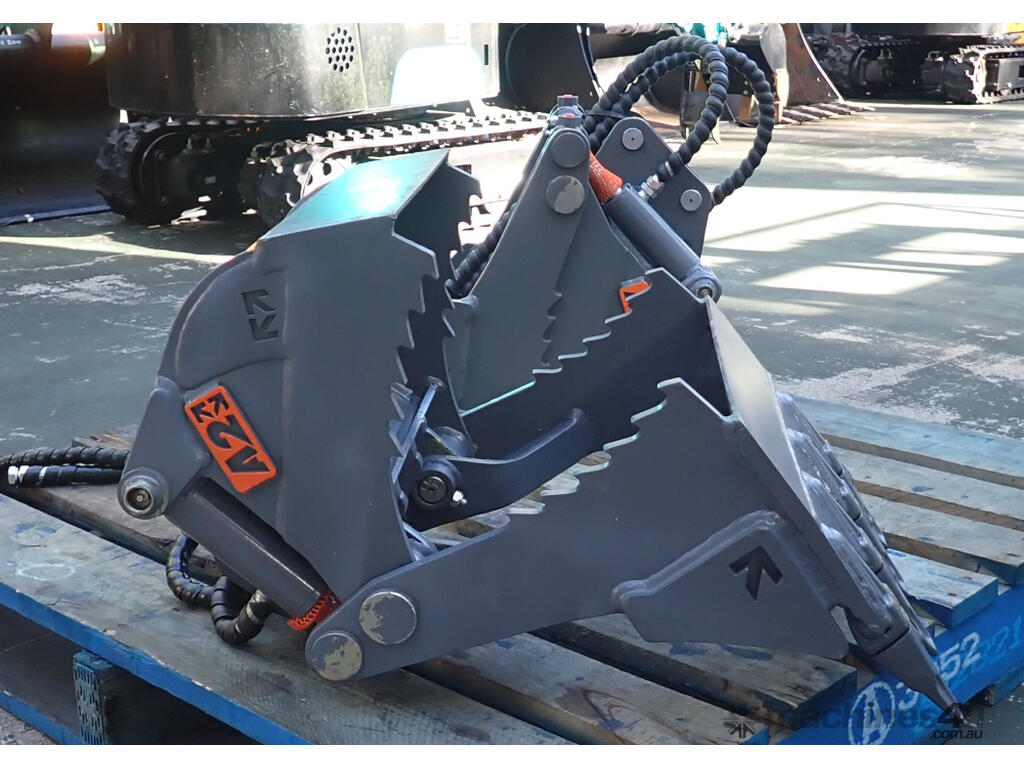

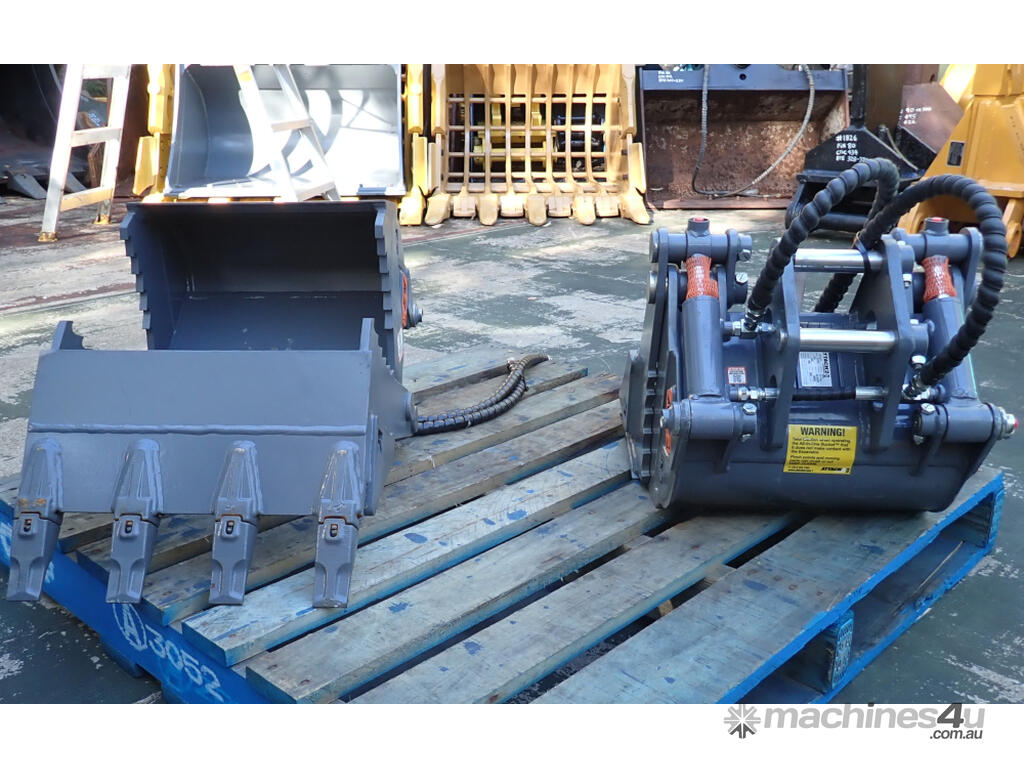

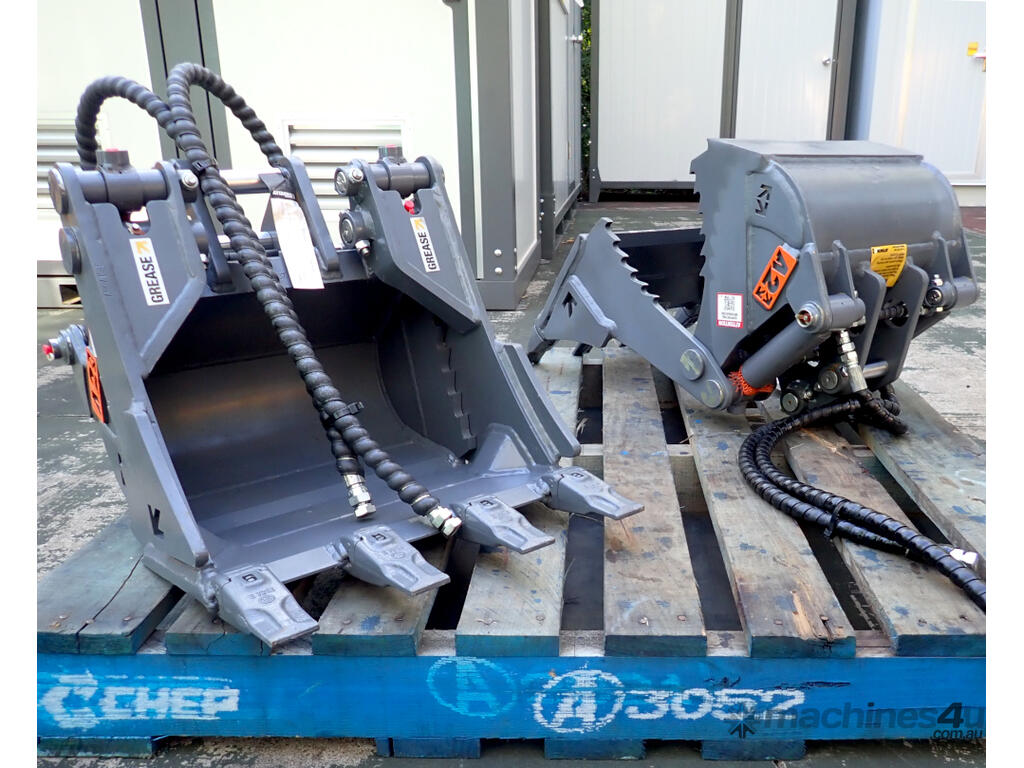

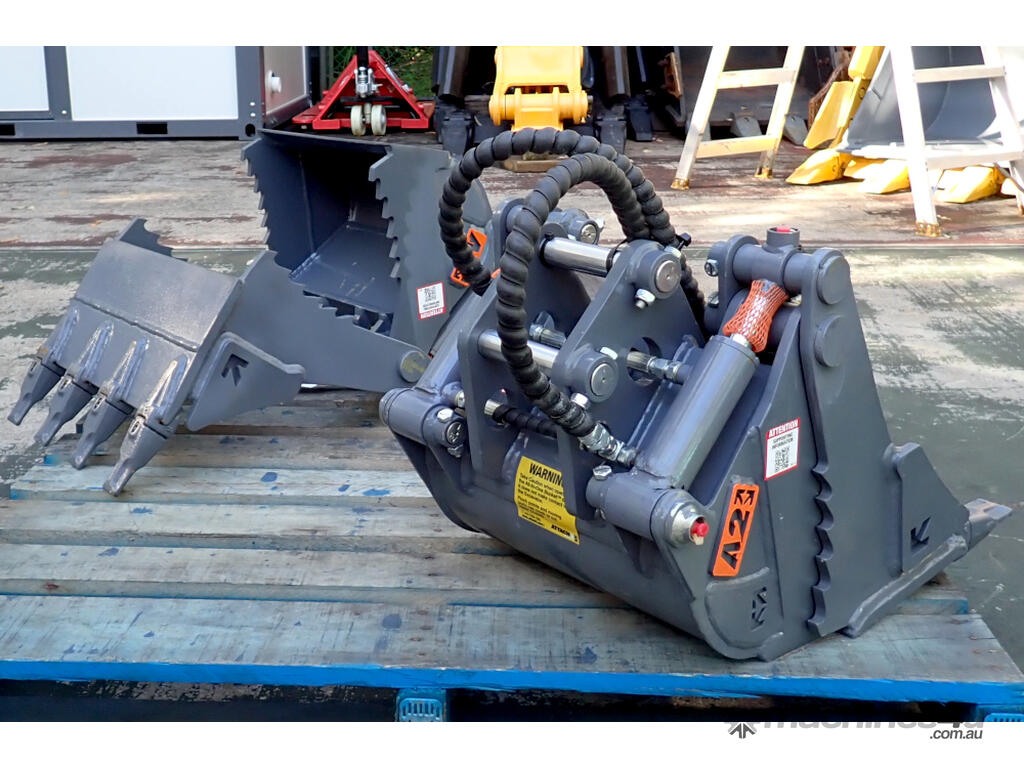

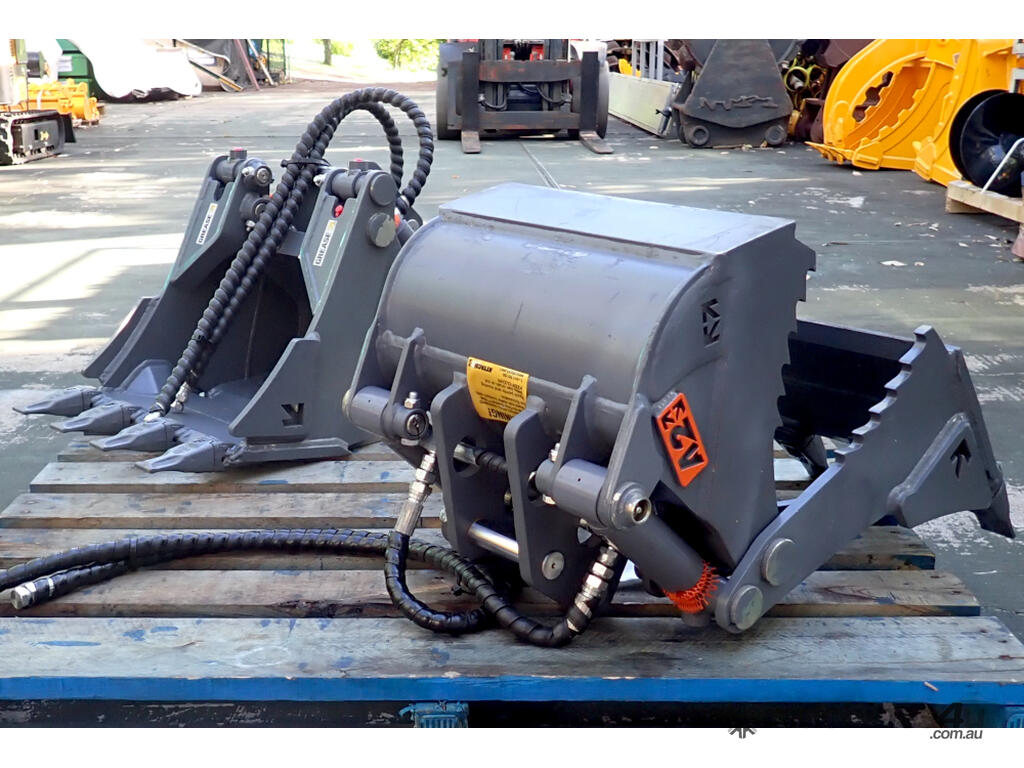

New 1-3 ton (30mm or 25mm pin) Attach2 Hydraulic 4-in-1 Excavator Bucket

New Attach2 Excavator Hydraulic 4-in-1 / All-in-1 Bucket to suit 1-3 Ton machines.

The Attach2 All In One Bucket is an evolution in the digging multipurpose bucket range. With its full digging bucket capability and extendable front edge, it can easily transition to picking up items from digging without changing attachments. The A2 All In One Bucket features durable materials, parts and innovative design to make it a truly capable bucket. One bucket for all jobs.

* Twin Ram design for even grab pressure.
* Integrated side cutters & side reinforcing plating made from BIS400 steel.
* Double Radius curve cuts the ground at the same crowd action angle, easier to fill and reduces the rear of the bucket striking the ground.
* BIS500 steel on all 3 base cutting edges.
* Ram hoses are routed under the ears preventing snagging.

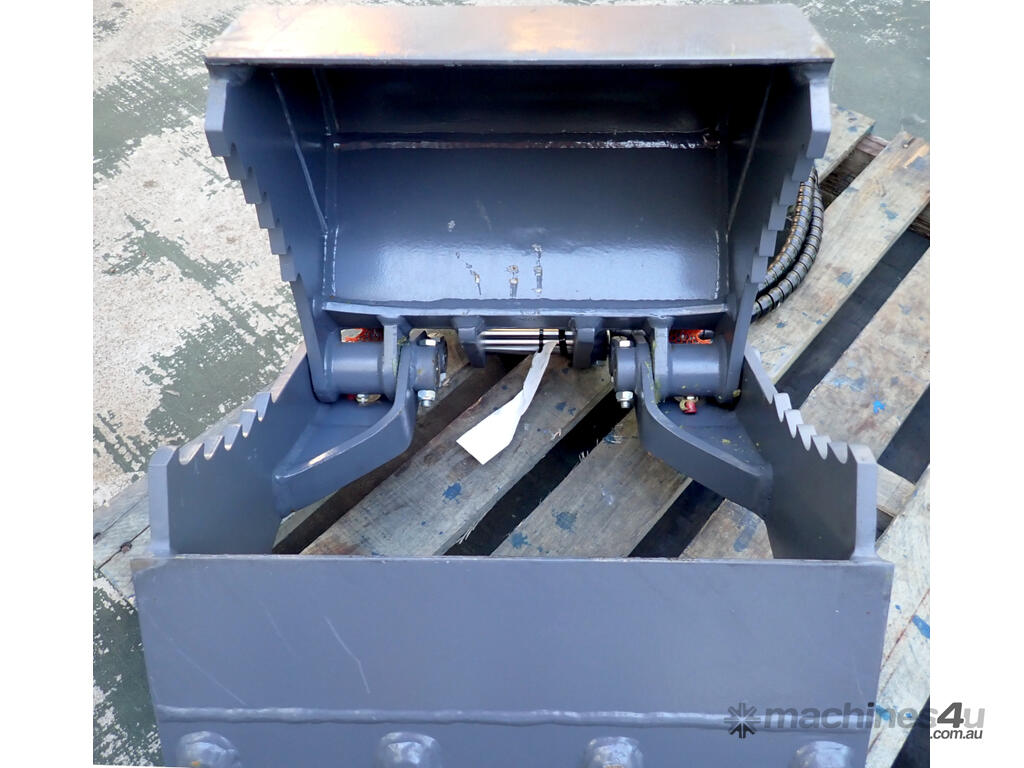

* Opening width: 310mm between bucket blades (for grabbing rocks etc.).
* Opening width: 200mm between tips of the side teeth (for grabbing logs etc.)

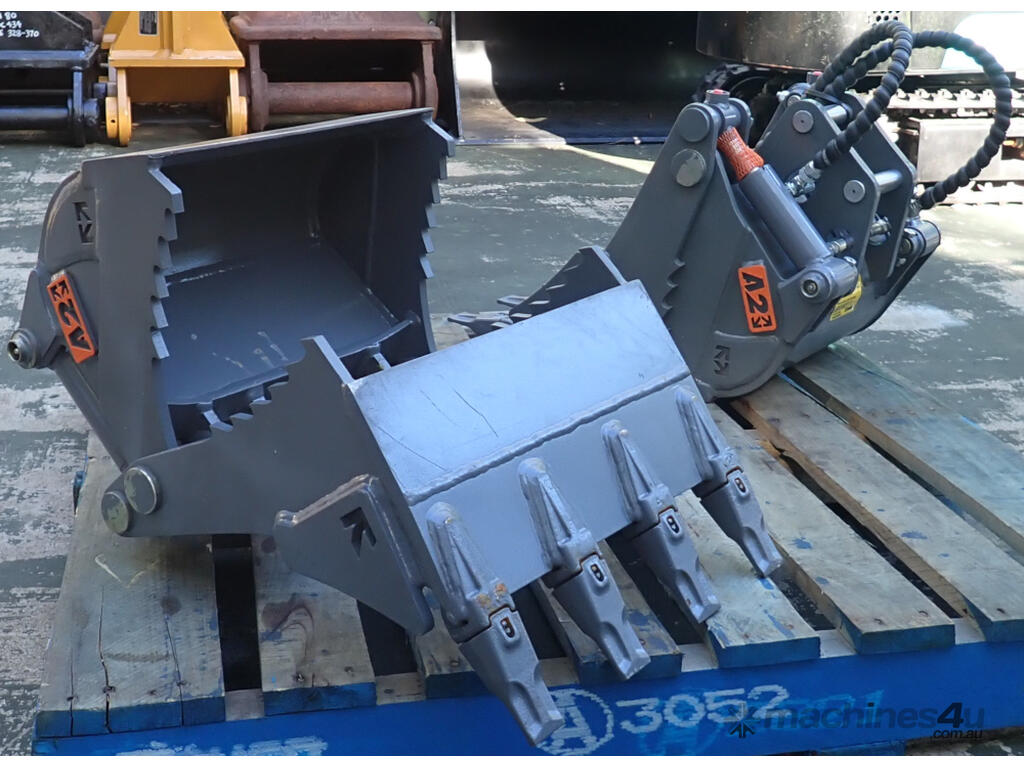

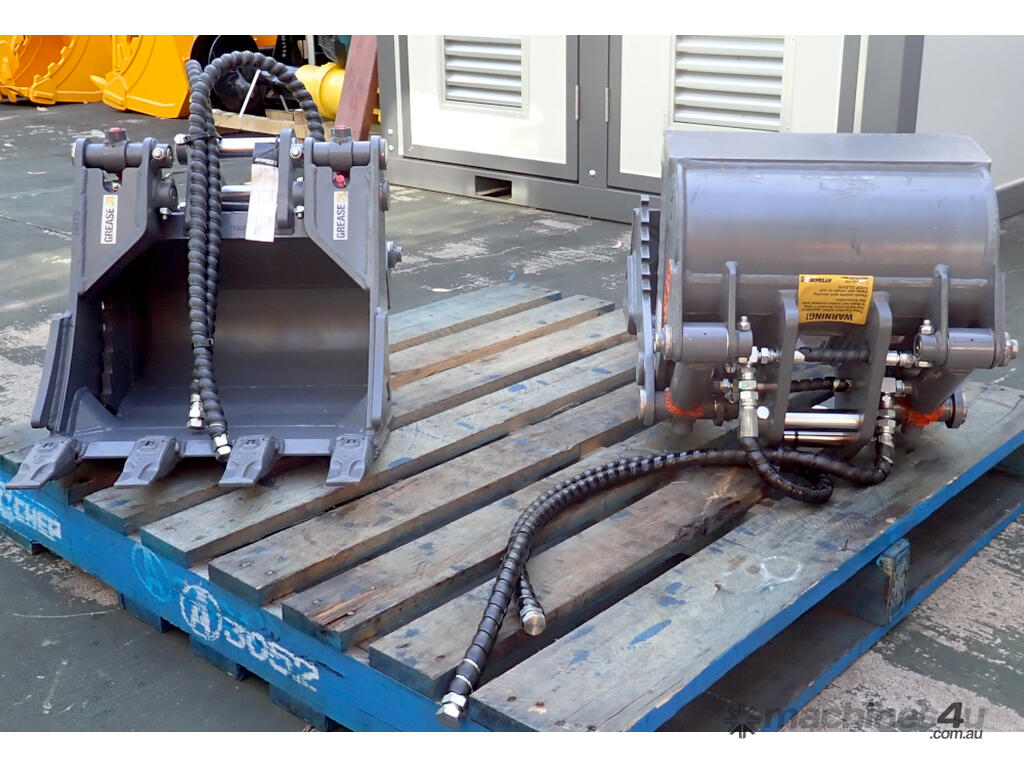

* Comes with the Hydraulic Hoses as pictured.

This is a well engineered, heavy duty Hydraulic 4-in-1 Bucket, made by the Australian company: Attach2 Equipment.

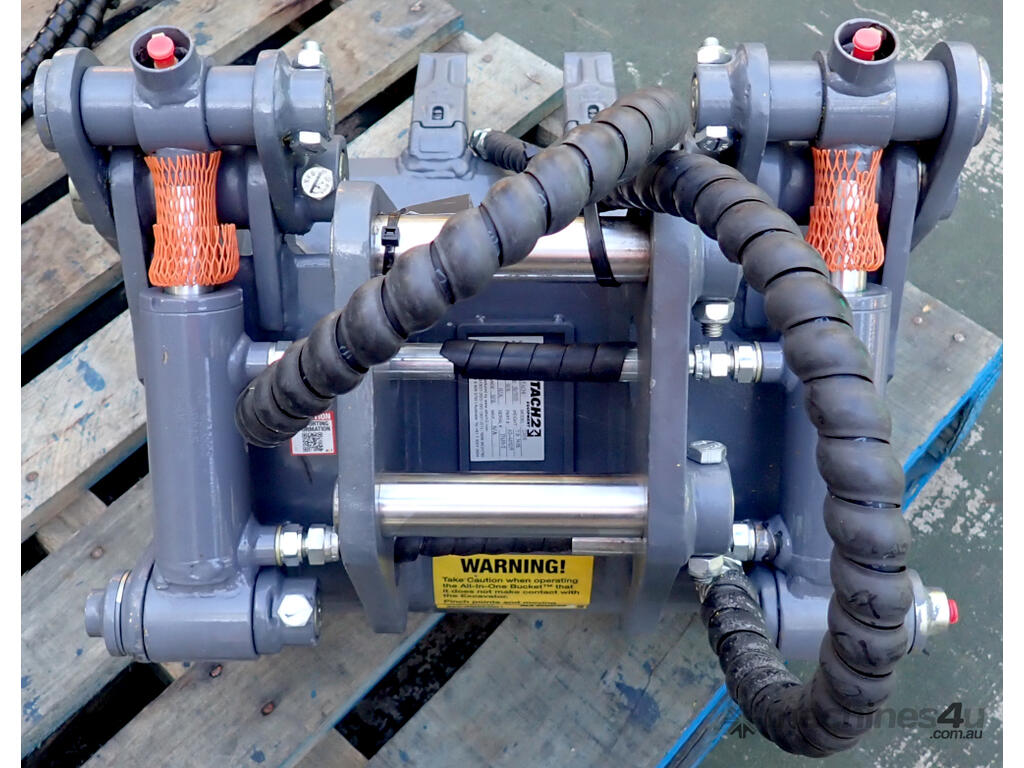

***** Headstock Dimensions:
(We have several of these buckets, all are the same 30mm pin (pins could be milled to 25mm), but there are 2 choices of Pin Centers & Between The Ears spacing)

*** Pin Setup Dimensions (where your Hitch or Dipper Arm goes in):
* Pin Diameter: 30mm (but the pins could easily be lathed down to 25mm).
* Pin Center to Pin Center (CtoC): Choose either (1)85mm or (2)118mm.
* Between The Ears (BTE): (1)97mm or (2)119mm Between the inside Ear Plates of the bucket's headstock.


*** Variant (1) = CtoC: 85mm, BTE: 97mm.
*
* As a 30mm pin (current):
* Should fit: ?.
*
*** As a 25mm pin (lathe the 30mm pins down to 25mm):
* Should fit: (most Chinese 1 ton mini excavators), Airman AX08, Case CK 15, Hitachi EX08, JCB 801 / 801.4 / 8018, Komatsu PC 02, Kubota KH 05 / KH 12 / KH 35 / KH 36 / KH 41 / KX 30 / KX 36 / KX 41 / KX 41-2 / KX 41-3 / U17-3.
* Maybe fit: Komatsu PC 03 / PC 09-1, Yanmar B 8-3 / VIO10 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


*** Variant (2) = CtoC: 118mm, BTE: 119mm.
*
* As a 30mm pin (current):
* Should fit: Bobcat 322 / 323 / E17 / E20 / X320 / X322, Case CX 14 / CX 15, Hitachi UE10, Kobelco SK 13SR / SK 13SR-2 / SK 15 / SK 16 / SK 16E / SK 16MSR / SK 17 / SK 17E, Pel Job EB 12, SMC MX15, Takeuchi TB 15, Volvo EC14 / EC15, Yanmar B 10 / B 12 / B 15 / B 17 / B 121.
* Maybe fit: Caterpillar 301.5 / 301.8, Daewoo Solar 015, Hanix H15B-2, Hyundai R 16-7, IHI 18J, Komatsu PC 05-6 / PC 05-7 / PC 07 / PC 07-1 / PC 07-2 / PC 12R-8 / PC 12R-8E / PC 15R-8, Kubota KH 51 / KX 61 / KX 61-2 / U20, Libra 116, New Holland EC 15, Takeuchi TB 14 / TB 15FR / TB 16, Volvo ECR18E, Wacker Neuson 1403 / 1404 / 1503 / 1903 / 2203 / 2503, Yanmar B 14 / VIO15-1 / VIO15-2 / VIO17 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Bucket dimensions (closed up): 465mm wide, 613mm deep, 430mm high. Weight: 78kg (including hoses).
Shipping dimensions (hoses protruding): 465mm wide, 711mm deep, 510mm high. Weight: 78kg (including hoses).


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
