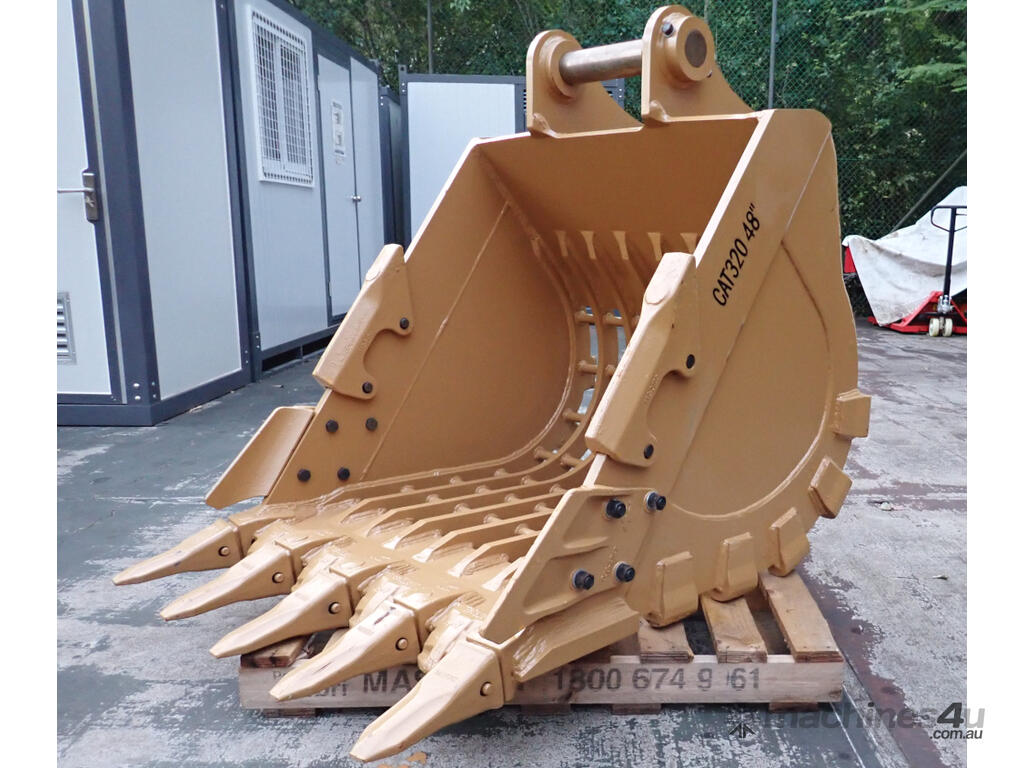

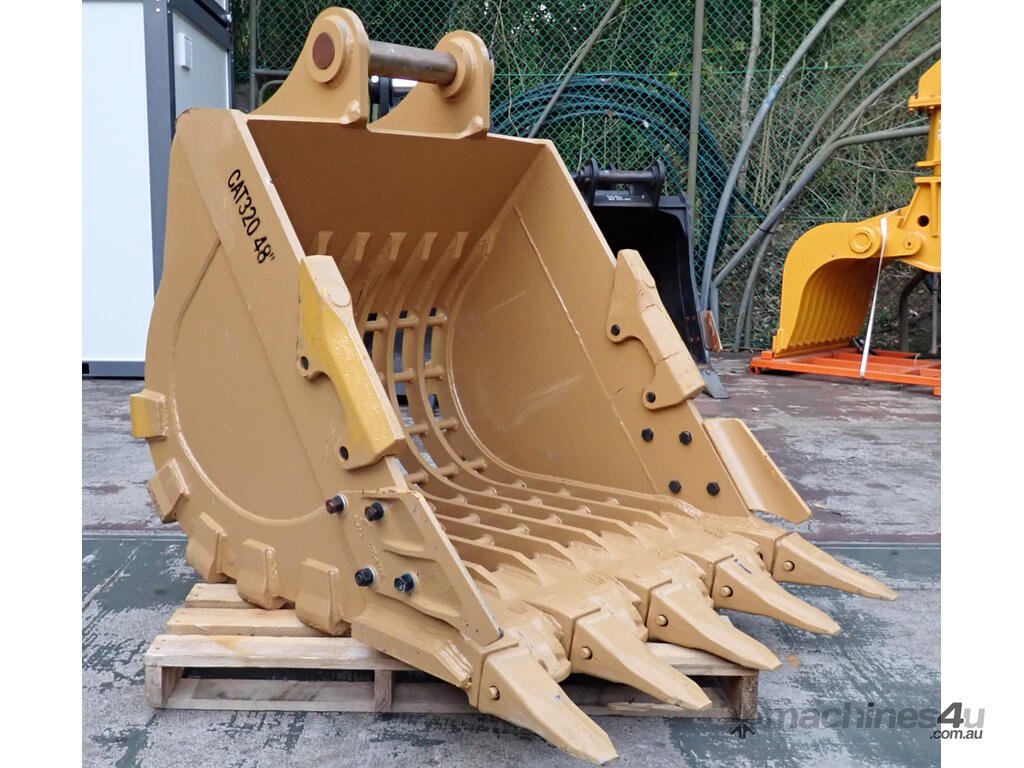

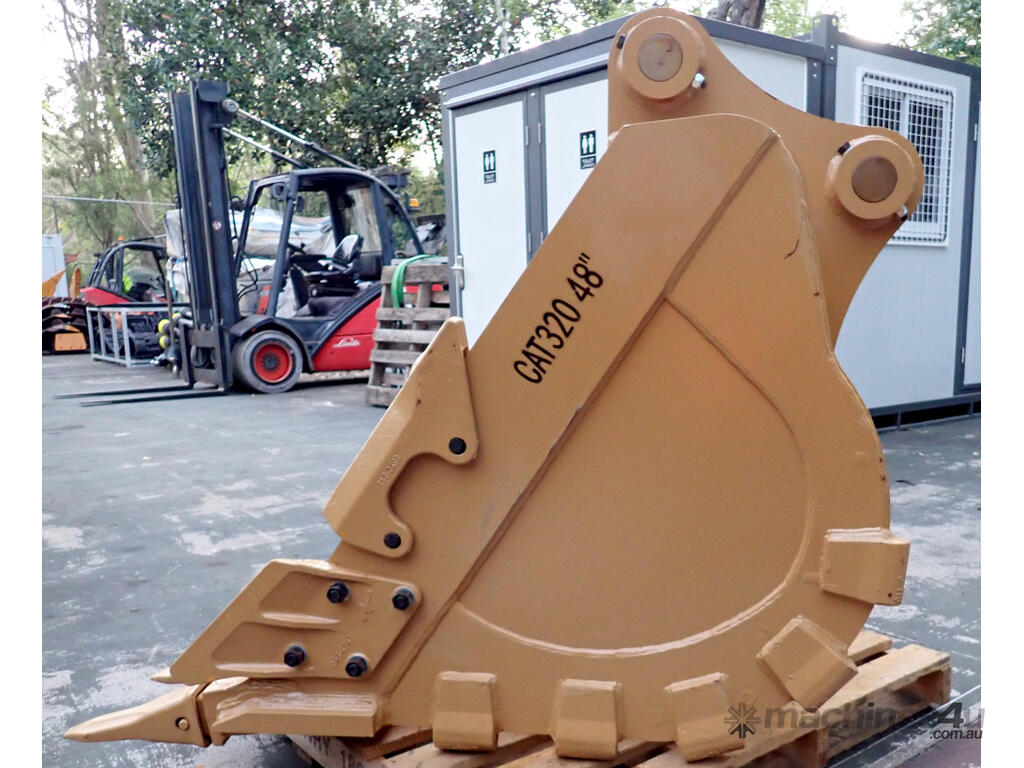

New 15-32 ton (80mm pin) 1100mm Excavator Skeleton Sieve Riddle Rock Bucket

New 1100mm Warrior Excavator Skeleton Sieve Riddle Rock Bucket suit 15-32 Ton machine.

This is not your average rock sorting bucket, it is heavily fortified for digging hard rocky ground.
At 1100mm wide, it is intentionally narrower than your average 1500mm or 1800mm Sieve bucket for better virgin ground penetration power.

To protect the bucket from the extremes:

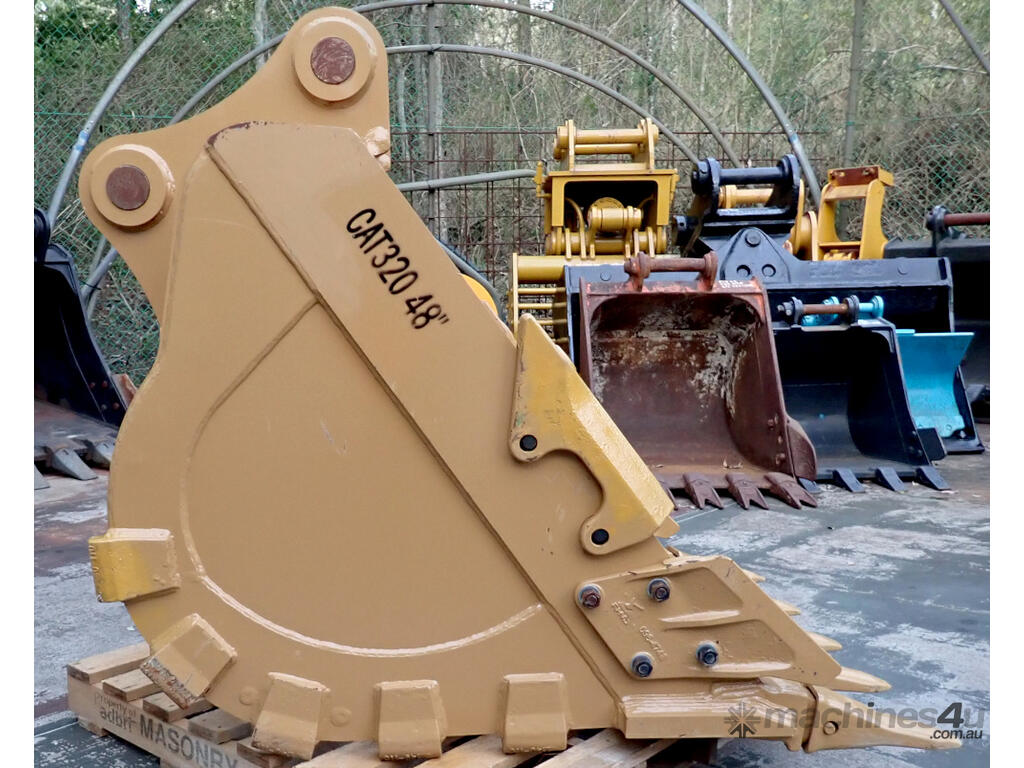

* It has bolt-on side cutters.
* Replaceable side edge shields (above the side cutters).
* There are extra wear plates on the side heels.
* It has a 40mm thick front cutting edge plate.
* Also extra wear plates added to the front cutting edge between the teeth.

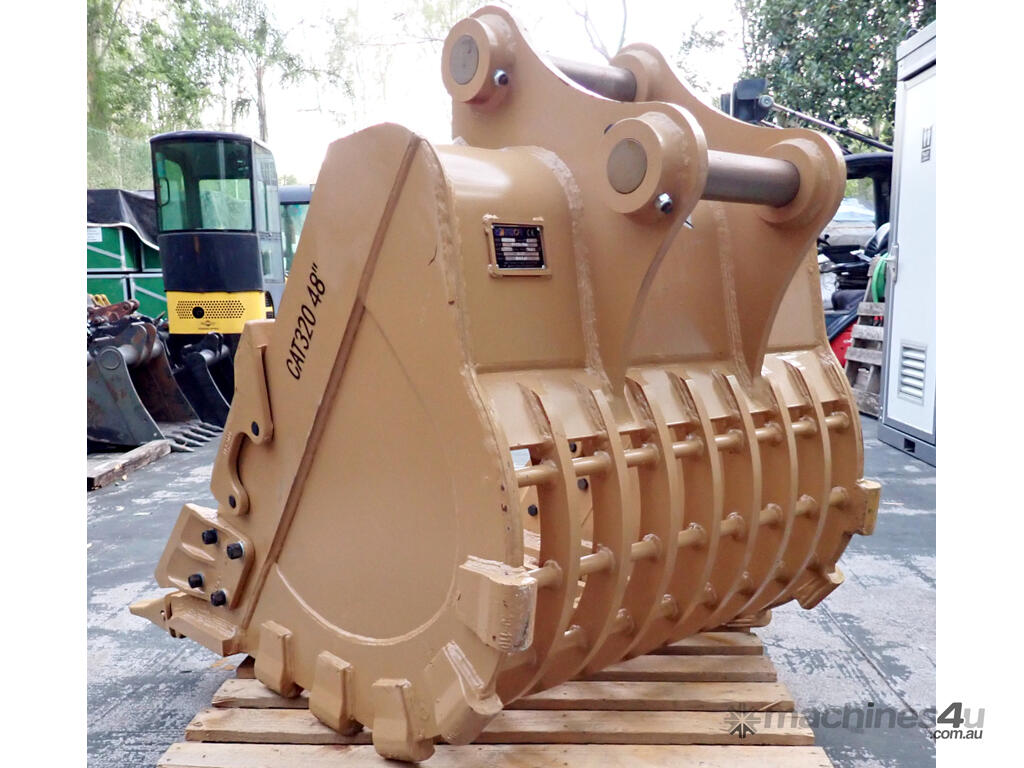

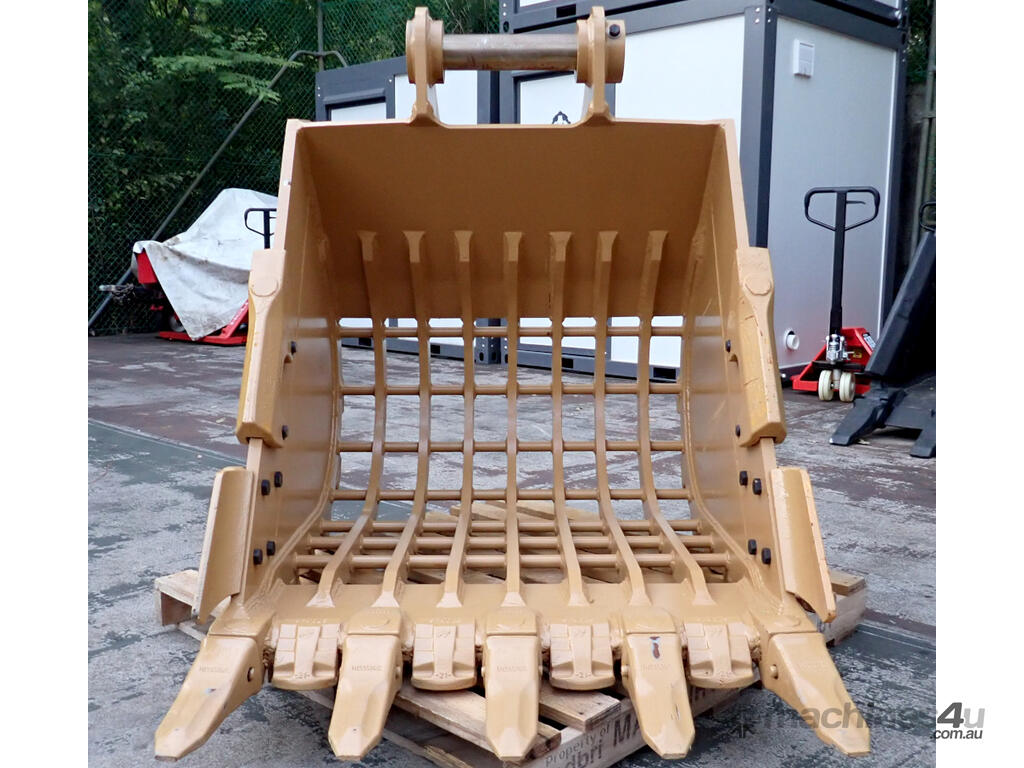

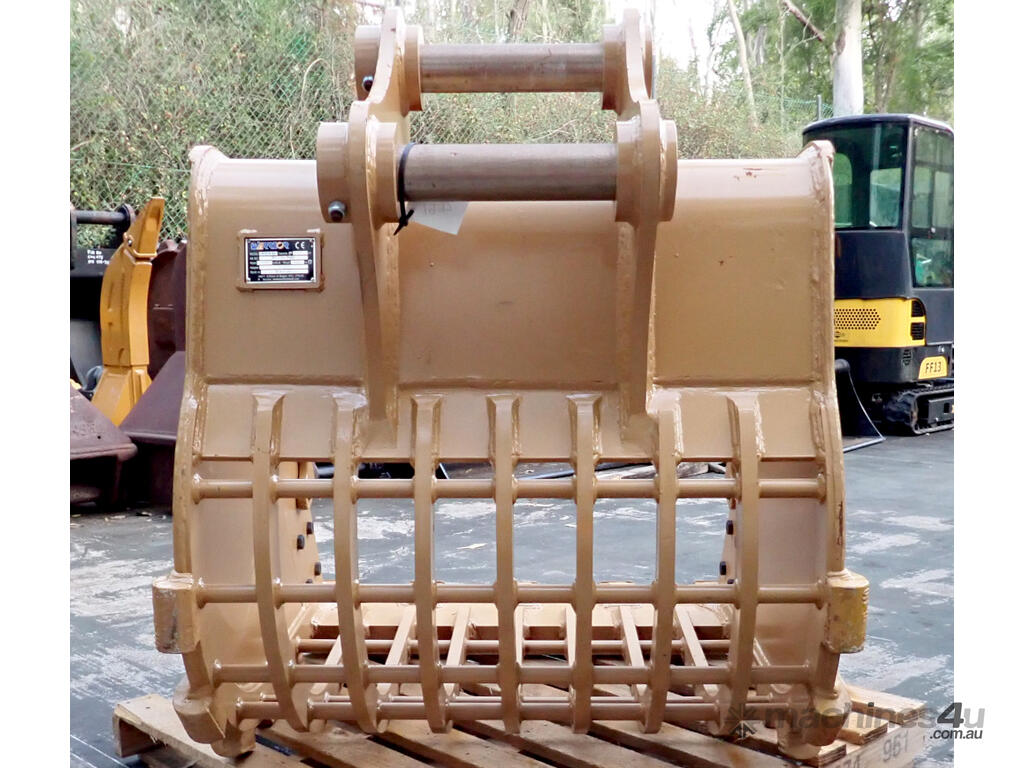

The round horizontal bars are solid 32mm thick!
The vertical rectangular bars are also solid and 25mm x 70mm!
The gap holes are around 100mm x 140mm.

This is a solid (weighs almost 1 ton!) well built & engineered Sieve designed for digging & sorting hard ground.

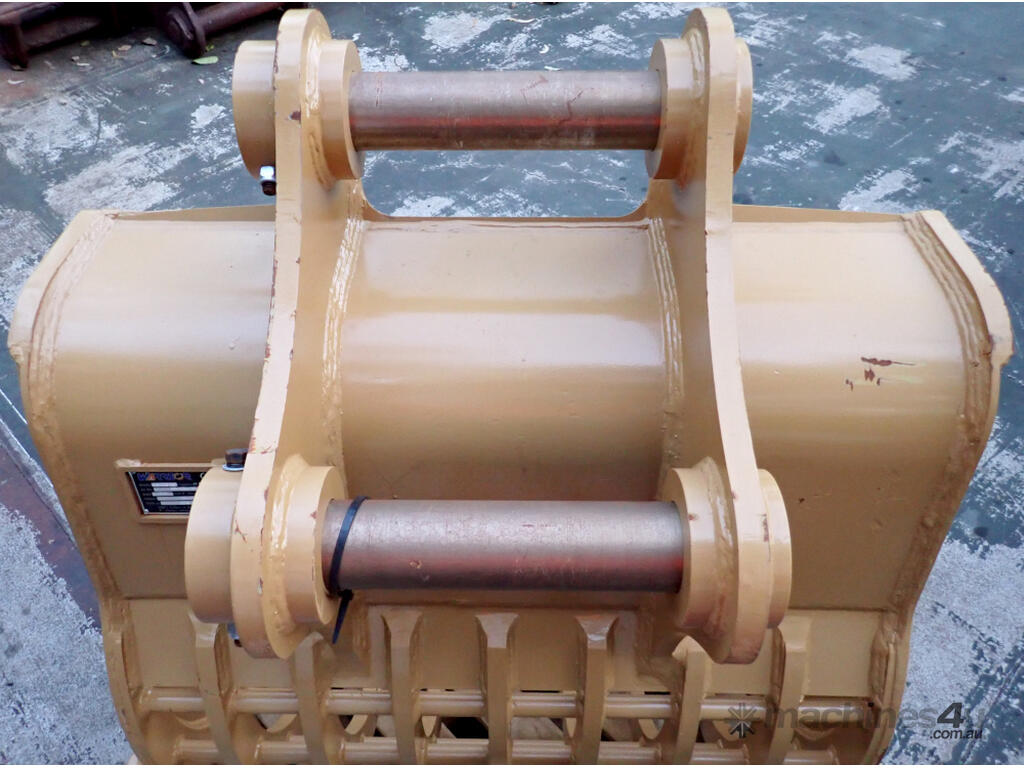

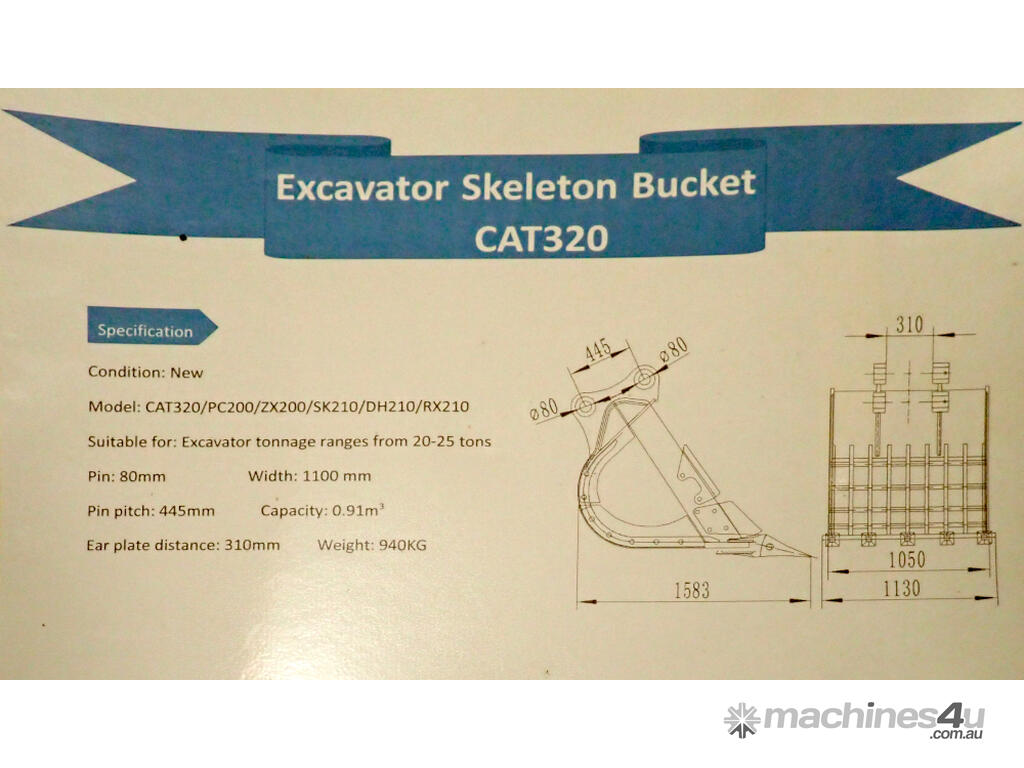

*** Current Headstock configuration:
* 80mm Pin Diameter
* 444mm Pin Center to Pin Center (CtoC)
* 312mm Between the inside Ear Bosses (which can be shaved back up to 379mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
*
* Should fit: Case 9021 / CX160 / CX210 / CX210B / CX225SR, Caterpillar 318B L / 320 / 320B w/B Link / 320D w/B Link / 321 / 322B w/B Link / 322C w/B Link / 324D w/Reach Linkage / 330C / 330D w/Long Linkage / B Family Linkage, JCB JS150LC / JS160 / JS160LC / JS180 / JS200 / JS200LC / JS210 / JS220 / JS220LC / JS235, Kobelco 200SRLC / SK200 / SK210LC / SK210LC-VI, Komatsu PC200 / PC200 Mighty / PC200-3 / PC200-5 / PC200-6 / PC200-7 / PC200LC-8 / PC210 / PC210-6 / PC220-3 / PC220-5 / PC220LC-6 / PC220LC-7 / PC220LC-8 / PC240 / PC250-6 / PC270 / PC270LC-6 / PC270LC-7 / PC280 / PW210, Link-Belt 160LX / 160X2 / 210LX / 225SA / 2700 QUANTUM / 2800 QUANTUM, New Holland EH215LC, Sumitomo SH150 / SH160 / SH200 / SH200-2 / SH200-3 / SH200LC / SH200LC-3 / SH210-5 / SH215U-1 / SH215X-1 / SH225X-3.
*
* Maybe fit: Caterpillar 320B w/C Link / 320C w/C Link / 321 w/Mass Linkage / 322C w/Reach Linkage / 325B w/C Link / 325C w/C Link / 325C w/Reach Linkage / E300 Series / C Family Linkage, Daewoo Solar 170LC-V / 170W-3 / 175LC-V / 200W-3 / 200W-V / 220LC-V / 225LC-V / 225NLC-V / 225SLR / 250LC-V / 255LC-V, Doosan DX180LC / DX180LC-3 / DX180W-3 / DX190W / DX210W / DX225 / DX225LC-3 / DX255 / DX255LC-3 / S175LC-V / S180W-V / S210W-V / S225LC-V / S255LC-V / S470LC-V, Halla HE280, Hitachi EX150-5 / EX160 / EX200 / EX215 / FH200 / FH215, Hitachi Zaxis 160 / 200 / 200 LC / 210 / 225US LC / 225USR, Hyundai R210LC-7, John Deere 200C LC / 200D LC / 225C LC RTS, Kobelco SK210 / SK235SR, Liebherr 912 / 912 LITRONIC / 922 LITRONIC, LiuGong 922 / 925, Samsung SE210 Early Series / SE210-3 / SE210LC-2 / SE210LC-3, Terex TXC 175LC / TXC 180LC / TXC 225LC / TXC 255LC, Volvo EC210 / EC210B / EC210C / EC220D / ECR235C / ECR235D / EW230C / MX225LS / SE210LC-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Shipping Dimensions: 1130mm Wide (at the teeth), 1540mm Deep, 1340mm High. Weight: 934kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
