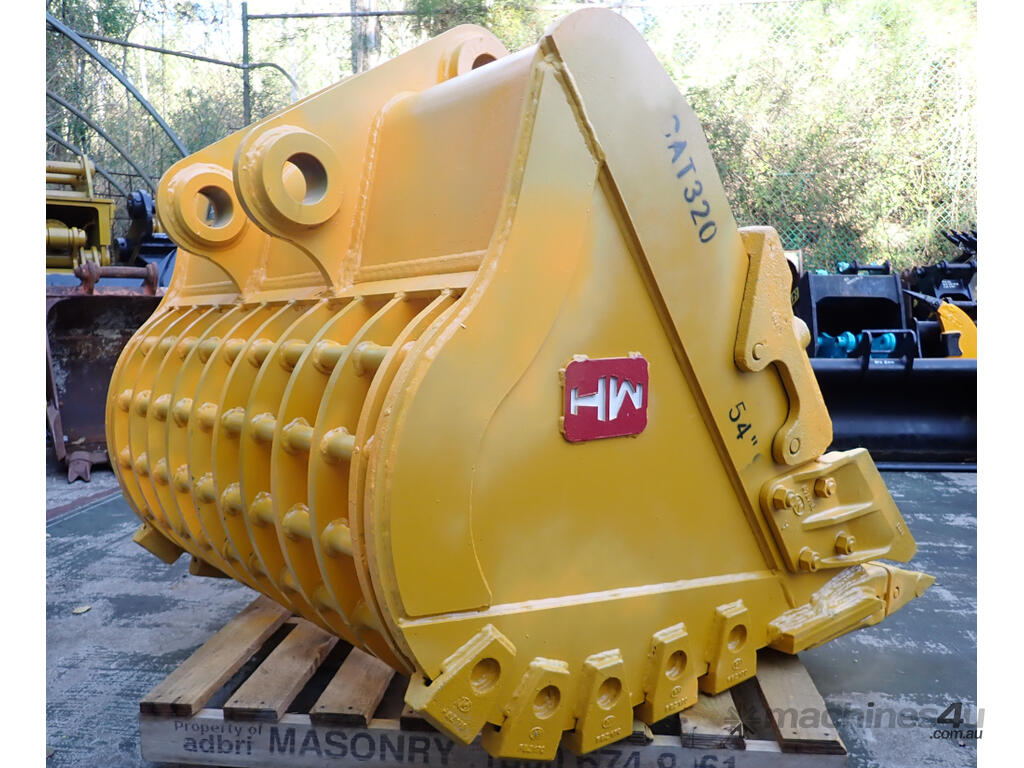

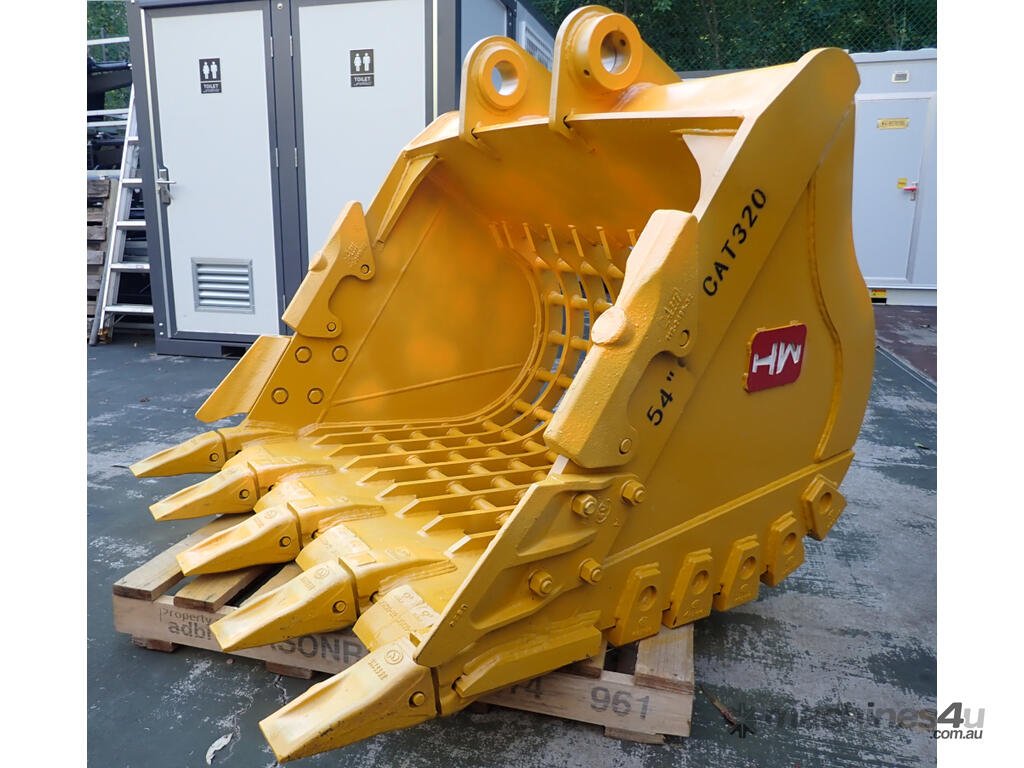

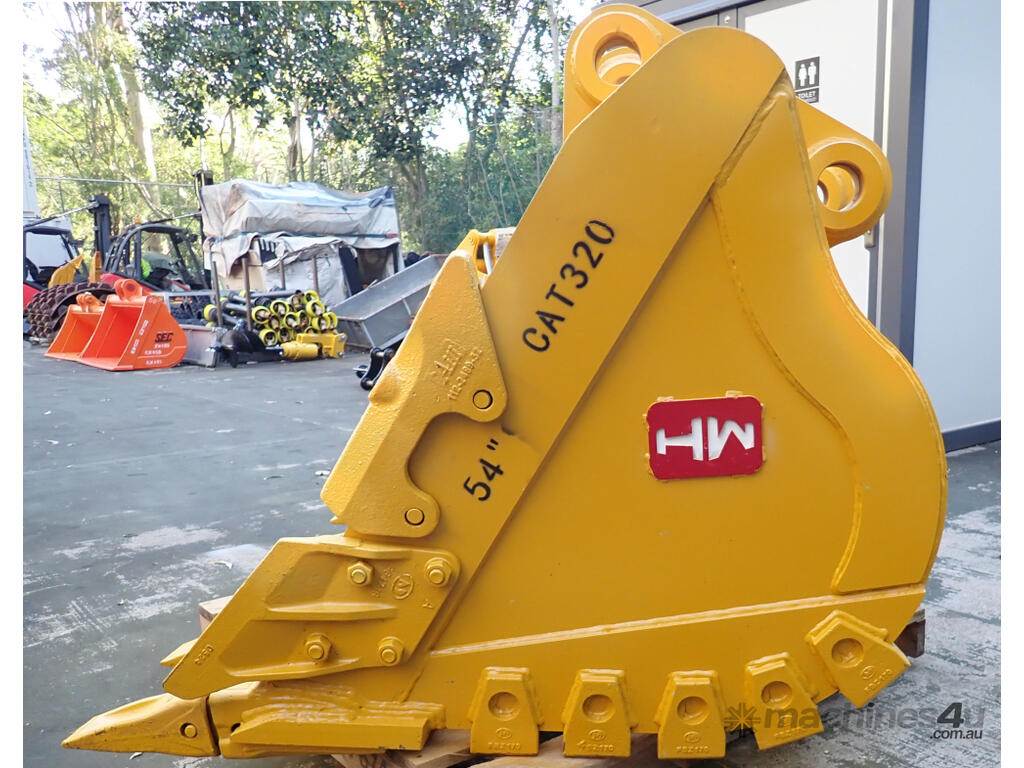

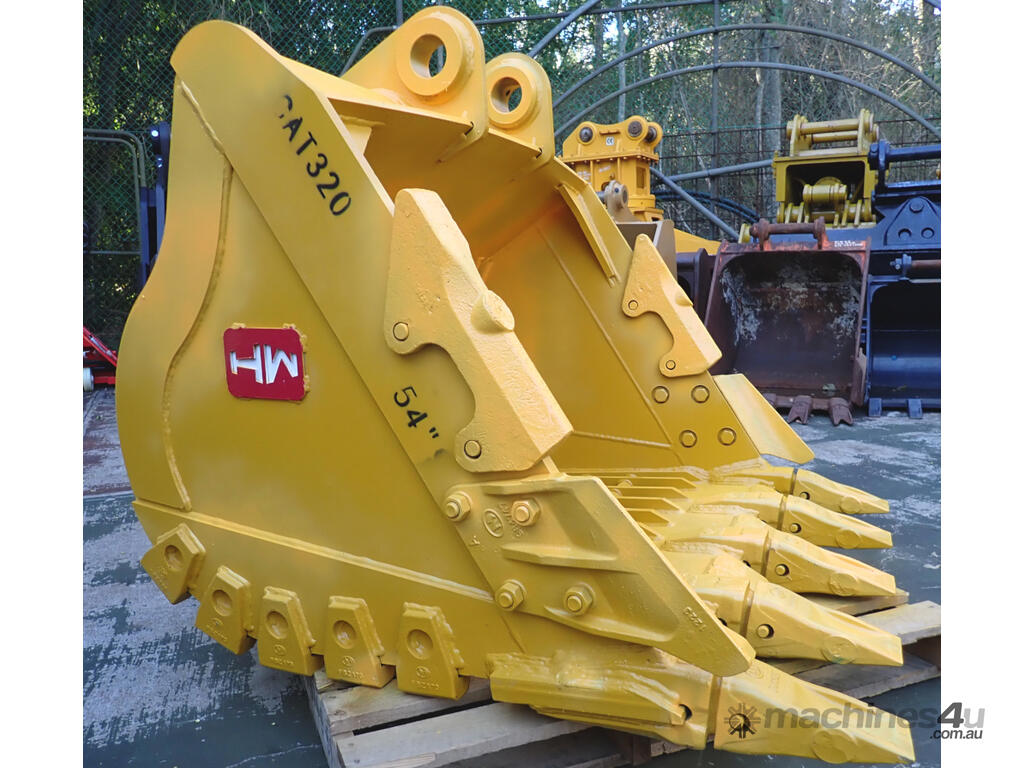

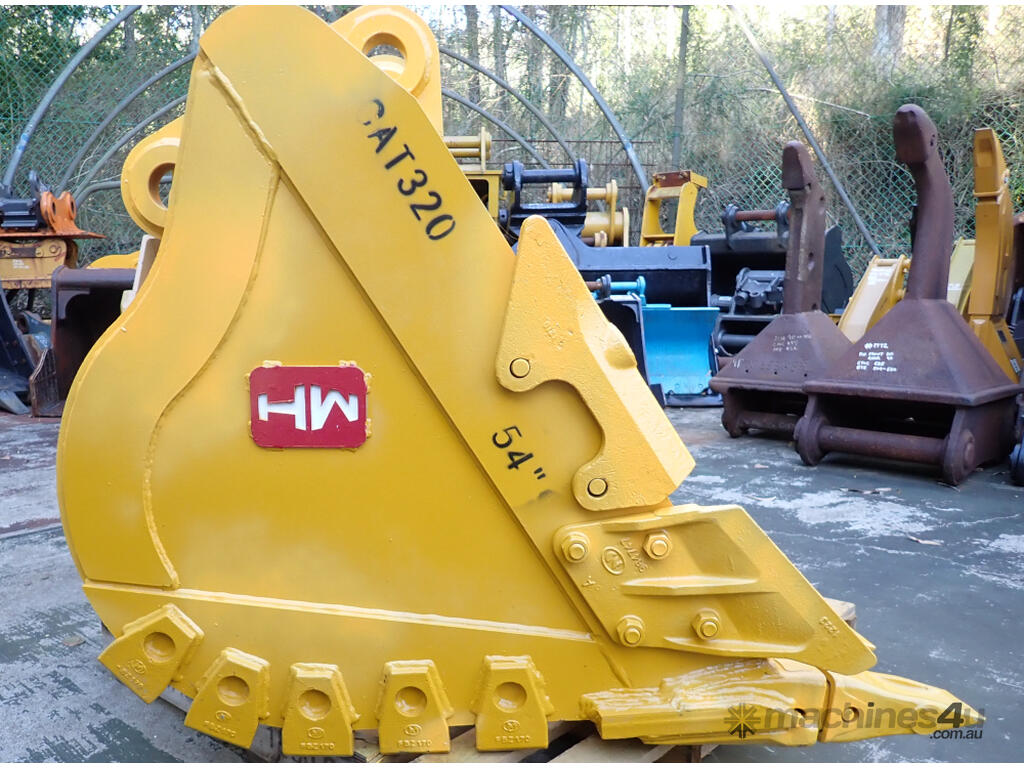

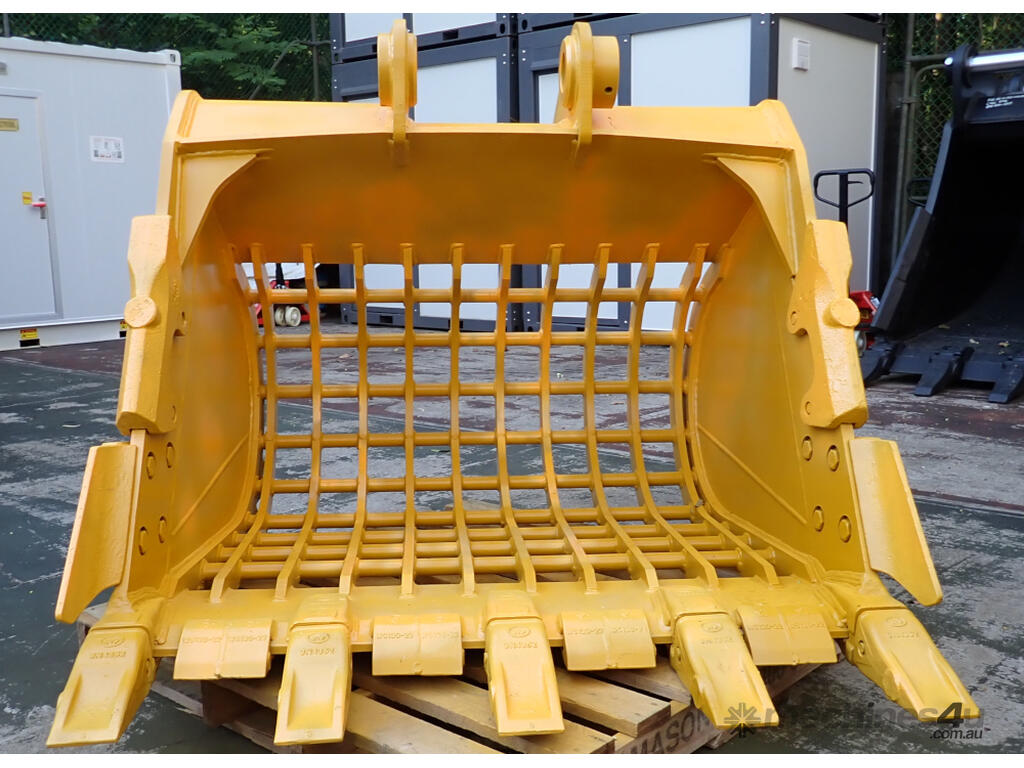

New 15-32 ton (80mm pin) 1400mm Excavator Skeleton Sieve Riddle Bucket

New 1400mm HW Excavator Skeleton Sieve Riddle Bucket suit 15-32 Ton machine.

This is not your average rock sorting bucket, it is a solid (weighs 1 ton!), heavily fortified and reinforced Sieve bucket built for hard work.

*** Bucket Features:
*
* 1.02m² Capacity.
* The bucket sides are tapered.
* The front cutting edge plate is 40mm thick.

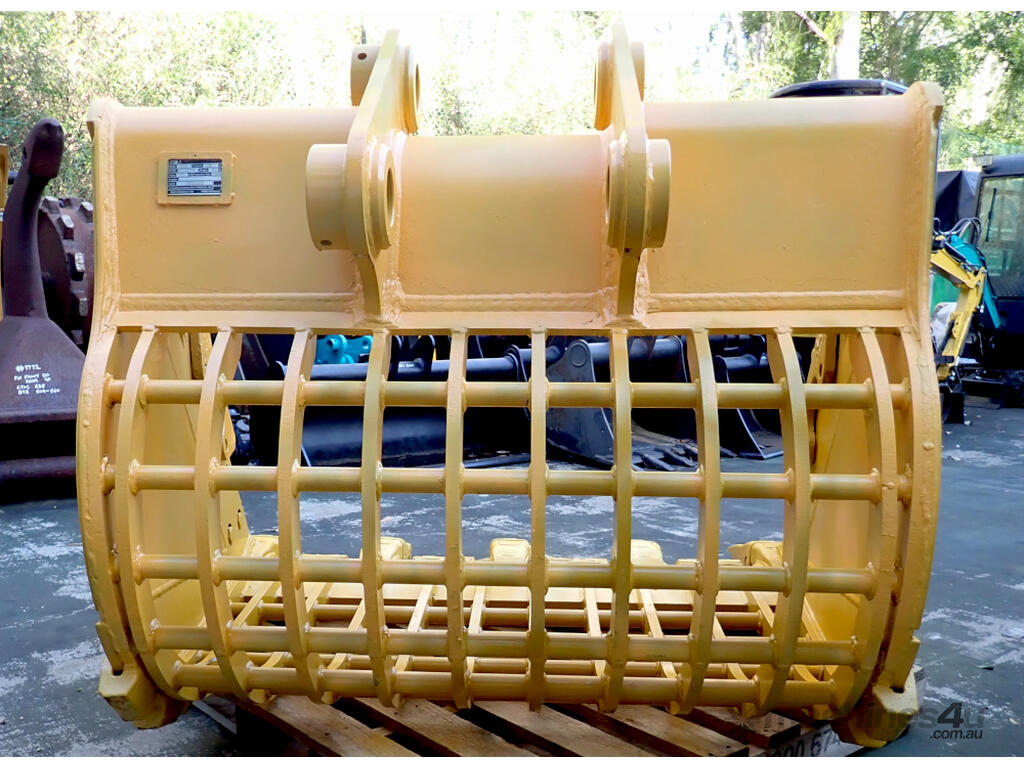

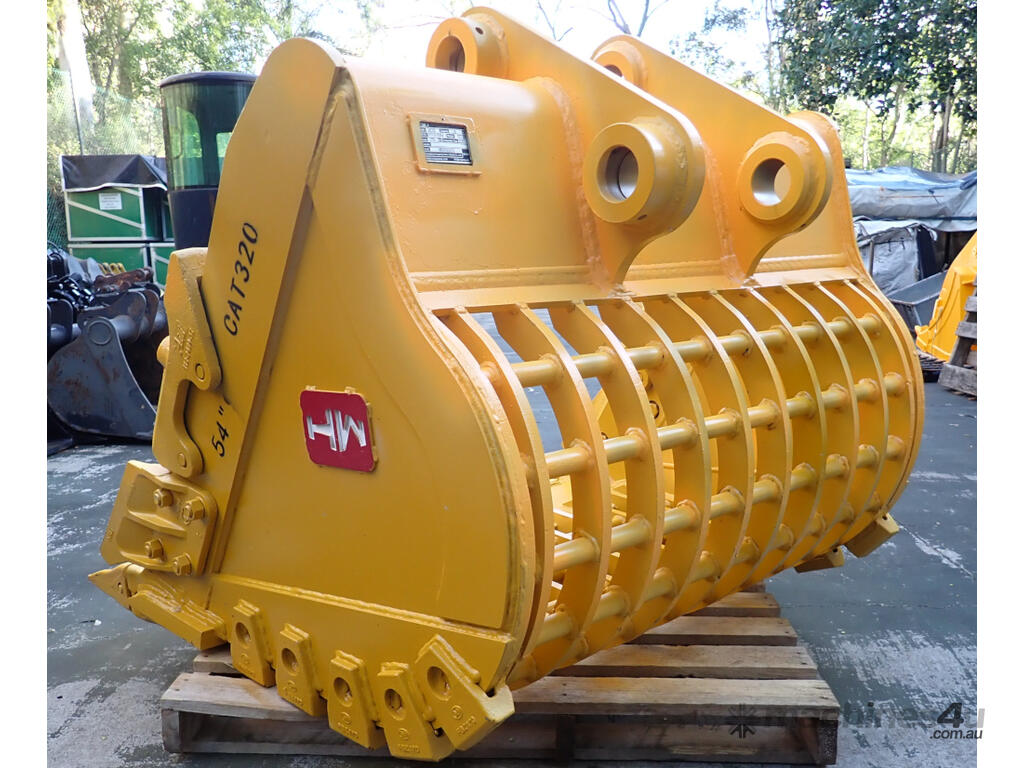

*** Sieve Specs:
*

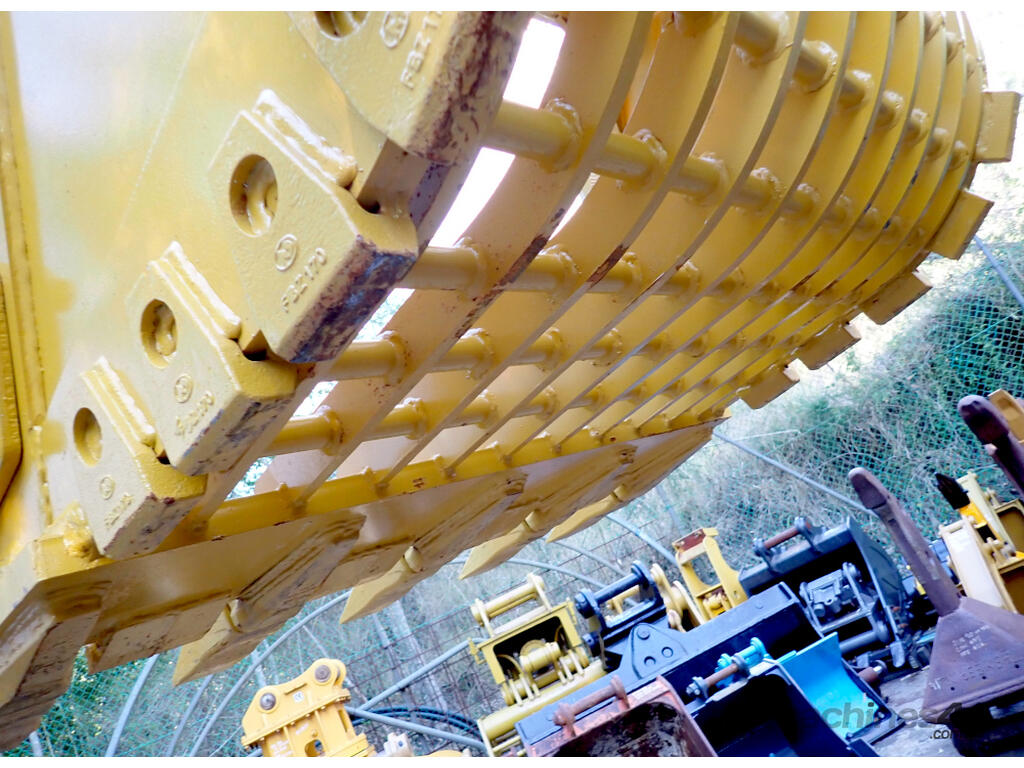

* The round horizontal sieve bars are solid 38mm thick.
* The vertical rectangular bars are also solid and 20mm x 60mm.
* The gap holes are around 100mm x 100mm.

*** Wear Protection Reinforcing:
*
* There are removable (bolt-on) side cutters.
* Replaceable side cutting edge shields (above the side cutters).
* Between the teeth are extra front cutting edge shields.
* There are extra wear plates welded to the sides around the lower and back edge.
* On top of the lower extra wear plates are further reinforcing side heel shields.

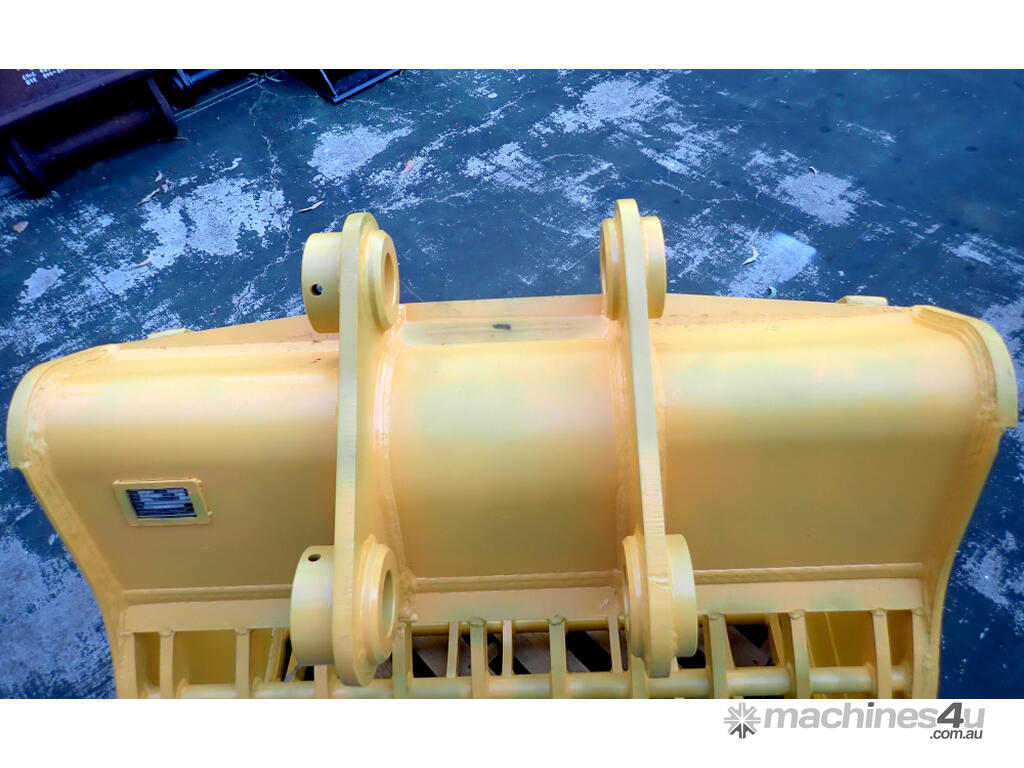

*** Current Headstock configuration:
* 80mm Pin Diameter
* 445mm Pin Center to Pin Center (CtoC)
* 313mm Between the inside Ear Bosses (which can be shaved back up to 356mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
*
* Should fit: Case 9021 / CX160 / CX210 / CX210B / CX225SR, Caterpillar 318B L / 320 / 320B w/B Link / 320D w/B Link / 321 / 322B w/B Link / 322C w/B Link / 324D w/Reach Linkage / 330C / 330D w/Long Linkage / B Family Linkage, Hyundai R210LC-7, JCB JS150LC / JS160 / JS160LC / JS180 / JS200 / JS200LC / JS210 / JS220 / JS220LC / JS235, Kobelco 200SRLC / SK200 / SK210 / SK210LC / SK210LC-VI / SK235SR, Komatsu PC200 / PC200 Mighty / PC200-3 / PC200-5 / PC200-6 / PC200-7 / PC200LC-8 / PC210 / PC210-6 / PC220-3 / PC220-5 / PC220LC-6 / PC220LC-7 / PC220LC-8 / PC240 / PC250-6 / PC270 / PC270LC-6 / PC270LC-7 / PC280 / PW210, Link-Belt 160LX / 160X2 / 210LX / 225SA / 2700 QUANTUM / 2800 QUANTUM, New Holland EH215LC, Sumitomo SH150 / SH160 / SH200 / SH200-2 / SH200-3 / SH200LC / SH200LC-3 / SH210-5 / SH215U-1 / SH215X-1 / SH225X-3.
*
* Maybe fit: Caterpillar 320B w/C Link / 320C w/C Link / 321 w/Mass Linkage / 322C w/Reach Linkage / 325B w/C Link / 325C w/C Link / 325C w/Reach Linkage / E300 Series / C Family Linkage, Daewoo Solar 170LC-V / 170W-3 / 175LC-V / 200W-3 / 200W-V / 220LC-V / 225LC-V / 225NLC-V / 225SLR / 250LC-V / 255LC-V, Doosan DX180LC / DX180LC-3 / DX180W-3 / DX190W / DX210W / DX225 / DX225LC-3 / DX255 / DX255LC-3 / S175LC-V / S180W-V / S210W-V / S225LC-V / S255LC-V / S470LC-V, Halla HE280, Hitachi EX150-5 / EX160 / EX200 / EX215 / FH200 / FH215, Hitachi Zaxis 160 / 200 / 200 LC / 210 / 225US LC / 225USR, John Deere 200C LC / 200D LC / 225C LC RTS, Liebherr 912 / 912 LITRONIC / 922 LITRONIC, LiuGong 922 / 925, Samsung SE210 Early Series / SE210-3 / SE210LC-2 / SE210LC-3, Terex TXC 175LC / TXC 180LC / TXC 225LC / TXC 255LC, Volvo EC210 / EC210B / EC210C / EC220D / ECR235C / ECR235D / EW230C / MX225LS / SE210LC-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Shipping Dimensions: 1475mm Wide (at the side cutters), 1425mm Deep, 1225mm High. Weight: 1002kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
