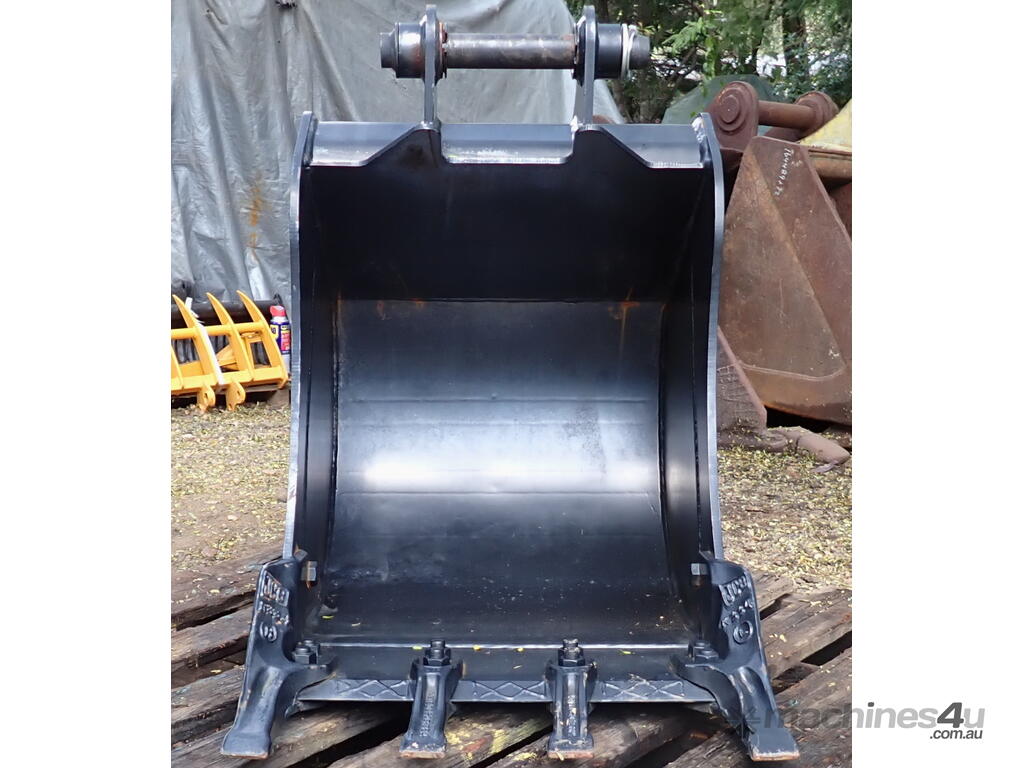

New 5-10 ton (45 or 50mm pin) 600mm Genuine JCB Excavator Digging & Trenching Bucket

New 600mm Genuine JCB Excavator Digging & Trenching GP Bucket suit 5-10 Ton machine.

This is a very large, much higher capacity bucket than usual for the pin size.

It is New & Unused but has some paint scuffs from warehouse storage & handling.

Designed for JCB 805-2 / 806-2 / 8052 / 8060 / 8080ZTS / 3CX / 3CX Std to Suit G65 Bush / 3CX std w/o G65 Bush / 4CX etc. but will fit other machines (see below list of machines we have found so far).

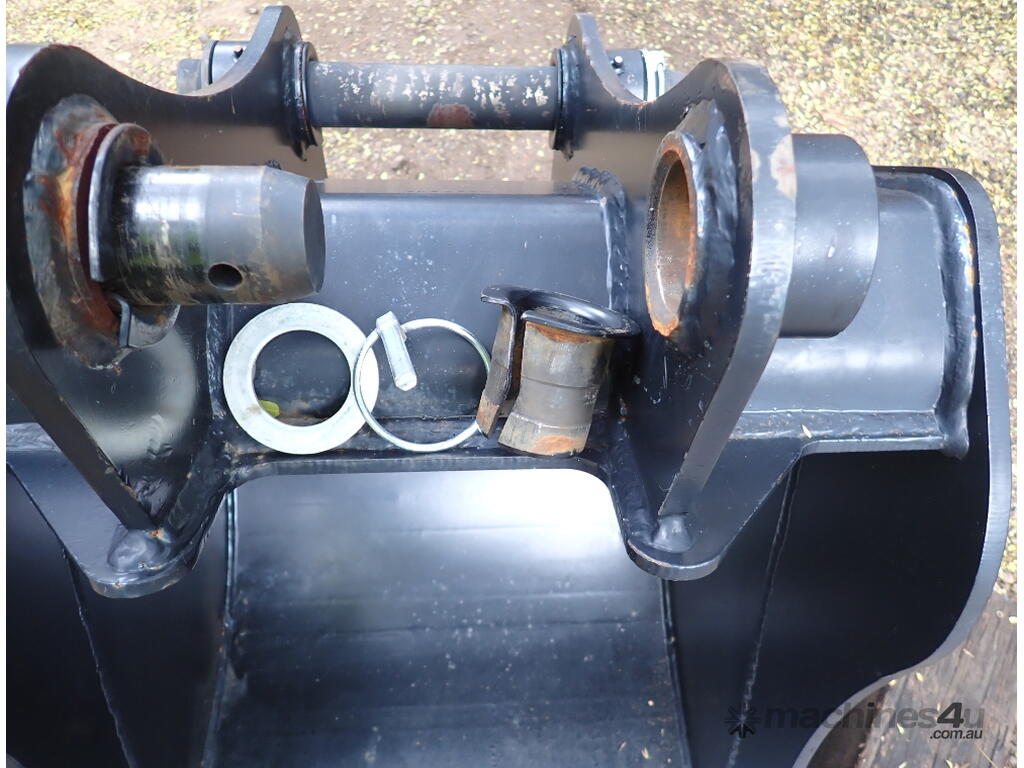

Fitted with 45mm pins into collar/sleeve bushes that fit into 51mm diameter Pin holes, so pins up to 51mm diameter can be fitted without needing to bore out the holes in the headstock (see pic# 9).

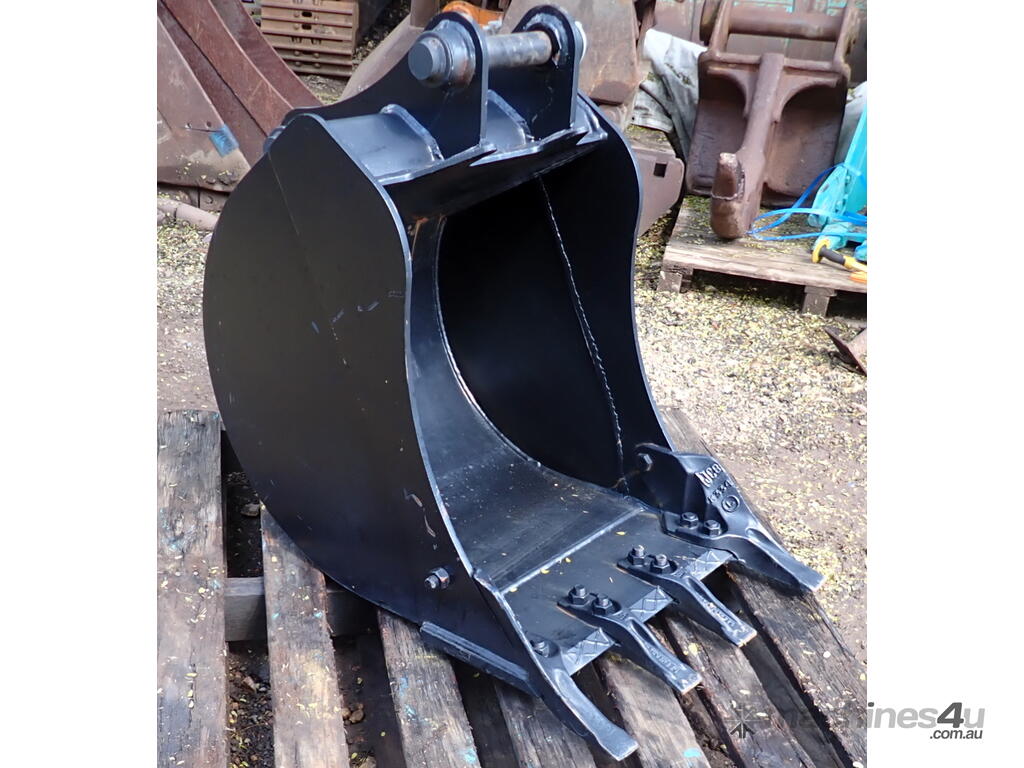

The bucket has removable Bolt-On Side Cutters that are 1 piece with the outer teeth.

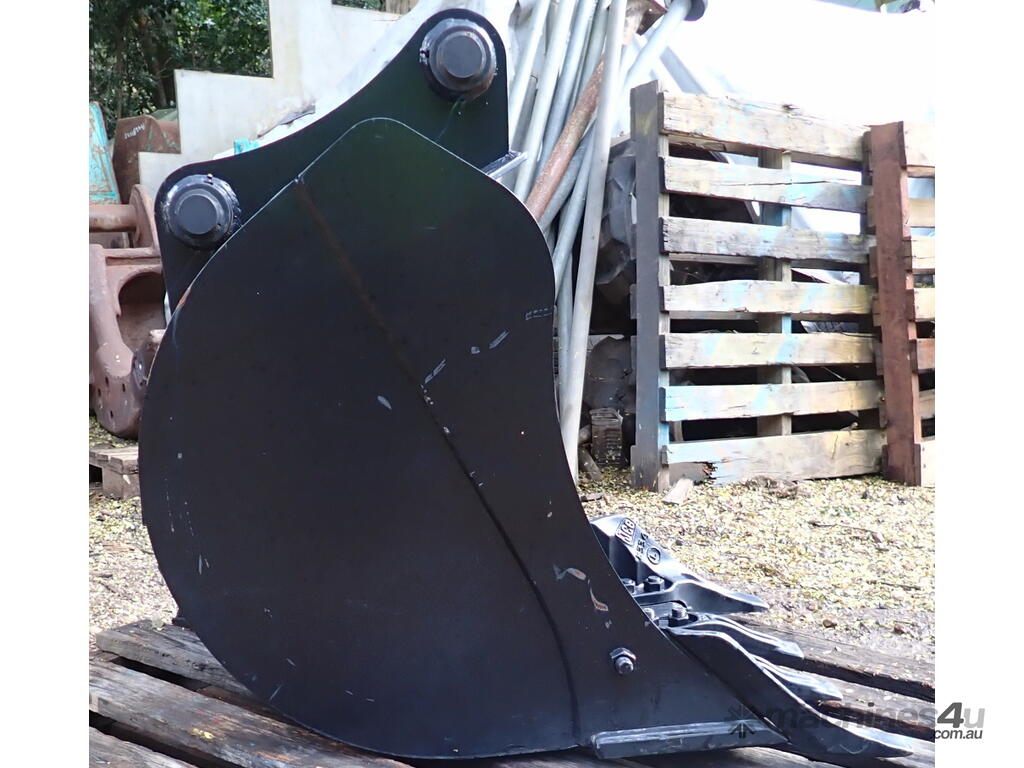

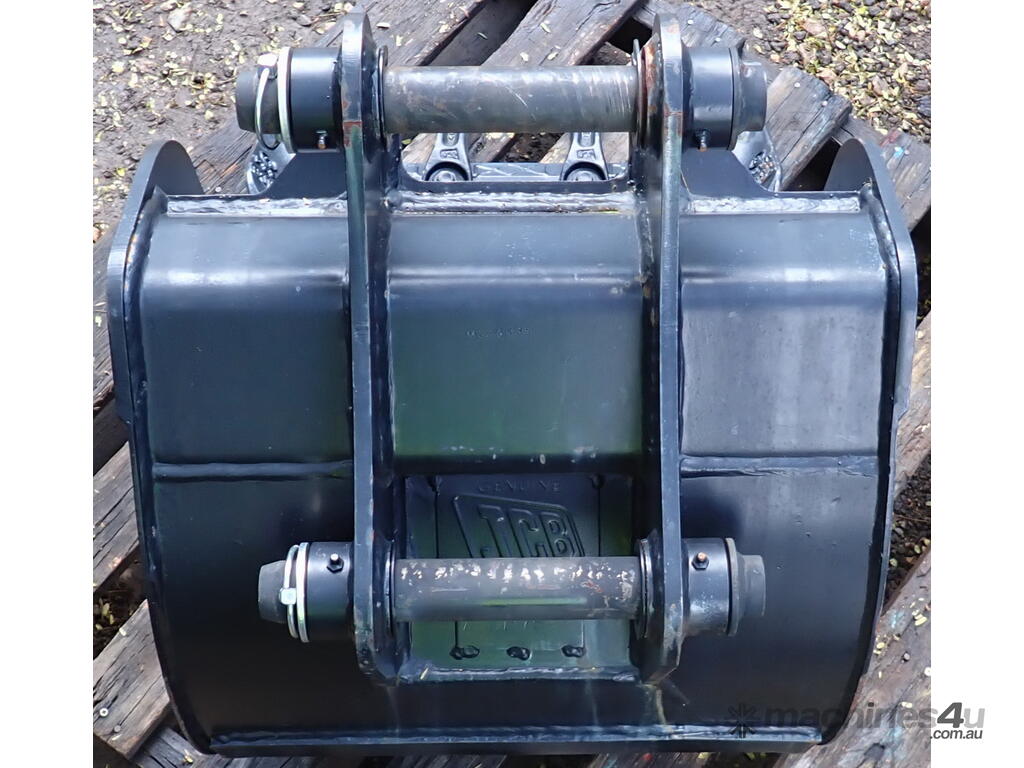

There are grease nipples on all 4 of the pin Outer Bosses (see pics# 6-7).

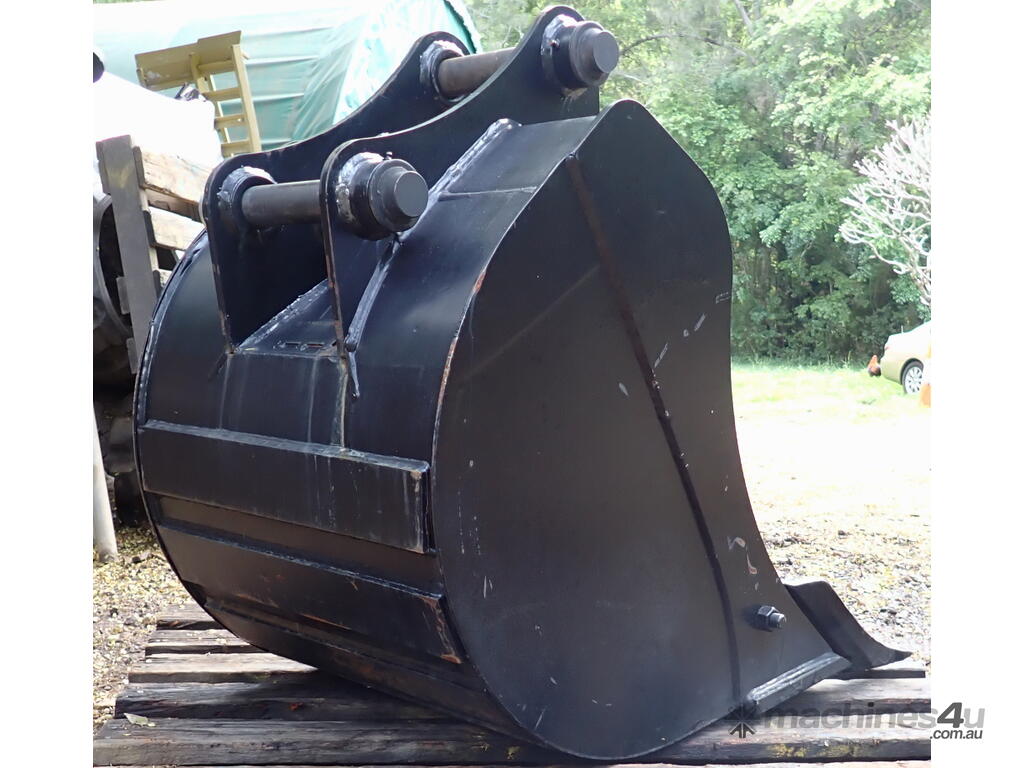

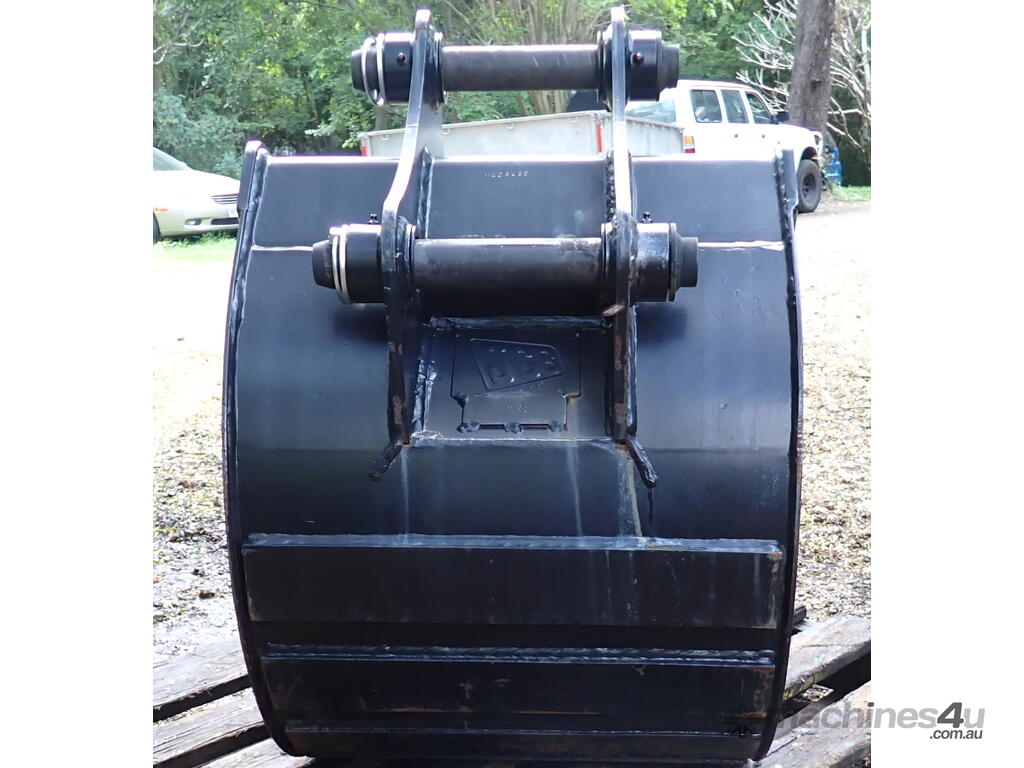

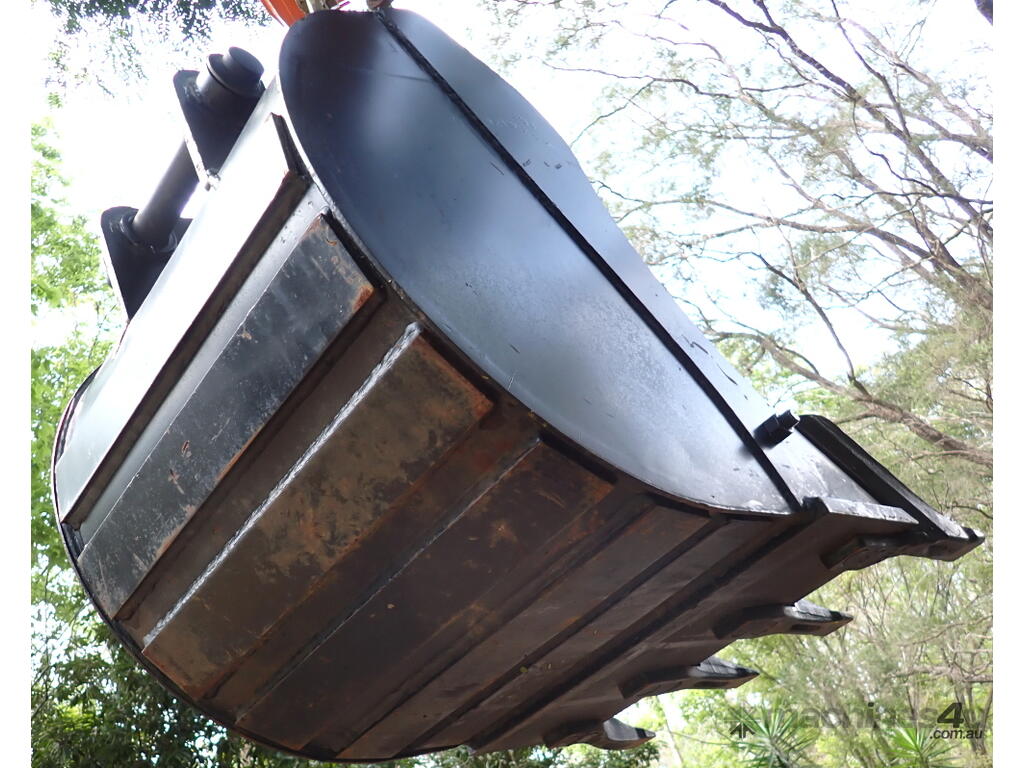

There are also extra Wear Strips welded underneath for durability (see pic# 10). We also have this exact same bucket without the 14kg of bottom wear strips for $150 less ($1100).

*** Current Headstock configuration:
* 45mm Pins fitted into collar/sleeve bushes that fit into 51mm diameter Pin holes, so pins up to 51mm diameter can be fitted without needing to bore out the holes in the headstock (see pic# 9).
* The Pin Center to Pin Center is 341mm.
* The distance between the collar/sleeve bushes is 170mm. Removing the bushes, the distance between the headstock bosses is 177mm, but these welded-on-bosses could also be shaved back on the insides to a maximum of 194mm (the distance Between the Ear Plates), if you need more inside width for your hitch or dipper arm to fit into.


*** 45mm Pin Configuration (current):

Should fit: JCB 805-2 / 806-2 / 8052 / 8060 / 8080ZTS / 3CX / 3CX std w/o G65 Bush / 4CX.

Maybe fit: Caterpillar 307 / 308 / E 70B, Daewoo Solar 080-3 / 080W-3, Hitachi EX60 / EX60-3 / EX60-5 UK Version, Terex TX750 / TX760 / TX860, Volvo BL71 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


*** As a 50mm Pin Configuration:

Should fit: JCB 3CX Std to Suit G65 Bush.

Maybe fit: Kato 180, MacMotor M8M and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

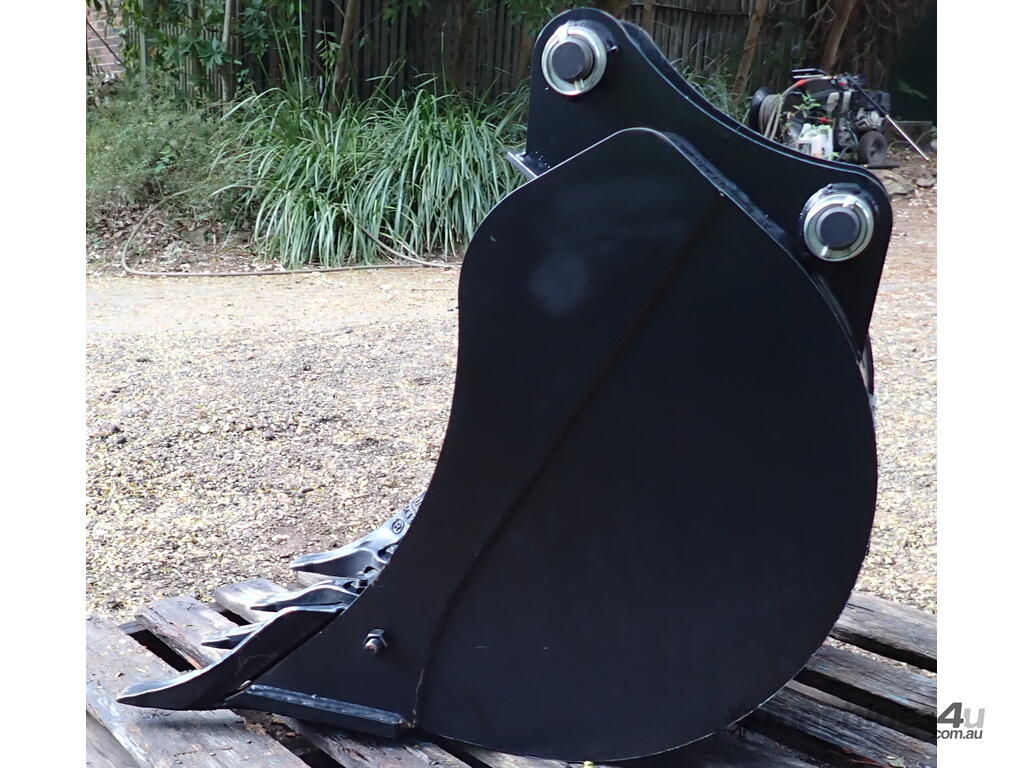

Overall Dimensions: 610mm Wide (at the side cutters/teeth), 915mm Deep, 855mm High. Weight: 168kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
