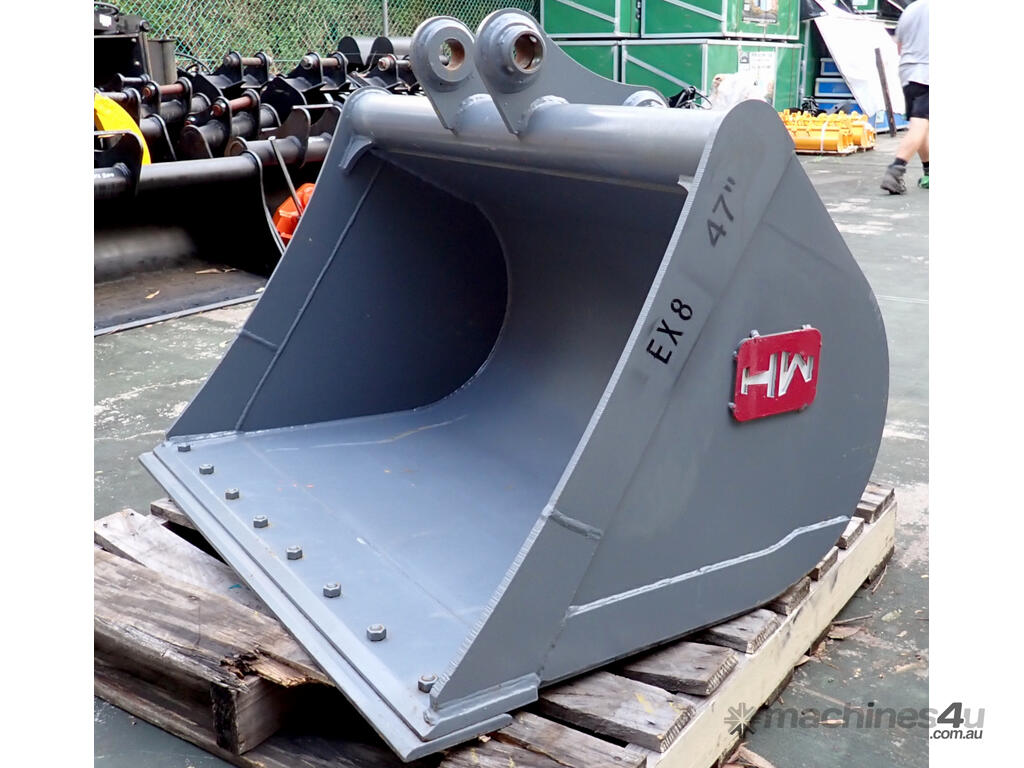

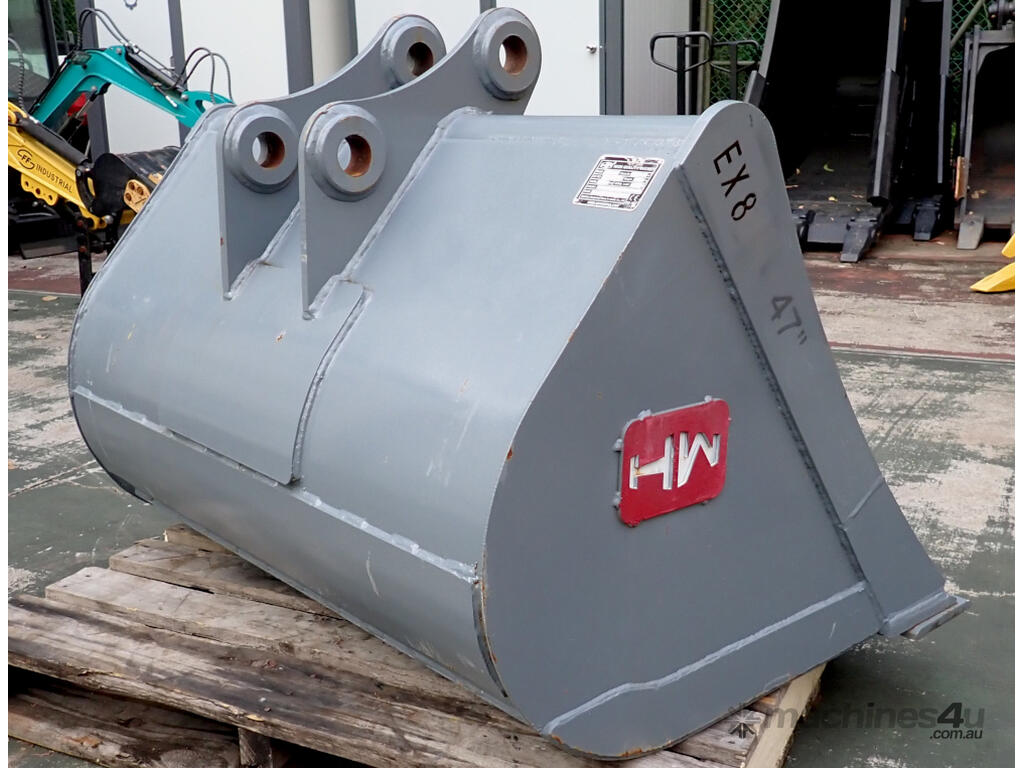

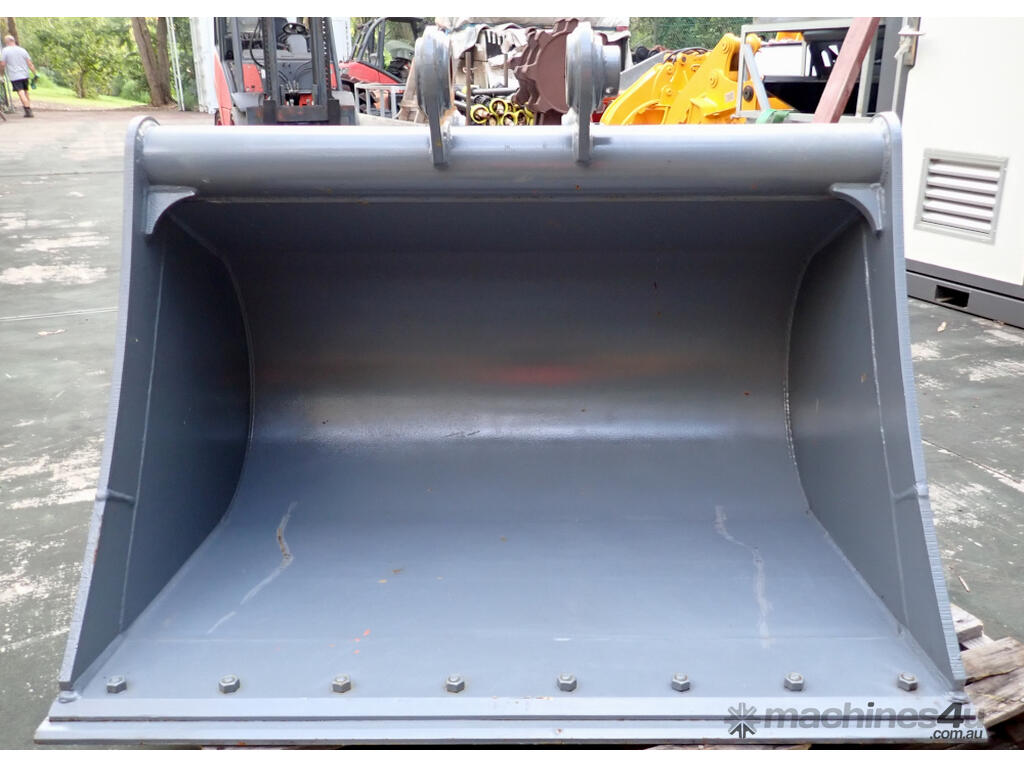

New 5-10 ton (50mm pin) 1200mm Excavator Mud Batter Bucket

New 1200mm Hongwing Excavator Mud Batter Bucket suit 5-10 Ton machines.

There are extra wear plates welded to the bottom of the sides and there are extra wear strips welded underneath for durability (see pic# 10).

There is a removable bolt-on front cutting edge.

It has a deep profile for a high 0.55m3 capacity.

It has Tapered sides so mud slides out easily.


*** Current Headstock configuration:
* Pins: 50mm
* Pin Center to Pin Center (CtoC): 292mm
* Between the Ears (BTE): 168mm Between the inside Ear Bosses (which can be shaved back up to 201mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
*
* Should fit: Case 9007 / 9007B / CX 75SR / CX 80SR, JCB JS 70 / JZ 70, Kato 180G, Kobelco 70SR / 80CS / SK 60 / SK 70SR / SK 70SR-1E / SK 75UR / SK 80MSR, Komatsu WB146-5,PS-5, Link-Belt 75SA (Mono & Offset) / 80SA / 1600 QUANTUM, New Holland EH 70 / EH 80 CS, Sumitomo LS 1600F2U / SH 60 / SH 60-2 / SH 60DX-2 / SH 60SP / SH 60SR / SH 60X-2 / SH 75U / SH 75U-2 / SH 75UU / SH 75X-2 / SH 75X-3, Sunward SWE 75, Takeuchi TB 70 / TB 70FR / TB 80FR / TB 175.
*
* Maybe fit: Bobcat 442 / X442, Caterpillar 308D, Hitachi EX60-5 / EX60-5 Import / EX75-5, Kato 140, Komatsu PC 60 / PC 60-5 / PC 60-6 / PC 60-7 / PC 70FR / PC 75UU / PC 75UU-1 / PC 75UU-2 / PC 75UU-3 / PC 78MR-6 / PC 80-1 / PC 80-2 / PC 80-3 / PC 90-1 / PC 95R-2 / SV100, Schaeff HR31 / HR32, Terex HR32, Yanmar B 7 SIGMA / VIO70 / VIO75 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Dimensions: 1230mm Wide, 895mm Deep, 901mm High. Weight: 302kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
