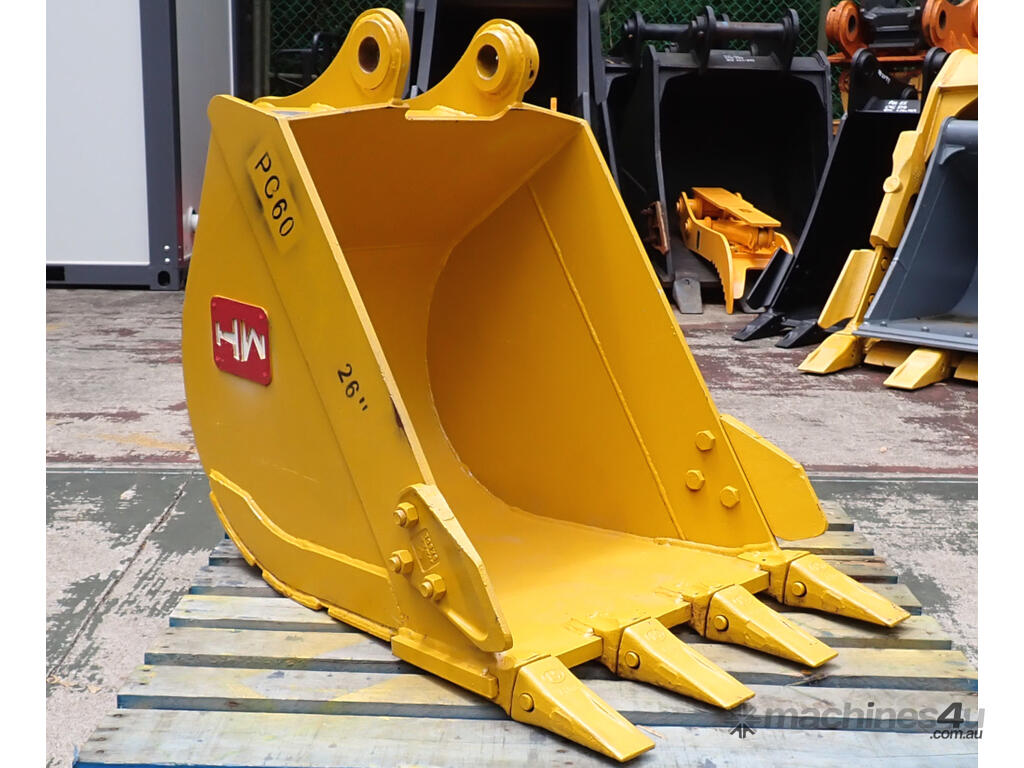

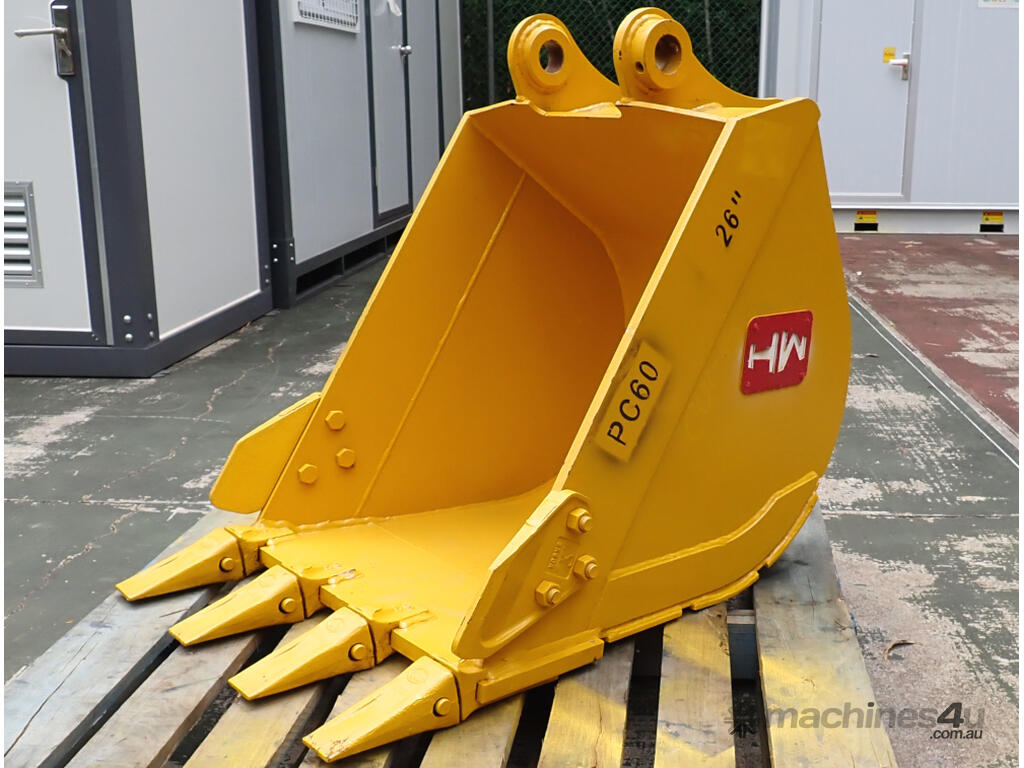

New 5-10 ton (50mm pin) 650mm Excavator GP Digging Bucket

New 650mm Hongwing Heavy Industry Excavator GP Digging Bucket suit 5-10 Ton machines.

* Made with Hardox high grade hard wearing steel.
* The front cutting edge is 25mm thick!
* It has removable bolt-on Side Cutters.
* It has a deep profile for high 0.25m3 capacity.

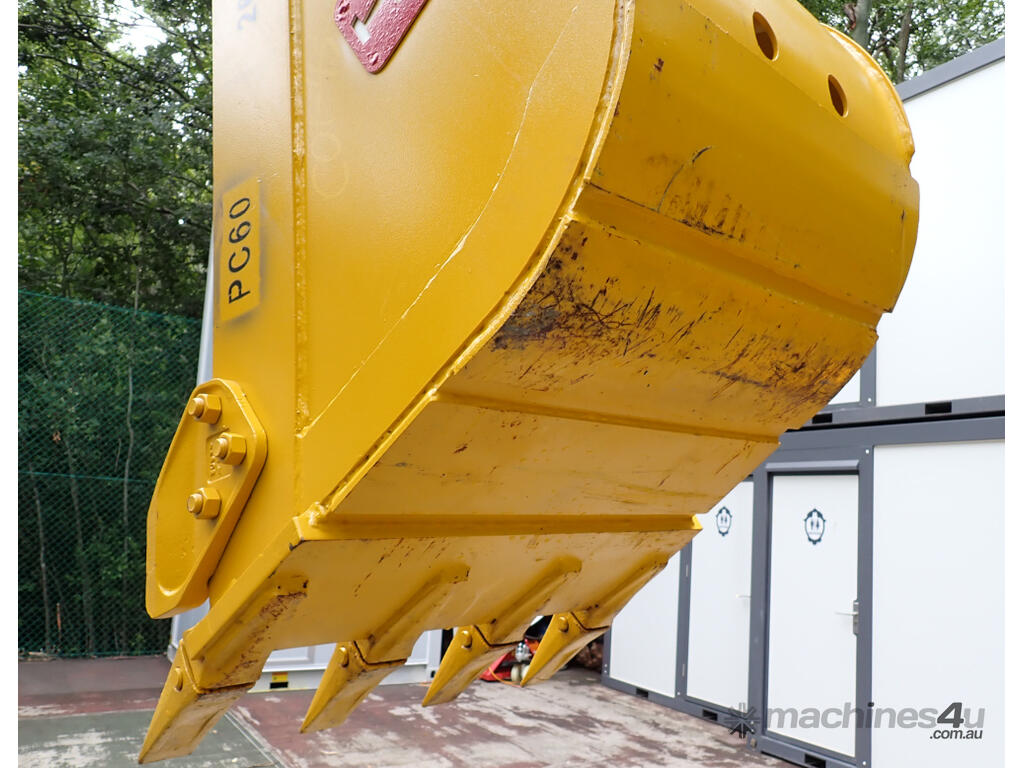

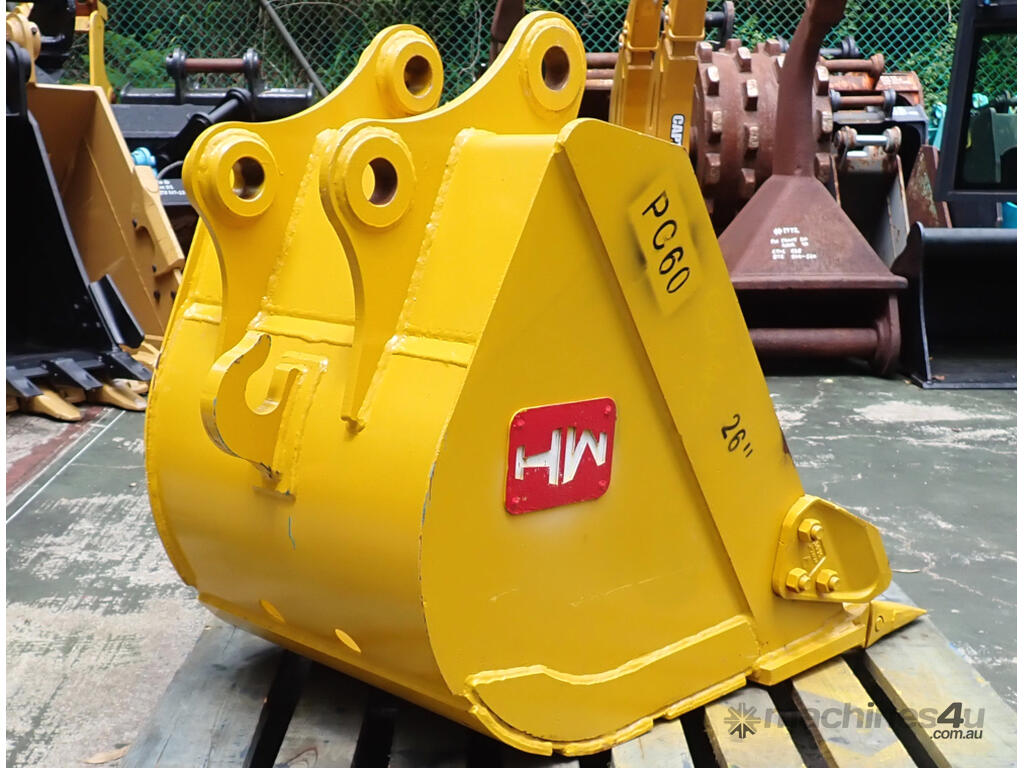

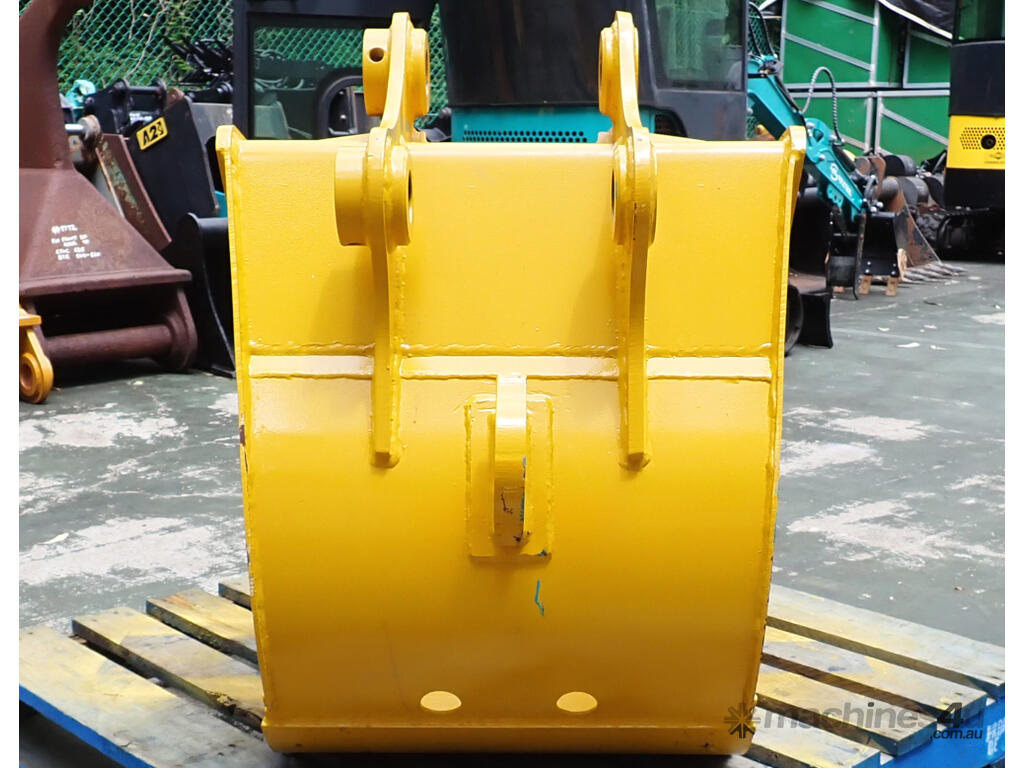

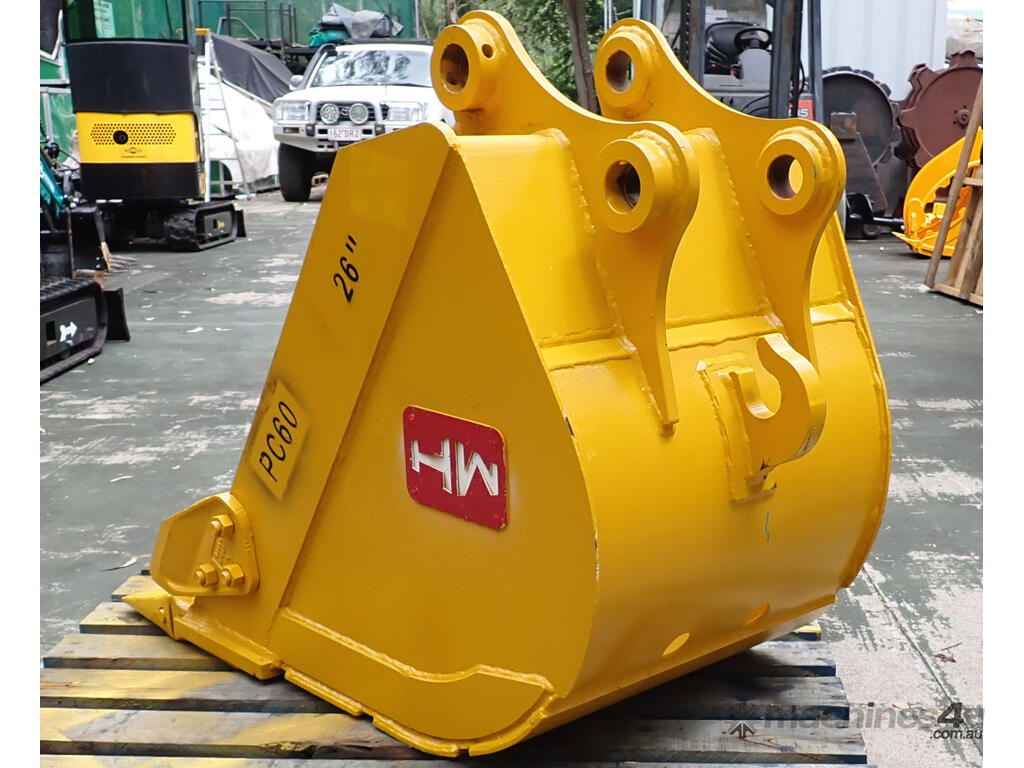

* There is a lifting hook at the back of the bucket (see pics# 4-9).
* It has tapered sides so mud slides out easy and minimises ground resistance.
* There are 2 drainage holes at the rear to let water out if you are dredging a dam etc.
* There is extra wear plating on the bottom of the sides and there are extra wear strips welded underneath for durability (see pic# 10).

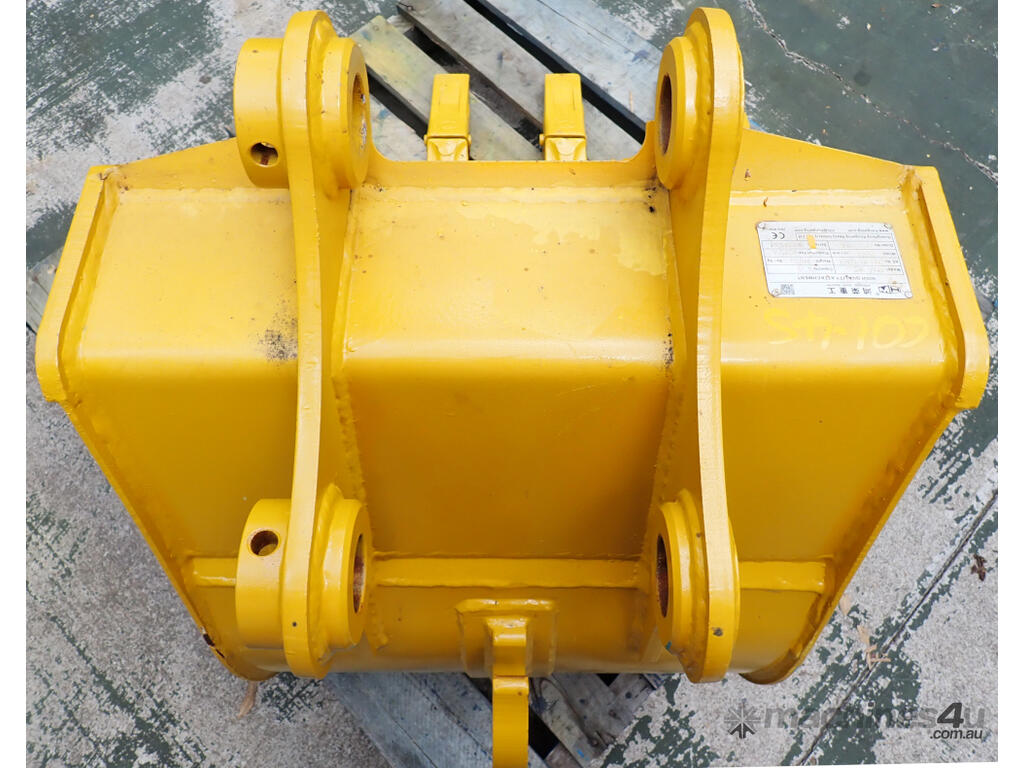

*** Current Headstock configuration:
* Pins: 50mm
* Pin Center to Pin Center (CtoC): 310mm
* Between the Ears (BTE): 203mm Between the inside Ear Bosses (which can be shaved back up to 240mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
*
* Should fit: Case 9007 / 9007B / CX 75SR / CX 80SR, Caterpillar 308D / 308e2cr, Hitachi EX60-5 / EX60-5 Import / EX75-5 / EX80 Import, Hitachi Zaxis 75US / Zaxis 80, JCB JS 70 / JZ 70, John Deere 75C / 80C, Kato 180G, Komatsu PC 60 / PC 60-5 / PC 60-6 / PC 60-7 / PC 70FR / PC 75UU / PC 75UU-1 / PC 75UU-2 / PC 75UU-3 / PC 78MR-6 / PC 80-1 / PC 80-2 / PC 80-3 / PC 90-1 / PC 95 / PC 95R-2 / SV100, Link-Belt 75SA (Mono & Offset) / 80SA / 1600 QUANTUM, Sany SY 75C / SY135C, Sumitomo LS 1600F2U / SH 60 / SH 60-2 / SH 60DX-2 / SH 60SP / SH 60SR / SH 60X-2 / SH 75U / SH 75U-2 / SH 75UU / SH 75X-2 / SH 75X-3, Sunward SWE 75, Yanmar B 7 SIGMA / VIO70 / VIO75.
*
* Maybe fit: Bobcat zx125, Ingersoll-Rand ZX125, Kobelco 70SR / 80CS / SK 60 / SK 70SR / SK 70SR-1E / SK 75UR / SK 80MSR, Komatsu WB146-5,PS-5, New Holland EH 70 / EH 80 CS, Takeuchi TB 70 / TB 70FR / TB 80FR / TB 175 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Dimensions: 722mm Wide (at the Side Cutters), 1116mm Deep, 889mm High. Weight: 216kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
