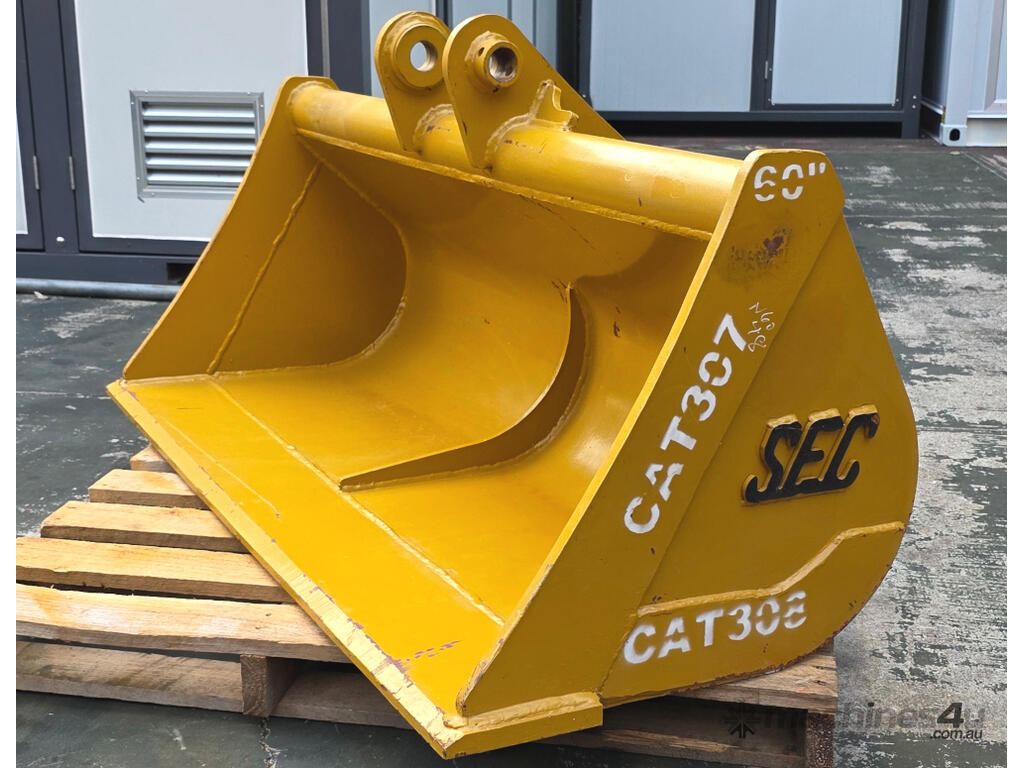

New 5-9 ton (45mm pin) 1500mm SEC Excavator Mud Batter Bucket

New 1500mm SEC Excavator Mud Batter Bucket suit 5-9 Ton machines.

There are extra wear plates welded to the bottom of the sides and there are extra wear strips welded underneath for durability (see pic# 10).

A well built & engineered bucket made by the Californian Company: SEC Bucket.


*** Current Headstock configuration:
* Pins: 45mm
* Pin Center to Pin Center (CtoC): 308mm
* Between the Ears (BTE): 192mm Between the inside Ear Bosses (which can be shaved back up to 233mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
*
* Should fit: Caterpillar 307 / 307C / 308 / E 70B, Daewoo Solar 070-3 / 080-3 / 080W-3, Hitachi EX60 / EX60-3 / EX60-5 UK Version, Volvo BL70 / BL71 / BL71B.
*
* Maybe fit: Daewoo Solar 070 / 075-V, Doosan S 75-V, Ferguson MF 760 / MF 860, Fermac 760 / 860, Hyundai R 55-7, Komatsu WB 93-2, Samsung SE 50-3, Volvo EC50/W / EC55 / EC55B / ECR58 / MX 55/W / SE 50-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Dimensions: 1566mm Wide, 710mm Deep, 785mm High. Weight: 284kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
