New 9-20 ton (65mm pin) 1000mm Attach2 Heavy Duty Excavator GP Digging Bucket

New price from Attach2: $4,570.

New 1000mm Attach2 Heavy Duty Excavator GP Digging Bucket suit 9-20 Ton machine.

Designed for Case 9013 / CX130 / CX135 / CX135SR, Daewoo Solar 130LC-V / 130W-2 / 130W-3 / 130W-V / 140LC-V, Doosan S130LC-V / S140LC-V / S140W-V / S255SLR / S300SLR, JCB JS110 / JS130 / JZ140, Link-Belt 130LX / 135SA / 2650 QUANTUM, Sumitomo SH100 / SH100-2 / SH100CT-2 / SH120 / SH120-2 / SH120-3 / SH120CT-2 / SH135U-2 / SH135X-2 / SH145U / SH200LC-3LR etc. but will fit other machines (see below list of machines we have found so far).

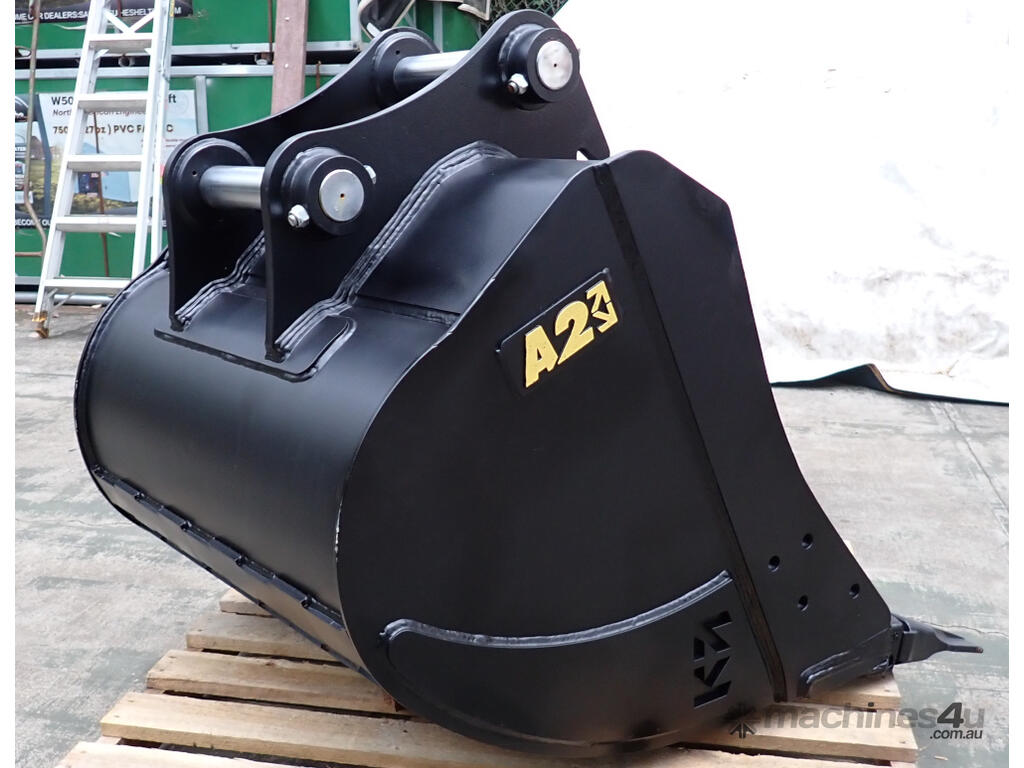

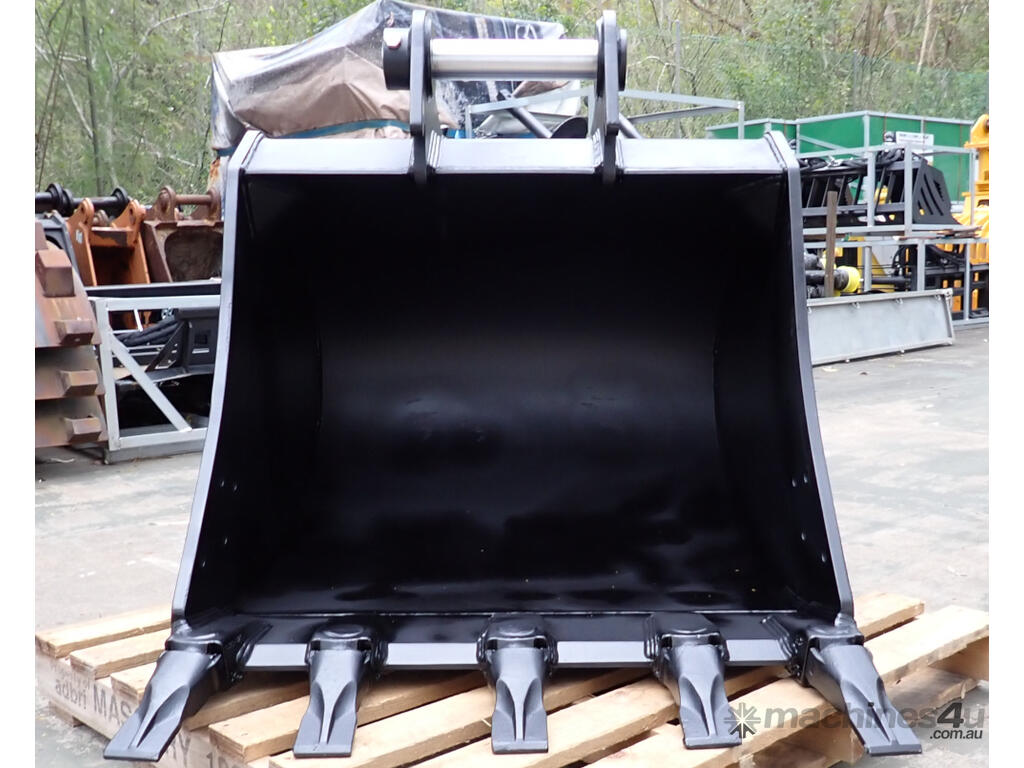

* It has a deep profile for a high capacity (see pics# 4 & 9).

* There are bolt holes ready for Side Cutters if you choose to add them.

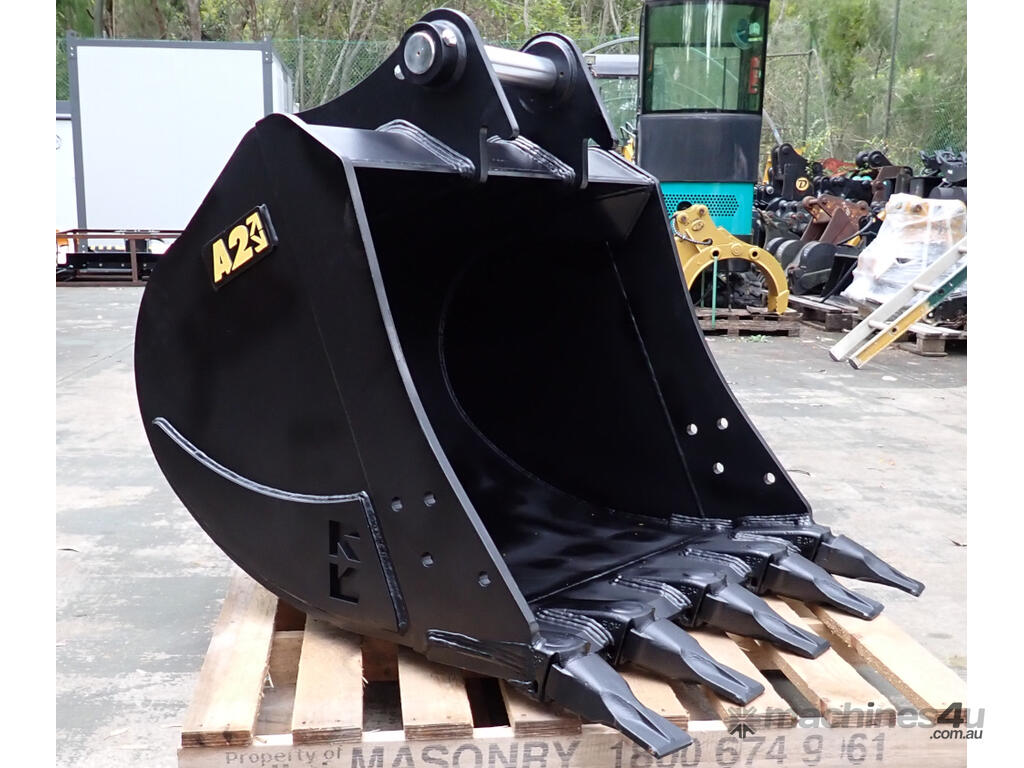

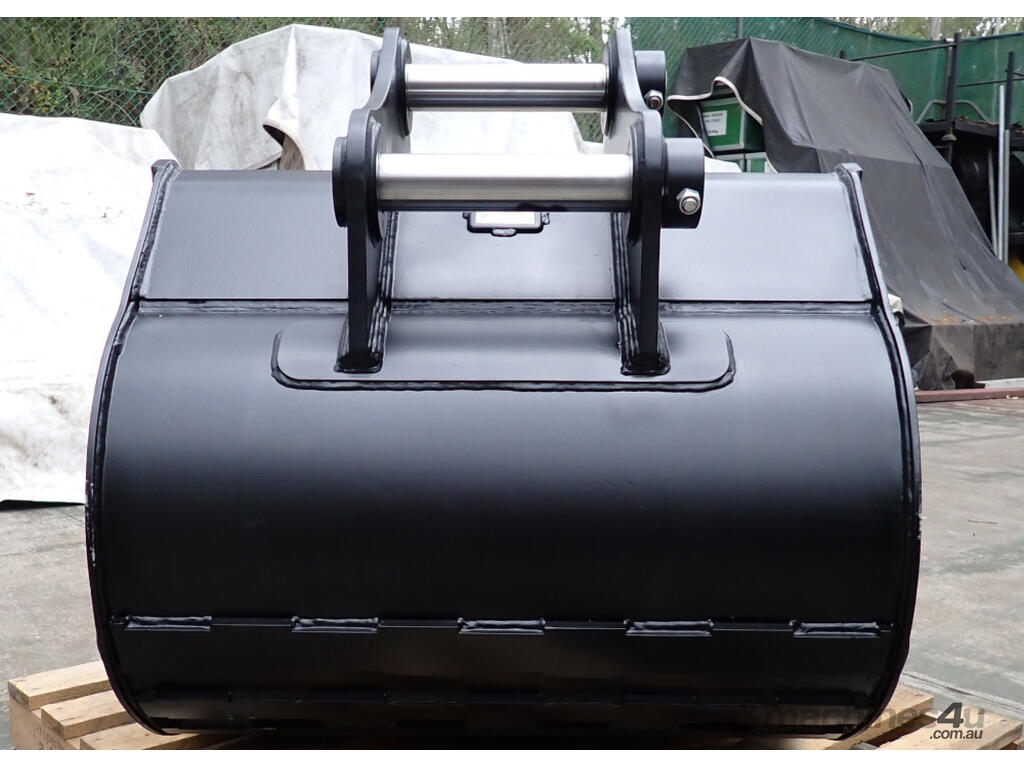

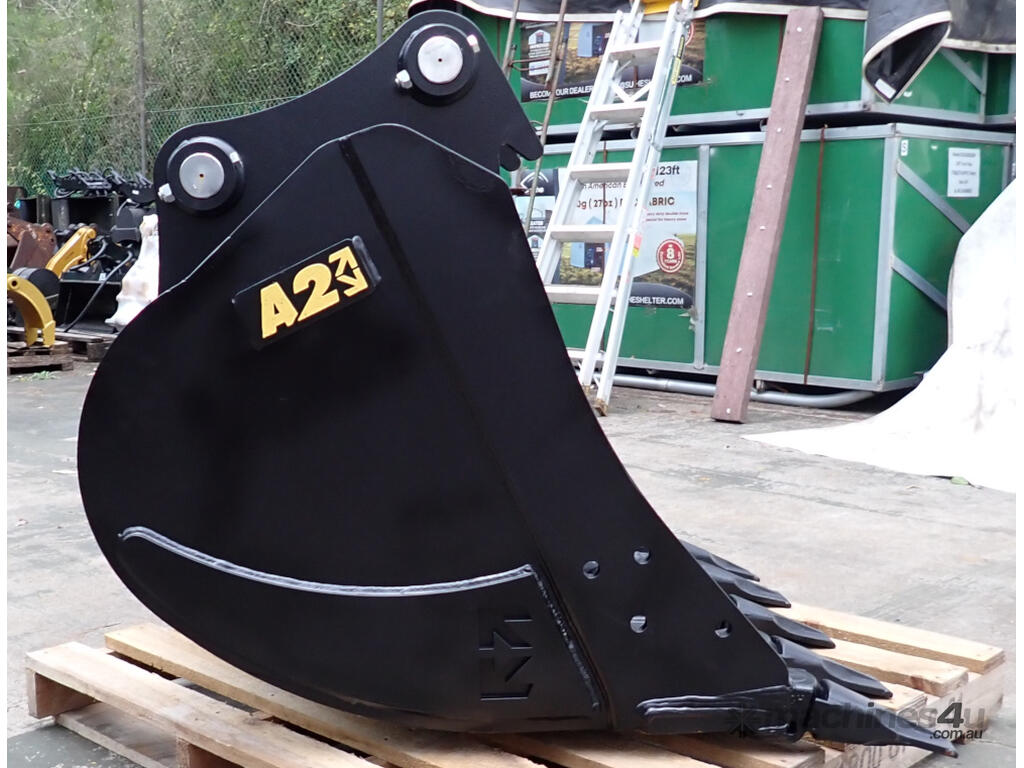

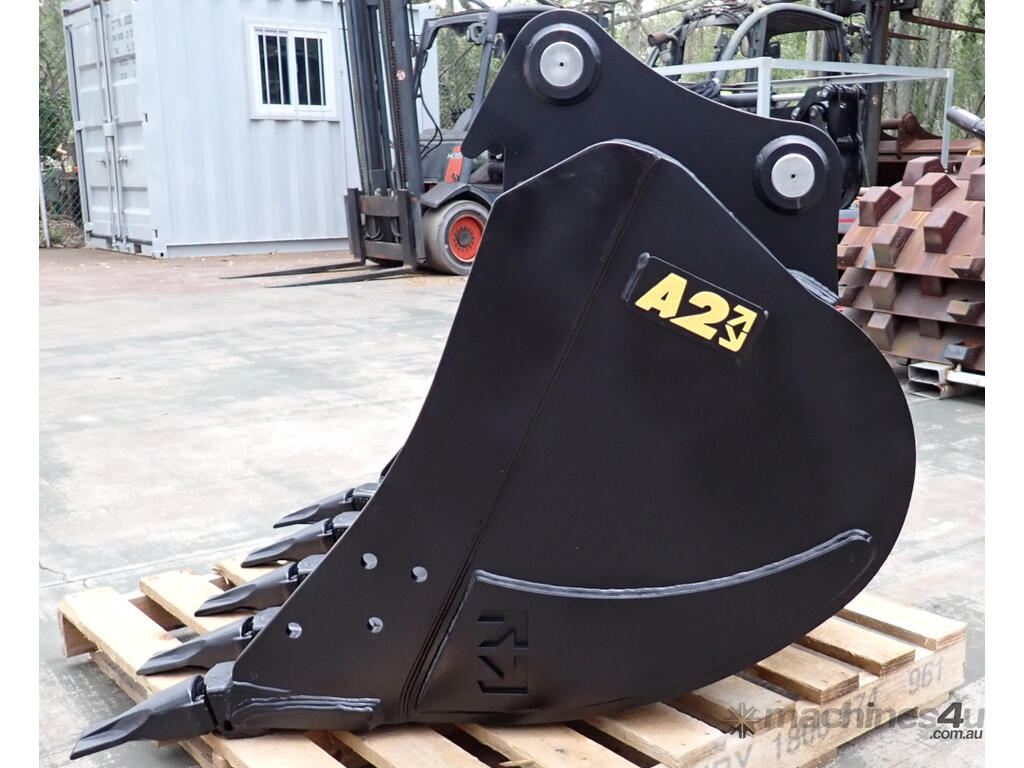

* It has additional welded lower side plating (see pics# 1, 3-5, 8-10) and there are extra Wear Strips welded underneath for durability (see pic# 10).

* The width is tapered to the rear (tapered sides) to minimise wear on the sides, also helps mud slide out easily (limits suction) if you do any wet ground work with it.

This is a well engineered, heavy duty Excavator Bucket, made by the respected Australian company Attach2 Equipment.


***** Current Headstock configuration:
* Pin Diameter: 65mm.
* CtoC (Pin Center to Pin Center): 384mm.
* BTE (Between The Ears): 275mm between the inside Ear Bosses (which can be shaved back up to 297mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
*
* Should fit: Case 9013 / CX130 / CX135 / CX135SR, Daewoo Solar 130LC-V / 130W-2 / 130W-3 / 130W-V / 140LC-V, Doosan S130LC-V / S140LC-V / S140W-V / S255SLR / S300SLR, Hyundai R120 / R130LC / R130LC-3 / R130W / R140LC-7, JCB JS110 / JS130 / JZ140, Kobelco SK130LC, Link-Belt 130LX / 135SA / 2650 QUANTUM, Samsung SE130-3 / SE130LC-3 / SE130W-3, Sumitomo SH100 / SH100-2 / SH100CT-2 / SH120 / SH120-2 / SH120-3 / SH120CT-2 / SH135U-2 / SH135X-2 / SH145U / SH200LC-3LR, Terex TXC 140LC-1, Volvo EC130-3 / EC140 / EC140B / EC140C / EC140D / EC145D / EC210C LR / EC290C LR / ECR145C / EW130 / EW140C / MX135WS/LS / SE130W-3/LC-3, Yuchai YC135-7.
*
* Maybe fit: Caterpillar 311 / 311C / 311D / 312 / 312B / 312C L / 312D / 313 / 314C LCR / 314D / 320D, Daewoo Solar 130-2 / 130-3, Doosan DX140LC-3 / DX140W / DX140W-3 / DX300LC-3 SLR, Halla HE130 / HE130W, Hitachi EX100 / EX110-5 / EX120 / EX120-1 / EX120-2 / EX120-3 / EX120-4 / EX120-5 / EX130 / EX135 / EX135UR / FH120 / FH130 / UHO62 / UHO63, Hitachi Zaxis 135US, JCB 805B / 814S, John Deere 135C RTS, Kato HD 512, Kobelco 115SRDZ / 135SRLC / K905 / SK120 / SK130 / SK135 / SK135SR, New Holland EH130LC, Sumitomo SH125-3 / SH125X-3 / SH130-5 / SH135-3 / SH135X-3, Takeuchi TB 1140 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Dimensions: 1053mm Wide (at the teeth), 1210mm Deep, 1048mm High. Weight: 450kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
