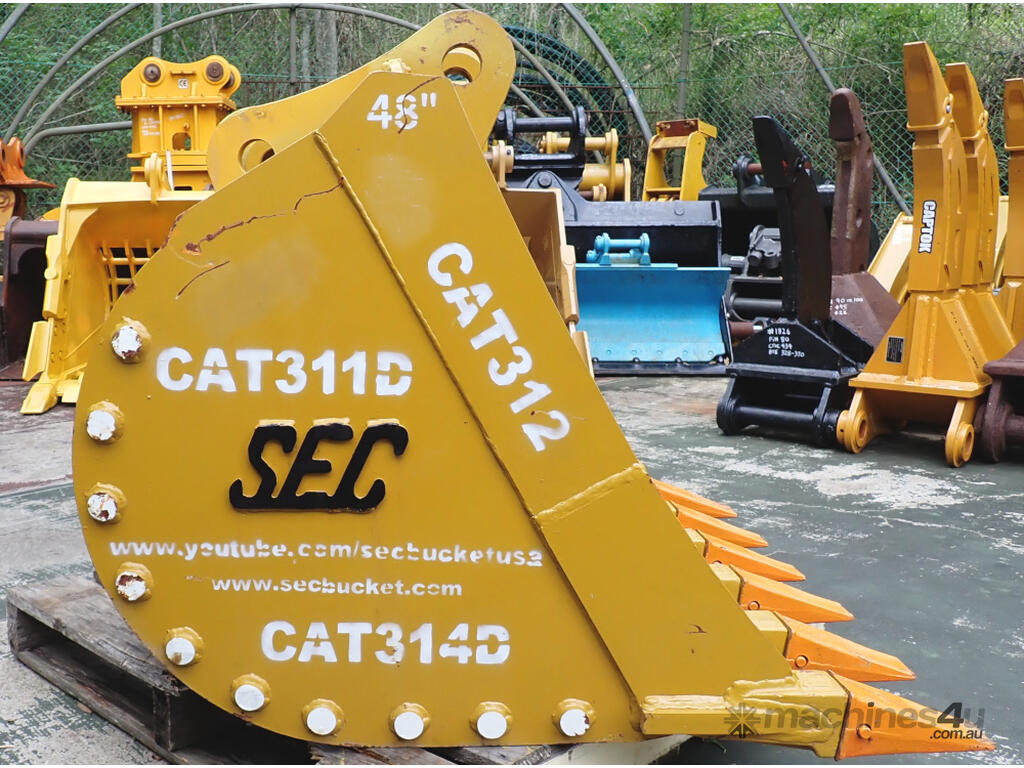

New 9-20 ton (65mm pin) 1200mm Excavator Skeleton Sieve Riddle Bucket

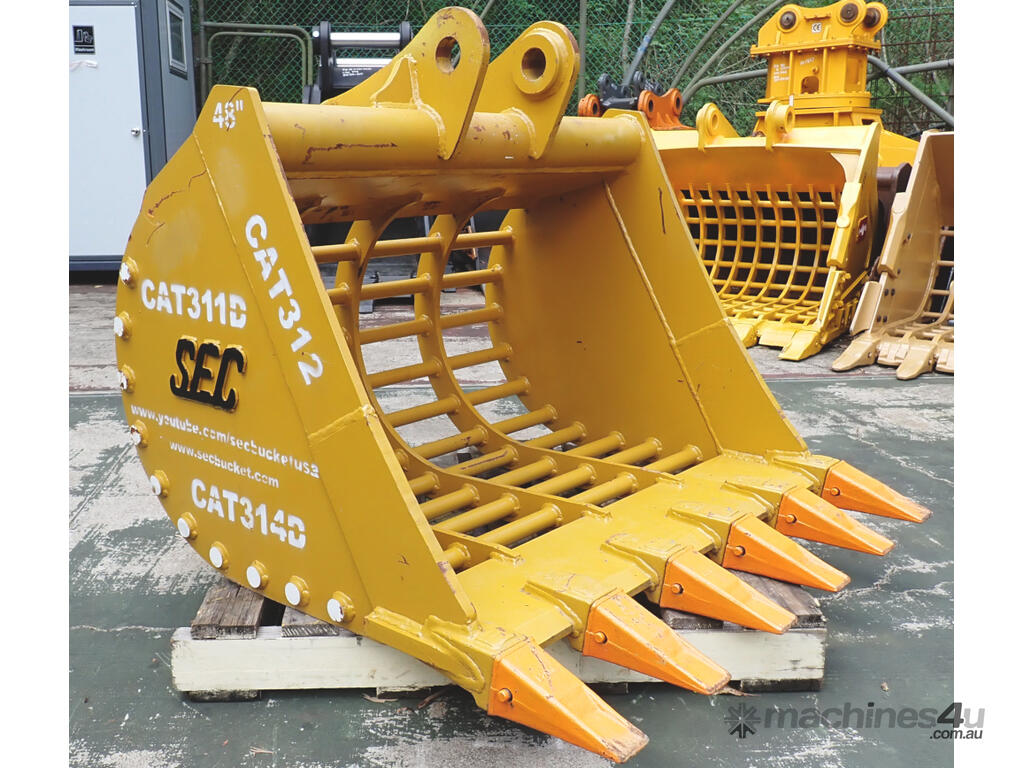

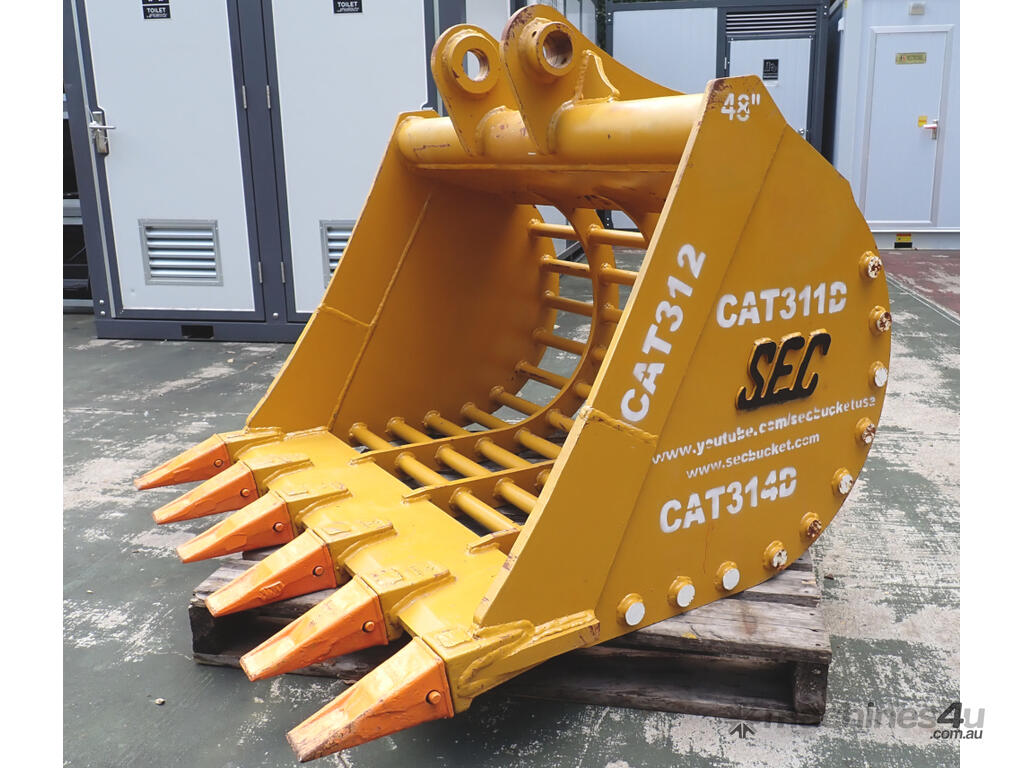

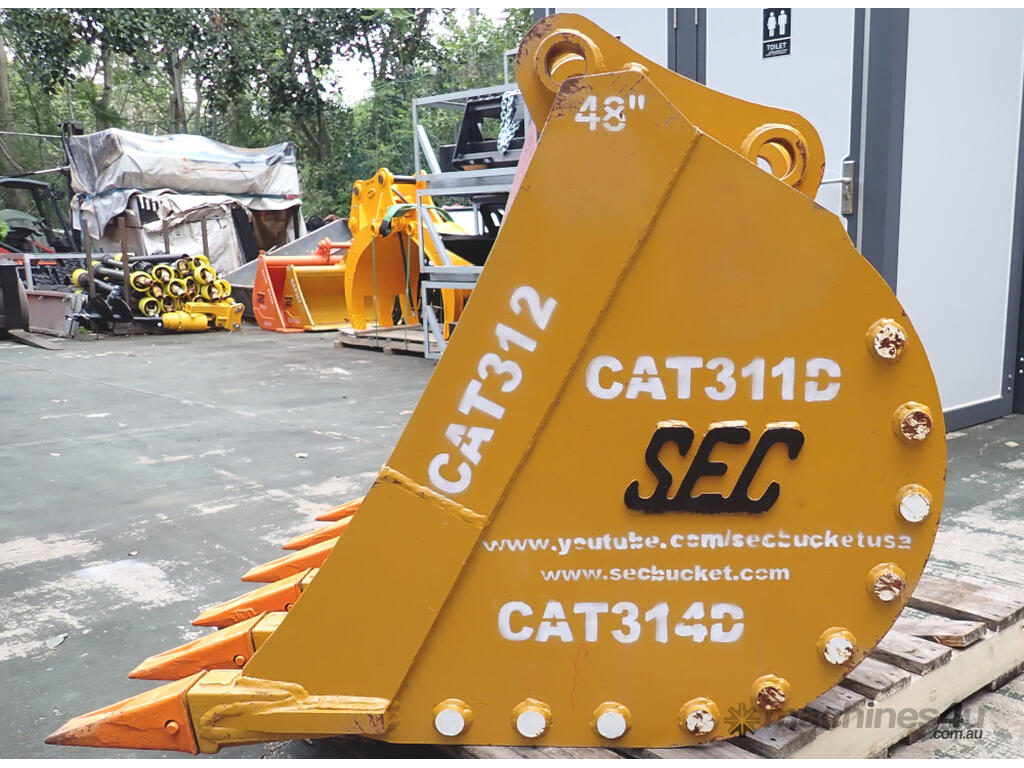

New 1200mm SEC Excavator Skeleton Sieve Riddle Bucket suit 9-20 Ton machine.

A skeleton bucket, also known as a sieve, riddle or screening bucket, is used for sorting and separating materials by sifting out fine particles like soil and sand, while retaining larger debris such as rocks, roots, and construction waste. Its grid-like structure allows for efficient site cleanup, landscaping, and material separation for recycling or reuse on job sites.

This is a well built & engineered bucket made by the Californian Company: SEC Bucket.

The front cutting edge plate is 32mm thick.

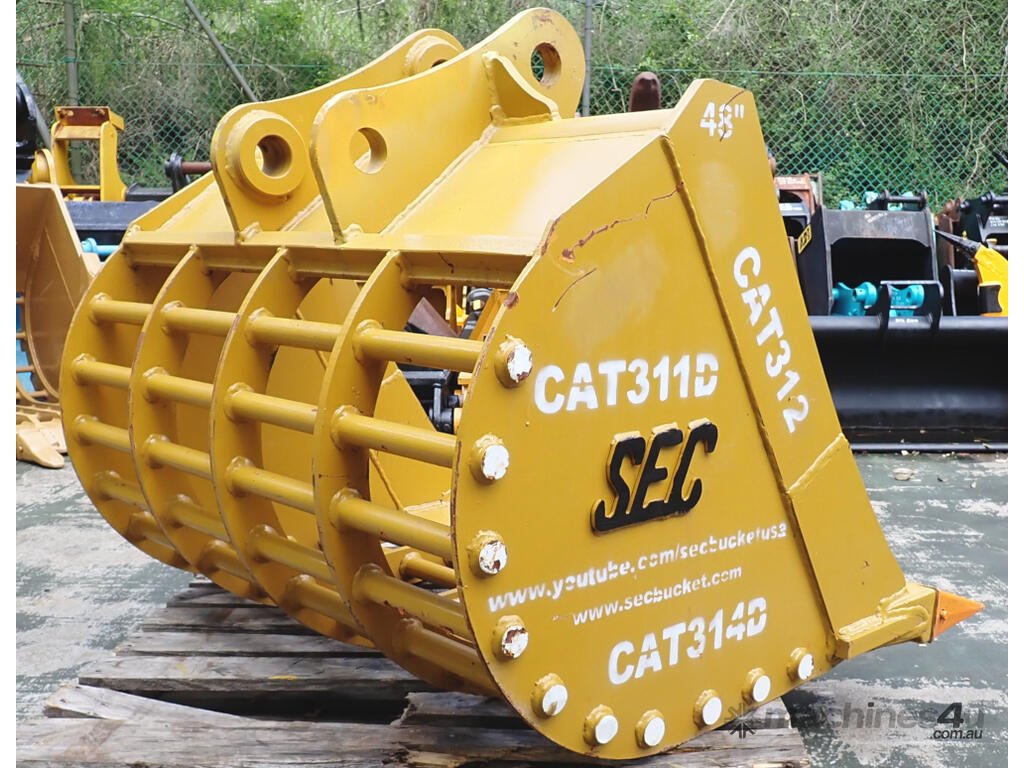

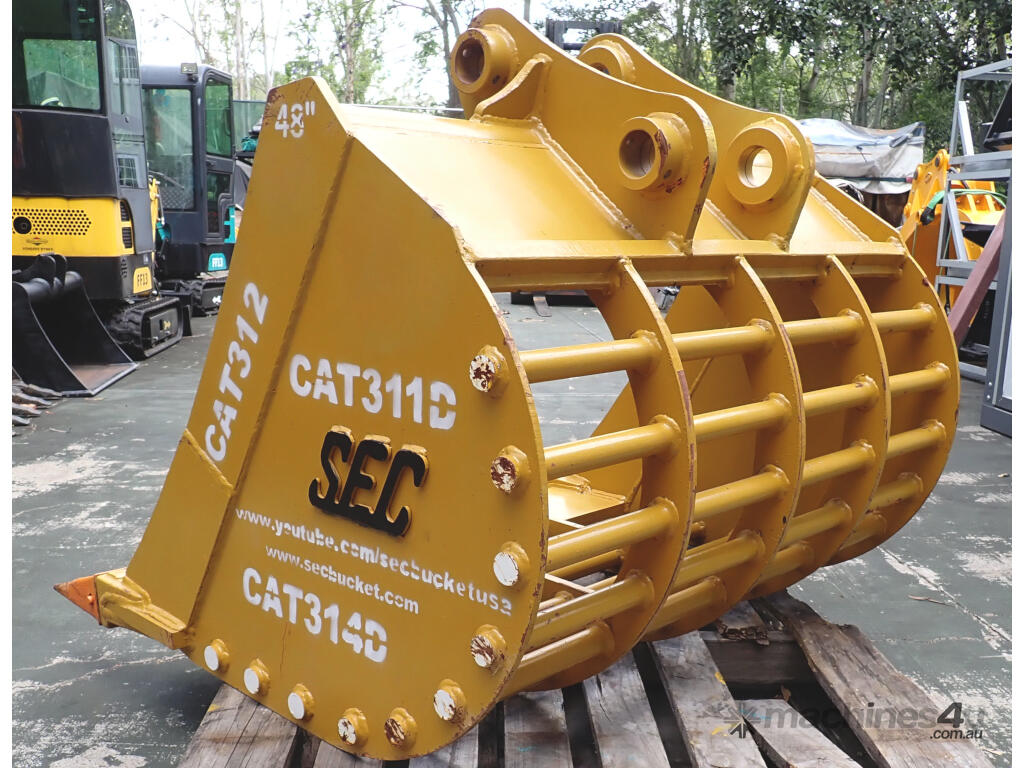

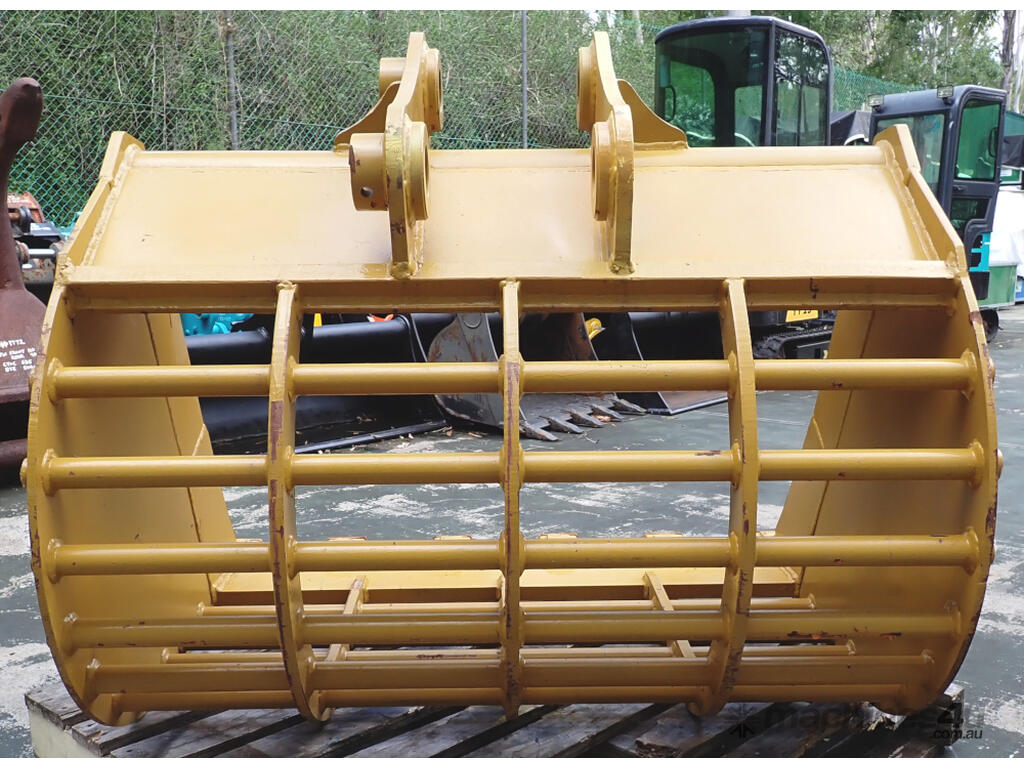

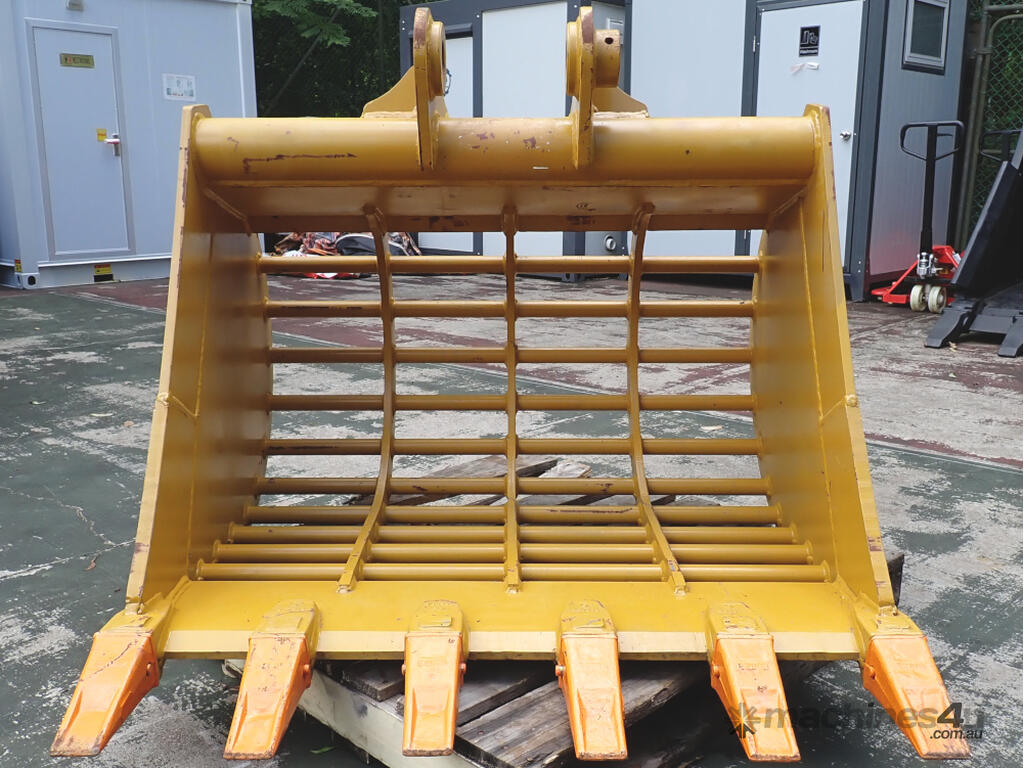

*** Sieve Specs:
*
* The round horizontal sieve bars are solid 40mm thick.
* The vertical rectangular bars are also solid and 20mm x 80mm.
* The gap holes are around 280mm x 78mm.

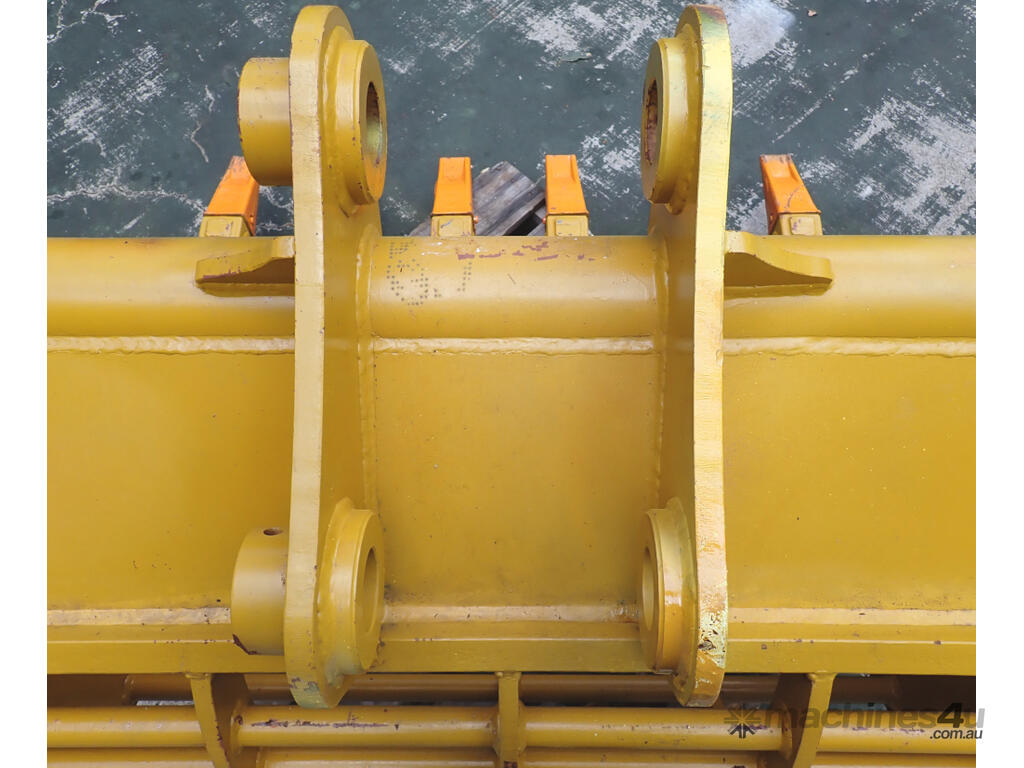

*** Current Headstock configuration:
* 65mm Pin Diameter
* 380mm Pin Center to Pin Center (CtoC)
* 225mm Between the inside Ear Bosses (which can be shaved back up to 273mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
*
* Should fit: Case 9013 / CX130 / CX135 / CX135SR, Daewoo Solar 130LC-V / 130W-2 / 130W-3 / 130W-V / 140LC-V, Doosan S130LC-V / S140LC-V / S140W-V / S255SLR / S300SLR, JCB JS110 / JS130 / JZ140, Kobelco K905 / SK120 / SK130 / SK130LC / SK135 / SK135SR, Link-Belt 130LX / 135SA / 2650 QUANTUM, Sumitomo SH100 / SH100-2 / SH100CT-2 / SH120 / SH120-2 / SH120CT-2 / SH135U-2 / SH135X-2 / SH145U / SH200LC-3LR, Terex TXC 140LC-1, Yuchai YC135-7.
*
* Maybe fit: Caterpillar 311 / 311C / 311D / 312 / 312B / 312C L / 312D / 313 / 314C LCR / 314D / 320D, Doosan DX140LC-3 / DX140W / DX140W-3 / DX300LC-3 SLR, Halla HE130 / HE130W, Hitachi EX110-5 / EX120-2 / EX120-3 / EX120-4 / EX120-5 / EX130 / EX135 / EX135UR, Hitachi Zaxis 135US, Hyundai R120 / R130LC / R130LC-3 / R130W / R140LC-7, JCB 805B / 814S, John Deere 135C RTS, Kato HD 512, Sumitomo SH120-3 / SH125-3 / SH125X-3 / SH130-5 / SH135-3 / SH135X-3, Takeuchi TB 1140 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Shipping Dimensions: 1300mm Wide (at the teeth), 1260mm Deep, 1090mm High. Weight: 594kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
