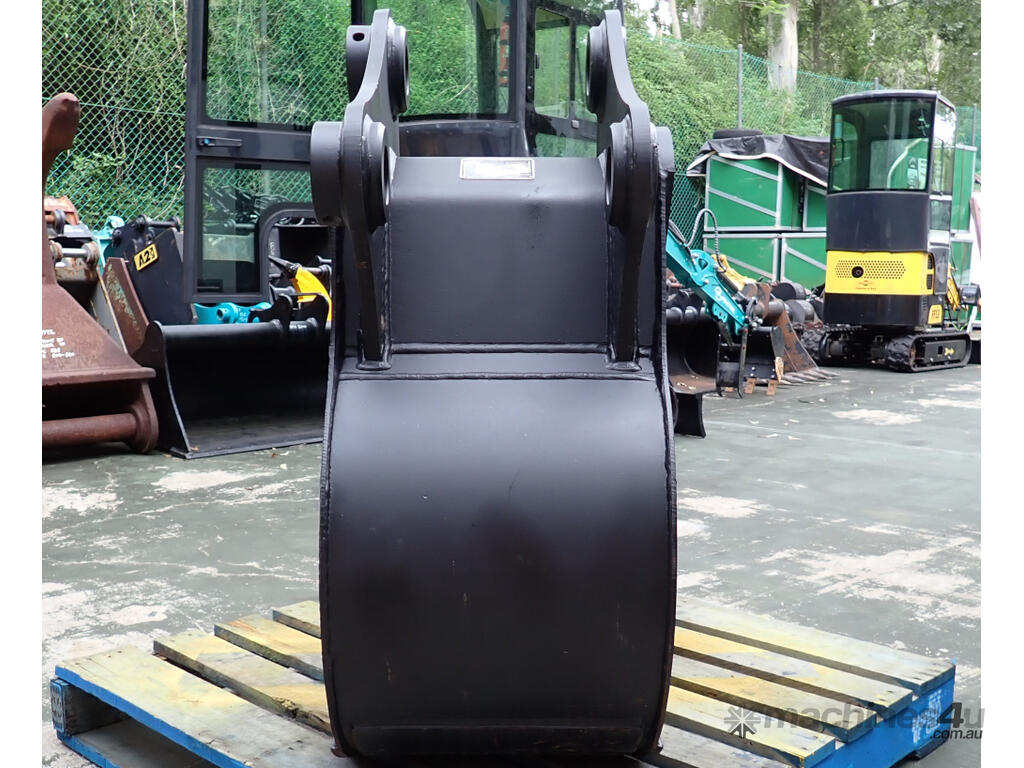

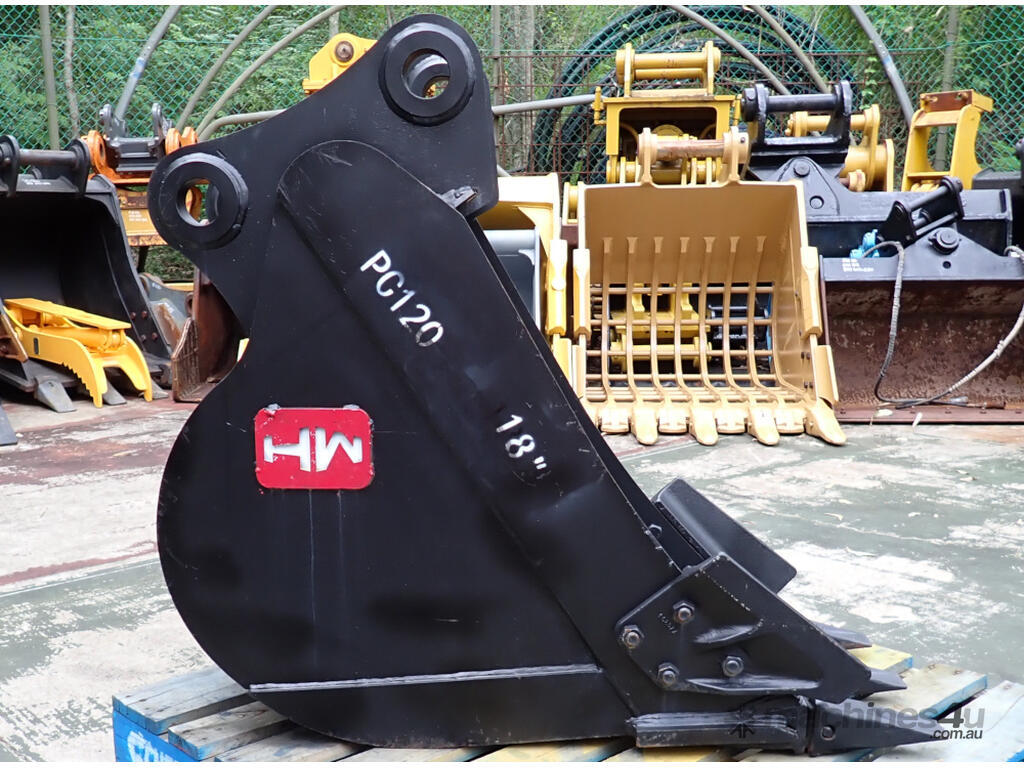

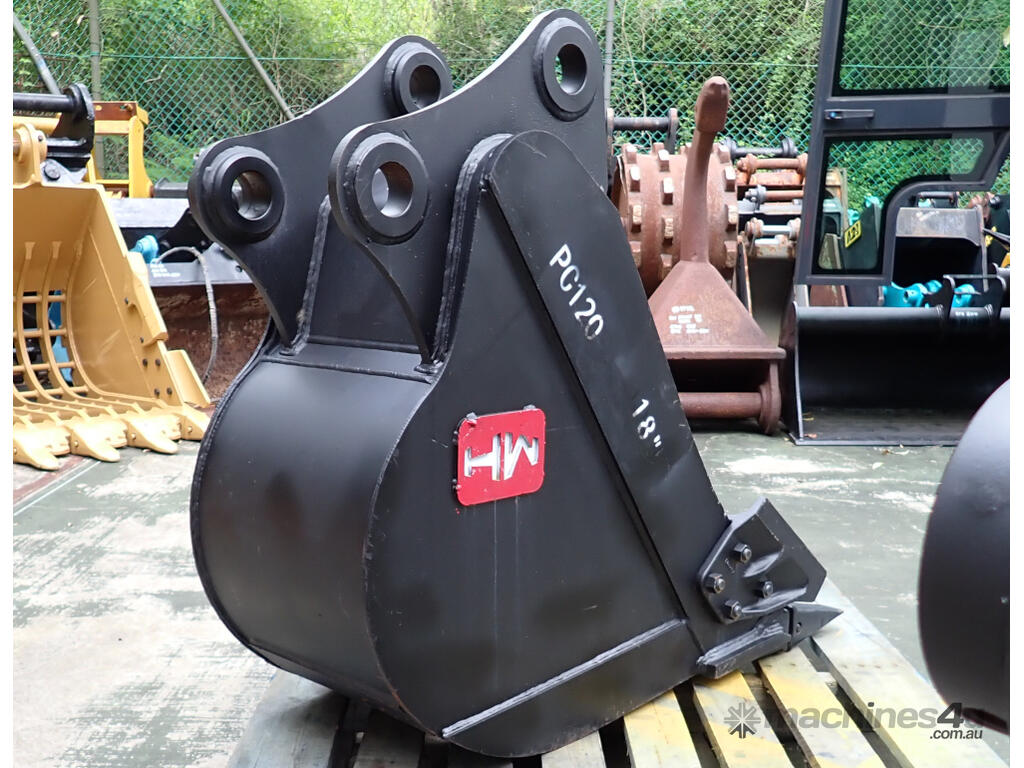

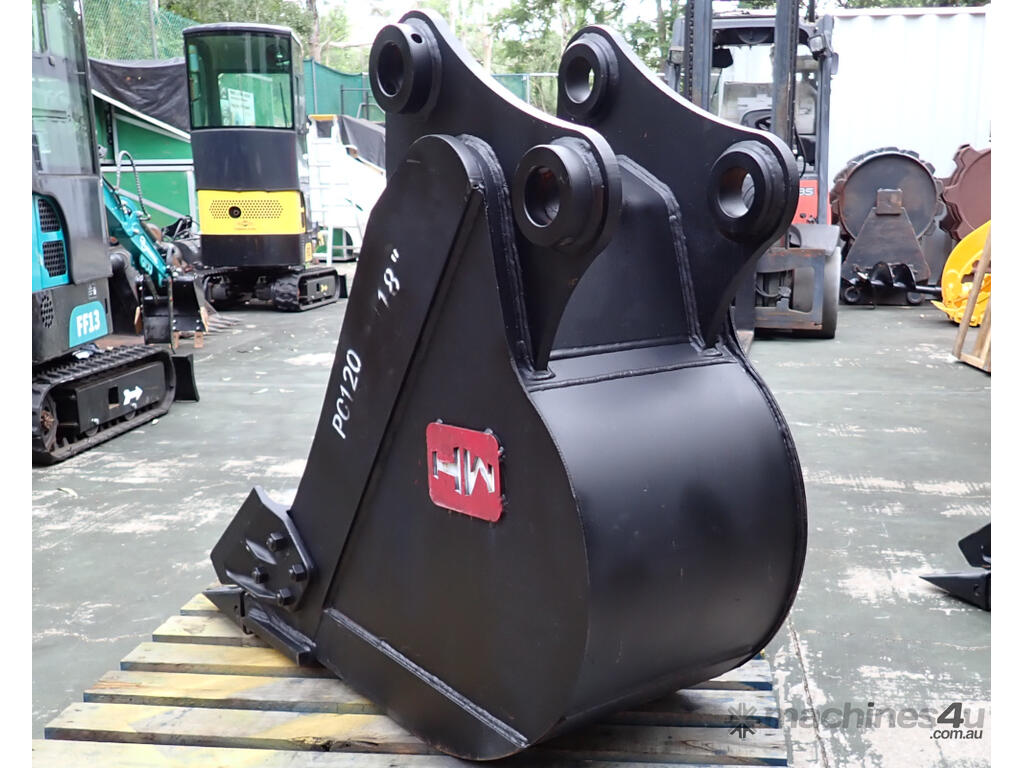

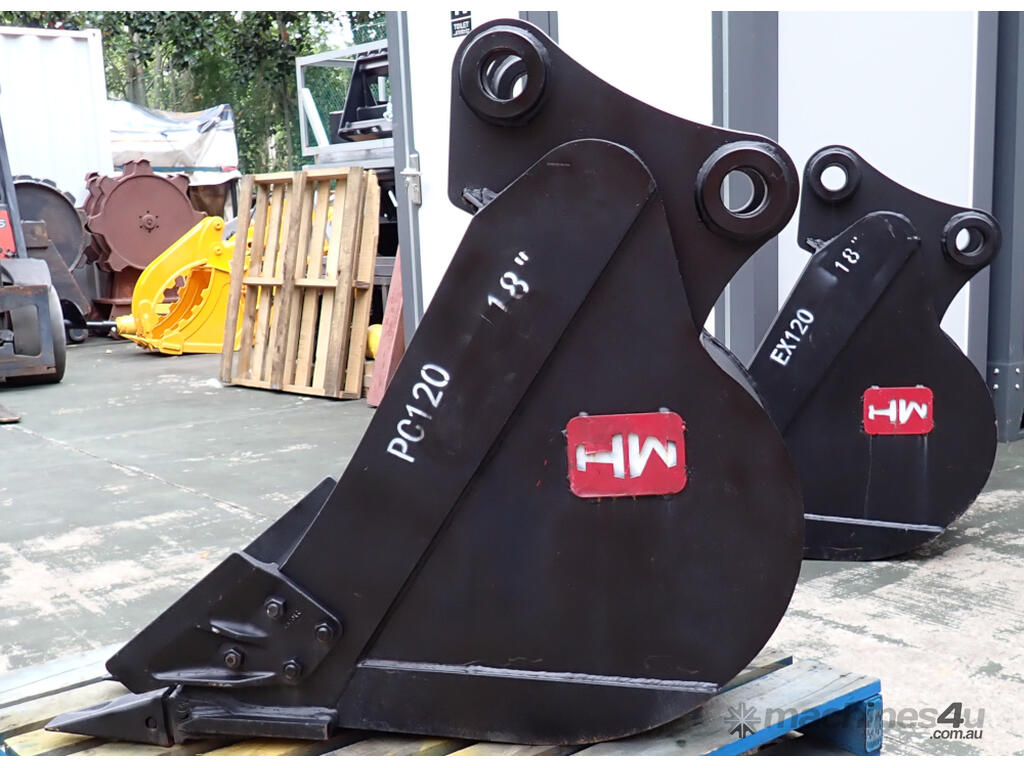

New 9-20 ton (65mm pin) 450mm Heavy Duty Excavator Trenching Bucket

New Hongwing Heavy Industry 450mm sturdy Excavator Trenching Bucket suit 9-20 Ton machine.

* Made with Hardox high grade hard wearing steel.
* It has a deep profile for high capacity.

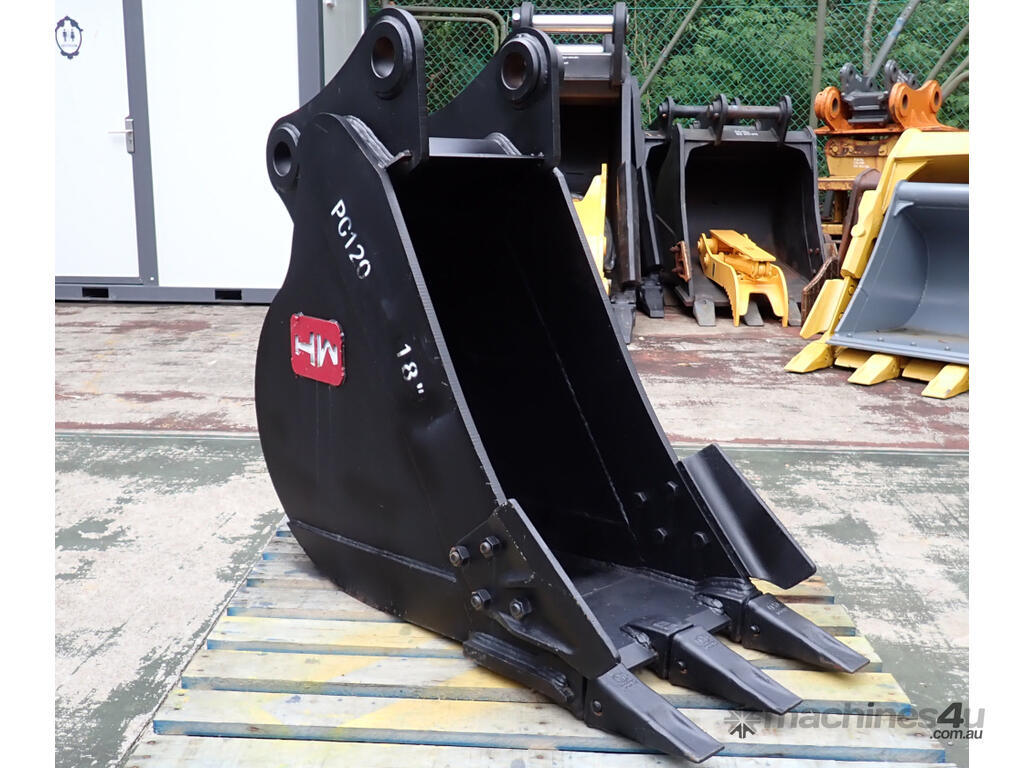

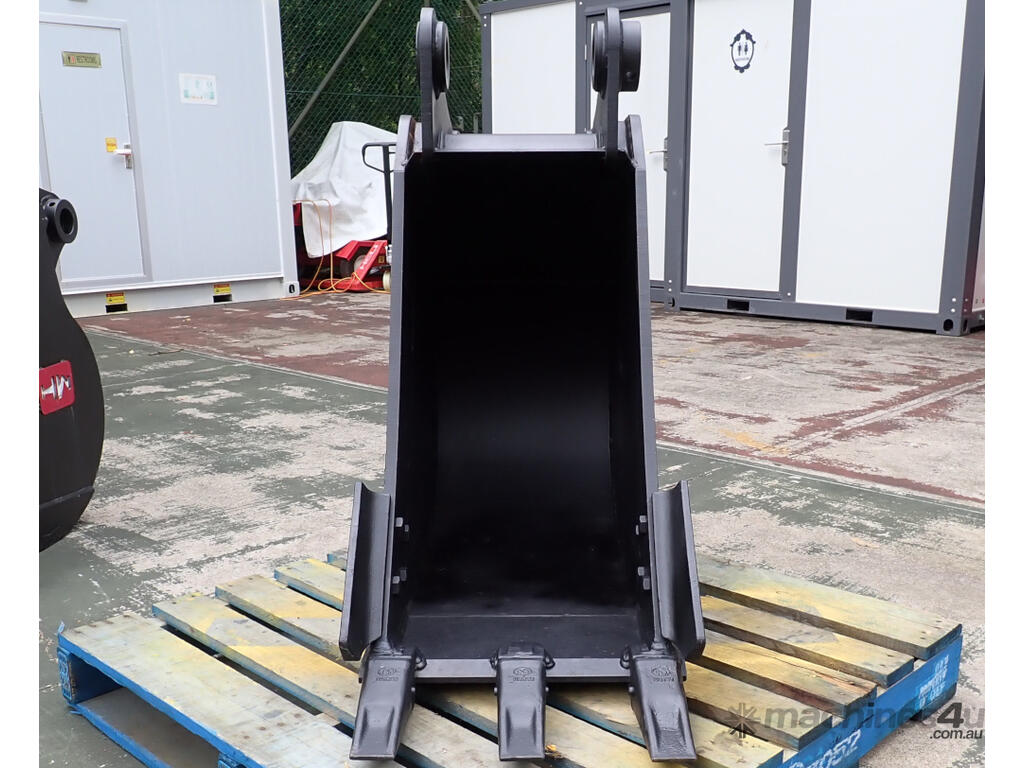

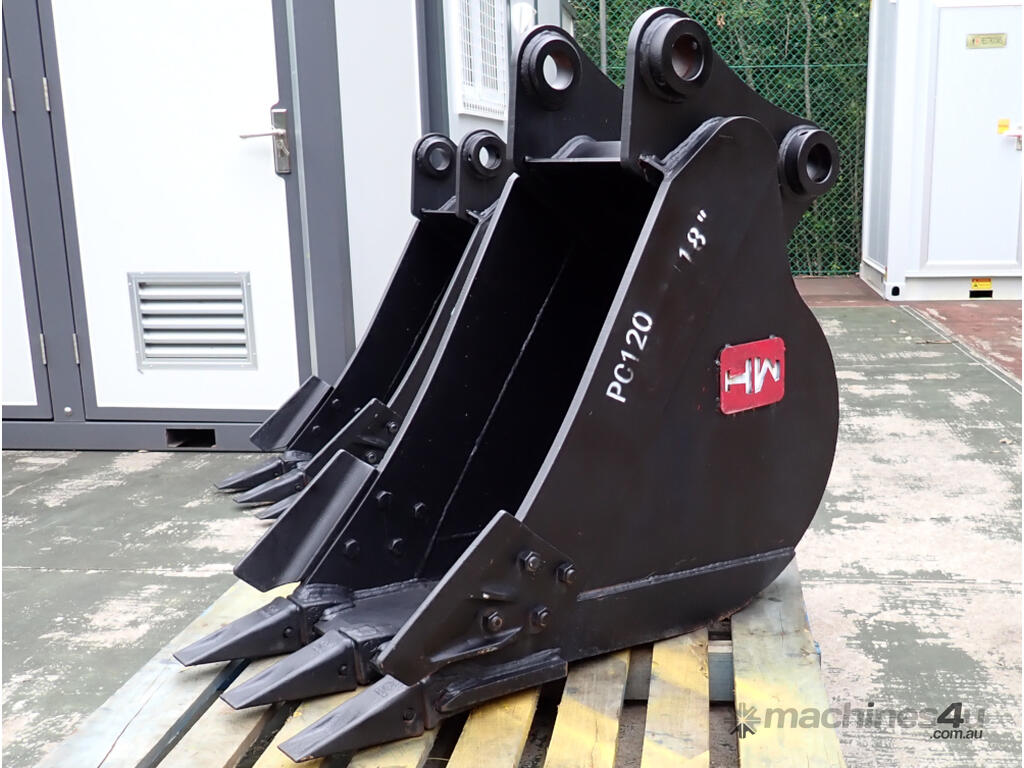

* It has removable bolt-on Side Cutters.
* The front cutting edge is 25mm thick!
* There is extra wear plating on the bottom of the sides and there are extra wear strips welded underneath for durability (see pic# 10).


*** Current Headstock configuration:
* Pins: 65mm
* Pin Center to Pin Center (CtoC): 374mm
* Between the Ears (BTE): 260mm Between the inside Ear Bosses (which can be shaved back up to 299mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
*
* Should fit: Case 9013 / CX130 / CX135 / CX135SR, Kobelco K905 / SK120 / SK130 / SK130LC / SK135 / SK135SR, Link-Belt 130LX / 135SA / 2650 QUANTUM, Samsung SE130-3 / SE130LC-3 / SE130W / SE130W-3, Sumitomo SH100 / SH100-2 / SH100CT-2 / SH120 / SH120-2 / SH120CT-2 / SH135U-2 / SH135X-2 / SH145U / SH200LC-3LR, Terex TXC 140LC-1, Volvo EC130-3 / EC140 / EC140B / EC140C / EC140D / EC145D / EC210C LR / EC290C LR / ECR145C / EW130 / EW140C / MX135WS/LS / SE130W-3/LC-3.
*
* Maybe fit: Caterpillar 311 / 311C / 311D / 312 / 312B / 312C L / 312D / 313 / 314C LCR / 314D / 320D, Daewoo Solar 130LC-V / 130W-2 / 130W-3 / 130W-V / 140LC-V, Doosan DX140LC-3 / DX140W / DX140W-3 / DX300LC-3 SLR / S130LC-V / S140LC-V / S140W-V / S255SLR / S300SLR, Halla HE130W, Hitachi EX110-5 / EX120-2 / EX120-3 / EX120-4 / EX120-5 / EX135 / EX135UR, Hitachi Zaxis 135US, Hyundai R120 / R130LC / R130LC-3 / R130W / R140LC-7, JCB 805B / 814S / JS110 / JS130 / JZ140, John Deere 135C RTS, Kato HD 512, Sumitomo SH120-3 / SH125-3 / SH125X-3 / SH130-5 / SH135-3 / SH135X-3, Takeuchi TB 1140, Yuchai YC135-7 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Dimensions: 528mm Wide (at the side cutters), 1185mm Deep, 1080mm High.
Weight: 274kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
