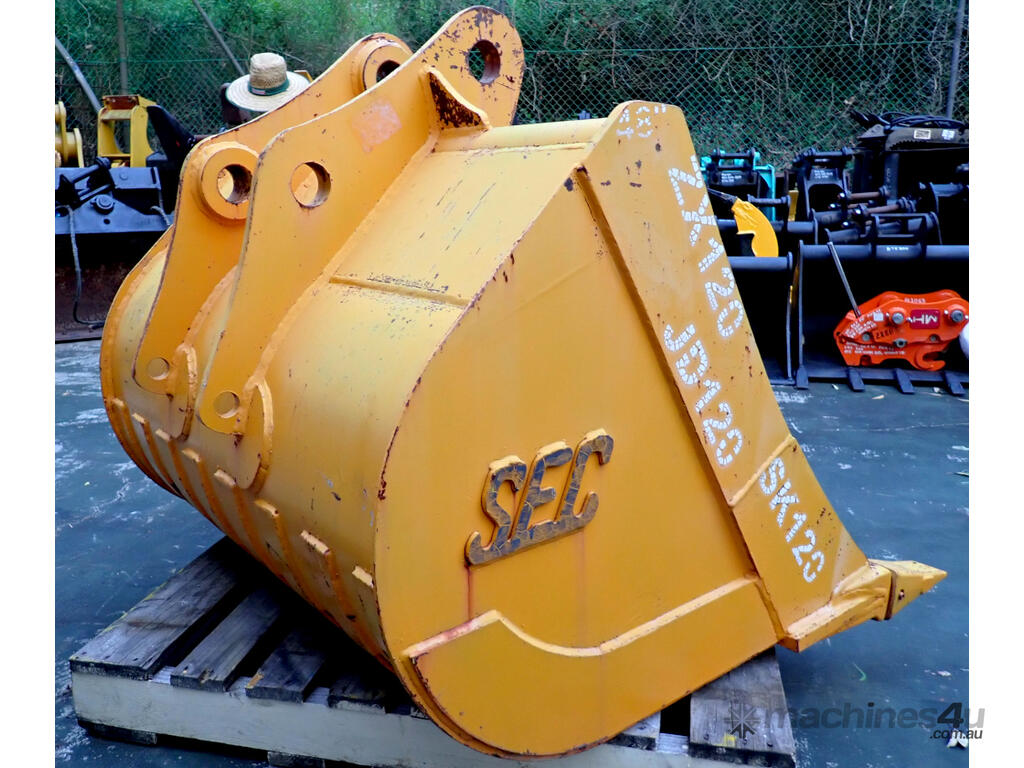

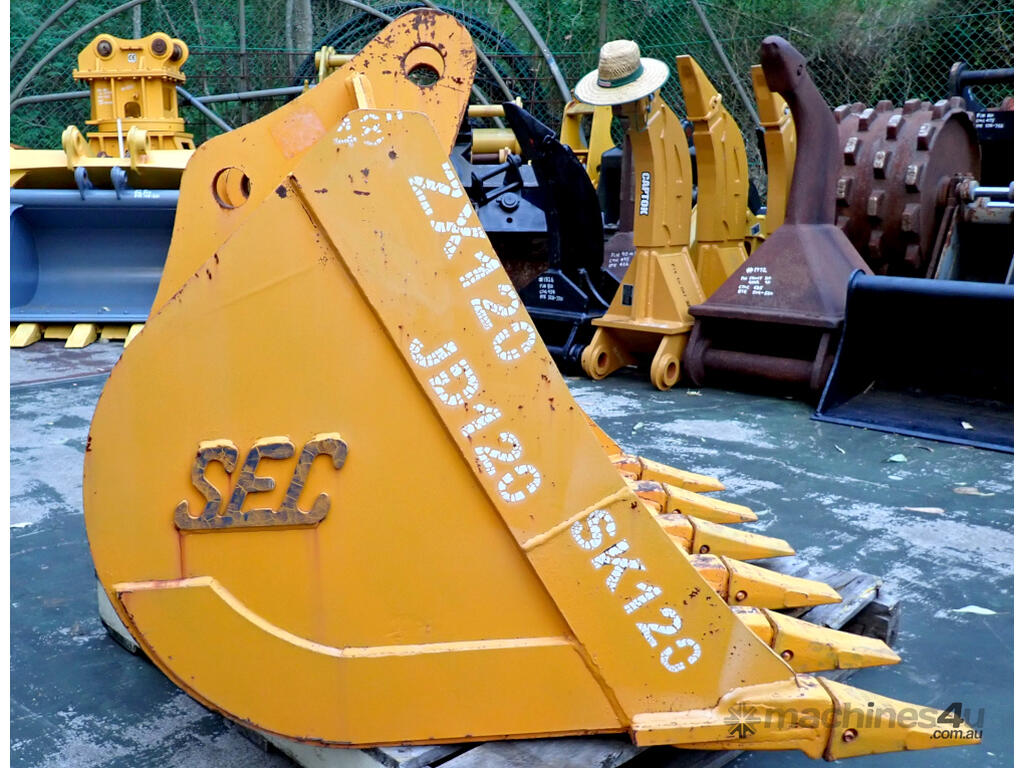

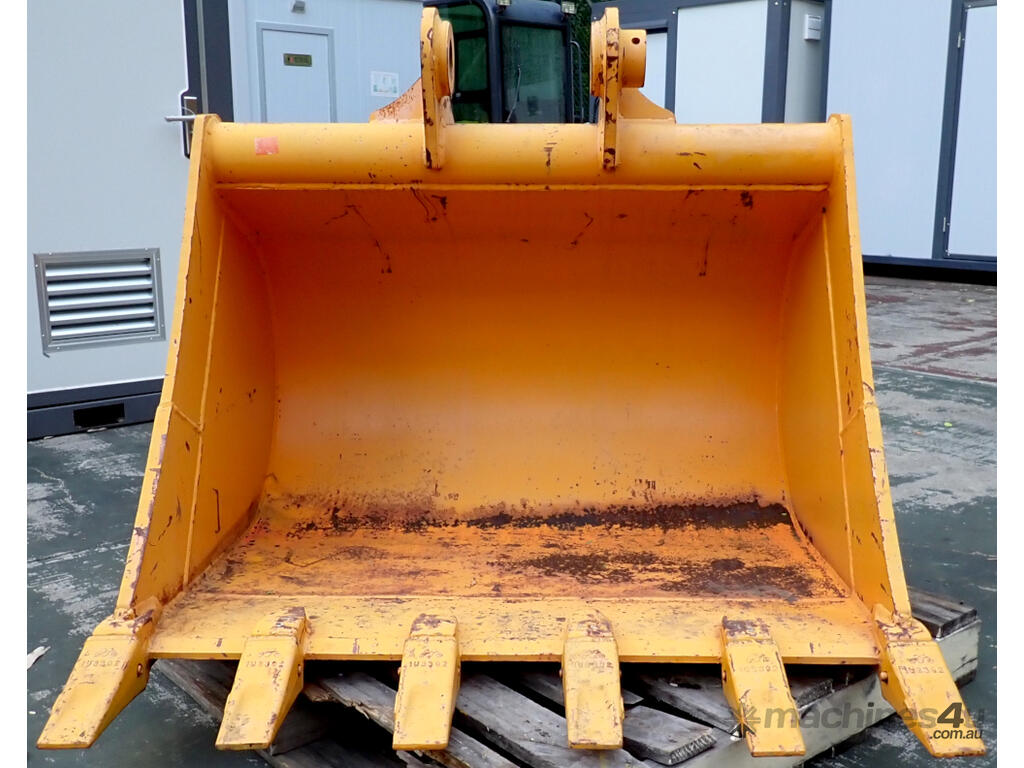

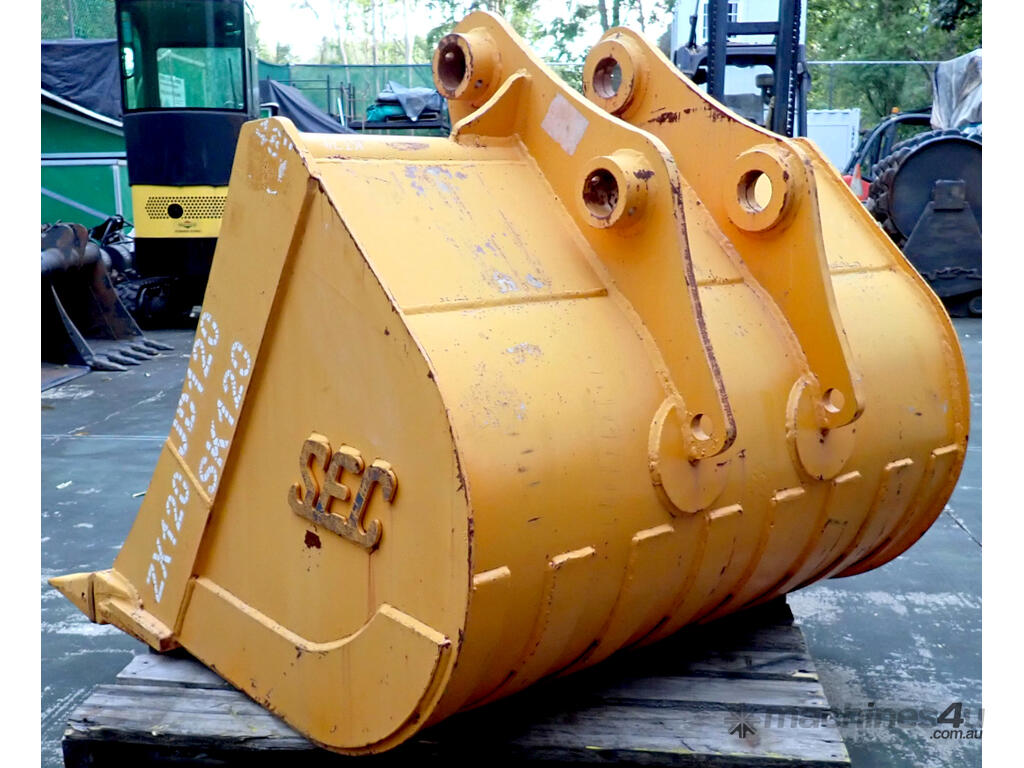

New 9-22 ton (65mm pin) 1200mm SEC Excavator GP Digging Bucket

New 1200mm SEC Excavator GP Digging Bucket suit 9-22 Ton machines.

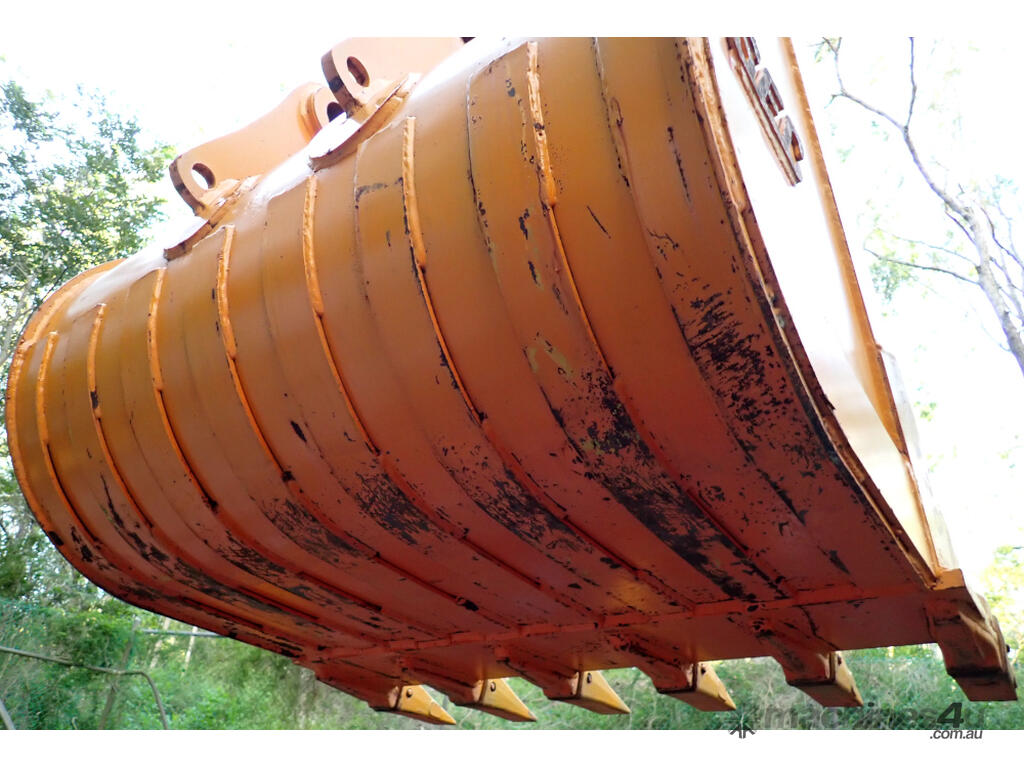

There are extra wear plates welded to the bottom of the sides and there are extra wear strips welded underneath for durability (see pic# 10).

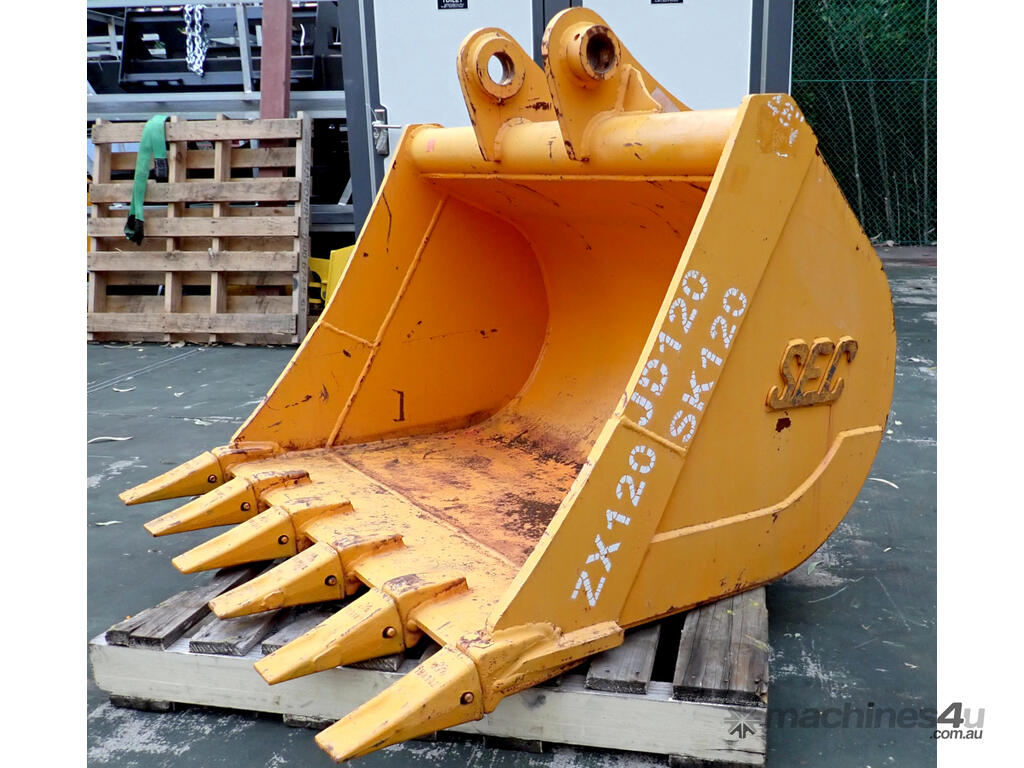

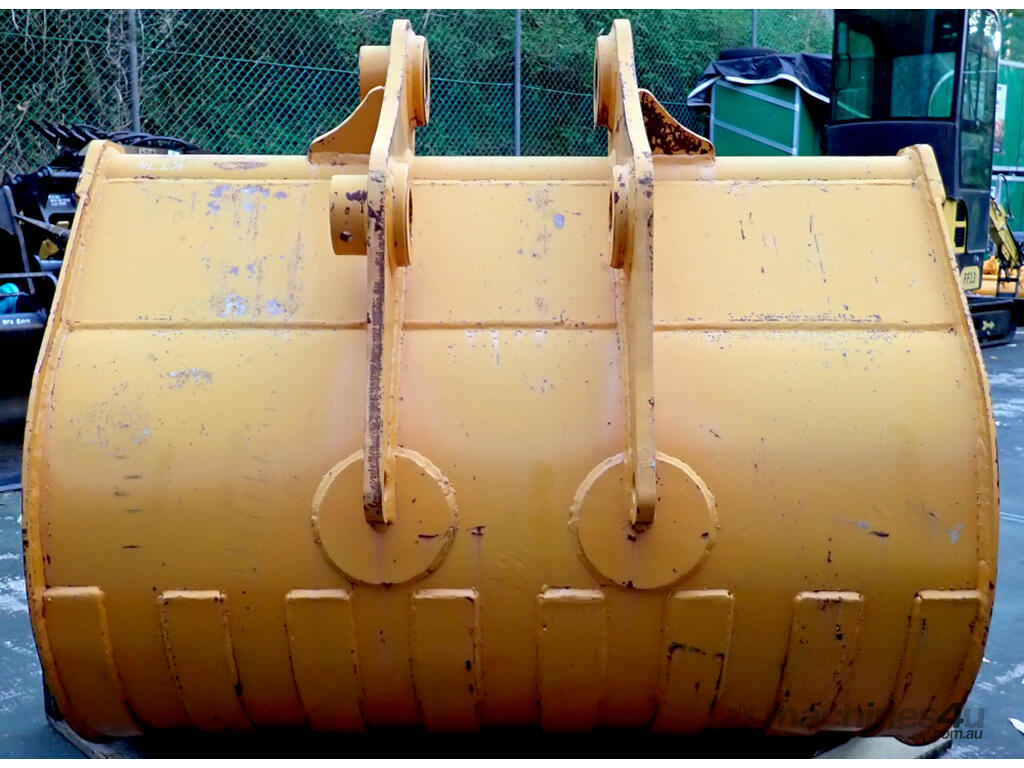

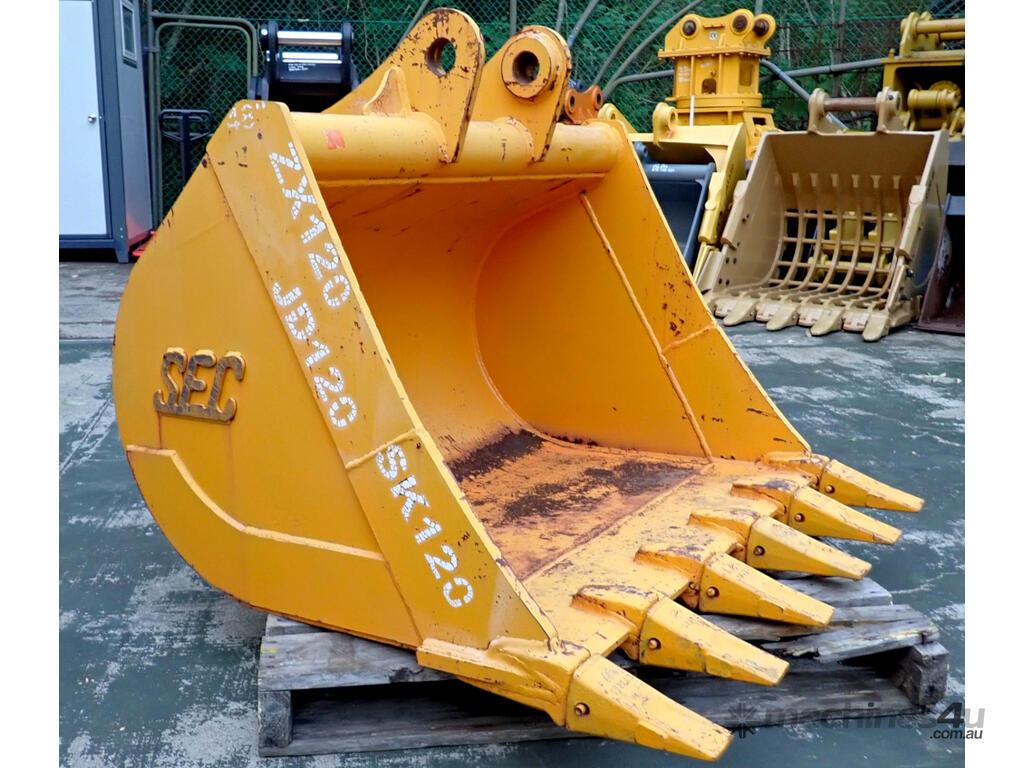

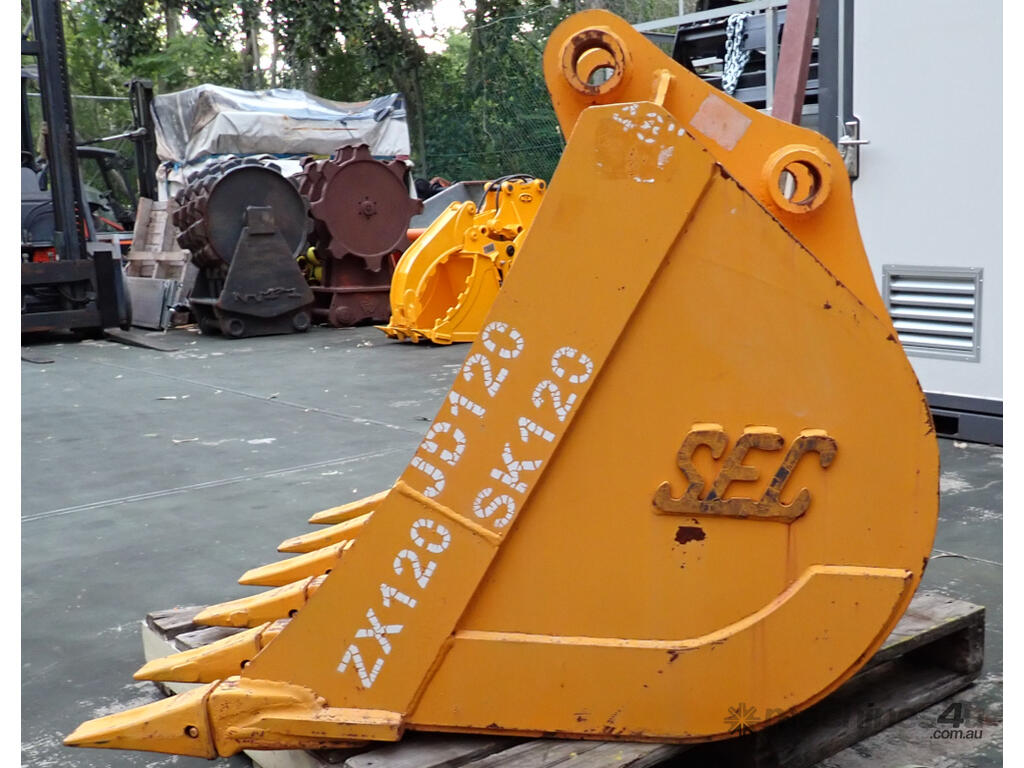

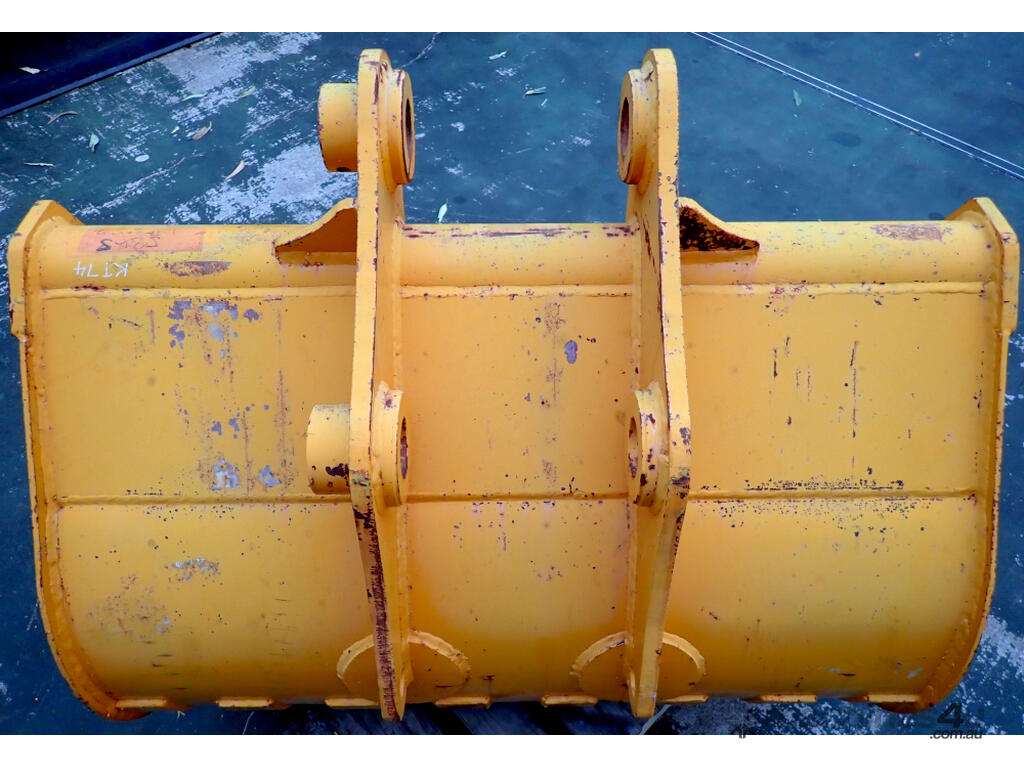

There are also 2 lifting eye hooks at the bottom of the Ear Plates (see pics# 5-8 & 10).

A well built & engineered bucket made by the Californian Company: SEC Bucket.


*** Current Headstock configuration:
* Pins: 65mm
* Pin Center to Pin Center (CtoC): 379mm
* Between the Ears (BTE): 255mm Between the inside Ear Bosses (which can be shaved back up to 304mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
*
* Should fit: Case 9013 / CX130 / CX135 / CX135SR, Daewoo Solar 130LC-V / 130W-2 / 130W-3 / 130W-V / 140LC-V, Doosan S130LC-V / S140LC-V / S140W-V / S255SLR / S300SLR, JCB JS110 / JS130 / JZ140, Kobelco K905 / SK120 / SK130 / SK130LC / SK135 / SK135SR, Link-Belt 130LX / 135SA / 2650 QUANTUM, Samsung SE130-3 / SE130LC-3 / SE130W-3, Sumitomo SH100 / SH100-2 / SH100CT-2 / SH120 / SH120-2 / SH120CT-2 / SH135U-2 / SH135X-2 / SH145U / SH200LC-3LR, Terex TXC 140LC-1, Volvo EC130-3 / EC140 / EC140B / EC140C / EC140D / EC145D / EC210C LR / EC240C LR / EC290C LR / ECR145C / EW130 / EW140C / MX135WS/LS / SE130W-3/LC-3.
*
* Maybe fit: Caterpillar 311 / 311C / 311D / 312 / 312B / 312C L / 312D / 313 / 314C LCR / 314D / 320D, Doosan DX140LC-3 / DX140W / DX140W-3 / DX300LC-3 SLR, Halla HE130W, Hitachi EX110-5 / EX120-2 / EX120-3 / EX120-4 / EX120-5 / EX135 / EX135UR, Hitachi Zaxis 135US, Hyundai R120 / R130LC / R130LC-3 / R130W / R140LC-7, JCB 805B / 814S, John Deere 135C RTS, Kato HD 512, Sumitomo SH120-3 / SH125-3 / SH125X-3 / SH130-5 / SH135-3 / SH135X-3, Takeuchi TB 1140, Yuchai YC135-7 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).


Dimensions: 1302mm Wide, 1300mm Deep, 1066mm High. Weight: 494kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
