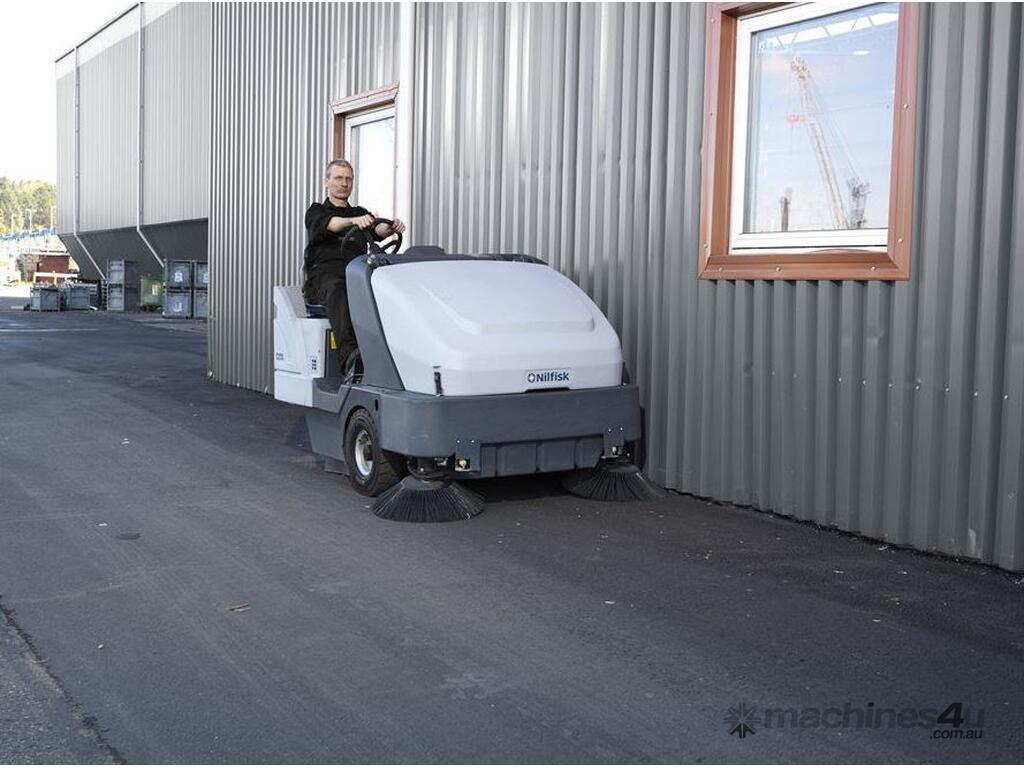

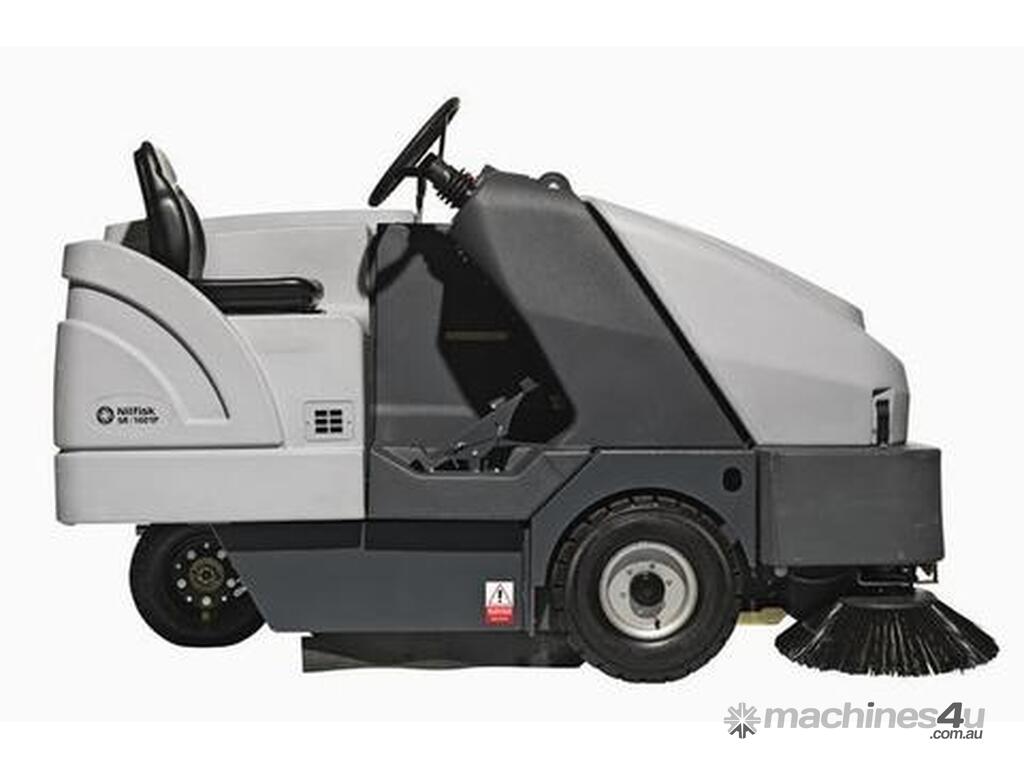

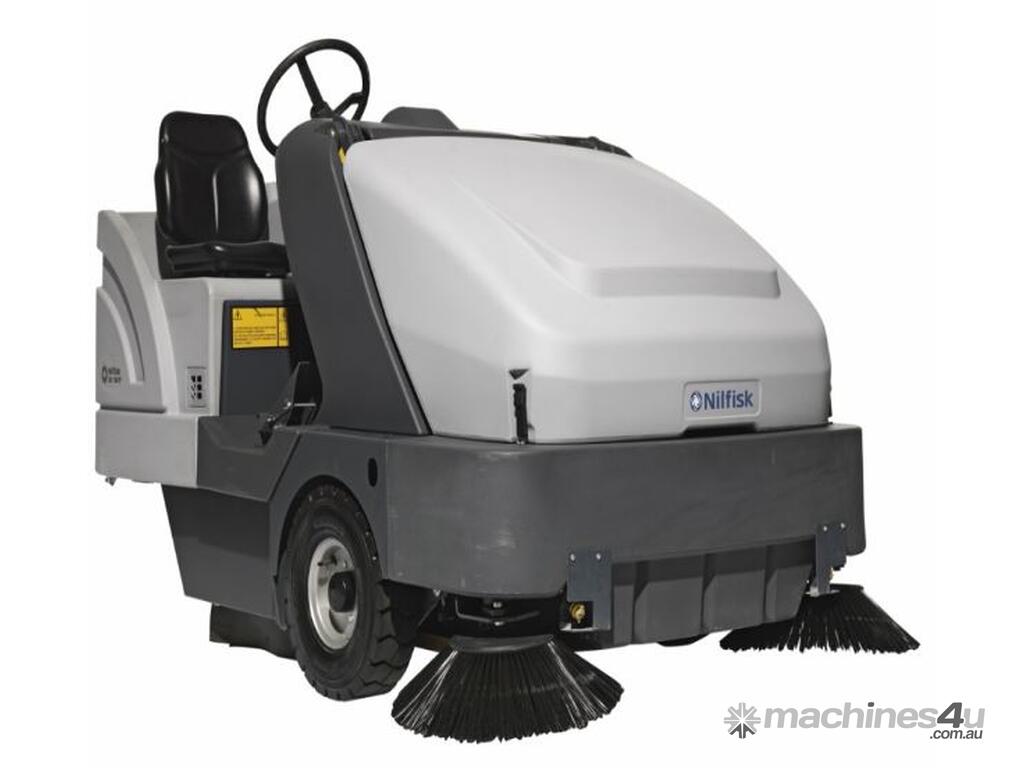

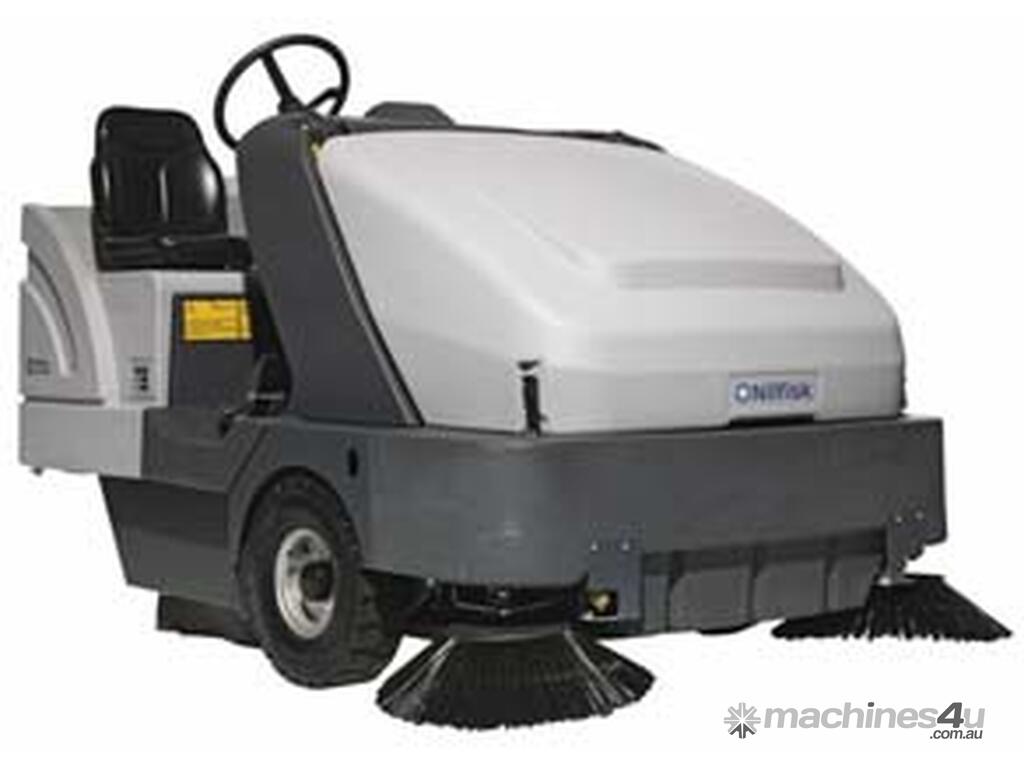

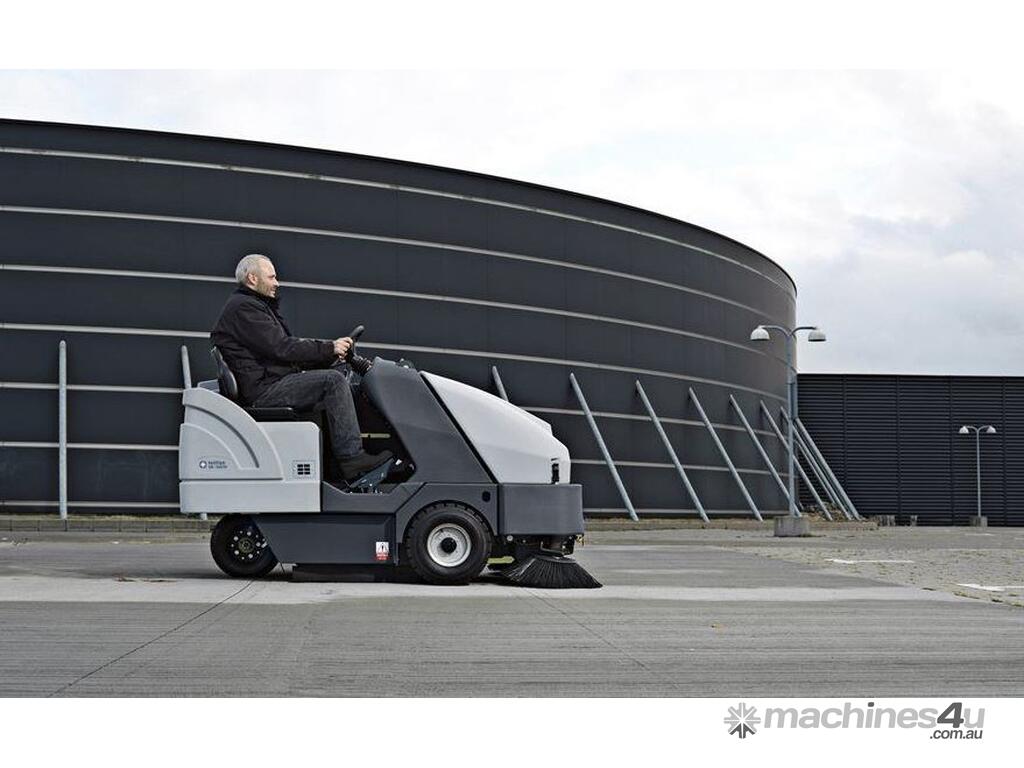

Nilfisk SR1601 Diesel Large Ride On Sweeper

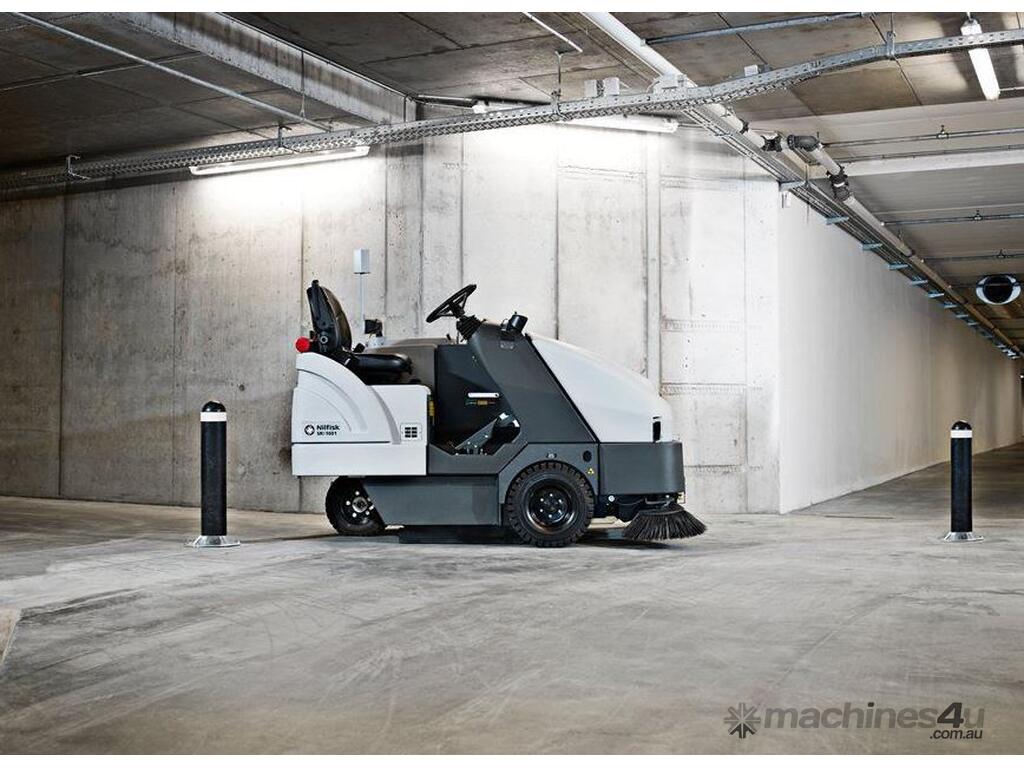

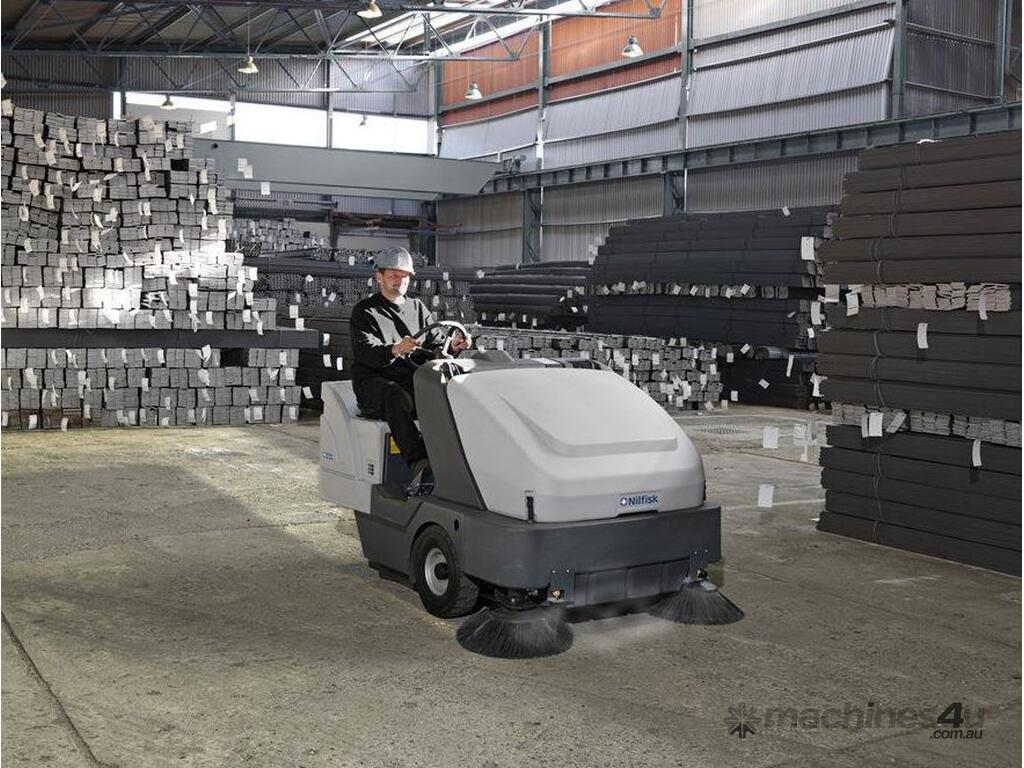

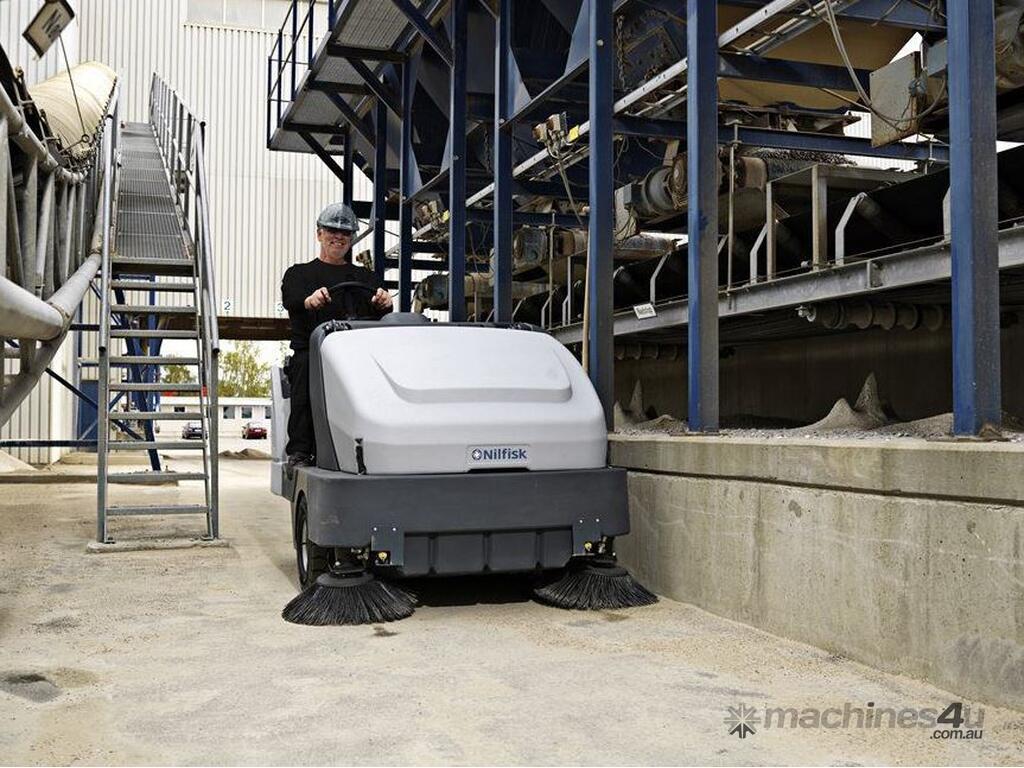

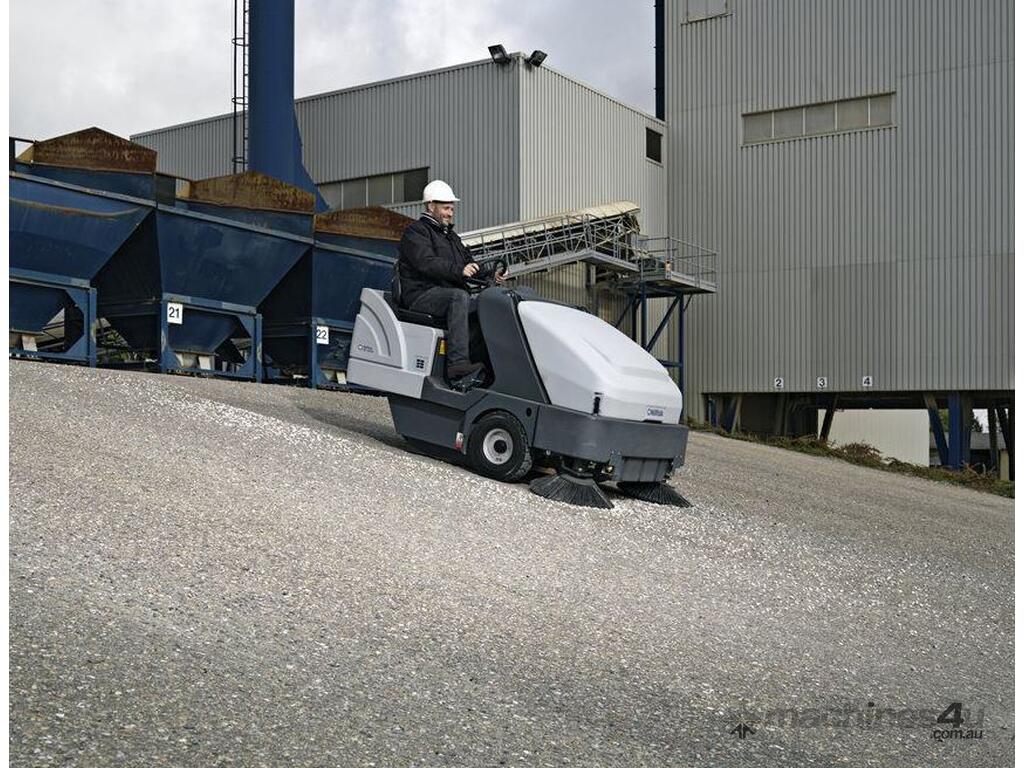

SR1601 is claimed to be the most technically advanced sweeper in its category, with innovations that increase cleaning productivity whilst simplifying operating and servicing requirements. Designed for industrial applications such as heavily soiled factories, construction sites, car parks etc

The dust control is outstanding and unbeatable in the industry. The DustGuardTM system further reduces airborne particles. Less dust means less cleaning elsewhere. The productivity is excellent, thanks to a huge 900 mm main broom, a 1600 mm wide sweeping path, and all around reliability for getting the job done quickly and efficiently.

Available in various Models. Please contact us for pricing and specifications

Excellent machine manoeuverability thanks to the power steering (STD)
Nilfisk DustGuard™ system completely controls airborne dust to reduce cleaning time
Free floating main broom and fine tuning knob adjustment increases productivity and performance

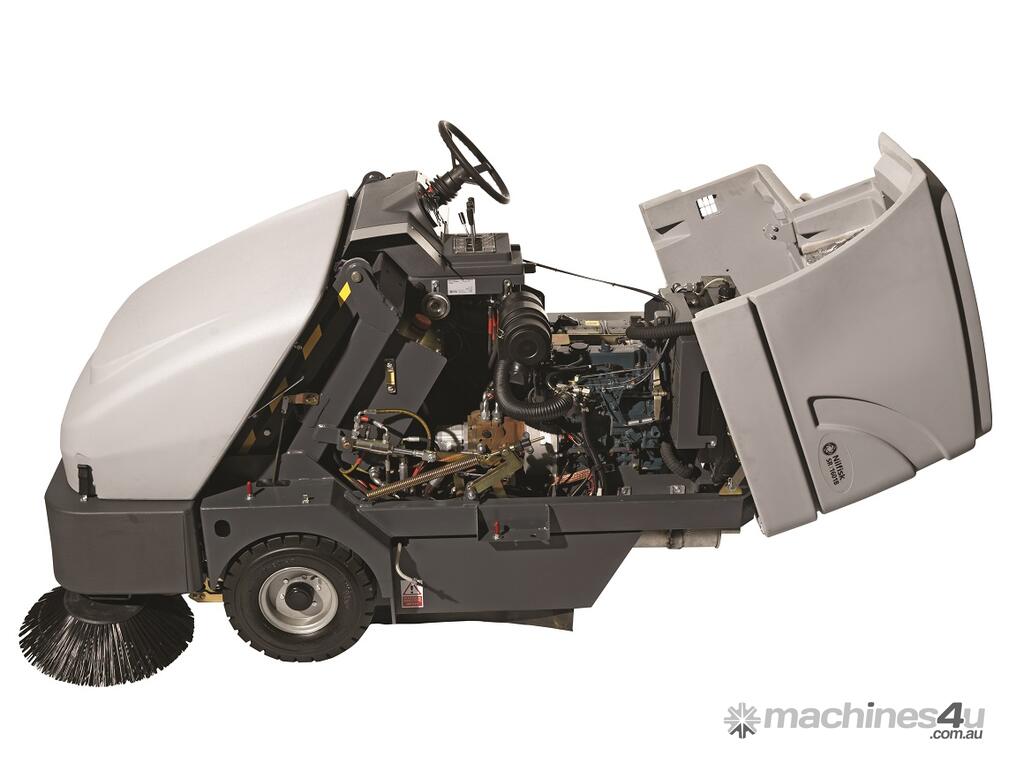

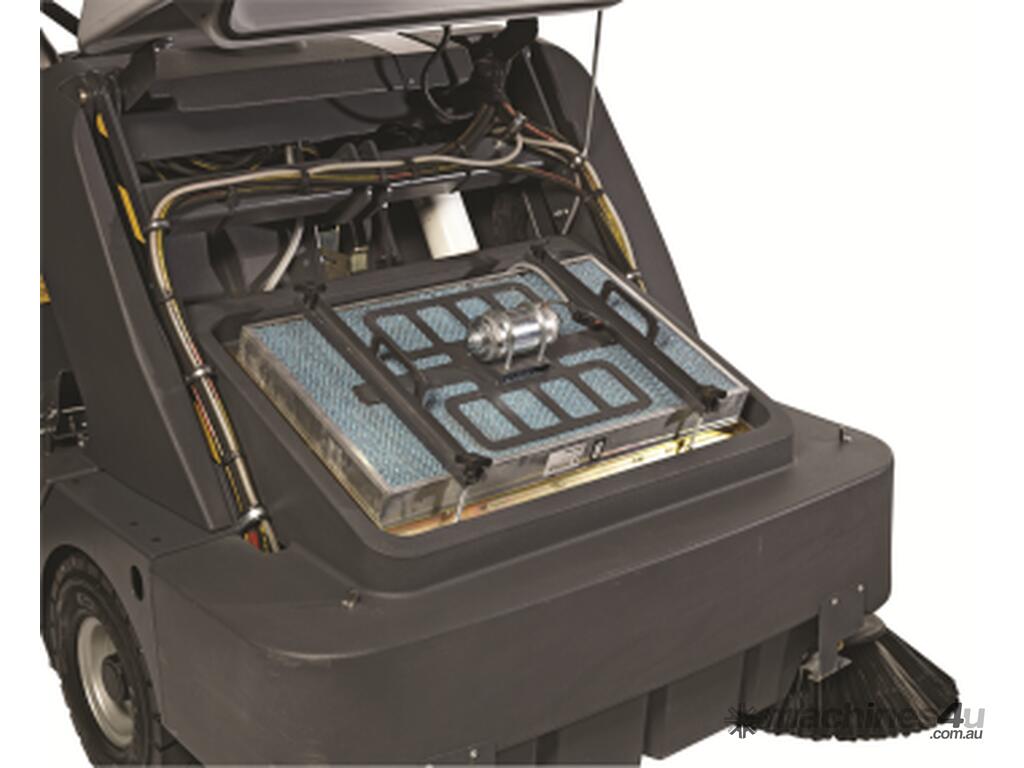

MaxAccess™ system provides fast and easy access to facilitate servicing
The strong yet lightweight rotomoulded polyethylene covers and bumpers over a steel chassis provide automobile industry quality protection
NoTools™ system speeds main broom and side broom changing cutting down on service time

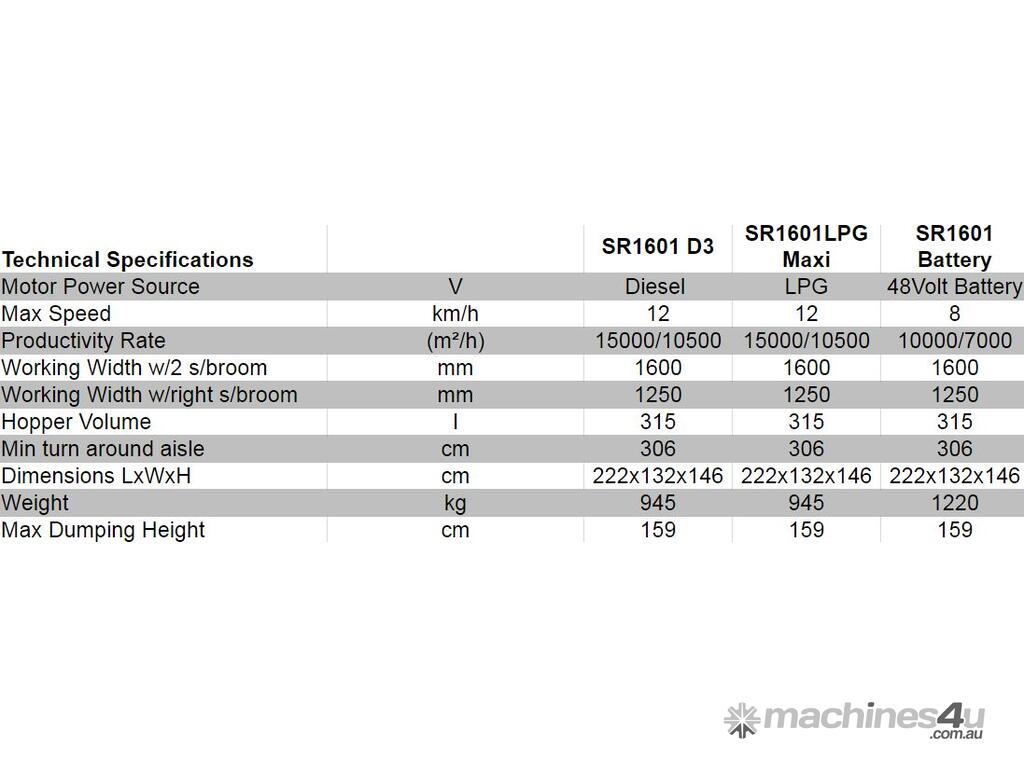

Diesel Specifications
Specifications for SR1601 D Maxi
Motor power source
Diesel, 3cyl. 16,3 kW/
Motorbrand
Kubota
Motor type
D1105
Max. speed (km/h)
12
Sound pressure level (dB(A))
88
Productivity 1 side broom theoretical/actual (m²/h)
10000/7000
Productivity 2 side brooms theoretical/actual (m²/h)
19200/13440
Working width with right side broom (mm)
1250
Working width with 2 side brooms (mm)
1600
Min. turn-around aisle width (cm)
306
Max. climbing rate (%)
25
Fuel tank (L)
35
Fuel consumption (L/h)
3.5
Hopper volume (L)
315
Max. dumping height (cm)
159
Max. dumping weight (kg)
363
Main filter area (m²)
10
Main broom speed (RPM)
540
Main broom (mm)
900x310
Side broom diameter (mm)
550
Length x width x height (mm)
2220x1320x1460
Battery compartment size (L x W x H) (mm)
-
Gross weight (gvw) (kg)
1405
Net weight (kg)
980
Operating weight (kg)
1070
Shipping weight (kg)
1020
