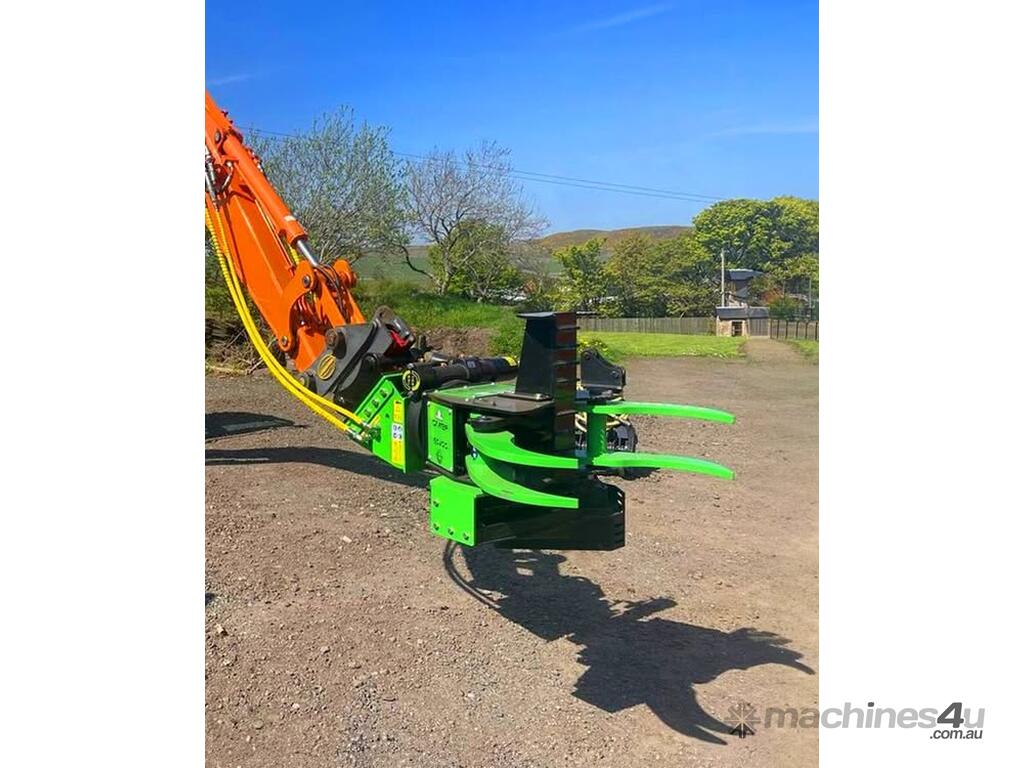

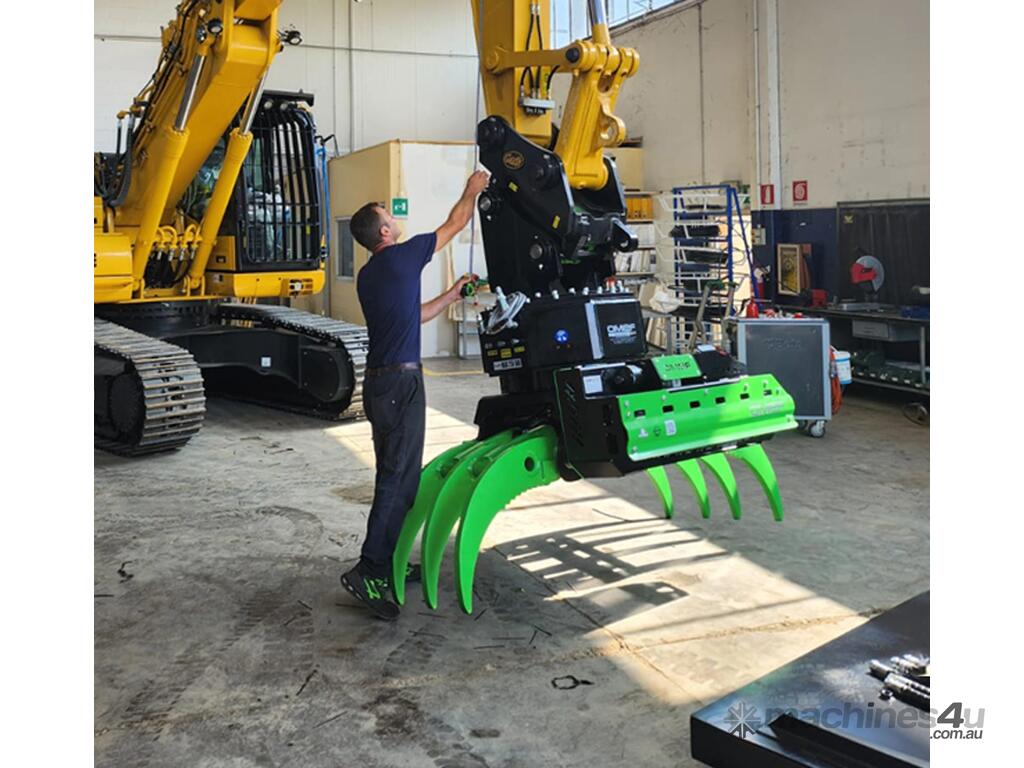

OMEF GS800 Grapple Saw for 22T+ Excavators

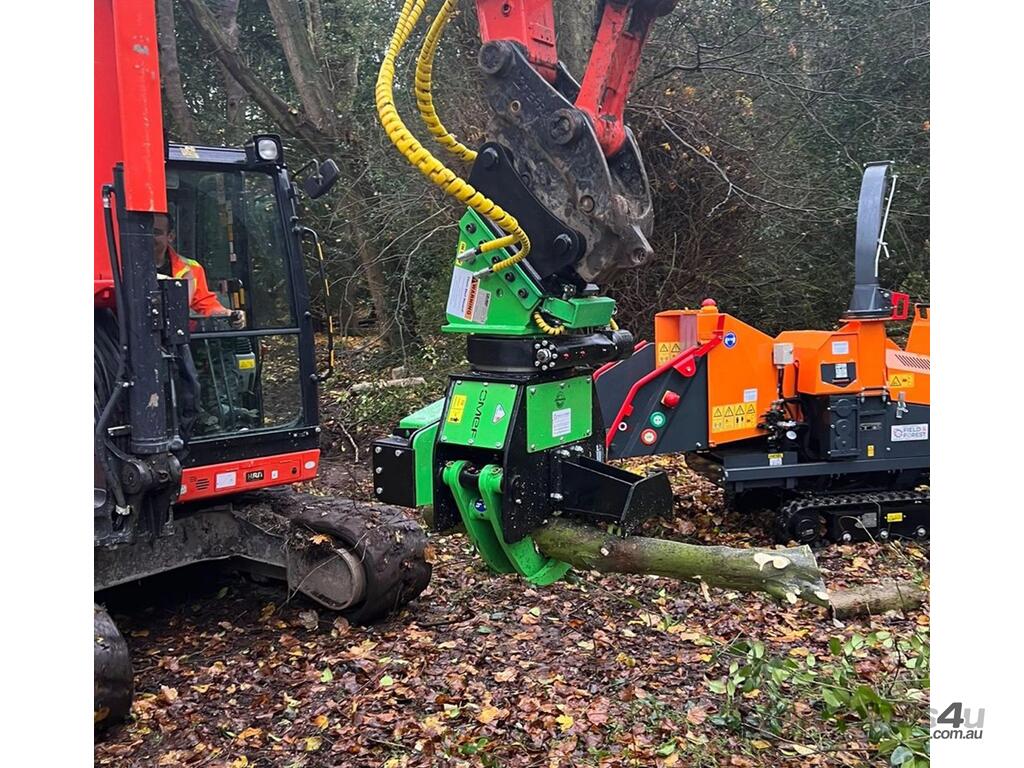

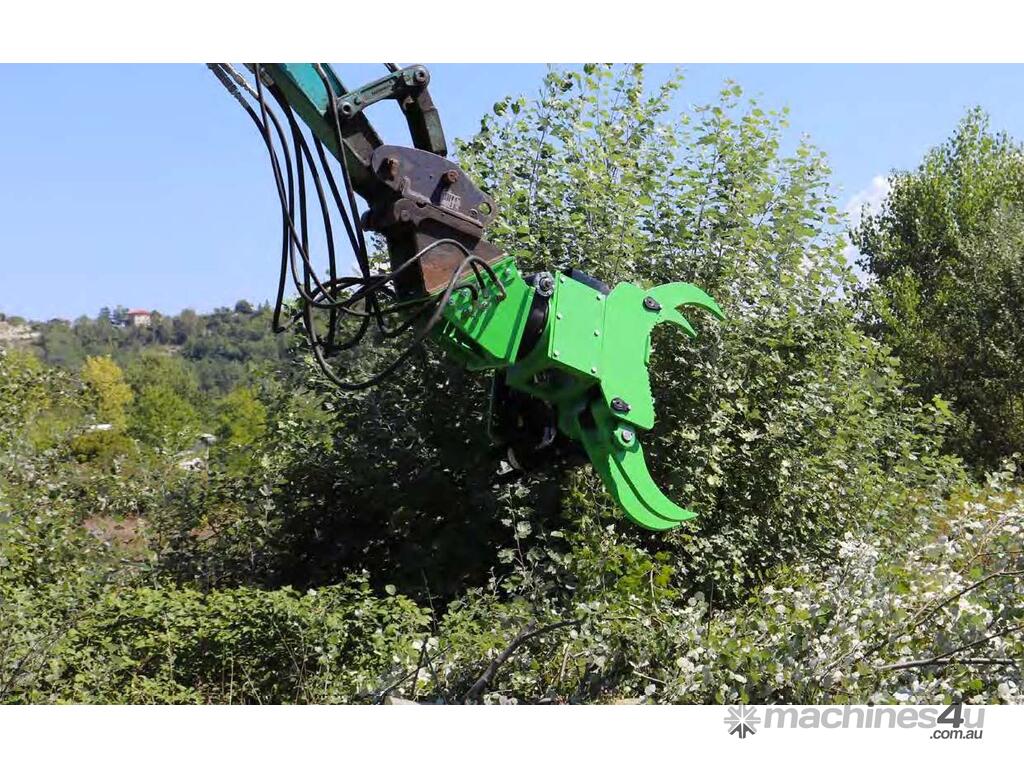

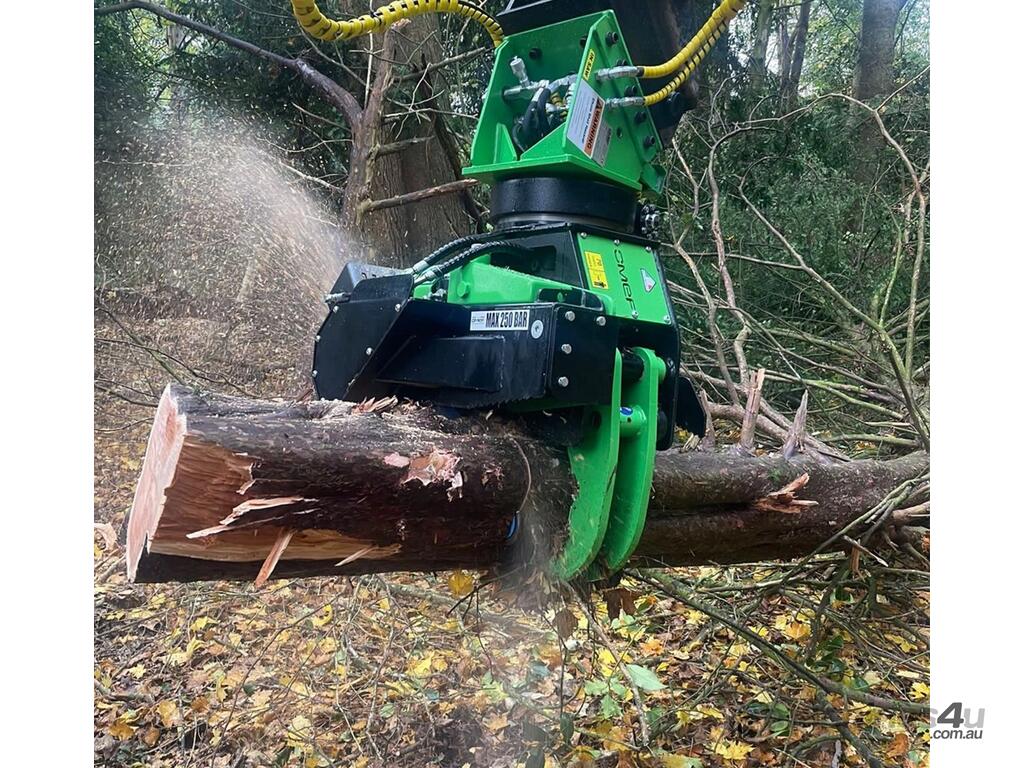

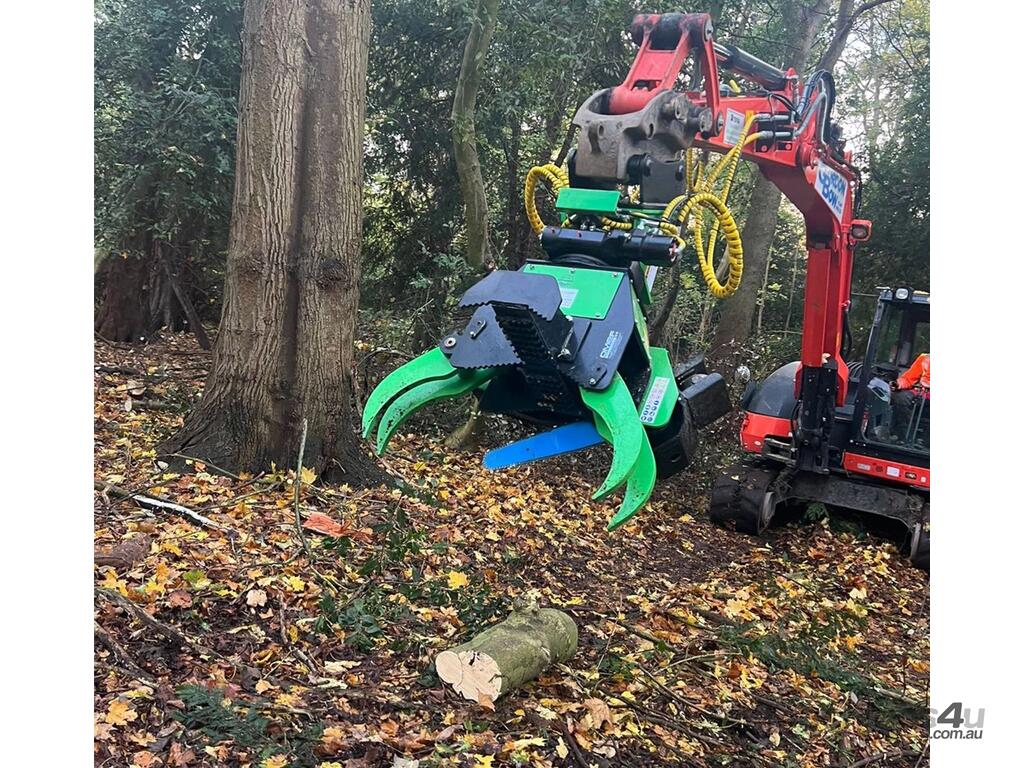

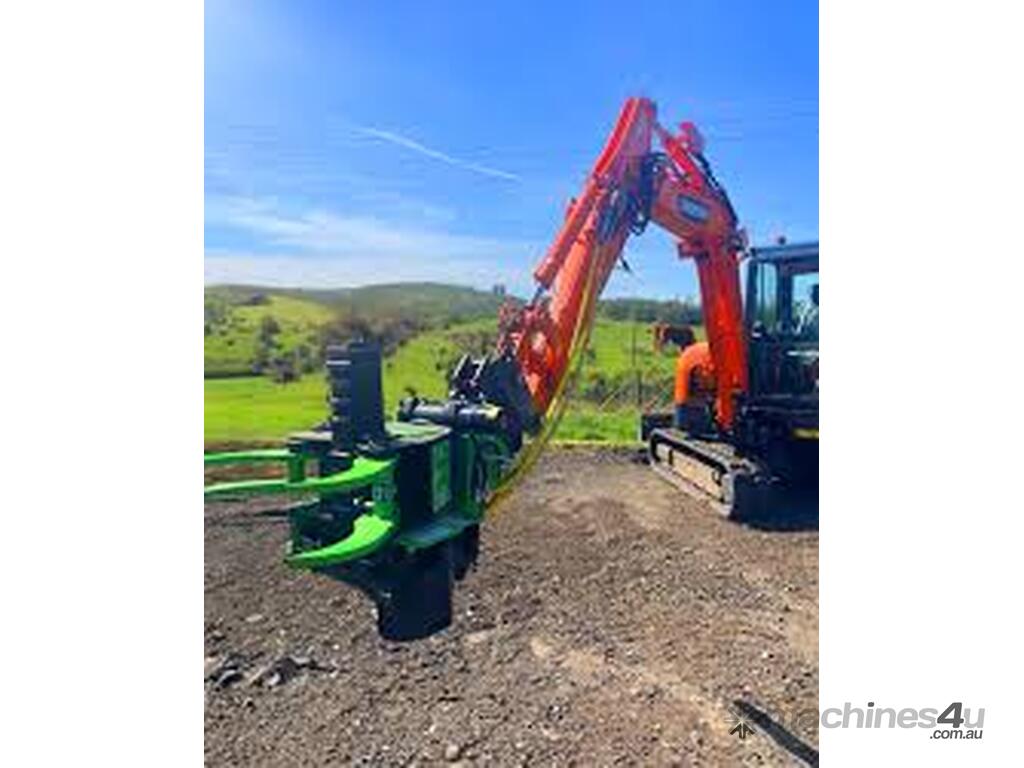

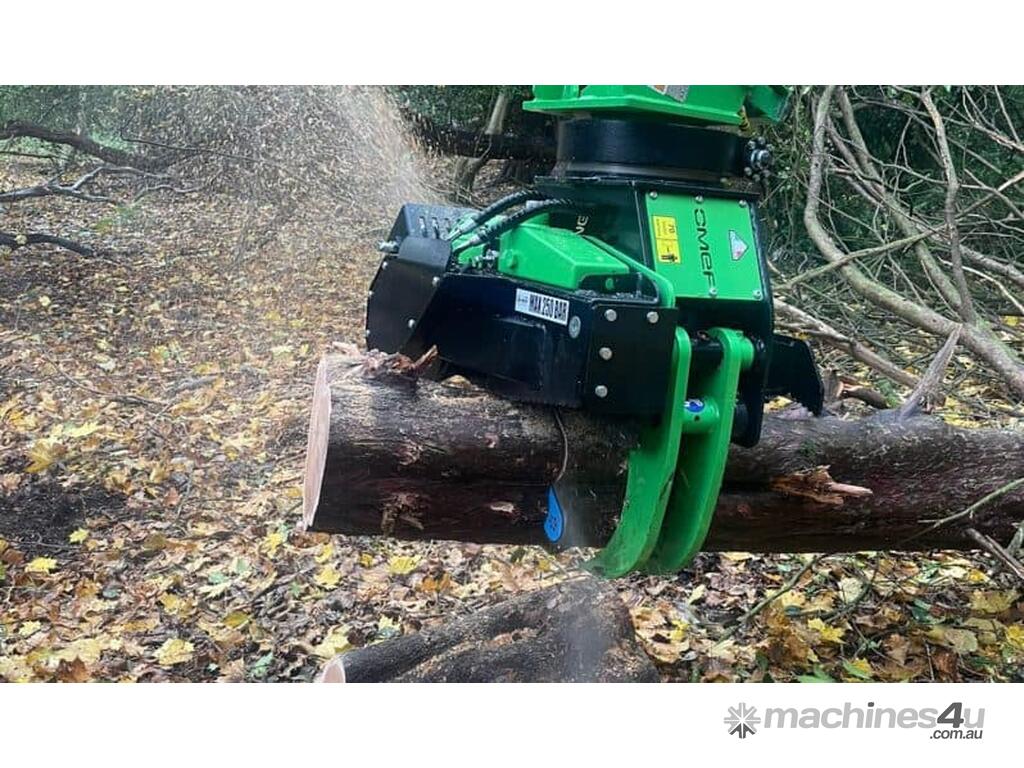

Designed to combine tree felling and handling into one attachment, the OMEF GS800 grapple saw acts as both a grapple for moving trees, and a cutter for sectioning logs into manageable pieces.

This is the largest grapple saw in the OMEF range, designed for heavy duty forestry operations.

Features:
- Hydraulic Grapple
- 360 degree rotation
- Retractable chainsaw
- 2 "two way flow" hydraulic circuits
- One 6-way solenoid valve 3/4" to switch between grapple and saw bar action
- Grab piston with 33 tons of clamping force
- Safety lock valve on grapple hydraulic cylinder
- Inlet relief valve on saw blade
- Self braking motor with lock valve on rotation unit
- Automatic saw bar lubrication
- Manual mechanical chain tensioner
- Body made from wear-resistant Hardox steel
- Includes hitch, hoses and couplings

Specs:
- Weight: 1650kg (standard equipment)
- Maximum Trunk Hold: 2200mm
- Maximum Workload: 3000kg
- Maximum Cut Diameter: 800mm
- Saw Blade Length: 1050mm
- Saw Chain: 3/4"
- Saw Motor: 30cc Piston Motor
- Oil Flow Required: 160L/min
- Oil Pressure Required: 250 Bar (3625 PSI)

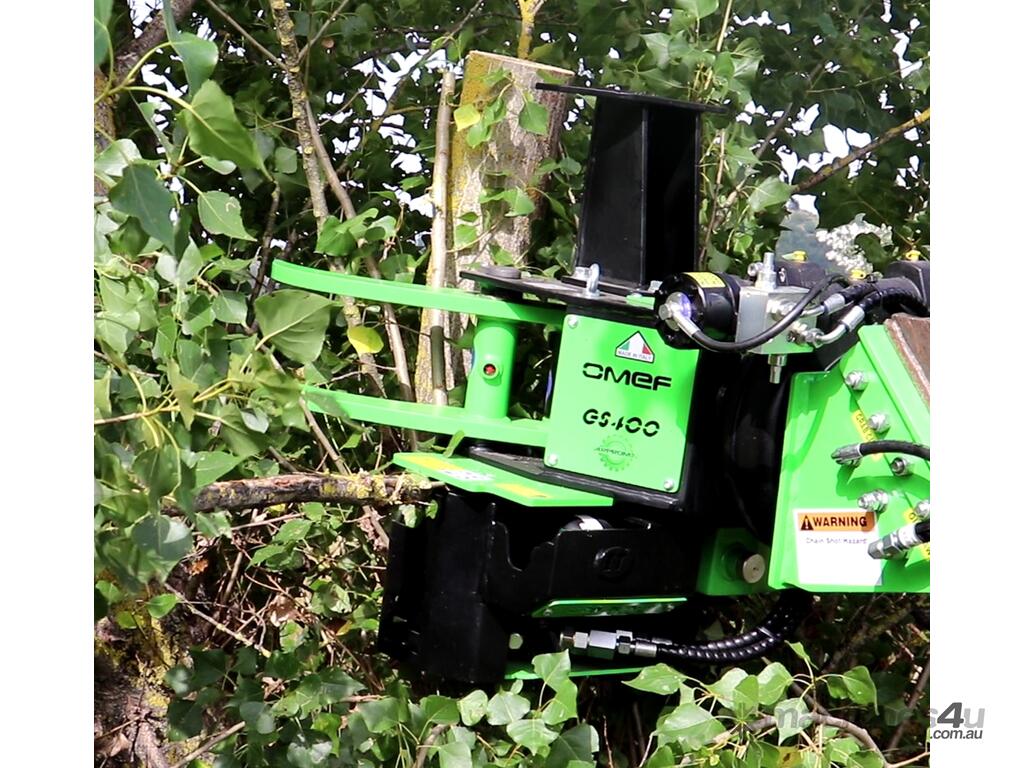

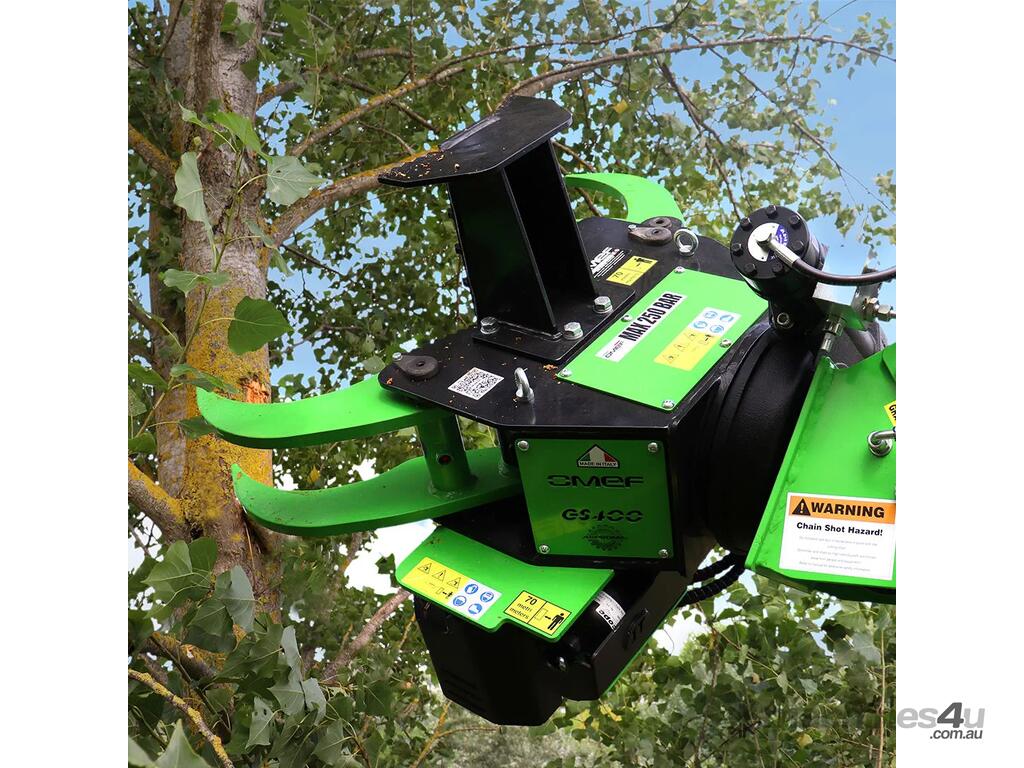

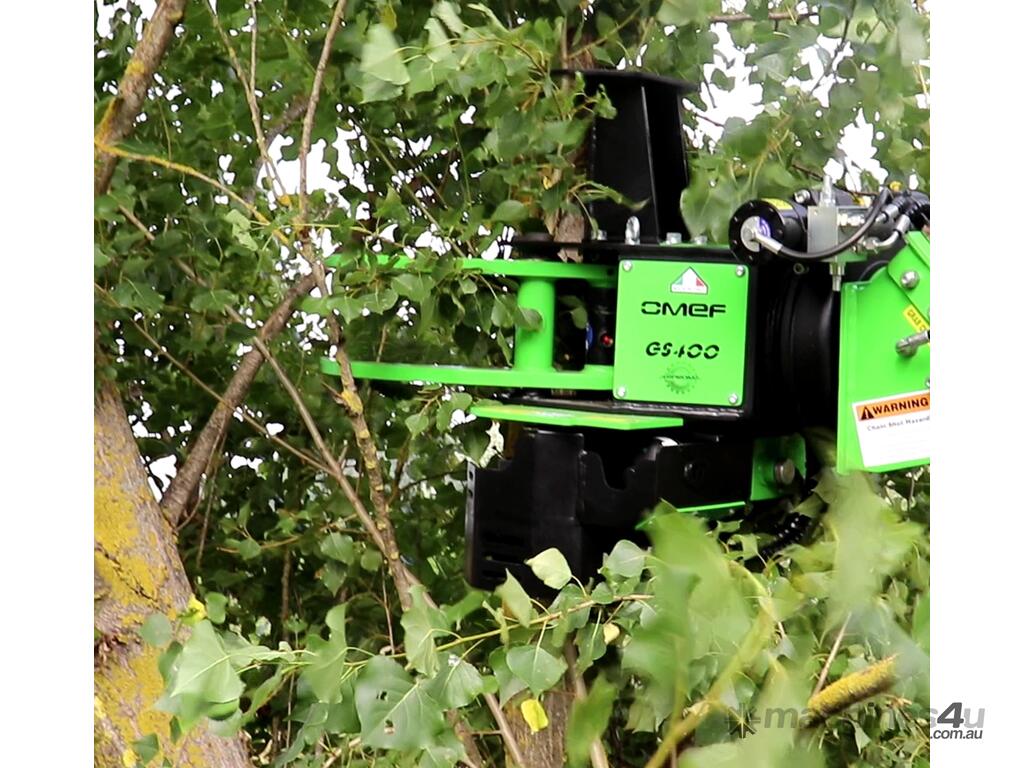

There is a smaller model also available to suit 8T+ excavators (OMEF GS400)

Made custom to order in Italy by OMEF S.R.L.
Delivery Australia wide.
