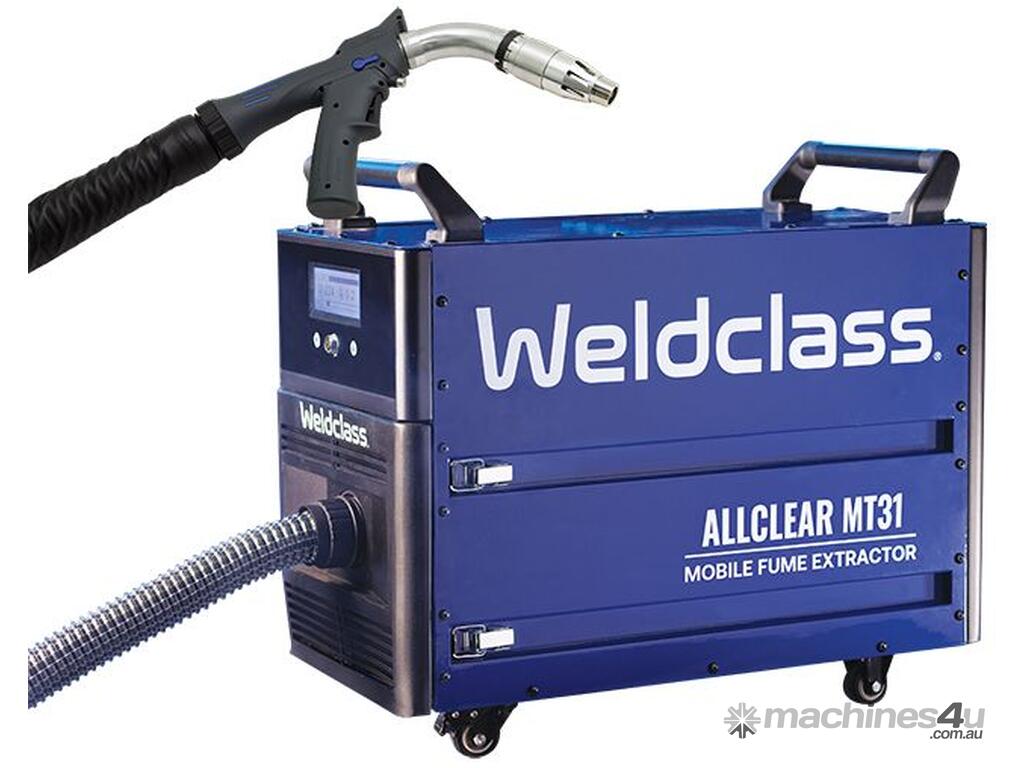

On-Torch Welding Fume Extractor ALLCLEAR MT31

The ALLCLEAR® MT31 is a portable and versatile welding fume extractor, designed for On-Torch and portable use, in light-to-medium industrial applications. Incorporates a large cleanable / reusable filter for extended service life and reduced operating cost, and auto on/off function for syncing with torch trigger. Operates on 230V 10A single-phase power. Available as a stand-alone unit, or as a plug-and-play package with ALLCLEAR® FT36E 4m MIG torch.
For higher volume use and heavy industrial applications, consider the ALLCLEAR® MT84.

AT A GLANCE:

Fume collection that follows your weld
7 Year Warranty Offer*
Operates on ~230V 10A single phase power
Designed for light-to-medium industrial applications (for high volume use, consider ALLCLEAR MT84 unit)
Auto On-Off, syncs with MIG torch trigger
Cleanable filter
Compact, portable, lightweight

APPLICATIONS

Gas MIG welding
Gasless and Flux-Core welding
NOT suitable for extraction of fumes that contain; aluminium dust, oil mist, gases, or water vapour***

FEATURES

Auto On-Off, syncs with MIG torch trigger via current sensor
Auto on/off is plug & play when using Weldclass FT36E MIG torch, other brand fume torches require earth clip (included)
Cleanable filter for extended service life & reduced operating cost
Filters must be removed for cleaning, using appropriate PPE
Spark deflector shields filter from coarse/hot particles, and reduces fire risk**
Carbon filter removes odours from filtered air
Dust collection tray allows safe removal of dust ejected from filter cleaning
PFTE-coated filter for ease of cleaning
Variable speed (suction power) control
Filter fullness indicator

SPECIFICATIONS

Power supply: Single phase ~230V 10A
Dimensions (mm): H600 x W280 x L475
Weight: 24kg
Motor size: 1.2kw
Outlets: Single outlet/torch connection
Max air flow: 200m³ / hour
Max sunction pressure: 21,000 pa
Filter type: E12 99.9% 0.3?m PTFE 99.9% 0.3?m, cylindrical cartridge
Filter surface area: 6m²
Filter cleaning: Remove-to-clean filter, with dust collection tray
Noise level: 70 dBA
Max suction hose length: 5m

MATCH WITH WELDCLASS FT36E MIG TORCH

Integrated fume extraction, ready to plug and play
Torch trigger syncs with extractor for auto on/off function
Built-in light (in torch handle) illuminates the weld area prior to welding
Removable, fast changeover pistol grip
Uses common BZL 36 consumable parts
320A capacity

OPTIONAL ACCESSORES & COMMON SPARE PARTS

ALLCLEAR FT36E 4m Fume-Extraction MIG Torch (WC-06721)
Main Cartridge Filter E12 PTFE (WC-06728)

*Standard warranty 1 year, with extended 7 year warranty available if registered online after purchase, click here for details.
**Regular maintenance must be carried out, and all warnings and instructions provided in user manual and on the unit must be followed, for ongoing safe use and prevention of fire hazards. Poor maintenance and disregarding of instructions and warnings may result in fire and other hazards that can cause damage, injury, and death.
***Fume extractors should not be used where aluminium dust (including grinding dust) is present, as this can be explosive when airborne. While aluminium welding fumes are safe to extract, most on-torch aluminium welding applications involve a high risk of dust presence. Oil mist and gases can also cause explosion. Water vapour will damage the filter.
