HAFCO WOODMASTER P-200H Planer Jointer 200mm Width Capacity 13mm Rebate Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W629

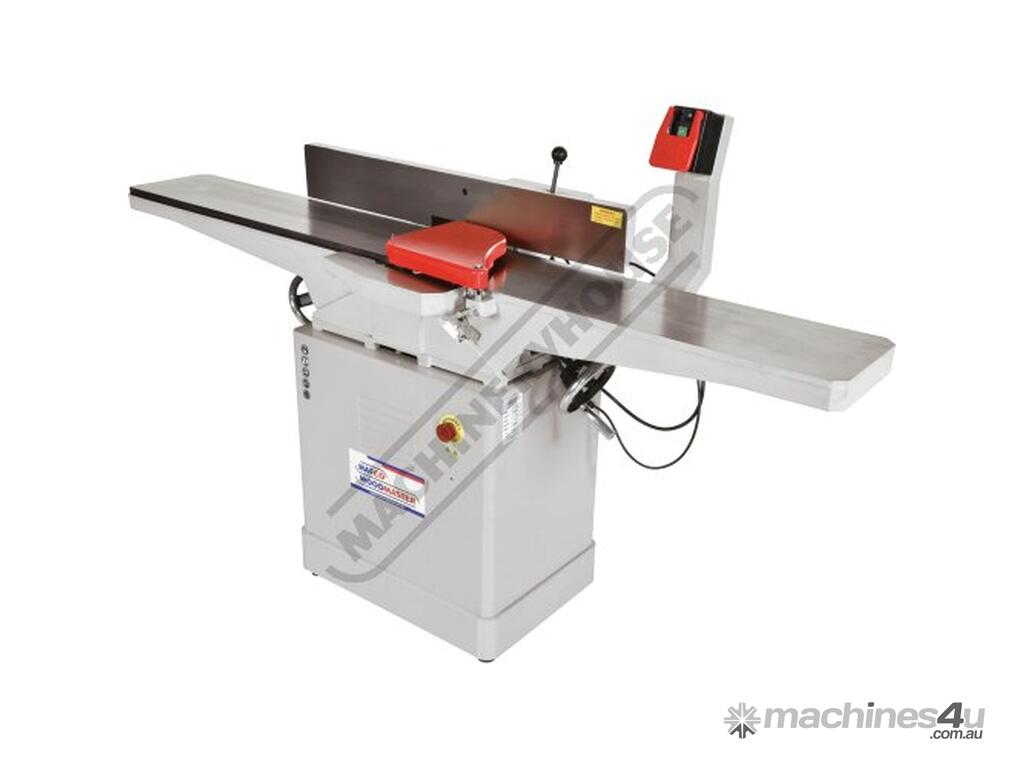

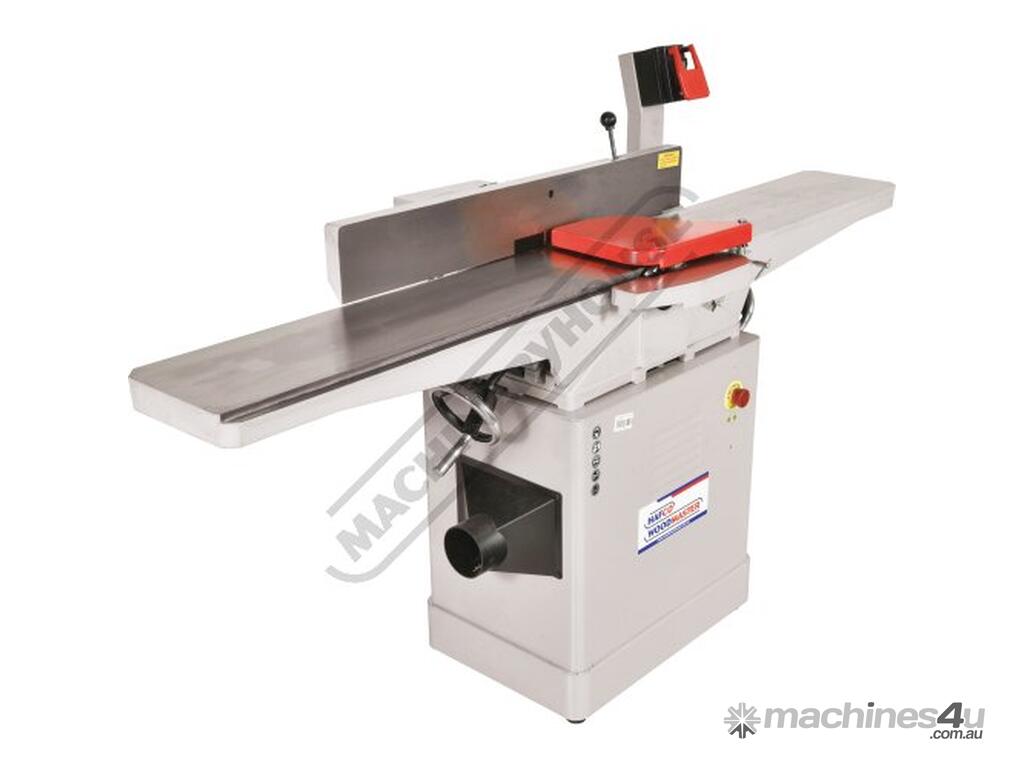

The P-200H Industrial Planer is rugged in construction and weighing in at 208kg. It has independently fully adjustable cast iron tables, 4 x HSS cutter blades rotating at 5500rpm and a powerful 2hp 240V motor driving the 200mm wide cutter head. A very popular choice for trade professional joinery workshops.

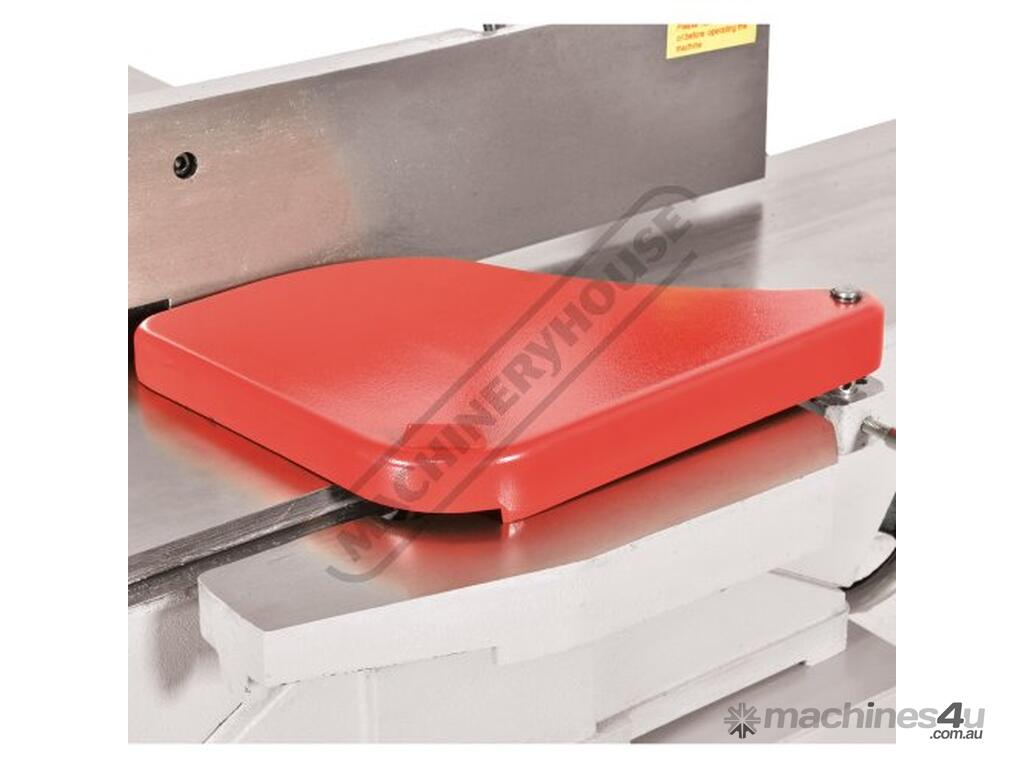

This surface planer is constructed largely of cast iron and is mounted on a substantial steel stand and the switch bracket is mounted up high to the side of the table for quick & convenient access. The planer cutter blades are fully protected across its whole width by a strong aluminium guard with spring load return for additional safety. The infeed and outfeed tables are 1800mm in total length and are both independently adjustable for height, which not only makes for quick adjustment of the blade height relative to the table but allows for quick set up to produce rebates up to 13mm deep. There is also a quick stop system on the infeed table to allow repeat depth settings to be made quickly.

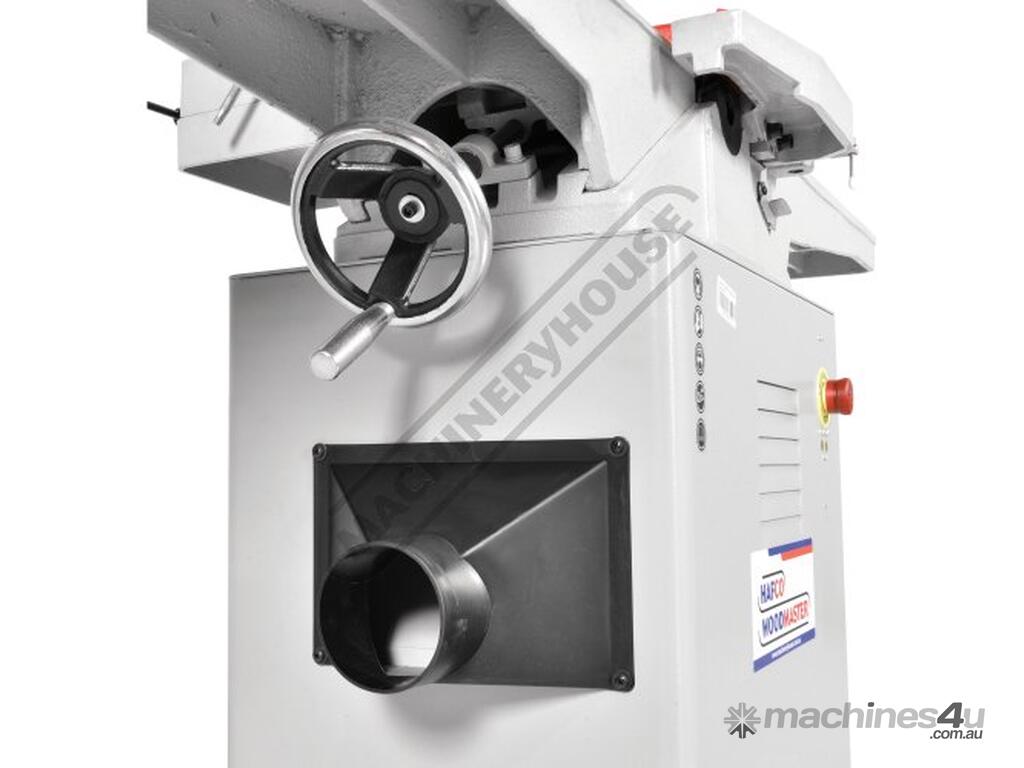

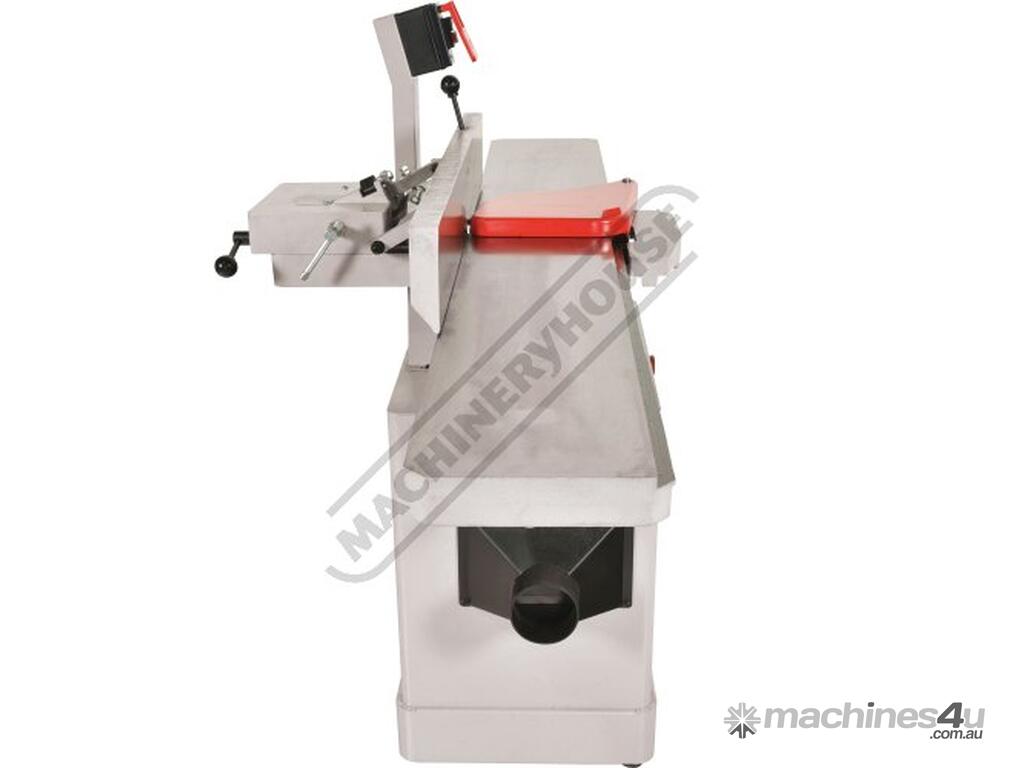

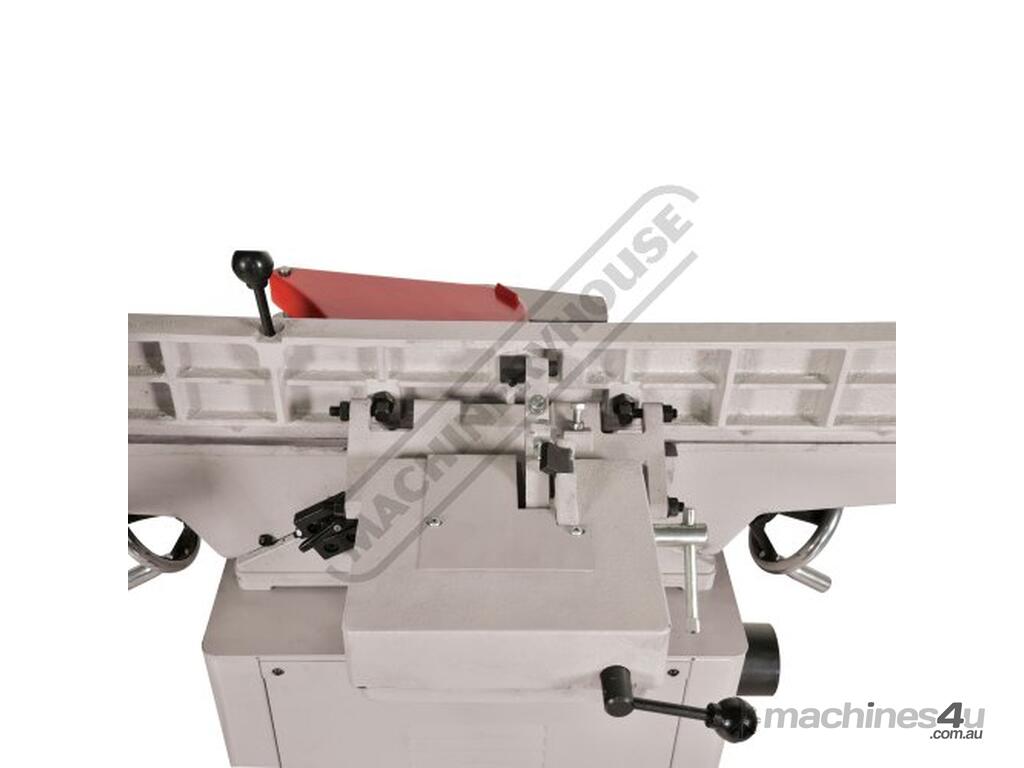

The adjustable fence, which is a heavy cast iron unit with a ground surface, is held by a robust cast iron bracket. This is clamped to the table by a substantial hand lever and slides smoothly across the bed guided by a rail. The fence is fully adjustable for angles between 45°, 90° and 135°. Waste extraction is from the side rear of the machine via a 100mm outlet port that is fixed to the stand and should be connected to a suitable dust extractor.

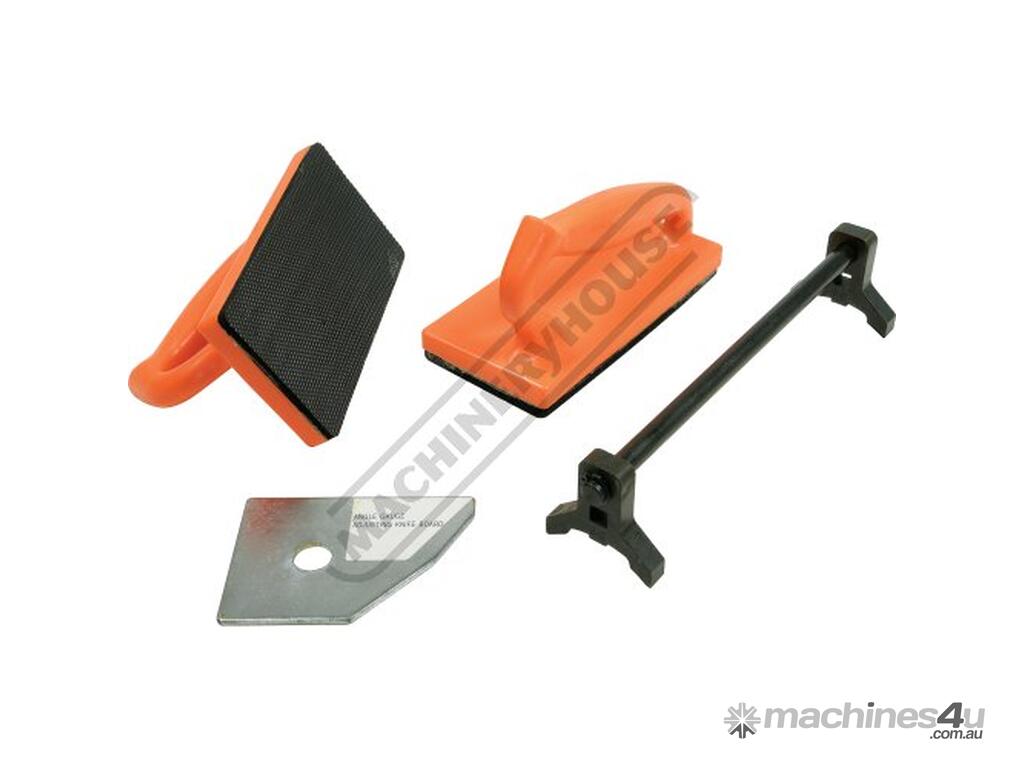

Setting the four HSS blades into the cutting block is easy & accurate with the included blade setting gauge device, ensuring that all blades are accurately set in identical position for a smooth cut finish.
Features:
Heavy duty machine
200mm width capacity

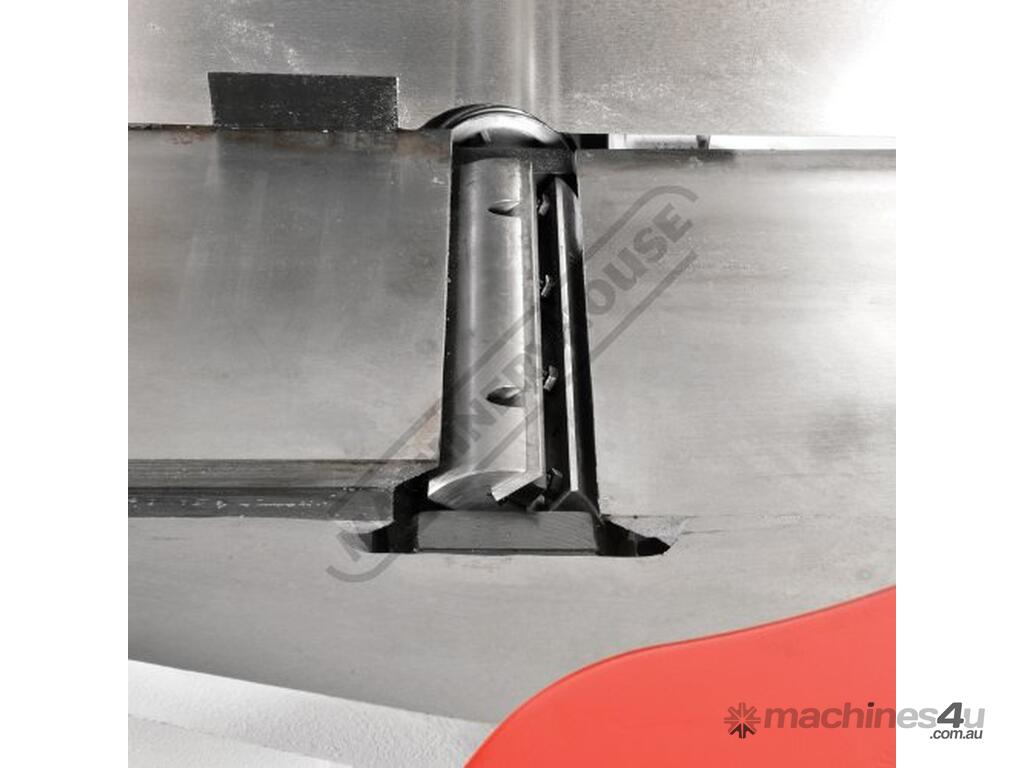

4 x HSS blade cutter head
Extra longer 1800mm cast iron table
13mm rebating capacity
Adjustable in & out feed tables
Rigid quick action tilting fence to 45Ëš L & R with adjustable stops

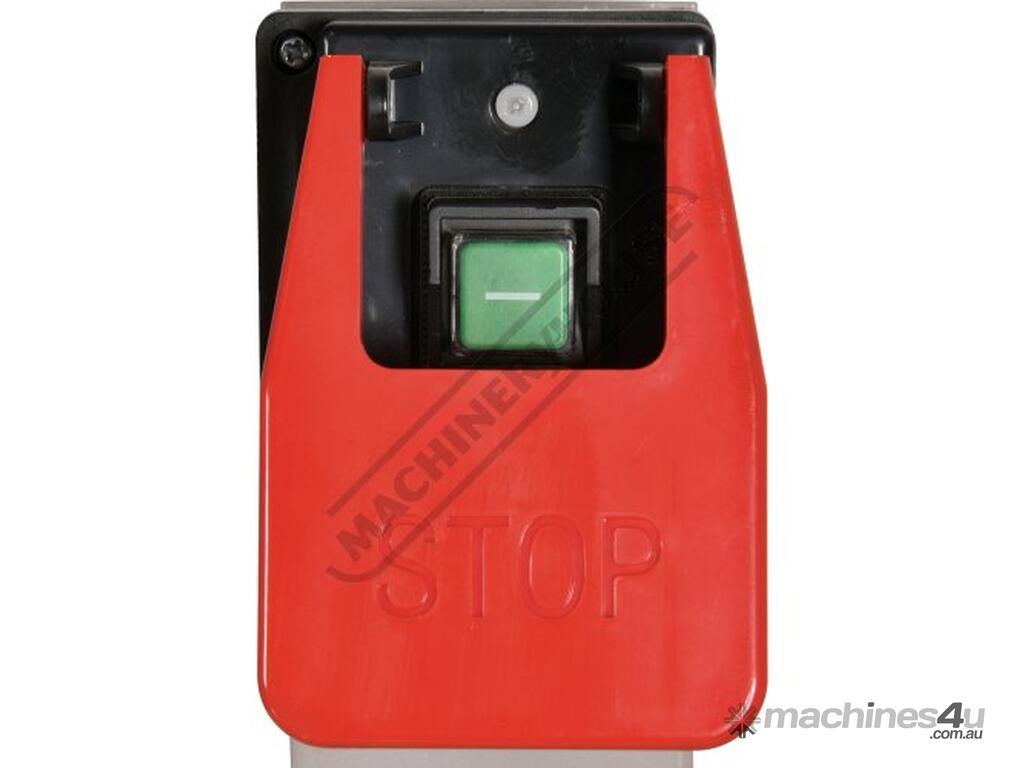

Magnetic safety switch with paddle emergency stop
Spring loaded blade guard
Feed handle with locking bar
Enclosed stand with 100mm dust chute
1.5kW / 2hp 240V motor
Specifications:
ORDER CODE: W629
MODEL: P-200H
Width Capacity (mm / inch): 200 / 8
Maximum Depth of Cut (mm): 3
Table Length (mm): 1800
Length of Infeed Table (mm): 870
Length of Outfeed Table (mm): 875
Rebate (mm): 13
Fence Length x Height (mm): 885 x 125
Blade Cutter (Type): HSS
Blade Quantity (No.): 4
Cutter Block Diameter (mm): ~
Cutter Block Speed (rpm): 5500
Dust Port Diameter (mm): 100
Motor Power (kW / hp): 1.5 / 2
Voltage / Amperage (V / amp): 240 / 15
Floor Space (W x D x H) (mm): 1800 x 700 x 1120
Shipping Dimensions (L x W x H) (mm): 1900 x 450 x 990
Nett Weight (kg): 208
