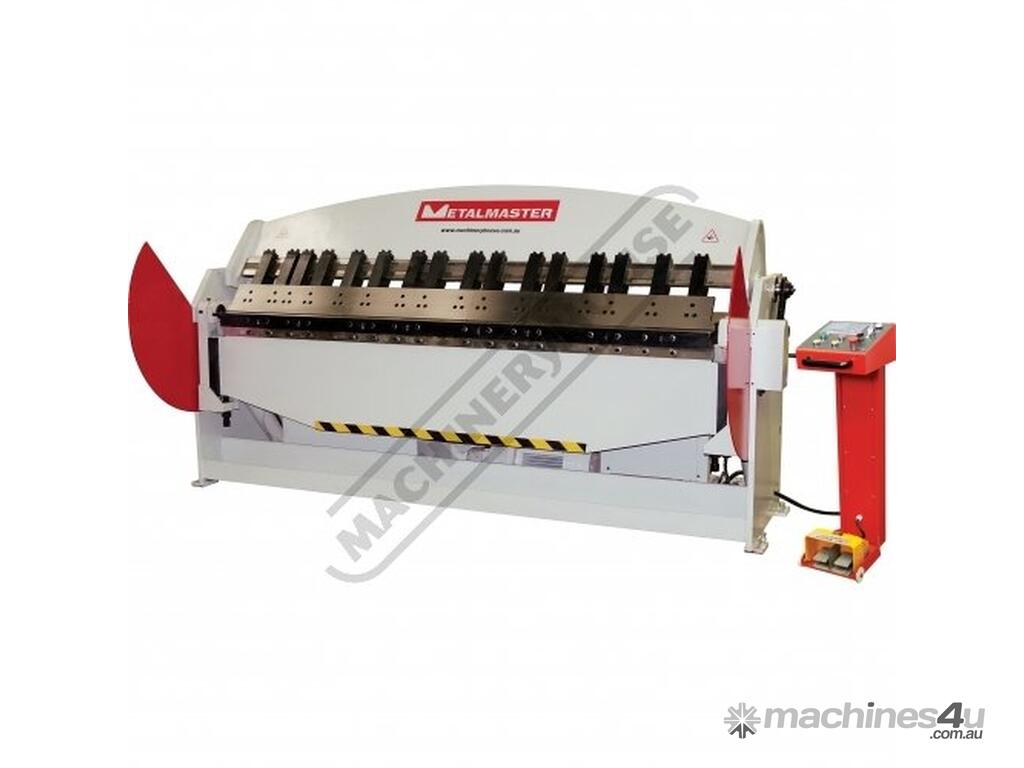

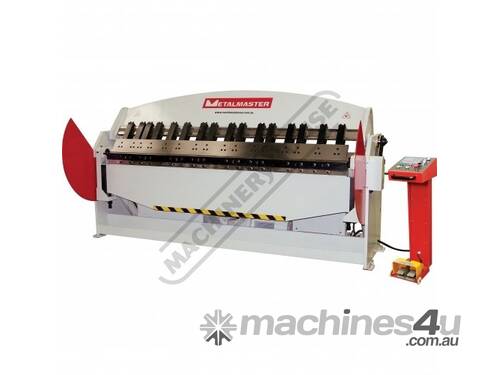

METALMASTER PB-830A Hydraulic NC Panbrake - NC-89 Control 2500 x 4mm Mild Steel Bending Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S584A
Features:
2500mm x 4mm bending capacity

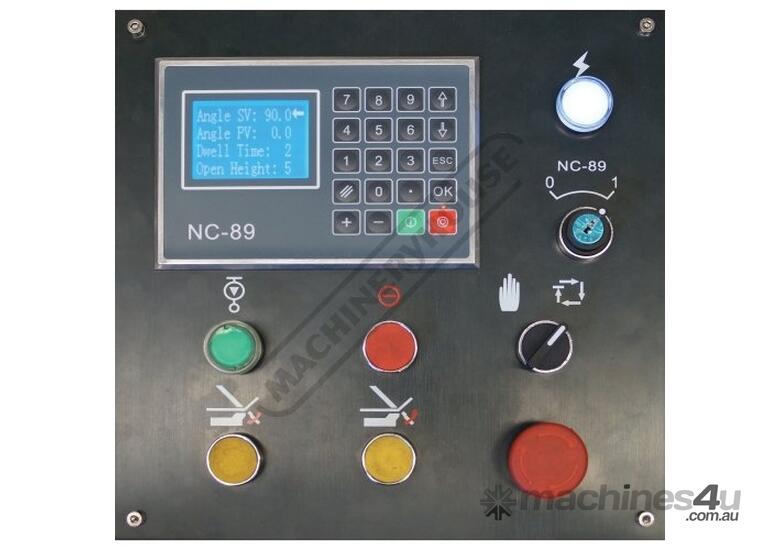

NC-89 digital single angle programmable control for angles from 0-125º
Auto cycle: after clamping bottom beam will bend to pre-set angle and return head unclamps to set position
Quick action rapid head adjustment to optimise bend radius on 1-4mm material thickness
Heavy duty steel fabricated construction
Roving foot pedal incorporates control panel for maximum flexibility
High quality components ensure reliable performance for years of continuous operation
NC-89 controlled opening height adjustment
NC-89 controlled dwell timer ensures consistent bending angle

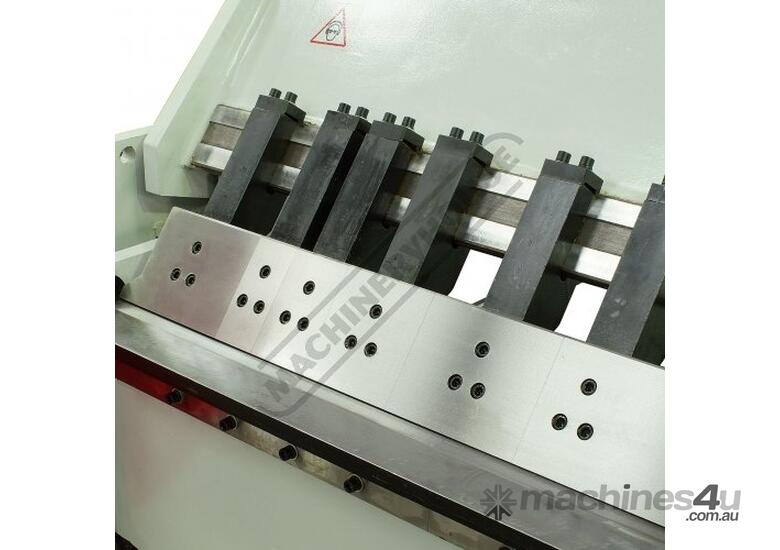

Extended fingers allows bending of pans or boxes to a depth of 205mm
Includes an adjustable rear manual backgauge also adjustable for tapered material
Mild steel capacity is rated on hot rolled material with 250MPA
Pre-Commissioning:
1. Panbrake bender is run & tested prior delivery
2. Hydraulic oil is included with machine
Specifications:
ORDER CODE: S584A
MODEL: PB-830A
Controller Type: NC-89 Single Program
Controller Type: ~
Bending Length (mm): 2500
Mild Steel Capacity (mm): 4
Stainless Steel Capacity (mm): 2
Material Clamping Type: Hydraulic Clamp
Material Bending Type: Hydraulic Bend
Bending Angle Indicator (deg): 0-125º
Backgauge Travel (mm): 1000
Motor (kW / hp): 5.5 / 7.5
Voltage / Amperage (V / amp): 415
Floor Space (L x W x H) (mm): 3150 x 1540 x 1440
Shipping Dimensions (L x W x H) (mm): 3000 x 810 x 1500
Nett Weight (kg): 2776
