Powder Coating System

Powdercoating Batch System was installed in June 2022 and is in good working order. This system was used for our own internal work only, and all regular maintenance & servicing has been kept up to date, along with weekly deep cleans to keep the system running at peak performance.

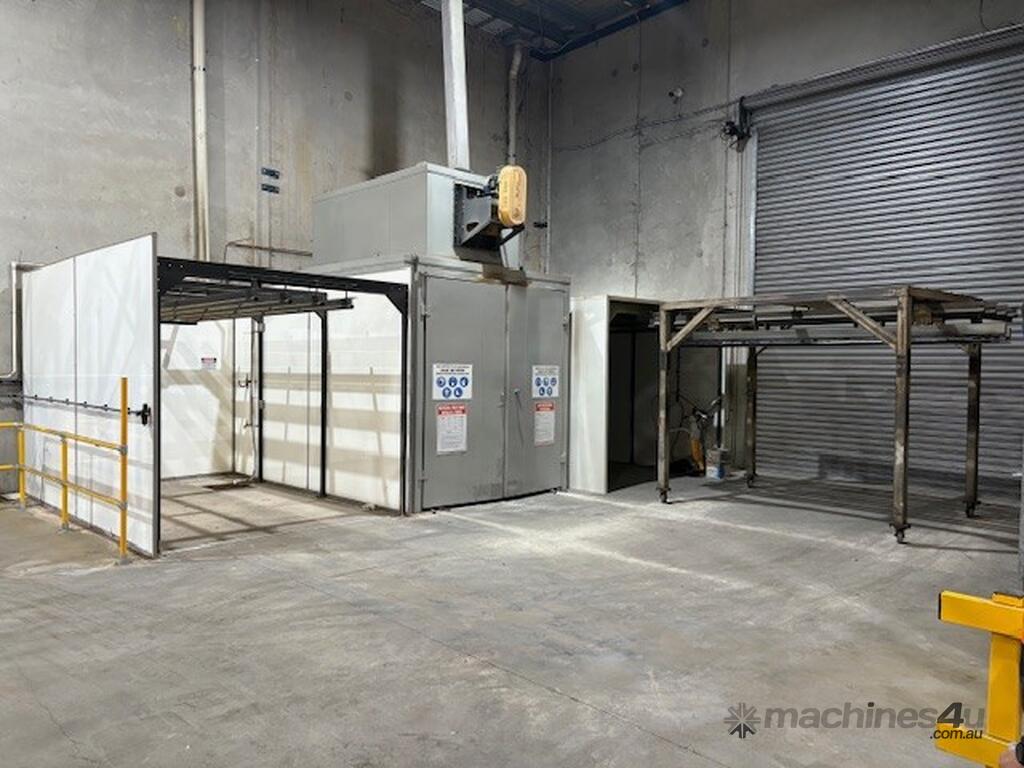

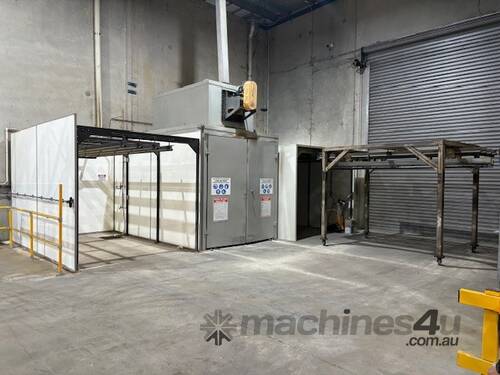

System includes: Spray Booth, Cure Oven & Exhaust Stack, Wash Bay, Air Compressor, Powder Application Gun, Control Panel, Floor Trolleys x 2 with overhead Track System. (Further details on each below)

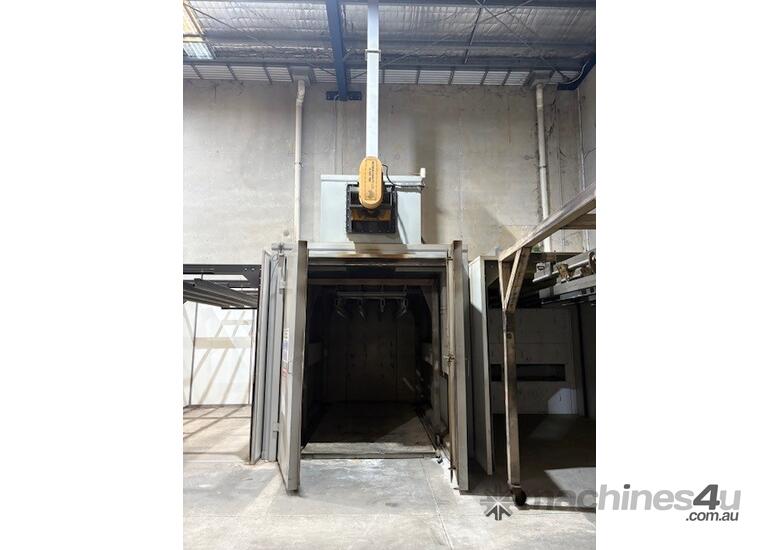

Powder Cure Oven x 4m Long
Internal Size: 2300W x 2700H x 4000D
Direct gas fired, forced convection batch oven with double access doors to one end.
Oven is double case fabrication with 100mm insulation infill with the inner case and ductwork from aluminised steel. Also has an insulated floor with wheel grooves to suit the trolleys.

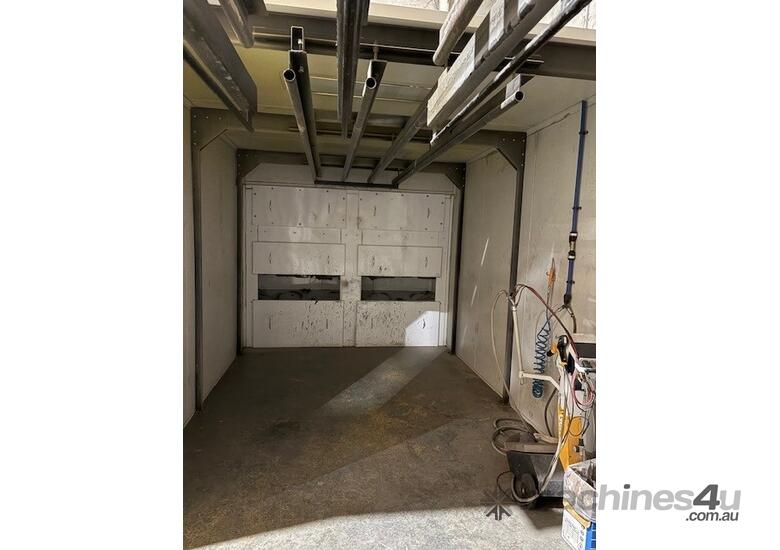

Powder Booth
Booth Size: 3000W x 2700H x 4000D
Automatic reverse pulse cartridge booth with enclosure.
Construction: Preformed zinc anneal panels finished white powder coat.
Cartridges: 12 off, 350 dia x 660 long polyester cartridges.
Fan: Direct drive centrifugal fan.
Secondary Filter: DG2 filter media exhausting clean air in to factor area.
Reverse Pulse: 12 off Goyen reverse pulse blow nozzles.
Electrical: Sheet metal cabinet with controls and timer for automatic sequential pulse
cleaning of cartridges by compressed air.
Collection Hopper: Collect waste powder in powder supply box and plastic bags.
Lighting: 4 twin 40 Watt fluoro lights behind safety laminated glass.

Floor trolleys with Overhead Track System
2x Floor Trolleys with 4x 4000mm long tracks each. Trolleys are caster mounted and have locating mechanism for aligning with tracks in wash bay and spray booths.
Trolley/Track system includes: 8x 4m long Load Bars, 2x Floor Trolleys (each with 4x 4m long tracks), 4x 4m long tracks mounted in spray booth, 4x 4m long tracks mounted in wash bay.
Powder Gun
Gema OptiFlex single manual hand powder spray gun with vibrating bed and control.

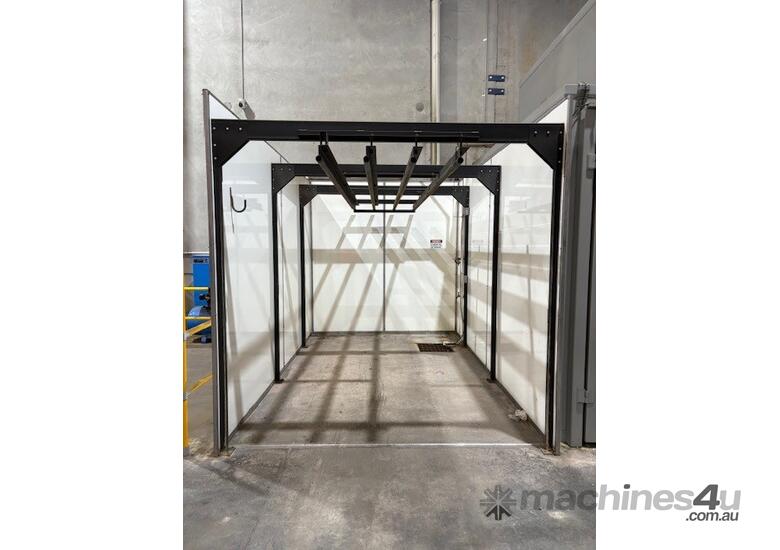

Wash Bay
Bay Size: 2750W x 2700H x 4000D
The walls of the wash bay are constructed from fibreglass sandwich panels with reinforcement supports. This consists of 2x side walls and 1x rear wall.

System is no longer being used, as we’ve recently moved premises and installed a larger system.
Removal & relocation would be the responsibility of the buyer.
Inspections by appointment only. System is located in Glendenning, NSW.
