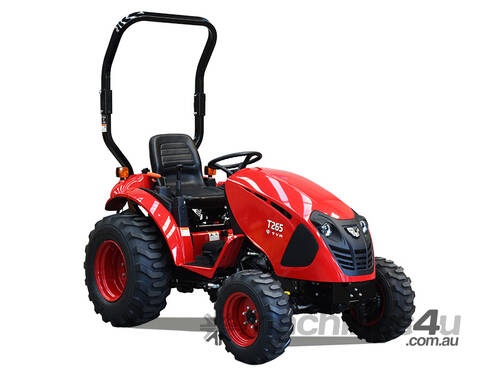

TYM T265 Compact Tractor

Powered by 24.5hp TYM naturally aspirated 3 cylinder, 1,175cc diesel engine.

TYM Diesel engine, a Tier 3 engine producing plenty of torque at low engine RPM providing outstanding in field performance.

Engine certified to meet the stringent Tier 3 engine and noise emission standards.

Dual dry element air cleaner for Australia's dusty conditions.
A generous 25 litre fuel tank for many working hours between refueling.

DRIVELINE
The tractor weight of 865kg is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is, in part, a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation

The high efficiency two range (2) hydrostatic transmission gives infinitely variable drive speed from stationary to 16km/h in the forward and reverse direction

TYM T265 Foot Controls
The Hydrostatic drive controlled by side-by-side forward and reverse pedals for ease of operation.

Hydrostatic power steering lightens steering, which is especially important with front end loaders

Cruise control for tireless driving when mowing large areas.
TYM T265 Auto Throttle

Auto throttle feature links the HST pedals to the engine throttle to synchronise the tractor's speed and engine RPM. This simplifies operation, helps increase productivity and reduces fuel consumption.

TYM T265 Rear Tyre
Industrial front and rear tyres are ideal for front-end loader applications

Large 23x8.5-12 Front tyres
Large 12-16.5 Rear tyres

TYM T265 Axle
The heavy duty front axle performs in tough working conditions and handles loads with ease

A long wheel base and wide stance increases stability in all conditions

TYM T265 4WD Lever
4WD and the Diff Lock provides better traction, control and performance

4WD mode is controlled by a lever on the left hand side of the operator

Rear axle with diff-lock for difficult traction situations
Inboard wet disc brakes with LHS-RHS brake splitting for brake assisted turning in tight situations

PTO, HYDRAULICS & LINKAGE
TYM T265 Rear Linkage
1 set of double-acting hydraulic remotes
Category 1, 3-point linkage with manual position controls
700kg lifting capacity gives the tractor great versatility and will handle many attachments

TYM T265 PTO
The PTO drive is a simple and direct design for high efficiency and power

The PTO clutch is an independent oil immersed clutch pack for long life and simple operation

CONTROLS
TYM T265 Dash
Ergonomic design - easy to reach controls
Easy to read instrument panel
Combination S/W
Cruise Control
Push button PTO On/Off Switch
TYM T265 Joystick
Throttle lever (orange lever) is conveniently located adjacent to the steering wheel
3 point linkage position lever
Fully integrated single joystick for control delivers ergonomic operation of front end loader

LAYOUT
TYM T265 Tractor Access
Clean uncluttered access
TYM T265 Brake Steer
Turning brakes located on operator's left to improve turning in confined areas.

AUXILIARY HYDRAULIC VALVE
TYM T265 Tractor Auxiliary hydraulic valve
For the operation of log splitters and backhoes

OPTIONS
FRONT END LOADER
Options
Level lift Front-end Loader ideal for materials handling and utility work around the small farm.
Easy quick detach bucket and loader with inbuilt quick release loader parking stands

TYM T265 Joystick
Integrated loader joystick with "trigger" button control for 4-in-1 bucket

Superb visibility to loader bucket
Level lift indicator
Full details & specifications on the optional front end loader

SPECIFICATIONS
T265
Engine Type TYM
Engine Power (hp/kW) 24.5 / 18
Rated power engine RPM 2600
Number of Cylinders/cc 3/1175
Electric Cruise Control Tick
Transmission Type Hydrostatic
Side-by-side HST Pedals Tick
Auto Throttle Control
Number Speed Ranges 2
Maximum Speed (km/h) 16
PTO Speeds (rpm) 540
Mid PTO Tick
Independent Push Button PTO engagement Tick
Steering brakes Tick
3-point Linkage Lift Capacity (kg) 700
Number of Hydraulic Remotes 1 set
Integrated Joystick Control for Front-end Loader Tick
Weight - Tractor Only (kg) 865
