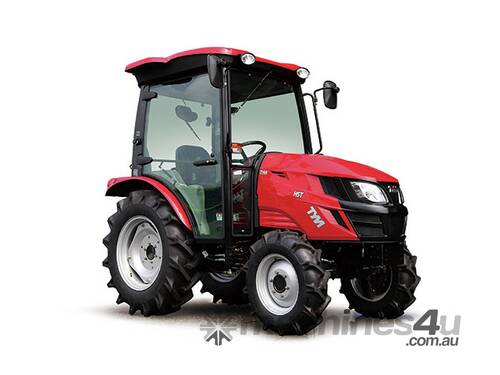

TYM T413 HST Cabin Utility Tractor

Powered by 38.4hp Yanmar naturally aspirated 3 cylinder water-cooled Diesel engine

Yanmar Diesel is a global engine manufacturer of quality, giving you the confidence in reliability and after-sales support

Engine certified to meet the stringent Tier III engine and noise emission standards

1642cc engine, resulting in high torque for serious work

Dual dry element air cleaner for Australia's dusty conditions
34 litre fuel tank capacity with easy access at rear side will provide for many working hours between refueling

DRIVELINE
T503 Transmission
The tractor weight of 1565kg (Cabin version) is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is, in part, a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation

See optional front end loader for details
TYM T413 HST Pedals
The Hydrostatic drive transmission is controlled by two side by side pedals for easy forward and reverse directional changes
The new Auto Throttle feature links the HST pedals to the engine throttle to synchronise the tractor’s speed and engine RPM. This simplifies operation, helps increase productivity and reduces fuel consumption.

3 Ranges with range lever located to operator's right
0-27km/h maximum speed

TYM T413 Front Axle
The heavy duty front axle performs in tough working conditions and handles loads with ease

A long wheel base and wide stance increases stability in all conditions

TYM T413 Diff Lock
Rear axle with diff-lock for difficult traction situations
4WD and the diff-lock provides better traction, control and performance

4WD mode is controlled by a lever on the left hand side of the operator

Inboard wet disc brakes can be split for indpendent left and right side braking to assist turning in tight situations

PTO, HYDRAULICS & LINKAGE
TYM T413 Linkage Remote
Control for the linkage and hydraulic remotes are on the right-hand side

The 3-point linkage with position control
Hydraulic remotes are ideal for the operation of log splitters, post hole augers and a wide range of implements

TYM T413 Cabin Linkage
1 set of double-acting hydraulic remotes
Category 1 3-point linkage with 1200kg lifting capacity gives the tractor great versatility and range of applications
Adjustable lower link arms

TYM T413 PTO
The PTO driveline is a simple and direct design for high efficiency and power

The PTO clutch is an independent oil immersed clutch pack for long life with simple push-button operation

Auto-PTO function automatically disengages the PTO when the linkage is raised, and automatically re-engages when lowered; a great function that simplifies repeated row work and prevents implement damage

COCKPIT
TYM T413 Cabin Cockpit Dash
Ergonomic design with easy to reach controls
Easy to read instrument panel
Combination switch controls lights and indicators
Digital hour metre display
PTO On/Off Switch
Cruise control

TYM T413 Tiltable Steering Wheel
Tiltable steering wheel

TYM T413 Joystick
Fully integrated joystick for control of front end loader with electric button for third function operation (when fitted)

TYM T413 Flat Platform
Wide distance between rear mudguard and dash panel provides easy access on and off the tractor

Uncluttered flat floor without trip hazards is the largest surface area in its class

Rubber floor mat reduces noise and provides an easy to maintain surface

TYM T413 Cabin Adjustable Suspension Seat
Adjustable suspension seat for comfort
TYM T413 Easy Access 1 Piece Bonnet
Easy access to all maintenance areas with pop-up 1 piece bonne

OPTIONS
FRONT END LOADER
TYM T413 Optinal Front End Loader
Level lift front-end loader ideal for materials handling and utility work around the farm

SPECIFICATIONS
T413 HST CAB
Engine Type Yanmar
Number of Cylinders 3
Engine Power (hp/kW) 38.4/27.9
Engine Torque (Nm)
Transmission Type Hydrostatic
Number of Transmission Ranges 3
Side-by-side Forward / Reverse Transmission Pedals Tick
Cruise Control Tick
Maximum Speed (km/h) 27
PTO Speed (rpm) 540
Independent Push Button PTO engagement Tick
3-point Linkage Lift Capacity (kg) 1200
Number of Hydraulic Remotes 1 set
Integrated Joystick Control for Front-end Loader Tick
Weight - Tractor Only (kg) 1565
