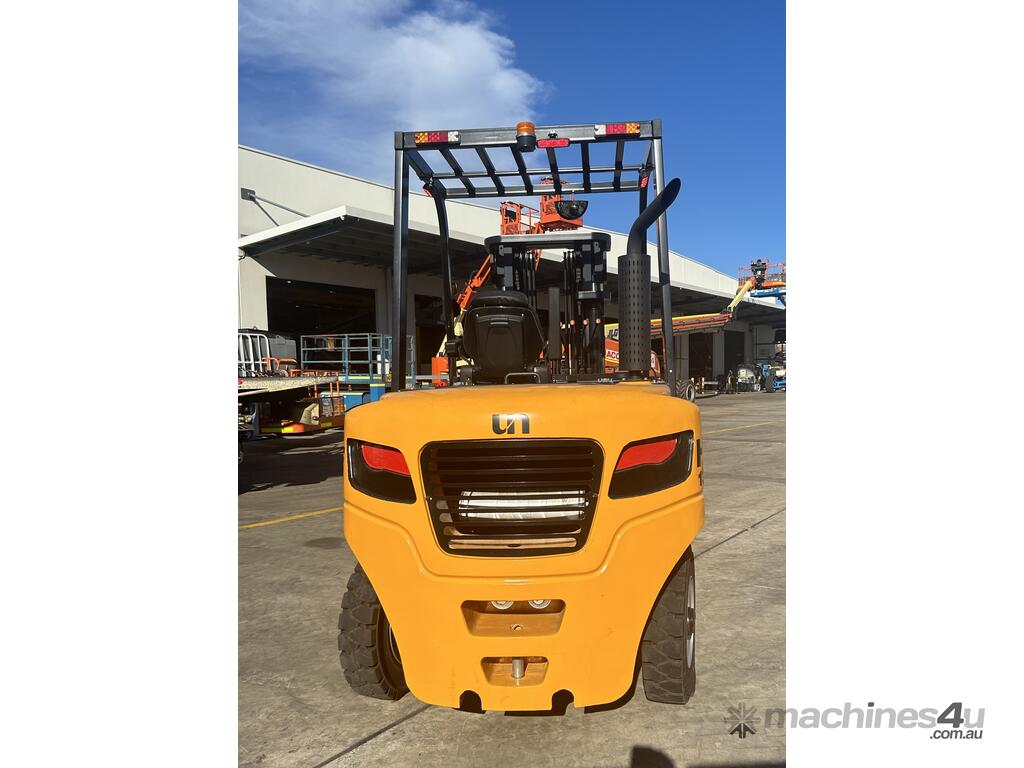

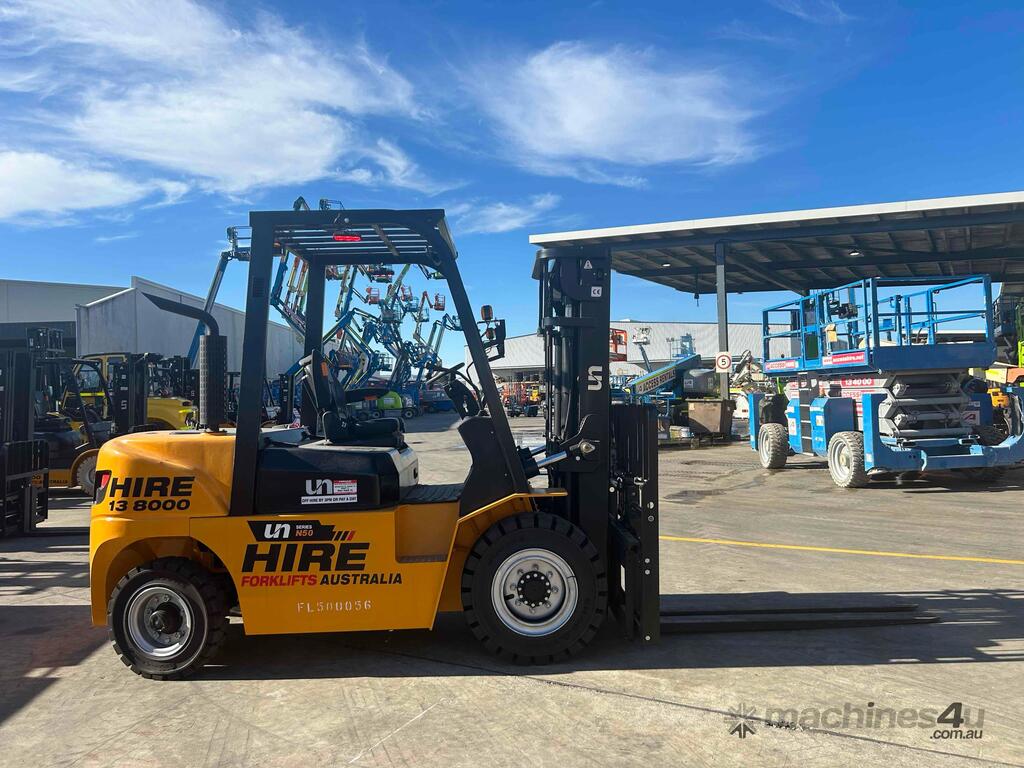

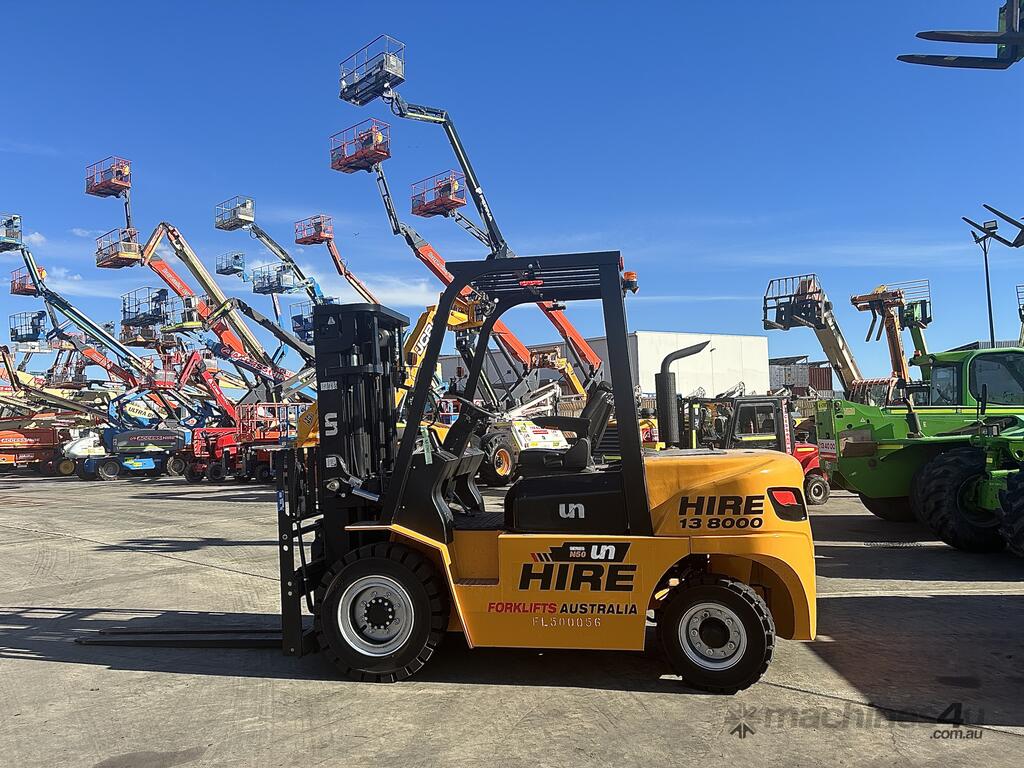

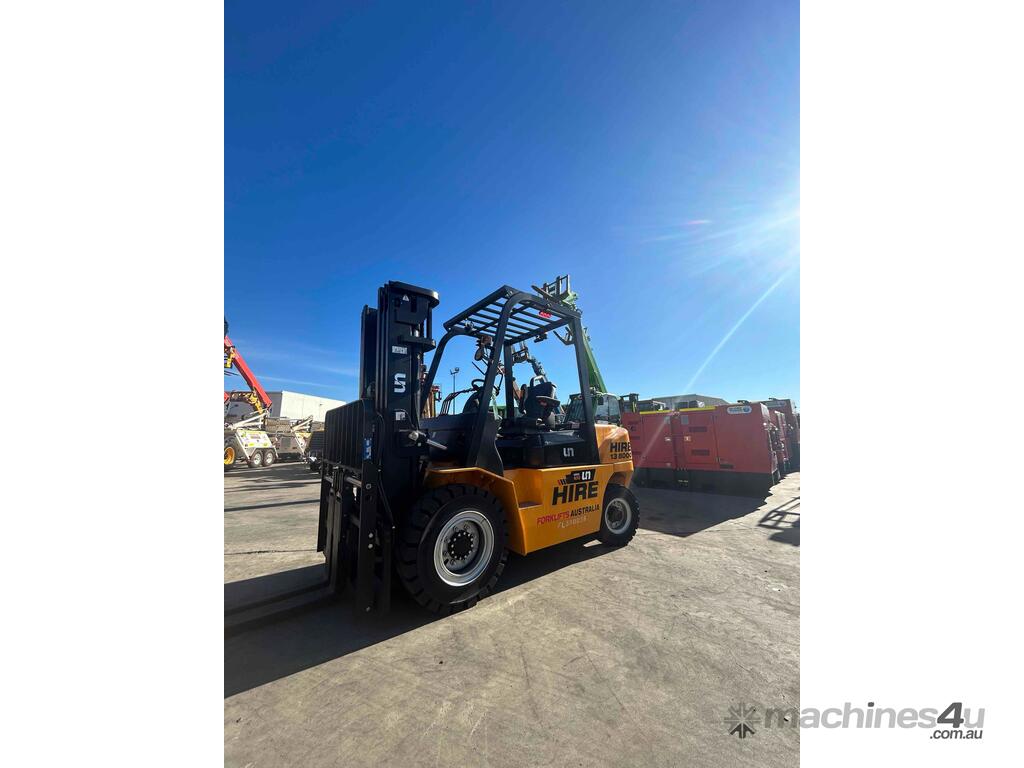

UN 5.0T Diesel Forklift - 3.0m Lift Height, Isuzu/Nissan Engine (N Series)

The UN 5.0T Diesel Forklift is built for heavy-duty performance and reliability across demanding industrial environments. Designed with a 5,000 kg lift capacity and a 3.0 m lift height, it combines power, precision, and durability to handle high-capacity loads with ease.

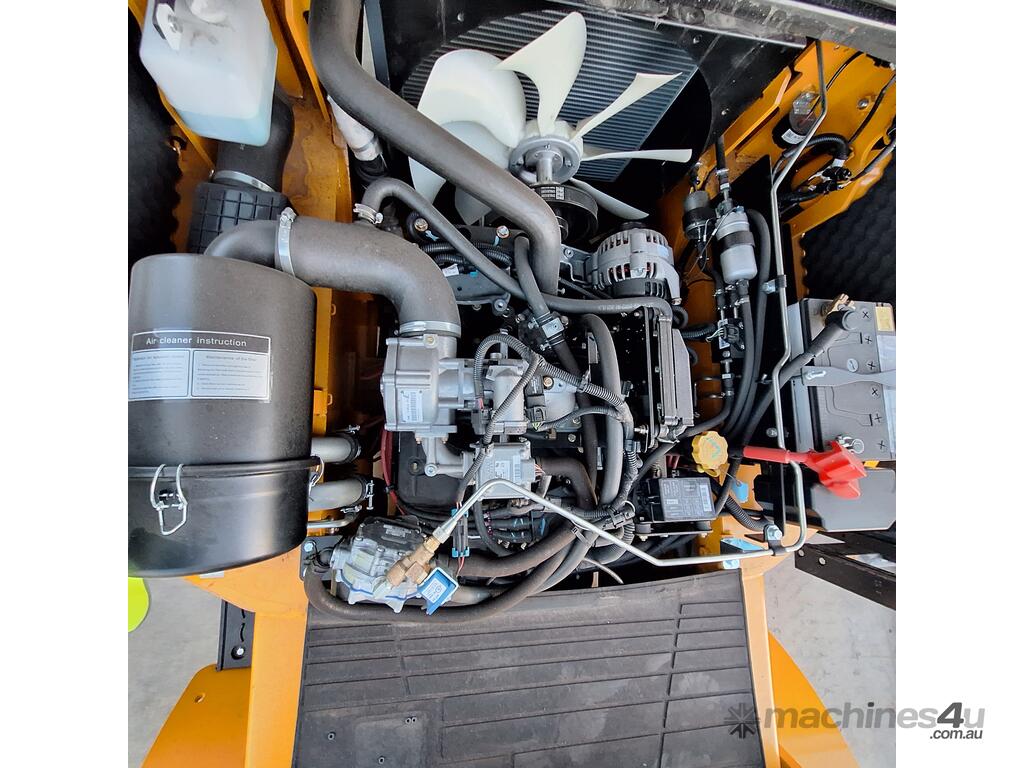

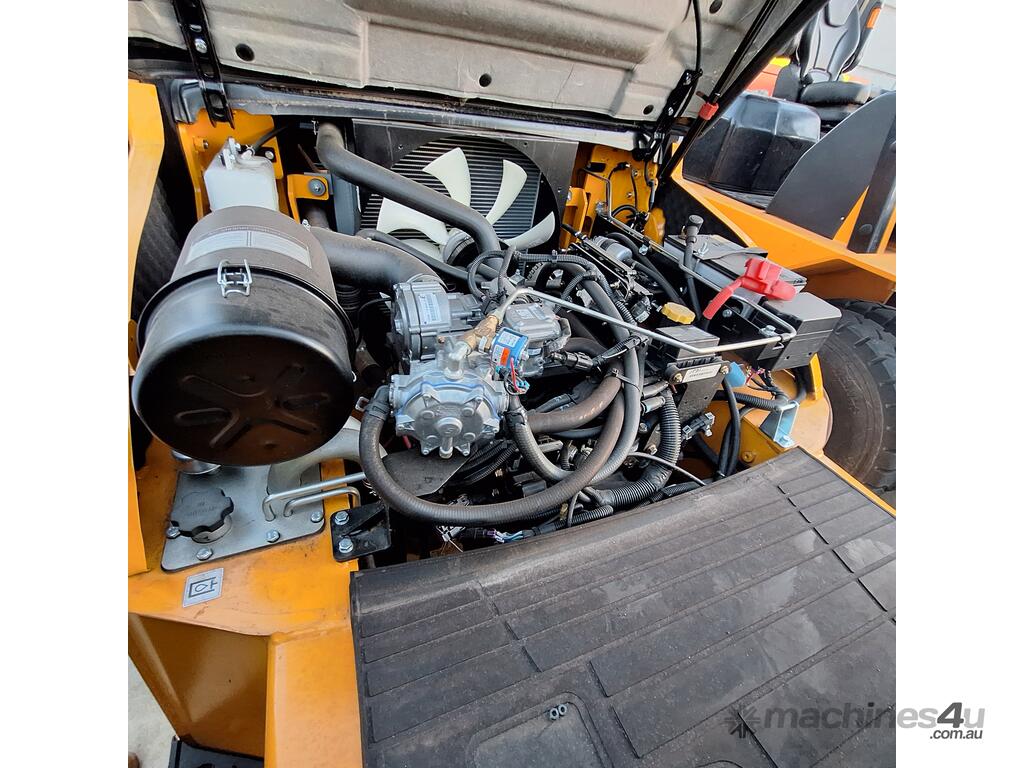

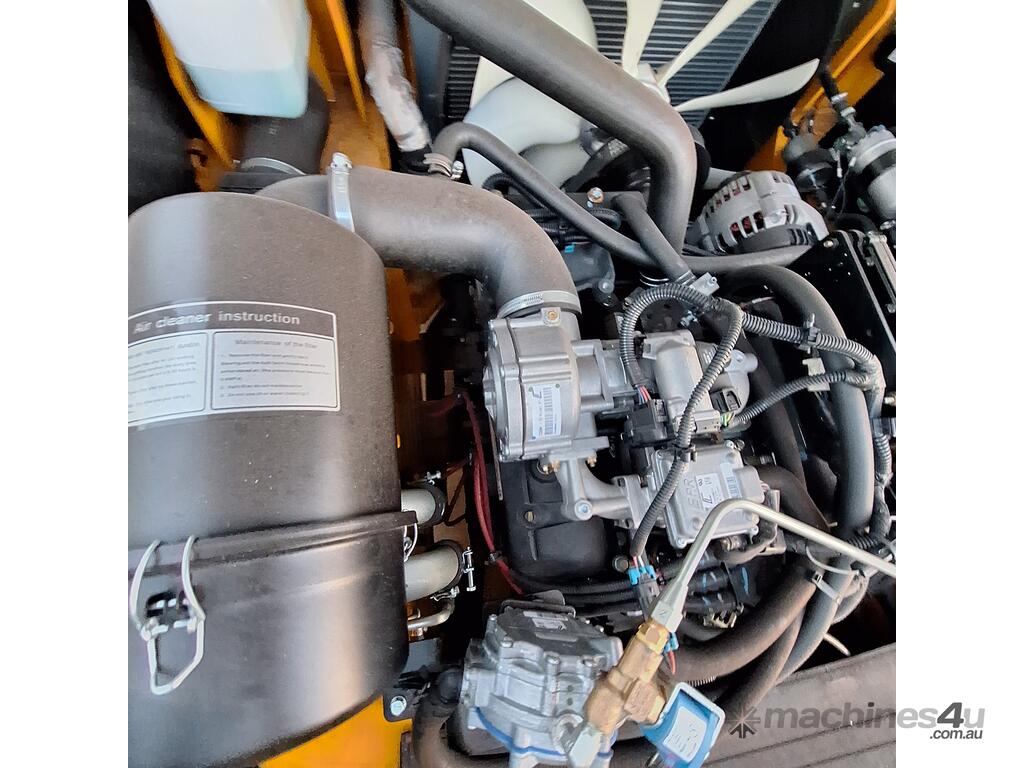

Powered by a diesel engine from Isuzu or Nissan, the 5.0T model delivers excellent torque and fuel efficiency, ensuring dependable operation and low maintenance over time. Its 500 mm load center and Duplex mast provide solid lifting stability, while the 6° forward / 12° backward mast tilt enables safer and easier material handling at different angles.

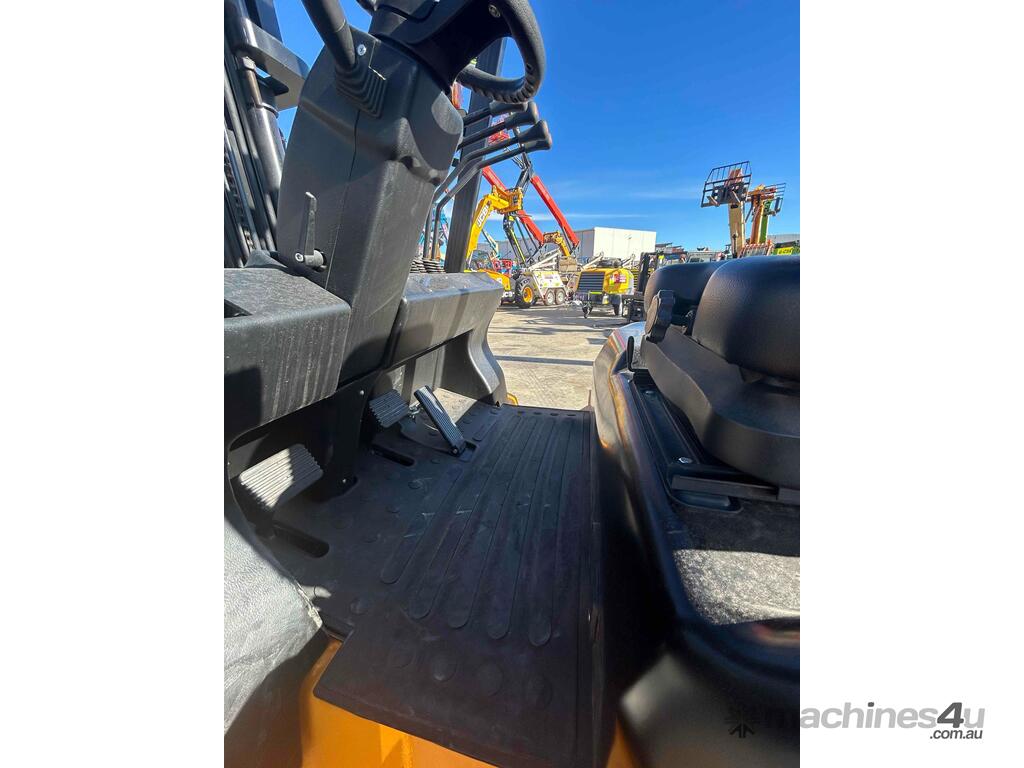

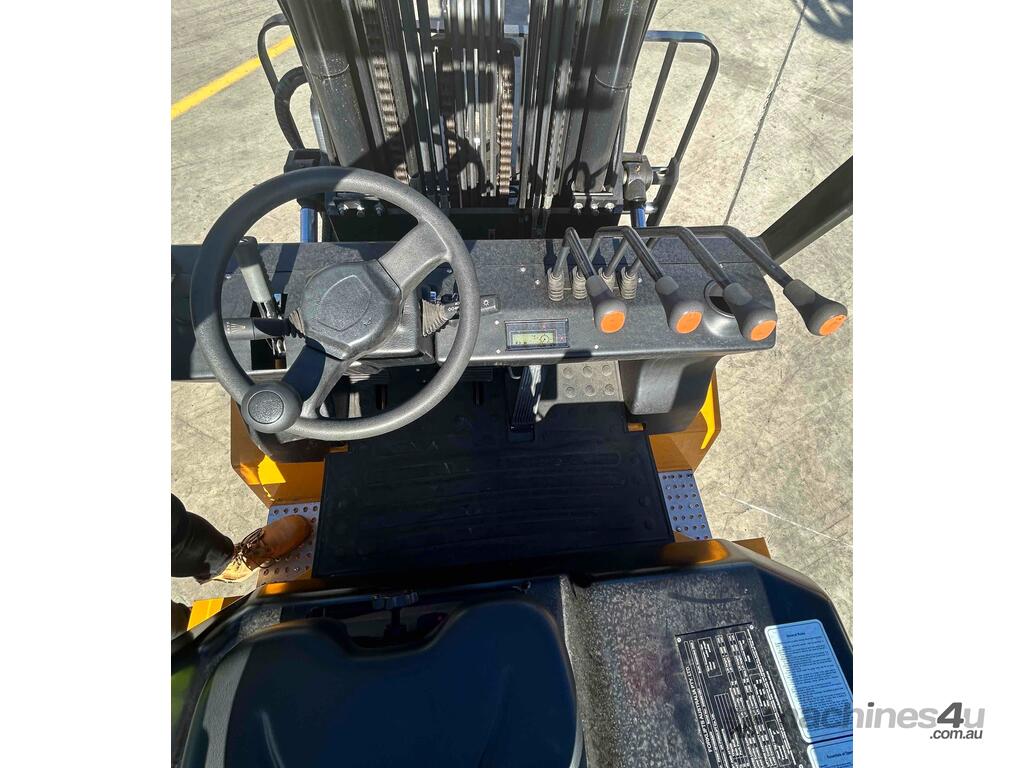

This model includes pneumatic tyres, a comfortable operator’s cabin, and a strong chassis frame for optimal control and reduced operator fatigue. It’s ideally suited for warehouses, logistics yards, construction sites, and heavy manufacturing operations where consistent lifting performance is essential.

Features
- Load Capacity: 5,000 kg (5.0T)
- Rated Lift Height: 3,000 mm
- Mast Tilt Angle: 6° forward / 12° backward
- Fork Size (L×W×T): 1,070 × 150 × 50 mm
- Power Type: Diesel (Isuzu or Nissan engine)
- Ground Clearance: 175 mm
- Turning Radius: 2,940 mm
- Overall Width: 1,485 mm
- Operating Weight: 7,125 kg
- Min. Aisle Width for Pallets: 4,680 mm
- Rear Overhang: 614 mm

Applications
- Freight handling and logistics
- Construction and yard operations
- Heavy manufacturing and fabrication
- Container loading and unloading
- Industrial warehousing
