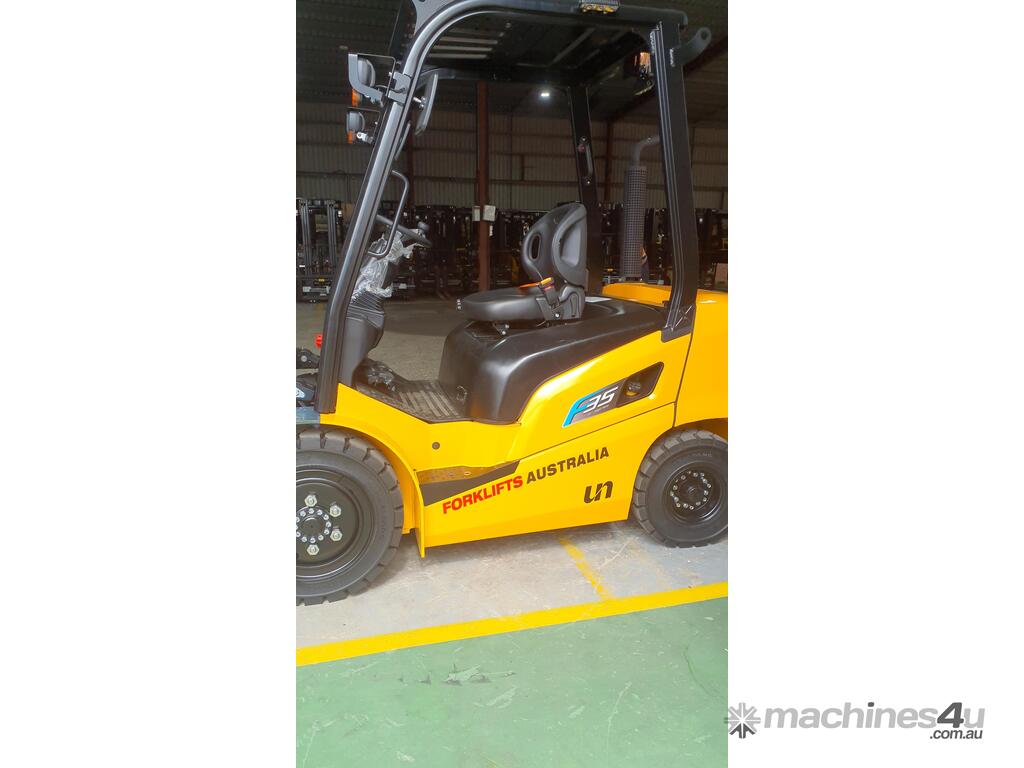

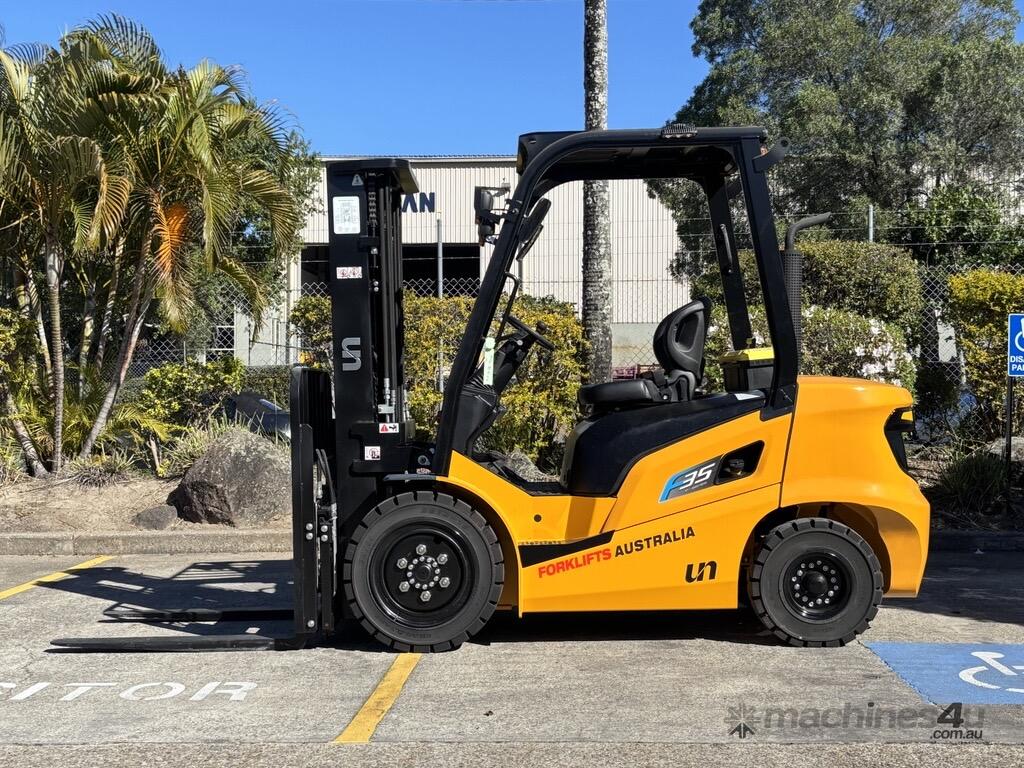

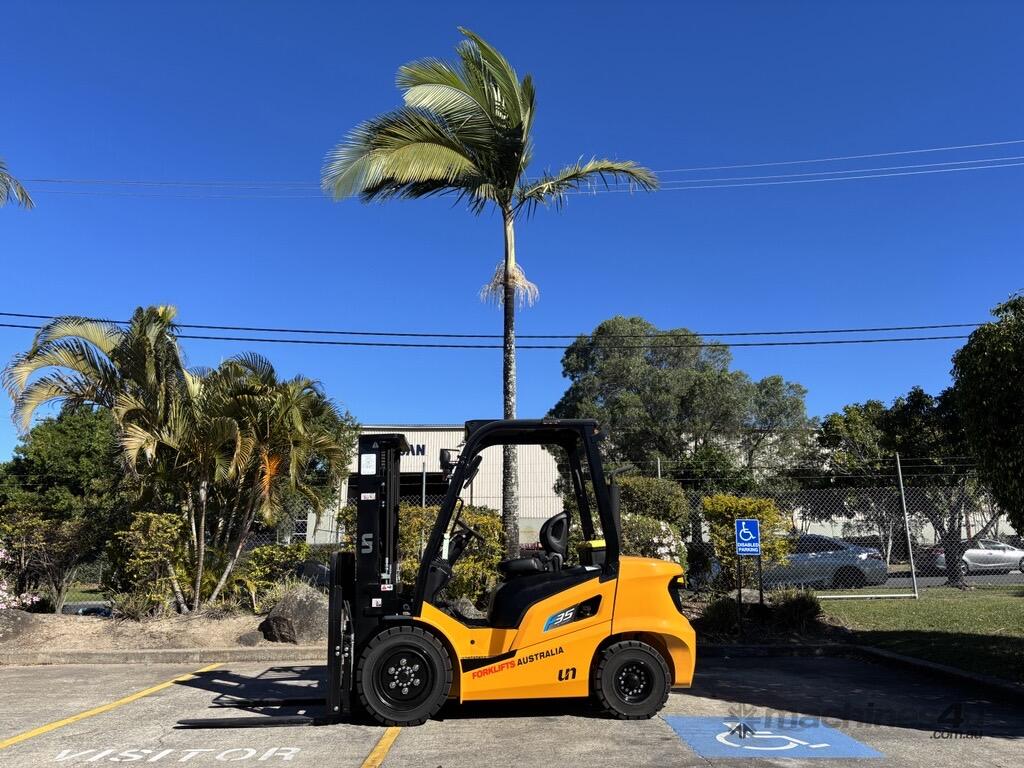

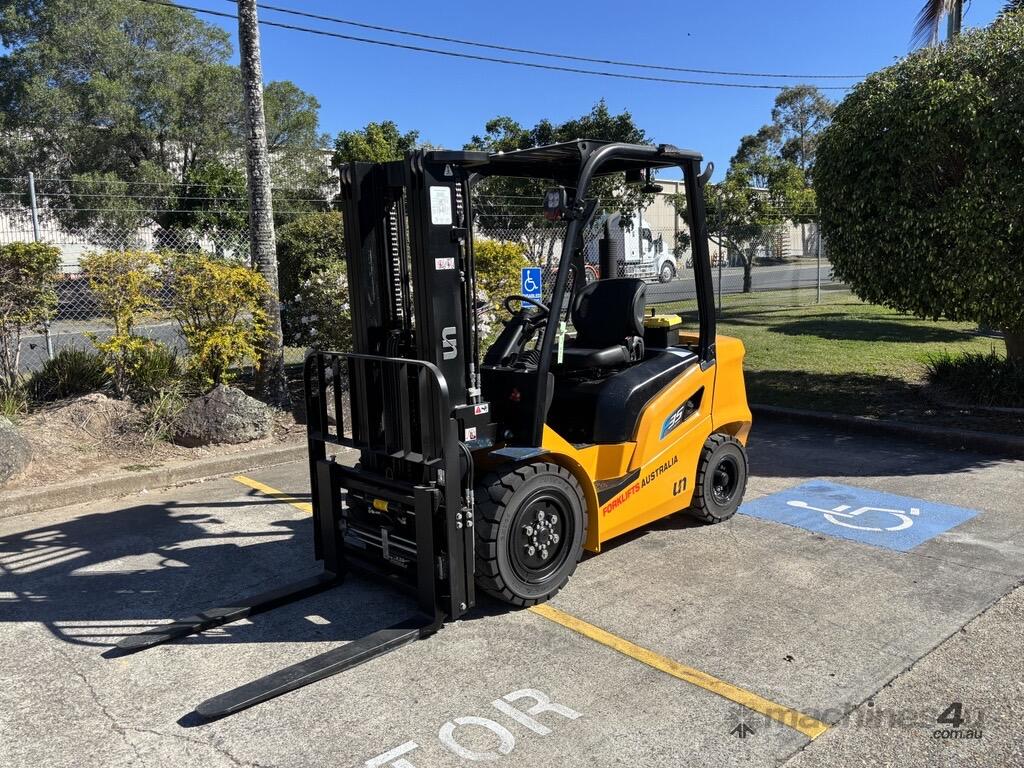

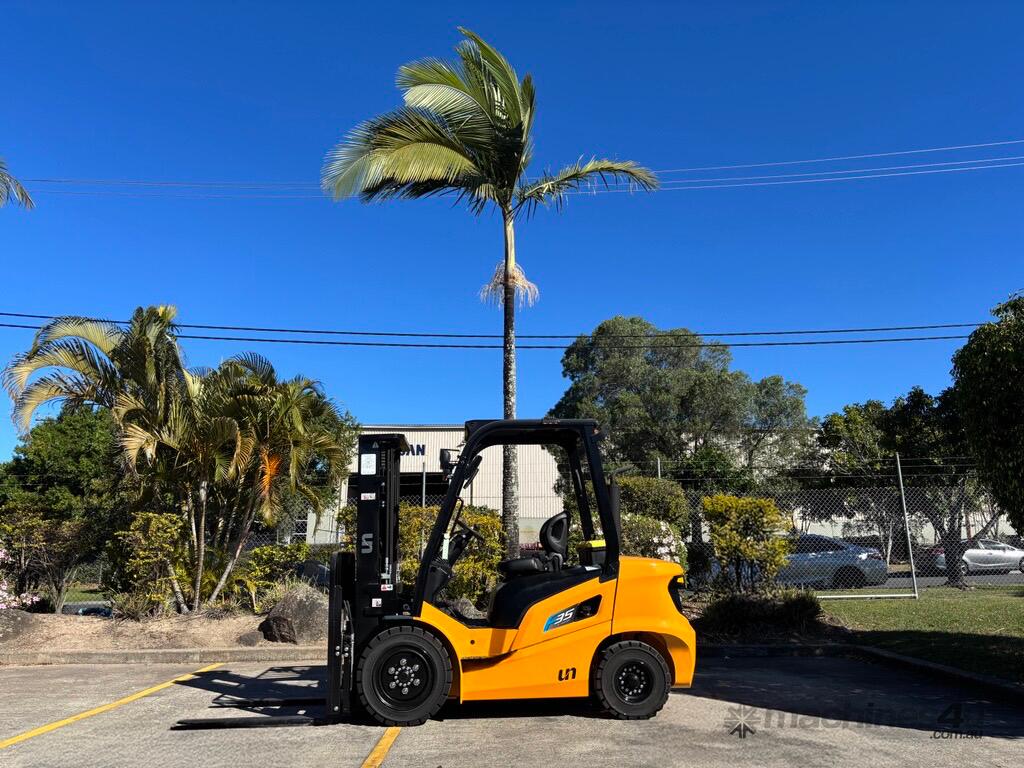

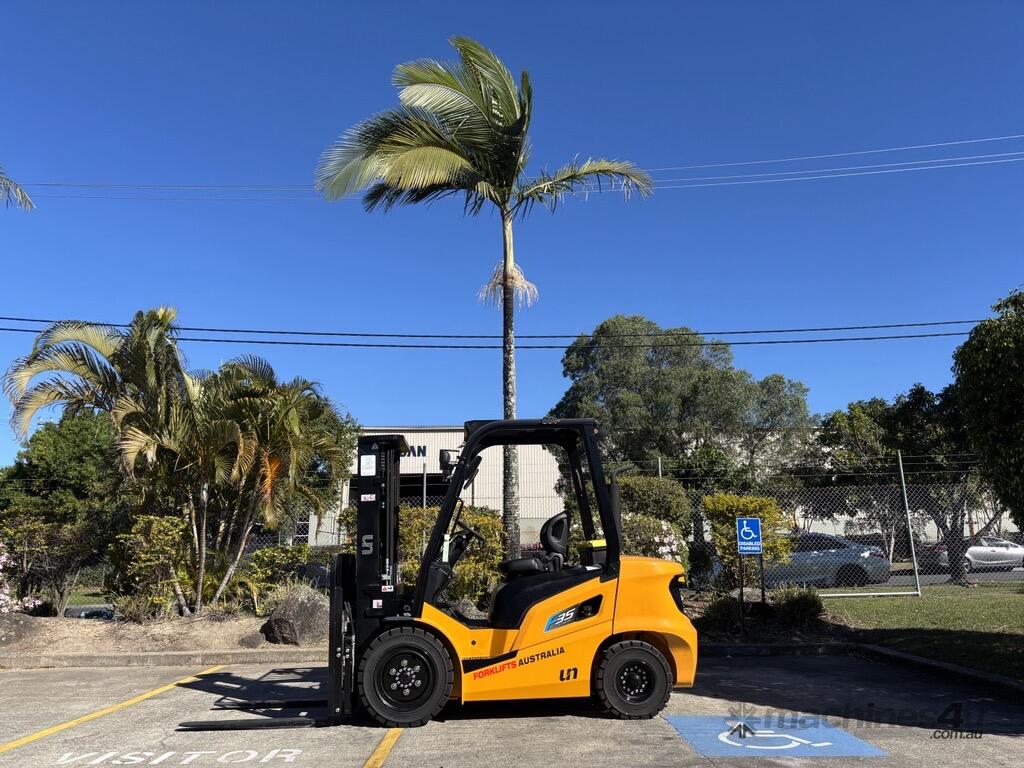

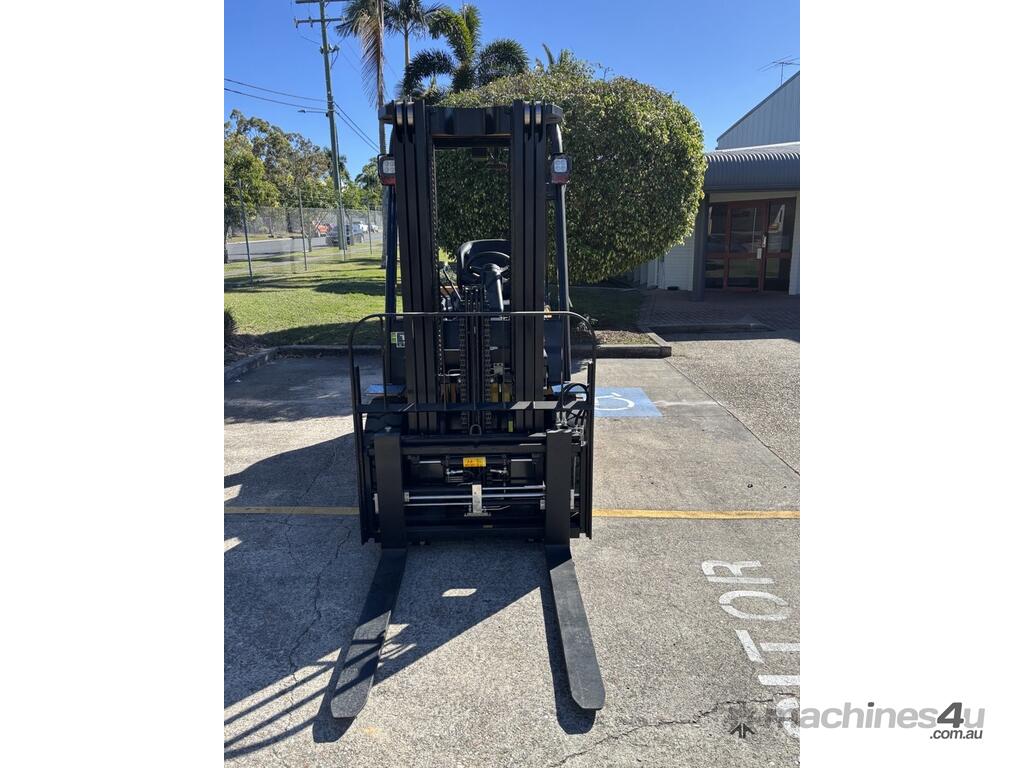

The UN FD35T-FJM1 is a reliable 3.5 tonne diesel counterbalance forklift designed for durability and efficiency in industrial, construction, and logistics environments. Powered by a Mitsubishi S4S diesel engine delivering 36.8 kW (49.3 hp), it provides dependable performance with low fuel consumption. With a rated lift capacity of 3,500 kg and a maximum lift height of 3,000 mm, it’s built to handle heavy-duty material handling tasks with ease.

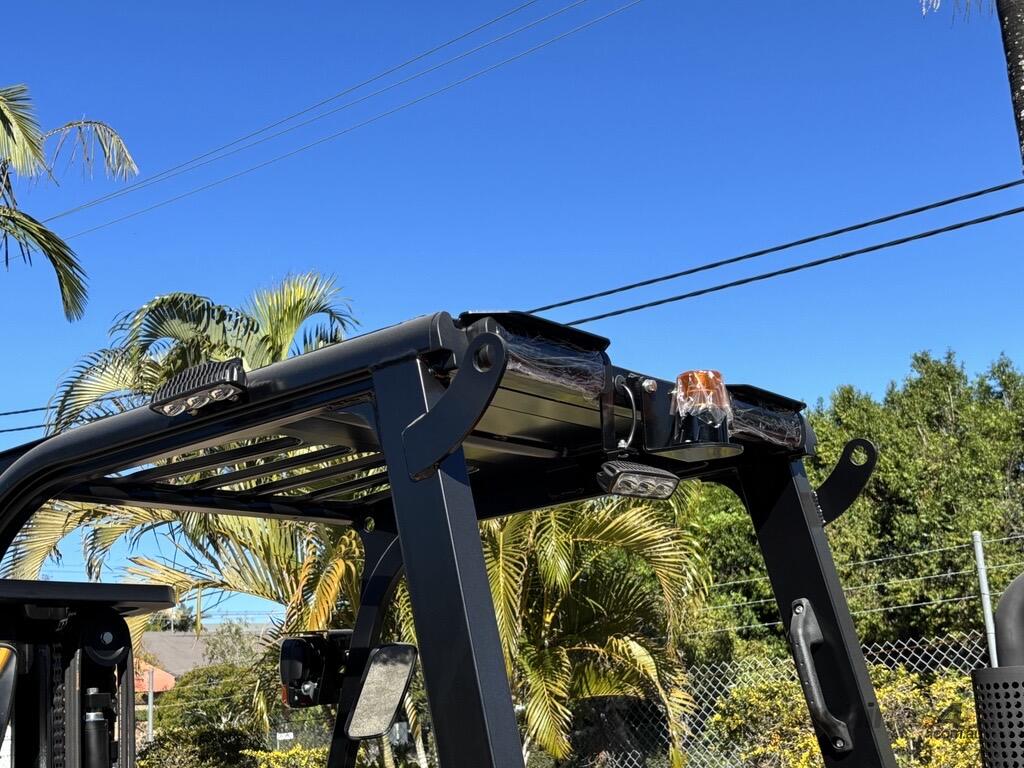

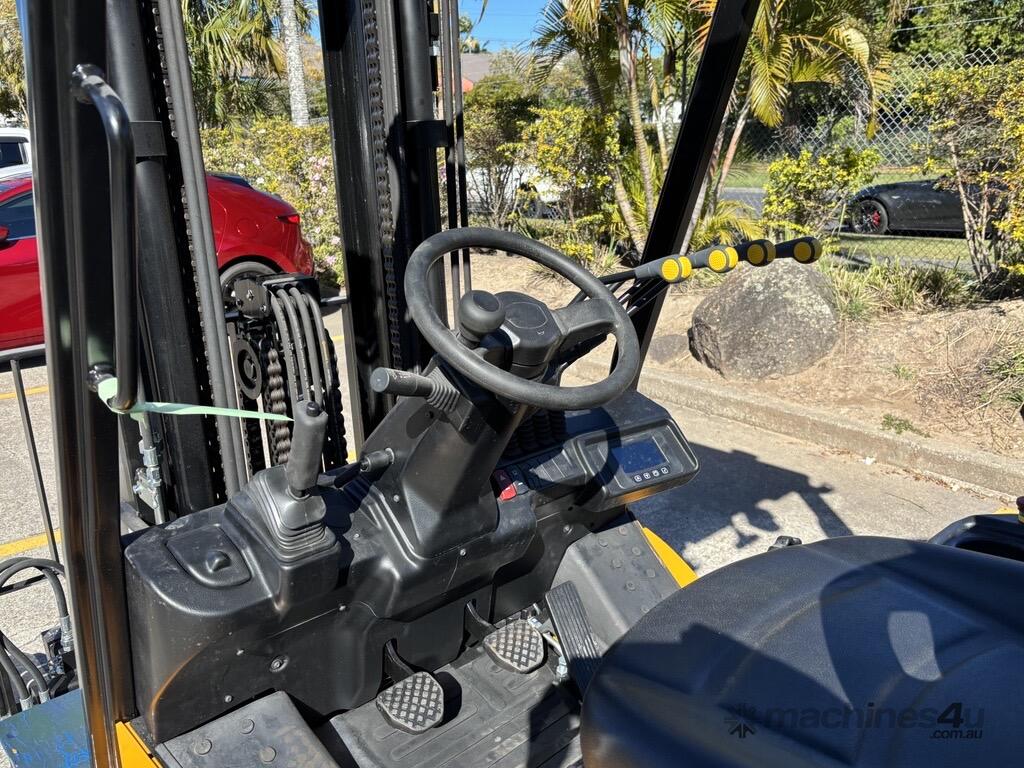

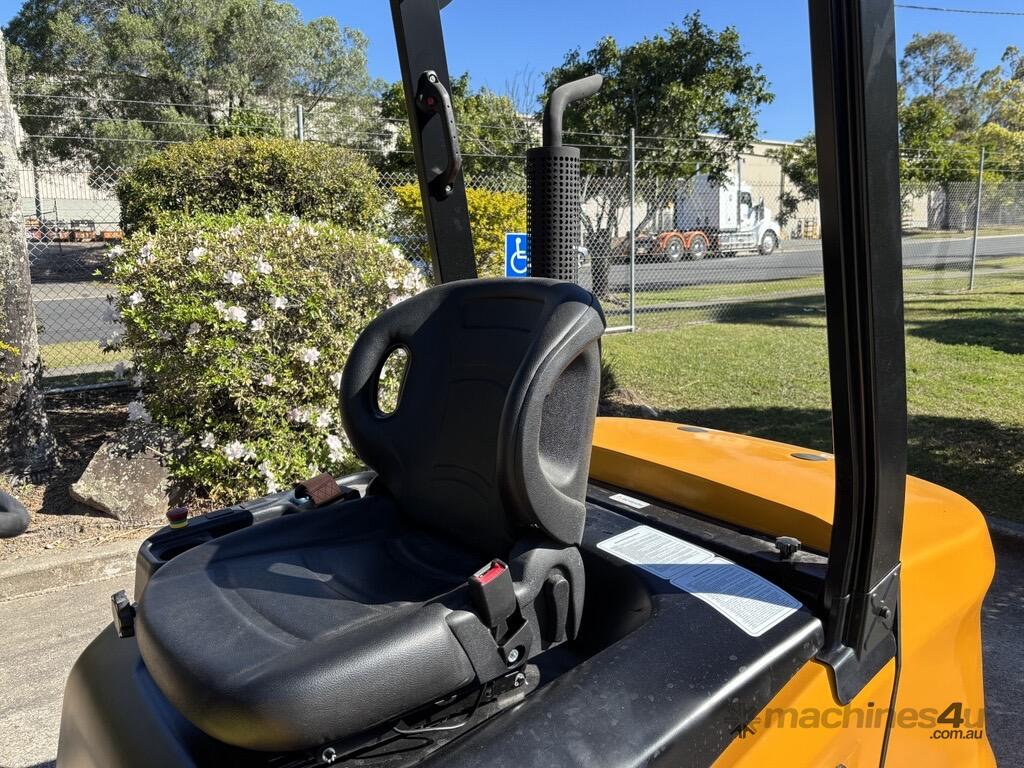

This unit combines strength with operator comfort, featuring hydrostatic transmission, responsive steering, and a comfortable overhead guard at 2,190 mm height. Its turning radius of 2,500 mm and compact 1,220 mm width allow for smooth operation even in tighter workspaces, while a robust chassis and 20% gradeability ensure stability on ramps and uneven surfaces. A 55 L fuel tank supports long shifts with minimal downtime.
Features:
- Lift Capacity: 3,500 kg
- Lift Height: 3,000 mm
- Engine: Mitsubishi S4S diesel, 36.8 kW (49.3 hp)
- Fuel Tank: 55 L
- Travel Speed (no load): 17 km/h
- Gradeability (full load): 20%
- Dimensions: 2,772 mm (length to fork face) × 1,220 mm (width) × 2,190 mm (overhead guard height)
- Turning Radius: 2,500 mm
- Weight: 4,832 kg
Applications:
- Warehousing and logistics
- Construction site lifting and transport
- Manufacturing and industrial facilities
- Outdoor yards and freight handling
