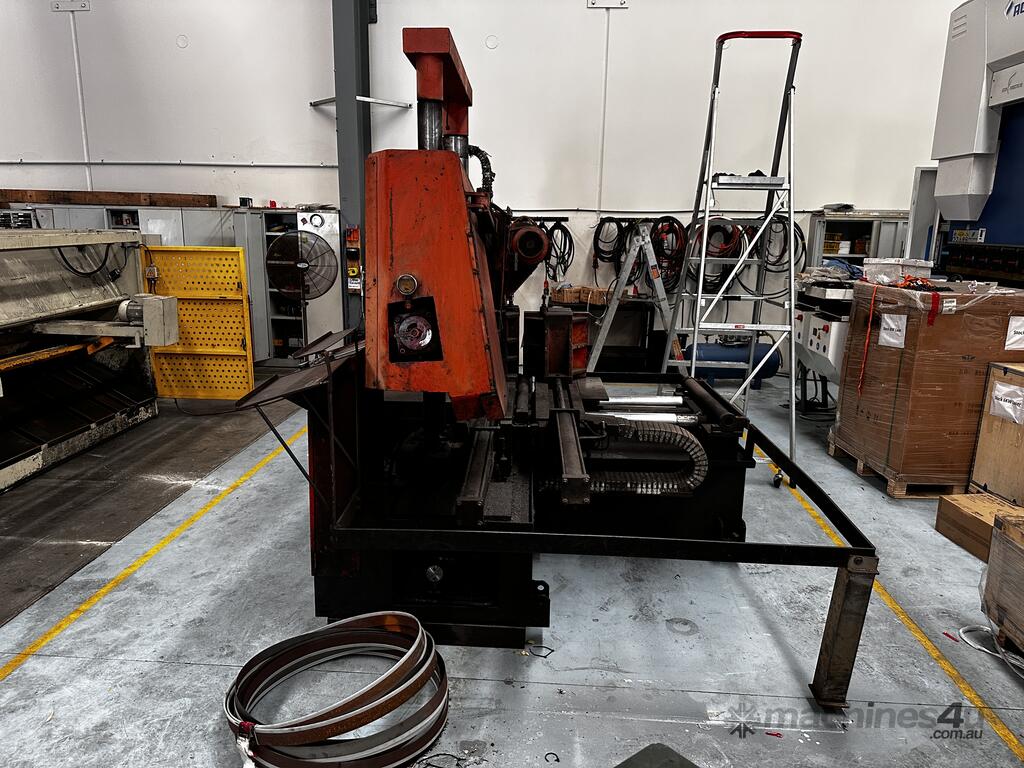

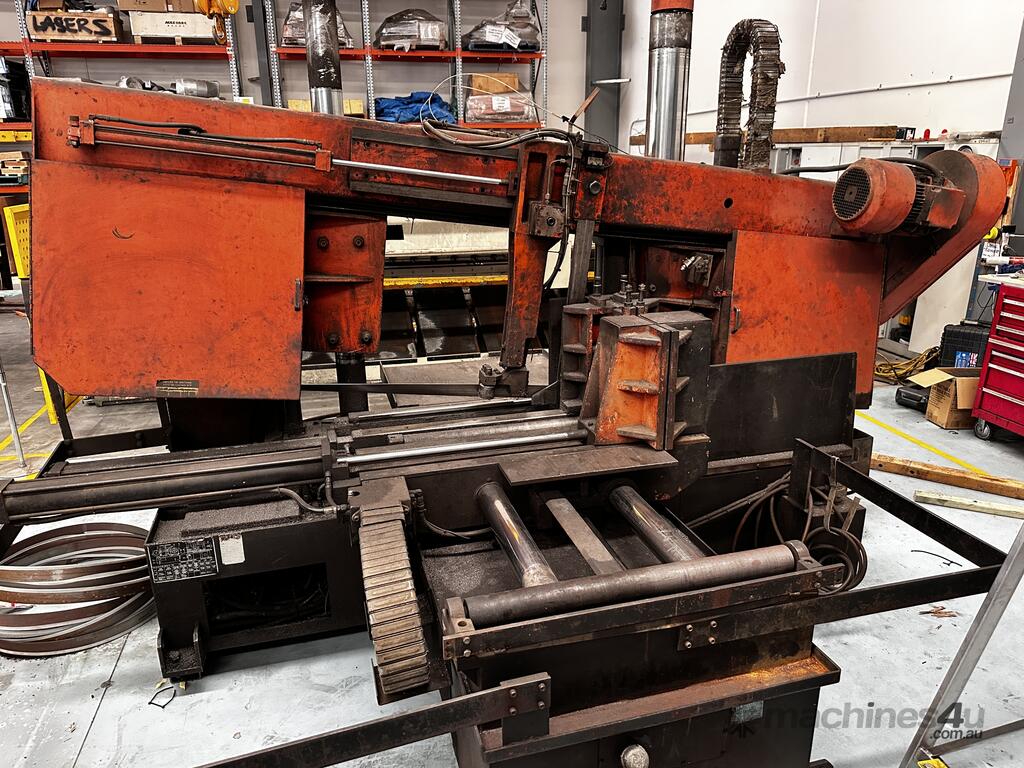

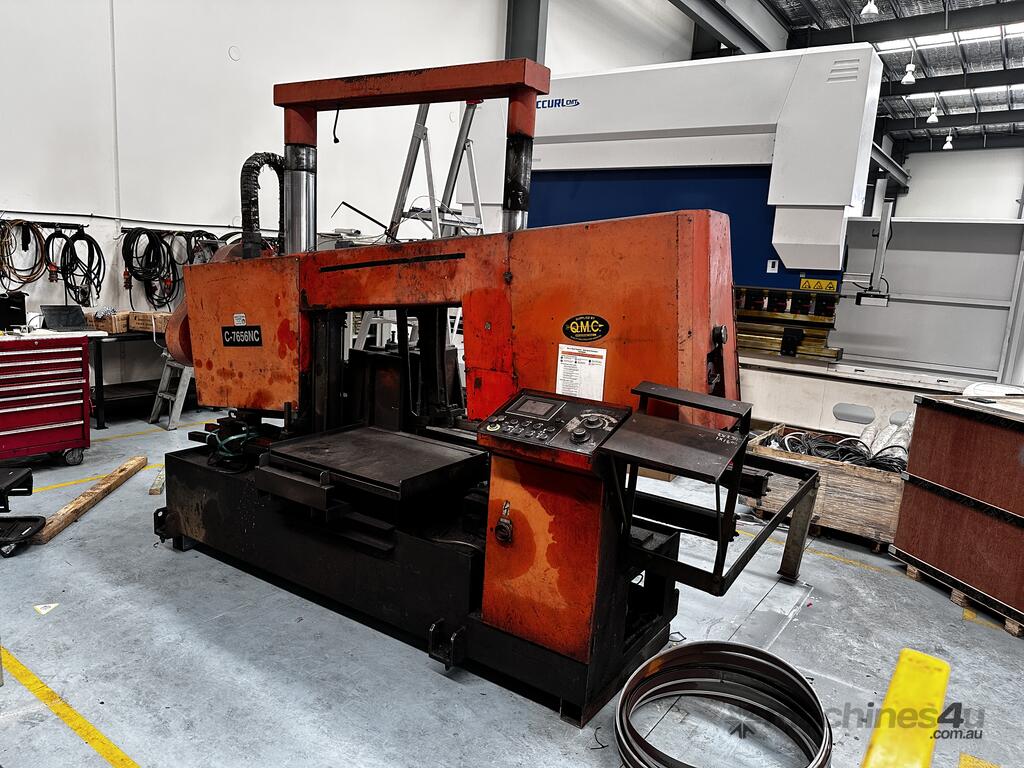

The Cosen C-7656NC bandsaw has a rigid double column design and is fully automatic in operation.
This machine was traded in on a new machine and is in working condition and can be seen running under power.
COSEN C-7656NC DUAL COLUMN NC AUTOMATIC BAND SAW
TYPE - STRAIGHT CUT
FEATURES:

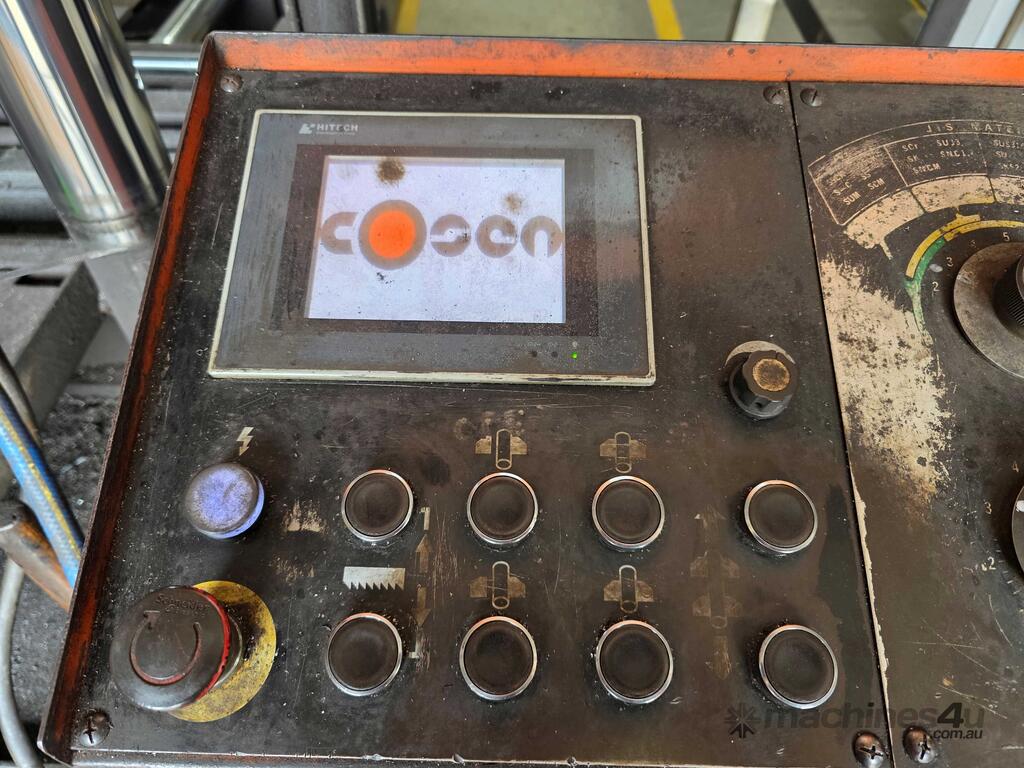

1. Push button control
2. Full stroke vice clamping
3. Automatic chip conveyor

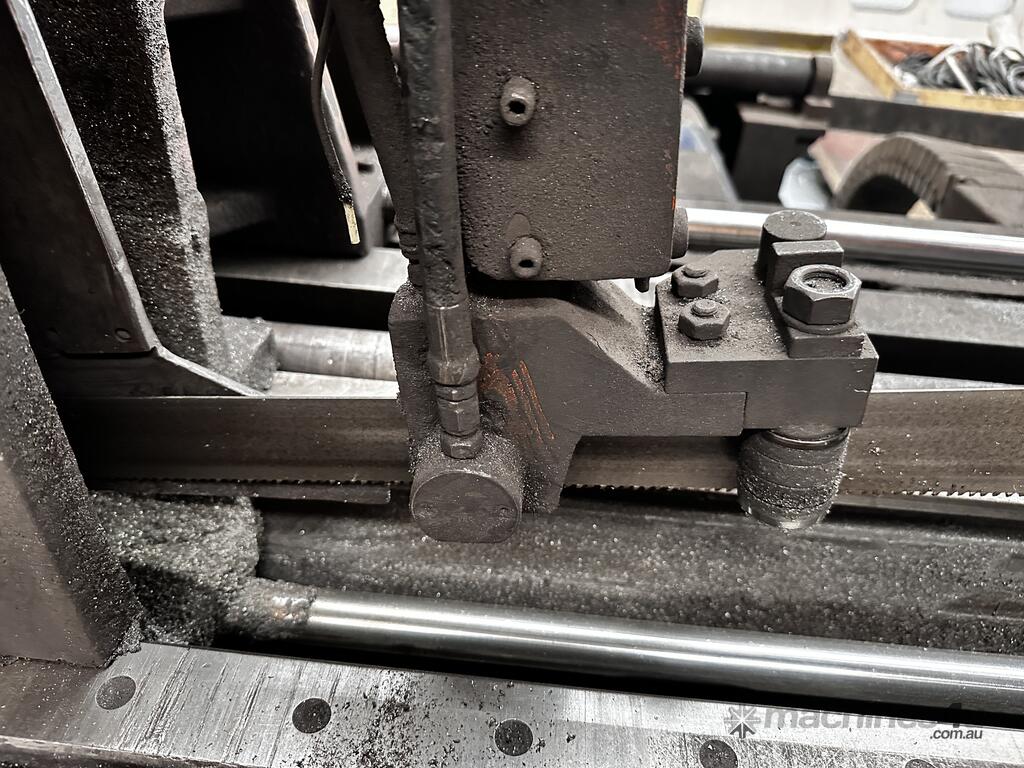

4. Hydraulically controlled guide arm
5. Hydraulic bundle cutting clamps
6. Auto chip conveyor

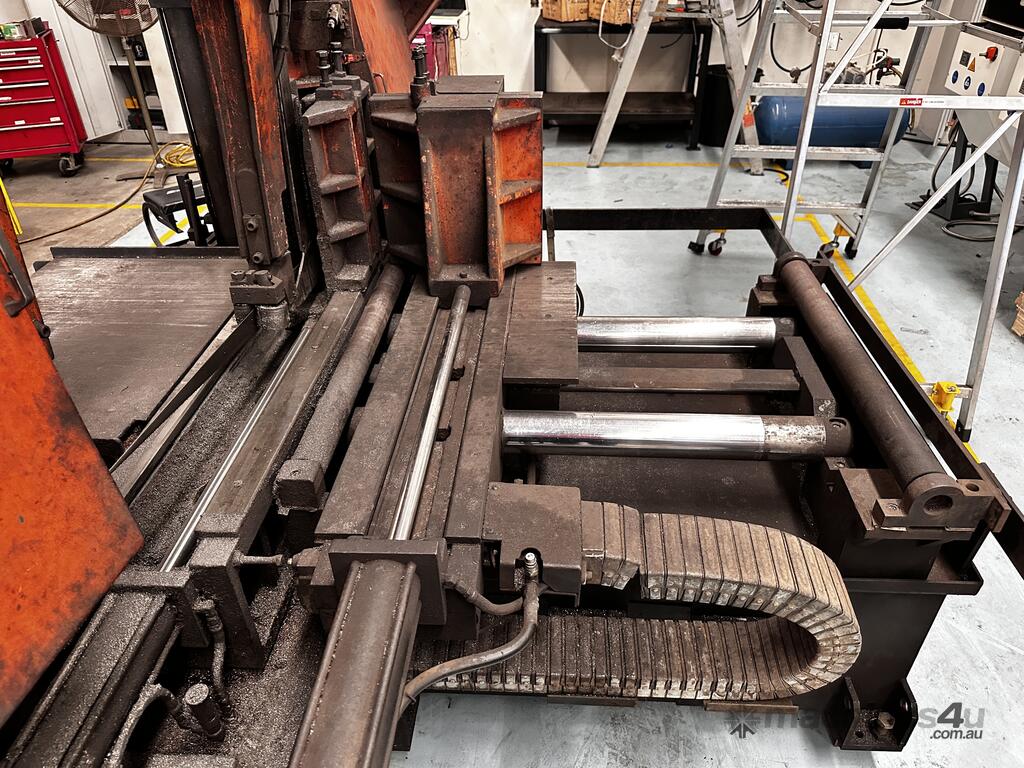

7. Shuttle type automatic feed

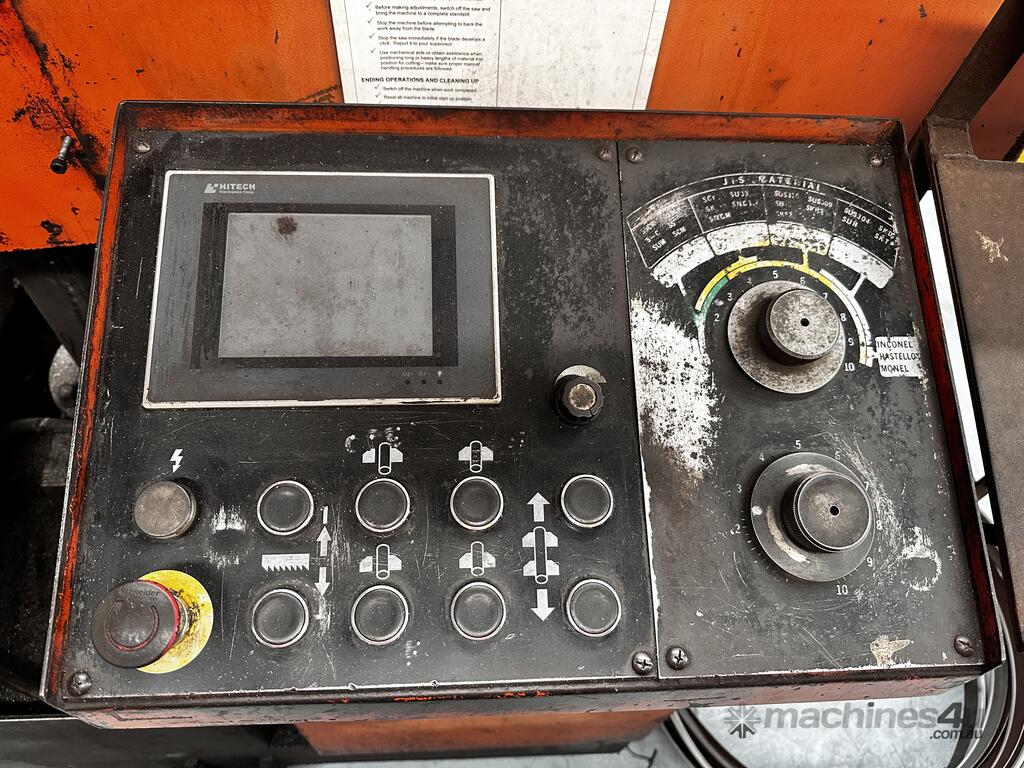

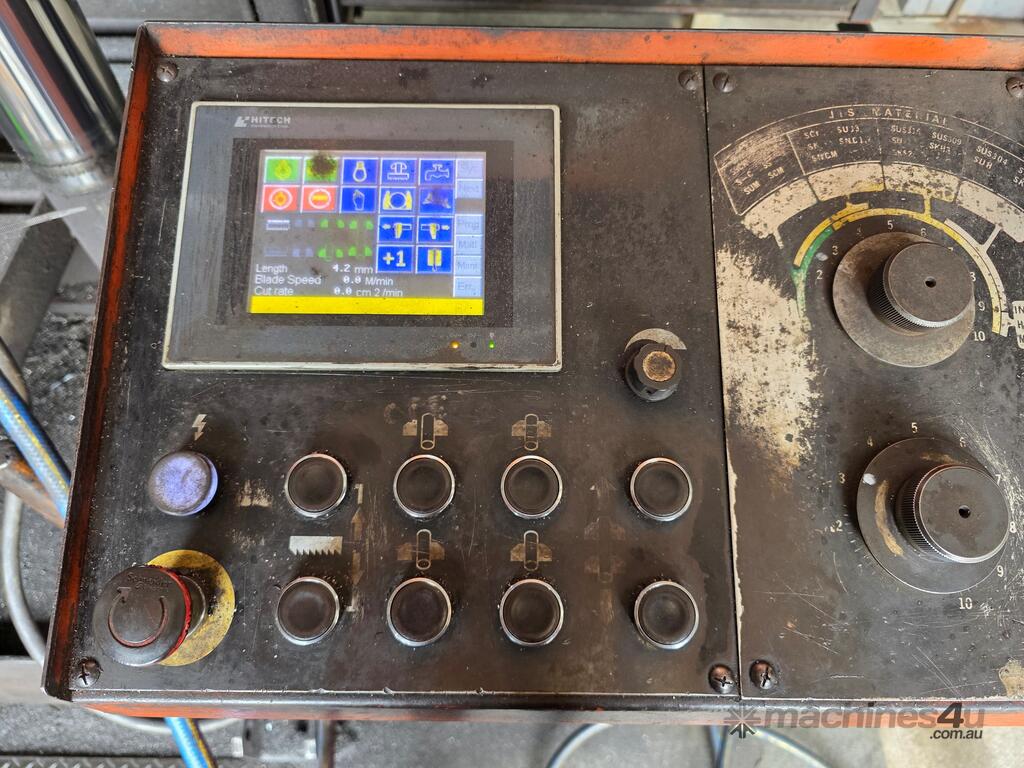

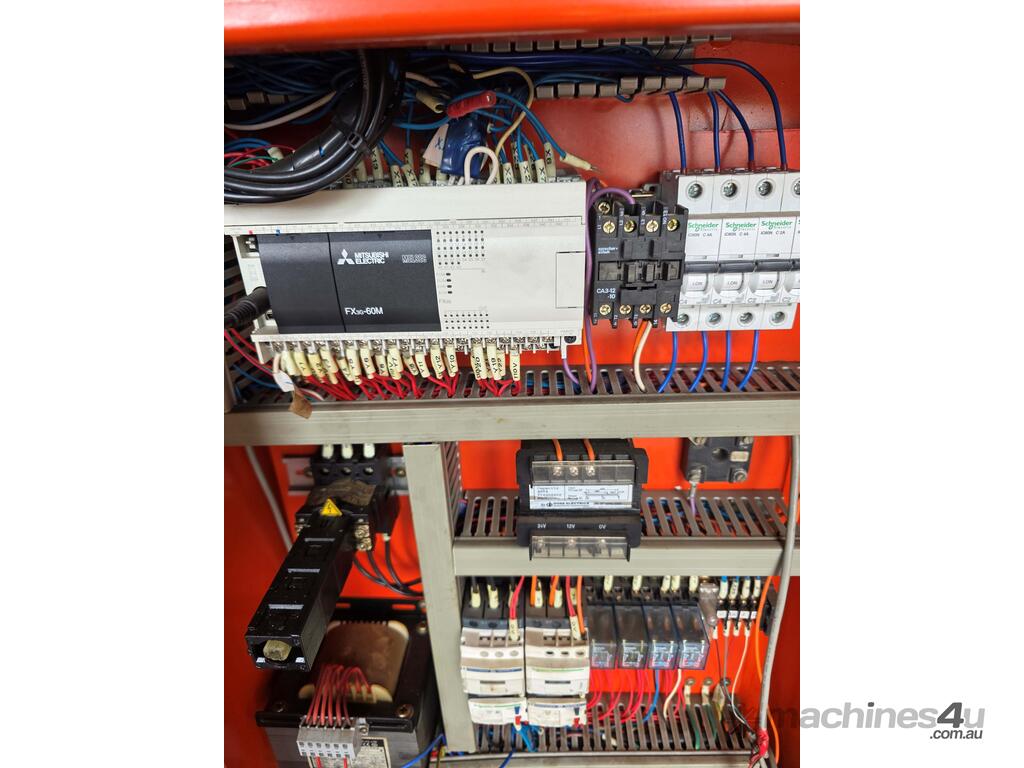

8. P.L.C. control for all electric and hydraulic function

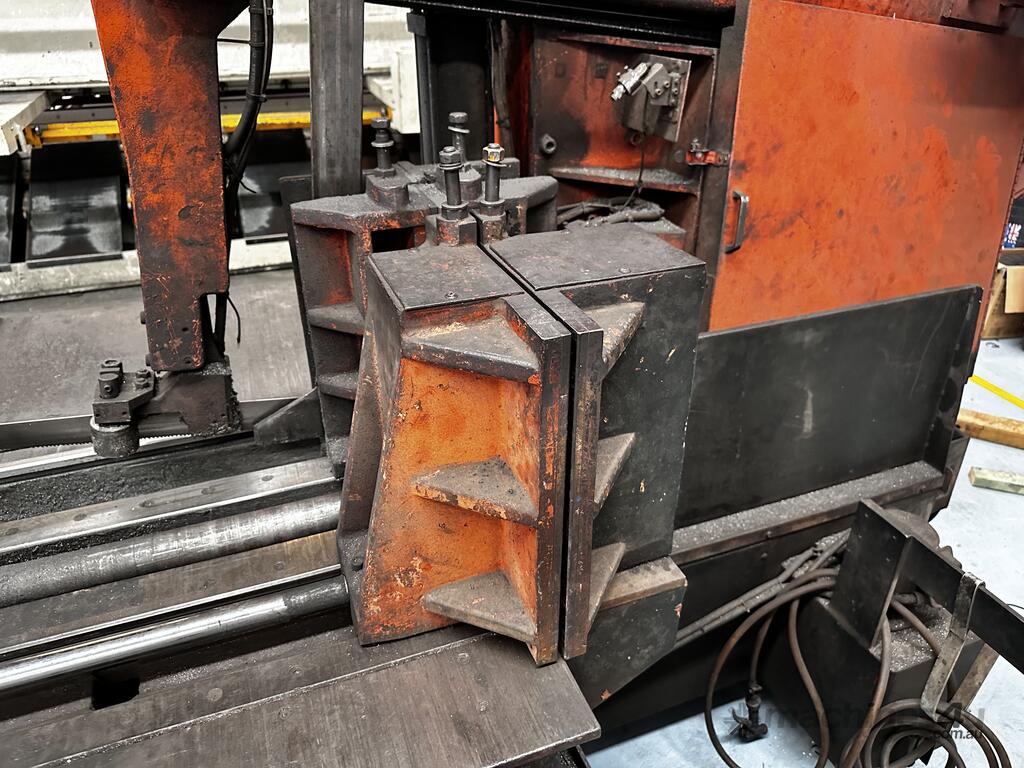

9. Hydraulically controlled dual vice clamping system

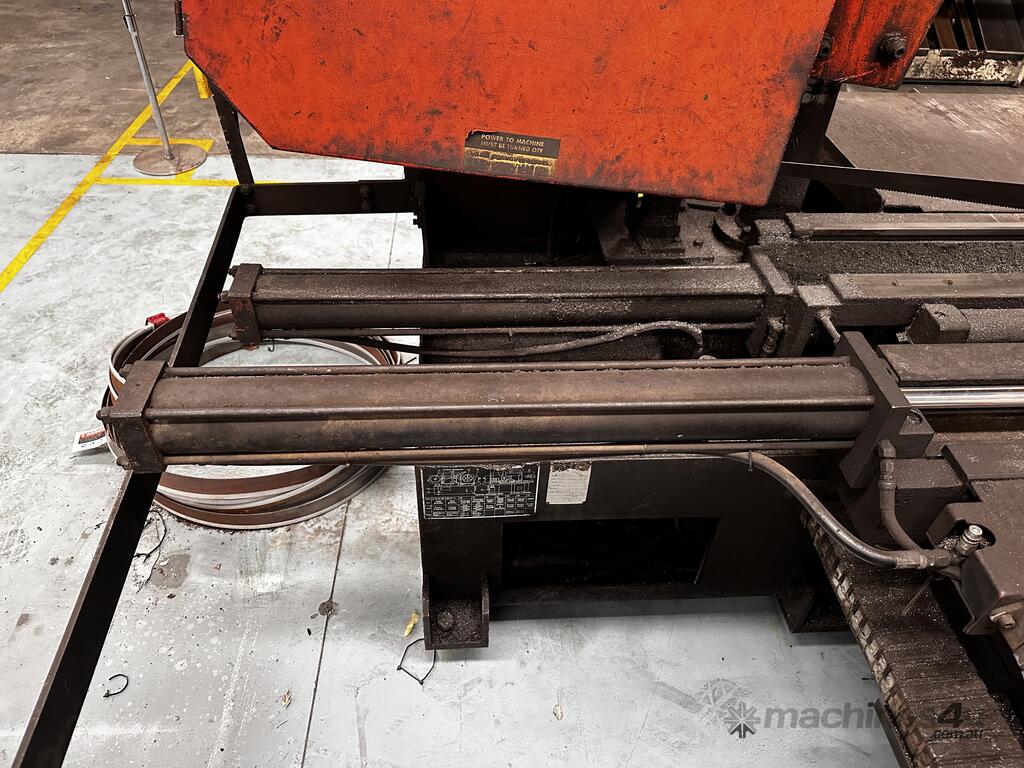

10. Hydraulic shuttle vice system
11. Split front vice
12. Infinitely variable speed control by inverter
13. Blade speed tachometer

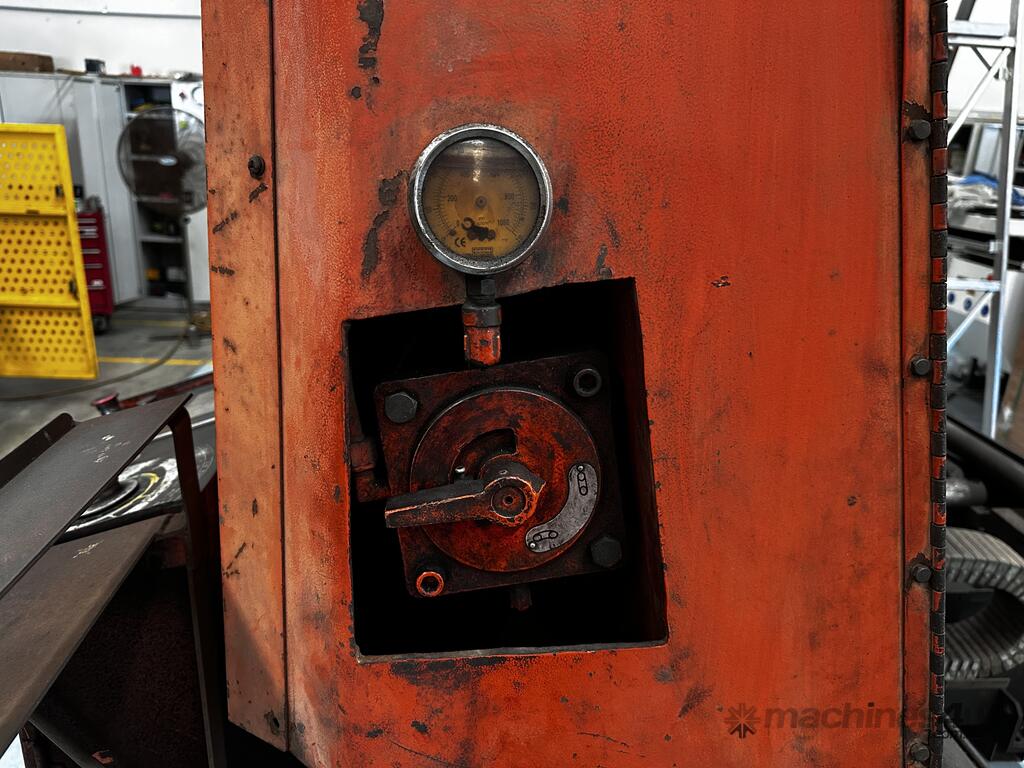

14. Hydraulic blade tension
15. Automatic work height control by fast approach bar sensor
16. Preset cut counter with shut off
17. Out-of-stock shut off
18. Multiple indexing
19. Nesting fixture for bundle cutting (included)
20. Power driven blade cleaning brush
21. Idler wheel motion detector with blade stalling and breakage shut off
SPECIFICATIONS:
Square capacity 560mm
Round capacity 560mm
Rectangle capacity 760 x 560mm

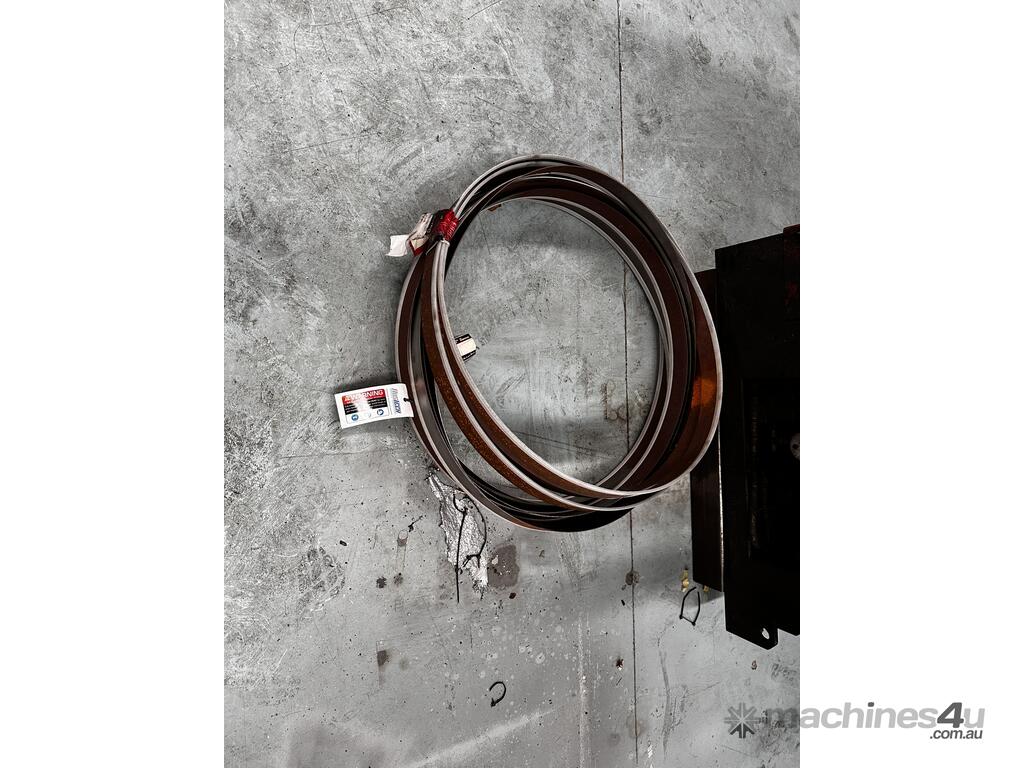

Blade size 6566L X 54W X 1.6T
Machine weight 6000kg

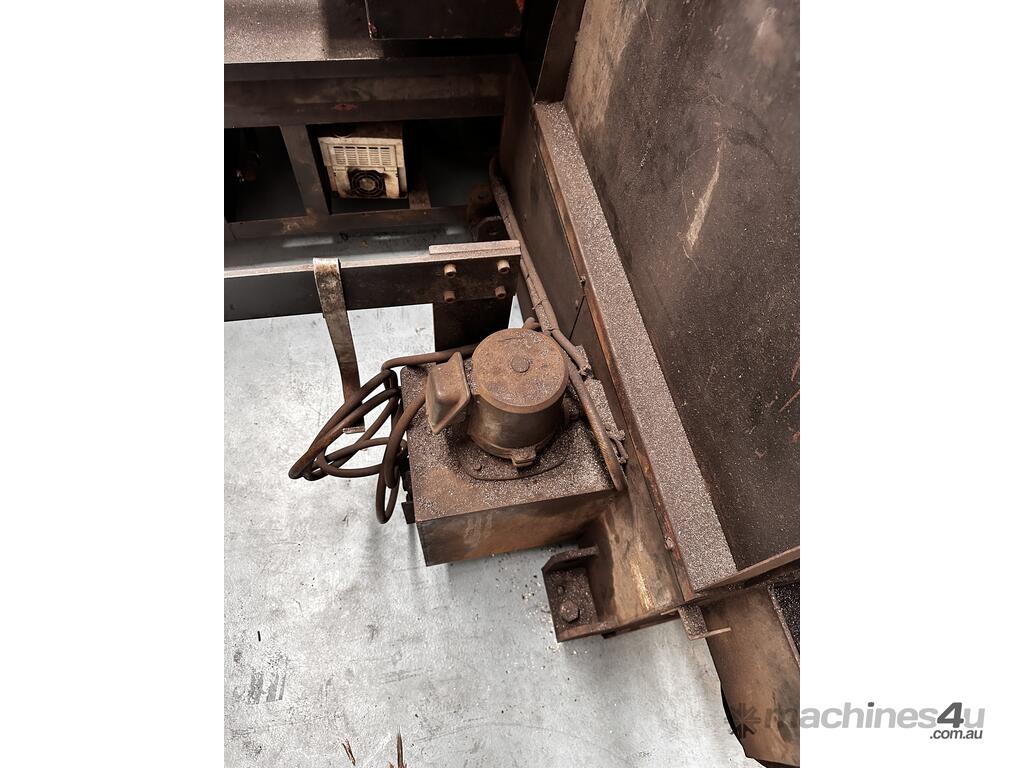

Coolant pump motor 1/8HP
Hydraulic pump motor 2HP
Blade drive motor 5HP
Shuttle bar feed 500mm
Blade speed 20 -100m/min
Floor Space 2330 x 3890mm

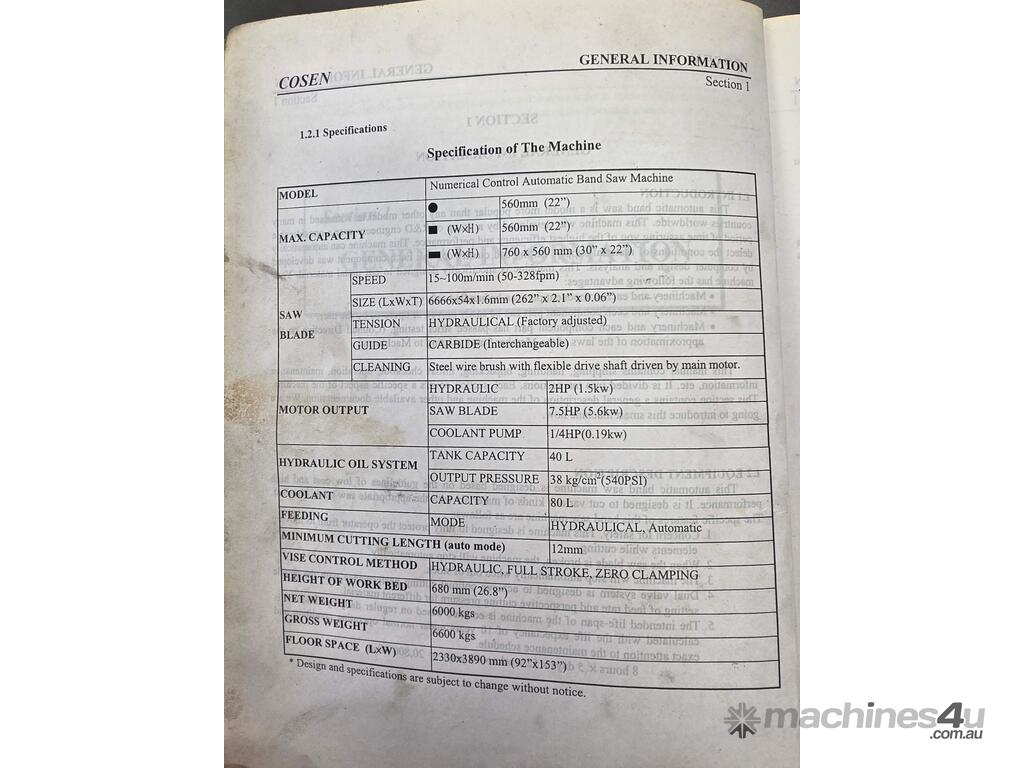

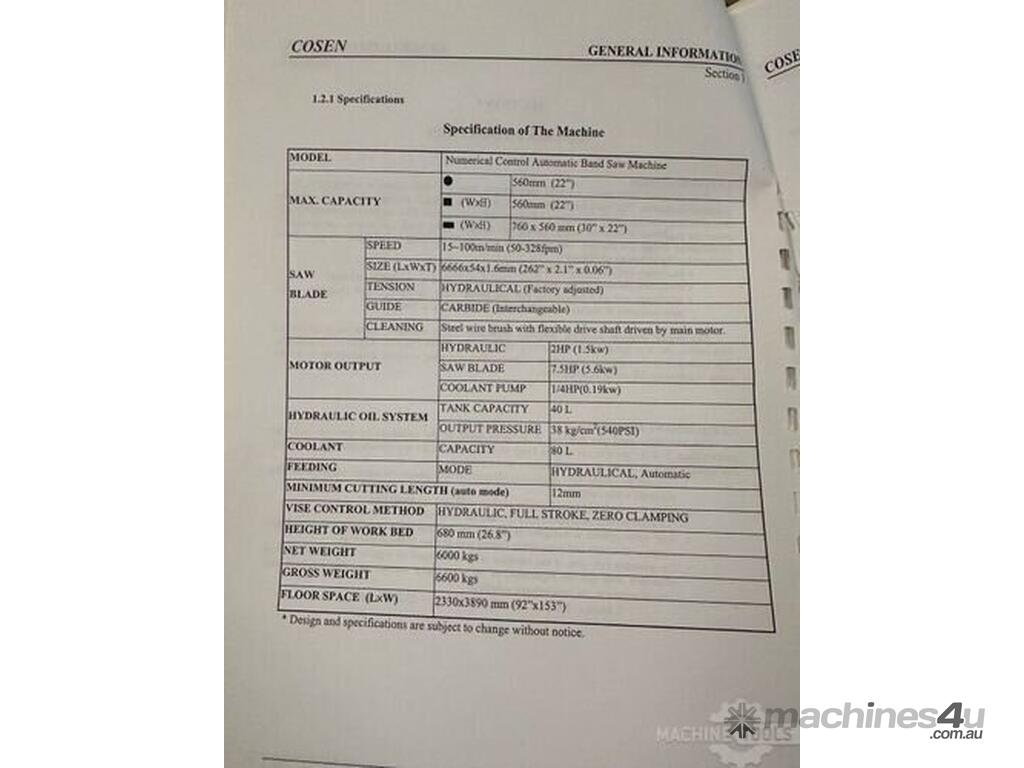

The above specs are taken off a spec sheet of the machine and is subject to change
