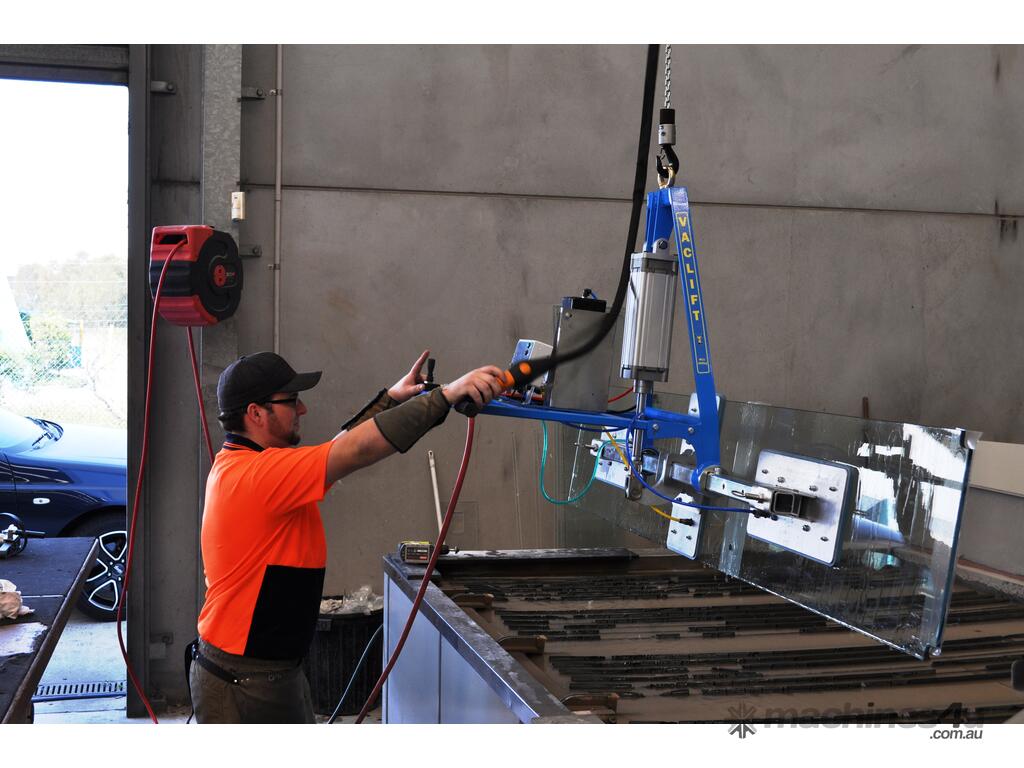

VACLIFT - CVL500PT Australian made Vacuum lifter for glass

Manufactured by Blue Water Engineering Pty Ltd at our factory in Molendinar Qld, built to Australian and New Zealand standards AS4991-2004 and USA standards ASME BTH-1-2017 Design Category “B” Service Class “1”

Ideal for loading cutting benches for Water Jet cutting, lasers, routers etc. CVL500PT Product specifications:

Dedicated crane Vaclift unit
500kg maximum lift horizontal
500kg maximum lift vertical
Compressed air supply (Shop air 2.5cfm 80psi)
Power tilt through 90deg
4 Hi vac pads.
OA length 2390mm
All pads can be individually isolated via easily accessible valves located on the handle
Audible and visual alarms.
Reserve vacuum tank
Plug in 12 volt battery charger.
Powder coated and zinc finish.
Slide on legs to protect pads when unit is not in use.
Built in Australia to Australian standards and USA Standards.

CVL Vaclift Range - Designed primarily for attachment to crane, gantry or jib system and to provide a safe and efficient resolution for moving materials within the workshop, factory or warehouse environment. Ideally suited for loading and unloading workbenches, cutting machines and the like.

Supplied as a Vaclift using compressed air supply (Shop air 2.5cfm 80psi)

Vaclift pads are natural rubber that has been vulcanised to a quality stainless steel backing plate. The seal has been designed to incorporate three vacuum galleries therefore offering three chances to ensure the seal. Internal ribs maintain even pressure over a full area providing an even distribution of support on the item.]

Customers use VacLift successfully throughout a wide range of industries. These include stone, glass, tile, steel, stainless and aluminium profile cutting, water jet and laser cutting plus other industries and applications. Vaclift provides 12 months warranty on all parts except batteries.

- Safer, easier and more efficient loading and unloading of machines, trucks and pallets
-Turns awkward 2,3 or 4 person job into a single person operation
-Less OH & S issues
-More efficient, faster load and unload times
-Raises operator morale
- Cost effective
-Australian Made
-Spares readily available off the shelf

Vaclift has been tested to and comply with Australian and New Zealand standards AS4991-2004 and USA standards ASME B30.20-2010.

Vaclift is Manufactured in Australia by Blue Water Engineering Pty Ltd. Vaclift is built to exceed Australian standards. Vaclift provides full 12 month factory warranty plus easy access to servicing, spare parts and support.

* Click on the pdf spec sheet for more information *
