VACLIFT - CVL500PT Compressed Air, Crane/Jib Vacuum Lifter 500Kg Lift/Tilt Capacity Australian Made

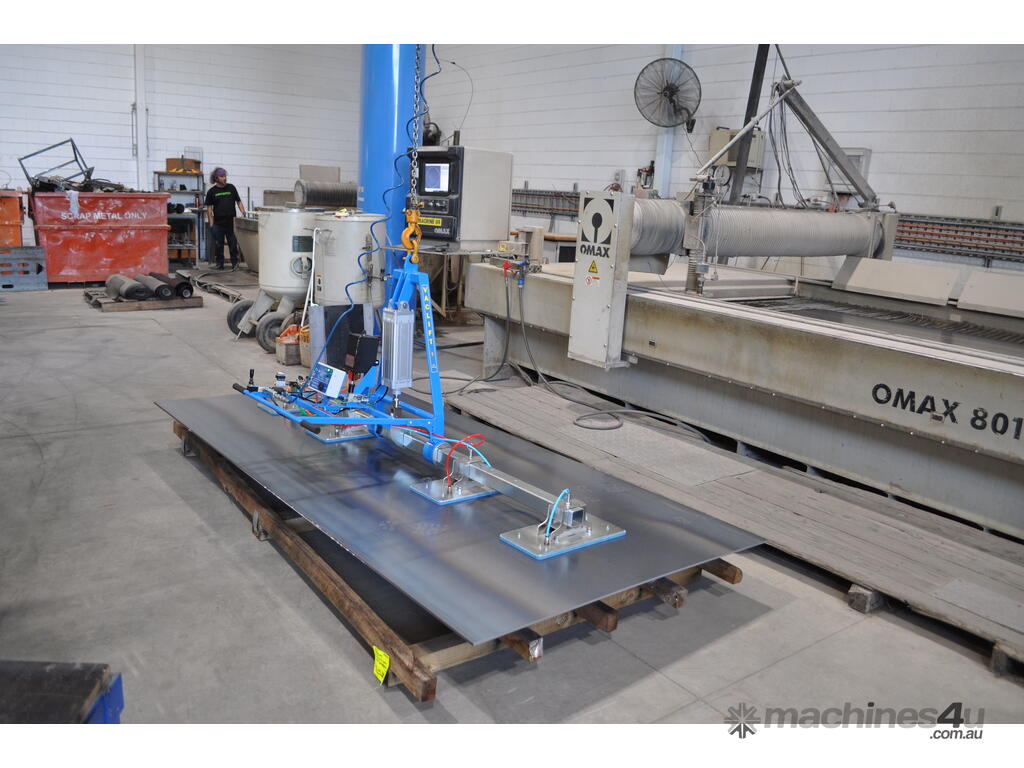

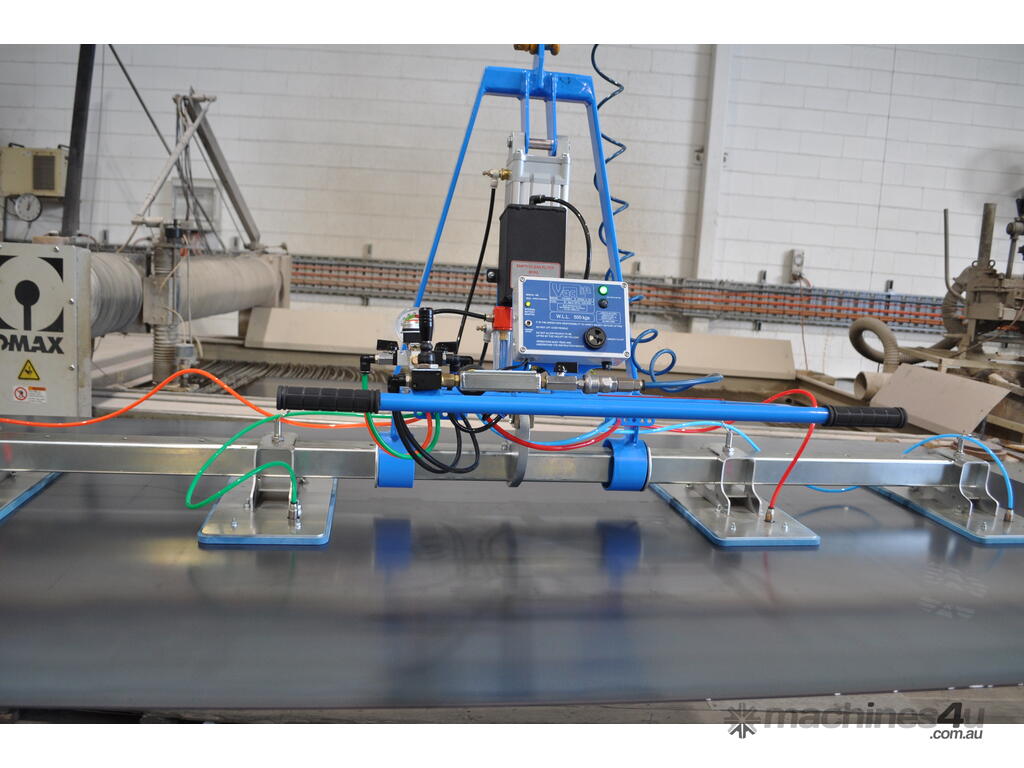

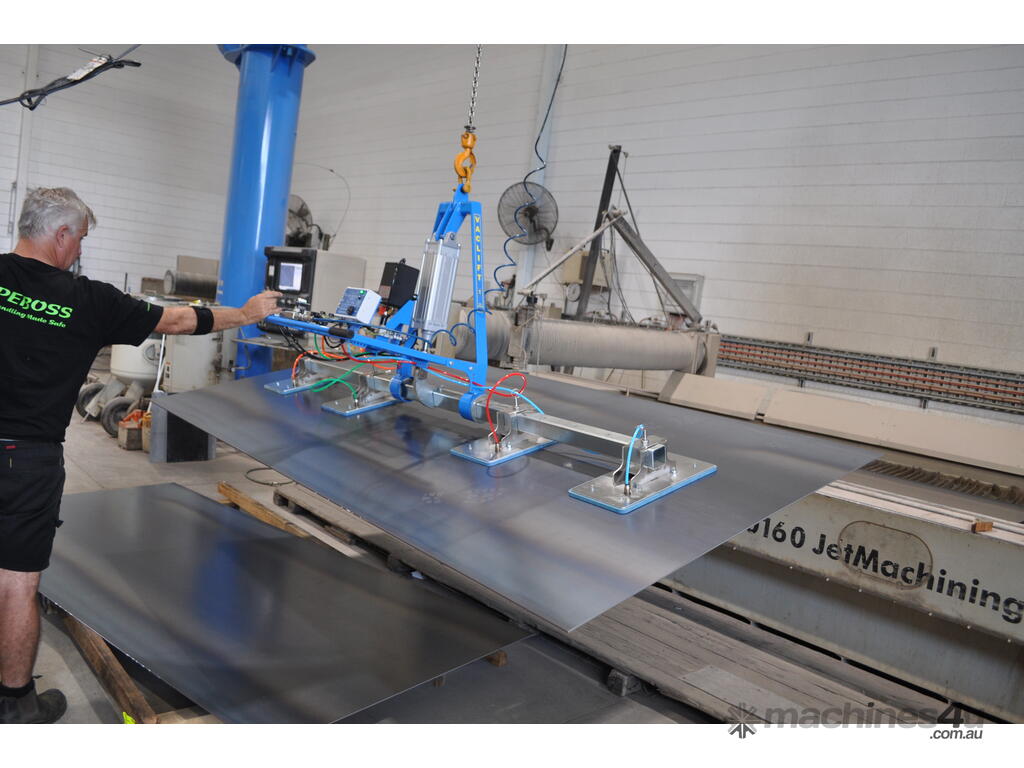

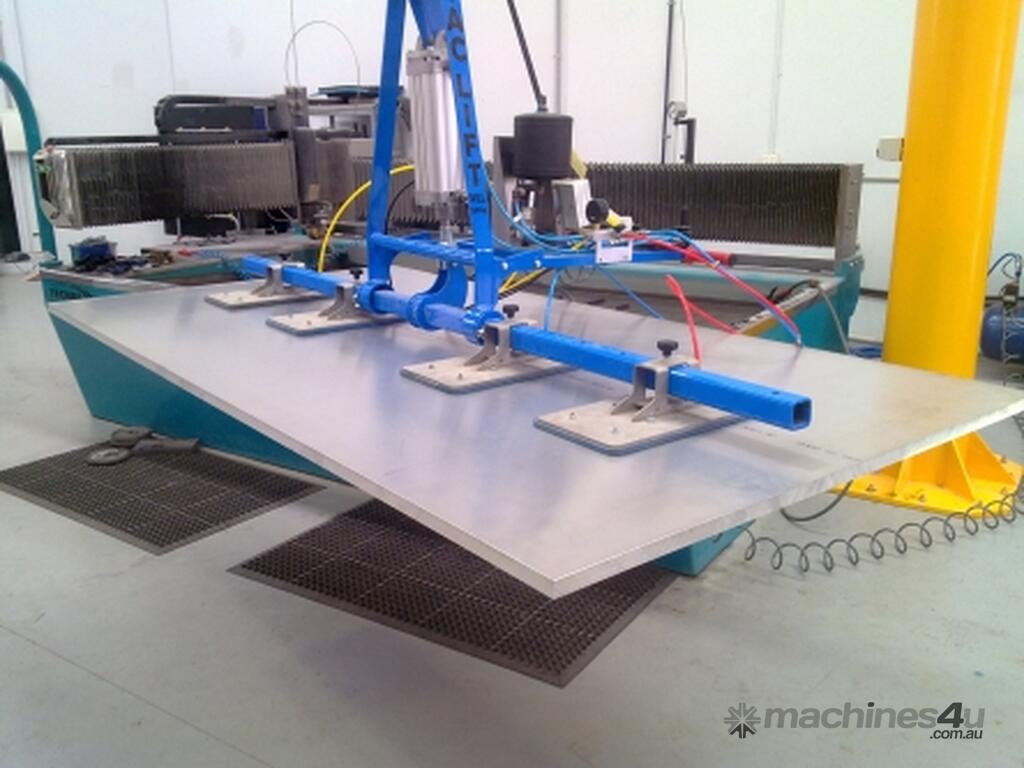

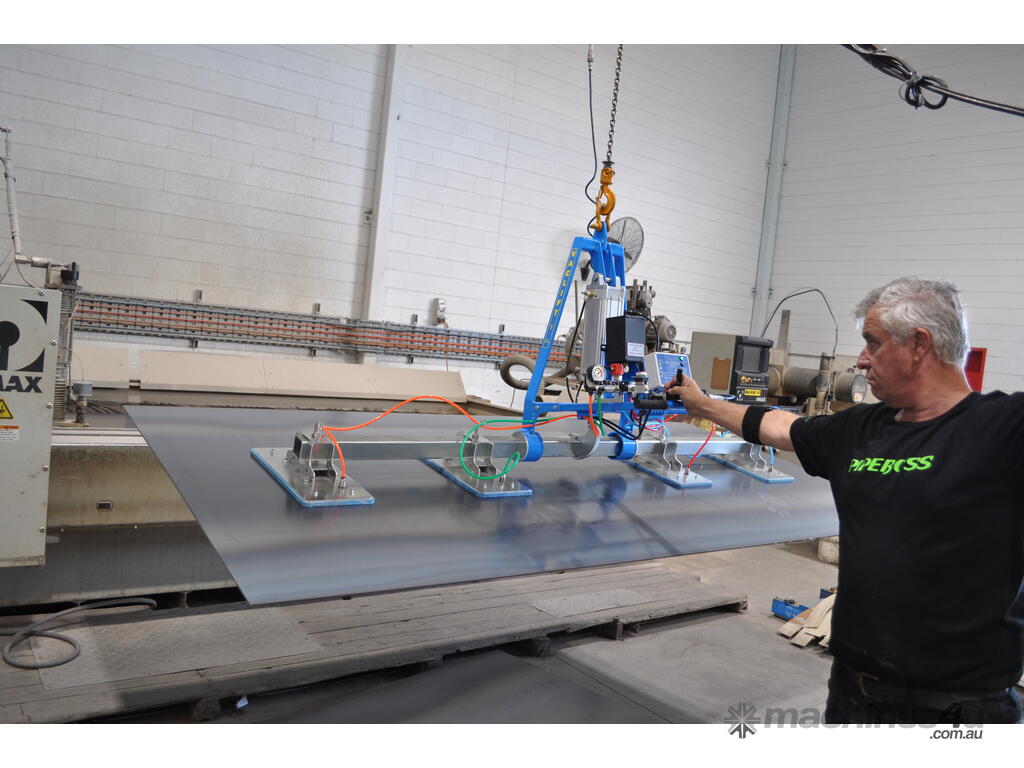

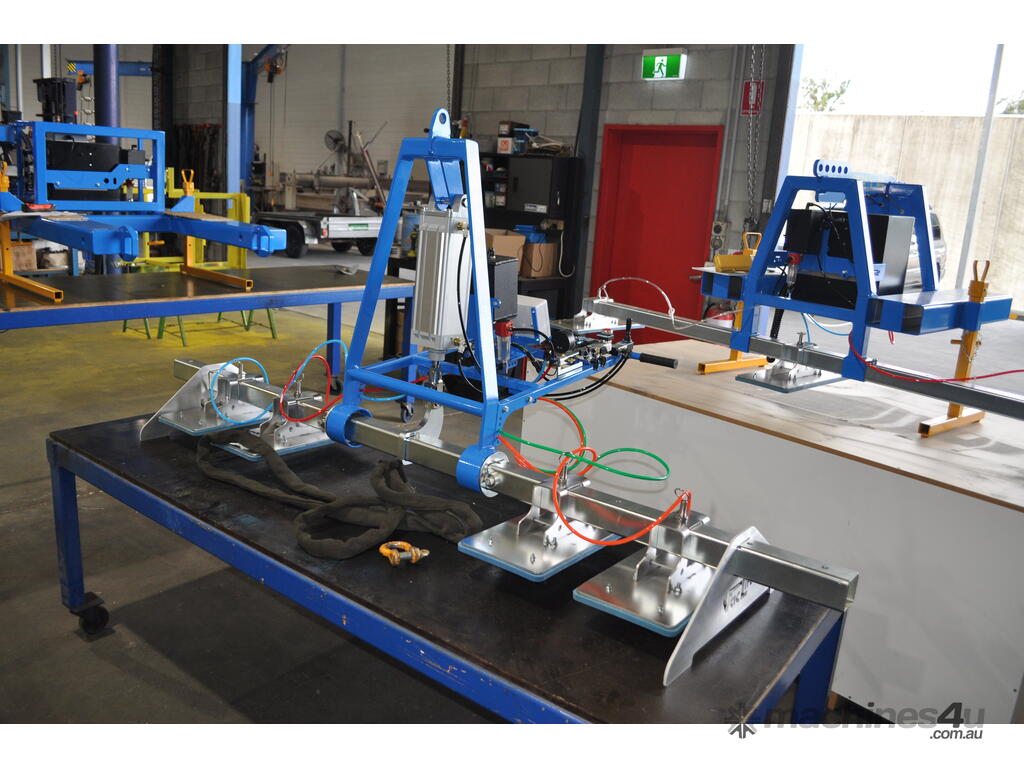

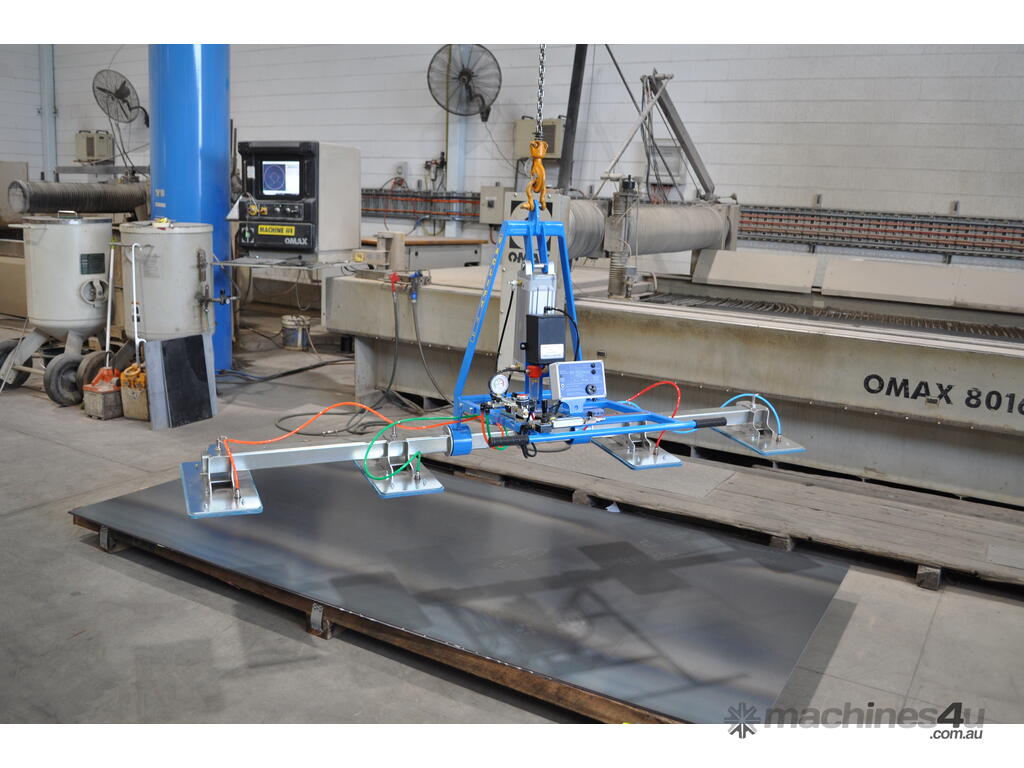

The CVL500PT is a robust crane-mounted vacuum lifter designed for workshop and industrial use. Built for performance and safety, this unit offers a reliable solution for lifting and tilting heavy materials up to 500kg with ease. Operating on compressed air, it features a 90-degree power tilt function and 4 high-performance Vaclift Hi Vac pads - specially engineered to handle abrasive environments like waterjet cutting and stone processing. With a durable powder-coated and zinc finish, audible and visual safety alarms, and a quick-adjust pad system, the CVL500PT is made to withstand tough conditions while delivering smooth, efficient operation. Each unit meets both Australian and USA safety standards and includes a full set of care and maintenance instructions for long-term use. Ideal for businesses needing safe, hands-free lifting capability in demanding environments.

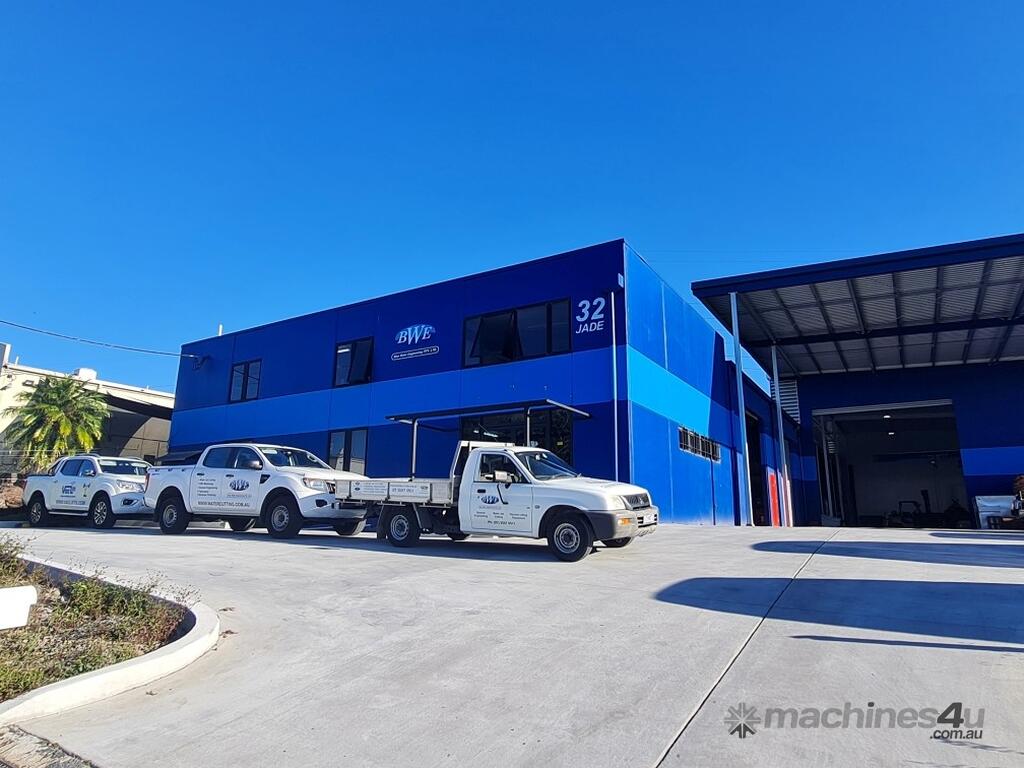

All Vaclifts are fully supported by Blue Water Engineering for spare parts, repairs and servicing.

Specifications
MAXIMUM LIFT CAPACITY 500kg
COMPRESSED AIR SUPPLY 3.4 cfm 80psi (shop air)

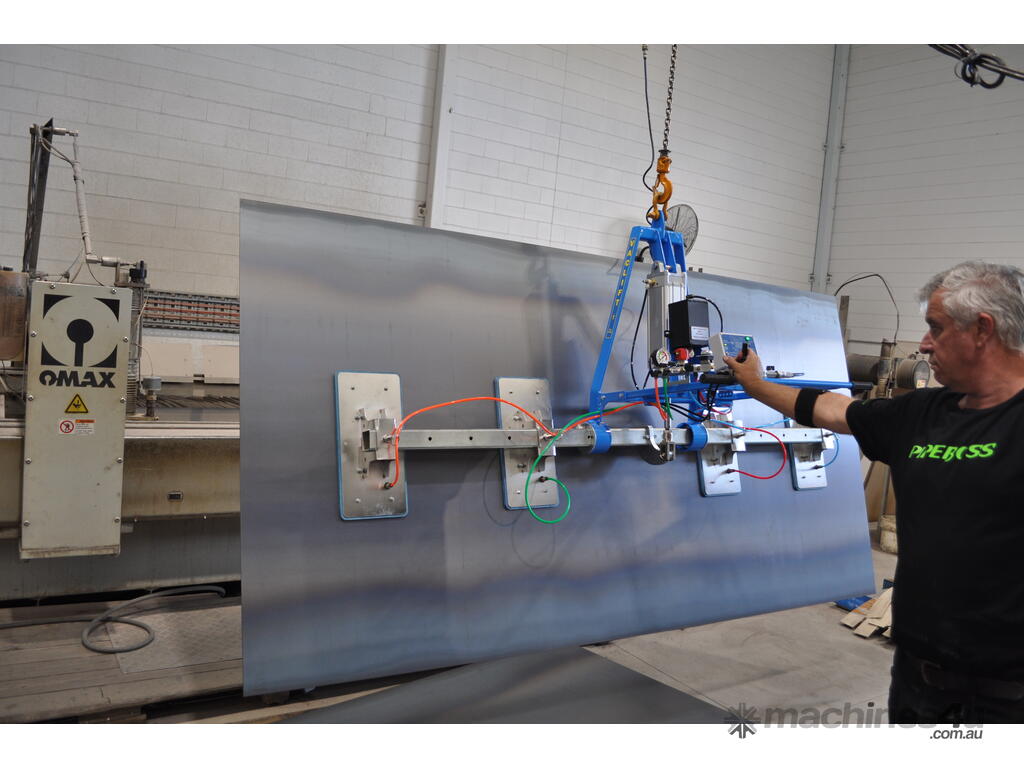

TILT FUNCTION Power Tilt, 90 degrees
MAIN BAR LENGTH Approx. 2280mm
SPREADER BARS Available as an option
VACUUM PADS 4
PAD DIMENSIONS 473mm x 228mm
INDEPENDANT PAD ISOLATION Yes
ADJUSTABLE PAD POSITIONING Yes
QUICK CHANGE PAD LATCHES 10mm Heavy Duty Stainless
LIFTING POINT Single
AUDIBLE & VISUAL ALARM Yes
BATTERY CHARGER Plug-in 12V
PROTECTIVE SLIDE-ON LEGS Yes
FINISH Zinc and Powder Coated
TARE WEIGHT Approx. 75 kg
AUSTRALIAN STANDARDS Meets AS4991-2004
US STANDARDS Meets ASME830.20-2010
WARRANTY 12 Months
SERVICE & SPARES Blue Water Engineering servicebweng

Benefits of using the CVL500PT

IMPROVED SAFETY:
The CVL500PT vacuum lifter reduces the risk of injury by eliminating the need for manual lifting which can lead to back strains and other musco-skeletal disorders. It also prevents falls and other accidents by reducing the need for workers to climb on platforms or scaffolding.
INCREASED EFFICIENCY:
The CVL500PT can lift and move loads, up to 500kg, quickly and easily, saving time and increasing productivity. It can be operated by a single worker, reducing labour costs and allowing workers to focus on other tasks.
VERSATILITY:

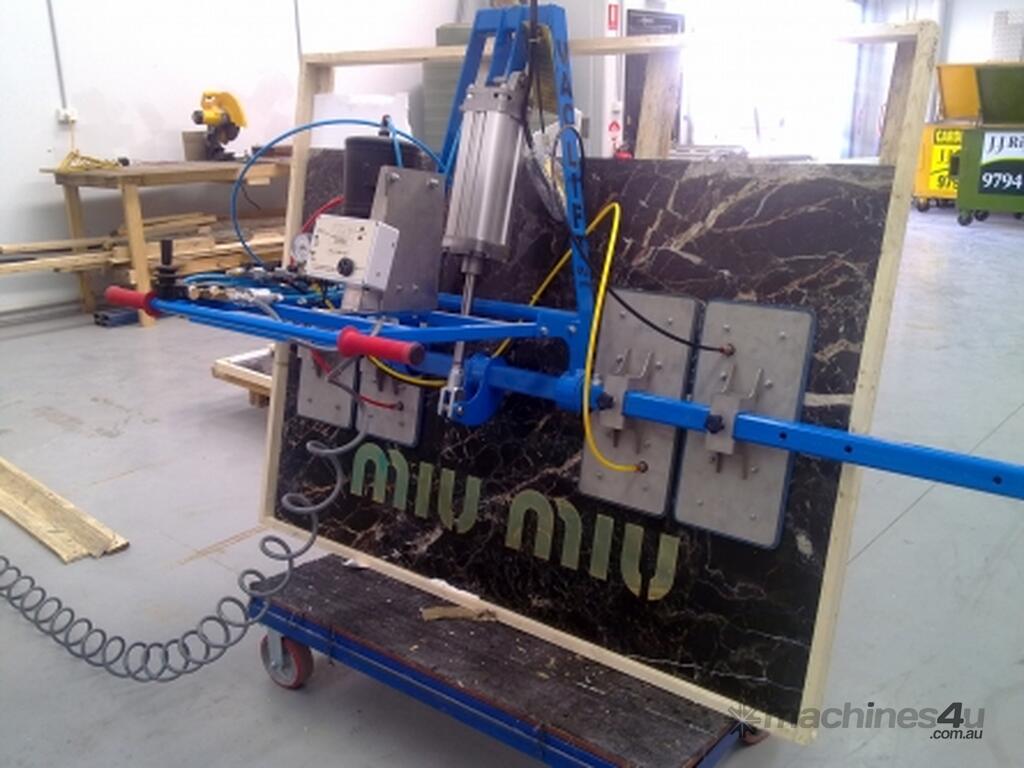

Vaclifts come in different sizes and configurations making them suitable to lift a variety of flat non-porous surfaces such as glass, metal, stone, concrete, plastics, laminates, composite-roofing , cool room, truck and trailer panels.
REDUCED DAMAGE:
The Vaclift lifters provide superior hold and control, reducing damage to materials such as glass where the risk of breakage is high.
COST EFFECTIVE :
The CVL500PT Vaclift is a cost effective method of handling heavy materials, reducing the need for additional manual labour and equipment. Fewer workplace injuries mean potentially fewer expenses from compensation claims and potential lawsuits.
