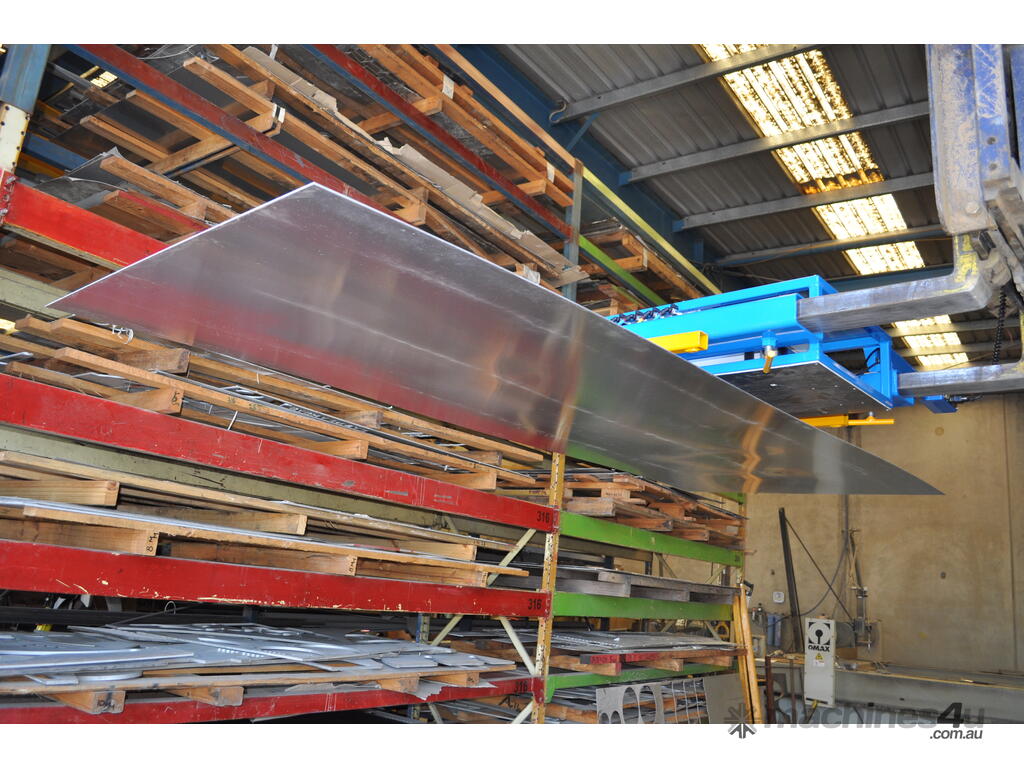

Low Profile Vaclift Forklift Unit - Designed to allow forklift access to lift sheets stored in pallet racks, whilst still ideal for general transfer of sheet material around the yard or within the workshop. This compact and versitile unit is one of a kind with fully self contained battery powered vacuum system only occasionally requiring charging via a 240V charger when not in use. When not in use, the Vaclift can be placed back on its legs keeping the vacuum pads clear of the floor.
Specifications:
Fully self contained vacuum supply and battery powered.
500kgs maximum lifting capacity
4 Hi Vac pads can be relocated manually around the main beam to give horizontal or vertical lift
Each pad can be independently isolated
OA 2400mm main beam length, measured to outside edges of installed vacuum pads.
Fully self contained air supply and battery power.
No need for power or air from the Forklift
No tilt function.
240v/12v Fully automatic battery charger supplied, to recharge the main battery when required.
Pendant control
Audible and visual alarms to meet Australian standards
Large main battery to give long operational life between charges.
Battery indicator light, changes from green to red when main battery needs charging,
Please note the lifter can still be used as the battery has reached the recharging level but is not yet at a level that the battery is flat
Set down legs to protect pads when unit is not in use
Powder coated and zinc finish.
Built to Australian standards.
Full 12 month warranty
- Safer, easier and more efficient loading and unloading of machines, trucks and pallets
-Turns awkward 2,3 or 4 person job into a single person operation
-Less OH&S issues
-More efficient, faster load and unload times
-Raises operator morale
- Cost effective
-Australian Made
-Spares readily available off the shelf
Vaclift has been tested to and comply with Australian and New Zealand standards AS4991-2004 and USA standards ASME B30.20-2010.
Buying direct from the manufacturer means we can individually design, build and supply your Vaclift to your specifications. Offering a complete range of vacuum lifting equipment to suit almost any situation Vaclift is Manufactured in Australia by Blue Water Engineering Pty Ltd. Vaclift is built to exceed Australian standards. Vaclift provides full 12 month factory warranty plus easy access to servicing, spare parts and support.
Go to the Vaclift showroom on Machines4u to see a sample range of other Vaclift units and call us to discuss your requirements
* Click on the pdf spec sheet for more information *
