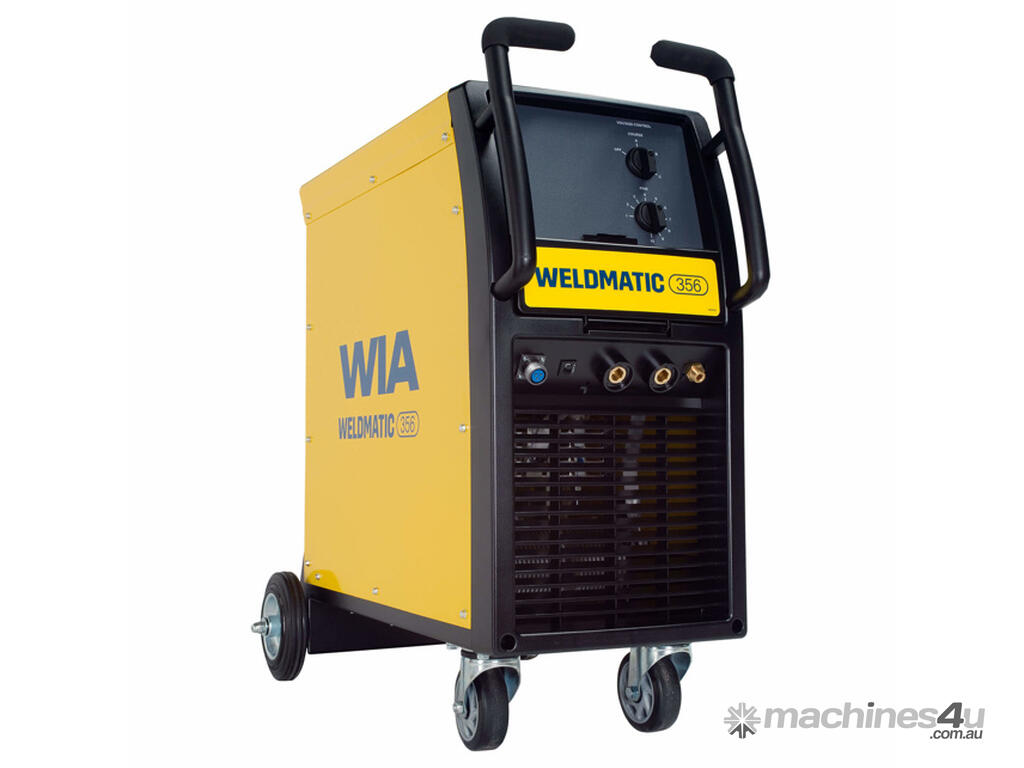

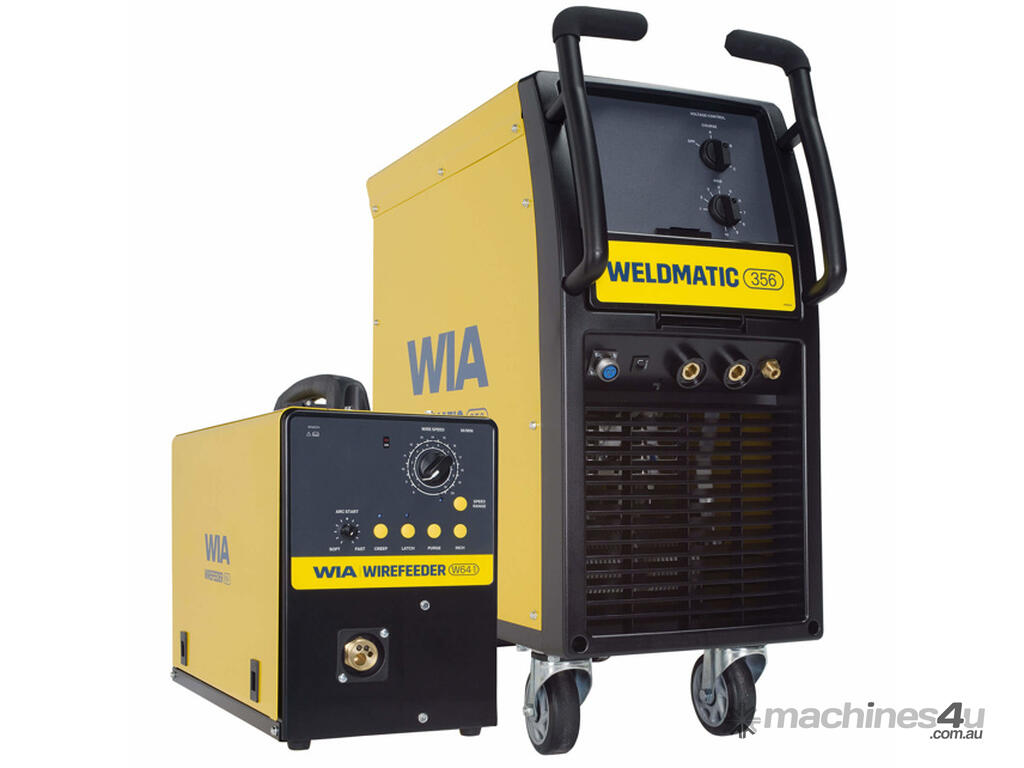

Weldmatic 356 The Perfect MIG Welder for Medium to Heavy Fabrication

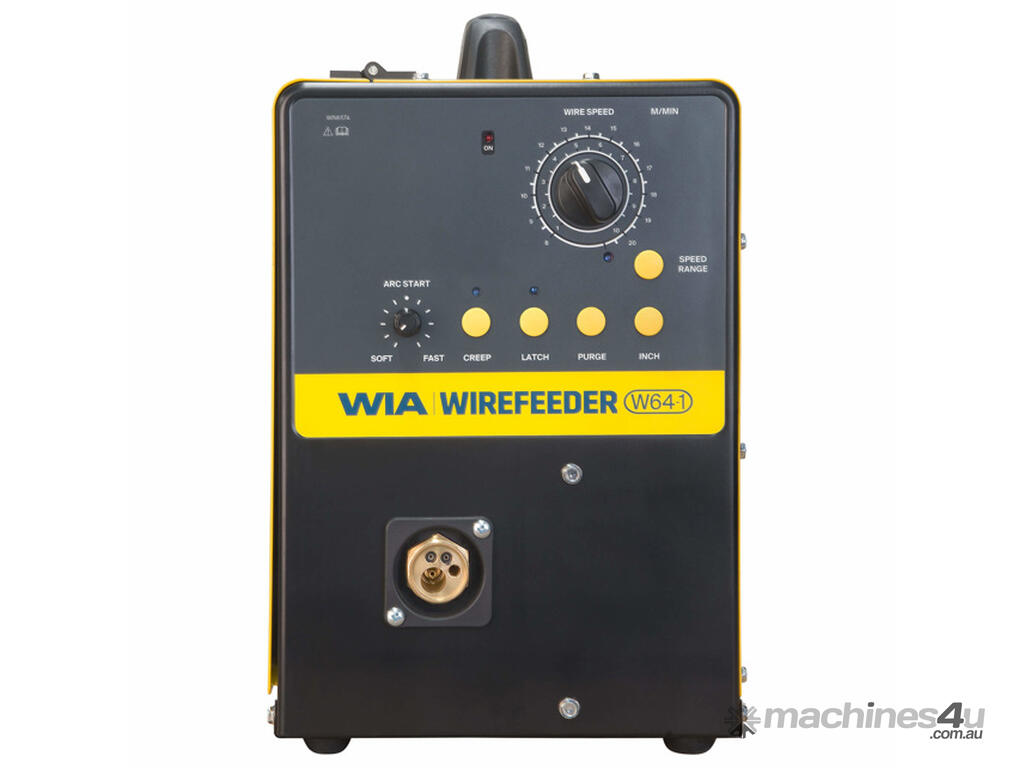

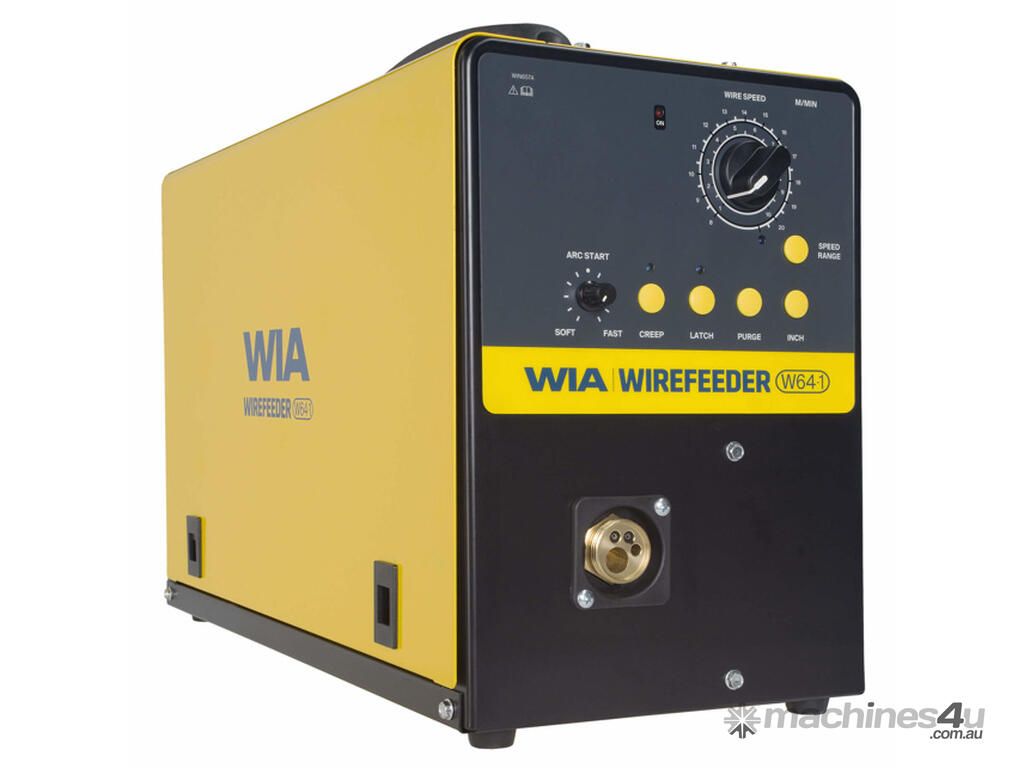

The Weldmatic 356 is the ideal choice for medium fabrication workshops and comes equipped with Fan-on-Demand™ which improves efficiency, reduces maintenance and provides a safer working environment. Packaged with a separate wire feeder the Weldmatic 356 provides extra flexibility for workshops and enables custom set up through arc start, wire speed, burn back, spot time, creep mode, pre and post gas settings.

Machine Specification
Primary Voltage
415 VAC-50Hz
Rated Primary Current
15 Amps
Max Primary Current
23 Amps
Recommended Generator Power
16.5 kVa
Supply Plug
32 Amp
Recommended Generator Power
16.5 kVa
Weight
126kg

MIG Specification
Output Range
30A/15.5V-355A/31.8V
Rated Output 40°C (10min)
355A/31.8V 40%
290A/28.5V 60%
225A/25.3V 100%
Wire Size Range
0.6-1.6mm (Solid), 0.8-1.6mm (Cored)
Material Thickness Range
Welds up to 12mm+ steel plate, single pass
