Lift capacity 1,400 kg | Lift height 3.1 m | Engine power 49 hp | Drive speed 15 km/h
Powerful loader for professionals.

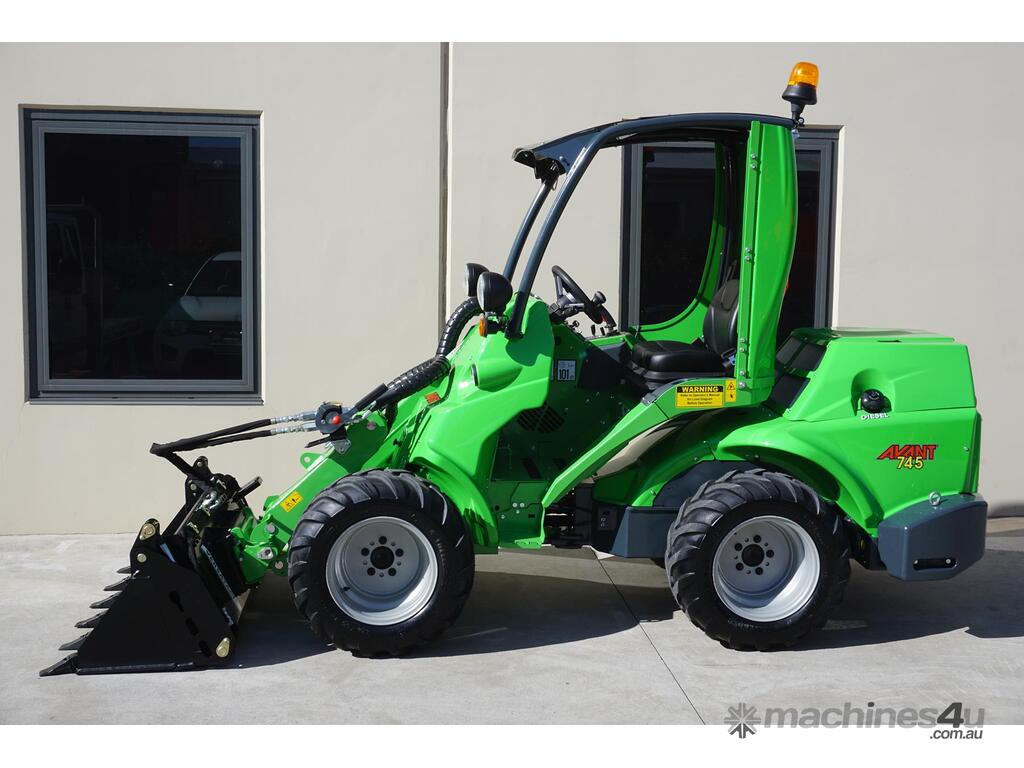

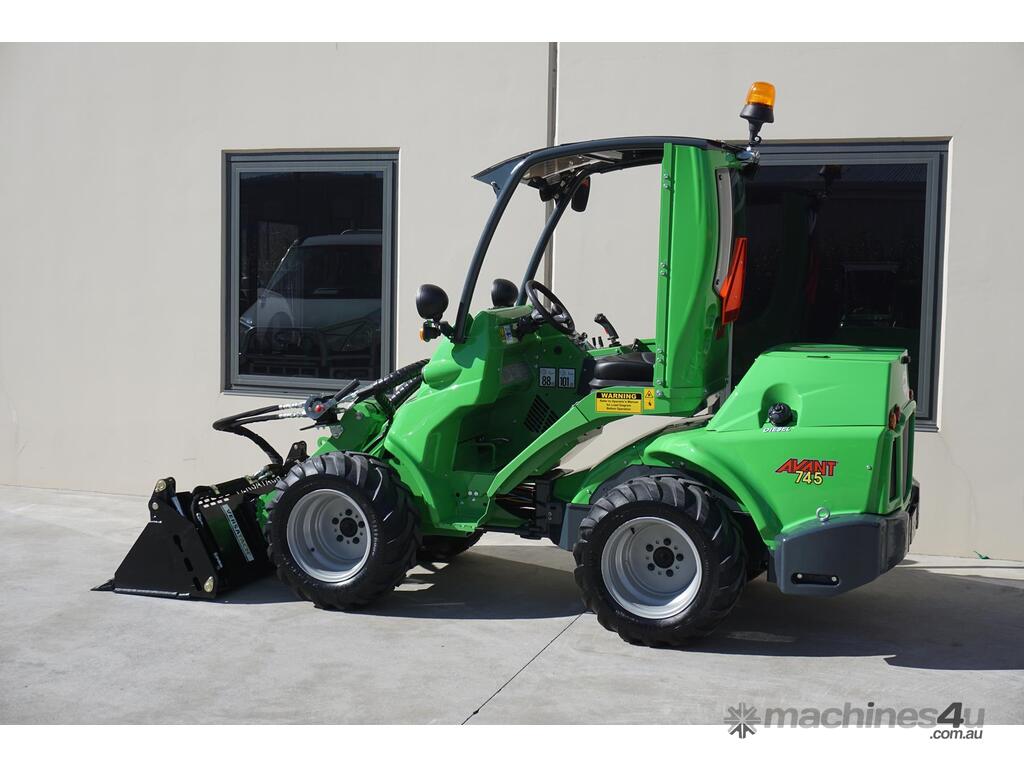

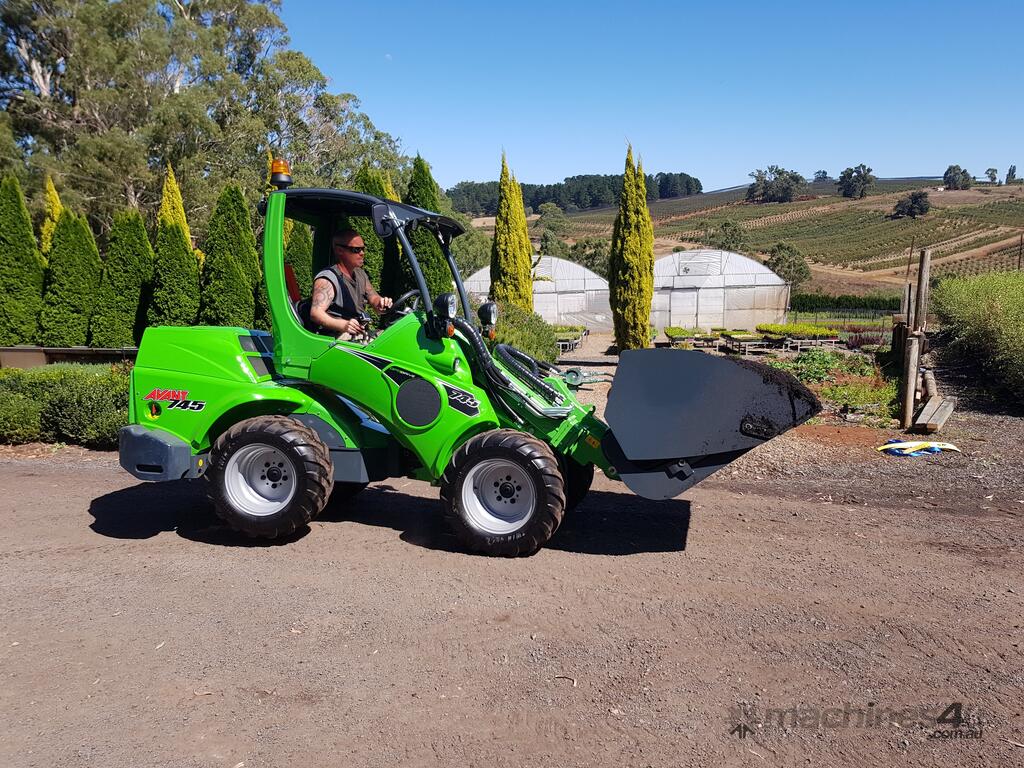

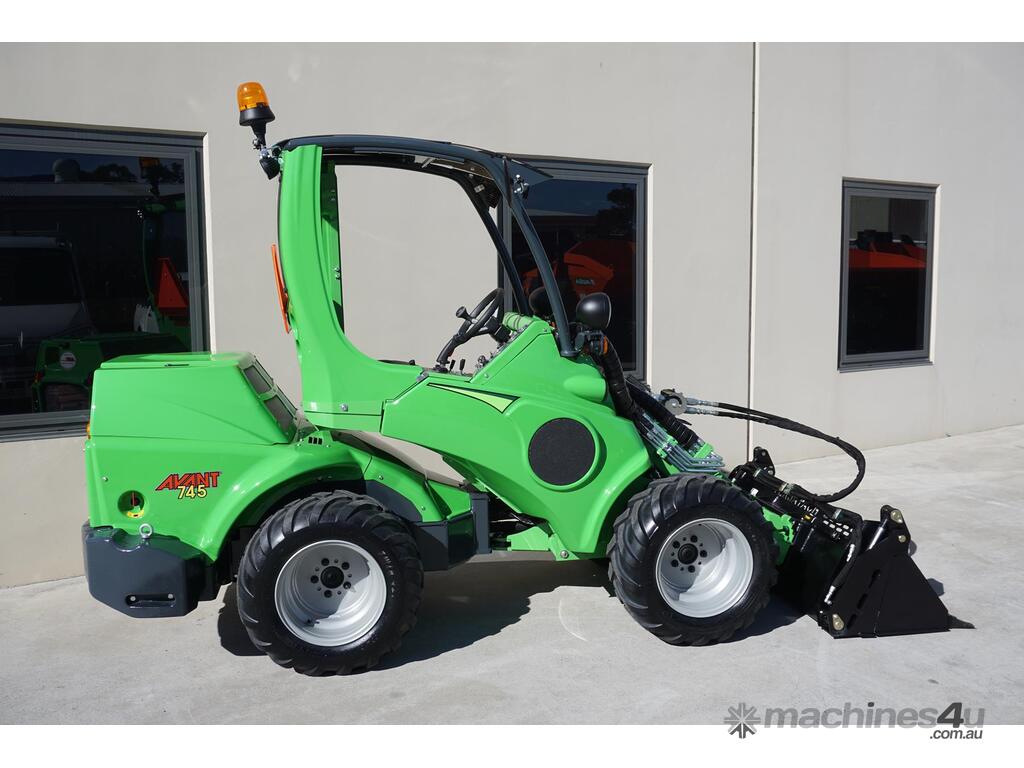

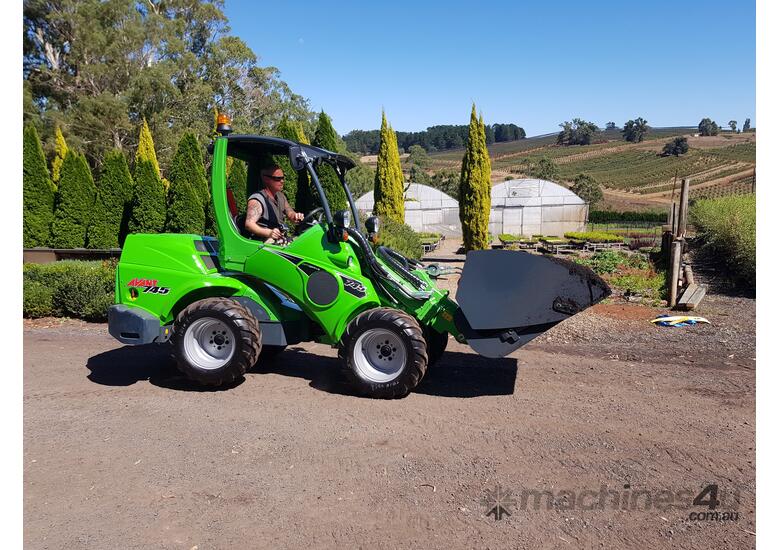

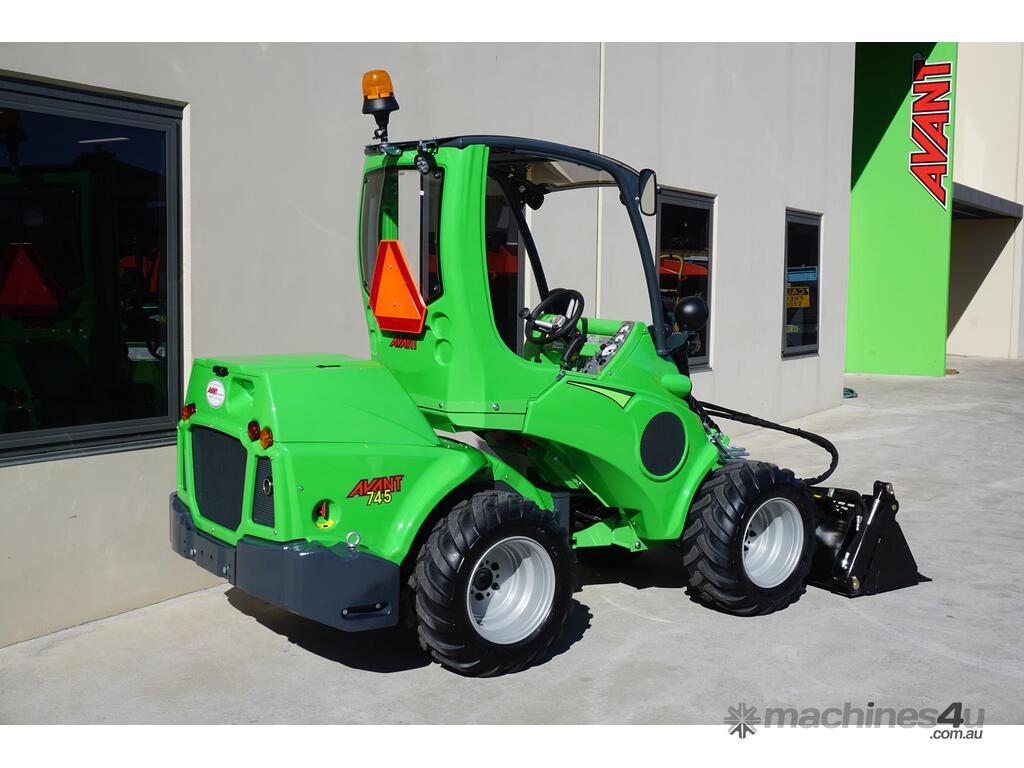

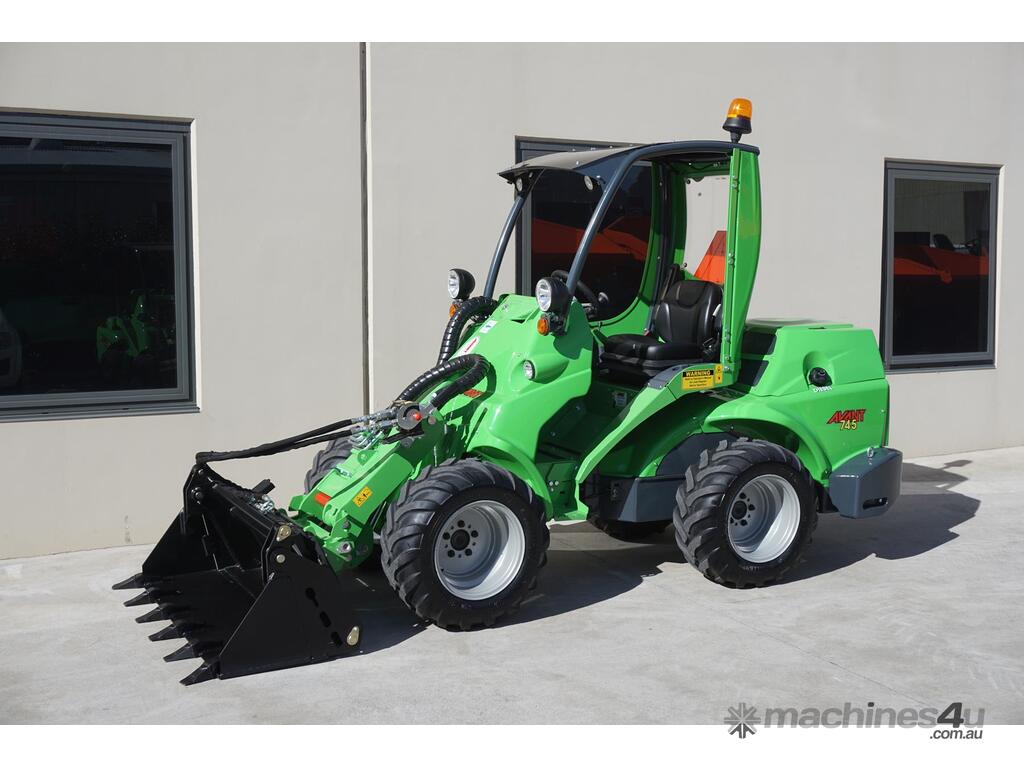

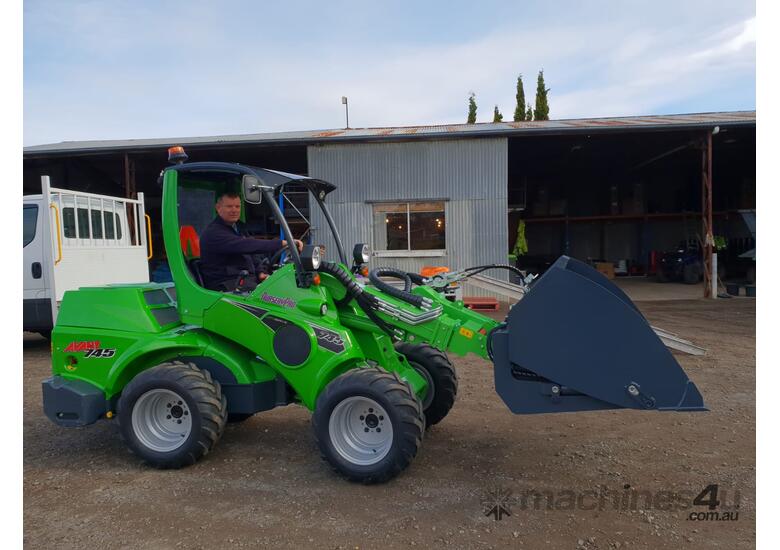

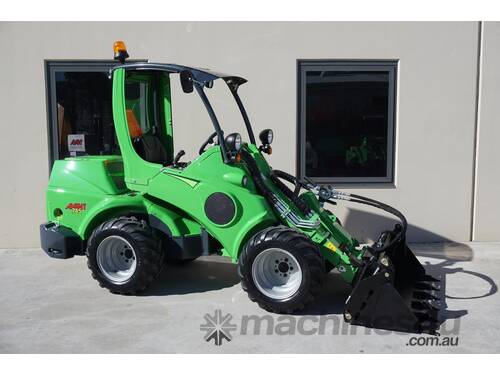

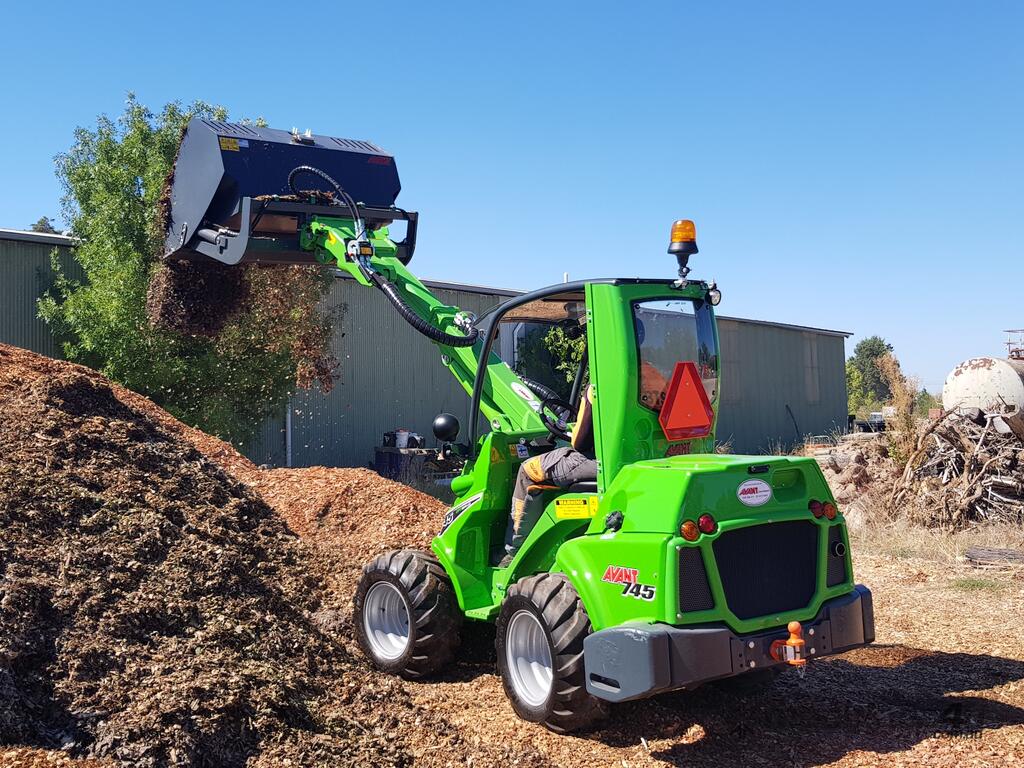

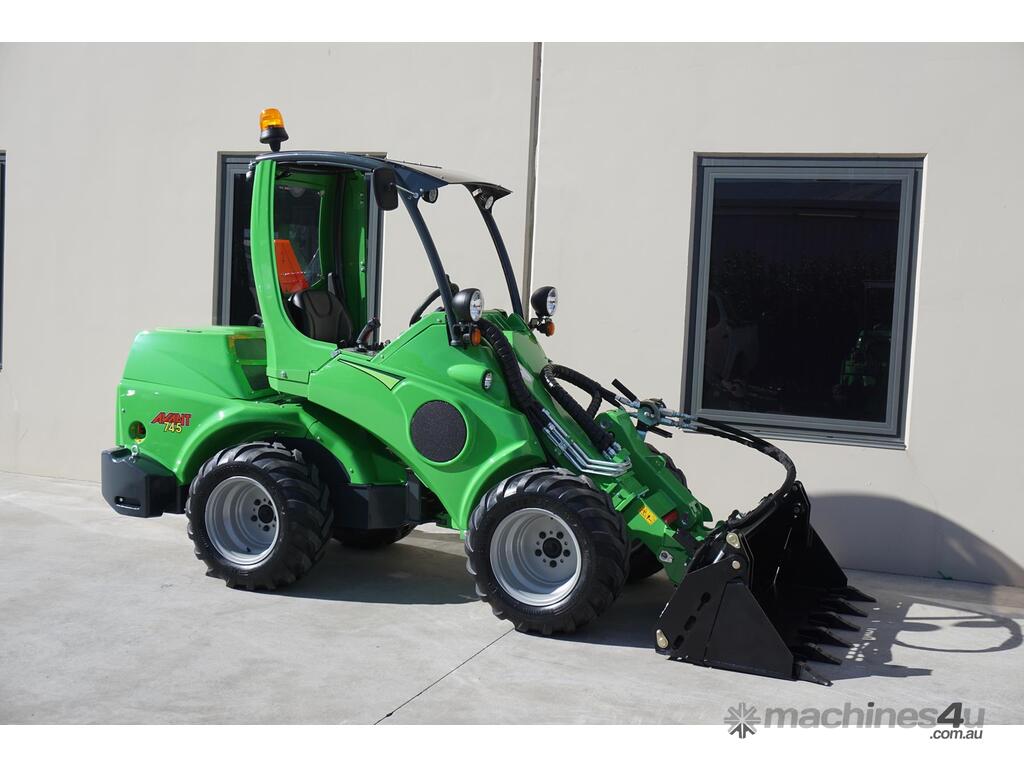

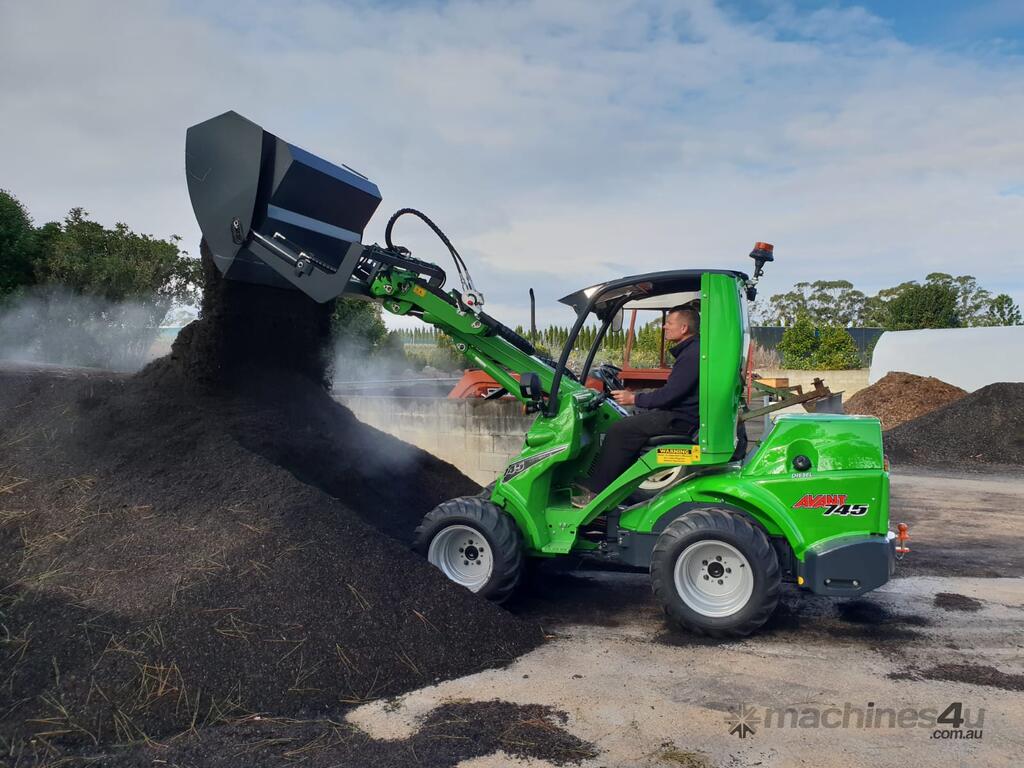

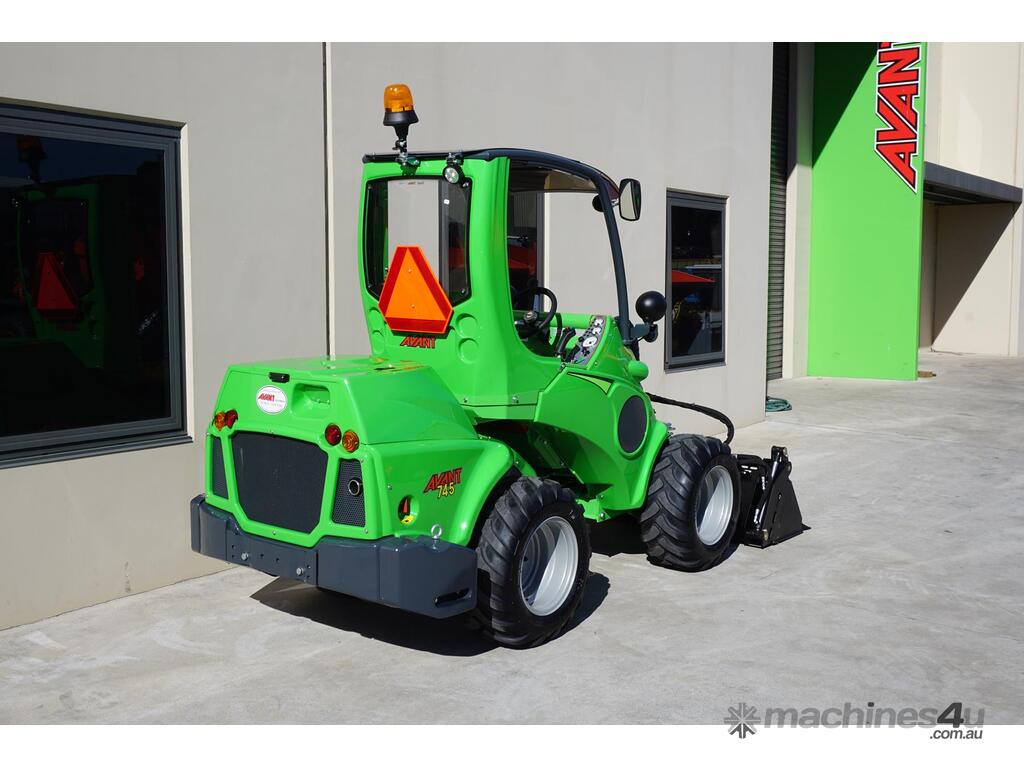

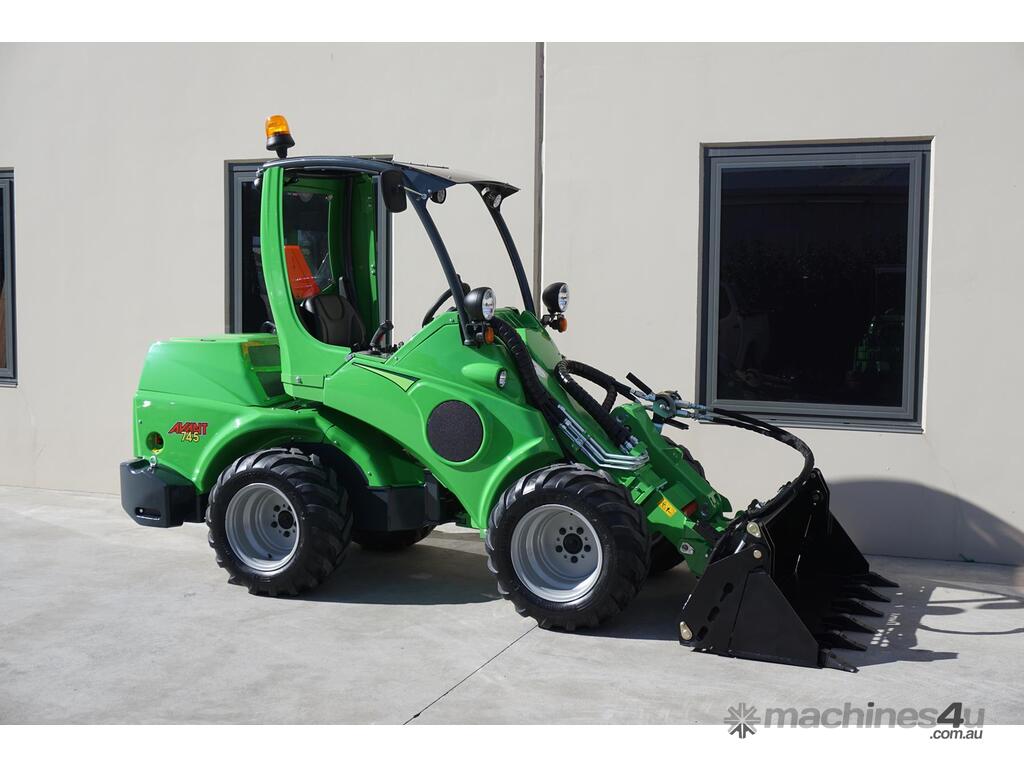

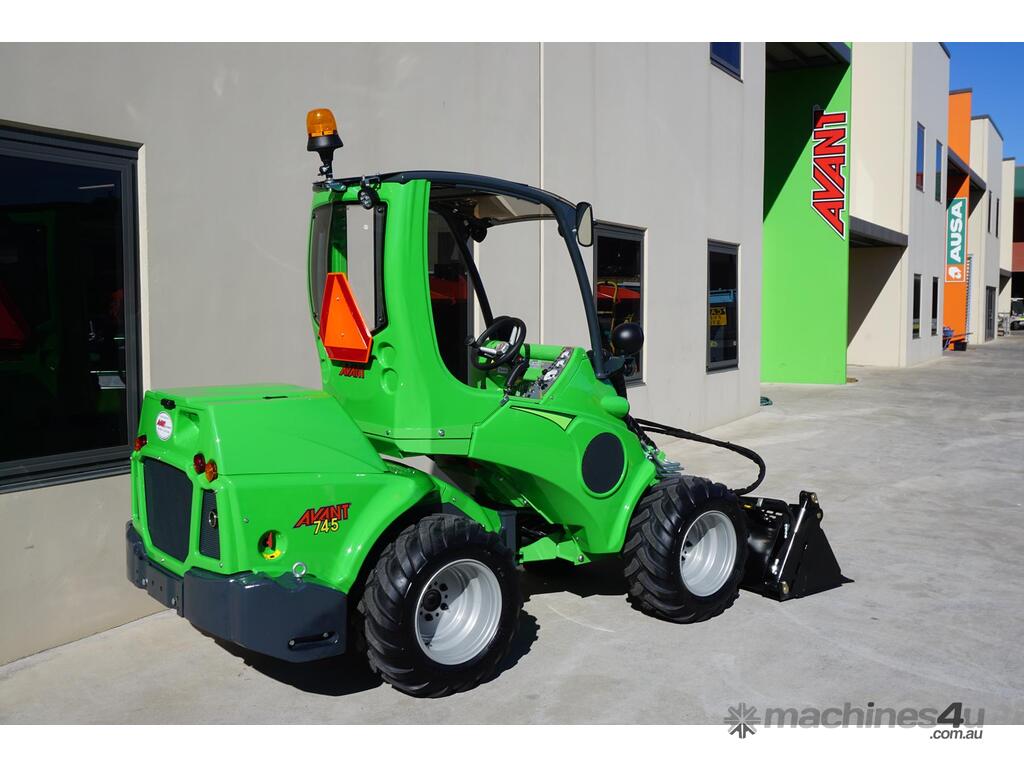

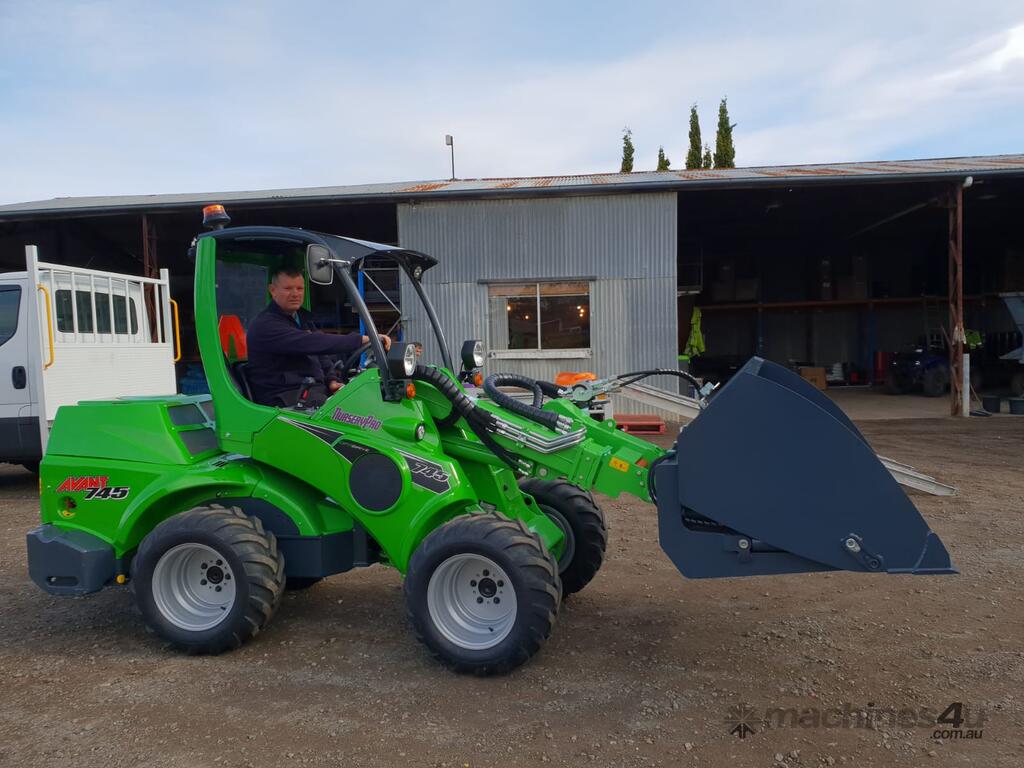

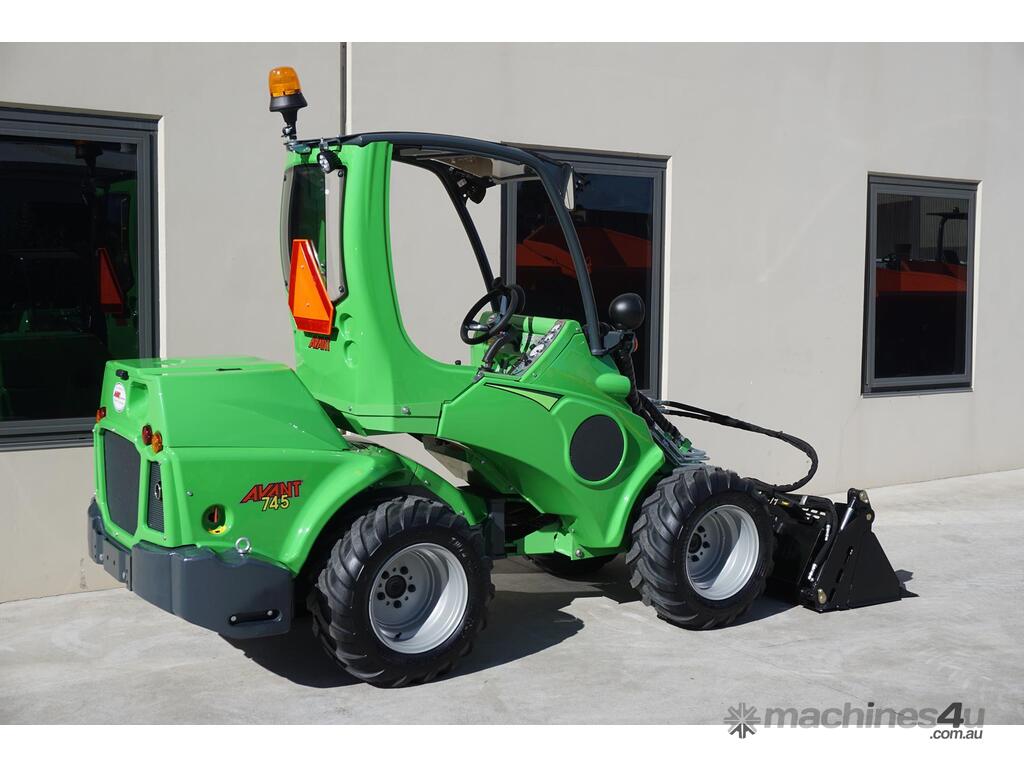

Outstanding handling capacity. An excellent compact loader with huge handling capacity. The Avant 745 loader is a strong multipurpose articulated loader for jobs that require a high lift capacity and/or drive speed in a compact machine.
- Cab options L/LX/DLX available, DLX also with A/C
- Easy to transport with a car trailer
- Optidrive™ drive circuit gives more power for the drive and hydraulic attachments
- Kubota Diesel V2403 36Kw/49hp
- Telescopic boom with 3080 mm lift height
- Self-levelling boom
- Hydrostatic 4 wheel drive
- Hydraulic pilot operated drive pedal
- Direct Drive, 4 hydraulic Motors
- Drive Speed 0 – 15 km/hr
- Auxiliary hydraulics, 70L/min
- Hydraulic Oil Cooler with Single Fan
- Boom Float, Drive release valve
- Suspension Seat with Arm rests
- Hour Meter, Temperature gauge, Tachometer
- 8 Function Joystick
- Turbo Pre-Cleaner
- 2 Front Work lights LED
- Anti-slip Valve Fitted
- Poclain Wheel Motor
- Hydraulic Parking Brake
- Multi Connector on Aux Hydraulics
- Beacon
- ROPS & FOPS
- 26*12.00-12 Wheels & Tyres (1290mm width)
SPECIFICATIONS
- Length 3060 mm
- Width see table
- Height 2060 mm
- Weight 1850 kg
- Standard wheels 320/60-12” HD TR
- Transmission, drive hydrostatic
- Aux. hydraulics oil flow / pressure 70 l/min 240 bar
- Hydraulic oil cooler Standard
- Turning radius inside/outside 1240 / 2780 mm
- Max. lifting height 3080 mm
- Max. lifting capacity (hydr.) 2100 kg
- Tipping load 1400 kg
- Max. breakout force / 50 cm 1700 kg
- Engine make and type Kubota V2403
- Engine output (ISO Gross) 36 kW (49 hp)
- Fuel Diesel
PULLING FORCE
-Wheel size Drive speed Pulling force
320/60-12 and 26×12.00-12 15 km/h 1330 kp
320/55-15 16 km/h 1240 kp
